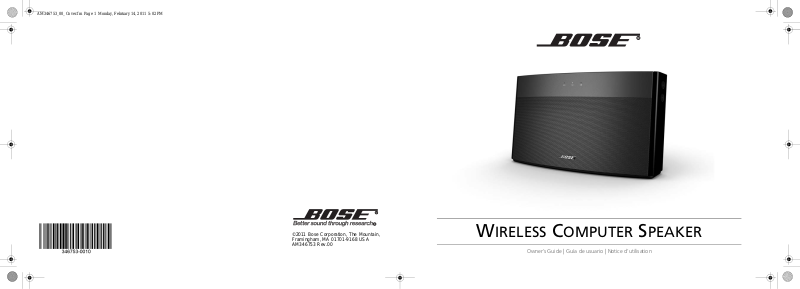

WIRELESS COMPUTER SPEAKER
Owner’s Guide | Guía de usuario | Notice d’utilisation
SAFETY INFORMATION
Please complete and retain
Serial number (on the bottom panel): _________________________________
Model number: ____________________________________________________
Purchase date: ___________________________________________________
Dealer name: _____________________________________________________
Dealer phone: ____________________________________________________
Please keep your sales receipt with this owner’s guide.
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
Please read this owner’s guide
Please take the time to follow the instructions in this owner’s guide carefully.
It will help you to properly use your new Bose® product and enjoy its
features. Please save this owner’s guide for future reference.
The lightning flash with arrowhead symbol within an equilateral
triangle alerts the user to the presence of uninsulated, dangerous
voltage within the system enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle alerts the
user to the presence of important operating and maintenance
instructions in this owner’s guide.
WARNINGS and CAUTIONS
• To reduce the risk of fire or electric shock, do not expose this product
to rain or moisture. The product shall not be exposed to dripping or
splashing, and objects filled with liquids, such as vases, shall not be
placed on or near the product. As with any electronic products, use care
not to spill liquids into any part of the product. Liquids can cause a failure
and/or a fire hazard.
• This product must be used indoors only. It is neither designed nor tested
for use outdoors, in recreation vehicles, or on boats.
• Make no modifications to the product or accessories. Unauthorized
alterations may compromise safety, regulatory compliance, and system
performance, and may void the warranty.
©2011 Bose Corporation. No part of this work may be reproduced,
modified, distributed, or otherwise used without prior written
permission.
2
• Where the mains plug or appliance coupler is used as the disconnect
device, such disconnect device shall remain readily operable.
• Do not place any naked flame sources, such as lighted candles, on or near
the apparatus.
• Contains small parts that may be a choking hazard. Not suitable
for children under age 3.
• Keep batteries out of the reach of children and pets.
• Do not expose the product to excessive heat, including direct sunlight or
fire and storage or use inside cars in hot weather, where it can be exposed
to temperatures in excess of 140°F (60°C). Doing so may cause the battery and power supply to generate heat, rupture, or ignite. Using the product in this manner also may result in a loss of performance and a
shortened life expectancy.
• This product is intended to be used only with the power supply provided.
• Product labels are located on the bottom of the product.
Please dispose of a used or damaged battery promptly and
properly, following all local regulations. Do not incinerate.
TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10
S
AFETY INFORMATION
The Bose® wireless computer speaker complies with FCC and Industry
Canada RF radiation exposure limits set forth for general population. The
system must not be co-located or operated in conjunction with any other
antennas or transmitters.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Important Safety Instructions
1. Read these instructions –
2. Keep these instructions – for future reference.
3. Heed all warnings – on the product and in the owner’s guide.
4. Follow all instructions.
5. Do not use this apparatus near water or moisture – Do not use
this product near a bathtub, washbowl, kitchen sink, laundry tub, in a
wet basement, near a swimming pool, or anywhere else that water is
present.
6. Clean only with a dry cloth – and as directed by Bose Corporation.
Unplug this product from the wall outlet before cleaning.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions – To ensure reliable operation
of the product and to protect it from overheating, put the product in a
position and location that will not interfere with its proper ventilation.
For example, do not place the product on a bed, sofa, or similar surface
that may block the ventilation openings. Do not put it in a built-in
system, such as a bookcase or a cabinet that may keep air from
flowing through its ventilation openings.
8. Do not install near any heat sources, such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Only use attachments/accessories specified by the
manufacturer.
10. Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
for all components before using this product.
11. Unplug this apparatus during lightning storms or when unused
for long periods of time – to prevent damage to this product.
12. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way:
such as power supply cord or plug is damaged; liquid has been
spilled or objects have fallen into the apparatus; the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped – Do not attempt to service this
product yourself. Opening or removing covers may expose you to
dangerous voltages or other hazards. Please call Bose to be referred
to an authorized service center near you.
13. To prevent risk of fire or electric shock, avoid overloading wall
outlets, extension cords, or integral convenience receptacles.
14. Do not let objects or liquids enter the product – as they may
touch dangerous voltage points or short-out parts that could result in
a fire or electric shock.
15. See product enclosure for safety-related markings.
16. Use proper power sources – Plug the product into a proper power
source, as described in the operating instructions or as marked on
the product.
3
S
Service connector –
For factory use only
AFETY INFORMATION
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
Information about products that generate
electrical noise
U.S.A. only
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, this is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, you are encouraged to try to correct the interference by one or
more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a different circuit than the one to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Bose Corporation
could void the user’s authority to operate this equipment.
Canada
• This device complies with Industry Canada licence-exempt RSS
standard(s).
• Operation is subject to the following two conditions: (1) This device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Note: The round connector on the bottom of the Bose
computer speaker is for Bose factory service use only.
®
wireless
4
TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10
Power supply
AC adapter(s)
Remote
control
Wireless computer
speaker
Power
supply
USB key
INTRODUCTION
Overview
Thank you for purchasing the Bose® wireless computer
speaker. Now you can enjoy music from your computer
in any room you choose, wirelessly.
Features:
• Simple wireless connection using the USB key – no
software to install
• Long-range wireless link lets you listen in and around
your home
• Handy remote included
• Compatible with most Bluetooth
®
wireless technology
devices (See “About Bluetooth capabilities” on
page 10.)
Unpacking
Check the carton for all the parts shown.
Save the carton and packing materials, which provide
the safest way to transport this product.
If any part of the product appears to be damaged, do not
attempt to use it. Contact your authorized Bose dealer
immediately or call Bose Customer Service. Refer to
the address list enclosed in the carton for contact
information.
5
SYSTEM SETUP
Your system includes one of these two types of
power supplies.
AC adapter
DC power cord
Power
supply
DC
POWER
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
Activating the system
To activate your new system:
1. Place the wireless speaker on a flat, stable surface.
2. Attach the AC adapter for your region (more than one
may be included) to the power supply.
3. Plug the DC power cord on the power supply into the
DC POWER connector on the wireless speaker.
4. Plug the power supply into a live AC outlet.
CAUTION: Use this system only with the provided
power supply or a replacement power supply from
Bose Corporation.
6
TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10
Wireless source light
Wireless
source
button
Power light
and
Disconnect-reconnect button
Antenna
SYSTEM SETUP
Connecting your computer
1. Make sure the wireless source light on the wireless
speaker is flashing.
If not, press the wireless source button on the
remote. The wireless source light should start
flashing.
2. Make sure your computer is on and all music applications are closed.
3. Lift the antenna on the USB key to the vertical position and plug it into a USB port on your computer.
Confirm that the USB key power light turns on and
starts flashing.
4. Wait a few seconds for your computer to recognize
the USB key. When ready, it will automatically
establish a wireless link with the wireless speaker.
This may take up to 20 seconds the first time, much
less after that.
7
SYSTEM SETUP
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
You may notice the wireless source light and USB key
power light start flashing faster as the speaker establishes a wireless connection.
When both lights change from flashing to always
on, and you hear a tone from the speaker, your
speaker is ready to use.
5. Open the music application on your computer, or
navigate to an Internet radio station and play the
music you want to hear.
To disconnect or reconnect: Press the button on
the end of the USB key. See “Using the USB key” on
page 11 for more information.
Note: While listening to music through the Bose
computer speaker, you will not hear music through your
computer’s internal speakers or sound card.
®
wireless
If you don’t hear music from the wireless speaker:
Restart the music application
If you don’t hear music from the wireless speaker after
successfully connecting the USB key, you may need to
quit and restart your music application.
Set the audio output device
If you still have no audio from the wireless speaker, you
may need to set your computer’s audio output device.
See page 9 for more information.
Check the volume controls
For best performance make sure:
• The wireless computer speaker volume is turned up
and the sound is not muted.
• The volume on your computer is turned up and is not
muted.
• Your music application is running and the volume is
turned up and not muted.
8
TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10
SYSTEM SETUP
Setting your computer’s audio output device
PC users (Windows 7):
1. Open the Control Panel and choose “Hardware and
Sound”.
2. Select “Manage Audio Devices”.
3. Under the Playback tab, select “Bose SoundLink
Audio” and set it as the default.
Mac users:
1. Go to System Preferences and select
“Sound Settings”.
2. Make sure “Bose SoundLink Audio” is the
selected Output device.
Note: After setting the audio source, both PC and Mac users
may need to restart the music application.
9
SYSTEM SETUP
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
Pairing with a
1. Disconnect USB key
Remove the USB key from your computer.
2. Make the wireless speaker Discoverable
Press and hold the wireless source button on
the remote (hold for at least 3 seconds).
The wireless source light on the speaker will
flash slowly, indicating that the system is in
discoverable mode.
3. Select Bose SoundLink from Device List
Look for “Bose SoundLink Audio” in the list of
available devices on your Bluetooth device.
4. Enter Passcode
If your device requests a pass code in order to
complete the pairing, enter “0000.”
5. Complete Pairing
Listen for an audible “up” tone from the wireless
speaker, indicating that the pairing was successful.
Bluetooth® device
About Bluetooth capabilities
The wireless capability of the Bose® wireless computer
speaker is based on Bluetooth wireless technology. This
means that the speaker can be paired with third-party
Bluetooth devices such as stereo Bluetooth mobile
phones that support the Advanced Audio Distribution
Profile (A2DP).
Because implementation of this wireless technology
differs, specific device compatibility, audio quality, as
well as wireless range and performance may vary. For
most devices, maximum wireless range will be around
30 ft.
Note: The computer will remain in the SoundLink
will automatically reconnect if you plug in the USB key and then
power on the wireless computer speaker. For information on how
to manually pair the USB key back to the speaker, see “Restoring
the wireless link” on page 20.
®
memory and
10
TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10
AUX
AUDIO IN source (page 13)
Off: ................AUX source not selected
On: ................AUX source is selected
Wireless source
Off: ................... No wireless connection
Fast Flashing: .. Wireless source is
connecting
Slow Pulse: ....... Speaker or USB key is
in discoverable mode
On: ................... Wireless source is
connected
Brief Flash: ....... Wireless source is
(every 3 sec) selected, but discon-
nected at the computer
Note: Each button pressed on
the remote causes the light for the
selected source to blink.
Disconnect-reconnect button
Press to disconnect or reconnect
the wireless speaker
Power light
Off: ...................... USB key is not powered
Slow flashing: ..... Powered and available for
connecting to the wireless
speaker
Fast flashing: ....... Establishing a connection
On: ....................... Connected to the wireless
speaker
OPERATION
System status lights
The status lights on the Bose® wireless computer
speaker front panel indicate source selection.
Using the USB key
The USB key will automatically connect your computer
with the wireless speaker when you insert it into a USB
port. The wireless speaker must be powered on and
selected as the audio output device in order to connect.
Note: If the USB key does not automatically connect, see
“Restoring the wireless link” on page 20.
Note: If the power light is on but there is no audio, see “If you
don’t hear music from the wireless speaker:” on page 8.
11
OPERATION
Play/Pause and skip buttons may not
work for Internet radio stations or
some music applications.
Remote control
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
Press any remote button except Off to
turn on your wireless computer speaker.
Each time you press a remote button,
the front panel light for the selected
source flashes briefly.
Depending on the music application
you are using on your computer, you
can use the play/pause and skip buttons
to control the music playback.
Note: This remote does not provide transport controls for any
device plugged into the AUDIO IN connector.
12
Press to turn off the wireless speaker.
Press to play or pause the current track on your
computer.
Press to select your computer or Bluetooth
®
device
as a wireless source.
Press to select the AUDIO IN source.
Press to increase (+) or decrease (–) the volume.
Press and hold for faster adjustment.
Press to skip to the beginning of the next track.
Press to skip to the beginning of the previous track.
TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10
System volume touch controls
• Tou ch to increase ( ) or decrease ( ) the volume.
• Touch and hold for faster adjustment.
AUDIO IN
OPERATION
Speaker volume controls
Touch-sensitive volume controls are located on the right
side of the speaker. These raise and lower the wireless
speaker volume in the same way as the remote control
volume buttons.
Adding another music source
You can use another audio device, such as a portable
digital music player, with your wireless speaker. This
requires using a stereo audio cable (not provided) that is
appropriate for the connected audio device and has a
3.5mm mini plug on the end that plugs into the AUDIO IN
connector on the speaker.
1. Plug the cable from the audio device into the
AUDIO IN connector on the back of the wireless
speaker.
2. Press the remote AUX button.
3. Set the connected device to full volume, then use the
wireless speaker volume buttons to adjust the level.
13
OPERATION
Ball
Spool
Taking the system with you
To turn off the wireless speaker and pack it for travel:
1. Unplug the USB key and lower the antenna to its
compact position.
2. If necessary, unplug the power supply from the AC
outlet and the speaker.
3. Wrap the power supply cord around the spool built
into the top of the power supply. Slide the ball toward
the end of the cord as needed and press it into the
spool to hold the cord in place.
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
14
TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10
OPERATION
Optional battery power
An optional battery can be purchased for portable
operation.
To purchase a battery, contact your local authorized
®
Bose
dealer or visit www.Bose.com. To contact Bose by
phone, refer to the contact list provided in the carton.
WARNING: Only use a genuine battery from Bose or an
authorized Bose dealer. Bose cannot warrant the safety
and compatibility or assure the operability of batteries from
other manufacturers for use in operating the wireless
computer speaker.
Replacing the stand with the optional battery.
1. Using your thumbnail or a coin, push
in the slotted knob and turn it
counterclockwise to unlock the
stand.
2. Carefully pull the stand away from the
back of the speaker.
3. On the battery, turn the slotted knob
so the slot is horizontal. You will hear
a short tone indicating the battery
connection has been made.
15
OPERATION
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
Checking the optional battery power level
1. Press and hold the remote control Off button.
2. Notice the color of the light on the front of the
wireless computer speaker.
• Green – Battery power is above 70%.
• Green (blinks briefly) – A remote button is pressed.
• Yellow – Battery power is between 20% and 70%.
• Yellow – Battery is charging (if the system is
plugged in).
• Red (solid) – Battery power is 20% or less.
• Red (blinking) – Recharging is required.
• Red, yellow, green (cycle) – Optional battery is not
installed.
• Off – Battery is fully charged or the system is off.
More to know about the optional battery
Plugging in the power supply recharges the battery. The
indicator light glows yellow, then green when the battery
is at or above 70% of power.
• If the light remains yellow after 10 hours of recharging,
the battery needs to be replaced.
• If the period of battery operation becomes shorter and
shorter, the battery needs to be replaced.
• If the system is unplugged and unused for many days,
the system enters battery power protection mode.
Plugging in the power supply is the only means to
reactivate the system.
• With the battery fully charged and the system playing
at full volume, the battery provides approximately
three hours of play.
• Lowering the volume extends the battery power
significantly.
• There is very little depletion of battery power when the
wireless computer speaker is not in use.
CAUTION: Please carefully read and follow the important safety
instructions included with the battery.
16
TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10
CARE AND MAINTENANCE
Replacing the remote battery
When the remote stops operating or its range seems
reduced, it is time to change the remote battery. Replace
it with type CR2032 or DL2032.
1. Using a coin, turn the battery
cover slightly counterclockwise.
2. Remove the used battery and
insert the new one. Be sure the
battery is plus (+) side up.
3. Reseat the cover and turn it
clockwise until it locks into place.
WARNINGS:
• Keep the remote control battery away from children. It may
cause a fire or chemical burn if mishandled. Do not recharge,
disassemble, heat above
• Dispose of used batteries promptly. Replace only with a battery
of the correct type and model number.
• Danger of explosion if battery is incorrectly replaced.
Replace only with CR2032 or DL2032 3-volt lithium battery.
100ºC (212ºF),
or incinerate.
Cleaning
To clean the exterior surface of your product, you can
wipe it using a soft, dry cloth. You can also lightly
vacuum the grille.
• Do not use solvents, chemicals, or sprays.
• Do not allow liquids to spill or objects to drop into
any openings.
Troubleshooting
If you experience difficulty with your Bose® wireless
computer speaker, use the following table to try to solve
the problem. If the problem persists, see “Contacting
customer service” on page 20.
17
CARE AND MAINTENANCE
Problem What to do
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
My computer does not
recognize the USB key.
My computer does not
connect with the speaker.
The wireless source light
blinks continuously.
The speaker does not
respond to remote control
commands.
18
• Remove the USB key from your computer, wait 30 seconds and insert it again.
• If you are using a USB hub, make sure the hub is powered.
• Try a different USB port. If you are using a powered USB hub, try moving the USB key to a USB
port on the computer.
• Remove the USB key, restart your computer, and insert the USB key again.
• Refer to the owner’s guide, help system, or technical support for your computer to learn how to
detect and install new hardware.
• Decrease the distance between the speaker and your computer.
• If you are using a desktop computer, try moving the USB key to a USB port on the front of the
computer (if possible) or use a USB extension cable.
• Remove the USB key from your computer, wait 30 seconds and insert it again.
• Disconnect the power supply from the speaker, remove the battery from the speaker and install it
again. Reconnect the power supply.
• Try restoring the wireless link between the speaker and the USB key. See “Restoring the wireless
link” on page 20.
• Try moving the speaker closer to your computer or away from possible sources of interference such
as another wireless device, a microwave oven, or wireless computer network router.
• Make sure there is a clear path between the remote and the speaker.
• Using a clean, dry cloth, wipe the small lens on the front end of the remote.
• Try the remote from a different location or try changing the location of the speaker. You may be
experiencing interference from bright room lights or sunlight.
• Make sure the remote battery is installed correctly or replace it if it is old.
• Make sure your music playback program is selected in the foreground on your computer.
• Be aware that remote commands may not operate Internet radio stations.
TAB 5, 13TAB 4, 12 TAB 6, 14 TAB 8, 16TAB 7, 15English TAB 3, 11TAB 2, 10
Problem What to do
CARE AND MAINTENANCE
I cannot hear music playing
from my computer on the
speaker.
I cannot hear music from
the AUX source.
Poor reception, or audio is
dropping out
• Make sure “Bose SoundLink Audio” is selected as the audio output device for your computer.
(See page 9 of this guide for instructions.)
• Close or quit the music application on your computer and restart it.
• Press the USB key button. Unplug the USB key, wait 5 seconds, and plug it in again.
• Increase the speaker volume.
• Make sure the volume on your computer is turned up and is not muted.
• Make sure your computer music application is running.
• Press the USB key button to restore the wireless link.
• Press the AUX button on the remote and check that the AUX source light is on.
• Make sure your connected device is on and playing.
• Increase the volume level on the device.
• Increase the wireless speaker volume.
• Change the angle of the antenna on the USB key.
• Rotate the speaker, or move a few feet to a new location.
• Connect the USB key to a different USB port on your computer or try using a powered USB hub.
• Move the speaker away from known wireless sources of interference, such as microwaves, cordless phones, mobile phones, and Wi-Fi routers.
• Use a USB extension cable, available for purchase at computer stores. These cables have a normal
USB male connector on one end and a female connector on the other. Plug the USB key into the
female end and plug the male end into the computer.
• If you continue to experience reception problems, contact Bose customer service.
19
CARE AND MAINTENANCE
EnglishTAB 6, 14TAB 8, 16 TAB 7, 15 TAB 3, 11TAB 5, 13 TAB 2, 10TAB 4, 12
Restoring the wireless link
If the wireless speaker and USB key fail to connect, or if
you have purchased a replacement USB key, follow the
following steps to restore the wireless link.
1. Turn on the speaker.
2. Press and hold the wireless source button until the
wireless source light starts flashing slowly.
3. Press and hold the USB key button until the USB key
power light starts flashing slowly.
4. Wait until both indicator lights change from flashing
to always on.
When you hear a tone from the speaker, it has
successfully connected with the USB key.
Contacting customer service
For questions about the Bose® wireless computer
speaker, contact your local Bose dealer. To contact Bose
directly, see the address list included with your speaker
or visit http://owners.Bose.com on the Internet.
Limited warranty
Your wireless computer speaker is covered by a limited
warranty. Details of the limited warranty are provided
on the product registration card that is included in the
carton. Please refer to the card for instructions on how
to register. Failure to register will not affect your limited
warranty rights.
What you must do to obtain limited
warranty service
Return the product, with proof of purchase from an
authorized Bose dealer, using the following procedures:
1. Contact the Bose organization in your country/region
(visit http://global.Bose.com for Bose contact information in your country/region) for specific return and
shipping instructions.
2. Label and ship the product, freight prepaid, to the
address provided by the Bose organization in your
country.
3. Place any necessary return authorization number
prominently on the outside of the carton. Cartons
not bearing a return authorization number, where
required, will be refused.
20
Loading...
