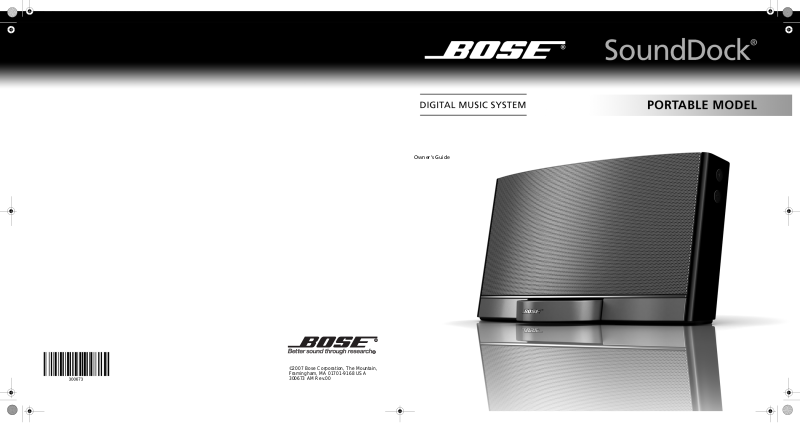

Owner’s Guide
IMPORTANT SAFETY INSTRUCTIONS
EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands
Please read this owner’s guide.
Please take the time to follow the instructions in this owner’s guide carefully . It will help you to pr
features. Please save this owner’s guide for future reference.
READ INSTRUCTIONS
The lightning flash with arrowhead symbol within an equilateral
triangle alerts the user to the presence of uninsulated, dangerous voltage
ithin the system enclosure that may be of sufficient
w
magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle alerts the user
to the presence of important operating and maintenance instructions in this owner’s guide.
WARNINGS and CAUTIONS
• To reduce the risk of fire or electric shock, do not expose this product
to rain or
splashing, and objects filled with liquids, such as vases, shall not be
placed on or near the product. As with any electronic products, use
care not to spill liquids into any part of the product. Liqu
a failure and/or a fire hazard.
• The power supply must be used indoors only. It is neither designed nor
tested for use outdoors, in recreation vehicles, or on boats.
• Before use, charge the battery using only the power supply pr
with the system. Refer to charging instructions in the system owner’s
guide. Do not continue charging the battery if it does not reach full
charge within the specified char ging time. Overc harging may cause the
battery to become hot, rupture, or ignite. If you see any heat deformation or leakage, properly dispose of the battery.
• Do not attempt to recharge the battery in tem
range of 32°-104°F (0°-40°C).
• Keep batteries out of the reach of children and pets.
• If the battery begins to l
with your skin or eyes. If contact has been made, wash the affected
area with plenty of water and seek medical advice immediately.
• Do not expose the product or batter
direct sunlight or fire and storage or use inside cars in hot weather,
where it can be exposed to temperatures in excess of 140°F (60°C).
Doing so may cause the battery and power supply to generate heat,
rupture, or ignite. Using the product in this manner also may result in a
loss of performance and a shortened life expectancy.
moisture. The product shall not be exposed to dripping or
operly use your new Bose® product and enjoy its
ids can cause
ovided
peratures outside the
eak, do not allow the liquid to come in contact
y to excessive heat, including
• If the battery is damaged and ignites, do not use water to extinguish
flames. Instead, use a functioning fire extinguisher.
• Do not short-circuit batteri
such as keys, pocket change, paper clips, and jewelry.
• Do not step on, throw, or drop batteries or the power supply or expose
them to a str
batteries or power supply in any wa
properly dispose of it.
• Make no modifications to the product or accessories. Unauthorized
lterations may compromise safety, regulatory compliance, and
a
system performance, and will void the warranty.
• Where the mains plug or appliance coupler is used as the disconn
device, such disconnect device shall remain readily operable.
• No naked flame sources, such as lighted candles, should be placed
on the product.
• Do not dismantle, open, or shred the battery.
• The battery is intended to be used only with the B
power supply provided with it.
• After extended periods of storage, it may be necessary to charge and
dischar
• The cells in the batteries perform best when operating at normal room
temperatur
• We recomme nd re placing the S oundDock
ine SoundDock battery from Bose or an authorized Bose dealer. Bose
cannot warrant the safety and compatibility or assur e the operabi lity of
batteries from other manufacturers for use in operati ng the SoundDoc k
Portable system. DO NOT attempt to use the SoundDock battery to
power other electronics. Doing so may result in permanent damage to
your system and/or personal injury
• Product labels are located on the bottom of the product and on the
battery.
ong shock. Do not pierce, crush, dent, or deform the
ge the battery several times to obtain maximum performance.
e, 70°F (20°C).
Please dispose of a used or damaged battery promptly and
properly, following all local regulations. Do not incinerate.
To return a system battery for recy
Bose dealer. In the United States only, call 1-800-905-2180 or
visit the Bose website at: www.Bose.com. For other regions,
see the contact information included in this guide.
This product conforms to the EMC Directive 89/336/EEC
and to the Low Voltage Directive 2006/95/EC. The complete
Declaration of Conformity can be found at www.Bose.com/
static/compliance/index.html.
WARNING: This product is intended to be used only with the
power supply provided: Bose P/N301141 or P/N 306386.
es. Avoid storing them around metal objects
y. If either becomes deformed,
ose product and the
®
system battery with a genu-
.
cling, contact Bose or your
ect
2
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions – for all components before using this
product.
2. Keep these instructions – for future reference.
3. Heed all warnings – on the product and in the owner’s guide.
4. Follow all instructions.
5. Do not use this apparatus near water or moisture – Do not use
this product near a bathtub, washbowl, kitchen sink, laundry tub, in
a wet basement, near a swimming pool, or anywhere e lse that water
or moisture are present.
6. Clean only with a dry cloth – and as directed by Bose Corporation.
Unplug this product from the wall outlet and remove the battery
before cleaning.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions – To ensure reliable opera-
tion of the product and to protect it from overheating, put the product in a position and location that will not interfere with its proper
ventilation. For example, do not place the product on a bed, s ofa, or
similar surface that may block the ventilation openings. Do not put it
in a built-in system, such as a bookcase or a cabinet, that may keep
air from flowing through its ventilation openings.
8. Do not install near any heat sources, such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Only use attachments/accessories specified by the
manufacturer.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Unplug this apparatus during lightning storms or when unused
for long periods of time – to prevent damage to this product.
12. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way:
such as power supply cord or plug is damaged; liquid has been
spilled or objects have fallen into the apparatus; the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped – Do not attempt to service this
product yourself. Opening or removing covers may expose you to
dangerous voltages or other hazards. Please call Bose to be referred
to an authorized service center near you.
13. To prevent risk of fire or electric shock, avoid overloading wall
outlets, extension cords, or integral convenience receptacles.
14. Do not let objects or liquids enter the product – as they may
touch dangerous voltage points or short-out parts that could result
in a fire or electric shock.
15. See product enclosure for safety-related markings.
16. Use proper power sources – Plug the product into a proper power
source, as described in the operating instructions or as marked on
the product.
Information about products that
generate electrical noise
NOTICE (in U.S.A. only)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can
diate radio frequency energy and, if not installed and used in accor-
ra
dance with the instructions, may cause harmful interference to radio
ommunications. However, this is no guarantee that interference will not
c
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, you are encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a dif
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
In Canada: T
ICES-003.
his Class B digital apparatus complies with the Canadian
FCC WARNING
Changes or modifications not expressly approved by Bose Corporation
could void the user’s authority to operate this equipment.
ferent circuit than the one
The SoundDock® system operates with any iPod® with click wheel control.
An iPod is not included with this product. SoundDock is a registered trademark of
Bose Corporation. iPod is a registered trademark of Apple, Inc.
All other marks are registered trademarks and trademarks of Bose Corporation. All
rights reserved.
3
YOUR SOUNDDOCK® PORTABLE DIGITAL MUSIC SYSTEM
Adding to your iPod® possibilities
EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands
Congratulations on your choice of the SoundDo ck® Portable digital music system from Bose. This high-performance system, as a companion to your iPod
®
or other sound device, invites your music to come out and play.
Wherever you take it, don’t be surprised if this SoundDock Portable system draws a wide audience of people who love the
und. You also can enjoy the::
so
• Battery or AC power as choices for how and where you
use your SoundDock Portable system.
• Remote control that adjusts the
controls basic iPod operation.
• Full compatibility with a variety of iPods
that feature a click wheel control, as shown:
system volume and
Unpacking and setting up
Check the carton for all of the parts shown here. Save the carton for
possible future use in transporting the system, as needed.
Place the SoundDock Portable system on a firm and level surface
th
at is free from sand, dirt, and other debris. Exposure to such ele-
ments can jam the dock and keep it from opening properly.
The system features shielded s
video interference if you place it near a computer or video screen.
Note: One unusual
feature of this system is the Bose® proprietary
peakers that limit the possibility of
• Recharging for your iPod while it is in the SoundDock Portable
system dock.
• Audio input on the rear of the system for connecting a second
sound device.
SoundDock
Portable digital
music system
Power supply
adapter
Remote
control
Power
supply
mechanism to isolate vibration. You may notice it as a slight movement
when you grasp the speaker. This feature actually adds stability and
keeps the system from moving while it play s.
Whenever you move your SoundDock Portable system:
• Make sure your iPod is removed and the dock on the front is closed.
• Place one hand in the grip on the rear of the system and lift.
• Use the other hand to support the bottom until you place the system where you like.
4
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
USING YOUR NEW MUSIC SYSTEM
Taking advantage of two power sources
When your new SoundDock® Portable system is plugged into an AC (mains) outlet, it charges both the system battery and
your iPod (playing or not). When your system is not plugged in, it draws from battery power.
CAUTION: Use
this system only with the attached battery or a replacement battery from Bose.
IAttaching the power supply
There is no need to remove the SoundDock
Portable system battery when you attach the
AC power supply. The system automatically
draws from this power supply. To connect it:
1. If there is more than one power plug
adapt
er in the carton, choose the one that
is proper for your area or country.
Do not use an adapter that is labeled for
se in another country.
u
IMPORTANT IN CHINA AND KOREA ONLY:
A clip for use in your country
outside of the small bag that contains it. Be
sure to use that adapter only.
2. Attach the adapter to the power supply (A).
3. Insert the free end of the power cable into
th
e connector on the SoundDock
system (B).
4. Plug the power supply into an AC (mains)
p
ower outlet (C).*
CAUTION: Use
this system only with the
provided power supply or a replacement
power supply from Bose: P/N 301141
or P/N 306386.
is labeled on the
A
Proper adapter
for your area
B
DC Power
connector
One of these two power supplies is provided:
Proper adapter
for your area
C
Power
supply
Power cable
D
Ball
Groove
AC (mains)
power
outlet
Taking the power supply along
The power supply is designed for packing up to go whenever you do. Before you leave:
• Wind the cable around the groove along the top (D).
• Move the small round ball as needed to fix the cable in place.
*You may notice a brief tone that confirms power attachment when you first plug in the system.
5
EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands
USING YOUR NEW MUSIC SYSTEM
Using the battery
The battery on the SoundDock® Portable system is partially charged before shipping. However, during shipping the
system enters a protection mode to preserve battery power. Plugging in the power supply returns the system to active
ope
ration and charges the battery as needed.
For information on using a backup battery, refer to “Installing a new SoundDock Portable system battery
Battery operation
Volume level and music type affect the rate of battery discharge. A fully charged battery provides approximately three
h
ours of use when the SoundDock Por table system is set to full volume.You can extend this time significantly by choosing
a lower volume.
• A quick way to check the battery power level is to press and hold the remote control Off button. Then notice the color of
th
e light on the front of the SoundDock Portable system. For details, refer to “Noticing the indicator lights” on page 8.
• There is very little depletion of battery power when the SoundDock Portable system is not in use.
• A blinking red light on the fr on t of th e system indicate s when the ba ttery ne eds to be recharged. Recharging the battery
may
take up to 10 hours (whether it is playing or not).
• Plugging in the power supply recharges the battery, as indicated by the yellow light on the front of the system.
• If the light remains yellow after 10 hours of recharging, the battery needs to be replaced.
• If the period of battery operation becomes shorter and shorter, the battery needs to be replaced.
• When it is unplugged and unuse
the power supply is the only means to reactivate the system.
d for 14 days or more, the system enters battery power protection mode. Plugging in
” on page 9.
CAUTION: Refe
r to the important safety instructions at the beginning of this guide for WARNINGS and CAUTIONS.
Exploring the other features
Portability is an important element in the d esign and featu r es of
your SoundDock Portable system. The system also contains
several unique features.
Using the dock
The SoundDock Portable system provides a versatile dock.
• To open the dock for use:
Press and release the right side of the dock frame (1a).
The dock automatically swings out to the left (1b).
• To close the dock before moving the system:
With one finger inside the dock, pull the dock forward and
ound to the right (2).
ar
Press in on the right side until the dock latche s (3).
6
1a
1b
2
3
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
T
USING YOUR NEW MUSIC SYSTEM
Inserting your iPod
The dock on your SoundDock® Portable system is ready for
use with a variety of iPods. If your iPod
adapter that is custom-designed for it, we suggest using that
adapter instead.
1. Carefully insert the edge of a
®
®
includes a dock
A
B
flat-blade screwdriver into
the narrow slot inside the dock. Press gently to release the
latch and lift out the insert. (A).
2. Insert your iPod adapter (B).
3. Place your iPod in the dock (C).
Charging begins, as needed, whenever you insert your iPod
int
o the dock. This is true whether the SoundDock Portable
C
system is plugged in or operating actively on battery powe r.
Using the remote
Each time you press a button on the remote control, a small green light on the front of the system flashes briefly.
Besides controlling the SoundDock Portable s
basic iPod functions. However, it does not control a second sound device.
• Turn on both your iPod and the SoundDock
The iPod charges, as needed, when the system is active. For more details, see “Playing your iPod
• Adjust the SoundDock Portable system volume by pressing
For faster adjustment, press and hold.
• Pause your iPod play by pressing
ystem volume, the remote control turns your iPod on or off and controls
Portable system by pressing any button (except Off).
or .
Off
®
” on page 8.
once. To resume play, press again.
Play/mute
• Return to the beginning of an iPod track by pressing
once.
Volume
Playlist select
To skip to the beginning of the previous track, press twice.
To scan backward quickly through a track, press and hold.
• Skip to the next iPod track by pressing
To scan forward quickly through a track, press and hold.
• Select your next or previous iPod playlist by pressing
• Turn off both your iPod and the SoundDock
once.
rack seek
or .
Portable system by pressing .
To turn on the system, press any other button.
Some conditions, such as room lighting, furniture that blocks the signal path, or direct sunlight, can affect remote
operation. If the remote does not work as it should, move the SoundDock Portable system, dim the lights, or turn the front
of
the system away from the sun. You also may move closer to the system when you use the remote.
7
USING YOUR NEW MUSIC SYSTEM
EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands
Playing your iPod
If your iPod® is turned on and playing when you insert it, music playback begins immed i ately.
• Buttons on the right side of the SoundDock
®
®
Portable system raise (+) or lower (–) the vol-
Volume
buttons
ume. Whenever you press either button, a small green light on the front of the system
fla
shes briefly.
• If earphones are plugged into your iPod when it is playing, sound comes from both the
earphones and the system.
• When running on battery power, the SoundDock Porta
ble system becomes inactive when
your iPod is off or silent for 10 minutes. This suspends iPod charging.
• Pressing any button (except Off) reactivates the SoundDock Portable system and resumes iPod charging.
• When the iPod is fully charged, leaving it in the dock does no harm to the SoundDock Portable system or to your iPod.
Playing another sound device
You can use anothe r s ound de vic e, such as a portable DVD player shown
Audio input
connector
here, with your SoundDock Portable system. This requires using an audio
input cable (not provided with the system) that is appropriate for the device
and has a 3.5mm mini plug on one end.
1. Connect this other sound device to the system.
2. Set the device to full volume, then us e the SoundDock Portable system
volume buttons to adju
3. Remove your iPod, if it is in the dock. Y
st the level.
our added sound device will not
Audio input cable
play when the iPod is connected.
4. With this sound device turned on, touch any button (except OFF) on the
SoundDock Portable system or remote c
ontrol to reactivate the system.
Noticing the indicator lights
On the front of the SoundDock Portable system, a small light lets you know the state of the system.
The light appears:
• Off, when the battery is fully charged and the system is on or off, playing or inactive.
• Green, when you touch a button on the remote or on the SoundDock Portable system. This light flashes several times
en the volume reaches maximum or minimum.
wh
• Yellow, solid when the system battery is charging.
• Red, blinking when the system battery needs charging. This requires plugging in the system.
The light also indicates the level of battery power when you press and hold down the Off button on the remote:
• Red – 20% or less full power • Yellow – from 20% to
8
70% full power • Green – above 70% full power
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
OTHER CARE AND HANDLING
Maintaining your system
You may want to clean your SoundDock® Portable system occasionally. Other than that, charging and changing batteries
should be the only maintenance needed.
Cleaning the outside
Wipe the system using a soft, dry cloth. You can also lightly vacuum the grille or the dock to remove any grit or debris.
• Do not use solvents, chemicals, or sprays.
• Do not allow liquids to spill or objects
to drop into any openings. Damage from liquids voids the warranty.
Installing a new SoundDock Portable system battery
To purchase a replacement battery or an additional battery as backup, contact your local authorized Bose® dealer. Or you
can order a battery by visiting the Bose website: www.Bose.com. To contact Bose by phone, refer to the contact list
provided in the carton.
To remove the battery:
1. Press in and turn the slotted knob on the back of the system
counterclockwise (A), using a thumb or coin. This releases
the battery lock.
2. Using both hands, firmly pull ba
remove it from the multi-pin connector on the lower left rear
of the system (B).
WARNING: W
Portable system battery with a genuine SoundDock batter
Bose or an authorized Bose dealer. Bose cannot warrant the
safety and compatibility or assure the operability of batteries
from other manufacturers for use in operating the SoundDock
Portable system.
To attach a new battery:
1. Make sure the slot in the kn ob on th e ba ck of th e ba tt ery is in
a horizontal position (C).
2. Fit the battery plug into the multi-pin connector at the lower
lef
t rear of the system.
3. With the battery in place, press in and turn the slotted knob
c
lockwise until the slot is vertical. This locks the battery in
place (D).
e recommend replacing the SoundDock
ck on the battery. Carefully
y from
A
Slotted knob
C
Multi-pin
connector
B
Multi-pin
connector
D
Horizontal Vertical
9
OTHER CARE AND HANDLING
Replacing the remote control battery
When the remote stops operating or its range
seems reduced, it is time to change the remote
battery.
EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands
+ side up
1. Using a coin, turn the b
attery cover slightly
counterclockwise. When the cover comes off,
turn over the remote and tap it lightly on your
hand.
2. Remove the used battery and place the new
ery in the compartment. Be sure the new
batt
battery is broad side up, with the + symbol in
view.
3. Reseat the cover, with the slot at a slight angle,
d turn it clockwise until the slot is vertical.
an
Removing the power supply adapter
You can remove the adapter that came with your power supply, if
WARNINGS:
Keep the remote control battery away from children. It may cause a fire or chemical
•
burn if mishandled. Do not recharge, disassemble, heat above 140ºF (60ºC), or incinerate.
• Dispose of used batteries promptly. Replace only with a battery of the correct type and
model number.
• Danger of explosion if battery is incorrectly replaced. Replace only with Duracell,
Eveready, Energizer, Maxell, Toshiba, or Shun Wo CR2032 or DL2032 3-volt lithium
battery.
Release
button
Release
button
needed.
Press the release button, as shown, before taking off the adapter.
Customer Service
For questions about the SoundDock® Portable digital music system,
contact your local Bose
®
dealer. To contact Bose directly, see the contact list included in the carton.
Warranty
Your SoundDock Portable digital music system is covered by a transferable limited warranty. See your product registration
card for details.
Please be sure to fill out the information section on the car
www.Bose.com. However, failure to register, will not affect your limited warranty rights.
d and mail it to Bose. Or, to register online, visit our website:
Troubleshooting
Problem What to do
Your iPod® does not
dock properly
10
• Remove your iPod from the dock and check for obstructions on the connectors in the dock and on your
iPod. Then reseat it in the dock.
• Insert the dock adapter provided with your iPod.
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
OTHER CARE AND HANDLING
Problem What to do
The dock does not open
or close properly
No sound • Increase the volume setting for the system.
No sound and your iPod
is not charging
Your iPod does
not respond to the
SoundDock remote
control
• Use a soft, dry cloth to wipe the outside of the dock, whether it is open or closed.
• Blow around the edges of the dock to remove any dirt or debris from the crevices.
• Make sure the SoundDock
a music track is selected and playing.
• Remove your iPod from the dock, wait 5 seconds, the
• With another sound device, be sure your iPod is removed from the dock and the second device is
properly connected, turned on and set to play.
• If the other sound device is connected and playing, press any button on the remote control to activate
tem. Review “Playing another sound device” on page 8.
the sys
• Unplug the SoundDock Portable system
pletely shut off any power to it. Then reattach the battery and plug the system in again.
• Make sure your iPod is firmly seated in the dock and th
or the power supply is plugged in properly.
• Remove your iPod from the dock, wait 5 seconds, and return it to the dock.
• An iPod that has buttons and no click-wheel control does not r echa rge while it plays and may need
echarging.
r
• If the power supply is in use, make sure the power outlet is functioning properly.
• Unplug the SoundDock Portable system
pletely shut off any power to it. Then reattach the battery and plug the system in again.
• Remove your iPod from the dock, wait 5 seconds, the
• Your iPod software may need to be updated.
• Try the remote from a different location. If it works there, str ong lighting or other conditions may be
causing the problem. Refer to “Using the remote” on page 7 for further details.
• Make sure nothing blocks the infrared (IR) signal path fr
system. Wipe off the small lens on the front end of the remote.
• Check the remote control battery to make sure the + side is up, as shown on page 10.
• Replace the remote contr
• Unplug the SoundDock Portable system and remove the battery from the back of the system to completely shut off any power to it. Then reattach the b
®
battery is charged or the system is plugged in, your iPod® is turned on, and
and remove the battery from the back of the system to com-
and remove the battery from the back of the system to com-
ol battery.
n reseat it. You may need to do this a few times.
e SoundDock Portable system battery is charged
n reseat it. You may need to do this a few times.
om the remote to your SoundDock Portable
attery and plug the system in again.
Technical Information
Power supply rating
Input: 100-240V
Output: 20V, 2A
50-60Hz, 1A
System size and weight
6.7"H x 12.0"W x 5.1”D (17.0 cm x 30.7 cm x 12.8 cm)
5.2 lb (2.4 kg), including battery
11
©2007 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
300673 AM Rev.00
Loading...
