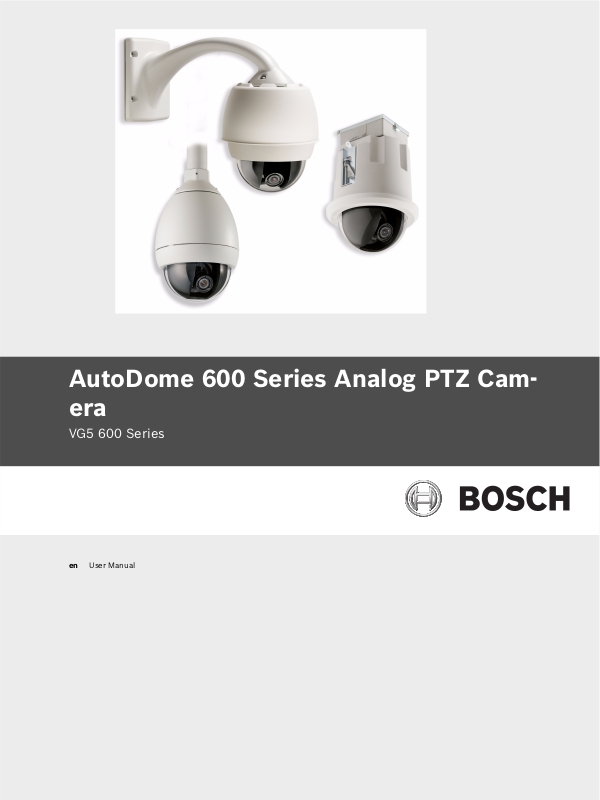

Page 1

AutoDome 600 Series Analog PTZ Camera

VG5 600 Series

en User Manual

Page 2

Page 3

AutoDome 600 Series Analog PTZ Camera Table of Contents | en 3

Table of Contents

1 Getting Started 5

1.1 Powering On 5

1.2 Establishing AutoDome Control 5

1.2.1 Basic Keyboard Operation 6

1.2.2 Keyboard Commands 6

1.3 Setting the Camera Address 7

1.3.1 FastAddress 7

1.4 Setting Passwords 8

1.4.1 Special Passwords 8

2 On-Screen Display Menu Navigation 9

2.1 Setup Menu 9

2.2 Camera Setup Menu 10

2.3 Lens Setup 12

2.4 PTZ Setup Menu 13

2.5 Display Setup Menu 15

2.6 Communication Setup Menu 17

2.7 Alarm I/O Setup 18

2.8 Rule Setup Menu 20

2.9 Language Menu 22

2.10 Advanced Feature Setup Menu 22

2.11 Diagnostics Menu 23

2.11.1 Alarm Status Submenu 25

3 Common AutoDome User Commands (unlocked) 26

3.1 Setting AutoPan Mode 26

3.2 Setting Preset Shots 26

3.3 Specifying a Shot or a Sector Title 27

3.4 Configuring Preposition Tours 27

3.5 Programming the Inactivity Operation 28

3.6 Recording Tours 28

4 Alternative Control Protocols 29

4.1 Setting FastAddress with Alternative Protocols 29

4.1.1 Using an American Dynamics Controller 29

4.1.2 Using a Pelco Controller 32

4.2 Pelco Protocol Mode 33

4.2.1 Hardware Configuration 33

4.2.2 Pelco Keyboard Commands 34

4.2.3 Pelco Keyboard Commands 34

4.2.4 Special Preset Commands 35

5 Pelco On-Screen Menus 36

5.1 Setup Menu 36

5.1.1 Command Lock (locked) 37

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 4

4 en | Table of Contents AutoDome 600 Series Analog PTZ Camera

5.1.2 Bosch Menu (locked) 37

5.1.3 PTZ Setup (unlocked) 38

5.1.4 Other Menus 39

6 Keyboard Commands by Number 40

7 Advanced Features 44

7.1 Alarm Rules 44

7.1.1 Controlling Alarm Rules 44

7.1.2 Alarm Rule Examples 44

7.2 AutoTrack Operation 48

7.2.1 AutoTrack Settings and Recommendations 48

7.2.2 AutoTrack Optimization 49

7.3 Virtual Masking 50

7.4 Privacy Masking 50

7.5 Motion Detection with Region of Interest (Preset positions 90 through 99)51

7.6 Image Stabilization 51

7.7 Pre-position Tour 51

7.8 Azimuth, Elevation, and Compass Directions 52

7.8.1 Setting the Azimuth Zero Point 52

7.8.2 Displaying Azimuth, Elevation, and Compass Headings 53

7.9 AutoHome Recalibration Commands and Settings 53

7.9.1 AutoHome Recalibration Operation 54

7.9.2 Using the AutoHome Recalibration 54

8 Troubleshooting Guide 55

8.1 VG5 AutoDome Operation and Control 55

8.2 VG5 Series AutoDome Audio 59

9 User Command Table 62

A Appendix: FastAddress Conversions 64

Index 65

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 5

AutoDome 600 Series Analog PTZ Camera Ge t t i n g St a r t e d | en 5

1 Getting Started

Install and wire the AutoDome according to the VG5 AutoDome Installation Manual. A typical system includes a keyboard, matrix switcher, monitor, and appropriate wiring connections. Please refer to the individual product manuals for complete installation and setup instructions for each of the system components.

1.1 Powering On

When you turn the AutoDome power on there is a ten (10) second pause before the dome starts its homing phase. During the homing phase the camera pans left and right and tilts up and down. It also adjusts the lens focus. The entire homing phase lasts approximately 40 seconds and ends with a firmware version screen.

Bosch Security Sys. AutoDome(r)

600 Series Day/Night 36X

SC Boot FPGA VCA_boot

5.00.00.03/1.05.00.02

1.00.00.00

5.00.00.03

1.13.01.05

1.02.00.01 STD Comm No Heater

FastAddress: Not Set

Figure 1.1 Sample VG5 Startup Firmware Version Screen

The splash screen displays the type of AutoDome, the camera installed, the firmware levels for various files, and the current IP address (for VG5 AutoDome 700 Series models).

1.2 Establishing AutoDome Control

The most common ways to interface with the AutoDome are: – Using a keyboard and on-screen display (OSD) menus. This method is the most common

and is covered in this manual.

– Using the AutoDome Configuration Tool software running on a PC with Bilinx or the RS-

232/485 communication protocol. Refer to the CTFID User Manual for instructions.

– Using a PC-based graphical user interface (GUI) such as the Bosch DiBos 8 software.

Refer to the DiBos 8 User Guide for instructions.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 6

6 en | Getting Started AutoDome 600 Series Analog PTZ Camera

1.2.1 Basic Keyboard Operation

The following tables summarize the basic operations for a standard keyboard and the functions available to control an AutoDome camera.

Typical Keyboard

Usage

Features

Function Keys Selects a specific control setting.

Number Keys Inputs a number from 0 to 9.

Camera Key Selects a camera number.

Enter Key Inputs a selection.

Focus Key Sets the lens focus or makes a menu selection in OSD mode.

Iris Key Sets the lens iris setting or makes a menu selection in OSD mode.

Key LEDs Indicates an active key.

LCD Displays the current status.

Joystick Controls a pan/tilt/zoom (PTZ) AutoDome camera.

Tab le 1. 1 Typi ca l Keybo ar d Fun ct io ns

Dome Operation How to control

To Pan Side to Side Move the joystick left or right.

To Tilt Up and Down Move the joystick forward and back.

To Zoom In Twist the joystick clockwise.

To Zoom Out Twist the joystick counterclockwise.

Tab le 1. 2 Typical Keyboard Controls for an AutoDome Camera

1.2.2 Keyboard Commands

Keyboard control commands are composed of a sequence of three (3) inputs with the following convention: 1) a Function key + 2) a Command number key(s) + 3) the Enter key. – Depending on the type of keyboard, the control function keys are labeled:

ON or AUX ON

OFF or AUX OFF

SET or SET SHOT

SHOT or SHOW SHOT

NOTICE!

The convention used for control key commands in this manual is ON, OFF, SET, and SHOT. Refer to your keyboard manual for the key naming conventions.

– Command numbers range from 1 to 999. See Section 6 Keyboard Commands by Number,

page 40 for a complete list of keyboard commands. –The Enter key can also be labeled with the ∞? symbol. For example, the keyboard command to make the AutoDome pan 360º continuously is: ON-1-ENTER (press the ON key, then press the number 1 key, and then press ENTER.)

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 7

AutoDome 600 Series Analog PTZ Camera Ge t t i n g St a r t e d | en 7

1.3 Setting the Camera Address

Once the AutoDome power is turned on and homing is complete, you must set the camera address. You may also want to assign a password and customize some of the AutoDome default settings.

NOTICE! You do not need to set a camera address if using Bilinx or Ethernet communication. See the VG5 AutoDome Installation Manual to configure an AutoDome for Bilinx or Ethernet operation.

1.3.1 FastAddress

FastAddress is an AutoDome feature that allows you to set or change a camera address using the keyboard and on-screen menus. There are three (3) FastAddress commands: – ON-999-ENTER: Displays and programs all cameras without an address in the system.

NOTICE! If a keyboard is set to a camera number that already has an address, that camera also responds to this command.

– ON-998-ENTER: Displays and programs all cameras with or without an address in the

system.

– ON-997-ENTER: Displays the current address status of all cameras in the system

simultaneously.

To set an address for a camera without an address:

1. Select the camera number you want to FastAddress. The system displays the camera number on the keyboard and the image on the corresponding monitor.

2. Press #-ENTER (where # is the camera number without an address).

3. Press ON-999-ENTER to invoke an on-screen display of cameras on the system without an address.

4. Follow the on-screen instructions. You receive an on-screen confirmation when the

FastAddress is complete.

To change or clear an address for a camera with an address:

1. Select the camera number you want to FastAddress. The system displays the camera number on the keyboard and the image on the corresponding monitor.

2. Press #-ENTER (where # is the camera number with an address).

3. Press ON-998-ENTER to invoke an on-screen display of all cameras on the system, with or without an address.

4. Follow the on screen instructions. You receive an on-screen confirmation when the

FastAddress is complete.

NOTICE! FastAddress is stored in nonvolatile memory and does not change if the power is turned off or

if the default settings are restored.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 8

8 en | Getting Started AutoDome 600 Series Analog PTZ Camera

1.4 Setting Passwords

Passwords are used to control access to locked command menus. Unlocked commands are available to all users. Passwords are four (4) digits in length.

1.4.1 Special Passwords

Password Security Level

0000 (default) Enables security and requires a user to enter the unlock command

OFF-90-ENTER before invoking a locked command.

9999 Disables all security and allows all users to access locked commands.

To set or change a password (locked command):

1. Press OFF-90-ENTER to turn off the command lock.

2. Press SET-802-ENTER to access the password menu.

3. Tilt the joystick up or down to choose a number. Tilt the joystick right to move to the next number position.

4. Follow the on-screen instructions and save the password. You receive an on-screen confirmation.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 9

AutoDome 600 Series Analog PTZ Camera On-Screen Display Menu Navigation | en 9

2 On-Screen Display Menu Navigation

The AutoDome is programmed through the on-screen display (OSD) menus. To access the OSD menus, you must open the main Setup Menu. Menu items marked with an asterisk (*) are default settings, unless otherwise noted.

NOTICE!

After a period of 4.5 minutes of inactivity, a menu times-out and exits without warning. Some unsaved settings in the current menu can be lost.

2.1 Setup Menu

The main Setup Menu provides access to all programmable AutoDome settings. It is a locked menu that requires the user to turn off the command lock.

To open the main Setup Menu (locked command):

1. Press OFF-90-ENTER to turn off the command lock.

2. Press ON-46-ENTER to access the Main Menu.

3. Use the joystick to highlight a menu item.

4. Press Focus/Iris to open a menu.

5. Follow the on-screen instructions.

NOTICE!

The AutoDome displays only those menus applicable to the particular AutoDome Series configuration. Use the joystick to navigate through the menu and the Focus/Iris keys to make a selection.

Setup Menu

Exit... Camera Setup Lens Setup PTZ Setup Display Setup Communication Setup Alarm Setup Language Advanced Diagnostics

Focus / Iris: Select

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 10

10 en | On-Screen Display Menu Navigation AutoDome 600 Series Analog PTZ Camera

Setup Menu Choices:

Menu Description

Exit Exits the menu.

Camera Setup Accesses adjustable camera settings such as: white balance, gain,

sharpness, sync, line lock, backlight, shutter, and night mode.

Lens Setup Accesses adjustable lens settings such as: focus, iris, zoom speed, and

digital zoom.

PTZ Setup Accesses adjustable pan/tilt/zoom (PTZ) settings such as: Autopan, tours,

PTZ speed, inactivity period, AutoPivot, and tilt limits.

Display Setup Accesses adjustable display settings such as: OSD, sector blanking, and

privacy masking.

Communication Setup

Alarm Setup Accesses the alarm settings such as: inputs, outputs, and rules.

Language Displays the language.

Advanced Accesses the advanced features menu including Stabilization, AutoTrack

Diagnostics Displays the status of diagnostic events.

Accesses communication settings such as: AutoBaud and Bilinx.

Sensitivity, Camera Height, and Virtual Masking.

NOTICE! To select the Exit Menu item from anywhere in the current menu, use the Zoom command.

2.2 Camera Setup Menu

The Camera Setup Menu provides access to camera settings that can be changed or customized. Menu items marked with an asterisk (*) are the default settings.

Camera Setup

Exit... * White Bal: EXT ATW * Gain Control: AUTO * Max. Gain Level: 6 (4**) * Sharpness 12 * Synch Mode: Internal * Line Lock Delay: 0 * Backlight Comp: OFF *WDR OFF * Shutter Mode: Auto SensUP * Shutter: 1/60 * Auto SensUP Max: 15x *Night Mode: AUTO * Night Mode Color: OFF * Night Mode Threshold: 55 *Pre-Comp 1

Restore Defaults...

* = Factory Setting

** = WDR camera only

Focus / Iris: Select

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 11

AutoDome 600 Series Analog PTZ Camera On-Screen Display Menu Navigation | en 11

Camera Setup Menu Choices:

Menu Description Sub-menu / Description Default

Setting

Exit Exits the menu.

White Balance Maintains proper color reproduction

as the color temperature of a scene changes. For example, from daylight to fluorescent lighting.

Extended ATW: Adjusts camera color using extended range.

ATW: Adjusts camera color constantly. Indoor W.B.: Optimizes camera color for

Extended ATW

typical indoor conditions. Outdoor W.B.: Optimizes camera color for typical outdoor conditions. AWB Hold: Sets the camera's color settings for the current scene. Manual: Allows a user to adjust the Red and Blue gain. Sliding scale: – (1 to 100) + Outdoor Auto: Automatically adjusts the white balance to reduce the dark tones at dawn or dusk. Sodium Lamp: Optimizes the sodium vapor light to restore objects to their original color. Sodium Lamp Auto: Automatically adjusts for sodium vapor light to restore objects to their original color.

Gain Control Electronically brightens darker scenes

Auto or OFF AUTO

which may cause graininess in low light scenes.

Max. Gain Level Adjusts the maximum gain level that

the gain control adjusts to when set to AUTO.

Sliding scale: – (1 to 6) + (1=8db, 2=12db, 3=16db, 4=20db, 5=24db,

6=28db)

Sharpness Adjusts the sharpness level of the

picture.

Synch Mode Sets the type of synchronization mode

for the camera.

Sliding scale: – (1 to 16) +

INTERNAL: Synchronizes camera to an internal crystal. This choice is

INTERNAL

recommended if there is noise on the power line. LINE LOCK: Synchronizes camera to AC power. This choice eliminates picture roll in multi-camera systems.

Line Lock Delay Optimizes the LINE LOCK mode to

eliminate picture roll in multiphase

Sliding scale: – (0º to 359º) +

0º

power applications.

Backlight Comp Improves image quality when the

On or OFF OFF

background illumination level is high.

WDR Turns the wide dynamic range feature

ON, OFF, or Auto OFF

on or off.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 12

12 en | On-Screen Display Menu Navigation AutoDome 600 Series Analog PTZ Camera

Menu Description Sub-menu / Description Default

Setting

Shutter Mode Turns Auto SensUP on or off. Auto SensUP or OFF Auto

SensUP

Shutter Adjusts the electronic shutter speed

(AES).

Auto SensUP Max.

Night Mode Selects night mode (B/W) to enhance

Night Mode Color

Night Mode Threshold

Pre-Comp Amplifies the video gain to

Restore Defaults

Sets the limit for sensitivity when the shutter speed is set to Auto SensUP.

lighting in low light scenes.

Determines if color processing remains in effect while in night mode.

Adjusts the level of light at which the camera automatically switches out of night mode (B/W) operation.

compensate for long distance cable runs.

Restores all default settings for this menu only.

Sliding scale: – (60 at extreme left to 1/10000) +

15x, 7.5x, 4x, or 2x 15x

ON, OFF, or AUTO AUTO

ON or OFF OFF

Sliding scale: –(10 to 55)+ (in increments of 5) 10 is earlier, 55 is later

Sliding scale: –(1 to 10)+

1/60 sec. (NTSC) or

1/50 sec.

(PAL)

2.3 Lens Setup

The Lens Setup Menu provides access to lens settings that can be changed or customized. Menu items marked with an asterisk (*) are the default settings.

Exit... *Auto Focus: SPOT * Auto Iris: CONSTANT * Auto Iris Level: 8 *Focus Speed: 2 * Iris Speed: 5 * Max Zoom Speed: FAST * Digital Zoom: ON

Restore Defaults

* = Factory Setting

Focus / Iris: Select

Lens Setup

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 13

AutoDome 600 Series Analog PTZ Camera On-Screen Display Menu Navigation | en 13

Lens Setup Menu Choices:

Menu Description Sub-menu / Description Default

Setting

Exit Saves and exits the menu.

Auto Focus Automatically focuses on the

subject in the center of the screen.

Auto Iris Automatically adjusts to

varying light conditions.

Auto Iris Level Reduces the camera's iris

level for proper exposure.

Focus Speed Adjusts the manual focus

speed.

Iris Speed Adjusts the manual iris speed. Sliding scale:

Max. Zoom Speed Adjusts the manual zoom

speed.

Digital Zoom Enables digital zoom. OFF or ON ON

Restore Defaults Restores all default settings

for this menu.

CONSTANT: Auto Focus is always active, even while the camera is moving. MANUAL: Auto Focus is inactive; manual focus must be used. SPOT: The camera activates Auto Focus after the camera stops movement. Once focused, Auto Focus is inactive until the camera moves again.

MANUAL: Iris must be adjusted manually. CONSTANT: Auto Iris is constantly active.

Sliding scale: – (1 to 15) +

Sliding scale: – (1 to 8) +

– (1 to 10) +

SLOW, MEDIUM, or FAST FAST

SPOT

CONSTANT

2.4 PTZ Setup Menu

The PTZ Menu provides access to pan/tilt/zoom settings that can be changed or customized. Menu items marked with an asterisk (*) are the default settings.

PTZ Setup

Exit... * Autopan: 30 deg/sec * Tour 1 Period: 5 sec * Tour 2 Period: 5 sec * PTZ Fixed Speed: 4 * Inactivity: OFF * Inact. Period 2 min * AutoPivot: ON * AutoDome Orientation NORMAL * Freeze Frame on Preposition ON

Tilt Up Limit...

Restore Defaults

* = Factory Setting

Focus / Iris: Select

PTZ Menu Choices:

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 14

14 en | On-Screen Display Menu Navigation AutoDome 600 Series Analog PTZ Camera

Menu Description Sub-menu / Description Default

Setting

Exit Exits the menu.

AutoPan Adjusts speed of camera during

AutoPan and AutoScan.

Tour 1 Period Changes dwell time between

presets during the tour.

Tour 2 Period Changes dwell time between

presets during the tour.

PTZ Fixed Speed Sets pan and tilt speed when

controlled by a fixed speed

Sliding scale: – (1º/sec. to 60º/sec.) +

Sliding scale: – (3 sec. to 10 min.) +

Sliding scale: – (1 to 15) +

30º/sec.

5 sec.

controller.

Inactivity Selects the mode that an

AutoDome reverts to after the period of inactivity set in the inactivity period.

Scene 1: Returns to Preset 1. Prev Aux: Returns to previous activity, such

as Aux commands 1, 2, 7, 8, 50, or 52.

OFF: Remains on the current scene

OFF

indefinitely.

Inactivity Period Sets the time period of inactivity

before the above action occurs.

AutoPivot Automatically rotates the camera

Sliding scale:

2 min.

– (3 sec. to 10 min.) +

OFF or ON ON

180º when following a subject traveling directly beneath the camera.

AutoDome Orientation

Freeze Frame On Preposition

Automatically rotates the video 180º.

Holds a preposition video frame while moving to another

INVERTED or NORMAL NORMAL

OFF or ON ON

preposition.

Tilt Up Limit... Sets the upper tilt limit of the

Use joystick to move to a scene.

camera.

Azimuth Zero... Sets the zero degree pan position. Use the joystick to move to a scene that you

want to set as the zero degree pan position and as the North compass heading. Refer to Section 7.8 Azimuth, Elevation, and Compass Directions, page 52.

Restore Defaults Restores the default setting for this

menu only.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 15

AutoDome 600 Series Analog PTZ Camera On-Screen Display Menu Navigation | en 15

2.5 Display Setup Menu

Provides access to display settings that can be changed or customized. Menu items with an * are the default settings.

Display Setup

Exit... * Title OSD: MOMENTARY * Camera OSD: ON

Display Adjust:

Sector Blanking...

Privacy Masking...

Edit Sector Title

Edit Scene Title

Restore Defaults

* = Factory Setting

Focus / Iris: Select

Display Setup Menu Choices:

Menu Description Sub-menu / Description Default

Setting

Exit Saves and exits the menu.

Title OSD Controls how the OSD displays

sector or shot titles.

Camera OSD Controls how the OSD displays

camera response information, such as Digital Zoom, Iris open/ close, and Focus near/far.

Display Adjust Adjusts the text brightness and

vertical position of the on-screen title.

Azimuth Displays azimuth/elevation

values.

Compass Displays compass heading. On: Displays compass heading.

OFF: Titles are hidden. ON: Titles are displayed continuously. MOMENTARY: Titles are displayed for a

few seconds then disappear from the screen.

OFF or ON ON

Exit: Exits the menu. Up: Moves screen title up. Down: Moves screen title down. Brighter: Brightens the intensity of the on-

screen text. Darker: Darkens the intensity of the onscreen text.

On: Displays azimuth/elevation readings. Off: Hides azimuth/elevation readings.

Refer to Section 7.8 Azimuth, Elevation, and Compass Directions, page 52.

Off: Hides compass heading. Refer to Section 7.8 Azimuth, Elevation, and Compass Directions, page 52.

MOMENTARY

OFF

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 16

16 en | On-Screen Display Menu Navigation AutoDome 600 Series Analog PTZ Camera

Menu Description Sub-menu / Description Default

Setting

Sector Blanking Allows video blanking of selected

sectors. Available sectors are 1 through 16. Follow the on-screen

Exit: Exits the menu. Sector (1-16): Press Focus/Iris to blank or

clear a sector.

instructions.

Privacy Masking Allows masking of sensitive

areas. Up to 24 privacy masks are available, with a maximum limit of eight (8) to a scene.

Exit: Saves and exits menu. Mask: 1 to 24 masking areas. Follow the

on-screen instructions to set a mask. See Section 7.1 Alarm Rules, page 44. Restore Defaults: Restores the default settings for this menu only.

Edit Sector Title Allows editing existing Sector

(Zone) Titles

Select a sector title to access the character palette. See

Section 3.3 Specifying a Shot or a Sector Title, page 27, for instructions.

Edit Scene Title Allows editing existing Scene

(Shot) Titles

Select a scene title, then choose a menu option: – Edit Scene Title to access the

character palette. See

Section 3.3 Specifying a Shot or a Sector Title, page 27, for instructions.

– Clear Scene to delete the selected

scene title.

Restore Defaults Restores the default setting for

this menu only.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 17

AutoDome 600 Series Analog PTZ Camera On-Screen Display Menu Navigation | en 17

2.6 Communication Setup Menu

The Communication Setup Menu provides access to baud rate and Bilinx control settings. Menu items marked with an asterisk (*) are the default settings.

Communication Setup

Exit... * AutoBaud: ON * Baud Rate 9600 * Bilinx: ON

Restore Defaults...

* = Factory Setting

Focus / Iris: Select

Communication Setup Menu Choices:

Menu Description Sub-menu / Description Default

Setting

Exit Saves and exits the menu.

AutoBaud Turns AutoBaud detection on. Toggles ON or OFF.

ON automatically accepts baud rates from 2400 to

57600. (Note: If stepping from 2400 to 57600 baud, you must first set the controller to 19200 for AutoBaud to detect the higher baud rate.)

Baud Rate Manually sets the baud rate when

AutoBaud is set to OFF.

Bilinx Turns on Bilinx control communication.

(Only available when not connected to a Bilinx data interface unit.)

Choices are 2400, 4800, 9600, 19200, 38400, and

57600. Then follow the OSD to confirm the selection.

Toggles ON or OFF.ON

9600

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 18

18 en | On-Screen Display Menu Navigation AutoDome 600 Series Analog PTZ Camera

2.7 Alarm I/O Setup

The Alarm Setup Menu provides access to the Alarm I/O Setup Menu to establish the alarm inputs and outputs and to configure alarm rules.

Alarm I/O Setup Inputs Setup

Exit... Exit... Inputs Setup... 1. Alarm Input 1 N.C.S. Outputs Setup... 2. Alarm Input 2 N.O.S. Rule Setup... 3. Alarm Input 3 N.O. Restore Defaults... 4. Alarm Input 4 N.C.

5. Alarm Input 5 N.O.

6. Alarm Input 6 N.C.

7. Alarm Input 7 N.O.

8. NONE

9. NONE

10. NONE

11. NONE

12. NONE

Physical Input 1-7

Physical Output 9-12

Focus / Iris: Select Type

Focus / Iris: Select Right / Left: Select Mode

Alarm Setup Menu Choices:

Menu Description Sub-menu / Description Default

Setting

Exit Saves and exits the menu.

Inputs Setup Defines physical inputs or events and

commands that can be used in a rule. There are twelve (12) alarm inputs available.

Inputs 1-7 Defines the type of physical input. N.O.: Normally open dry contact.

N.C.: Normally closed dry contact. N.C.S.: Normally closed supervised contact. N.O.S.: Normally open supervised contact.

Inputs 8-12 Defines input commands that can be

used in a rule. Command inputs can also be customized by using non-assigned keyboard command numbers.

NONE: No command defined. Aux On: Responds to a standard or custom keyboard ON (1-99) command. Aux Off: Responds to a standard or custom keyboard OFF (1-99) command. Shot: Responds to a Preset shot or scene from

1-99.

AutoTrack: Triggers an alarm when set to ON. Motion Detection: Triggers an alarm when set to ON.

N.O.

NONE

NOTICE!

Alarm inputs 1 and 2 provide tamper detection, if programmed as supervised, for breaks or shorts in an alarm circuit. See the VG5 AutoDome Installation Manual for wiring instructions.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 19

AutoDome 600 Series Analog PTZ Camera On-Screen Display Menu Navigation | en 19

Outputs Setup Menu

Outputs Setup...

Exit...

1. Alarm Output 1 N.O. 1-4

2. Alarm Output 2 N.O.

Physical

3. Alarm Output 3 N.O. Outputs

4. Alarm Relay N.O.

5. NONE

6. Aux On 1

7. Aux Off 8

8. Shot 99

9. OSD

5-12 Command Outputs

10. Transmit

11. NONE

12. NONE

Focus / Iris: Select Type

Right / Left: Select Mode

Outputs Setup Menu Choices

Menu Description Sub-menu / Description Default Setting

Exit Saves and exits the

menu.

Outputs Setup Defines physical outputs

and keyboard commands for use in a rule.

Outputs 1-3 Defines a physical

output.

N.O.: Normally open circuit N.C.: Normally closed circuit

N.O.

Alarm Relay A fixed output available

for use in a rule.

Outputs 5-12 Defines a command

output for use in a rule.

Aux On: A keyboard ON command. Aux Off: A keyboard OFF command. Shot: Recalls a preset shot. OSD: An on screen display.

NONE

Outputs 5 and 6 set to OSD and

Shot 1

Transmit: Transmits a message back to the head

end (available with RS-232 serial connections, Bilinx, and IP AutoDome models).

AutoTrack: Turns AutoTrack on or off as an output. NONE: No command defined.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 20

20 en | On-Screen Display Menu Navigation AutoDome 600 Series Analog PTZ Camera

2.8 Rule Setup Menu

The Rule Setup Menu shows the status of the rules and lets you add new rules or modify an existing rule. The default setting is Empty.

NOTICE!

You can program a total of twelve rules. You must define the inputs and outputs before you program a rule. See Section 2.7 Alarm I/O Setup, page 18, to configure alarm inputs and outputs.

Rule Setup... Rule 1

Exit... Exit...

1. Rule 1 Enabled Enabled YES

2. Rule 2 Disabled Input:

3. Rule 3 Invalid NONE

4. Rule 4 Empty NONE

5. Rule 5 Empty NONE

6. Rule 6 Empty

7. Rule 7 Empty Output:

8. Rule 8 Empty OSD

9. Rule 9 Empty Shot 2

10. Rule 10 Empty Alarm Relay 2 sec

11. Rule 11 Empty NONE

12. Rule 12 Empty

4. Rule 4 Empty

Right / Left: Select Period Time

Focus / Iris: Select Focus / Iris: Select Type

Rule Setup Menu Choices

Menu Description Sub-menu / Description Default

Setting

Exit Saves and exits the menu.

Rule 1-12 Displays the status of a rule

on the right side of the menu. There are four (4) possible rule statuses.

Selecting a Rule number provides access to its configuration menu. The Rule # Menu allows you to configure a rule from previously defined alarm inputs and outputs. Once an alarm is configured with valid inputs and outputs, it can be turned on or off (enabled or disabled) through its configuration menu.

Enabled: The rule inputs and outputs are properly defined and the rule is turned on. Disabled: The rule inputs and outputs are defined but the rule is turned off.

Invalid: The rule has a missing or invalid input or output. Empty: The rule has no inputs or outputs defined.

Empty

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 21

AutoDome 600 Series Analog PTZ Camera On-Screen Display Menu Navigation | en 21

Rule # Choices:

Menu Description Sub-menu / Description Default

Setting

Exit Saves and exits the menu.

Enabled Turns the rule on or off after its

YES to enable or NO to disable NO

inputs and outputs have been defined.

Input Toggles through a list of valid

inputs set in the Alarm I/O Setup

> Inputs Setup Menu that define

Alarm Inputs 1 – 7 and any additional inputs which were set in the Inputs Setup Menu, including Aux On/Off (1-99), Shot, and NONE.

NONE

the rule's inputs. A rule can have up to four (4) inputs.

Output Toggles through a list of valid

outputs set in the Alarm I/O Setup > Outputs Setup Menu that defines a rule's outputs.

Alarm Outputs 1 – 3 and any additional outputs set in the Outputs Setup Menu including: Alarm Relay,

Aux On/Off (1-99), Shot, OSD, Transmit, and NONE.

NONE

Some outputs, such as Alarm Outputs 1-3, Alarm Relay, and Aux On/Off can be set to be active for a

specific duration of time as follows:

Seconds: 1-5, 10, 15, or 30 Minutes: 1-5 or 10 Latched: The alarm stays active until acknowledged. Follows: The alarm follows the alarm rule.

NOTICE!

You can include up to four (4) Input and Output events in a single rule. Each input and output, however, must be true for the alarm's rule to be valid and enabled.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 22

22 en | On-Screen Display Menu Navigation AutoDome 600 Series Analog PTZ Camera

2.9 Language Menu

The Language Menu provides access to a list of languages to display the on-screen menus.

Language

Exit... English Spanish French German Portuguese Polish Italian Dutch

Focus / Iris: Save and Exit

Language Menu Choices:

Menu Description Default Setting

Exit Saves and exits the menu.

Choose a language Select a language in which the system displays the on-screen menus.

2.10 Advanced Feature Setup Menu

The Advanced Menu provides access to the Advanced Features Setup menus such as image Stabilization, AutoTrack Sensitivity and Virtual Masking. Menu items marked with an asterisk (*) are the default settings.

Advanced Feature Setup

Exit... * Stabilization OFF * AutoTrack Sensitivity Auto

AutoTrack TImeout OFF

AutoTrack TImeout Period 5 min * Camera Height: 12

Virtual Masking...

Restore Defaults...

Focus / Iris: Save and Exit

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 23

AutoDome 600 Series Analog PTZ Camera On-Screen Display Menu Navigation | en 23

Advanced Feature Setup Menu Choices:

Menu Description Sub-menu / Description Default

Setting

Exit Saves and exits the menu.

Stabilization Turns on video stabilization. OFF

AutoTrack Sensitivity Sets the sensitivity level of

AutoTrack.

AutoTrack Timeout Toggles the AutoTrack Timeout

feature.

AutoTrack Timeout Period

Camera Height Defines the height of the

Virtual Masking Enters the Virtual Mask menu.

Restore Defaults Restores the default settings

Enters the AutoTrack Timeout Period set menu

camera for AutoTrack.

See Section 7.3 Virtual Masking, page 50.

for this menu.

Sliding scale: -(Auto, 1 to 20)+ Where 1 is more sensitive and 20 is less sensitive. Auto varies the sensitivity level based on various lighting conditions.

When On, AutoTrack “gives up” after the Timeout Period if tracking in a confined area (for example a tree, a flag, etc).

Sliding scale 30 sec, 1 to 30 min. 5 min

A range from 2.4 m (8 ft) to 30.7 m (100 ft)

Allows up to 24 virtual masks using five anchor points.

Auto

OFF

3.6 m (12 ft)

2.11 Diagnostics Menu

The Diagnostics menu provides access to a list of diagnostic tools and events.

Diagnostics

Exit... Alarm Status... BIST... Internal Temp: Deg F / Deg C High Temp Events: Deg F / Deg C Highest Temp Deg F / Deg C Low Temp Events: Deg F / Deg C Lowest Temp: Deg F / Deg C Security Access: 0 CTFID Access: 0 Homing Events: 0 Homing Failed: 0 Loss Home Events 0 Home Position Good YES Restart Events: Low Volt Events: 0 Power Up Events: 0 Video Loss Events: 0 Total Time On 0hr 0min

Focus / Iris: Save and Exit

Diagnostic Events

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 24

24 en | On-Screen Display Menu Navigation AutoDome 600 Series Analog PTZ Camera

Menu Description Sub-menu / Description

Exit Saves and exits the menu.

Alarm Status Enters the Alarm Status menu and displays the

real time status of alarm inputs and outputs.

BIST Enters the Perform Built-in Self Tests menu. If

confirmed, the BIST tests start and the results are displayed.

Alarm Inputs 1 to 7, Alarm Outputs 1 to 3 and Alarm Relay

YES to start test. NO to exit the menu. Typical results displayed as follows: BIST Exit... Data Flash: PASS Bilinx: PASS FPGA: PASS Digital I/O 1: PASS Digital I/O2: PASS VCA: PASS Homing: PASS

Internal Temp. Displays the current dome temperature.

High Temp Events Displays the number of times the high

temperature threshold is exceeded.

Highest Temp Displays the highest temperature reached.

Low Temp Events Displays the number of times the low

temperature threshold is exceeded.

Lowest Temp Displays the lowest temperature reached.

Security Access Displays the number of times the locked-

command menu is unlocked.

CTFID Access Displays the number of times the Configuration

Tool is accessed.

Homing Events Displays the number of times the AutoDome was

rebooted.

Homing Failed Displays the number of times the AutoDome

failed to home properly.

Loss Home Events: Displays the number of times the AutoDome lost

the home position.

Home Position Good Displays if the current AutoDome home position

is good. Displays YES if good.

Restart Events Displays the number of restart events.

Low Volt Events Displays the number of times the AutoDome

dropped below the acceptable voltage limit.

Power Up Events Displays the number of power up events.

Video Loss Events Displays the number of time that video was lost.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 25

AutoDome 600 Series Analog PTZ Camera On-Screen Display Menu Navigation | en 25

2.11.1 Alarm Status Submenu

This menu displays the status of the alarm inputs and alarm outputs.

Alarm Status

Exit... Alarm Input 1 High Alarm Input 2 High Alarm Input 3 Open Alarm Input 4 Open Alarm Input 5 Open Alarm Input 6 Open Alarm Input 7 Open Alarm Output 1 Open

Focus / Iris: Save and Exit

Menu Description Options

Exit Saves and exits the menu.

Alarm Input 1...7 Displays the status of alarm inputs 1 through 7. High

Low Open (Normally Open) Closed (Normally Closed)

Alarm Output Displays the status of the alarm output.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 26

26 en | Common AutoDome User Commands (unlocked) AutoDome 600 Series Analog PTZ Camera

3 Common AutoDome User Commands (unlocked)

This chapter details the commonly used Bosch keyboard setup commands. See Section 6 Keyboard Commands by Number, Page 41, for a complete list of commands.

3.1 Setting AutoPan Mode

AutoPan mode pans the AutoDome camera 360º or pans between user defined limits (when

programmed). The AutoDome camera continues to pan until stopped by moving the joystick.

To pan 360º:

1. Press ON-1-ENTER.

2. Move the joystick to stop the pan.

To set left and right pan limits:

1. Move the camera to the starting position and press SET-101-ENTER to set the left limit.

2. Move the camera to the end position and press SET-102-ENTER to set the right limit.

To start AutoPan between limits:

1. Press ON-2-ENTER.

2. Move the joystick to stop the pan.

3.2 Setting Preset Shots

Preset shots are saved camera positions. Shots are saved as scenes, therefore, the terms

SHOT and SCENE are used interchangeably.

To set a Shot:

1. Move the camera to the position you want to save.

2. Press SET-#-ENTER where # can be a number from 1 to 99 that identifies the camera position of the scene.

3. To specify a title for the shot, see the procedure below.

To view a Shot:  Press SHOT-#-ENTER where # is the number of the scene position you want to view.

To store or clear a Shot:

1. Press SET-100-ENTER to access the Store/Clear Scene Menu.

2. Follow the on-screen instructions.

To disable overwrite confirmations:

If you overwrite a preset shot the AutoDome issues a confirmation message prompting you approve the overwrite. To disable this confirmation message issue the OFF-89-ENTER command.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 27

AutoDome 600 Series Analog PTZ Camera Common AutoDome User Commands (unlocked) | en 27

3.3 Specifying a Shot or a Sector Title

The AutoDome provides an alphanumeric character palette used to specify a title for a shot (scene) or for a sector (zone).

1. To specify a title, navigate to the shot or scene: – for a shot: set a new shot or view a stored shot then press ON-62-ENTER. – for a scene: move the AutoDome to the scene (zone) then press ON-63-ENTER.

2. Use the joystick to move the cursor to highlight a character.

3. Press Focus/Iris to select the character.

4. Continue to select characters (up to 20) until you have created the title.

5. To clear a character from the title: a. Use the joystick to highlight the Clear OR Position Character prompt. b. Move the joystick left or right until the cursor is below the title character you need to

clear. c. Press Focus/Iris to clear the character. d. Move the joystick up to bring the cursor back into the character palette.

6. To save the title: a. Use the joystick to highlight the Exit prompt. b. Press Focus/Iris to save the title.

3.4 Configuring Preposition Tours

A Preposition Tour automatically moves the camera through a series of preset or saved shots. The VG5 Autodome has one (1) standard preset tour and one (1) customized preset tour. Tour 1 is a standard tour that moves the camera through a series of shots in the sequence they were set. Tour 2 is a custom tour that allows you to change the sequence of shots in the tour by inserting and deleting scenes.

To start Preposition Tour 1:

1. Set a series of preset shots in the order that you want the AutoDome to cycle through.

2. Press ON-8-ENTER to start the tour. The tour then cycles through the series of shots until it is stopped.

To stop a Preposition Tour:  Press OFF-8-ENTER or move the joystick to stop either type of tour.

To add or remove scenes to Preposition Tour 1:

1. Press SHOT-900-ENTER to access the Add/Remove Scenes Menu.

2. Use the Focus/Iris buttons to add or remove the selected scene from the tour.

To start custom Preposition Tour 2:

 Press ON-7-ENTER to start a tour. The tour cycles through the series of shots in the order

they were defined until it is stopped.

To edit a custom Preposition Tour 2:

1. Press SET-900-ENTER to access the Add/Remove Menu.

2. Press the Focus/Iris buttons to add or remove the selected scene.

To change the dwell period of a tour:

1. Press ON-15-ENTER to access the Tour Period Menu.

2. Select the tour (Tour 1 or Tour 2) and follow the on-screen instructions.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 28

28 en | Common AutoDome User Commands (unlocked) AutoDome 600 Series Analog PTZ Camera

3.5 Programming the Inactivity Operation

You can program the AutoDome to automatically change its operating mode after a period of inactivity.

To access the Inactivity mode (locked command):

1. Press OFF-90-ENTER to turn off the command lock.

2. Press ON-9-ENTER to access the Inactivity Mode Menu.

3. Select one of the following choices: – Return to Scene 1: Returns the camera position back to the first scene saved in

memory.

– Recall Previous Aux: Returns the camera to the previous operating mode, such as a

Preposition Tour.

3.6 Recording Tours

The VG5 AutoDome can make up to two (2) recorded tours. A Recorded Tour saves all manual camera movements made during the recording, including its rate of pan, tilt and zoom speeds and other lens setting changes.

To Record Tour A:

1. Press ON-100-ENTER to start recording a tour.

2. Press OFF-100-ENTER to stop recording.

To playback Recorded Tour A:

1. Press ON-50-ENTER to begin continuous playback.

2. Press OFF-50-ENTER or move the joystick to stop playback

To Record Tour B:

1. Press ON-101-ENTER to start recording the tour.

2. Press OFF-101-ENTER to stop the tour.

To playback Recorded Tour B:

1. Press ON-52-ENTER to begin continuous playback.

2. Press OFF-52-ENTER or move the joystick to stop playback.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 29

AutoDome 600 Series Analog PTZ Camera Alternative Control Protocols | en 29

4 Alternative Control Protocols

The VG5 AutoDome supports three alternative control protocols that allow a user to send commands and to receive information from the AutoDome. The VG5 AutoDome supports the following protocols: – Pelco-P – Pelco-D – American Dynamics (AD) Manchester – American Dynamics (AD) Sensormatic RS-422 The VG5 AutoDome natively supports the two Pelco protocols. To use the AD Manchester or the AD Sensormatic RS-422 protocol you must purchase a separate module. The module contains instructions to install any additional hardware and information about additional onscreen menus.

4.1 Setting FastAddress with Alternative Protocols

The VG5 AutoDome offers remote addressing via the FastAddress capability from a keyboard that uses an alternative protocol. The FastAddress feature allows you to instal all domes first, then set the addresses via the control system. Since it is not necessary to go to the camera’s physical location, this feature makes it easier to readdress cameras at a later time.

4.1.1 Using an American Dynamics Controller

Prior to setting the FastAddress for each camera, all cameras will initially move together. After the Unique Identifier is set, only the camera that was set with the FastAddress is capable of sending and receiving commands. When setting the FastAddress, it is important to remember that some American Dynamics Manchester systems use address blocks of 1 to 64, while American Dynamics Sensormatic systems typically use address blocks of 1 to 99; meaning that when the controller/keyboard displays video for cameras higher than 64 or 99 the keyboard/controller sends a different control code to the camera (see Section A Appendix: FastAddress Conversions, page 64, for conversion charts). For example at Camera 65, the American Dynamics Manchester system sends out an address of 1, while the Sensormatic RS422 system with an address of 100 also sends out an address of 1. It is NOT NECESSARY to convert these numbers with the Bosch FastAddress method. The camera automatically detects the address being transmitted by the Sensormatic RS-422 control system and adjusts the camera accordingly.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 30

30 en | Alternative Control Protocols AutoDome 600 Series Analog PTZ Camera

Setting the FastAddress with an AD Manchester or AD Sensormatic RS-422 Keyboard

1. Enter the AutoDome Setup menu using 66-Preset/Shot on most AD/Sensormatic RS-422 keyboards. Note: Based on your keyboard model, it may be necessary to enter the PROGRAMMING mode prior to entering this command.

2. Move the joystick to highlight the Command Lock menu. Note: The first time the VG4 is set-up out of the box, the Command Lock feature is set to OFF for the first two (2) minutes of operation and then reverts to the ON setting.

Setup Menu

Exit... Command Lock: OFF Bosch Menu Camera Setup PTZ Setup Edit Password *FastAddress: Not Set Software Version Ack and Reset Alarms Restore All Settings

* = Factory Setting Focus / Iris: Select

3. Press the FOCUS or the IRIS button to turn Command Lock to OFF.Move to the FastAddress menu and press the FOCUS or the IRIS button to open the menu.Use the joystick to re-enter the 6-digit factory-set Unique Identifier displayed for the VG4 AutoDome. See example as follows:

Enter FastAddress

FastAddress: Not Set Unique Identifier: 200668

000000

r Continue... Exit...

Joystick: Match Identifier

– Move the joystick up or down to select the individual number.Move the joystick right to

move to the next FastAddress number position. When completed, the FastAddress number entered must match the Unique Identifier displayed. See example as follows:

Enter FastAddress

FastAddress: Not Set Unique Identifier: 200668

200668

r Continue... Exit...

Joystick: Match Identifier

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 31

AutoDome 600 Series Analog PTZ Camera Alternative Control Protocols | en 31

NOTICE!

If the user does not enter the exact manufacturer Unique Identifer as displayed on-screen, the FastAddress can not be set and the only option available is to Exit the menu.

4. Move the joystick right to highlight Continue. Then, press the FOCUS or the IRIS button.

Enter FastAddress

FastAddress: Not Set Unique Identifier: 200668

200668

r Continue... Exit...

Joystick: Match Identifier

5. The AutoDome automatically reads the correct Address sent by the controller and is displayed as Save ## as FastAddress (## is based on either 1-64 AD/Manchester or 1-99 AD/Sensormatic RS-422). It is NOT POSSIBLE to change the address that is displayed. The following options are available: – Press the FOCUS or the IRIS button to store the FastAddress number. – Move the joystick to highlight Clear Current FastAddress and then press the FOCUS

or the IRIS button to clear any currently saved Fast Address.

– Move the joystick to highlight Exit Without Change to exit the FastAddress menu

without saving any changes.

FastAddress

FastAddress: Not Set

Save “##” as FastAddress Clear Current FastAddress Exit Without Change

Focus/Iris: Select

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 32

32 en | Alternative Control Protocols AutoDome 600 Series Analog PTZ Camera

6. The on-screen display menu confirms that the VG4 AutoDome stored the FastAddress and then returns to the Main menu with the new Fast Address displayed. Move the joystick to highlight EXIT, and then press FOCUS or IRIS to exit the menus.

New Fast Address Saved

Setup Menu

Exit... Command Lock: OFF Bosch Menu Camera Setup PTZ Setup Edit Password *FastAddress: 3 Software Version Ack and Reset Alarms Restore All Settings

* = Factory Setting Focus / Iris: Select

4.1.2 Using a Pelco Controller

This section provides instructions to set a FastAddress with a Pelco keyboard or controller. – An AutoDome with an address set to 0 responds to commands set to any address. – Pelco-P protocol must use addresses 1 to 32. – Pelco-D protocol must use addresses 1 to 254.

NOTICE!

A previously configured AutoDome with an address above 32 (Pelco-P upper limit) or 254 (Pelco-D upper limit) can be used without readdressing the unit. However, no two (2) addresses can be the same. For example: Pelco-P addresses above 32 are repeated in multiples of 32 (1, 33, 65, 97 are the same). Pelco-D addresses above 254 are repeated in multiples of 254 (1, 255, 509, 763 are the same).

Setting FastAddress with a Pelco Keyboard

1. Press and hold 95-PRESET for two seconds to open the Pelco Setup menu.

2. Move the joystick to select the Command Lock menu.

3. Press the FOCUS or the IRIS button to turn Command Lock to OFF.

4. Move to the FastAddress menu and press the FOCUS or the IRIS button to open the menu.

5. Use the joystick to enter the unique identifier for the VG4 AutoDome. – Move the joystick up or down to select the number. – Move the joystick right to move to the next number position.

6. Move the joystick right to select Continue. Then, press the FOCUS or the IRIS button.

7. Use the keyboard to enter the FastAddress number. Then, press the Camera button. Note: You must first clear an assigned FastAddress number to use the number for a different VG4 AutoDome.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 33

AutoDome 600 Series Analog PTZ Camera Alternative Control Protocols | en 33

8. Move the joystick down then back up to set the FastAddress number.

9. Press the FOCUS or the IRIS button to store the FastAddress number. The on-screen display menu confirms that the VG4 AutoDome stored the FastAddress number.

4.2 Pelco Protocol Mode

The Pelco Mode features Auto Baud Detection that automatically detects and adjusts the AutoDome protocol and baud rate to match that of the controller. The AutoDome responds to Pelco-D or Pelco-P protocol commands.

NOTICE!

The AutoDome supports only the RS-485 protocol while in Pelco mode. It does not transmit responses back to the controller.

4.2.1 Hardware Configuration

The AutoDome is configured from the factory for RS-485 operation in Pelco Protocol Mode.

1. Connect the controller's TX terminals to the AutoDome's TxD terminals. See the AutoDome Modular Camera System Installation Manual for complete wiring instructions.

2. Pan or tilt the keyboard joystick to confirm that control has been established to the AutoDome (approximately five (5) seconds).

NOTICE!

If control is not established, ensure that the RS-232/RS-485 selector switch is positioned to RS-485 (outward toward the LED lights). This switch is located on the bottom of the AutoDome CPU board, under the camera head and next to the LED lights. See Figure 4.1.

Figure 4.1 RS-232/RS-485 Selection Switch

1CPU Module 2 Switch Location 3LEDs 4 RS485

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 34

34 en | Alternative Control Protocols AutoDome 600 Series Analog PTZ Camera

4.2.2 Pelco Keyboard Commands

Pelco control commands are composed of a sequence of two (2) keyboard inputs with the following convention: 1) a Command Number and 2) a Function key input. The AutoDome uses the PRESET command key to save and recall presets (pre-positions) 1 through 99.

NOTICE!

To save a preset, enter the desired number and hold the PRESET key for approximately two (2) seconds. To recall a preset, enter the desired preset number (or command) and momentarily press and release the PRESET key.

4.2.3 Pelco Keyboard Commands

Keyboard Command User Action Description

0-Pattern Press Initiates recording continuous playback based upon

current Recording setting (A or B) in the Setup Menu.

Press and hold Initiates recording based upon current Recording

setting (A or B) in the Setup Menu. Press ACK to end recording.

1-Pattern Press Initiate Recording A continuous playback.

Press and hold Initiate Recording A. Press ACK to end recording.

2-Pattern Press Initiate Recording B continuous playback.

Press and hold Initiate Recording B. Press ACK to end recording.

3-Pattern Press Initiate the AutoDome standard preset tour (Tour 1).

4-Pattern Press Initiate the AutoDome custom preset tour (Tour 2).

1 – Aux On / Aux Off Press Activates / deactivates alarm output 1.

2 – Aux On / Aux Off Press Activates / deactivates alarm output 2.

3 – Aux On / Aux Off Press Activates / deactivates alarm output 3.

4 – Aux On / Aux Off Press Activates / deactivates alarm relay.

91 – Aux On Press Activate Zone Scan (display zone titles).

92 – Aux On Press Deactivate Zone Scan (re-move zone titles)

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 35

AutoDome 600 Series Analog PTZ Camera Alternative Control Protocols | en 35

4.2.4 Special Preset Commands

Some Pelco mode preset commands have a special meaning and override the normal Pelco preset function as follows:

Preset Command Description

33-PRESET Pans the AutoDome 180° (Flip).

34-PRESET Goes to Zero Pan (original home position).

80-PRESET Toggles the Synchronization Mode between Line Lock and Internal

(Pelco Frame Scan). This command is available if commands are unlocked using the Main menu.

81-PRESET Initiates Preset Tour 1.

82-PRESET Initiates Preset Tour 2.

92-PRESET Sets the Left pan limit for an AutoScan with Limit Stops enabled.

93-PRESET Sets the Right pan limit for an AutoScan with Limit Stops enabled.

94-PRESET Initiates a Preset Tour.

95-PRESET Enables or disables Limit Stops in the Setup Menu for AutoScan.

Invokes the Pelco main Setup Menu when pressed for 2 seconds.

96-PRESET Stops a scan.

97-PRESET Initiates FastAddress (Pelco Random Scan).

98-PRESET Toggles the Synch. Mode between Line Lock and Internal (Pelco Frame

Scan). This command is available only for two (2) minutes after the power is applied and then reverts to normal preset functionality.

99-PRESET Starts an AutoScan

NOTICE!

Some Pelco controllers do not support all the preset command numbers. Consult the specific Pelco controller's documentation for supported preset commands.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 36

36 en | Pelco On-Screen Menus AutoDome 600 Series Analog PTZ Camera

5 Pelco On-Screen Menus

You can program the AutoDome through the Pelco on-screen display (OSD) menus. To access the Pelco menus, you must configure the AutoDome for Pelco Mode and invoke the Pelco main Setup Menu.

5.1 Setup Menu

The Pelco main Setup Menu provides access to the programmable AutoDome settings. Some menu items are locked and require a system password to use. Menu items marked with an * are the default settings.

To open the Pelco main Setup Menu (locked commands):

1. Press 95-PRESET (press the PRESET button for approximately 2 seconds to open).

2. Use the joystick to highlight a menu item.

3. Press either the Focus or the Iris key to open a menu item.

4. Follow the on-screen instructions at the bottom of the screen.

Setup Menu

Exit... Command Lock: OFF Bosch Menu Camera Setup PTZ Setup Edit Password *FastAddress: Not Set Advanced Software Version Ack and Reset Alarms Restore All Settings Reset All Memory * = Factory Setting Focus / Iris: Select

NOTICE! Use Zoom to select the Exit item from anywhere in a menu.

Menu Description

Exit Exits the menu.

Command Lock

(locked)

Bosch Menu (locked) Accesses the full AutoDome configuration menu and all AutoDome

Camera Setup Accesses the White Balance and Night Mode camera settings.

PTZ Setup Accesses the tours, tour periods, scan speed, edit presets, limit

Edit Password

(locked)

FastAddress (locked) Sets or changes a camera address.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Allows or prohibits accessing locked commands. (If password is set, you are prompted to enter the password.

settings.

stops, recording, and AutoPivot settings.

Changes the password.

Page 37

AutoDome 600 Series Analog PTZ Camera Pelco On-Screen Menus | en 37

Menu Description

Exit Exits the menu.

Software Version Displays the current software versions.

Ack and Reset Alarms Acknowledges and resets active alarms.

Restore All Settings

(locked)

Reset All Memory (locked)

NOTICE!

After a period of 4.5 minutes of inactivity, the OSD menu times-out and exits without warning. Some unsaved settings can be lost!

Restores all settings to their original default setting.

Clears all settings, including scene shots, tours, and recordings stored in the AutoDome memory.

5.1.1 Command Lock (locked)

The Pelco Command Lock Menu allows or prohibits the use of locked commands. The default setting is ON.

NOTICE!

If the Command Lock is set to ON and you press Focus or Iris on a locked command, the AutoDome displays the on-screen message: “Command is Locked.”

5.1.2 Bosch Menu (locked)

The Bosch Menu allows full access to the AutoDome main Setup Menu and all AutoDome configuration settings.

Pelco menu Bosch menu

Setup Menu Setup Menu

Exit... Command Lock: OFF Exit... Bosch Menu Camera Setup Camera Setup Lens Setup PTZ Setup PTZ Setup Edit Password Display Setup *FastAddress: Not Set Communication Setup Advanced Alarm Setup Software Version Language Ack and Reset Alarms Advanced Restore All Settings Diagnostics Reset All Memory * = Factory Setting Focus / Iris: Select Focus / Iris: Select

Refer to Section 2: On-Screen Display Menu Navigation for a complete description of Bosch menus and configuration settings.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 38

38 en | Pelco On-Screen Menus AutoDome 600 Series Analog PTZ Camera

Camera Setup (unlocked) The Pelco Camera Setup Menu provides access to camera settings.

Camera Setup

Exit... * White Bal: OUTDOOR *Night Mode: AUTO

* = Factory Setting

Focus / Iris: Select

Camera Setup Menu Choices:

Menu Description Sub-menu / Description Default

Setting

Exit Exits the menu.?

White Balance

Sets a default value in case the Pelco controller disables the white balance.

OUTDOOR: Sets a default setting if the controller disables white balance.

INDOOR: Sets a default setting if the

OUTDOOR

controller disables white balance.

Night Mode Switches from color to

monochrome.

ON: Sets Night Mode on. OFF: Sets Night Mode off.

ON (Day/Night

models only)

AUTO: Sets Night Mode to Auto set.

5.1.3 PTZ Setup (unlocked)

The Pelco PTZ Setup Menu provides access to the PTZ settings such as tours, scan speed, presets, limit stops, recording, and AutoPivot.

PTZ Setup

Exit... * Edit Tour 1... * Edit Tour 2... * Tour 1 Period: 5 sec * Tour 2 Period: 5 sec * Scan Speed 30 deg/sec

Edit Presets... * Limit Stops: OFF * Recording: “A” * Autopivot: ON

* = Factory Setting

Focus / Iris: Select

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 39

AutoDome 600 Series Analog PTZ Camera Pelco On-Screen Menus | en 39

PTZ Setup Menu Choices:

Menu Description Sub-menu / Description Default

Setting

Exit Exits the menu.?

Edit Tour 1 Accesses the Add /

Remove Scenes On Standard Tour 1 Menu.

Edit Tour 2 Accesses the Edit Custom

Tour Menu.

Exit: Exits the menu. Scene (1 - 5): Adds or removes scenes from the Standard Tour.

Exit: Exits the menu. Scene (1 - 5): Adds or removes scenes from the Custom Tour.

Tour 1 Period Changes the length of

Sliding scale: – (3 sec. to 10 min.) + 5 sec. waiting time between presets.

Tour 2 Period Changes the length of

Sliding scale: – (3 sec. to 10 min.) + 5 sec. waiting time between presets.

Scan Speed Changes the Autopan and

AutoScan speeds.

Sliding scale: – (1°/sec to 60°/sec) +30°/

sec.

Edit Presets Modifies preset scenes. 1-99 scenes

Limit Stops Toggles the Limit Stops for

ON or OFF OFF

AutoScan.

Recordings Selects record Pattern 1 or

“A” or “B” “A” 2, if normal pattern command does not respond.

AutoPivot Follows a subject while

ON or OFF ON

beneath the camera, without inverting the picture.

5.1.4 Other Menus

Menu Description Default

Setting

Edit Password Sets or displays the password. See Section 1.4 Setting

Passwords, page 8.

FastAddress (locked) Sets or changes the AutoDome address. Not Set

Software Version

(unlocked)

Ack and Reset Alarms Acknowledges and resets alarms. If there is no active

Restore All Settings

(locked)

Reset All Memory (locked)

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Displays the camera software version.

alarm input, the OSD displays the following message: “

No Active Alarms.”

Restores all settings to their original factory default settings.

Restores all settings to their original factory default settings and clears all user programmed settings such as preset scenes and recordings.

Page 40

40 en | Keyboard Commands by Number AutoDome 600 Series Analog PTZ Camera

6 Keyboard Commands by Number

Locked Function

Key

Comm

No.

Command Description

On/Off 1 Scan 360° Auto Pan without limits

On/Off 2 Auto Pan Auto Pan between limits

* On/Off 3 Iris Control Enters menu (auto, manual)

* On/Off 4 Focus Control Enters menu (spot, auto, manual)

On/Off 7 Play Custom Pre-position Tour Activate/Deactivate

On/Off 8 Play Pre-position Tour Activate/Deactivate

* On/Off 9 Inactivity Mode Enters menu (Off, Return to Scene 1, Recall

Previous PTZ Command)

* On/Off 11 Auto Iris Level Adjust Enters Iris Level Adjustment menu

On/Off 14 Set Autopan and Scan Speed Enters speed adjustment slide bar

On/Off 15 Set Pre-position Tour Period

Enters dwell adjustment slide bar

(dwell)

* On/Off 18 AutoPivot Enable Enables/disables AutoPivot

On/Off 20 Backlight Comp Backlight Compensation

* On/Off 23 Electronic Shutter Enters Shutter Speed slide bar

On/Off 24 Stabilization Electronic Stabilization

On/Off 26 Wide Dynamic Range Activate/Deactivate

* On/Off 35 White Balance Mode Enters White Balance menu

* On 40 Restore Camera Settings Restores all setting to their original defaults

* On/Off 41 Line Lock Phase Adjust Enters delay adjustment slide bar

* On/Off 42 Sync Mode On–Line Lock

Off–Internal

* On/Off 43 Auto Gain Control AGC–On, Auto, Off

* On/Off 44 Sharpness Enters Sharpness menu

* On 46 Advanced Menu Enters Main Setup menu

On 47 View Factory Settings View all menu default settings

On/Off 50 Playback A, continuous Activate/Deactivate

On/Off 51 Playback A, single Activate/Deactivate

On/Off 52 Playback B, continuous Activate/Deactivate

On/Off 53 Playback B, single Activate/Deactivate

On/Off 56 Night Mode Menu On, Off, Auto (Day/Night only)

On/Off 57 Night Mode Setting Enables/disables Night Mode

(Day/Night only)

* On/Off 58 Day/Night Threshold On–menu (Day/Night only)

On/Off 59 Night Mode Priority Motion–Activates Night Mode before slow

shutter, preserving full-frame integration as light is reduced. Color–Activates slow shutter before Night Mode, preserving color longer as light is reduced.

* On/Off 60 On Screen Display On–Enable

Off–Disable

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 41

AutoDome 600 Series Analog PTZ Camera Keyboard Commands by Number | en 41

Locked Function

Key

Comm

No.

Command Description

* On 61 Display Adjust Adjust On-screen Display

On 62 Pre-position Title menu Enters Pre-position Title menu. Refer to

Section 3.3 Specifying a Shot or a Sector Title, page 27.

* On 63 Zone Title Menu Enters Zone Title menu. Refer to

Section 3.3 Specifying a Shot or a Sector Title, page 27.

On 64 Alarm Status Enters Alarm Status menu

Off 65 Alarm Acknowledge Acknowledge alarm or deactivate physical

outputs

On 66 Display Software Version Displays software version number

* On/Off 69 Alarm Rule Activation/Deactivation On–Enables all alarm rules

Off–Disables all alarm rules

On 72 Re-initialize Camera Performs camera/lens re-initialization functions

On/Off 78 AutoTrack Turns AutoTrack on or off

* On 79 Camera Height Enters the Camera Height menu

* On/Off 80 Digital Zoom Lock Turns digital zoom on and off

On/Off 81 Alarm Output 1

Open Collector

On/Off 82 Alarm Output 2

Open Collector

On/Off 83 Alarm Output 3

Open Collector

On/Off 84 Alarm Output 4

Relay

On–Activates output Off–Deactivates output

* On/Off 86 Sector Blanking Enters Sector Blanking menu

* On/Off 87 Privacy Masking Enters Privacy Masking menu

On/Off 88 Proportional Zoom On–Activates proportional zoom

Off–Deactivates proportional zoom

On/Off 89 Preposition Confirmation On–Isues a message that prompts for approval

to overwrite a preposition Off–No confirmation message issued

On/Off 90 Command Lock/Unlock On–Lock on

Off–Lock off

*On/Off91Lens Polarity Menu On–Reverse

Off–Normal

*On/Off92Lens Polarity Menu On–Reverse

Off–Normal

*On/Off93Lens Polarity Menu On–Reverse

Off–Normal

* On/Off 94 Set Azimuth Zero Point Sets the zero degree pan position.

Refer to Section 7.8 Azimuth, Elevation, and Compass Directions, page 52.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 42

42 en | Keyboard Commands by Number AutoDome 600 Series Analog PTZ Camera

Locked Function

Key

On/Off 95 Display Azimuth/Elevation

On/Off 96 Display Compass Readings On–Displays compass heading

On 99 Factory P/T Home Position Recalibrates home position; can be used as an

On/Off 100 Record A Activate/Deactivate

On/Off 101 Record B Activate/Deactivate

On 997 FastAddress, display Display current address

On 998 FastAddress, all units Display and program current address

On 999 FastAddress, unaddressed domes Display and program unaddressed AutoDomes

Set “1-99” Pre-position Programming Set ##–Programs a preset view

Shot “1-99” Pre-position Recall Shot ##–Recall programmed preset

Set 100 Pre-position Menu Enters the Pre-position menu

Set/Shot 101 Autopan Left Limit Set–Programs left limit

Set/Shot 102 Autopan Right Limit Set–Programs right limit

Set 110 Factory P/T Home Position Set–Recalibrate home position

On/Off 680 Homing Recalibration Display Displays the current mode of operation,

On/Off 681 Homing Recalibration On – Enables recalibration (This action does not

On 682 Recalibration Mode Each On command toggles the recalibration

On/Off 683 Recalibration Interval Changes the homing recalibration interval.

Comm

No.

Command Description

On–Displays azimuth/elevation readings

Readings

Off–Hides azimuth/elevation readings Refer to Section 7.8 Azimuth, Elevation, and Compass Directions, page 52.

Off–Hides compass heading Refer to Section 7.8 Azimuth, Elevation, and Compass Directions, page 52.

Alarm Output

Shot–Shows limit

intervals, time until the next calibration, and the number of recalibrations that have occurred. On – Turns display on. Off – Turns off the display.

cause the dome to re-home immediately) Off – Disables recalibration

mode as follows: – Recalibrates only on the loss of home

position.

– Recalibrates on the loss of home and for

every periodic interval.

Intervals are in 6-hour increments up to 72 hours. Each On – increases interval by 6 hours Each Off – decreases interval by 6 hours

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 43

AutoDome 600 Series Analog PTZ Camera Keyboard Commands by Number | en 43

Locked Function

Key

Comm

No.

Command Description

On/Off 684 Initial Offset Time Sets the initial offset time for the recalibration

interval. The offset time starts after the Homing Calibration is enabled. The recalibration interval begins its countdown after the offset time. Each On – increases offset time by 4 hours Each Off – decreases offset time by 4 hours Note: The offset time does not take effect until the Homing Calibration is enabled.

* On 911 Remote Restart Simulates a power cycle. Once issued the

AutoDome re-homes and displays the start-up splash screen.

* Set 802 Edit Password Enters the Edit Password menu

* Set 899 Reset ALL Restores all settings to original defaults and

clears all user-programmed settings

Set 900 Edit Tour 1 (Standard) Enters the Standard Tour Scene menu

Shot 900 Edit Tour 2 (Custom) Enters the Custom Tour Scene menu

Set/Shot 901-999 Adds/Removes a Preposition Shot

from Tour 1

Set ###–Adds preset Shot ###–Removes preset

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 44

44 en | Advanced Features AutoDome 600 Series Analog PTZ Camera

7 Advanced Features

This chapter details the advanced features of the VG5 AutoDome Camera.

7.1 Alarm Rules

The AutoDome features a powerful alarm rule engine. In its simplest form, an alarm rule defines those inputs that activate specific outputs. In its more complex form, a rule can be programmed to take any combination of inputs and keyboard commands to perform a dome function. There are numerous combinations of alarm inputs and outputs that can be programmed into twelve alarm rules.

7.1.1 Controlling Alarm Rules

The AUX 69 command allows a user to enable or disable all alarm rules. By default, alarm rules are enabled until the OFF-69-ENTER command is issued from a keyboard (there is no corresponding menu item for this command). Disabling alarms rules does not erase the rule, the AutoDome preserves the user-defined settings and the rule data is restored when the ON69-ENTER command is issued. The OFF-69-ENTER command performs the following actions: – Disables all alarm rules – Displays the message “Ack and Reset Alarms” if an alarm-rule triggered alarm is active

when the AutoDome receives the disable command. You must acknowledge the alarm before the rule is disabled.

– Prevents the modification of an alarm rule while disabled.

7.1.2 Alarm Rule Examples

Following are three examples for setting up alarm rules. The first example is a basic alarm rule, and the second and third examples are more complex.

Example 1: Basic Alarm Rule

Scenario: We want a door alarm contact to:

1. Flash an OSD message (***ALARM 1***) on the display when the alarm is triggered.

2. Move the AutoDome camera to a saved position. (For this example Shot 7.)

3. Transmit a Bilinx signal over the coax cable to the headend system, such as an Allegiant, to trigger an alarm response.

The sequence to program the above alarm rule example is as follows:

1. Wire the door contact to Input 1 in the AutoDome. This circuit is normally open.

2. Define the Alarm Input(s) – From the Inputs Setup menu, ensure that Alarm Input 1 is set to N.O. (This is the

default setting for Input 1.)

NOTICE! For instruction on wiring alarm and relay connections, see the VG5 AutoDome Installation Manual.

3. Define the Alarm Outputs from the Outputs Setup menu: a. Ensure Output 5 is set to OSD. (This is the default setting for Output 5.) b. Set Output 6 to Shot 7. c. Set Output 7 to Transmit (a Bilinx signal to the head end).

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 45

AutoDome 600 Series Analog PTZ Camera Advanced Features | en 45

4. Set up the Alarm Rule (for this example use Rule 1). Select the Inputs from the Rule Setup menu: a. Select Rule 1. b. Set the first input to Alarm Input 1.

5. Select the outputs: a. Set the first output to OSD. b. Set the second output to Shot 7. c. Set the third output to Transmit.

6. Enable the rule: – Highlight Enabled and select YES.

Example 2: Advanced Alarm Rule

Scenario: A VG5 AutoDome located at an airport is set to AutoPan Between Limits from the parking garage to the airport terminal. The gate entering the airport has an alarm contact connected to the AutoDome, and the perimeter fence in the area of the gate has an infrared (IR) motion detection sensor connected to the AutoDome. When both the gate contact and motion detector alarms are activated at the same time, we want the alarm rule to:

1. Flash an OSD message (***ALARM 2***) on the monitor.

2. Stop the AutoPan and move the camera to a saved position (Shot 5) viewing the fence.

3. Turn on AutoTrack.

4. Transmit a Bilinx signal to the head end system to trigger an alarm response.

The sequence to program this alarm rule example is as follows:

1. Wire and set the alarm Input(s). a. Wire the motion detector to Input 1. (This circuit is normally open.) b. Wire the gate alarm contact to Input 5. (This circuit is normally closed.)

NOTICE!

For instruction on wiring alarm and relay connections, see the AutoDome Modular Camera System Installation Manual.

2. From the Inputs Setup menu: a. Ensure Input 1 (the motion detector) is set to N.O. (This setting is the default for

Input 1.)

b. Ensure Input 5 (the gate contact) is set to N.C.

3. Set the alarm Outputs from the Outputs Setup menu: a. Set Output 5 to OSD. b. Set Output 6 to Transmit. c. Set Output 7 to Shot 5. d. Set Output 8 to AutoTrack.

4. Set up the Alarm Rule (for this example use Rule 2). Select the alarm Inputs: a. From the Rule Setup menu select Rule 2. b. Set the first input to Alarm Input 1. (The motion detector.) c. Set the second input to Alarm Input 5. (The gate alarm contact.)

5. Select the alarm Outputs: a. Set the first output to OSD. b. Set the second output to Shot 5 viewing the fence. c. Set the third output to AutoTrack and select Latched. d. Set the fourth output to Transmit (a Bilinx signal to the headend).

6. Enable the alarm Rule: – Highlight Enabled and select YES.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 46

46 en | Advanced Features AutoDome 600 Series Analog PTZ Camera

Example 3: Advanced Alarm Rule using AutoTrack

The following example explains how to set an alarm rule that moves the camera to a preset position and then activates the AutoTrack feature to track an intruder after an alarm is triggered. This example uses the Configuration Tool for Imaging Devices (CTFID) software tool. Refer to the Configuration Tool for Imaging Devices User Guide, available at www.boschsecurity.com.

1. Launch the CTFID software from a computer that is connected to a VG5 AutoDome.

Figure 7.1 CTFID Overview Window

2. Click the Online Config button and then expand Alarm.

Figure 7.2 Expanded Alarm Group

3. Expand Output Options; then click Output Option 5.

4. Select Tracking from the Type drop-down list.

5. Click Output Option 6.

6. Select Shot from the Type drop-down list.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 47

AutoDome 600 Series Analog PTZ Camera Advanced Features | en 47

7. Type the number 1 or use the slide bar to specify shot number 1. (Shot numbers must be set prior to configuring an alarm rule. See Section 3.2 Setting Preset Shots, page 26, for instructions). The AutoDome moves to this preposition when the alarm rule is true.

Figure 7.3 Output Option 6 Configuration

8. Expand Alarm Rule; then click Alarm Rule 1.

9. Click the Yes radio button to enable the rule.

10. Type the number 1 or use the slider bar to select 1 for the Input option.

11. Select Alarm Input 1 from the Input Option drop-down list.

12. Ensure that the Output number is set to 1.

13. Select Shot 1 from the Output Options drop-down list. This option instructs the AutoDome to move to pre-position shot 1 when Input 1 is true.

Figure 7.4 Alarm Rule 1 Configuration

14. Move the Output slider bar to Output 2.

15. Select Tracking from the Output Option drop-down list. This option instructs the AutoDome to activate the AutoTrack feature after the input alarm is triggered and after the AutoDome moves to pre-position 1.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 48

48 en | Advanced Features AutoDome 600 Series Analog PTZ Camera

16. Select 5 sec from the Output Period drop-down list. This option instructs the AutoDome to turn off the AutoTrack feature after five seconds from when the tracked object is out of view.

7.2 AutoTrack Operation

The AutoDome features enhanced AutoTrack software with more versatility and smoother object tracking. AutoTrack continuously follows an individual even if the person passes behind a Privacy Mask. When used with Virtual Mask, it is able to ignore predefined areas of background motion. You can manually start AutoTrack or program the AutoDome to automatically turn on AutoTrack. – Manual

– Enter the keyboard command ON-78-ENTER. – In Pelco Mode, open the Main menu, select the Advanced menu, and then select

AutoTrack On.

– Automatic

– During a pre-position tour. –During AutoPan. – AutoDome activates AutoTrack after a period of Inactivity (Return to Scene 1 or

Return to Previous Aux), if AutoTrack is programmed for these activities.

NOTICE!

For proper operation AutoTrack requires that the camera height be set in the software. Open the Bosch Main menu, select the Advanced menu and select Camera Height to enter the height.

7.2.1 AutoTrack Settings and Recommendations

AutoTrack operates by recognizing an individual in motion and zooms-in to approximately 50% of the field of view for an average target height of six feet. In addition to the camera height, other factors may interfere with AutoTrack operation.

Setting the Camera Height

To ensure smooth tracking set the Camera Height accurately. Bosch recommends a minimum camera height of 3.6 m (12 ft).

1. Press OFF-90-ENTER to turn off the command lock.?

2. Press ON-46-ENTER to access the Main Menu.?

3. Use the joystick to highlight the Advanced menu.?

4. Press Focus/Iris to open the menu.?

5. Highlight the Camera Height option and press the Focus/Iris button.?

6. Enter a value between 3.6 m (12 ft) and 30.7 m (100 ft).

7. Press Focus/Iris again to accept the camera height value.

8. Exit the Advanced menu; then exit the Main menu.

Ensuring Smooth AutoTrack Operation

Factors such as the viewing angle and unwanted motion (from trees, for example) may interfere with AutoTrack operation. Use the following recommendations to ensure smooth AutoTrack operation:

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 49

AutoDome 600 Series Analog PTZ Camera Advanced Features | en 49

– Mount/Mounting Surface Stability

– Mount the camera in the most stable position. Avoid locations affected by vibrations,

such as those caused by a roof-top air conditioner. These vibrations may cause complications when the camera zooms-in on a target.

– Use the pendant arm mount, if possible. This mount option provides the most

stability for the camera.

– Use guy wires to protect against strong winds if using the parapet mount.

– Field of View

– Select a location and viewing angle that allows the flow of people to move across

the camera’s field of view. – Avoid motion that moves directly towards the camera. – Avoid locations that attract large numbers of people, such as retail stores or

intersections.

– Unwanted Motion

– Use the Virtual Masking feature (see Section 7.3 Virtual Masking, page 50) to mask

unwanted motion from trees or cars.

Bosch recommends that you draw the virtual mask 10% larger than the object to be

masked.

– Avoid neon lights, flashing lights, night time lights, and reflected light (from a

window or mirror, for example). The flickering of these lights can affect the

AutoTrack operation. Use a Virtual Mask to hide these type of lights if they cannot be

avoided. – Check the virtual mask periodically to ensure that it still covers the entire object to

be masked. Adjust the mask if necessary.

7.2.2 AutoTrack Optimization

The AutoDome achieves optimum tracking performance when the focal length of the lens during AutoPan is as close to the focal length of the lens during an AutoTrack operation. The ambient light conditions also affect the AutoTrack performance.

Dynamic Light Conditions

The ambient lighting conditions affect AutoTrack performance, especially in outdoor dynamic lighting conditions that change daily or hourly. To optimize the AutoTrack performance under changing light conditions, Bosch recommends that you configure the AutoTrack Sensitivity and the AutoPan speeds. Bosch recommends setting the AutoTrack Sensitivity to Auto and suggests the following AutoPan speed for outdoor conditions:

Camera Focal Length Maximum Suggested AutoPan Speed

Near-field (Wide Angle) 5

Mid-field 2

Far-field (Telephoto) 1

If you need a higher AutoPan speed, set the AutoTrack Sensitivity to a value between 1 and 10 in the Advanced Feature Setup menu.

(degrees/sec)

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 50

50 en | Advanced Features AutoDome 600 Series Analog PTZ Camera

Setting AutoTrack Optimization Parameters

1. Press OFF-90-ENTER to turn off the command lock.?

2. Press ON-46-ENTER to access the Main Menu.?

3. Use the joystick to highlight the Advanced menu.?

4. Select the AutoTrack Sensitivity option and change the parameter to Auto or to a value between 1–10.?

5. Exit the AutoTrack Sensitivity menu. Then, exit the Advanced Feature Setup menu.

6. Access the PTZ Setup menu.

7. Select the AutoPan option and change the parameter to one of the suggested values in the table above.

8. Exit the AutoPan menu. Then, exit the PTZ Setup menu and finally exit the Main menu.

Consistent Light Conditions

You may use higher AutoPan speeds in consistent indoor or outdoor ambient light conditions, but Bosch recommends not exceeding a speed of more than 15 degrees/sec. Then modify the AutoTrack Sensitivity setting to reach the optimal results.

7.3 Virtual Masking

Virtual Masking is a unique Bosch technology that allows you to create an “invisible” area that ignores unwanted background motion. These invisible masks are similar to privacy zones, except that the AutoDome AutoTrack and Motion Detection algorithms can see them. – To configure a Virtual Mask, open the Main menu, select the Advanced menu, then select

Virtual Masking. To setup a Virtual Mask follow the on-screen menu instructions.

– In Pelco Mode, open the Main menu, select the Advanced menu, then select Virtual

Masking. To setup a Virtual Mask follow the on-screen menu instructions.

NOTICE!

Draw the mask 10% larger than the object to ensure that the mask completely covers the object as the AutoDome zooms in and out.

7.4 Privacy Masking

Privacy Masking is used to block out a specific area of a scene from being viewed. Mask choices include black, white, or blurred, and can be configured with three, four, or five corners to cover more complex shapes.

NOTICE!

Privacy Masking does not hinder AutoTrack from tracking an object.

– To configure a Privacy Mask, open the Main menu, select Display Setup, and then select

Privacy Mask. Alternatively, enter the keyboard command ON-87-ENTER. To setup a privacy mask, follow the on-screen menu instructions.

–In Pelco Mode open the Pelco Main menu, open the Bosch menu, select the Display

Setup menu, and finally select Privacy Masking. To setup a privacy mask, follow the onscreen menu instructions.

NOTICE!

Draw the mask 10% larger than the object to ensure that the mask completely covers the object as the AutoDome zooms in and out.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 51

AutoDome 600 Series Analog PTZ Camera Advanced Features | en 51

7.5 Motion Detection with Region of Interest (Preset positions 90 through 99)

With the VG5 Series AutoDome, the motion detection software can be configured to create a Region of Interest within multiple preset positions or scenes. It can take advantage of Virtual Masking to ignore motion in predefined areas. Motion Detection can also be used as an Alarm Rule input. Preset positions 90 through 99 are reserved for programming motion detection scenes.

NOTICE!

Motion Detection always takes precedence over AutoTrack object tracking.

To set up a scene with Motion Detection:

1. Choose an unused Preset position from 90 to 99. For this example use Preset scene 95.

2. Enter the keyboard command SET-95-ENTER.

3. Select YES at the Apply Motion Detection? prompt. (If NO is selected, the Preset scene

does not activate Motion Detection.)

4. Select YES at the Apply Region of Interest? prompt. (If NO is selected, the entire scene is

used for Motion Detection.)

5. Follow the on-screen menu instructions to construct the shape of the screen area you

want to detect motion within.

NOTICE! Up to five (5) anchor points can be used to form the area which you want to detect motion within. Motion Detection is not activated until the Preset scene is recalled. The Motion Detection icon "M" appears in the upper left-hand corner of the display.

7.6 Image Stabilization

Image Stabilization becomes increasingly important as zoom ranges are extended. The advanced image stabilization algorithms of the VG5 Series AutoDome eliminate camera shake for exceptional image clarity. Bosch achieves this clarity without reducing camera sensitivity or picture quality. – To configure image stabilization, open the Main menu, select the Advanced menu, and

then select Stabilization to turn on the feature.

– In Pelco Mode open the Main menu, select the Advanced menu, and then select

Stabilization to turn on the feature.

7.7 Pre-position Tour

The VG5 Series AutoDome features (2) preset tours. Each preset scene is saved for playback later. Tour 1 is a standard tour that only recalls the scenes in the exact sequence they were shot. Scenes can be added or deleted on the tour, but the sequence cannot be changed. To add or remove scenes on Tour 1 enter the keyboard command SHOT-900-ENTER and follow the on- screen instructions. Tour 2 is a customizable tour that allows you to rearrange the sequence of scenes on the tour by inserting and deleting scenes. To enter the Edit Tour 2 menu, enter the keyboard command SET-900-ENTER and follow the on-screen instructions.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 52

52 en | Advanced Features AutoDome 600 Series Analog PTZ Camera

7.8 Azimuth, Elevation, and Compass Directions

The VG5 AutoDome allows a user to display the azimuth and elevation position, and the compass heading of the camera. The AutoDome displays the position data in the lower-right corner of the image display. These readings are described as:

Azimuth: The pan angle from zero to 359 degrees in one degree increments. An azimuth

of zero degrees corresponds to North.

Elevation: The tilt position from zero (horizon) to –90 degrees (camera pointing straight

down) in one degree increments.

Compass: The cardinal or intercardinal (N, NE, E, SE, S, SW, W, NW) heading in which the

camera is pointing.

The AutoDome uses the azimuth to determine the compass direction. The following table shows the azimuth range and its corresponding compass heading:

Azimuth Range Compass Direction

21° to 65° NE (Northeast) 66° to 110° E (East) 111° to 155° SE (Southeast) 156° to 200° S (South) 201° to 245° SW (Southwest) 246° to 290° W (West) 291° to 335° NW (Northwest) 336° to 20° N (North)

7.8.1 Setting the Azimuth Zero Point

The installer must calibrate the Azimuth Zero point. The AutoDome uses the Azimuth Zero point, usually set to magnetic North, as the zero degree pan position and as the North compass heading. The AutoDome then displays the azimuth reading and the compass heading based on the number of degrees from the Azimuth Zero point. To set the Azimuth Zero point:

1. Determine the North compass heading, then move the camera to that position.

2. Press OFF-90-ENTER to turn off the command lock (if active).

3. Press ON-94-ENTER to set the Azimuth Zero point.

CAUTION!

Bosch recommends that only the installer calibrate the Azimuth Zero point. A recalibration to the Azimuth Zero point may cause inaccurate compass headings.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 53

AutoDome 600 Series Analog PTZ Camera Advanced Features | en 53

7.8.2 Displaying Azimuth, Elevation, and Compass Headings

You can display only the azimuth/elevation readings or only the compass reading, or you can display both readings at the same time. The AutoDome displays the azimuth/elevation readings and the compass heading in the following way:

180 / –45 S

where: – 180 is the Azimuth or the pan location in degrees. – –45 is the Elevation or the tilt location in degrees. – S is the compass direction (cardinal or intercardinal).

1. Press ON-95-ENTER to display the azimuth/elevation reading.

2. Press ON-96-ENTER to display the compass heading.

3. Press OFF-95-ENTER to hide the azimuth/elevation reading.

4. Press OFF-96-ENTER to hide the compass heading.

7.9 AutoHome Recalibration Commands and Settings

The AutoHoming routine may be enabled for any site that is experiencing a large amount of shifts in masks, prepositions, or playback tours. This feature adds the following AUX commands to configure and to enable the AutoHome Recalibration feature:

Function Key

On/Off 680 Homing Recalibration

On/Off 681 Homing Recalibration On – Enables recalibration (This action does

On 682 Recalibration Mode Each On command toggles the recalibration

On/Off 683 Recalibration Interval Changes the homing recalibration interval.

On/Off 684 Initial Offset Time Sets the initial offset time for the recalibration

Command Number

Command Description

Displays the current mode of operation,

Display

intervals, time until the next calibration, and the number of recalibrations that have occurred. On – Turns display on. Off – Turns off the display.

not cause the dome to re-home immediately) Off – Disables recalibration

mode as follows: – Recalibrates only on the loss of home

position.

– Recalibrates on the loss of home and for

every periodic interval.

Intervals are in 6-hour increments up to 72 hours. Each On – increases interval by 6 hours Each Off – decreases interval by 6 hours

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 54

54 en | Advanced Features AutoDome 600 Series Analog PTZ Camera

7.9.1 AutoHome Recalibration Operation

Recalibration occurs when the AutoDome loses its home position or after the specified time interval has elapsed. Once a recalibration event occurs, the AutoDome will delay the start of the recalibration for15 minutes to ensure that all manual commands have ceased. Manual control is defined as a pan or tilt movement. If after the initial 15-minute delay the AutoDome is still under manual control, the unit delays the start of recalibration for another 15 minutes. It is recommended to set the Inactivity (AUX ON 9) to Shot 1 or to Previous AUX so the AutoDome returns to a preset position or starts a tour after the recalibration process is complete. The AutoHome recalibration behaves in the following manner under specific circumstances: – AutoTracker

If the AutoDome is actively tracking an object with AutoTracker when the interval elapses or a loss of home is detected, the unit will delay recalibration until the AutoTracker stops tracking.

– Preset or Recorded Tour

If the AutoDome is performing a preset or playback of a recorded tour when the interval elapses or a loss of home is detected, the unit will start the recalibration process immediately. If the Inactivity command (AUX ON 9) is set to Return to AUX, the unit will resume the tour after the recalibration process is complete.

7.9.2 Using the AutoHome Recalibration

Use the following procedure for the initial setup of the AutoHome Recalibration:

1. Issue the AUX ON 680 command to check the status of the recalibration settings. This command displays a status screen that shows the following information:

Setting Values

Status Enabled

Disabled

Mode Loss

Loss + Interval Interval 6 - 72 hours, in 6-hour increments Initial Offset 4 - 20 hours, in 4-hour increments Number of Recals Total number of homing recalibrations performed due to loss of home or

interval Next Cal Shows the days, hours, minutes, and seconds until the next homing

recalibration

2. Set the Recalibration Mode to recalibrate on the loss of home and after every interval: – Issue the AUX ON 682 command. – Issue the AUX ON 682 command again.

Note: The AUX ON 682 command must be issued twice only for the initial setup. Each subsequent AUX ON 682 command toggles the mode as described in the table above.

3. Set the Recalibration Interval by issuing the AUX ON 683 and the AUX OFF 683 commands. For example, to set the Recalibration Interval to 24 hours, issue the AUX ON 683 commands four times.

4. Set the Initial Offset Time by issuing the AUX ON 684 and the AUX OFF 684 commands. For example, to set the Initial Offset Time to 8 hours, issue the AUX ON 684 command twice.

5. Issue the AUX ON 681 command to enable the recalibration routine.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 55

AutoDome 600 Series Analog PTZ Camera Troubleshooting Guide | en 55

8 Troubleshooting Guide

8.1 VG5 AutoDome Operation and Control

Problem Solution

No video – Check that the Green LED on the AutoDome CPU board is on. This LED indicates video

from the camera.

If the Green LED is off, then:

– Check that the Red LED on the AutoDome CPU board is slowly blinking. This LED

indicates power to the AutoDome power supply board and to the CPU Module.

Red LED on AutoDome CPU M0.odule Flash SequenceIndicates:

– 5 sec. on / 0.5 sec. off: Normal operation – Steady on: CPU is locked

If the Red LED is on steady, then:

– Try cycling the AutoDome power off and on.

If the Red LED is off, then: If using a Bosch Pendant Power Supply Box:

– Check that Green LED in Power Supply Box is on. This LED indicates mains power

through the transformer.

If the Green LED is off, then:

– Turn off the Power. – Check the FX101 fuse for mains power to the Power Supply Box.

If O.K., then:

– Check the FX102 fuse for 24 V power to the AutoDome Pendant.

If O.K., then: If using a non-Bosch power supply:

– Check that the mains power to the power supply box is on.

If O.K., then:

– Check that there is 24 V output from the transformer. – Check the connector on top of the AutoDome housing for bent pins.

If O.K., then:

– Check the integrity of all wires and terminal connections to the AutoDome.

If O.K., then: If there is power to the AutoDome, then:

– Remove the camera and CPU modules from the AutoDome housing and check that the

Green LED on the housing power supply board is on.

If the Green LED is off, then:

– Check that the fuse on the housing power supply board is good.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 56

56 en | Troubleshooting Guide AutoDome 600 Series Analog PTZ Camera

No camera control – Ensure that the keyboard and monitor are set to the correct (same) camera number.

If O.K., then:

– Check that the camera address is properly set. Enter ON-997-ENTER to display the

camera address.

If address is not set or is incorrect, then: – Set the camera address using FastAddress (ON-998-ENTER). If O.K., then:

– Check that the Amber LED on the AutoDome CPU turns on when receiving pan/tilt

commands from the controller keyboard. The Amber LED indicates control is being received.

Amber LED on AutoDome CPU Module Flash Sequence

–Off

No incoming communications or no power

– Solid for 2 seconds

Receiving good data

– Fast blinking

Lost packet(s)

If amber LED does not light when given PTZ commands, then:

– Check if other cameras on the system can be controlled. If not, check the controller

and wiring connections.

If O.K., then:

– Check that the RS-232/485 selector switch is properly set to the proper protocol.

If O.K., then:

– Ensure that all Biphase, Bilinx, or RS-232/485 wires are properly connected. See the

VG5 AutoDome Installation Manual.

If O.K., then: – Check if you can access the AutoDome OSD menus (ON-46-ENTER). If O.K., then: – Confirm that the AutoDome passes homing (SET-110-ENTER). If AutoDome fails homing, then:

– Contact Bosch Technical Support.

Intermittent camera control

– Check that only the last AutoDome in a daisy chain configuration is terminated with a

100 Ω resistor across the +/- biphase terminals.

If O.K., then:

– Check that the maximum wire distance has not been exceeded for the control protocol

(the maximum distance for RS-232 is 50 feet). See the VG5 AutoDome Installation Manual.

If O.K., then:

– Check that all wiring meets Bosch recommended standards and specifications. See the

VG5 AutoDome Installation Manual.

Camera moves when moving other cameras

– Check that the camera address is properly set (ON-997-ENTER). If the camera address

is not set, the AutoDome responds to control commands to any camera on the system.

If camera address is not set, then: –Invoke the FastAddress Menu to assign a camera address (ON-998-ENTER).

Cannot access user settings

– Enter the unlock command OFF-90-ENTER. This command may require a password.

(Commands automatically lock in 30 minutes.)

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 57

AutoDome 600 Series Analog PTZ Camera Troubleshooting Guide | en 57

Setting FastAddress with an American Dynamics Keyboard

The FastAddress value must match the Unique Identifier for the AutoDome. To set the FastAddress on an American Dynamics keyboard refer to Section 4.1 Setting FastAddress with Alternative Protocols, page 29.

Picture is dark – Check that the Gain Control is set to AUTO (ON-43-ENTER).

If O.K., then: – Check that the Auto Iris Level is set to the appropriate level (ON-11-ENTER). If O.K., then:

– Check that the video coax is terminated with 75 Ω only at the head end. (Double

termination causes dark video.)

If O.K., then: – Go to the Camera Setup Menu and increase the Pre-Compensation setting. If O.K., then:

– Check that the camera lens cover is removed.

If O.K., then:

– Check that the maximum coax distance has not been exceeded. See the VG5 AutoDome

Installation Manual.

If O.K., then: – Restore all camera settings (ON-40-ENTER).

Colors are not correct

– Reset the White Balance to the appropriate selection (ON-30-ENTER). If O.K., then: – Go to the Camera Setup Menu and increase the Pre-Compensation setting. If O.K., then:

– Check that the maximum coax distance has not been exceeded. See the VG5 AutoDome

Installation Manual.

If O.K., then: – Restore the default settings (ON-40-ENTER).

Background is too

– Turn on backlight compensation (ON-20-ENTER).

bright to see subject

Video is rolling, noisy or distorted

– Ensure that the Synch Mode is set to Internal (OFF-42-ENTER). If O.K., then:

– Check that the maximum coax distance has not been exceeded. See the VG5 AutoDome

Installation Manual.

If O.K., then:

– Check the integrity of all BNC connectors and splices.

Note: Connecting a network cable to the interface board of a non-IP AutoDome causes video distortion.

– Remove the network cable from the interface board RJ-45 connector.

If O.K., then:

– Contact Bosch Technical Support.

Day/Night camera does not switch automatically when

– Check that the Day/Night mode is set to AUTO (ON-56-ENTER). If O.K., then: – Set Gain Control to AUTO (ON-43-ENTER).

image is dark

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 58

58 en | Troubleshooting Guide AutoDome 600 Series Analog PTZ Camera

Inside of Outdoor Pendant bubble is foggy

Low Voltage flashing on monitor display

– Check the status of the Heater Module (ON-66-ENTER). If status reports Heater No Power, then:

– Turn off the power to the AutoDome. – Check the FX103 fuse in the Power Supply Box for power (24 V) to the heater module.

If O.K., then:

– Check all wiring and connector pins to the heater module.

– If using a non-Bosch power supply, confirm that it meets the Bosch AutoDome power

ratings. See the AutoDome Datasheet for specifications.

If O.K., then:

– Check the mains input line voltage.

If O.K., then:

– Check that the maximum wire length from the power supply has not been exceeded.

See the VG5 AutoDome Installation Manual.

If O.K., then:

– Measure the AC voltage input to the camera while power is applied to the camera. The

voltage must be ≥ 21 VAC to stop the message.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 59

AutoDome 600 Series Analog PTZ Camera Troubleshooting Guide | en 59

8.2 VG5 Series AutoDome Audio

The following diagram illustrates the path for audio transmissions between a microphone/ AutoDome and a computer that plays the audio.

Audio Connections with an VG5 600 Series AutoDome

In this illustration the VG5 600 Series AutoDome connects to a Bosch Video/Audio IP Encoder via a coaxial cable. The computer that plays the audio is connected to the encoder via an Ethernet cable.

Figure 8.1 Typical Audio Connections for an Analog AutoDome

1 Microphone 6 Audio In

2 Coaxial Connection; Microphone to Bosch

Video/Audio Encoder; 10 m (33 ft) maximum distance

3 VG5 600 Series AutoDome 8 Ethernet Connection;

4 Coaxial Connection; VG5 600 Series

Autodome to a Bosch Video/Audio Encoder

5 Bosch Video/Audio Encoder

7Video In

Bosch Video/Audio Encoder to a PC

9 Computer with Bosch DiBos Software

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 60

60 en | Troubleshooting Guide AutoDome 600 Series Analog PTZ Camera

Problem Solution

No Audio – Check the computer receiving the audio from the VG5 AutoDome or from the IP

Encoder. – Check the computer’s audio settings. Ensure that the sound levels are at an audible

level.

– Check the computer’s audio output card and speakers. Play a secondary source of

audio on the computer. If you still do not hear audio replace the speakers and try again.

If O.K., then:

– Ensure that the Audio option is enabled for the IP device.

a. Access the Settings Web page for the IP-enabled device. b. Expand the Encoder Settings link, then click Audio Settings. c. Ensure that On is selected from the Enable Audio drop-down list. Then, click Set.

If O.K., then:

– Check the microphone.

Connect appropriate speakers directly to the microphone at the camera site and confirm that the audio is clear and audible at the location.

An audio problem or noise at the source will further degrade as it travels through all the cables and connections.

If O.K., then:

– Verify the cable type and installation used for audio connections between the

microphone and the VG5 AutoDome. – Cable type: Coaxial – Cable length: 10 m (33 ft), maximum

Refer to the VG5 AutoDome Installation Manual for more information.

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 61

AutoDome 600 Series Analog PTZ Camera Troubleshooting Guide | en 61

Problem Solution

If O.K., then:

– Check all network connections.

– If the video is clear and contains no distortion, then the network connections are

probably not the source of audio problems.

– Ensure that the maximum distance between any two Ethernet connections is 100 m

(328 ft). Refer to the VG5 AutoDome Installation Manual for more information.

Poor Audio – Check the computer receiving the audio from the VG5 AutoDome or from the IP

Decoder. – Check the computer’s audio output card and speakers. Play a secondary source of

audio on the computer, if you hear static then replace the speakers and try again.

– Check the computer’s audio output card and speakers. Play a secondary source of

audio on the computer. If you still do not hear audio replace the speakers and try again.

If O.K., then:

– Check the Gain settings and the peak gain value.

a. Access the Settings Web page for the IP-enabled device. b. Expand the Encoder Settings link, then click Audio Settings. c. Adjust the Gain level so that the peak value stays within the green area.

Refer to the VG5 AutoDome Installation Manual for complete information.

If O.K., then:

– Check the location of the microphone and the audio cables.

– Line level audio is typically between 700 mV and 2 V so it may be affected by AC

power or transmission sources.

– Ensure that there is a maximum (at least 1 foot per 100 VAC) distance between the

microphone and audio cables and the AC source.

If O.K., then:

– Verify the cable type and installation used for audio connections between the

microphone and the VG5 AutoDome. – Cable type: Coaxial – Cable length: 10 m (33 ft), maximum

Refer to the VG5 AutoDome Installation Manual for more information.

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 62

62 en | User Command Table AutoDome 600 Series Analog PTZ Camera

9 User Command Table

Function

Key

Comm

No.

Command Description

On/Off 1 Scan 360° Auto Pan without limits

On/Off 2 Auto Pan Auto Pan between limits

On/Off 7 Play Custom Pre-position Tour Activate/Deactivate

On/Off 8 Play Pre-position Tour Activate/Deactivate

On/Off 14 Set Autopan and Scan Speed Enters speed adjustment slide bar

On/Off 15 Set Pre-position Tour Period (dwell) Enters dwell adjustment slide bar

On/Off 20 Backlight Comp Backlight Compensation

On/Off 24 Stabilization Electronic Stabilization

On/Off 26 Wide Dynamic Range Activate/Deactivate

On 47 View Factory Settings View all menu default settings

On/Off 50 Playback A, continuous Activate/Deactivate

On/Off 51 Playback A, single Activate/Deactivate

On/Off 52 Playback B, continuous Activate/Deactivate

On/Off 53 Playback B, single Activate/Deactivate

On/Off 56 Night Mode Menu On, Off, Auto (Day/Night only)

On/Off 57 Night Mode Setting Enables/Disables Night Mode (Day/Night only)

On 62 Pre-position Title Menu Enters Pre-position Title menu

On 64 Alarm Status Enters Alarm Status menu

Off 65 Alarm Acknowledge Acknowledge alarm or deactivate physical outputs

On 66 Display Software Version Displays software version number

On 72 Re-initialize Camera Performs camera/lens re-initialization functions

On/Off 78 AutoTrack Turns AutoTrack on or off

On/Off 81 Alarm Output 1

Open Collector

On/Off 82 Alarm Output 2

Open Collector

On/Off 83 Alarm Output 3

Open Collector

On/Off 84 Alarm Output 4

Relay

On–Activates output Off–Deactivates output

On/Off 88 Proportional Zoom On–Activates proportional zoom

Off–Deactivates proportional zoom

On/Off 89 Preposition Confirmation On–Issues a message that prompts for approval to

overwrite a preposition Off–No confirmation message issued

On/Off 90 Command Lock/Unlock On–Lock on

Off–Lock off

On/Off 95 Display Azimuth/Elevation Readings On–Displays azimuth/elevation readings

Off–Hides azimuth/elevation readings

On/Off 96 Display Compass Heading On–Displays compass heading

Off–Hides compass heading

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 63

AutoDome 600 Series Analog PTZ Camera User Command Table | en 63

Function

Key

Comm

No.

Command Description

On/Off 100 Record A Activate/Deactivate

On/Off 101 Record B Activate/Deactivate

On 997 FastAddress, display Display current address

On 998 FastAddress, all units Display and program current address

On 999 FastAddress, unaddressed domes Display and program unaddressed AutoDomes

Set “1-99” Pre-position Programming Set ##–Programs a preset view

Shot “1-99” Pre-position Recall Shot ##–Recall programmed preset

Set 100 Pre-position Menu Enters the Pre-position menu

Set/Shot 101 Autopan Left Limit Set–Programs left limit

Shot–Shows limit

Set/Shot 102 Autopan Right Limit Set–Programs right limit

Shot–Shows limit

Set 110 Factory P/T Home Position Set–Recalibrate home position

On/Off 680 Homing Recalibration Display Displays the current mode of operation, intervals,

time until the next calibration, and the number of recalibrations that have occurred. On – Turns display on. Off – Turns off the display.

On/Off 681 Homing Recalibration On – Enables recalibration (This action does not

cause the dome to re-home immediately) Off – Disables recalibration

On 682 Recalibration Mode Each On command toggles the recalibration mode

as follows: – Recalibrates only on the loss of home position. – Recalibrates on the loss of home and for every

periodic interval.

On/Off 683 Recalibration Interval Changes the homing recalibration interval. Intervals

are in 6-hour increments up to 72 hours. Each On – increases interval by 6 hours Each Off – decreases interval by 6 hours

On/Off 684 Initial Offset Time Sets the initial offset time for the recalibration

On 911 Remote Restart Simulates a power cycle. Once issued the

AutoDome re-homes and displays the start-up splash screen.

Set 900 Edit Tour 1 (Standard) Enters the Standard Tour Scene menu

Shot 900 Edit Tour 2 (Custom) Enters the Custom Tour Scene menu

Set/Shot 901-999 Adds/Removes a Preposition Shot from

Tour 1

Set ###–Adds preset Shot ###–Removes preset

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 64

64 en | AutoDome 600 Series Analog PTZ Camera

A Appendix: FastAddress Conversions

Sample: If there is video coming from Camera #131, look at the appropriate conversion table below to convert the FastAddress accordingly (i.e. using an AD system 131=3 and using a Sensormatic system 131=32). Ensure that the camera number displayed within the menu on the keyboard represents the converted camera number.

BLOCK 1 BLOCK 2 BLOCK 3 BLOCK 4 BLOCK 5 BLOCK 6 BLOCK 7 BLOCK 8

Bosch AD Bosch AD Bosch AD Bosch AD Bosch AD Bosch AD BoschAD BoschAD

1 1 65 1 129 1 193 1 257 1 321 1 385 1 449 1 2 2 66 2 130 2 194 2 258 2 322 2 386 2 450 2 3 3 67 3 131 3 195 3 259 3 323 3 387 3 451 3 4 4 68 4 132 4 196 4 260 4 324 4 388 4 452 4 5 5 69 5 133 5 197 5 261 5 325 5 389 5 453 5 6 6 70 6 134 6 198 6 262 6 326 6 390 6 454 6 7 7 71 7 135 7 199 7 263 7 327 7 391 7 455 7 8 8 72 8 136 8 200 8 264 8 328 8 392 8 456 8 9 9 73 9 137 9 201 9 265 9 329 9 393 9 457 9 10-64 10-64 74-

128

Tab le 1. 1 Address Conversion Table for AD/Manchester Systems

10-64 138-

192

10-64 202-

256

10-64 266-

320

10-64 330-

384

10-64 394-

448

10-64 458-

512

10-64

Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8

IN OUT IN OUT IN OUT IN OUT IN OUT IN OUT IN OUT IN OUT 1 1 100 1 199 1 298 1 397 1 496 1 595 1 694 1 2 2 101 2 200 2 299 2 398 2 497 2 596 2 695 2 3 3 102 3 201 3 300 3 399 3 498 3 597 3 696 3 4 4 103 4 202 4 301 4 400 4 499 4 598 4 697 4 5 5 104 5 203 5 302 5 401 5 500 5 599 5 698 5 6 6 105 6 204 6 303 6 402 6 501 6 600 6 699 6 7 7 106 7 205 7 304 7 403 7 502 7 601 7 700 7 8 8 107 8 206 8 305 8 404 8 503 8 602 8 701 8 9 9 108 9 207 9 306 9 405 9 504 9 603 9 702 9 10-99 10-99 109-

198

Tab le 1. 2 Address Conversion Table for AD/Sensormatic RS-422 Systems

10-99 208-

297

10-99 307-

396

10-99 406-

495

10-99 505-

594

10-99 604-

693

10-99 703-

792

10-99

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 65

AutoDome 600 Series Analog PTZ Camera Index | en 65

Index

Symbols

#-ENTER 7

Numerics

33-PRESET 35 34-PRESET 80-PRESET 35 81-PRESET 82-PRESET 35 92-PRESET 35 93-PRESET 94-PRESET 35 95-PRESET 35, 36 96-PRESET 97-PRESET 35 98-PRESET 35 99-PRESET

ack 37, 39 acknowledge acknowledge alarm 39 adjusting

AutoDome orientation brightness 15 camera height 23 vertical position

Advanced Feature Setup menu 10, 22

camera height virtual masking 23

AES 12 alarm relay alarm rule 44 Alarm Setup menu 10, 18

AutoTrack Aux Off 18 Aux On 18 input setup inputs (1-7) inputs (8-12) 18 motion detection normally closed supervised contact normally open dry contact normally open supervised contact Shot 18

alarm status 24 American Dyamics

FastAddress

American Dynamics 29 audio

cable gain 61 line level microphone 60, 61 quality

auto focus auto iris 13 auto iris level 13 Auto SensUP autobaud 17, 33

60, 61

AutoDome

orientation

automatic white balance 11 AutoPan autopan AutoPivot 14, 36, 39 AutoScan AutoSensUP maximum 12 AutoTrack 18, 19, 48

Aux Off 6 Aux Off command Aux On 6 Aux On command 18, 19 AWB hold azimuth 15, 52 Azimuth Zero 14 azimuth zero

14, 26

camera height field of view recommendations 49 light conditions 49 mount recommendations optimization 49 sensitivity 49 settings with AutoPan 49

14, 35

18, 19

backlight compensation 11 baud rate 17 Bilinx 17

BIST Bosch menu 36, 37 built-in self test 24

camera

height 23

OSD

setup

camera height 48 Camera Setup menu

AutoSensUp maximum AWB hold backlight compensation color 12 crystal 11 extended ATW gain control 11 indoor white balance 11 line lock line lock delay 11 maximum gain level 11 night mode outdoor white balance 11 pre-compensation sharpness shutter 12 synchronization menu 11 threshold white balance 11

Command key 6

10, 38

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 66

66 en | Index AutoDome 600 Series Analog PTZ Camera

command lock 36 Command Lock menu commands

#-ENTER 7 33-PRESET 34-PRESET 35 80-PRESET 81-PRESET 35 82-PRESET 35 92-PRESET 93-PRESET 35 94-PRESET 35 95-PRESET 96-PRESET 35 97-PRESET 35 98-PRESET 99-PRESET 35 autopan 26 AutoScan Aux Off 6, 18, 19 Aux On 6, 18, 19 clear FastAddress 35 inactivity operation 28 keyboard limit stops 35 OFF-90-ENTER 8, 28 ON-997-ENTER ON-998-ENTER 7 ON-999-ENTER 7 ON-9-ENTER Pelco 34 Pelco frame scan 35 PRESET preset shot 26 preset tour 35 random scan recording tours 28 Set 26 Set Shot SET-100-ENTER 26 SET-802-ENTER Shot Show Shot 6 store 26 synchronization mode unlocked 26 user commands 26 zero pan

Communication Setup menu 10, 17

autobaud baud rate 17 Bilinx 17

compass Configuration Tool for Imaging Devices 24 configuring

alarms camera height 23 rules 20

constant focus constant iris 13 CTFID 24

18, 26

15, 52

35, 36

custom tour

editing setting dwell time 27 Tour Period menu 27

custom tour 2

defining

command outputs 19 input commands 18 physical inputs physical outputs 19 rules 20

diagnostics Diagnostics menu 10, 23

alarm status 24 BIST CTFID access 24 high temperature events 24 homing events homing failed 24 internal temperature 24 low temperature events low volt events 24 power up events 24 restart events security access 24 video loss events 24

digital zoom display adjust 15 Display Setup menu 10, 15

azimuth camera OSD 15 compass 15 display adjust Elevation 15 privacy masking 16 sector blanking title OSD 15

displaying

camera response information sector titles 15 shot titles software version titles 15

dwell period 27 dwell time

editing

custom tour password 36, 39 presets standard tour 39

Elevation 15 elevation Enter key 6 extended ATW 11

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 67

AutoDome 600 Series Analog PTZ Camera Index | en 67

FastAddress 7, 29, 32, 35, 36, 39

setting with a Pelco Controller 32 setting with an American Dynamics Controller 29 with American Dynamic protocol with Pelco protocol 29

FastAddress with Sensormatic protocol focus speed 13 Function key 6

gain 11, 61 gain control

maximum level

high temperature

events threshold 24

homing 5

events failed 24

image stabilization 51 inactivity 14

accessing 28

mode operation 28 period 14

Inactivity Mode menu indoor white balance 11 input commands 18 inputs (1-7) inputs (8-12) 18 inputs setup 18 internal temperature iris speed 13

keyboard commands 40

#-ENTER 7 Aux Off 6, 18, 19 Aux On Command key 6 Enter key Function key OFF-90-ENTER 8, 28 ON-997-ENTER 7 ON-998-ENTER ON-999-ENTER 7 ON-9-ENTER Set 26 Set Shot 6 SET-100-ENTER SET-802-ENTER 8 Shot 26 Shot Shot

6, 18, 19

Language menu 10, 22

Lens Setup menu

auto focus auto iris 13 auto iris level 13 constant focus constant iris 13 digital zoom focus speed 13 iris speed 13 manual focus manual iris 13 maximum zoom speed 13 spot focus

light conditions 49 limit stops 35, 36, 39 line level line lock 11, 35 low temperature

low volt events 24

events threshold 24

10, 12

Manchester 29 manual

focus iris 13

masking

privacy virtual 23

maximum zoom speed 13 menus

Advanced Feature Setup Alarm Setup 18 Bosch Camera Setup 10, 38 Command Lock 37 Communication Setup Diagnostics 23 Display Setup 15 Inactivity Mode Language 22 Lens Setup Other other 39 Outputs Setup 18 Pelco

29, 36

Setup 29

Pelco Setup PTZ Setup Rule Setup 20 Setup Tour Period 27

microphone 60, 61 motion detection

13, 38

36, 37

18, 51

networking

baud rate

night mode 12, 38

color 12 threshold

normally closed circuit 19

10, 22

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 68

68 en | Index AutoDome 600 Series Analog PTZ Camera

normally closed supervised contact 18 normally open circuit normally open dry contact 18 normally open supervised contact 18

OFF-90-ENTER 8, 28 ON-997-ENTER ON-998-ENTER 7 ON-999-ENTER 7 ON-9-ENTER on-screen display 9, 15, 19 OSD 9, 15, 19 outdoor white balance outputs (1-3) 19 outputs (5-12) 19 Outputs Setup menu

alarm relay 19 AutoTrack 19 Aux Off Aux On 19 normally closed circuit 19 normally open circuit OSD 19 outputs (1-3) 19 outputs (5-12) transmit 19

passwords

changing 8 security level 8 special

peak gain 61 Pelco 29, 33, 36

Bosch Command Lock 37 FastAddress 32 frame scan keyboard commands 34 menus 29, 36 mode night mode 38 PRESET command protocol PTZ Setup menu 36 random scan 35 Setup Setup menu 35 software version 37, 39 white balance

Pelco keyboard commands

33-PRESET 34-PRESET 35 80-PRESET 35 81-PRESET 82-PRESET 35 92-PRESET 93-PRESET 35 94-PRESET 35 95-PRESET 96-PRESET 35 97-PRESET 35 98-PRESET 99-PRESET 35 AutoScan 35 FastAddress frame scan 35 limit stops 35 PRESET preset tour 35 random scan 35 synchronization mode zero pan 35

Pelco menu

Camera Setup Other 39 PTZ Setup 38 Setup

Pelco menus

Other 39

Pelco Other menu

ack acknowledge alarm 39 FastAddress password 39 reset alarm 39

Pelco protocol

address guidelines Pelco-D 33 Pelco-P

Pelco PTZ menu

AutoPivot PTZ Setup

35, 36

custom tour 39

Pelco PTZ Setup menu

edit standard tour 39 limit stops 39 presets 39 recordings scan speed 39

Pelco Setup menu

ack alarm Bosch menu 36 camera setup command lock 36 FastAddress 36 password reset alarm 37

Pelco-D 33 Pelco-P physical inputs 18

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 69

AutoDome 600 Series Analog PTZ Camera Index | en 69

playback

Recording A Recording B 28

power up events 24 pre-compensation Preposition Tour

custom freeze frame 14 standard 27

preset shot preset tour 35 previous Aux 14 privacy masking protocol

alternative 29 American Dynamics Bilinx 17 Manchester 29 Pelco Pelco-D 33 Pelco-P 33 RS-422 Sensormatic 29

PTZ

fixed speed setup 10, 36

PTZ Setup menu 13, 14, 38

AutoDome orientation autopan 14 AutoPivot 14 AutoScan Azimuth Zero 14 freeze frame on preposition 14 inactivity inactivity period 14 previous Aux 14 PTZ fixed speed scene 1 14 tilt up limit 14

16, 50

record 39

tour

tour A tour B 28

Recording A 28

playback

Recording B

playback 28

region of interest reset alarm 37, 39 restart events RS-422 29

rule

alarm relay Aux Off 21 Aux On 21 enabled follows 21 input OSD 21 output 21 Shot status 20 transmit 21

rule (1-12) rule input

Shot 21

Rule Setup menu rules 20

scan speed 36, 39 scene 1 14 sector blanking 16 security

access level 8

Sensormatic SensUp 12 Set 6 Set command Set Shot 6 SET-100-ENTER 26 SET-802-ENTER settings

AutoDome orientation 14 autopan brightness 15 camera height 23 inactivity mode passwords 8 Preposition Tour 27 preset shot rules 20 sharpness vertical position

Setup menu 9, 29, 35, 36, 37

Advanced Feature Setup 10 Alarms Camera 10 Communication 10 Diagnostics Display 10 Language Lens 10 PTZ 10

sharpness Shot 6

clear 26 Set store 26 view 26

Show Show Shot 6

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 70

70 en | Index AutoDome 600 Series Analog PTZ Camera

shutter 12 shutter mode software

version 37

software version spot focus 13 stabilization standard tour

setting dwell time 27 Tour Period menu

synchronization mode 11, 35

tilt up limit 14 titles

brightness 15

OSD vertical position 15

tour

custom periods 36, 39 preposition 27 preset standard 39 stopping 27 tour 1 tour 2 27

Tour 1

period

Tour 2

period 14

Tour Period menu

user commands 26

video loss events 24 virtual masking 23, 50 voltage limit

white balance 11, 38

zero pan 35

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 71

AutoDome 600 Series Analog PTZ Camera Index | en 71

Bosch Security Systems, Inc. User Manual F.01U.270.005 | 2.0 | 2012.06

Page 72

72 en | Index AutoDome 600 Series Analog PTZ Camera

F.01U.270.005 | 2.0 | 2012.06 User Manual Bosch Security Systems, Inc.

Page 73

Page 74

Bosch Security Systems, Inc.

850 Greenfield Road Lancaster, PA 17601 U.S.A.

www.boschsecurity.com
