Page 1
Fiber Optic Ethernet Media Converter Kit
VG4-SFPSCKT
en Installation Manual
Page 2
Page 3
Fiber Optic Ethernet Media Converter
Kit
Table of contents
Table of Contents | en 3
1
2
3
4
5
6
7
Important Safety Instructions 4
Parts List 5
System overview 7
Install for an AUTODOME camera 8
Install for a MIC analog camera 13
Install for an EXTEGRA IP 9000 FX camera 14
Troubleshooting 18
Bosch Security Systems Installation Manual 2015.03 | |
Page 4
!
!
4 en | Important Safety Instructions
Fiber Optic Ethernet Media Converter
Kit
1
Important Safety Instructions
Read, follow, and retain all of the following safety instructions. Heed all warnings on the unit
and in the operating instructions before operation.
1. Clean only with a dry cloth. Do not use liquid cleaners or aerosol cleaners.
2. Adjust only those controls specified in the operating instructions.
3. Operate the unit only from the type of power source indicated on the label.
4. Use only replacement parts specified by the manufacturer.
5. Install in accordance with the manufacturer's instructions in accordance with applicable
local codes.
Use only attachments/accessories specified by the manufacturer. Equipment change or
modification could void the user's guarantee or authorization agreement.
Danger!
High risk: This symbol indicates an imminently hazardous situation such as “Dangerous
Voltage” inside the product.
If not avoided, this will result in an electrical shock, serious bodily injury, or death.
Warning!
Medium risk: Indicates a potentially hazardous situation.
If not avoided, this could result in minor or moderate bodily injury.
Caution!
Low risk: Indicates a potentially hazardous situation.
if not avoided, this could result in property damage or risk of damage to the unit.
You can view and print the full version of this Installation Manual with Adobe Acrobat Reader.
This user guide is the intellectual property of Bosch Security Systems; protected by copyright.
2015.03 | | Installation Manual Bosch Security Systems
Page 5
Fiber Optic Ethernet Media Converter
Kit
Parts List | en 5
2
Parts List
For an AUTODOME camera and for an EXTEGRA camera, the following parts are included in
the kit of the fiber optic module:
Part Description Part Number
Fiber Optic Media Converter Module
(with SFP socket)
Metal adapter plate F.01U.138.662
F.01U.139.350
Power harness (black) F.01U.026.085
Four (4) Plastic standoff pins F.01U.073.233
Ethernet patch (jumper) cable (blue)
F.01U.032.132
with RJ45 connectors
One (1) M2.5 Phillips pan screw F.01U.009.951
Bosch Security Systems Installation Manual 2015.03 | |
Page 6
6
en | Parts List
Fiber Optic Ethernet Media Converter
Kit
For a MIC camera, the following parts are included in the kit of the fiber optic module:
Part Description Part Number
Fiber Optic Media Converter Module F.01U.139.350
Fiber cable (gray) F.01U.xxx.xxxx
Two (2) Metal standoff pins F.01U.073.233
Ethernet patch cable (blue) with
F.01U.032.132
RJ45 connectors
2015.03 | | Installation Manual Bosch Security Systems
Page 7
Fiber Optic Ethernet Media Converter
Kit
System overview | en 7
3
System overview
This guide provides instructions for installing the Bosch VG4-SFPSCKT Fiber Optic module
into a VG4-A-PA1, VG4-A-PA2, VG4-A-PSU1 or a VG4-A-PSU2 AutoDome power supply box, or
into one of the following MIC IP power supply units: MIC-IP-PS-115, MIC-IP-PS-24, MIC-IPIRPS-115, MIC-IPIR-PS-230, MIC-IPIR-PS-24.
The VG4-SFPSCKT is a unique media converter module for use with a VG4 or VG5 series
AutoDome incorporating the Ethernet (TCP/IP) Communications Module, or with a MIC IP
power supply unit. This media converter module is designed to accept any of the 10/100 Mbps
Small Form-factor Pluggable (SFP) modules described below.
The media converter module along with the SFP module is user installed directly into the
power supply box of the AutoDome or MIC camera to provide an integrated fiber optic
solution.
The Fiber Optic module accepts the following SFP modules:
Sub-module
SFP-2 MMF Duplex LC
SFP-3 SMF Duplex LC
SFP-25 MMF Single SC
SFP-26 MMF Single SC
Fiber Type Optical Interface
Notice!
The SFP module is not included with the VG4-SFPSCKT kit; it must be purchased separately.
The SFP-25/SFP-26 modules are counterparts; if you use one in the VG4-SFPSCKT module
then you must use the other in the CNFE2MC head-end unit. For example, SFP-25 is used in
the VG4-SFPSCKT module installed into a VG4 power supply. You must use the SFP-26 module
in the CNFE2MC head-end unit.
The following chart lists the compatibility between the SFP modules:
SFP Sub-module used
in VG4-SFPSCKT
Use this SFP Sub-module
in CNFE2MC
SFP-2 SFP-2
SFP-3 SFP-3
SFP-25 SFP-26
SFP-26 SFP-25
Bosch Security Systems Installation Manual 2015.03 | |
Page 8
8 en | Install for an AUTODOME camera
Fiber Optic Ethernet Media Converter
Kit
4
Install for an AUTODOME camera
Use the following instructions to install the VG4-SFPSCKT Fiber Optic module inside a VG4
Power Supply Box for an AUTODOME camera.
1. Unpack the fiber optic module kit, and remove the parts from the bag.
2. Turn off the power to the VG4 power supply box and remove the cover.
3. Remove the 6-pin connector from the P106 connector inside the power supply box, if
present.
Figure 4.1: P106 connector with 100 Ohm resistor
4. Insert one plastic standoff pin into the hole on the main power supply board, located to
the left of the P107 (Heater) connector.
2015.03 | | Installation Manual Bosch Security Systems
Page 9
J103
Fiber Optic Ethernet Media Converter
Kit
Figure 4.2: Insert standoff pin into power supply board
5. Connect the supplied power harness (black) to the J103 socket on the power supply
board, located below the Heater connector.
Install for an AUTODOME camera | en 9
Figure 4.3: J103 socket location
6. Insert three standoff pins into the metal base plate as shown below.
Bosch Security Systems Installation Manual 2015.03 | |
Page 10
en | Install for an AUTODOME camera
10
Figure 4.4: Placement of standoff pins in base plate
7. Align the upper right hole in the base plate to the standoff pin attached to the power
Fiber Optic Ethernet Media Converter
Kit
supply box and press the base plate onto the pin. Secure the base plate with the supplied
screw in the lower left hole of the P105 connector.
Figure 4.5: Attach base place to power supply box
8. Insert the SFP module into the VG4-SFPSCKT module:
Note: The SFP module is static sensitive. Use static handling procedures when installing
or removing the module.
– Ensure that the bale-clasp on the SFP module is up.
– Line up the SFP module with the port on the VG4-SFPSCKT module and slide it into
the port until you hear the catches engage.
9. Remove the rubber plug from the SFP module.
2015.03 | | Installation Manual Bosch Security Systems
Page 11
Fiber Optic Ethernet Media Converter
Kit
10. Align the anchor holes on the fiber optic module to the standoff pins on the base plate
and press the module onto the standoff pins until secure.
Install for an AUTODOME camera | en 11
Figure 4.6: Attach Fiber Optic board to base plate
11. Attach the supplied power harness (black) to its connector on the fiber optic module.
12. Connect the RJ45 Ethernet patch cable (blue) to its socket on the fiber optic module.
Then attach the other end to the female mating connector in the AUTODOME pendant
arm.
Note: If installing a Pipe- or Roof-mounted AUTODOME, you will need to provide the
appropriate length Ethernet cable with RJ45 connectors to reach between the
AUTODOME and the power supply box.
13. Route the appropriate fiber optic cable through the conduit hole (2) on the power supply
box that is in-line with the VG4-SFPSCKT module (1).
Bosch Security Systems Installation Manual 2015.03 | |
Page 12
en | Install for an AUTODOME camera
12
Fiber Optic Ethernet Media Converter
Kit
Figure 4.7: Route cable into power supply box
14. Plug the fiber optic cable (LC or SC connector) into the SFP module inside the power
supply unit.
15. Close and secure the power supply box when finished.
16. Restore the power to the power supply box.
2015.03 | | Installation Manual Bosch Security Systems
Page 13
Fiber Optic Ethernet Media Converter
Kit
Install for a MIC analog camera | en 13
5
Install for a MIC analog camera
Use the following instructions to install the VG4-SFPSCKT Fiber Optic module inside a MIC IP
Power Supply to provide fiber optic connections for a MIC550, MIC550IR, or MIC612 camera.
1. Unpack the fiber optic module kit, and remove the parts from the bag.
2. Reverse the fiber board module.
3. Connect the RJ45 cable to the fiber board.
4. Align the anchor holes on the fiber optic module to the standoff pins on the base plate,
and then press the module onto the standoff pins until secure.
5. Fix the fiber board PCBA.
6. Connect the fiber cable.
7. Continue installation of the PSU as necessary, and then close and secure the power
supply enclosure.
Bosch Security Systems Installation Manual 2015.03 | |
Page 14
14 en | Install for an EXTEGRA IP 9000 FX camera
Fiber Optic Ethernet Media Converter
Kit
6
Install for an EXTEGRA IP 9000 FX camera
Use the following instructions to install the VG4-SFPSCKT Fiber Optic module inside an
EXTEGRA IP 9000 FX camera.
1. Unpack the fiber optic module kit, and remove the parts from the bag.
2. Remove the three (3) screws that hold the RJ45 coupler assembly in place. Remove the
RJ45 coupler assembly.
3. Push down the wires (item 1 in the following figure) to prevent the fiber optic board from
crimping the wires.
2015.03 | | Installation Manual Bosch Security Systems
Page 15
Fiber Optic Ethernet Media Converter
Kit
Install for an EXTEGRA IP 9000 FX camera | en 15
4. Align the screw holes on the fiber optic module to the screw holes from which you
removed the screws for the RJ45 coupler assembly.
5. Press the module down until it is secure.
6. Replace the screws.
Bosch Security Systems Installation Manual 2015.03 | |
Page 16
16 en | Install for an EXTEGRA IP 9000 FX camera
Fiber Optic Ethernet Media Converter
Kit

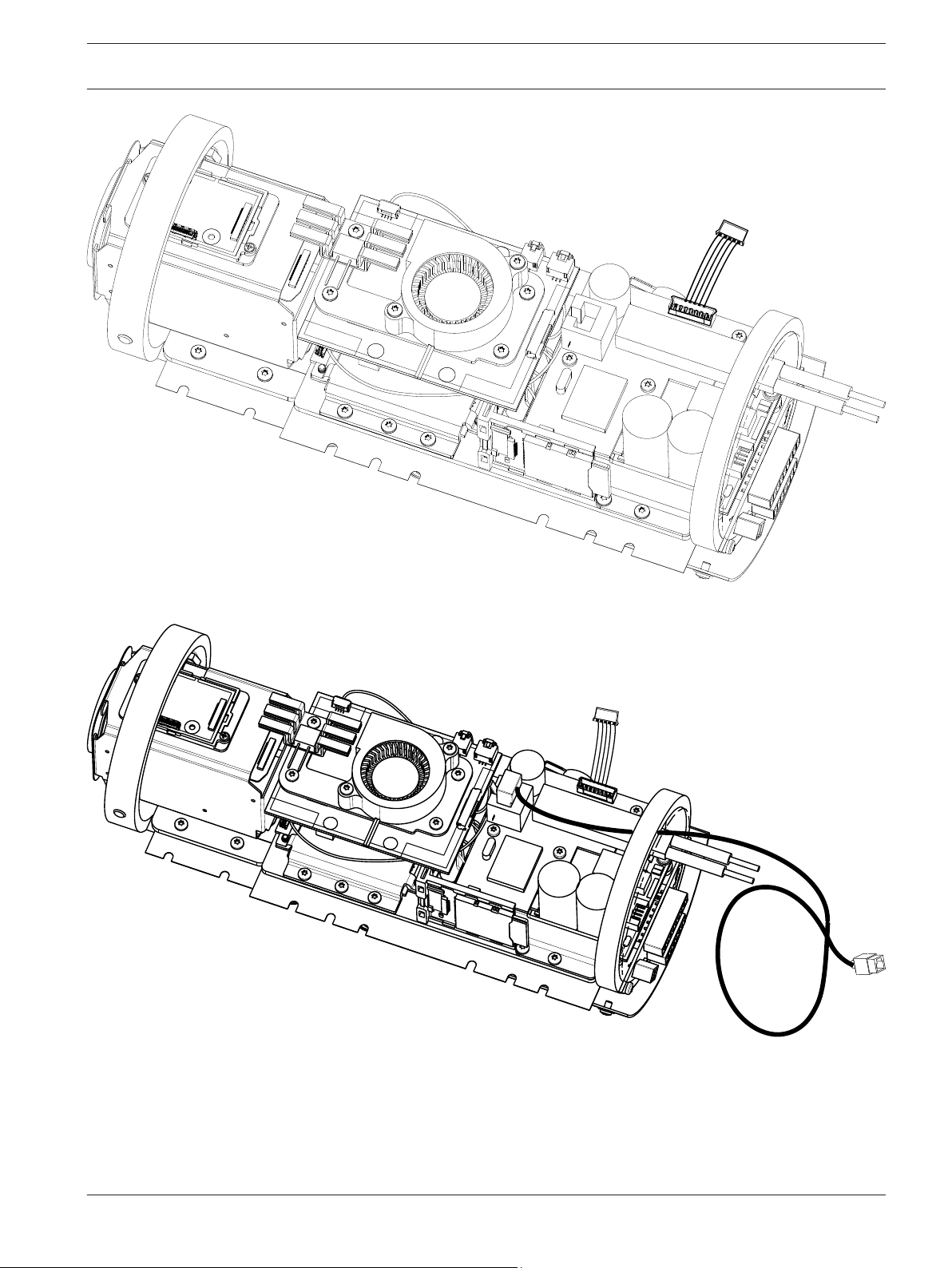

7. Attach the supplied power harness (black) to its connector on the fiber optic module.
2015.03 | | Installation Manual Bosch Security Systems
Page 17
Fiber Optic Ethernet Media Converter
Kit
Install for an EXTEGRA IP 9000 FX camera | en 17
8. Insert the RJ45 plug.
Bosch Security Systems Installation Manual 2015.03 | |
Page 18
18 en | Troubleshooting
Fiber Optic Ethernet Media Converter
Kit
7
Issue Symptom Resolution
No data present No Power Check power to VG4-SFPSCKT:
Invalid Fiber Link Check fiber connection to VG4-SFPSCKT:
No Video present RJ-45
Troubleshooting
– If Green LED is present, then
Check power to CNFE2MC:
– If Power LED is Green, then check data link
– If Red LED is present, then the fiber link is missing. If
the LED is Flashing Red, then
Check the fiber connection to the CNFE2MC:
– If the Link/Act LED is not lit, then the fiber link is
missing.
Check the PWR/Link on the VG4-SFPSCKT:
Connection
– If the LED is slowly Flashing Red, then
Check all video connections from the VG4 AutoDome.
– If the LED is rapidly Flashing Red, then
Check the RJ-45 connector on the VG4-SFPSCKT:
– If the right LED (Green) is not lit, then no data is
present at this RJ-45 connection.
– If no LED lit on the RJ-45 connector, then there is a
fault with this connector, the RJ-45 cable, or the cable
is not connected to the CNFE2MC.
Check the RJ-45 connector on the CNFE2MC:
– If the right LED (Green) is not lit, then no data is
present at this RJ-45 connection.
– If no LED lit on the RJ-45 connector, then there is a
fault with this connector, the RJ-45 cable, or the cable
is not connected to the VG4-SFPSCKT.
2015.03 | | Installation Manual Bosch Security Systems
Page 19
Page 20
Bosch Security Systems, Inc.
850 Greenfield Road
Lancaster, PA, 17601
USA
www.boschsecurity.com
© Bosch Security Systems, Inc., 2015
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
Loading...
