Bosch VEZ-523-IWTR, VEZ-523-IWCR, VEZ-523-EWTR, VEZ-523-EWCR Specsheet
960H

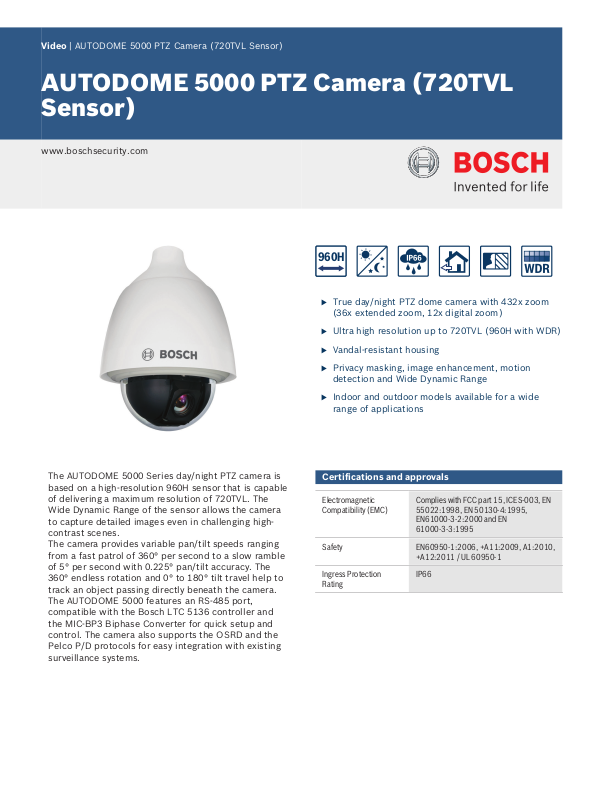

Video | AUTODOME 5000 PTZ Camera (720TVL Sensor)
AUTODOME 5000 PTZ Camera (720TVL
Sensor)
www.boschsecurity.com
u True day/night PTZ dome camera with 432x zoom
(36x extended zoom, 12x digital zoom)
The AUTODOME 5000 Series day/night PTZ camera is
based on a high-resolution 960H sensor that is capable
of delivering a maximum resolution of 720TVL. The
Wide Dynamic Range of the sensor allows the camera
to capture detailed images even in challenging highcontrast scenes.
The camera provides variable pan/tilt speeds ranging
from a fast patrol of 360° per second to a slow ramble
of 5° per second with 0.225° pan/tilt accuracy. The
360° endless rotation and 0° to 180° tilt travel help to
track an object passing directly beneath the camera.
The AUTODOME 5000 features an RS-485 port,
compatible with the Bosch LTC 5136 controller and
the MIC-BP3 Biphase Converter for quick setup and
control. The camera also supports the OSRD and the
Pelco P/D protocols for easy integration with existing
surveillance systems.
u Ultra high resolution up to 720TVL (960H with WDR)
u Vandal-resistant housing
u Privacy masking, image enhancement, motion
detection and Wide Dynamic Range
u Indoor and outdoor models available for a wide
range of applications
Certifications and approvals
Electromagnetic
Compatibility (EMC)
Safety EN60950-1:2006, +A11:2009, A1:2010,
Ingress Protection
Rating
Complies with FCC part 15, ICES-003, EN
55022:1998, EN 50130-4:1995,
EN61000-3-2:2000 and EN
61000-3-3:1995
+A12:2011 / UL 60950-1
IP66
295.5
(11.63)
218.38
(8.6)
81.9
(3.22)
mm
(in.)
208
(8.19)
187
(7.36)
2 | AUTODOME 5000 PTZ Camera (720TVL Sensor)
Installation/configuration notes
AUTODOME 5000 Dimensions
1 Diameter without sunshield (indoor models)
2 Diameter with sunshield (outdoor models)
Technical specifications
• Night mode
(black and white)
Electronic Shutter Speed
• PAL 1/50 to 1/10000 second
• NTSC 1/60 to 1/10000 second
Wide Dynamic Range (WDR) 60 dB
Signal-to-Noise Ratio >50 dB (with AGC off)
White Balance Auto, Manual, Indoor, Outdoor,
Video output 1.0 Vp-p / 75Ω, BNC
0.01 lux, under F1.6
ATW
Mechanical
Pan Range 360° continuous
Tilt Range 0° to 180°
Manual Speed 0.5° to 90° /second
Pre-position Speed 5° to 360° /second
Preset Accuracy 0.225°
Flip Image: 180°
Mechanical : 90°
Electrical
Input Voltage 24 VAC, 50/60 Hz
Power Consumption, typical
• Indoor Models 20 W (without heater)
Camera
System PAL or NTSC
Image Sensor 960H, 1/4-in. Double Scan CCD,
Effective Pixels (HxV) Approx. 570,000; 976 x 582
Horizontal Resolution 720TVL (960H with WDR
Lens 3.43 mm – 120 mm, F1.6~F4.5
Focus Constant, Manual, Spot
Iris Auto, Manual
Optical Zoom Field of View
(DxHxV)
Gain Control Auto, Manual
Digital Zoom 12x
Sensitivity (typical) 30 IRE
• Day mode 0.1 lux, under F1.6
720TVL sensor resolution
(PAL)
Approx. 480,000; 976 x 494
(NTSC)
capability)
Wide: 72.3° x 57.8° x 43.4°
Tele: 2.13° x 1.70° x 1.28°
• Outdoor Models 50 W (with heater)
Miscellaneous
Privacy Masking 20 individually-configurable
masks
DNR 2 DNR / 3 DNR
AGC Control Auto, Manual
Backlight Compensation On, Off
Proportional Pan / Tilt On, Off
Image Enhancement Zoom, Stabilize, Off
Night Mode On, Off, Auto
Auto SensUp Max 2x to 60x or Off
Prepositions 99
Tours 8
AutoPan 4
Preset Tours 8
Camera Setup / Control RS-485
