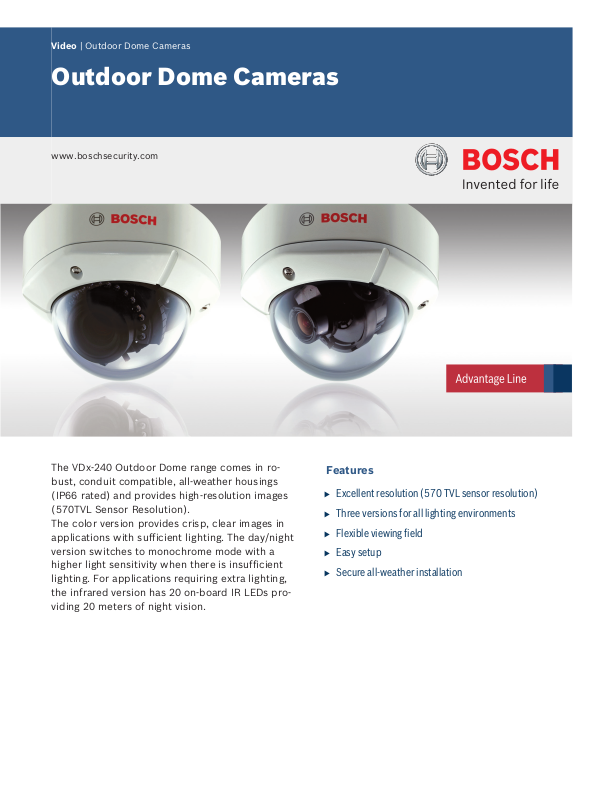

Bosch VDx-240 User Manual

Video | Outdoor Dome Cameras

Outdoor Dome Cameras

www.boschsecurity.com

The VDx-240 Outdoor Dome range comes in ro-

Features

bust, conduit compatible, all-weather housings
(IP66 rated) and provides high-resolution images
(570TVL Sensor Resolution).

u Excellent resolution (570 TVL sensor resolution)

u Three versions for all lighting environments

The color version provides crisp, clear images in
applications with sufficient lighting. The day/night
version switches to monochrome mode with a
higher light sensitivity when there is insufficient
lighting. For applications requiring extra lighting,

u Flexible viewing field

u Easy setup

u Secure all-weather installation

the infrared version has 20 on-board IR LEDs pro­viding 20 meters of night vision.

144 (5.67)

mm (in)

51.7 (2.04)

35 (1.38)

55 (2.17)

101.5 (4)

13.8 (0.54)

13.9 (0.55)

51.7 (2.04)

Ø100 (3.94)

PT 1/2”

2 | Outdoor Dome Cameras

Technical specifications

Video

CCD Camera 1/3-inch High Sensitivity CCD
Effective pixels (HxV) 752X582 (PAL)

768x494 (NTSC)
Horizontal Resolution 570 TVL Sensor Resolution
Electronics Iris 1/50 to 1/120,000 s (PAL)

1/60 to 1/120,000 s (NTSC)
Manual shutter 1/50 (1/60), 1/100 (1/120), 1/250, 1/500,

1/700, 1/1K, 1/1.6k, 1/2.5K, 1/5K. 1/7K

1/10K, 1/30K, 1/60K, 1/120K
Output Signal 1 VPP composite video, 75 ohm
Output connection BNC connector
S/N Ratio Greater than 50 dB
Gamma 0.35, 0.45 (default), 0.6, 0.75
Lens (VDC-240) 2.8 to 10.5 mm varifocal auto-iris
Lens (VDN-240) 2.8 to 10.5 mm varifocal auto-iris with mechanical

D/N filter
Lens (VDI-240) 3.8 to 9.5 mm varifocal auto-iris with mechanical

D/N filter
Sensitivity 0.05 lx (color),

0.005 lx (b/w),

0 lx (infrared on)
VDI-240
LEDs Intelligent 20-LED infrared array
Wavelength 850 nm

Mechanical

Housing Surface mount dome, vandal resistant
Gimbals 3D gimbal for easy installation
Construction Robust aluminum
Finish Off-white
Conduit Compatible 1/2‑inch PT, top and side

Electrical

Power Consumption VDC-240: 3.6 W max.

VDN-240: 3.6 W max.

VDI-240: 6 W max.
Voltage 12 VDC or 24 VAC
Power Supply Not included

Environmental

Operational Temp. -10 °C to +50 °C

(14 ºF to +122 ºF)
Storage Temp. -20 °C to +60 °C

(-4 ºF to +140 ºF)
Environment IP66 certified

Certifications and approvals

Region Certification

Europe CE

Standards
ANSI C63.4: 2009

FCC Part 15 subpart B, Class A
UL 60065, 7th Edition. 2007-12-11
CAN/CSA-C22.2 No. 60065-03, 1st Edition,

EN55022:2006, Class A
EN50130-4:1995+A1:1998+A2:2003
LVD 2006/95/EC

IP66, IEC 60529 (2001), IEC 60529 (2002)

2006-04 + A1:2006

EN60065:2002 + A1:2006 + A11:2008

Installation/configuration notes

Ordering information

VDC-240V03-1 Outdoor Color Dome Cam­era, PAL
VDC-240V03-2 Outdoor Color Dome Cam­era, NTSC
VDN-240V03-1 Outdoor D/N Dome Camera,
PAL
VDN-240V03-2 Outdoor D/N Dome Camera,
NTSC
VDI-240V03-1 Outdoor IR D/N Dome Cam­era, PAL
VDI-240V03-2 Outdoor IR D/N Dome Cam­era, NTSC

VDC-240V03-1

VDC-240V03-2

VDN-240V03-1

VDN-240V03-2

VDI-240V03-1

VDI-240V03-2
