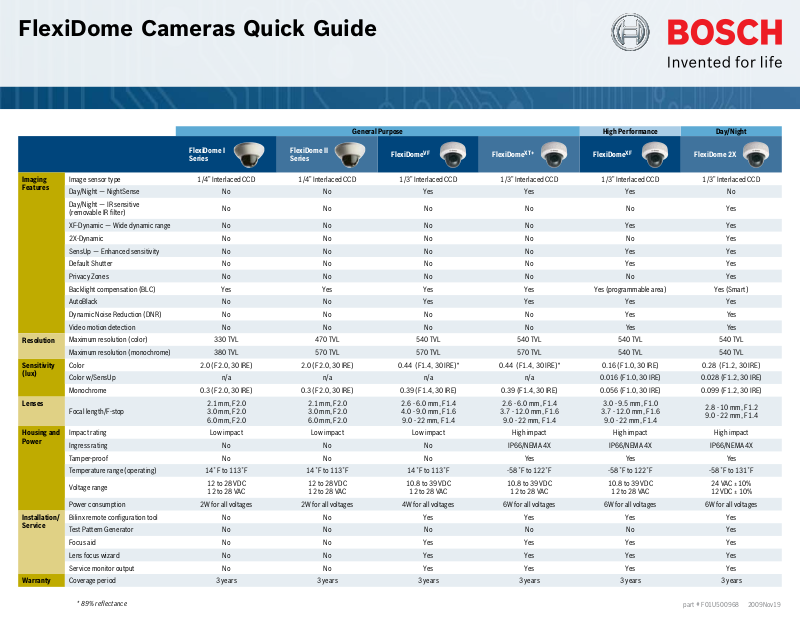

FlexiDome Cameras Quick Guide
General Purpose High Performance Day/Night
Imaging
Features
Resolution
Sensitivity
(lux)
Lenses
Housing and
Power
Installation/
Service
Warranty
FlexiDome I
Series
Image sensor type 1/4” Interlaced CCD 1/4” Interlaced CCD 1/3” Interlaced CCD 1/3” Interlaced CCD 1/3” Interlaced CCD 1/3” Interlaced CCD
Day/Night — NightSense No No Yes Yes Yes No
Day/Night — IR sensitive
(removable IR filter)
XF-Dynamic — Wide dynamic range No No No No Yes Yes
2X-Dynamic No No No No No Yes
SensUp — Enhanced sensitivity No No No No Yes Yes
Default Shutter No No No No Yes Yes
Privacy Zones No No No No No Yes
Backlight compensation (BLC) Yes Yes Yes Yes Yes (programmable area) Yes (Smart)
AutoBlack No No Yes Yes Yes Yes
Dynamic Noise Reduction (DNR) No No No No Yes Yes
Video motion detection No No No No Yes Yes
Maximum resolution (color) 330 TVL 470 TVL 540 TVL 540 TVL 540 TVL 540 TVL
Maximum resolution (monochrome) 380 TVL 570 TVL 570 TVL 570 TVL 540 TVL 540 TVL
Color 2.0 (F2.0, 30 IRE) 2.0 (F2.0, 30 IRE) 0.44 (F1.4, 30 IRE)* 0.44 (F1.4, 30 IRE)* 0.16 (F1.0, 30 IRE) 0.28 (F1.2, 30 IRE)
Color w/SensUp n/a n/a n/a n/a 0.016 (F1.0, 30 IRE) 0.028 (F1.2, 30 IRE)
Monochrome 0.3 (F2.0, 30 IRE) 0.3 (F2.0, 30 IRE) 0.39 (F1.4, 30 IRE) 0.39 (F1.4, 30 IRE) 0.056 (F1.0, 30 IRE) 0.099 (F1.2, 30 IRE)
Focal length/F-stop
Impact rating Low impact Low impact Low impact High impact High impact High impact
Ingress rating No No No IP66/NEMA 4X IP66/NEMA 4X IP66/NEMA 4X
Tamper-proof No No No Yes Yes Yes
Temperature range (operating) 14˚F to 113˚F 14˚F to 113˚F 14˚F to 113˚F -58˚F to 122˚F -58˚F to 122˚F -58˚F to 131˚F
Voltage range
Power consumption 2W for all voltages 2W for all voltages 4W for all voltages 6W for all voltages 6W for all voltages 6W for all voltages
Bilinx remote configuration tool No No Yes Yes Yes Yes
Test Pattern Generator No No No No No Yes
Focus aid No No Yes Yes Yes Yes
Lens focus wizard No No Yes Yes Yes Yes
Service monitor output No No Yes Yes Yes Yes
Coverage period 3 years 3 years 3 years 3 years 3 years 3 years
No No No No No Yes
2.1 mm, F2.0
3.0 mm, F2.0
6.0 mm, F2.0
12 to 28 VDC
12 to 28 VAC
FlexiDome II
Series
2.1 mm, F2.0
3.0 mm, F2.0
6.0 mm, F2.0
12 to 28 VDC
12 to 28 VAC
FlexiDome
VF
2.6 - 6.0 mm, F1.4
4.0 - 9.0 mm, F1.6
9.0 - 22 mm, F1.4
10.8 to 39 VDC
12 to 28 VAC
FlexiDome
XT+
2.6 - 6.0 mm, F1.4
3.7 - 12.0 mm, F1.6
9.0 - 22 mm, F1.4
10.8 to 39 VDC
12 to 28 VAC
FlexiDome
XF
3.0 - 9.5 mm, F1.0
3.7 - 12.0 mm, F1.6
9.0 - 22 mm, F1.4
10.8 to 39 VDC
12 to 28 VAC
FlexiDome 2X
2.8 - 10 mm, F1.2
9.0 - 22 mm, F1.4
24 VAC
12 VDC ± 10%
± 10%
* 89% reflectance
part # F01U500968 2009Nov19
FlexiDome Cameras Quick Guide
Camera Selection Chart Optional Mounts
Varifocal Lens
Dome Camera Type Resolution Lens Option
2.6-6.0 mm F1.4
4.0-9.0 mm F1.6
2.6-6.0 mm F1.4
4.0-9.0 mm F1.6
9.0-22 mm F1.4 VDC-445V09-20*
2.6-6.0 mm F1.4
3.7-12 mm F1.6
2.6-6.0 mm F1.4
3.7-12 mm F1.6
9.0-22 mm F1.4 VDC-455V09-20*
Low Impact
Monochrome
Color
570 TVL
540 TVL
Monochrome 570 TVL
Color 540 TVL
Vandal-resistant
3.0-9.5 mm F1.0
Color
XF-Dynamic†
Day/Night
2X Dynamic†
† wide dynamic range
540 TVL
540 TVL
330 TVL
3.7-12 mm F1.6
9.0-22 mm F1.4 VDC-485V09-20*
9.0-22 mm F1.4 VDN-498V09-21*
* For surface-mount kits, add an "S" to the end of the part number (example: VDC-445V04-20S)
** For PAL versions, change the -20 to -10 (example: VDC-455V04-10)
2.1mm F2.0
3.0mm F2.0
6.0mm F2.0
Low ImpactFixed Lens Color
2.1mm F2.0
470 TVL
3.0mm F2.0
6.0mm F2.0
NTSC** P/N
VDM-345V03-20*
VDM-345V04-20*
VDC-445V03-20*
VDC-445V04-20*
VDM-355V03-20*
VDM-355V04-20*
VDC-455V03-20*
VDC-455V04-20*
VDC-485V03-20*
VDC-485V04-20*
VDN-498V03-21*2.8-10 mm F1.2
LTC-1411/20
LTC-1412/20
LTC-1413/20
LTC-1421/20
LTC-1422/20
LTC-1423/20
FlexiDome
FlexiDome
FlexiDome
VF
XT+
XF
FlexiDome 2X
FlexiDome I & II
Pendant Wall Mount
VDA-445WMT
Pendant Pipe Mount
VDA-455PMT
Corner Wall Mount
VDA-455CMT
Hardware and Accessories
Power Supplies
UPA-2410-60
UPA-2430-60
Surface Mount Box
VDA-445SMB
VDA-455SMB
Tinted Dome
VDA-455TBL
UTP Adapter
VDA-455UTP
Service/Monitor Cable
S1460
Bilinx Configuration Tool
VP-CFGSFT
Input; 120 VAC. 60Hz, Single Output;
24 VAC, 10 VA
Input; 120 VAC. 60Hz, Single Output;
24 VAC, 30 VA
Surface mount box for FlexiDome
High impact surface mount box for
Tinted dome for FlexiDome Series
Converts BNC/Coax to UTP for transmission of
composite video over Cat5/Cat5e/Cat6 UTP cabling
1-meter 2.5mm connector to BNC (
Setup and configure cameras over the video cable
(FlexiDome
VF,XT+, XF, DN)
VF
XT+, XF, DN
VF,XT+, XF, DN
)
part # F01U500968 2009Oct12
