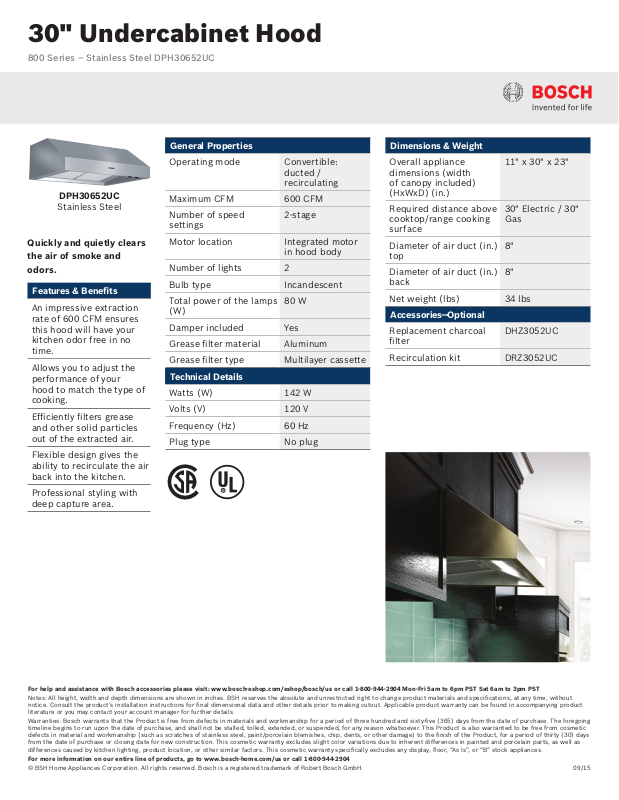

Bosch Undercabinet Hood User Manual
30" Undercabinet Hood
800 Series – Stainless Steel DPH30652UC
DPH30652UC
Stainless Steel
Quickly and quietly clears
the air of smoke and
odors.
Features & Benefits
An impressive extraction
rate of 600 CFM ensures
this hood will have your
kitchen odor free in no
time.
Allows you to adjust the
performance of your
hood to match the type of
cooking.
Efficiently filters grease
and other solid particles
out of the extracted air.
Flexible design gives the
ability to recirculate the air
back into the kitchen.
Professional styling with
deep capture area.
General Properties
Operating mode Convertible:
ducted /
recirculating
Maximum CFM 600 CFM
Number of speed
2-stage
settings
Motor location Integrated motor
in hood body
Number of lights 2
Bulb type Incandescent
Total power of the lamps
80 W
(W)
Damper included Yes
Grease filter material Aluminum
Grease filter type Multilayer cassette
Technical Details
Watts (W) 142 W
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug type No plug
Dimensions & Weight
Overall appliance
11" x 30" x 23"
dimensions (width
of canopy included)
(HxWxD) (in.)
Required distance above
cooktop/range cooking
30" Electric / 30"
Gas
surface
Diameter of air duct (in.)
8"
top
Diameter of air duct (in.)
8"
back
Net weight (lbs) 34 lbs
Accessories—Optional
Replacement charcoal
DHZ3052UC
filter
Recirculation kit DRZ3052UC
For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout. Applicable product warranty can be found in accompanying product
literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage) to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH. 09/15
30" Undercabinet Hood
800 Series – Stainless Steel DPH30652UC
Installation Details
Round
Duct
Soffit
*Deflector
Lamp
Hood
Blower
Filter
Soffit
Lamp
Hood
Transition
Blower
Filter
Soffit
Blower
Lamp
Hood
Transition
Round
Duct
24” to 30”
Recirculating
* Charcoal
filters
24” to 30”
Vertical discharge
Filter
24” to 30”
Horizontal discharge
* Optional accessory - Ductless
recirculation kit
