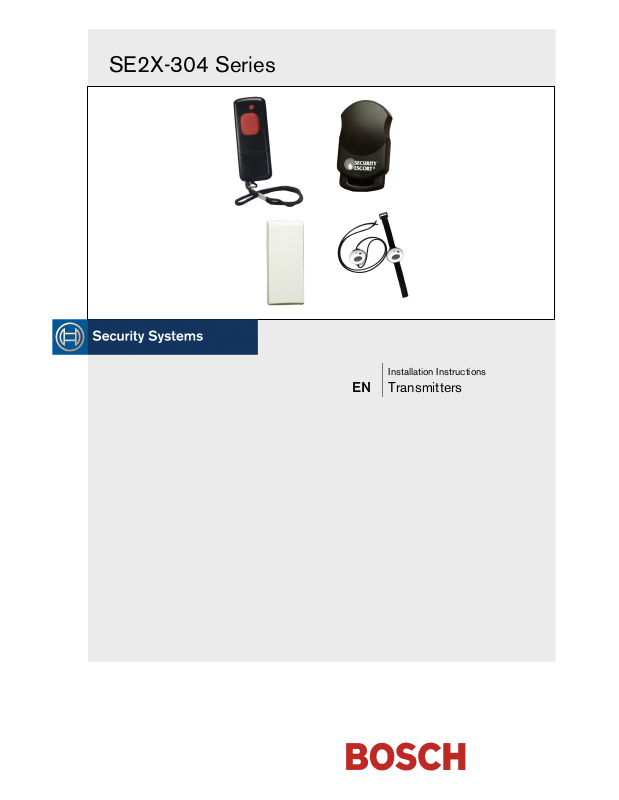

Bosch SE2M-304, SE2S-SN-304, SE2U-SN-304 Installation Manual
SE2X-304 Series
Installation Instructions
EN
Transmitters
SE2X-304 Series | Installation Instructions | 1.0 Part I - User Guide
Reset the transmitter after a manual alarm initiates by
FCC Notice
The SE2X-304 Series Transmitters comply with Part 15 of the
Federal Communications Commission (FCC) Rules and with
RSS-210 of Industry and Science Canada. Operation is subject to
the following two conditions:
• This device cannot cause harmful interference.
• This device must accept any interference received,
including interference that might cause undesired operation.
FCC ID: ESV-0117-1 Canada: 1249 102 643
1.0 Part I - User Guide
The section is for all Security Escort users.
1.1 Introduction
The SE2X-304 Series are personal transmitters designed to work
with the Security Escort System. When initiated, a signal
identifying you and your location is sent to the Security Escort
monitoring station. These transmitters can also be tested within
sight of a receiver or siren-strobe.
Several SE2 models are available, each with optional features.
The check boxes in this document are for your security
department to indicate which features are available on your
transmitter. For example:
Feature is enabled on this transmitter.
Feature is not enabled on this transmitter.
The Security Escort System is not a substitute for
safe behavior. Do not take personal risks believing
Figure 1: Basic SE Transmitter Features
the system will protect you.
1
2
performing a test as described in Testing the Transmitter.
Testing the Transmitter
Test your transmitter by standing within sight of a receiver or
siren-strobe. While holding down the Test button, press the
Alarm button until you hear a tone. A test transmission is sent to
the central console, lighting the green LED on a receiver lights
or the strobe on an outdoor siren-strobe. There might be a brief
delay of 2 to 3 sec before the flashing light appears.
If the receiver’s LED or the strobe does not light to confirm a
successful test transmission, re-test the transmitter. If you still do
not receive confirmation, contact the security department.
1.2.2 Optional Features
Man-Down Alarm
With the Man-Down Alarm feature enabled, the transmitter
transmits an alarm whenever the transmitter (you) is in a prone
position (60° from upright). The transmitter emits a tone on
sensing the prone position and activates Auto Tracking.
Reset the transmitter after a Man-Down Alarm activates by
returning the transmitter to the upright position and performing
a test as described in Section 1.2.1 Standard Operation.
Lanyard Alarm
With the Lanyard Alarm feature enabled (the pin is pulled out),
the transmitter sends an alarm signal to the central console that
activates Auto Tracking.
To reset the transmitter after a Lanyard Alarm activates, reinsert
the lanyard pin and perform a test as described in
Section 1.2.1 Standard Operation.
1.3 Wearing the Transmitter
This transmitter includes a clip you can wear over a pocket or
belt or firmly fixed to a belt.
To wear the transmitter over a pocket, secure the clip to the
transmitter at the two top positions using the screws provided.
To wear the transmitter on a belt, attach the clip at the third
location at the bottom using the screw that secures the battery
door (
Figure 2).
Figure 2: Belt Clip Attachment
1
2
3
3
4
1 - Test button
2 - Alarm button
1.2 Using the SE2X-304
1.2.1 Standard Operation
Transmitting a Manual Alarm
Send an alarm by pressing and holding the Alarm button for
1 sec. The transmitter sends an alarm signal to the central
console every 15 sec, updating your location. With some SE2
models, you can visually confirm the signal if transmitted within
sight of a receiver (LED lights red). After a manual alarm
initiates, the auto tracking feature activates.
3 - Lanyard
5
1 - Side view of clip
2 - Clip
3 - Back of transmitter
The clip is designed to wear on a security type utility belt. If
worn on a thin belt, be aware that a loose fit might cause the
transmitter to send a Man-Down Alarm (if enabled) when you
move too much.
4 - Mandatory
5 - Optional
2 Bosch Security Systems, Inc. | 6/05 | 37900D
