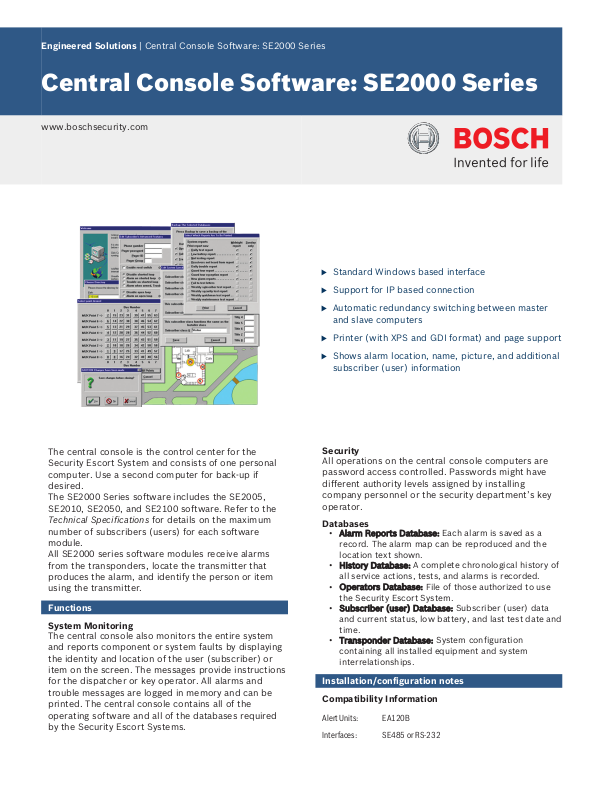

Bosch SE2005, SE2010, SE2050 Specsheet

Engineered Solutions | Central Console Software: SE2000 Series

Central Console Software: SE2000 Series

www.boschsecurity.com

u Standard Windows based interface

u Support for IP based connection

u Automatic redundancy switching between master

and slave computers

The central console is the control center for the
Security Escort System and consists of one personal
computer. Use a second computer for back‑up if
desired.
The SE2000 Series software includes the SE2005,
SE2010, SE2050, and SE2100 software. Refer to the
Technical Specifications for details on the maximum
number of subscribers (users) for each software
module.
All SE2000 series software modules receive alarms
from the transponders, locate the transmitter that
produces the alarm, and identify the person or item
using the transmitter.

Functions

System Monitoring

The central console also monitors the entire system
and reports component or system faults by displaying
the identity and location of the user (subscriber) or
item on the screen. The messages provide instructions
for the dispatcher or key operator. All alarms and
trouble messages are logged in memory and can be
printed. The central console contains all of the
operating software and all of the databases required
by the Security Escort Systems.

u Printer (with XPS and GDI format) and page support

u Shows alarm location, name, picture, and additional

subscriber (user) information

Security

All operations on the central console computers are
password access controlled. Passwords might have
different authority levels assigned by installing
company personnel or the security department’s key
operator.

Databases

• Alarm Reports Database: Each alarm is saved as a
record. The alarm map can be reproduced and the
location text shown.

• History Database: A complete chronological history of
all service actions, tests, and alarms is recorded.

• Operators Database: File of those authorized to use
the Security Escort System.

• Subscriber (user) Database: Subscriber (user) data
and current status, low battery, and last test date and
time.

• Transponder Database: System configuration
containing all installed equipment and system
interrelationships.

Installation/configuration notes

Compatibility Information

Alert Units: EA120B

Interfaces: SE485 or RS‑232

2 | Central Console Software: SE2000 Series

Receivers: EA102A‑304

Transmitters: SE2 Series, SE3 Series, SE3401, and SE88 Series

Transponder: EA500B

Installation and Maintenance

• Usually, one person can easily set up, modify the
system, and rapidly diagnose system problems.

• The central console automatically scans all devices
for their current status. Enable or disable devices
from the console. An on‑board transmitter on all
receivers can be activated to test adjacent receivers
and confirm that each radio receiver is operating
properly (buddy check).

• The system software continuously monitors the
system’s status to ensure it functions correctly.

Technical specifications

Hardware

Backup: External backup and storage drive

Memory: 2GB RAM

Modem: Optional V.32bis (14.4), V.34 (33.8), or V.90

(56.6) modem for remote access and pager
dial‑out (if external, an additional serial port is
required)

Software

Operating System: Windows® 8/8.1 (32/64 bit), Windows® 7

(32/64 bit), Windows® XP

Number of Subscribers (Users)

SE2005: 500

SE2010: 1,000

SE2050: 5,000

Software for more than 5,000 subscribers is
available on request. Contact Bosch for
information

Ordering information

SE2005 Software (500 Subscribers)

For 500 subscribers

Order number SE2005

SE2010 Software (1,000 Subscribers)

For 1000 subscribers

Order number SE2010

SE2050 Software (5,000 Subscribers)

For 5000 subscribers

Order number SE2050

Ports (if needed): Any multi‑port fully supported by Windows, such

Printer: Parallel port dot matrix continuous forms printer

Processor: 1GHz or faster

Sound: Any Windows compatible sound system; one set

Video: VGA (640 x 480) at 256 colors minimum

Storage Space: 1 GB preferred to collect historical data

as:
Digiboard four‑port ISA serial port card
(AccelePort Xe, #76000035)
Required four‑port (D825, #76000008),
Other eight- and sixteen‑port solutions (see
www.digiboard.com)

for alarm output

of computer speakers per computer

800 x 600 high color (16 bits) recommended
1024 x 768 high color and true color (24 bits)
supported
For displaying subscriber (user) images, high
color (16 bits) or true color (24 bits) is
recommended
