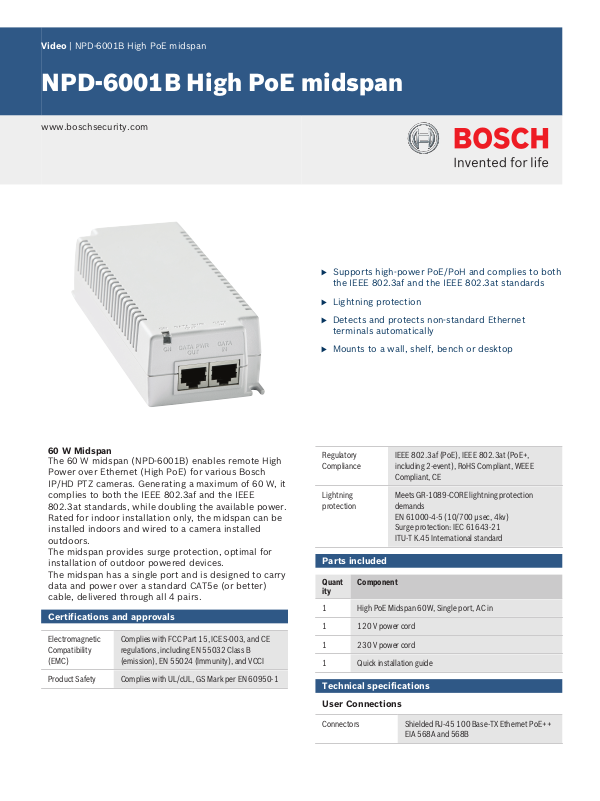

Bosch NPD-6001B Specsheet
Video | NPD-6001B High PoE midspan
NPD-6001B High PoE midspan
www.boschsecurity.com
60 W Midspan
The 60 W midspan (NPD-6001B) enables remote High Power over Ethernet (High PoE) for various Bosch IP/HD PTZ cameras. Generating a maximum of 60 W, it complies to both the IEEE 802.3af and the IEEE 802.3at standards, while doubling the available power. Rated for indoor installation only, the midspan can be installed indoors and wired to a camera installed outdoors.
The midspan provides surge protection, optimal for installation of outdoor powered devices.
The midspan has a single port and is designed to carry data and power over a standard CAT5e (or better) cable, delivered through all 4 pairs.
Certifications and approvals
Electromagnetic |
Complies with FCC Part 15, ICES-003, and CE |
Compatibility |
regulations, including EN 55032 Class B |
(EMC) |
(emission), EN 55024 (Immunity), and VCCI |
|
|
Product Safety |
Complies with UL/cUL, GS Mark per EN 60950-1 |
|
|
uSupports high-power PoE/PoH and complies to both the IEEE 802.3af and the IEEE 802.3at standards
uLightning protection
uDetects and protects non-standard Ethernet terminals automatically
uMounts to a wall, shelf, bench or desktop
Regulatory |
|
IEEE 802.3af (PoE), IEEE 802.3at (PoE+, |
|
Compliance |
including 2-event), RoHS Compliant, WEEE |
||
|
|
|
Compliant, CE |
|
|
|
|
Lightning |
|
Meets GR-1089-CORE lightning protection |
|
protection |
|
demands |
|
|
|
|
EN 61000-4-5 (10/700 µsec, 4kv) |
|
|
|
Surge protection: IEC 61643-21 |
|
|
|
ITU-T K.45 International standard |
|
|
|
|
|
|
|
|
Parts included |
|
||
|
|
|
|
Quant |
|
Component |
|
ity |
|
|
|
1 |
|
High PoE Midspan 60W, Single port, AC in |
|
|
|
|
|
1 |
|
120 V power cord |
|
|
|
|
|
1 |
|
230 V power cord |
|
|
|
|
|
1 |
|
Quick installation guide |
|
|
|
|
|
Technical specifications
User Connections
Connectors |
Shielded RJ-45 100 Base-TX Ethernet PoE++ |
|
EIA 568A and 568B |
|
|
2 | NPD-6001B High PoE midspan
Data
Data |
Data provided over pairs 1/2 and 3/6 for 10/100 |
||
transmission |
Ethernet |
|
|
|
|
|
|
Electrical |
|
|
|
|
|
|
|
Input Voltage |
|
100 to 240 VAC, 50/60 Hz |
|
|
|
|
|
Output Voltage |
|
54-57 VDC (nominal) |
|
|
|
|
|
Input Current |
|
1.5 A |
|
|
|
|
|
High Power Over Ethernet |
Pin Assignment and Polarity: |
||
(High PoE) Output |
|
4 Pair power |
|
|
|
|
- Pairs 1/2 (-) and 3/6 (+) |
|
|
|
- Pairs 7/8 (-) and 4/5 (+) |
|
|
|
User Port Power: |
|
|
|
60 W maximum |
|
|
|
|
Surge protection |
|
Yes |
|
|
|
|
|
Environmental |
|
||
|
|
||
Operating |
|
At 60 W: -10 °C to +40 °C |
|
Temperature |
|
(+14 °F to +104 °F) |
|
|
|
At 30 W: -10 °C to +50 °C |
|
|
|
(+14 °F to +122 °F) |
|
|
|
|
|
Storage |
|
-20 °C to +70 °C |
|
Temperature |
|
(-4 °F to +158 °F) |
|
|
|
|
|
Operating |
|
Maximum 90% relative, non-condensing |
|
Humidity |
|
|
|
|
|
|
|
Storage |
|
Maximum 95% relative, non-condensing |
|
Humidity |
|
|
|
|
|
|
|
Represented by: |
|
Europe, Middle East, Africa: |
Germany: |
Bosch Security Systems B.V. |
Bosch Sicherheitssysteme GmbH |
P.O. Box 80002 |
Robert-Bosch-Ring 5 |
5600 JB Eindhoven, The Netherlands |
85630 Grasbrunn |
Phone: + 31 40 2577 284 |
Germany |
emea.securitysystems@bosch.com |
www.boschsecurity.com |
emea.boschsecurity.com |
|
© Bosch Security Systems 2018 | Data subject to change without notice 33272399627 | en, V2, 08. Feb 2018
Construction
Dimensions (W x H x L) |
62 mm x 38 mm x 151 mm |
|
(2.44 in. x 1.5 in. x 5.94 in.) |
|
|
Weight |
340 g (0.75 lbs) |
|
|
Mounting |
To wall, shelf, bench or desktop |
|
|
Miscellaneous |
|
|
|
Number of Ports |
One (1) |
|
|
Pass through data |
10/100/1000 Mbps |
rates |
|
|
|
Maximum cable length |
Not to exceed 100 m (333 ft) between |
recommended |
network source and terminal |
|
|
System Indicators |
AC Power (yellow) |
|
Channel Power (green) |
|
|
Ordering information
NPD-6001B High PoE midspan
High PoE Midspan, 60 W, single port, AC in for AUTODOME 7000 cameras and for MIC7000 cameras without illuminators.
Order number NPD-6001B
