BOSCH NIT8065UC User Manual
Cooktop
Use and Care Manual
NIT8065UC
1,78
&
() = cm
Table of Contents
Use and care manual
Safety Definitions .......................................................... 4
IMPORTANT SAFETY INSTRUCTIONS ........................ 5
Fire Safety .............................................................................. 5
Cooking Safety ...................................................................... 5
Burn Prevention .................................................................... 6
Child Safety ........................................................................... 6
Cleaning Safety ..................................................................... 6
Cookware Safety .................................................................. 6
Proper Installation and Maintenance ................................ 7
Electromagnetic interference ............................................. 7
Cooling fan ............................................................................ 7
State of California Proposition 65 Warnings ................... 7
Causes of damage ......................................................... 8
Protecting the environment .......................................... 8
Energy-saving advice ........................................................... 8
Cooking by induction .................................................... 9
Advantages of induction cooking ...................................... 9
Proper cookware .................................................................. 9
Getting familiar with the appliance ............................ 10
Control panel ...................................................................... 10
The elements ...................................................................... 10
Residual heat indicator .................................................... 11
Operation ...................................................................... 11
Main power switch ............................................................ 11
Setting the cooktop ........................................................... 11
AutoChef™ .......................................................................... 13
SpeedBoost function ........................................................ 15
Cook time ........................................................................... 15
The timer ............................................................................. 16
Child lock ............................................................................ 16
Clean Lock .......................................................................... 16
Automatic time limitation .................................................. 17
Basic settings ..................................................................... 17
Cleaning and Maintenance ......................................... 18
Daily Cleaning .................................................................... 18
Cleaning guidelines .......................................................... 18
Cleaning charts .................................................................. 19
Maintenance ....................................................................... 19
Service .......................................................................... 20
Troubleshooting ................................................................. 20
Normal operating noises of the cooktop ...................... 21
Technical service ............................................................... 21
STATEMENT OF LIMITED PRODUCT WARRANTY ... 22
What this Warranty Covers & Who it Applies to ......... 22
How Long the Warranty Lasts ........................................ 22
Repair/Replace as Your Exclusive Remedy ................ 22
Out of Warranty Product .................................................. 22
Warranty Exclusions ......................................................... 22
Produktinfo.
Additional information on products, accessories,
replacement parts and services can be found at
www.bosch-home.com and in the online shop
www.bosch-home.com/us/store
3
Safety Definitions
9 WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this warning.
9 CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this warning.
NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.
Note: This alerts you to important information and/or tips.
4
9 IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INS READ AND SAVE THESE INSTRUCTIONS
WARNING
When properly cared for, your new appliance has been
designed to be safe and reliable. Read all instructions
carefully before use. These precautions will reduce the
risk of burns, electric shock, fire, and injury to persons.
When using kitchen appliances, basic safety precautions
must be followed, including those in the following pages.
Examine the appliance after unpacking it. In the event of
transport damage, do not plug it in.
Fire Safety
Do not allow aluminum foil, plastic, paper or cloth to
come in contact with a hot surface element, burner or
grate. Do not allow pans to boil dry.
If the cooktop is near a window, forced air vent or fan,
be certain that flammable materials such as window
coverings do not blow over or near the burners or
elements. They could catch on fire.
Always have a working smoke detector near the kitchen.
Never leave the cooktop unattended when in use.
Boilovers cause smoking and greasy spillovers may
ignite.
WARNING
TO REDUCE THE RISK OF A GREASE FIRE:
a.
Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that
may ignite. Heat oils slowly on low or medium settings.
b.
Always turn hood ON when cooking at high heat or
when flambeing food (i.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé).
c.
Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d.
Use proper pan size. Always use cookware
appropriate for the size of the surface element.
In the event that personal clothing or hair catches fire,
drop and roll immediately to extinguish flames.
Have an appropriate fire extinguisher available, nearby,
highly visible and easily accessible near the appliance.
Smother flames from food fires other than grease fires
with baking soda. Never use water on cooking fires.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A GREASE FIRE, OBSERVE THE FOLLOWING:
a.
SMOTHER FLAMES with a close-fitting lid, cookie
sheet, or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL THE FIRE
DEPARTMENT.
b.
NEVER PICK UP A FLAMING PAN – You may be
burned.
c.
DO NOT USE WATER, including wet dishcloths or
towels – a violent steam explosion will result.
d.
Use an extinguisher ONLY if:
- You know you have a Class ABC extinguisher, and
you already know how to operate it.
- The fire is small and contained in the area where it
started.
- The fire department is being called.
- You can fight the fire with your back to an exit.
Whenever possible, do not operate the ventilation system
during a cooktop fire. However, do not reach through fire
to turn it off.
Cooking Safety
WARNING
Use this appliance only for its intended use as described
in this manual. NEVER use this appliance as a space
heater to heat or warm the room. Doing so may result in
overheating the appliance. Never use the appliance for
storage.
WARNING
If AutoChef™ is not working properly, overheating may
result causing smoke and damage to the pan.
WHEN COOKING WITH AUTOCHEF™ OBSERVE THE FOLLOWING:
▯ Use a system pan only
▯ Always put the pan in the centre of the heating element
▯ Do not place a lid on the pan
▯ Never leave frying fat unattended
Never use the appliance if liquids or foods have spilled
around the control panel. Always turn off the cooktop
and dry the control panel.
Injury and damage to the appliance may occur if control
elements are not used properly.
If the cooktop turns off automatically and can no longer
be operated, it may turn itself on unintentionally at a later
point. Switch off the circuit breaker in the fuse box.
Contact the after-sales service.
5
9 IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Burn Prevention
DO NOT TOUCH SURFACE UNITS OR AREAS NEAR
UNITS - Surface units may be hot even though they are
dark in color. Areas near surface units may become hot
enough to cause burns. During and after use, do not
touch, or let clothing, potholders, or other flammable
materials contact surface units or areas near units until
they have had sufficient time to cool. Among these areas
are the cooktop and areas facing the cooktop.
Do not heat or warm unopened food containers. Build-up
of pressure may cause the container to burst and cause
injury.
Always use dry potholders. Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholder touch hot heating elements. Do not use a towel
or other bulky cloth.
Always turn hood ON when cooking at high heat or when
flambeing food (i.e. Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe).
Use high heat settings on the cooktop only when
necessary. To avoid bubbling and splattering, heat oil
slowly on no more than a low-medium setting. Hot oil is
capable of causing extreme burns and injury.
Never move a pan of hot oil, especially a deep fat fryer.
Wait until it is cool.
Secure all loose garments, etc. before beginning. Tie
long hair so that it does not hang loose, and do not wear
loose fitting clothing or hanging garments, such as ties,
scarves, jewelry, or dangling sleeves.
WARNING
RISK OF BURNS
Metallic objects become hot very quickly on the cooktop.
Never set down metallic objects, such as knives, forks,
spoons and lids on the cooktop.
WARNING
RISK OF BURNS
The pan detection may potentially fail to turn off the
cooking zone due to spilled food or objects placed upon
the cooktop. After each use, turn off the cooktop using
the main switch.
If the display does not work when a cooking area is
heating up, disconnect the circuit breaker from the fuse
box. Contact an authorized servicer.
Child Safety
When children become old enough to use the appliance,
it is the legal responsibility of the parents or legal
guardians to ensure that they are instructed in safe
practices by qualified persons.
Do not allow anyone to climb, stand, lean, sit, or hang on
any part of an appliance, especially a door, warming
drawer, or storage drawer. This can damage the
appliance, and the unit may tip over, potentially causing
severe injury.
Do not allow children to use this appliance unless closely
supervised by an adult. Children and pets should not be
left alone or unattended in the area where the appliance
is in use. They should never be allowed to play in its
vicinity, whether or not the appliance is in use.
CAUTION
Items of interest to children should not be stored in an
appliance, in cabinets above an appliance or on the
backsplash. Children climbing on an appliance to reach
items could be seriously injured.
Cleaning Safety
Do not clean the appliance while it is still hot. Some
cleaners produce noxious fumes when applied to a hot
surface. Wet clothes and sponges can cause burns from
steam.
Do not use steam cleaners to clean the appliance.
Cookware Safety
Hold the handle of the pan when stirring or turning food.
This helps prevent spills and movement of the pan.
Use Proper Pan Size.
The use of undersized cookware will expose a portion of
the heating element or burner to direct contact and may
result in ignition of clothing. Select cookware having flat
bottoms large enough to cover the surface heating unit.
This appliance is equipped with one or more surface
units of different size. Proper relationship of cookware to
heating element or burner will also improve efficiency.
Cookware not approved for use with ceramic cooktops
may break with sudden temperature changes. Use only
pans that are appropriate for ceramic cooktops.
Always position handles of utensils inward so they do not
extend over adjacent work areas, burners, or the edge of
the cooktop. This reduces the risk of fires, spills and
burns.
WARNING
RISK OF INJURY
When cooking with a bain-marie, the cooktop and
cooking vessel may crack due to overheating. The
cooking vessel in the bain-marie must not come in direct
contact with the bottom of the pot filled with water. Use
only heat-resistant cookware.
6
9 IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
WARNING
DANGER OF INJURY
Cookware may jump upward due to fluid trapped
between the cookware bottom and cooking zone. Always
keep cooking zone and cookware bottom dry.
Proper Installation and Maintenance
Have the installer show you the location of the circuit
breaker or fuse. Mark it for easy reference.
This appliance must be properly installed and grounded
by a qualified technician. Connect only to properly
grounded outlet. Refer to Installation Instructions for
details.
This appliance is intended for normal family household
use only. It is not approved for outdoor use. See the
Warranty. If you have any questions, contact the
manufacturer.
Do not store or use corrosive chemicals, vapors,
flammables or nonfood products on or near this
appliance. It is specifically designed for use when
heating or cooking food. The use of corrosive chemicals
in heating or cleaning will damage the appliance and
could result in injury.
Do not operate this appliance if it is not working properly,
or if it has been damaged. Contact an authorized
servicer.
Do not cook on a broken cooktop. Cleaning solutions
and spillovers may create a risk of electric shock.
Do not repair or replace any part of the appliance unless
specifically recommended in this manual. Refer all
servicing to a factory authorized service center.
To avoid electrical shock hazard, before servicing the
appliance, switch power off at the service panel and lock
the panel to prevent the power from being switched on
accidentally.
It is the user’s responsibility to correct any interference.
CAUTION
Persons with a pacemaker or similar medical device
should exercise caution when standing near an induction
cooktop while it is in use. Consult your doctor or the
manufacturer of the pacemaker or similar medical device
for additional information about its effects with
electromagnetic fields from an induction cooktop.
Cooling fan
The cooktop is equipped with a cooling fan on its
underside. Should the cooktop lie above a drawer, there
must be no objects or paper in it. They may be sucked in
and compromise the cooling of the appliance or damage
the fan.
There must be a minimum distance of ¾" (20mm)
between the content of the drawer and the fan input.
State of California Proposition 65 Warnings
WARNING
This product contains chemicals known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Electromagnetic interference
WARNING
This induction cooktop generates and uses ISM
frequency energy that heats cookware by using an
electromagnetic field. It has been tested and complies
with Part 18 of the FCC Rules for ISM equipment. This
induction cooktop meets the FCC requirements to
minimize interference with other devices in residential
installation. Induction cooktops may cause interference
with television or radio reception. If interference occurs,
the user should try to correctthe interference by:
▯ Relocating the receiving antenna of the radio or
television.
▯ Increasing the distance between the cooktop and the
receiver.
▯ Connecting the receiver into an outlet different than the
receiver.
7
Causes of damage
▯ Scratches on glass ceramic surface: Cookware with
rough bottoms will scratch the glass ceramic surface.
▯ Salt, sugar and sand: Salt, sugar or grains of sand will
scratch the glass ceramic surface. Never use the
cooktop as a working surface or for setting things
down.
▯ Overheated cookware: Avoid heating pots or pans
that are empty.
▯ Hot cookware: Never set down hot pans and pots on
the control panel or frame. This may cause damage.
Protecting the environment
Energy-saving advice
▯ Always place a fitting lid on cookware. Cooking with
an uncovered pan will result in a four-fold increase in
energy use. Use a glass lid to provide visibility and
avoid having to lift the lid.
▯ Use cookware equipped with a solid, flat bottom.
Curved pan bases increase energy consumption.
▯ The diameter of the pan base must match the size of
the element. If not, energy may be wasted. Note: The
manufacturer normally indicates the pan's upper
diameter. This is normally greater than the diameter of
the pan's base.
▯ Choose cookware of a size suited to the amount of
food you are going to cook. A large pan that is only
half full will use a lot of energy.
▯ Use a small amount of water when cooking. This
saves energy, and vegetables retain a larger
percentage of their vitamins and minerals.
▯ Select a lower power level.
▯ Hard and sharp objects: Hard or sharp objects falling
on the cooktop may damage it.
▯ Boiled-over food: Sugar and products containing
sugar may damage the cooktop. Immediately eliminate
spills of these products with a glass scraper.
▯ Foils and plastics: Aluminum foil and plastic will melt
on the hot cooking zones. Stove protective film isn't
suitable for your cooktop.
▯ Unsuitable cleaning agent: Shimmering metallic
discolorations on the glass ceramic surface result from
the use of inappropriate cleaning agents and abrasion
from cookware.
8
Cooking by induction
Advantages of induction cooking
Induction cooking represents a radical change from the
traditional method of heating; the heat is generated
directly in the pan. It therefore offers a number of
advantages:
▯ Greater speed in cooking and frying; as the pan is
heated directly.
▯ Energy is saved.
▯ Greater convenience in care and cleaning. Foods that
have spilled on the cooktop surface do not burn as
quickly.
▯ Heat and safety control; the cooktop supplies or cuts
off power immediately when the controls are set. The
induction cooktop stops supplying heat if the pan is
removed without turning off the power first.
Proper cookware
Ferromagnetic pans
Only ferromagnetic pans are suitable for induction
cooking, these can be made from:
▯ enamelled steel
▯ cast iron
▯ special stainless steel utensils for induction cooking
Check that the bases of your pans are attracted by a
magnet to find out if they are suitable.
Other suitable cookware for induction
There are other types of cookware with a base not
entirely ferromagnetic that are made for induction
cooking use.
When using large cookware
on a smaller ferromagnetic
element, only the
ferromagnetic element heats
up, so heat might not be
uniformly distributed.
Cookware with aluminum on
the base reduce the
ferromagnetic zone, so less
heat may be supplied or
problems with detection
might occur.
For good cooking results, the
diameter of the cookware's
ferromagnetic area should
match the size of the
element. If cookware is not
detected on an element, try it
on the next smaller element.
Unsuitable pans
Never use pans made of:
▯ thin normal steel
▯ glass
▯ clay
▯ copper
▯ aluminum
Characteristics of the pan base
The characteristics of the pan base can influence the
evenness of the cooking results. Pans made from
materials which help diffuse heat, such as stainless steel
sandwich pans, distribute heat uniformly, saving time and
energy.
No pan or improper size
If no pan is placed on the selected element, or if it is
made of unsuitable material or is not the correct size, the
power level displayed on the element indicator will flash.
Place a suitable pan on the element to stop the flashing.
If you take longer than 90 seconds to place a suitable
pan on the element, it will automatically turn off.
Empty pans or pans with a thin base
Do not heat up empty pans, or use pans with a thin base.
The cooktop is equipped with an internal safety system.
However, an empty pan may heat up so quickly that the
"automatic switch off" function may not have time to react
and the pan may reach very high temperatures. The pan
base could melt and damage the cooktop glass. In this
case, do not touch the pan and switch the cooktop off. If
the cooktop fails to work after it has cooled down, please
contact the technical service.
Pan detection
Each element has a minimum limit for detecting pans,
which varies depending on the material of the pan you
are using. You should therefore use the element that best
matches the diameter of your pan.
Automatic detection on double or triple cooking elements
These elements can detect different pan sizes.
Depending on the material and properties of the pan, the
element will adapt automatically, and will turn on single
zone or the entire element, supplying the proper power to
obtain good cooking results.
9
Getting familiar with the appliance
In this section we describe the control panel, elements
and displays.
These instructions apply to more than one cooktop, your
appliance might vary slightly.
Page 2 contains a list of models and dimensions.

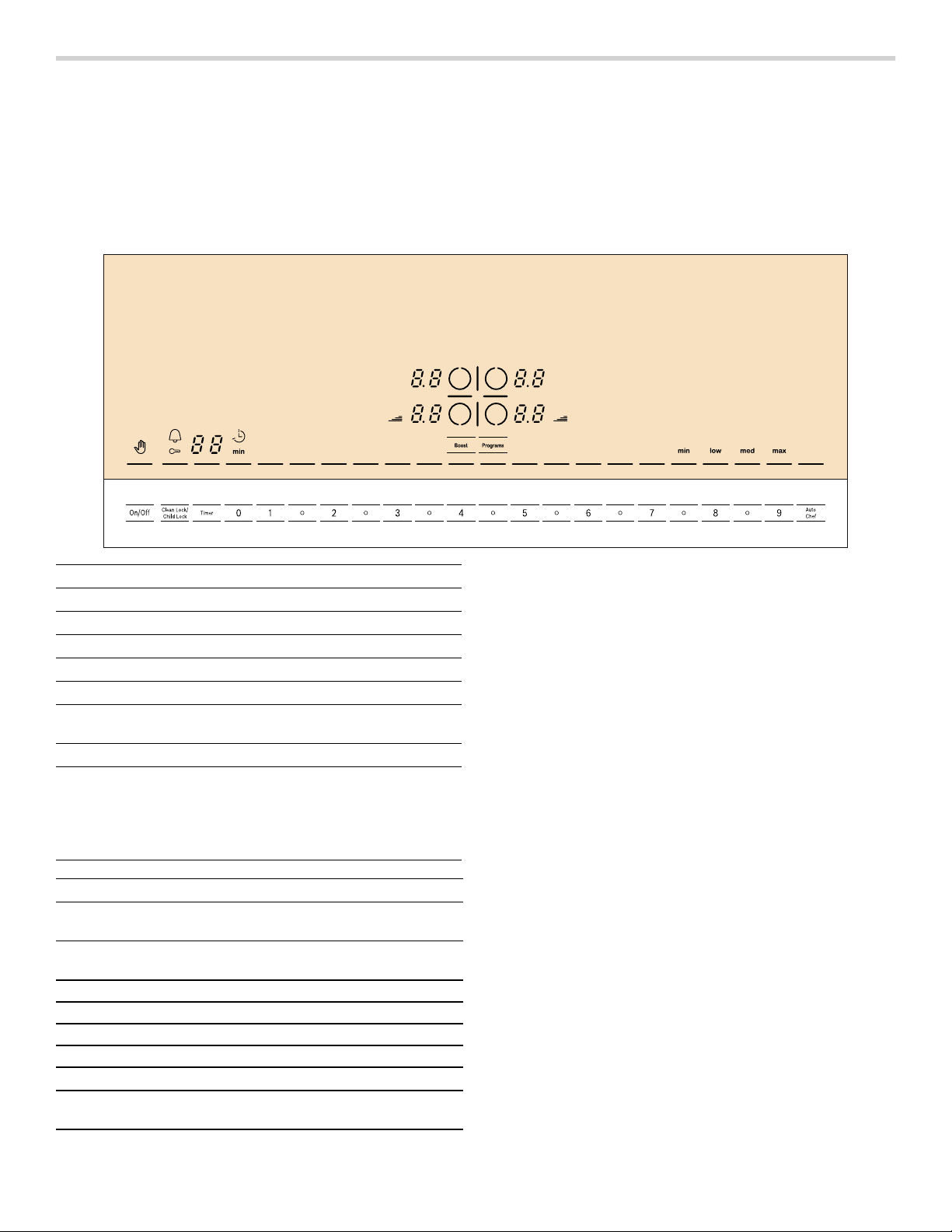

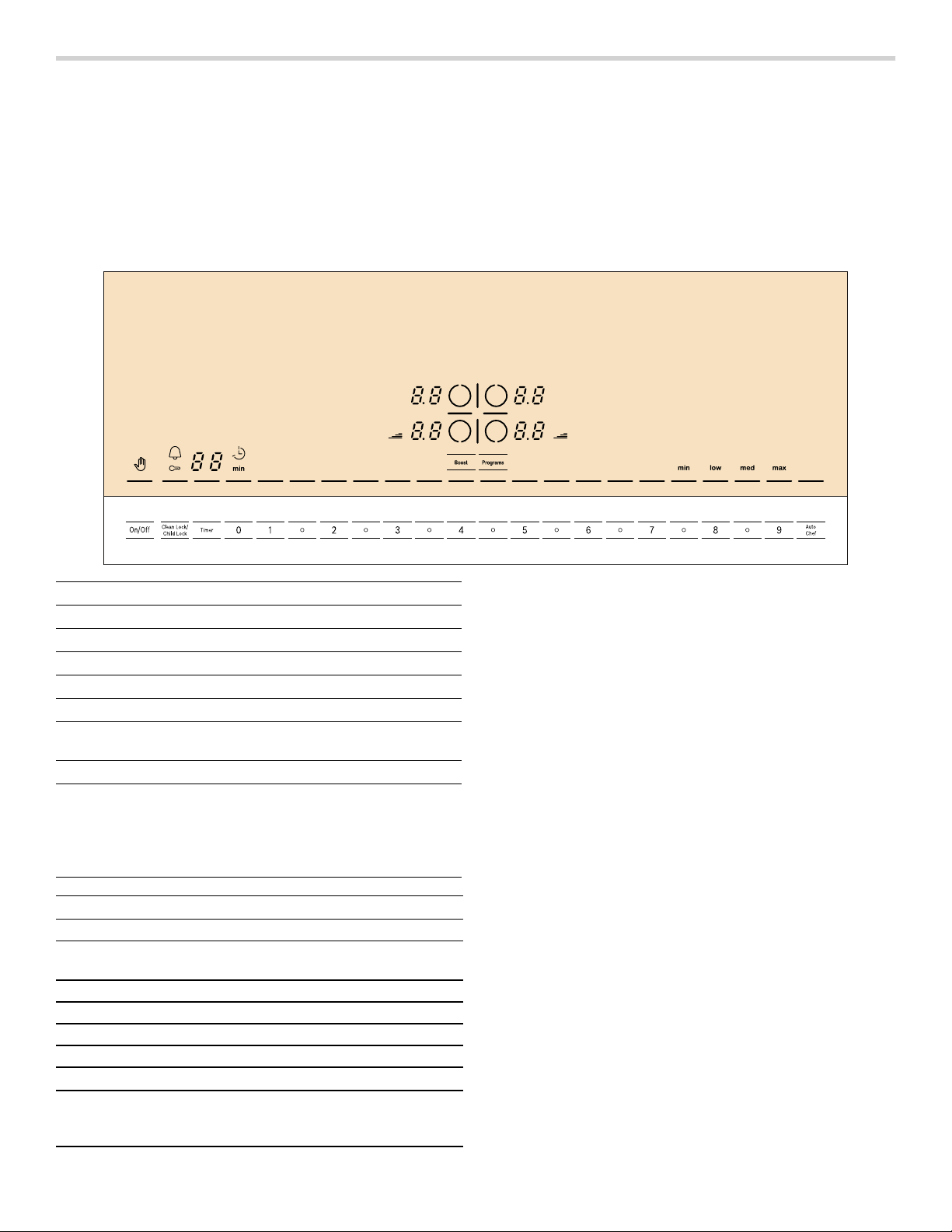

Control panel
Display icons
>
D
U
‰‰
q
§
¿
Child lock on
Cleaning protection on
Kitchen timer on
Timer value
Timer function
Cooking time set for lit element
AutoChef: Heating up in progress
‰.‰ Power level ‚-Š
Ready ‹
Residual heat •/œ
SpeedBoost function ›
The elements
Touch keys
On/Off Main power switch
CleanLock/
ChildLock
Timer Time programming functions
AutoChef AutoChef™ function
Boost SpeedBoost function
Programs AutoChef™ programs
$
0 - 9 Set temperature level Frying level Timer
Touch control zone
When you touch a symbol, the corresponding function
will be activated.
NOTICES
▯ Always keep the touch control zones clean and dry.
Moisture and dirt can affect proper functioning.
▯ If the metal tray is bent or damaged, e.g. it has been
hit by a pan, functionality might be affected.
Cleaning protection / Child safety
Select element
Frying program
Element Turning on and off
Single element Always use cookware of a suitable size.
$
Dual element This element is turned on automatically when using cookware with a
ð
base the same size as the outer zone.
Use only cookware suitable for induction cooking; see the section on suitable cookware.
10
Residual heat indicator
The cooktop is equipped with a residual heat indicator
for each element. Avoid touching the indicated elements.
Operation
Even when turned off, the indicator
the cooktop is hot.
If the pan is removed but the element is not turned off,
the indicator
alternately.
•/œ and the selected power level will flash
•/œ will stay lit while
Main power switch
Use the main switch to turn on the electronic circuitry for
the control panel. The cooktop is now ready to use.
Turning the cooktop on
Touch the On/Off touch key. A beep will sound.
The __ indicator located on top of the On/Off touch key
lights up.
Turning the cooktop off
Touch the On/Off touch key. The __ indicator goes out.
The cooktop is switched off. The residual heat indicators
will remain on until the elements have cooled off
sufficiently.
Note: The cooktop switches off automatically when all the elements have been switched off for more than 20 seconds.
The residual heat indicator remains lit until the elements
have cooled down sufficiently.
the corresponding element symbol.
•/œ is displayed next to
Setting the cooktop
This section will show you how to set the elements. The
table contains details on the heat settings for a variety of
dishes.
Setting the element
Select the desired heat level using the symbols 1 to 9.
Heat level 1 = minimum power
Heat level 9 = maximum power
Each heat level has an intermediate level. This level is
marked with the Û symbol in the touch control zone.

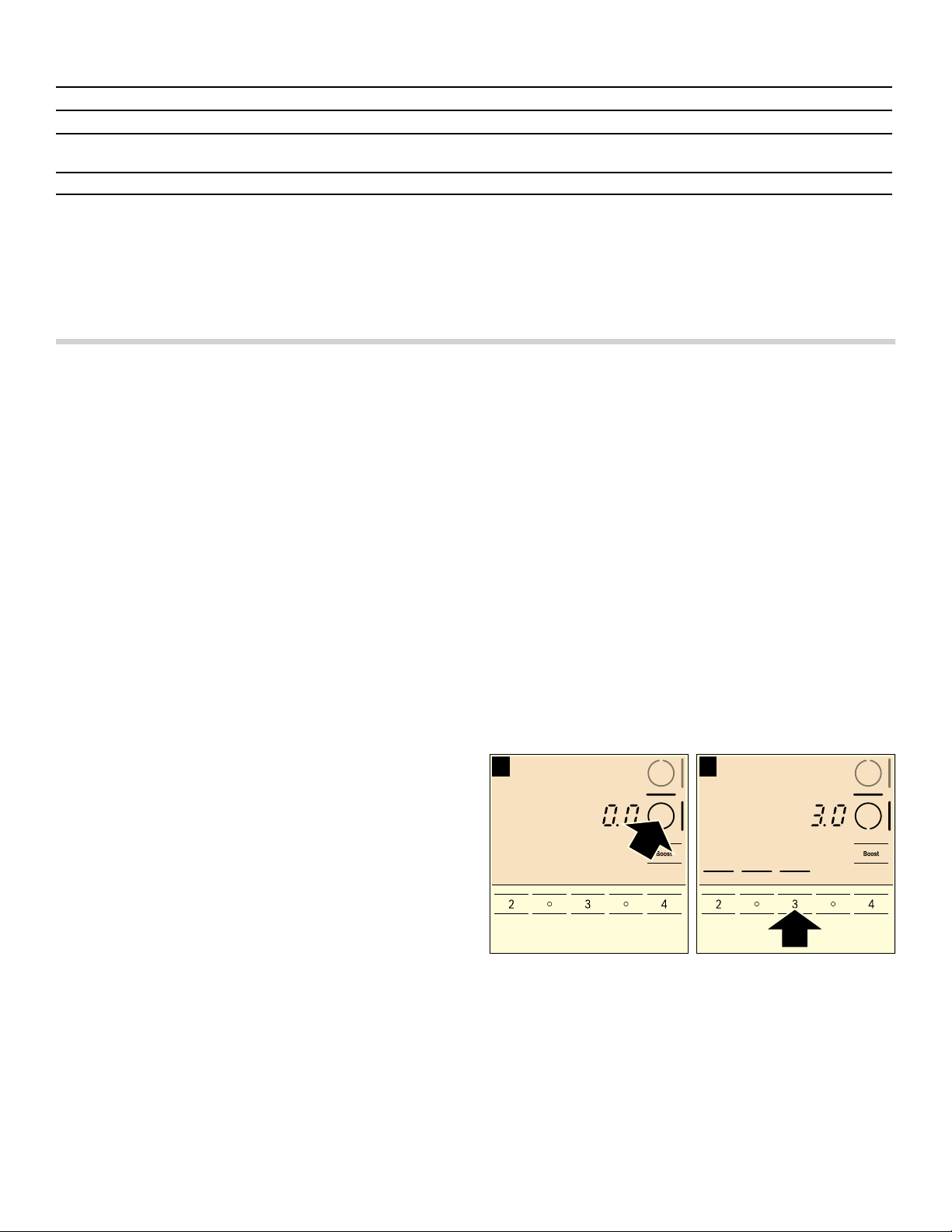

Selecting the heat level
The cooktop must be turned on.
1.
Touch the $ touch key for the corresponding element. The ‹.‹ indicator lights up.
2.
Touch the number key for the desired heat level.
11
Settings table
The following table provides some examples. Cooking
times may vary depending on the type of food, its weight
and quality. Deviations are therefore possible.
Melting
chocolate 1.5 - 2.0
butter 1.0 - 2.0
Heating
frozen vegetables, e.g. spinach 2.5 - 3.5
broth 7.0 - 8.0
thick soup 1.5 - 2.5
milk** 1.0 - 2.0
Simmering
delicate sauce e.g. Béchamel sauce 4.0 - 5.0
spaghetti sauce 2.0 - 3.0
pot roast 4.0 - 5.0
fish** 4.0 - 5.0
Cooking
rice (with double amount of water) 2.0 - 3.0
potatoes bolied in thier skins (with 1-2 cups of water) 4.0 - 5.0
boiled potatoes (with 1-2 cups of water) 4.0 - 5.0
fresh vegetables (with 1-2 cups of water) 2.0 - 3.5
frozen vegetables (with 1-2 cups of water) 3.5 - 4.5
pasta (with 2-4 qt. water)* 6.0 - 7.0
pudding** 1.0 - 2.0
cereals 2.0 - 3.0
Frying
pork chop 5.5 - 6.5
chicken breast 5.0 - 6.0
bacon 6.0 - 7.0
eggs 5.0 - 6.0
fish 5.0 - 6.0
pancakes 6.0 - 7.0
Deep fat frying** (in 1-2 qt. oil)
deepfrozen foods, e.g. chicken nuggets (0.5 lb per serving) 8.0 - 9.0
other, e.g. doughnuts (0.5 lb per serving) 4.5 - 5.5
* ongoing cooking without lid
** without lid
Note: During cooking, stews or liquid meals such as soups, sauces or drinks can heat up too quickly unnoticed and overflow or spatter. For this reason we recommend that you stir continuously, gradually heating the food at a suitable power level.
Power levels
12
AutoChef™
When you are using AutoChef™ to operate the heating
element, a sensor controls the temperature of the pan.
Advantages when frying
The cooking element only heats when it is necessary.
This saves energy. Oil and grease do not overheat.
9 CAUTION
▯ Never leave oil or fat cooking unattended.
▯ Place the pan in the centre of the element. Make
sure that the base of the pan has the proper
diameter.
▯ Do not cover the pan with a lid. The automatic
regulation will not work. A mash splatter guard
can be used without affecting the automatic
regulation.
▯ Only use fat or oil that is suitable for frying. When
you are using butter, margarine, olive oil or pork
lard, select the min temperature setting.
▯ AutoChef™ is not suitable for boiling.
Frying levels
Suitable pans for AutoChef
Suitable frying pans for use with AutoChef are available
as optional accessory. Only use pans that are suitable for
use with AutoChef. Otherwise the pans may overheat at
higher frying levels. You can buy our system pans in
specialized stores, or through our Technical Assistance
Service. Always indicate the related reference code.
▯ HEZ390210 (Small)
▯ HEZ390220 (Medium)
▯ HEZ390230 (Large)
The pans are non-stick. Food may also be fried in a small
amount of oil.
The frying levels provided below are designed for our
system pans.
9 CAUTION
If a different type of pan is used, try it first at the
lowest frying level, adjusting it as required. The pans
may overheat.
Power level Temperature Suitable for
max high e.g., potato pancakes, sautéed potatoes, and rare beefsteak.
med medium-high e.g., thin fried foods like frozen pies, escalopes, ragu, vegetables
low medium-low e.g. thick fried food such as hamburgers and sausages, fish.
min low e.g. omelettes, using butter, olive oil or margarine
Setting the AutoChef™ feature
Select the appropriate frying level from the chart. Place
the system pan in the center of the element. The cooktop
must be on.
1.
Select the element.
2.

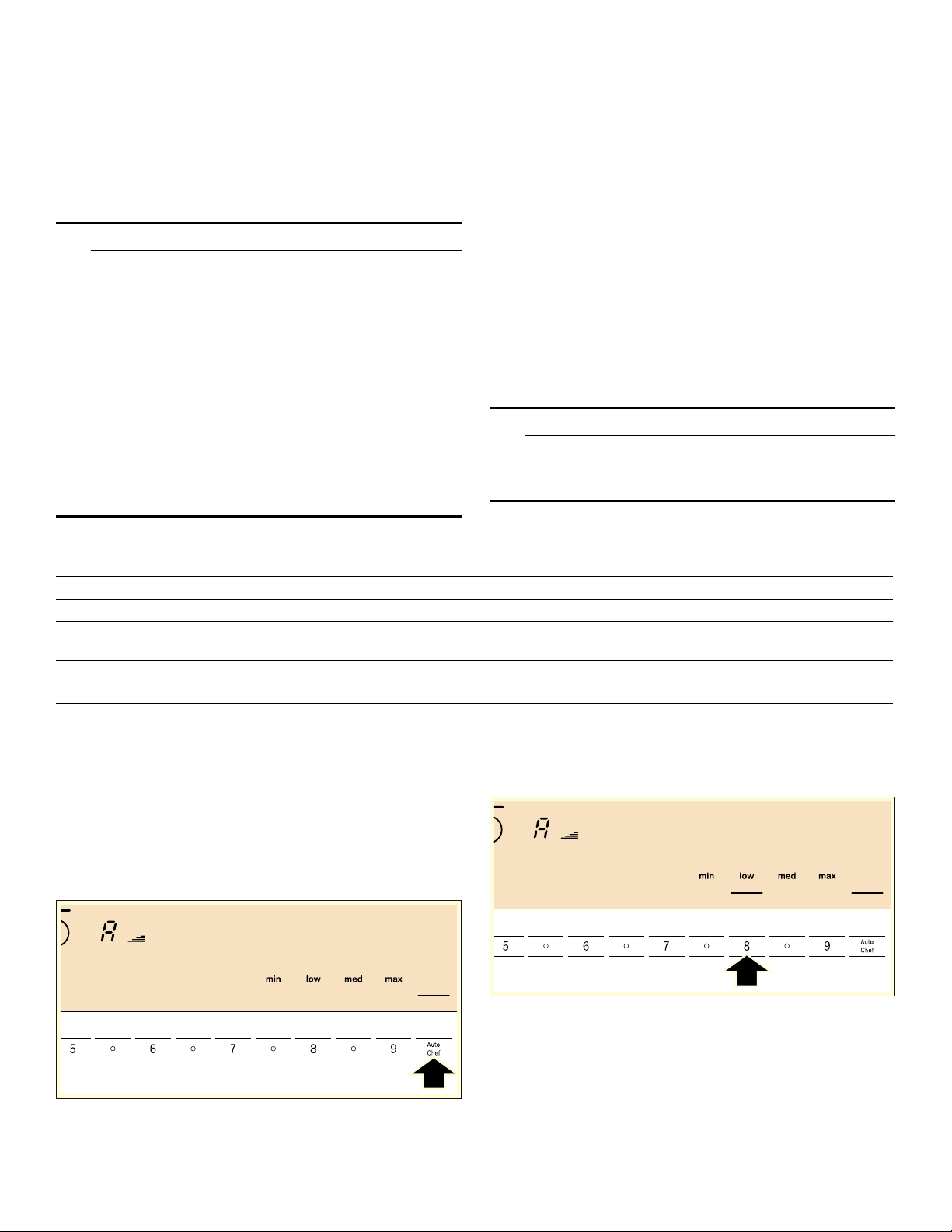

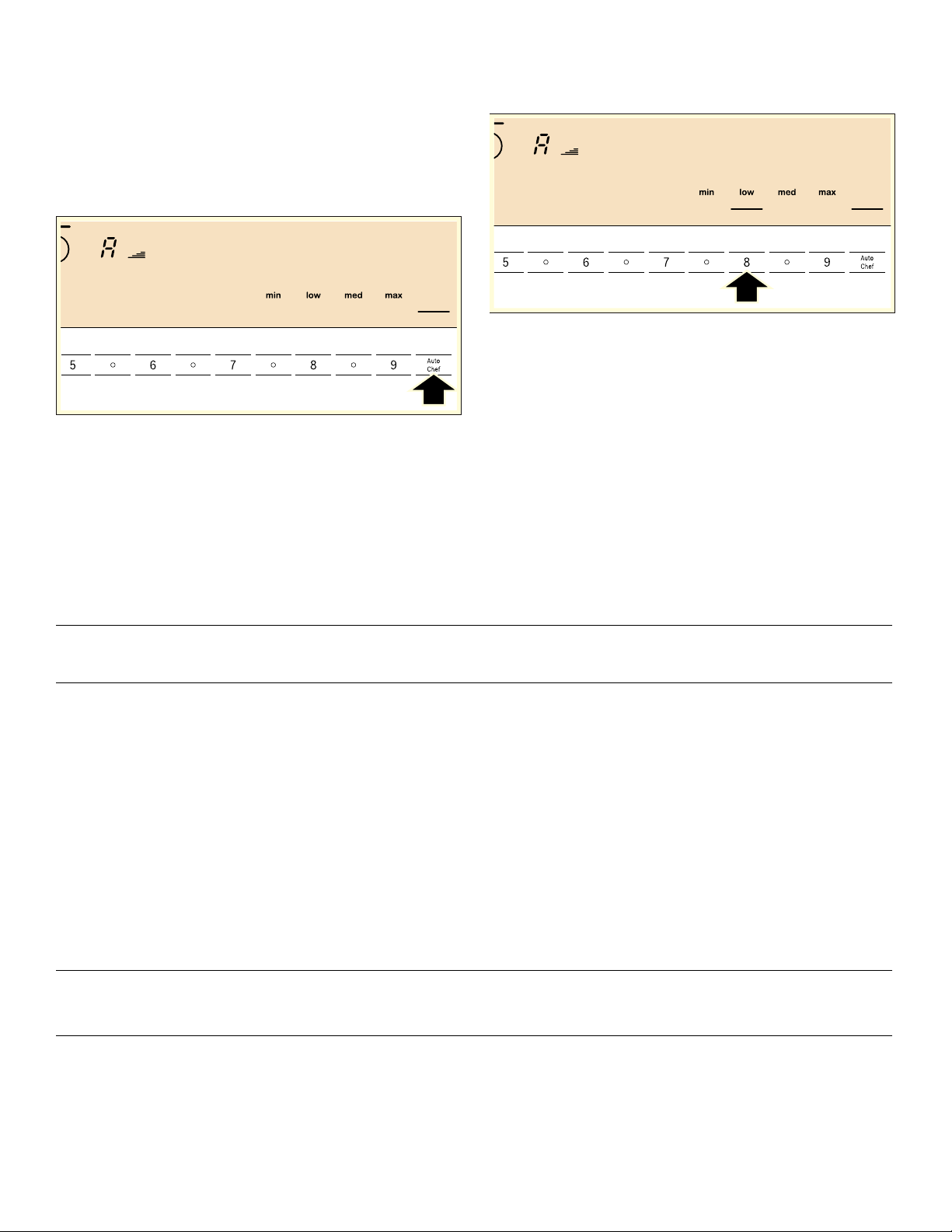

Touch AutoChef. The ‘ lights up on the element display. The frying level options appear on the display menu.
The temperature symbol ¿ appears until the
temperature is reached. Then a beep sounds. The
temperature symbol ¿ disappears.
4.
Add the frying oil to the pan, then add the ingredients. Turn the food over as usual to avoid burning.
Turning off AutoChef™ Select the heating element and touch AutoChef.
3.
Select the desired frying level using the number keys on the display menu. The symbols ¿ and __ light up on the display.
13
AutoChef™ Frying Chart
The following chart lists which frying level is ideal for
particular foods. Frying time may depend on the type,
weight and quality of the food product.
Meat Pork chop, boneless or bone-in (1" thick)
Veal cutlet in breadcrumb (5/8" thick)
Fillet (1" thick)
Cordon bleu
Beef steaks medium rare (_" thick)
Beef steaks medium or well done (_" thick)
Chicken breast (1" thick)
Skillet-fried chicken
Sausages e.g. hot dogs (ø
Hamburger
Thin slices of meat
Ground meat
Bacon
Fish Fish, fried (whole)
Fish fillet with or without breadcrumbs
Shrimps
Egg dishes Pancakes
Omelettes
Fried eggs
Scrambled eggs
French toast
Potatoes Fried boiled potatoes
Fried raw potatoes
Hash browns
Vegetables Garlic/Onions
Squash, Egg plant
Mushrooms
Stir-fried vegetables
Frozen products
Ready-made
meals
Misc. Baked camembert/Baked cheese
* Place in cold pan
cf continuous frying
Chicken nuggets, Chicken patties
Cordon bleu
Chicken breast
Fish fillet in breadcrumbs
Fish sticks
Oven French fries
Stir-fried vegetables
Spring rolls/Eggrolls (
Potato products e.g. fried potatoes
Potato products e.g. hash browns
Pasta (with added water)
Roast almonds, nuts, pine kernel*
^ - 1X")
_-1]" thick)
The frying levels provided are designed for the system
pan. Frying levels may vary when using other frying pans.
Frying level Total frying time
from signal
low
med
med
low
max
med
min
min
low
low
med
med
min
low
low/med
med
low
min
min
min
min
max
low
min
min
low
med
med
med
min
low
low
med
max
min
low
low
min
min
low
min
10-17 min
6-10 min
6-10 min
15-20 min
8-10 min
8-12 min
20-30 min
25-35 min
8-20 min
6-12 min
7-12 min
6-10 min
5-8 min
15-25 min
10-20 min
4-8 min
cf
cf
2-6 min
2-4 min
cf
6-12 min
15-25 min
20-30 min
2-10 min
4-12 min
10-15 min
10-12 min
8-15 min
10-30 min
10-30 min
10-20 min
8-12 min
4-6 min
8-15 min
10-30 min
10-15 min
10-20 min
4-6 min
7-10 min.
3-7 min.
14
Frying programs
Use the frying programs with a system pan only.
You can use the frying programs to prepare the following
dishes:
Program Dish
˜‚
˜ƒ
˜„
˜…
˜†
˜‡
˜ˆ
˜‰
˜Š
Select the desired program
Select the element:
1.
Press the Programs touch key. The ˜‹ indicator lights up on the element display.
2.
Select the desired frying program using the number
keys. The temperature symbol ¿ appears.
The frying program is activated.
The temperature symbol ¿ stays lit until the frying
temperature is reached.
Add the frying oil and then the food to the pan. As usual,
turn the food over to avoid burning.
Turning off the frying program
Select the heating element and then touch Programs.
Ground meat
Hamburger, Pork chop
Steak medium rare
Steak medium or well done
Fish
Pancakes, French Toast
Frozen oven French fries
Stir-fried vegetables
Omelette, eggs
Turning off SpeedBoost
1.
Select an element.
2.
Touch the Boost touch key. The letter › will no longer
be displayed and the element will return to heat level
Š. The SpeedBoost function has been deactivated.
Note: In certain circumstances, the function may be deactivated automatically to protect the internal electronic components of the cooktop.
Cook time
You can use the timer function to set a cook time for any
element. The element will turn off automatically once the
set time has elapsed.
9 CAUTION
▯ When using the timer, always keep an eye on the
cooktop and do not allow anything to boil over or
burn. Boilovers can cause smoke and foods and
oils may catch on fire if left on high temperature
settings.
▯ This function should not be used for long periods
of time, especially at high heat settings.
▯ Make sure the cooktop is turned off with the main
power switch after each use.
Setting the cook time

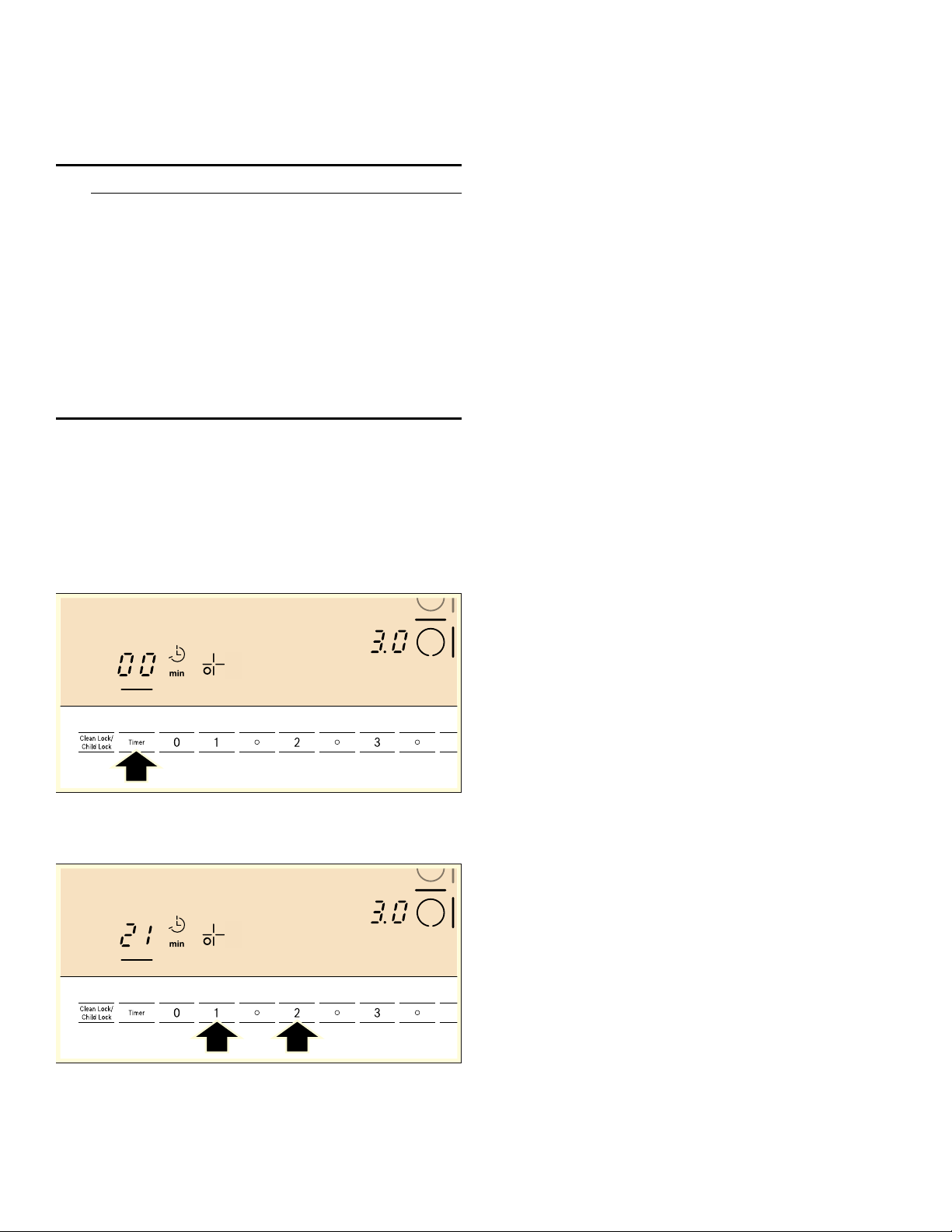

1.
Select the desired element and power level.
2.

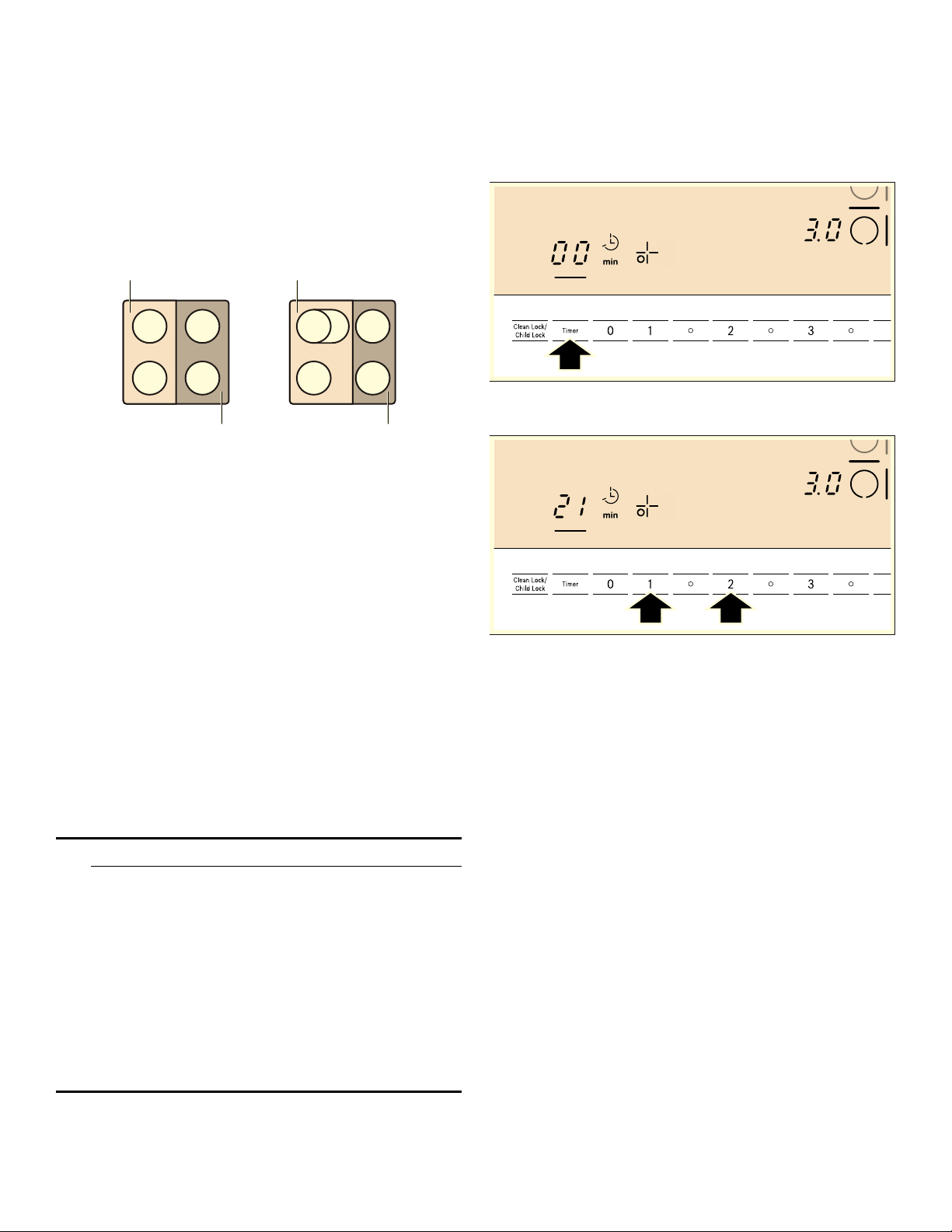

Touch the Timer symbol.
The ‹‹, min and b indicators light up on the timer
display. The indicator for the desired element lights up
SpeedBoost function
The SpeedBoost function can be used to heat large
amounts of water faster than by using heat level Š.
Limitation on use

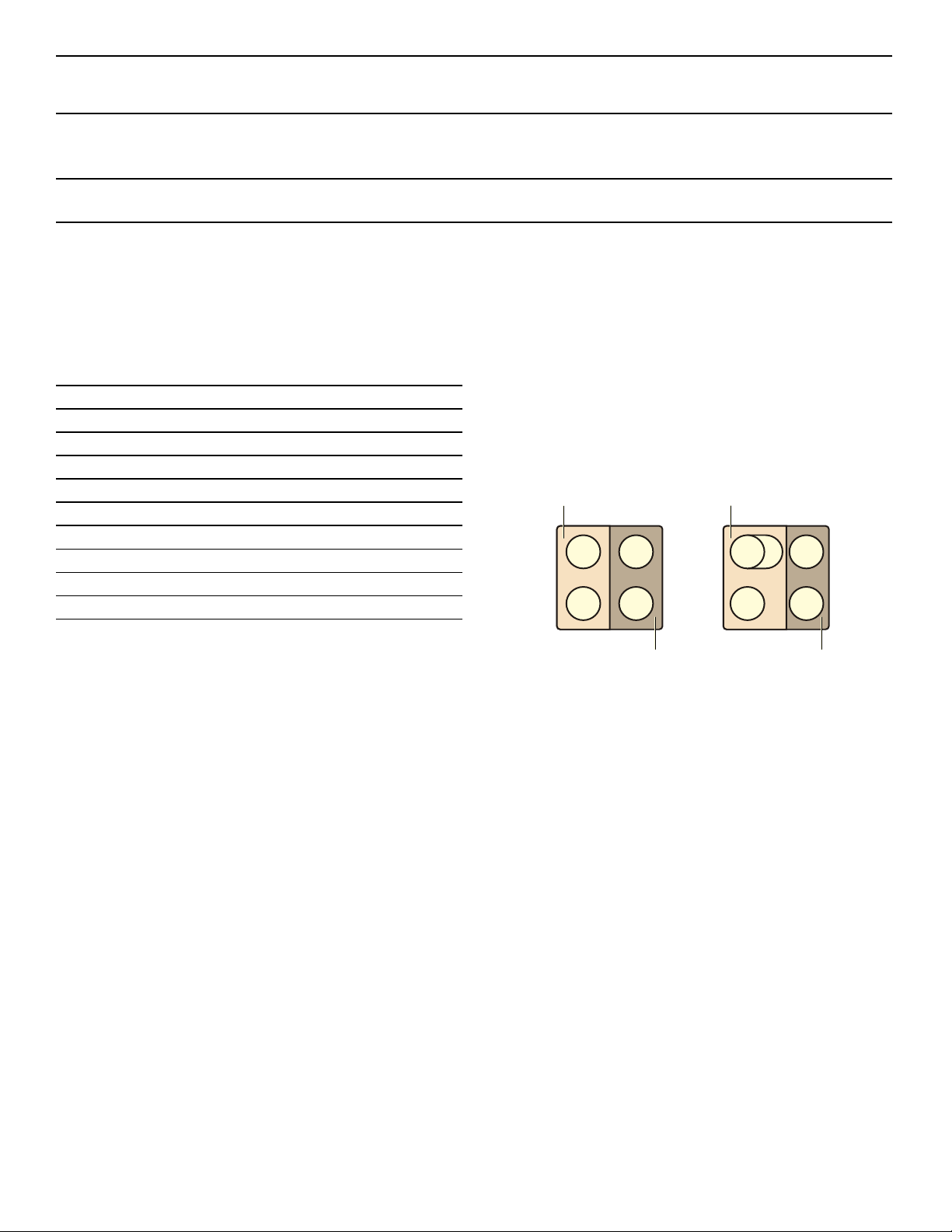

This function is available on all elements, provided that
no other element in the same group is operating, (see
picture). If this is not the case, the › and Š symbols will
flash on the selected element display; then it will
automatically set the power level Š.
*URXS
Turning on SpeedBoost
1.
Select an element.
2.

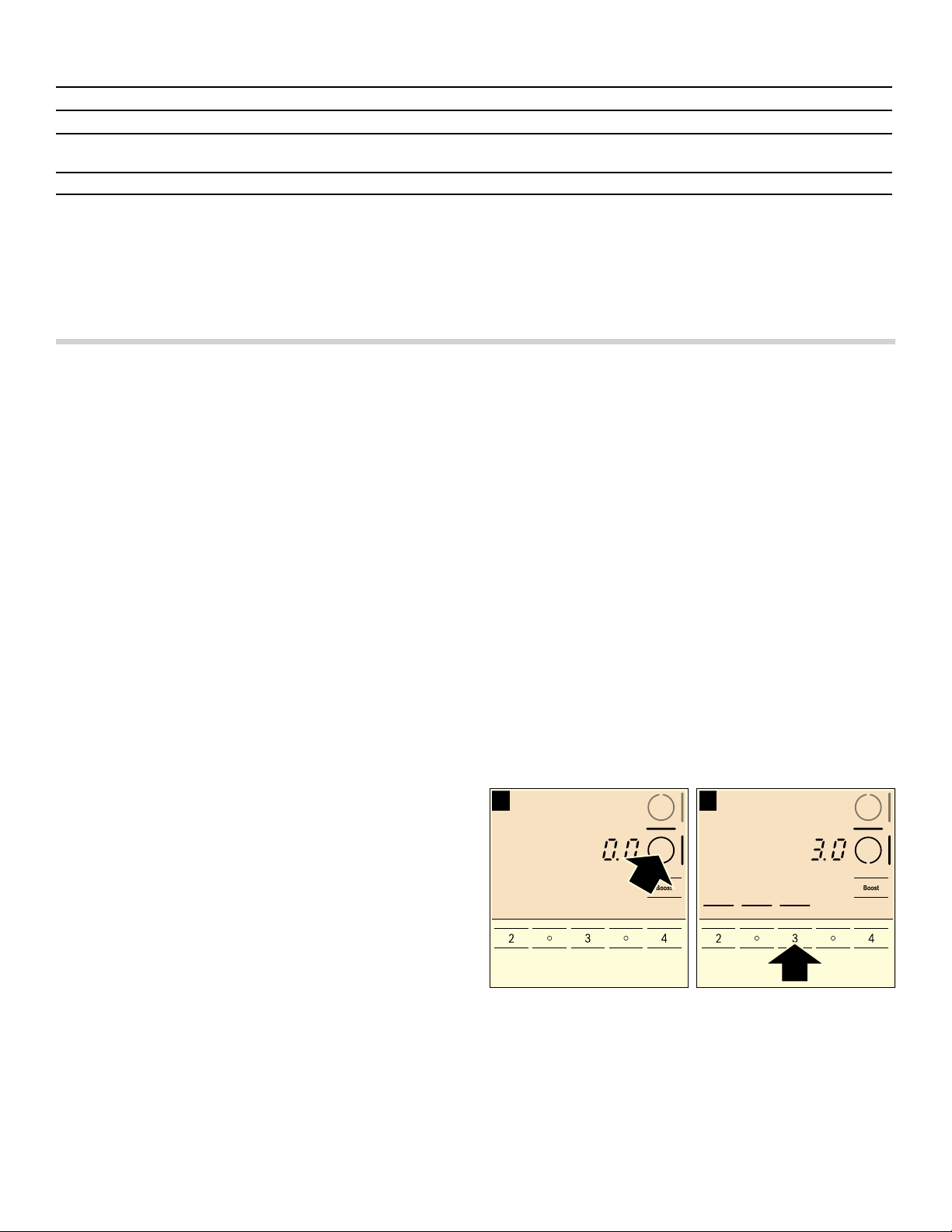

Touch Boost. The letter › will light up in the element
display. The function has been turned on.
*URXS
*URXS
*URXS
3.
Within the next 10 seconds, set the required time using the symbols 1 to 9.
15
After a few seconds, the timer will start to count down.
The last programmed cook time will appear in the
display.
Changing the time Touch the Timer key. The __ and
U indicators light up.
Change the time using the number keys 0 to 9.
Once the cook time has elapsed
The element turnes off once the set cook time has
elapsed. You will hear a beep. The indicator
in the element display and the timer display shows
‹.‹ appears
‹‹.
Once you touch the Timer key, the indicators and the
beep are turned off.
Changing cook time
Select the element and touch the Timer key twice. Set
the new cook time using the number keys 0 to 9.
Cancelling cook time
Select the desired element and touch the Timer symbol
twice. The min, __ and r indicators light up. Then select
0 from the number keys until ‹‹ is displayed.
Timer function with AutoChef™
When you cook using AutoChef™, the programmed cook
time begins to count down once the selected element
reaches the set temperature.
Notes
▯ You can set a cook time of up to 99 minutes.
▯ To program a cook time of less than 10 minutes,
always select 0 first before you select the required
value.
▯ After a power outage, the timer function will be
cancelled.
Clearing the time
Touch the Timer key. The __ and
Touch the 0 key until
‹‹ appears on the timer display.
U indicators light up.
The U indicator goes out.
Notes
▯ If the set time is not displayed, touch the Timer key
several times until the U indicator lights up on the
timer display.
▯ The timer will be deactivated after a power outage.
▯ The automatic off function for an element and the timer
function can both be operated simultaneously.
Child lock
You can use the child lock to prevent children from
accidentally turning the cooktop on.
Turning the child lock on
The cooktop must be turned off.
Touch Clean Lock/Child Lock until a beep sounds and
the D indicator lights up. The cooktop is now locked.
After some time, the D indicator will go out.
Turning the child lock off
Touch Clean Lock/Child Lock until a beep sounds and
the D indicator turns off. The child lock is now
deactivated. The cooktop can be switched on.
Automatic timer
With this function you may select a cook time for all
elements. Once an element is turned on, the selected
time will begin to count down. The element will
automatically turn off when the cook time has elapsed.
Instructions on activating the automatic timer are found in
the chapter "Basic settings".
Note: The cook time can be changed or cancelled for any element:
Touch the Timer key several times until the $ indicator
of the required element lights up. Adjust the cook time
with touch keys 1 to 9 or deactivate with 0.
The timer
The timer can be set for periods of up to 99 minutes. It is
independent of the other settings. This function does not
automatically switch off an element.
Setting the kitchen timer
1.
Touch the Timer key. ‹‹ appears in the timer display.
The __, min and U indicators light up.
2.
Set the required time using the number keys 0 to 9.
After a few seconds, the __ indicator goes out and the
programmed time starts to count down.
Once the time has elapsed
A beep sounds. ‹‹ and U indicators light up. Touch the
Timer key. The indicators go out and the beep stops.
9 CAUTION
The child lock may be accidentally turned on and off
due to:
▯ water spilled during cleaning
▯ food that has overflowed
▯ objects being placed on the
Clean Lock/Child Lock touch key.
Automatic child lock
With this function, the child lock is automatically activated
whenever you switch off the cooktop.
Turning on and off
See "Basic settings" section.
Clean Lock
Cleaning the control panel while the cooktop is on may
change the settings.
In order to avoid this the cooktop has a Clean Lock
function. Touch Clean Lock/Child Lock. The > indicator
appears. The control panel is locked for approximately
35 seconds. You can now clean the surface of the
control panel without risk of changing the settings.
After the time has elapsed a beep will sound. The Clean
Lock is deactivated.
The Clean Lock function does not affect the main switch.
You can turn off the cooktop at any time.
16
Automatic time limitation
If the element is used for prolonged periods of time
without changes in the settings being made, the
automatic time limitation function is triggered.
Basic settings
The device has various basic settings. These settings
may be adapted to the user's individual needs.
Display Function
™‚
™ƒ
™†
™‡
™ˆ
™Š
™‹
*Factory settings
Automatic child lock
‹ Off*
‚ On
Sound signals
‹ Confirmation beep and error signal off
‚ Only confirmation beep off
ƒ All signals on*
Automatic timer
‹ Off*
‚-ŠŠ Automatic shut-off time
Duration of the timer end signal
‚ 10 seconds*
ƒ 30 seconds
„ 1 minute
Power Management function
‹ = Off*
‚ = 1,000 W. minimum power
‚.= 1,500 W
ƒ = 2,000 W
etc.
Š or Š. = maximum power of the element
Element selection time
‹ Unlimited: the last programmed element remains selected*
‚ Limited: The element will only remain selected for 10 seconds
Restoring default cooktop settings
‹ Customized settings*
‚ Return to factory settings
The element stops heating.
indicator
The indicator goes out when any symbol is pressed. The
element can now be reset.
When the automatic time limitation is activated depends
on the selected heat level (from 1 to 10 hours).
•/œ flash alternately in the display.
”‰ and the residual heat
17

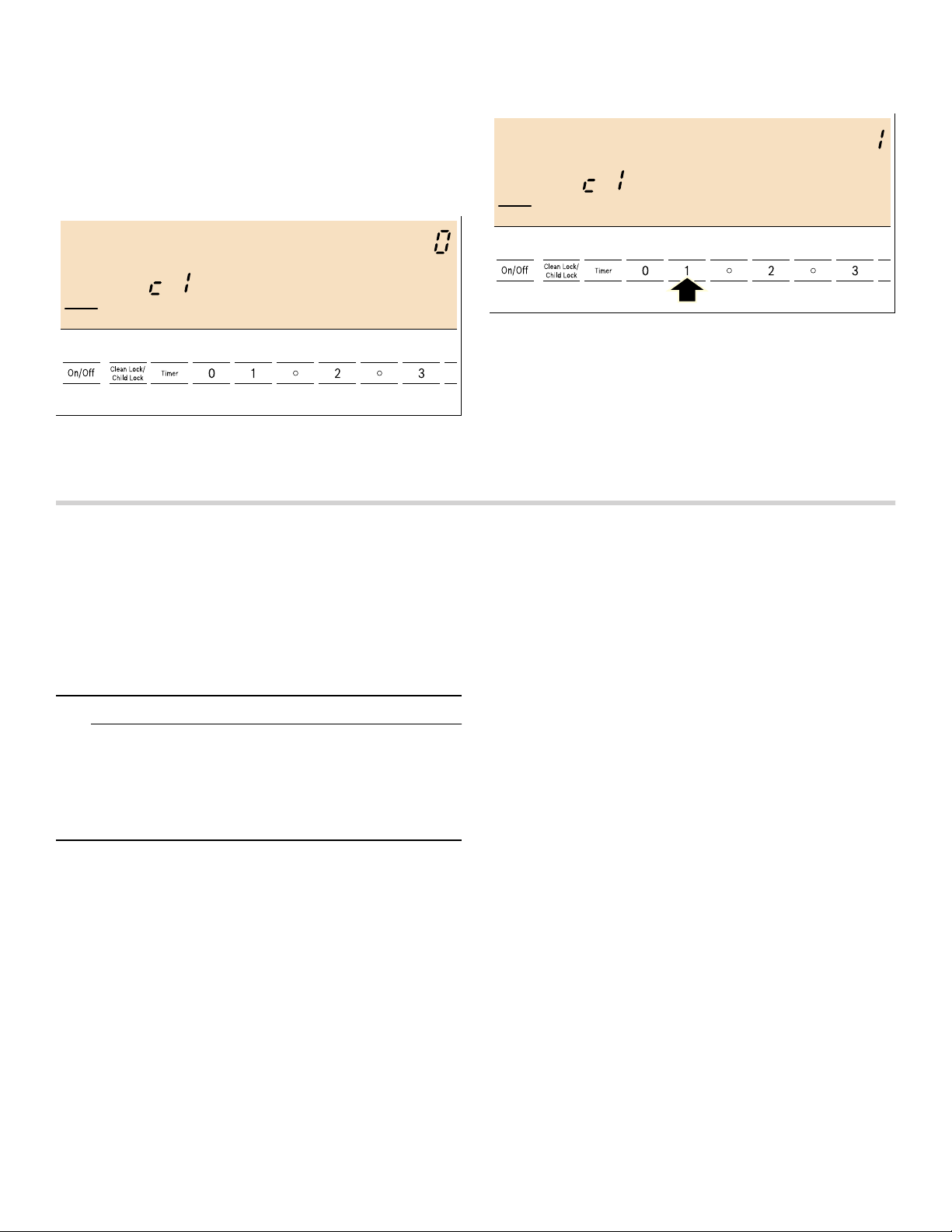

Changing the basic settings
The cooktop should be turned off.
1.
Turn on the cooktop with the main switch.
2.
Within the next 10 seconds, touch the Timer key until
you hear a sound signal. ™‚ lights up on the left side
and
‹ on the right side of the display.
3.
Touch the Timer key until the indicator for the required
function is displayed.
Cleaning and Maintenance
4.
Select the required setting using the number keys. The new setting will be displayed in the element display on the upper right-hand side.
5.
Touch the Timer key again for 4 seconds, until you hear a sound signal. The settings have been correctly stored.
Leaving the basic settings
Turn off the cooktop with the main switch.
Daily Cleaning
Note: Recommended cleaners indicate a type of cleaner
and do not constitute an endorsement of a specific
brand.
Glass ceramic cooktop
9 CAUTION
Do not use any kind of cleaner on the glass while
the surface is hot, use only the razor blade scraper.
The resulting fumes can be hazardous to your
health. Heating the cleaner can chemically attack
and damage the surface.
Clean the surface when it is completely cool with the
following exception: remove dry sugar, sugar syrup,
tomato products and milk immediately with the razor
blade scraper (see special care chart).
Wipe off spatters with a clean, damp sponge or a paper
towel. Rinse and dry. Use white vinegar if smudge
remains; rinse.
Apply a small amount of the glass ceramic cooktop
cleaner. When dry, buff surface with a clean paper towel
or cloth.
Cleaning guidelines
When using a cleaner, use only a small amount; apply to
a clean paper towel or cloth. Wipe on the surface and
buff with a clean dry towel.
For best results, use cleaners such as glass ceramic
cooktop cleaner, BonAmi®, Soft Scrub® (without
bleach), and white vinegar.
Avoid these cleaners
▯ Glass cleaners which contain ammonia or chlorine
bleach. These ingredients may damage or
permanently stain the cooktop.
▯ Caustic cleaners - cleaners such as Easy Off® may
stain the cooktop surface.
▯ Abrasive cleaners.
▯ Metal scouring pads and scrub sponges such as
Scotch Brite® can scratch and/or leave metal marks.
▯ Soap-filled scouring pads such as SOS® can scratch
the surface.
▯ Powdery cleaners containing chlorine bleach can
permanently stain the cooktop.
▯ Flammable cleaners such as lighter fluid or WD-40.
18
Cleaning charts
Type of Soil Possible Solution
Dry sugar, sugar syrup, milk or tomato spills. Melted
plastic film or foil. All these items REQUIRE IMMEDIATE
REMOVAL. Failure to remove these immediatly can
permanently damage the surface.
Burned-on food soil, dark streaks, and specks Soften by laying a damp paper towel or sponge on top of
Greasy spatters Use a soapy sponge or cloth to remove grease; rinse
Metal marks: Iridescent stain Pans with aluminum, copper or stainless steel bases may
Hard water spots:
Hot cooking liquids dripped on surface
Surface scratches:
Small scratches are common and do not affect cooking.
They become smoother and less noticeable with daily use
of the glass ceramic cooktop cleaner.
Remove these types of spills while the surface is hot
using the razor blade scraper. Use a new, sharp razor in
the scraper. Remove pan and turn off the element.
Wearing an oven mitt, hold scraper at 30° angle, using
care not to gouge or scratch the glass. Push soil off the
heated area. After the surface has cooled, remove the
residue and apply the glass ceramic cooktop cleaner.
9 WARNING
RISK OF INJURY
The blade is extremely sharp. Risk of cuts. Protect
the blade when not in use. Replace the blade
immediately when any imperfections are found. Follow manufacturer’s instructions.
soil for 30 minutes. Use a plastic scrubber and glass
ceramic cooktop cleaner or use the razor blade scraper.
Rinse and dry.
thoroughly and dry. Apply glass ceramic cooktop
cleaner.
leave marks. Treat immediately after surface has cooled
with glass ceramic cooktop cleaner. If this does not
remove the marks, try a mild abrasive (Bon Ami®, Soft
Scrub® without bleach) with a damp paper towel. Rinse
and reapply glass ceramic cooktop cleaner. Failure to
remove metal marks before the next heating makes
removal very difficult.
Minerals in some water can be transferred onto the
surface and cause stains. Use undiluted white vinegar,
rinse and dry. Recondition with glass ceramic cooktop
cleaner. Remove boilovers and stains before using the
cooktop again.
Apply glass ceramic cooktop cleaner before using to
remove sand-like grains and grit such as salt and
seasoning. Scratches can be reduced by using pans with
bases that are smooth, clean, and dry before use. Use
recommended glass ceramic cooktop cleaner daily.
NOTICE: Diamond rings may scratch the surface.
Maintenance
This appliance requires no maintenance other than daily
cleaning. For best results, apply cooktop cleaning cream
daily.
19
Service
Troubleshooting
If you encounter a problem, it often will merely be
something minor. Before you call customer service,
consider the suggestions and instructions below:
Fault Possible cause Measure
Cooktop is not working The electric power supply has been
interrupted.
The appliance has not been
correctly connected following the
connection diagram.
Electronic system malfunction. Contact the Technical Assistance Service.
“ is flashing on the
element display
“ flashes on all
element displays. An
accoustic signal
sounds
The cooktop turns off
by itself
The display flashes
(no power) when you
place a pan on an
induction element
The SpeedBoost function display flashes and
then turnes off
Display “ and numbers
Display ” and numbers
--------
The touch control zone is wet, very
dirty, food has boiled over, or an
object is lying on top of the touch
control zone.
The main switch has been activated
continuously for more than
5 seconds.
The main switch has been touched
unintentionally.
The pan is not ferromagnetic Check the bottom of the pan with a magnet.
The diameter of the pan is to small. Use a pan with an appropriate diameter for the
The element is too hot. The SpeedBoost function operates the element with
A fault in the electronic system has
occurred.
A fault has been detected. The following table of error messages lists actions
9 CAUTION
Repairs should only be done by a trained servicer.
Improper repair of your appliance may result in risk
of severe physical injury or death.
Use other electrical appliances to check if there has
been a power outage. Check to see if there is a
problem with the circuit breaker for the electrical
installation.
Make sure that the appliance has been connected
correctly.
Clean the touch control zone, or remove the object.
Lightly touch the corresponding touch key. The
flashing should stop.
Press the power key again. Reset the cooktop.
Press the main switch again. Reset the cooktop.
element.
If the display still does not light up when you turn the
element off and on again, disconnect the appliance
at the circuit breaker. Wait 20 seconds and then
reconnect it.
the highest possible power. During long cooking
times, it is possible that the function will turn the
element off to protect the cooktop from overheating.
You can continue to use the cooktop if the display is
not flashing.
Turn the appliance off and back on at the fuse or
circuit breaker. If the same fault occurs again,
disconnect the appliance and call
Technical Assistance Service.
you can take to correct the problem
20
Error messages
”ƒ
”…
”‰
Notes
▯ Glass ceramic may have uneven areas on the surface
due to the nature of the material itself. Because of the
mirror-like finish on the cooking surface, even
extremely small bubbles less than 1 mm in diameter
may be visible. These bubbles will not have any
adverse effect on the operation of the cooktop nor on
the durability of the glass ceramic cooking surface.
▯ Depending on the countertop that is present in the
kitchen, an uneven gap between the cooktop unit and
the countertop can occur. For this reason, a flexible
seal is provided around the entire cooktop unit.
The element is too hot and has
turned off.
The touch control zone is too hot. Make sure that cookware is properly positioned on
The element was in continuous use
for too long.
Remove the pans from the elements.
when you press the display, if the element has
cooled down sufficiently. Wait a few minutes until the
element has cooled down a bit. If
after the element is turned back on, the cooktop is
still too hot. Turn off the elements and allow them to
cool further.
the element, and no hot objects are in contact with
the touch control zone. Wait a few minutes until the
touch control zone has cooled down. If ”… appears
after you turn on the appliance, call
Technical Assistance Service.
The automatic time limitation has been activated.
Touch any key. You can now turn on the heating
element immediately.
Fan noises
For proper operation of the electronic system, it is
necessary to regulate the temperature of the cooktop.
For this purpose, the cooktop is equipped with a cooling
fan, which is activated to reduce and regulate the
temperature of the electronic system. The fan may also
continue to run after the appliance is turned off if the
detected temperature of the cooktop is still too hot after
turning it off.
The noises described are a normal element of the
described induction technology and shouldn't be
regarded as defects.
”ƒ disappears
”ƒ appears again
Normal operating noises of the cooktop
Induction technology is based on the creation of
electromagnetic fields. They may generate heat directly
on the bottom of the cookware. Pots and pans may
cause a variety of noises or vibrations depending on the
way they've been manufactured. These noises are
described as follows:
Low humming (like a transformer)
This noise is produced when cooking at a high heat
level. It is based on the amount of energy transferred
from the cooktop to the cookware. The noise ceases or
quiets down when the heat level is reduced.
Quiet whistling
This noise is produced when the cooking vessel is
empty. It ceases once water or food is placed in the
vessel.
Crackling
This noise occurs with cookware comprised of various
materials layered one upon the other. It's caused by the
vibrations of the surfaces where different materials meet.
The noise occurs on the cookware and can vary
depending on the amount and method of preparation of
the food.
Loud whistling
This noise occurs with cookware comprised of different
materials layered one upon the other, and when they are
additionally used at maximum output and also on two
cooking zones. The noise ceases or quiets down when
the heat level is reduced.
Technical service
Contact our Technical Service Department if your
appliance needs repair. Our central Customer Service
Center (see below) will also be happy to supply you with
details on a center close to you.
E number and FD number:
When you contact our service, please have the Model(E)
number and the FD number for your appliance available.
You can find the identification plate with these numbers
on the underside of the appliance and in the appliance
booklet.
Questions? Please contact us. We look forward to
hearing from you!
ZZZERVFKKRPHFRP
0DLQ6WUHHW6XLWH
,UYLQH&$
21
STATEMENT OF LIMITED PRODUCT WARRANTY
What this Warranty Covers & Who it Applies to
The limited warranty provided by BSH Home Appliances
Corporations (“BSH“) in this Statement of Limited
Product Warranty applies only to the Bosch appliance
(“Product“) sold to you, the first using purchaser,
provided that the Product was purchased:
▯ For your normal, household (non-commercial) use,
and has in fact at all times only been used for normal
household purposes.
▯ New at retail (not a display, "as is", or previously
returned model), and not for resale, or commercial
use.
▯ Within the United States or Canada, and has at all
times remained within the country of original purchase.
The warranties stated herein apply only to the first
purchaser of the Product and are not transferable.
BSH reserves the right to request proof of purchase at
the time any warranty claim is submitted to confirm that
the Product falls within the scope of this limited product
warranty.
Please make sure to return your registration card; while
not necessary to effectuate warranty coverage, it is the
best way for BSH to notify you in the unlikely event of a
safety notice or product recall.
How Long the Warranty Lasts
BSH warrants that the Product is free from defects in
materials and workmanship for a period of three hundred
sixty-five (365) days from the date of purchase. The
foregoing timeline begins to run upon the date of
purchase, and shall not be stalled, tolled, extended, or
suspended, for any reason whatsoever.
This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches
of stainless steel, paint/porcelain blemishes, chip, dents,
or other damage to the finish of the Product), for a period
of thirty (30) days from the date of purchase or closing
date for new construction. This cosmetic warranty
excludes slight color variations due to inherent
differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location,
or other similar factors. This cosmetic warranty
specifically excludes any display, floor, “As Is”, or “B”
stock appliances.
Repair/Replace as Your Exclusive Remedy
During this warranty period, BSH or one of its authorized
service providers will repair your Product without charge
to you (subject to certain limitations stated herein) if your
Product proves to have been manufactured with a defect
in materials or workmanship. If reasonable attempts to
repair the Product have been made without success,
then BSH will replace your Product (upgraded models
may be available to you, in BSH’s sole discretion, for an
additional charge). All removed parts and components
shall become the property of BSH at its sole option. All
replaced and/or repaired parts shall assume the identity
of the original part for purposes of this warranty and this
warranty shall not be extended with respect to such
parts. BSH's sole liability and responsibility hereunder is
to repair manufacturer-defective Product only, using a
BSH-authorized service provider during normal business
hours. For safety and property damage concerns, BSH
highly recommends that you do not attempt to repair the
Product yourself, or use an un-authorized servicer; BSH
will have no responsibility or liability for repairs or work
performed by a non-authorized servicer. If you choose to
have someone other than an authorized service provider
work on your Product, THIS WARRANTY WILL
AUTOMATICALLY BECOME NULL AND VOID. Authorized
service providers are those persons or companies that
have been specially trained on BSH products, and who
possess, in BSH's opinion, a superior reputation for
customer service and technical ability (note that they are
independent entities and are not agents, partners,
affiliates or representatives of BSH). Notwithstanding the
foregoing, BSH will not incur any liability, or have
responsibility, for the Product if it is located in a remote
area (more than 100 miles from an authorized service
provider) or is reasonably inaccessible, hazardous,
threatening, or treacherous locale, surroundings, or
environment; in any such event, if you request, BSH
would still pay for labor and parts and ship the parts to
the nearest authorized service provider, but you would
still be fully liable and responsible for any travel time or
other special charges by the service company, assuming
they agree to make the service call.
Out of Warranty Product
BSH is under no obligation, at law or otherwise, to
provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has
expired.
Warranty Exclusions
The warranty coverage described herein excludes all
defects or damage that are not the direct fault of BSH,
including without limitation, one or more of the following:
▯ Use of the Product in anything other than its normal,
customary and intended manner (including without
limitation, any form of commercial use, use or storage
of an indoor product outdoors, use of the Product in
conjunction with air or water-going vessels).
▯ Any party's willful misconduct, negligence, misuse,
abuse, accidents, neglect, improper operation, failure
to maintain, improper or negligent installation,
tampering, failure to follow operating instructions,
mishandling, unauthorized service (including selfperformed "fixing" or exploration of the appliance's
internal workings).
▯ Adjustment, alteration or modification of any kind.
▯ A failure to comply with any applicable state, local,
city, or county electrical, plumbing and/or building
codes, regulations, or laws, including failure to install
the product in strict conformity with local fire and
building codes and regulations.
22
Loading...
