Bosch NEZ-5130-IRCW4, NEZ-5230-IRCW4 Specsheet

Video | AUTODOME IP 5000 IR

AUTODOME IP 5000 IR

www.boschsecurity.com

u High-performance HD outdoor PTZ dome camera

with integrated IR illumination for scenes with low
or no ambient lighting

Keep your security in focus with the many features of
AUTODOME IP 5000 IR

cameras with integrated IR
technology from Bosch. The camera is carefully tuned
to deliver detailed 720p25/30 or 1080p25/30 HD
images during daylight and full details under low-light
or no-light conditions with the integrated IR
illuminator. The intelligent IR illuminator automatically
adjusts the IR intensity according to zoom and field of
view to ensure that the scene is illuminated uniformly.
The AUTODOME IP family makes it easier for you to
stay in control of your security even when you’re on
the go. When used in combination with the
Video Security App from Bosch, the camera supports
Dynamic Transcoding technology, which allows you to
stream high-resolution H.264 video, to pan/tilt/zoom
the camera, and to search recorded clips remotely
through mobile devices such as smart phones or
tablets, all on a low-bandwidth network connection
(up to 50% less than other H.264 PTZ cameras).
The camera provides complete network-based control
of all functionality including pan/tilt/zoom operation,
presets, tours, alarms, and web-based configuration of
all camera settings.

u Choice of HD resolution (720p25/30 or

1080p25/30)

u Long distance illumination up to 180 m (590 ft)

allows easy detection and following of moving
targets

u Variable illumination ensures that IR light is

uniformly distributed in the field to avoid dark spots
or over illuminated scene

u Superior privacy masking to safeguard the privacy of

individuals

Functions

See in the dark

The camera operates with smart, variable IR
illumination technology from

Bosch, producing
outstanding video in low-light scenes.
The camera offers unique flexibility that offers
configuration of IR on a per-zone basis. This ensures a
single dominant illumination source in a specific
scene, avoiding focus instability due to mixed lighting
conditions.

Superior imaging performance

Designed using Bosch’s digital imaging platform,
AUTODOME IP 5000 IR cameras deliver high­resolution, zoomed-in views with large coverage areas.

Three (3) pre-programmed user modes

The camera comes with three (3) pre-tuned scene
modes to match various lighting conditions found in
indoor scenes. Users can complete the configuration
without going through multiple imaging settings.

• Indoor: general day-to-night changes without sun
highlights and street lighting

2 | AUTODOME IP 5000 IR

• Outdoor: general day-to-night changes with sun
highlights and street lighting

•

Vibrant: enhanced contrast, sharpness and saturation

Sodium vapor lamp white balance

The camera is an exceptional performer when
capturing video under a sodium vapor lamp (a street
lamp or tunnel lamp, for example). Uncorrected
images under these conditions have a yellowish tint,
which can make identification difficult. In the Sodium
Vapor White Balance mode, the camera automatically
compensates for the light from a sodium vapor lamp to
restore objects to their original color.

Superior privacy masking

For installations in public places where privacy of
private property is of high concern, the camera
provides 24 individual, easy-to-configure privacy
masks, with up to 8 displayed in the same scene. As
the camera is zoomed, each mask changes size
smoothly and quickly, ensuring that the covered object
cannot be seen in most cases.

PTZ drive and mechanism

The camera supports 256 pre-positions and two styles
of Guard Tours: Preset and Record/Playback. The
preset tour has capability for up to 64 pre-positions
with a configurable dwell time between pre-positions
and can be customized as to the order and frequency
each preset is visited. The camera also provides
support for two (2) recorded tours, which have a total
duration of 15 minutes of movements. These are
recorded macros of an operator’s movements,
including pan, tilt, and zoom activities, and can be
played back in a continuous manner
Pan and tilt preset repeatability are accurate to within
±0.2 degrees to ensure that the correct scene is
captured every time. The camera delivers maximum
pan speed of 300 degrees per second and maximum
tilt speed of 160° degrees per second. The camera is

1 to 120

capable of manual speeds (pan and tilt) of

0.

degrees per second. The camera provides a pan range
of up to 360 degrees continuous rotation.
The camera’s tilt angle is from

0° to ±90°.

Intelligent Dynamic Noise Reduction reduces
bandwidth and storage requirements

The camera uses Intelligent Dynamic Noise Reduction
which actively analyzes the contents of a scene and
reduces noise artifacts accordingly.
The low-noise image and the efficient H.264
compression technology provide clear images while
reducing bandwidth and storage by up to 50%
compared to other H.264 cameras. This results in
reduced-bandwidth streams that still retain a high
image quality and smooth motion. The camera
provides the most usable image possible by cleverly
optimizing the detail-to-bandwidth ratio.

Bitrate optimized profile

The average typical optimized bitrate in kbits/s for
various frame rates is shown in the table:

IPS

30

15 2100 1100 800

10 1800 1000 700

5

2 500 270 200

1080p 720p 480p

2600 1300 1000

1250 600 450

Actual bitrate may vary depending on the scene
complexities and encoding configurations.

Area-based encoding

Area-based encoding is another feature which reduces
bandwidth. Compression parameters for up to eight
user-definable regions can be set. This allows
uninteresting regions to be highly compressed, leaving
more bandwidth for important parts of the scene.
User can configure encoding regions for every
configured preset (preposition/scene), to increase or
decrease the encoding quality for selectable areas of
the video image. These regions give better control of
the bit rate. Important parts of the scene (identified as
objects in the GUI) are encoded at high resolution and
therefore have an enhanced encoding quality. Less
important parts (such as the sky and trees in the
background, all identified as backgrounds in the GUI)
are encoded at lower quality and therefore have a
decreased encoding quality.

Intelligent Defog

Users can configure the mode to be active
continuously, or to activate automatically when the
video analytics in the camera detect fog and add light
to the video image (and then deactivate when the fog
clears or the scene changes).

Advanced streaming

The camera offers advanced streaming capabilities so
that you can configure the camera to take advantage of
the latest network technology.
The camera is designed on an efficient and powerful

H.
264 encoding platform capable of delivering high­quality HD video with very low network load. The new
intelligent encoding capabilities drop the bandwidth
consumption to extremely low levels if the camera
detects no motion in the scene.
The camera is capable of quad streaming which allows
the camera to be configured to deliver independent,
configurable streams for live viewing, recording, or
remote monitoring on over bandwidth-constrained
networks.

Recording and storage management

A memory card (a maximum of

32 GB microSDHC / 2
TB microSDXC) can be used for local alarm recording
or for scheduled local recording to improve the overall
recording reliability. Recording management can be
controlled by the Bosch Video Recording Manager
(VRM), or the camera can use iSCSI targets directly
without any recording software.

3 | AUTODOME IP 5000 IR

Alarm handling and Motion Detection

A wide range of configuration options is available for
alarms signaling the camera. A built-in algorithm for
detecting movement on presets can also be used for
alarm signaling, or the camera can interface to an
external alarm source using the built-in alarm I/O
ports. In addition, a user can also schedule virtual
alarms. Any of the available external alarm, motion
alarm or scheduled virtual alarms can then be used to
trigger a relay output or to force the camera to do
certain tasks (for example, to start a guard tour or to
go to a preset location).

Access security

Password protection with three levels and 802.1x
authentication is supported. To secure Web browser
access, use HTTPS with a SSL certificate stored in the
camera.

Complete viewing software

There are many ways to access the camera’s features:
using a web browser, with the

Bosch Video
Management System, with the free-of-charge
Bosch Video Client, with the Video Security App, or via
third-party software.

Bosch Video Security app

The AUTODOME IP cameras fully support
Dynamic Transcoding technology from Bosch, which –
in combination with the Video Security App from
Bosch– provides 24/7 remote access to camera
controls, live video streams, recordings and HD images
from anywhere, regardless of available bandwidth.
Dynamic Transcoding automatically adjusts the bit rate
to the available bandwidth to ensure smooth video
streaming. When the video is paused at an incident, a
full HD still image is shown instantly. To gain all
benefits of Dynamic Transcoding, simply expand the IP
video surveillance system with either a DIVAR IP
recording solution or a VIDEOJET XTC from Bosch.

System integration

The camera conforms to the ONVIF Profile S
specifications. This ensures interoperability between
network video products regardless of manufacturer.
Third-party integrators can easily access the internal
feature set of the camera for integration into large
projects. Visit the Bosch Integration Partner Program
(IPP) website (ipp.boschsecurity.com) for more
information.

Ease of installation and servicing

The camera has been designed for quick and easy
installation, a key feature from Bosch IP video security
products.
Bosch designed the camera with the knowledge that
field cables and mounts are installed before the
camera is mounted. The new installation concept
allows a single person to connect the cables directly
to the camera without re-routing cables. The camera is
easily secured to the mount with a single screw. The

three-step installation process can save up to 5
minutes per camera installation compared to any
conventional PTZ dome.
The camera is rated to provide IP66 protection and
offer an operating temperature range down to -40 °C
(-40 °F). The housing comes fully assembled with a
sunshield and ready for wall or pipe applications with
the proper mounting hardware (

sold separately).

Dual power options

All models can be powered by a IEEE 802.3at PoE+
switch or a 24 VAC power supply. When powered
using PoE+ (IEEE 802.3at class 4) configuration, only a
single cable connection is required to power and to
control the camera while also viewing images from the
camera. For additional system reliability, users also
have the option to connect the 24 VAC power supply
to the camera while using PoE+.

Easy upgrade

Remotely upgrade the camera whenever new firmware
becomes available. This ensures up-to-date products,
thus protecting investment with little effort.

Unsurpassed reliability

As with all Bosch products, the camera is designed
using the industry’s best design process and is
subjected to the most stringent testing standards such
as HALT (highly accelerated life testing), which pushes
the limits of products to ensure reliability throughout
their lifetime.

Certifications and approvals

HD standards

Complies with the SMPTE 274M-2008 Standard in:

•
– Resolution: 1920x1080
– Scan: Progressive
– Color representation: complies with ITU-R BT.709
– Aspect ratio: 16:9
– Frame rate: 25 and 30 frames/s

• Complies with the 296M-2001 Standard in:
– Resolution: 1280x720
– Scan: Progressive
– Color representation: complies with ITU-R BT.709
– Aspect ratio: 16:9
– Frame rate: 25 and 30 frames/s

Marking

cULus • UL60950-1/-22 (ed 2) + (Includes

FCC Part 15 (USA) • 47CFR Part 15

Applicable Standard

CSA 22.2 No. 60950-1/-22)

•

IEC-62471

• ICES-003 (Canada)

207 mm

346.6 mm

(~8.1 in.)

(~13.65 in.)

155 mm

(6.1 in.)

(4.1 in.)

104 mm

(7 in.)

178.6 mm

(7.8 in.)

199 mm

4 | AUTODOME IP 5000 IR

CE (Europe) Electromagnetic Compatibility (EMC) Directive

•

EN 55022:2010

• EN 50130-4:2011

• EN 61000-3-2:2014

• EN 61000-3-3:2013
Product Safety: Low Voltage Directive (IECEE
CB scheme certificate and report are
required)

• EN

60950-1:2006+A11:2009+A1:2010
+A12:2011+A2:2013 (with national
differences)

• IEC 60950-1/-22

Other labels /
markings

• RCM

Other requirements are defined in the Technical
specifications section.

Region Certification

Europe CE - AUTODOME IP 5000 IR

USA UL - AUTODOME IP 5000 IR

Installation/configuration notes

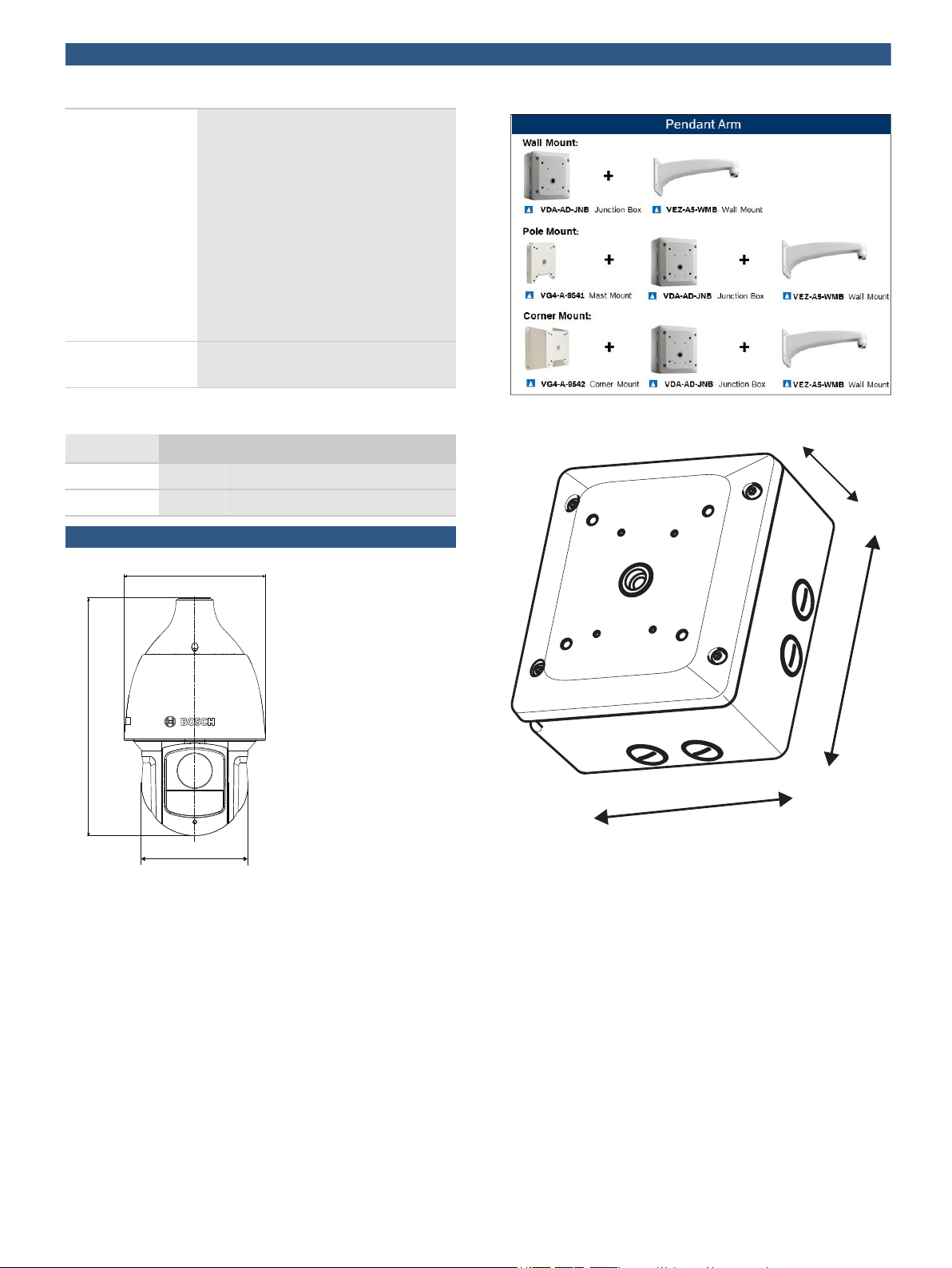

Mount Matrix

VDA-AD-JNB dimensions (outer box)

M25

G 3/4

(4 in.)

101.6 mm

(5.4 in.)

136.1 mm

(1.8 in.)

45 mm

(1.8 in.)

46 mm

9

5 mm

(3.7 in.)

146.5 mm

(5.8 in.)

(3.3 in.)

(3.9 in.)

(5.2 in.)

83 mm

100 mm

133 mm

175

6.9

193

7.6

58

2.3

236

9

.3

203

8.0

133.4

5.25

133.4

5.25

219.1

8.63

178

7.0

38

1.5

mm

in.

5 | AUTODOME IP 5000 IR

VDA-AD-JNB mounting hole measurements - back/rear

VDA-AD-JNB mounting hole measurements - front

VG4-A-9541_Pole-Mount-Adapter_dimensions

VG4-A-9542_Corner-Mount-Adapter_dimensions

512 (20.16) to 670 (26.38)

2 x 290 (11.42)

Adjust 4 x 19 (0.75)

152.4

6.0

1.5 NPT

69.9

2.75

101.6 Typ.

4.0

10.4
8 x 0.41

114.3

4.50 Typ.

228.6

9.0

279.4

11.0

1022.4

40.25

976.1

38.43

88.1

3.47

1190.8

46.88

616

24.25

346.2

13.63

6 | AUTODOME IP 5000 IR

Iris Automatic

VGA-IC-SP dimensions

VGA-ROOF-MOUNT dimensions

Parts included

1

AUTODOME IP 5000 IR camera

1 Camera base template

1 Screwdriver, T15 Torx

4

MAC address labels

1 Quick Installation Guide

Digital Zoom

Sensitivity / Minimum

16x

30 IRE 50 IRE

Illumination (typical)

Day Mode (Color)

SensUp off 0.11 lux 0.20 lux

SensUp on (1/7.5)

Night Mode (Black and white

0.02 lux 0.04 lux

(monochrome))

SensUp off 0.022 lux 0.04 lux

SensUp on (1/7.5)

0.004 lux 0.008 lux

With infrared (IR) 0 lux 0 lux

Electronic Shutter

1/25 sec to 1/15,000 sec (12 steps)

Speed

WDR 76dB (DWDR)

Signal-to-noise Ratio

>50dB (AGC off)

(SNR)

Noise Reduction Intelligent Dynamic Noise Reduction

Backlight

On/Off

Compensation (BLC)

Intelligent Defog Automatically adjusts parameters for best

picture in foggy or misty scenes (switchable)"

White Balance

Standard Auto, Sodium Vapor Auto, Basic
Auto, Manual, Hold, Dominant Color Auto

Day/Night

Mechanical switchable IR filter (Auto/On/off)
Monochrome

Technical specifications

Full product functionality is expected for specified
conditions under general requirements for the
operating temperature range and power supply.

AUTODOME IP 5000 IR

camera

Imager 1/2.8" progressive scan CMOS

Total sensor pixels

Effective pixels 1080p: 1984 (H) x 1105 (V) (approximately

Lens Focal Length 30x Zoom

Field of View (FOV)

Focus

2.48M pixels

2.43M pixels)
720p: 1344 (H) x 745 (V)

4.3 mm - 129 mm (F 1.6 - F 5.0)

2.3° - 65°

Automatic with manual override

Number of LEDs 4

Wavelength 850 nm

Distance

180 m (590 ft) (Detection)

Beam angle Wide beam: 36°

Narrow beam: 6.3°

Mechanical

Pan/Tilt Modes Normal: 0.1°/s - 120°/s

Turbo: Pan: 0.1°/s - 240°/s; Tilt:

Preset Speed

Pan: 240°/s
Tilt: 160°/s

Pan Range 360° continuous

Tilt Range

0° to ±90°

Preset Accuracy ± 0.2° typ.

0.1°/s - 120°/s

7 | AUTODOME IP 5000 IR

Presets 256

Tours

Two (2) types of tours:

• Recorded tours – two (2), maximum total
duration 15 minutes (depending on the
amount of commands sent during recording)

• Preset tour – one (1) consecutive, one (1)
custom

Electrical

Input Voltage 24 VAC and PoE+

Power Consumption 24 VAC: 27.5W

PoE+: 25.5W

Network

Video compression

Streaming Capability Quad Stream (2x H.264, 1x MJPEG, 1x i-

Frame Rate

When the option

in field

“Property” for

Stream 1 is:

H.264 MP SD - H.264 MP SD

H.264 MP 720p
fixed

H.264 MP 1080p
fixed*

H.264 MP
720p50/60 fixed

*This option is available for dynamic (1080p) models only.

H.264 (ISO/IEC 14496-10)
M‑JPEG

Frame only)

1080P (1 - 25/30fps)
720P (1 - 25/30fps)

The available options in field “Property” for

Stream 2 are:

- H.264 MP SD

- H.264 MP 720p fixed

- H.264 MP 400x720 upright (cropped)

- H.264 MP D1 4:3 (cropped)

- H.264 MP 1280x960 (cropped)*

- H.264 MP 640x480

- Copy Stream 1*

- H.264 MP SD*

- H.264 MP 720p8/10 fixed*

- H.264 MP 1080p4/5 fixed*

- H.264 MP 400x720 upright (cropped)*

- H.264 MP D1 4:3 (cropped)*

- H.264 MP 640x480

- Copy Stream 1*

- H.264 MP SD*

- H.264 MP 720p6/7 fixed*

- H.264 MP 400x720 upright (cropped)*

- H.264 MP D1 4:3 (cropped)*

- H.264 MP 640x480

- SD Bit Rate Optimized;

- DSL Optimized;

- 3G Optimized

Resolution Model NEZ-5130-IRCW4 Models NEZ-5230-IRCW4

720P (1280×720)

D1
(704×576/704×480)

Ethernet 10/100BASE-T

Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/

RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link
local address), NTP (SNTP), SNMP (V1, MIB­II), 802.1x, DNS, DNSv6, DDNS
(DynDNS.org, selfHOST.de, no-ip.com),
SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS),
LLDP, SOAP, Dropbox, CHAP, digest
authentication

Interoperability

Audio

Compression

Interface

ONVIF Profile S;
GB/T 28181

G.711, 8kHz sampling rate
L16, 16kHz sampling rate
AAC, 16kHz sampling rate

1/1 Channel In/Out

1080P (1920×1080)
720P (1280×720)
D1 (704×576/704×480)

Local Storage

Local storage Memory card (a maximum of 32 GB

microSDHC / 2 TB microSDXC). (An SD card
of Class 6 or higher is recommended for HD
recording.)

Miscellaneous

Sectors / Titling 16 independent sectors with 20 characters

per title

Privacy Masking

Video Analysis MOTION+

Supported
Languages

24 individually configurable privacy masks

English, German, Spanish, French, Italian,
Dutch, Polish, Portuguese, Russian, Japanese,
Chinese (simplified)

User Connections

Power, Network RJ45 (10/100BASE-T)

Non-recording
profiles

Two (2) streams, I-frame only
Options are:

- HD Image Optimized;

- HD Balanced;

- HD Bit Rate Optimized;

- SD Image Optimized;

- SD Balanced;

Power, Camera

Alarm Inputs 2

Alarm Outputs

Audio input 1

Audio output

24 VAC

1 relay output

1

8 | AUTODOME IP 5000 IR

Environmental

Ingress Protection
Rating/ Standard

Operating
Temperature

Humidity

Storage Temperature

IP66

-40 ºC to +60 ºC
(-40 °F to +140 °F)

Less than 90% RH

-40 ºC to +60 ºC
(-40 °F to +140 °F)

Construction

Dimensions (D x H) 207 mm x 346.6 mm (8.15 in. x 13.65 in.)

Weight 4.0 Kg

(8.8 lb)

Construction
Material

Standard Color

Housing: Aluminum
Sunshield: Outdoor Grade Plastic

White (RAL 9003)

Ordering information

AUTODOME IP 5000 IR

AUTODOME IP 5000 IR, 30x 720p30 HD camera with
outdoor pendant housing and sunshield

Order number NEZ-5130-IRCW4

AUTODOME IP 5000 IR

AUTODOME IP 5000 IR, 30x 1080p30 HD camera with
outdoor pendant housing and sunshield

Order number NEZ-5230-IRCW4

Accessories

UPA-2450-60 Power Supply, 120 V, 60 Hz

Indoor power supply for camera. 120 VAC, 60 Hz In;
24 VAC, 50 VA Out

Order number UPA-2450-60

VEZ-A5-WMB Wall Mount Bracket

Mount for installing an AUTODOME 5000 camera on a
wall

Order number VEZ-A5-WMB

VEZ-A5-PP AUTODOME 5000 Pipe Mount

Mount for installing an AUTODOME 5000 camera onto
a pipe.

Order number VEZ-A5-PP

VG4-A-9541 Pole Mount Adapter

Pole mount adapter for a

Order number VG4-A-9541

VG4-A-9542 Corner Mount Adapter

Corner mount adapter for a

Order number VG4-A-9542

VGA-ROOF-MOUNT Roof Mount

VDA-AD-JNB Junction box

VDA-AD-JNB Junction Box

Roof parapet mount, white
VG5-6xx/7xxx cameras require VG4-A-9543 Pipe Mount
(sold separately

).
NEZ-5130-/NEZ-5230- cameras require NDA-ADPTR­NPTMET (sold separately)

Order number VGA-ROOF-MOUNT

LTC 9230/01 Flat Roof Mount Adapter

For mounting a unit in an upright position on a flat
surface for roof parapet mount VGA-ROOF-MOUNT

Order number LTC 9230/01

NDA-ADPTR-NPTMET NPT-Metric Adapter

NPT-to-Metric Adapter (female-to-M33 male adapter)
for use with NPT1.5 pipes with pipe mount (VEZ-A5­PP) and roof mount (VGA-ROOF-MOUNT).

Order number NDA-ADPTR-NPTMET

UPA-2450-50 Power Supply, 220 V, 50 Hz

Indoor power supply for camera. 220 VAC, 50 Hz In;
24 VAC, 50 VA Out

Order number UPA-2450-50

High PoE Midspan, 60 W, single port, AC in

High Power, 60 W Single Port PoE Midspan with AC in

Order number NPD-6001A

Junction Box for AUTODOME IP 4000/5000 (VDA-AD­JNB)

Aluminum Junction Box without power supply for
AUTODOME 4000 and 5000 cameras. Compatible with
VEZ-A5-WMB and NEZ-A4-WW wall mounts, VG4­A-9542 corner mount, and VG4-A-9541 pole mount.
Three M25 conduit holes, three G ¾ conduit holes.
Wall-mountable. White.

Order number VDA-AD-JNB

9 | AUTODOME IP 5000 IR

Represented by:

North America: Europe, Middle East, Africa: Asia-Pacific: China: Latin America and Caribbean:

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[e-mail]
www.boschsecurity.com

Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

Bosch (Shanghai) Security Systems Ltd.
203 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn

Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.com

© Bosch Security Systems 2016 | Data subject to change without notice
18442001163 | en, V10, 12. Apr 2016
