Bosch MIC-7522-Z30W, MIC-7522-Z30GR, MIC-7522-Z30G Installation Manual

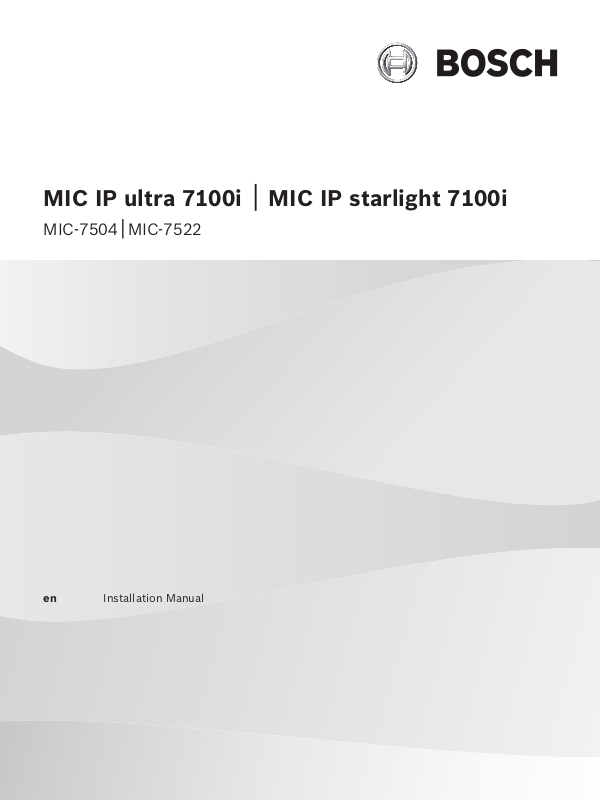

MIC IP ultra 7100i │ MIC IP starlight 7100i
MIC‑7504│MIC‑7522
en
Installation Manual
MIC IP ultra 7100i │ MIC IP starlight 7100i Table of contents | en 3

Table of contents

1
1.1 About this Manual 4
1.2 Legal Information 4
1.3 Safety Precautions 5
1.4 Important Safety Instructions 6
1.5 Important Notices 8
1.6 Important Notices - Illumination Safety 11
1.7 Customer Support and Service 12
2
2.1 Configuration with Project Assistant app 13
2.2 Parts List - Camera 13
2.3 Additional Tools 14
3 4 5
5.1 Mounting Location and Orientation Options 17
5.2 Mounting Options 18
5.3 Mounting Bracket Options 20
5.4 Considerations for Mounting the Camera in Inverted Orientation 21
6 7 8 9 10 11 12 13 14
14.1 About Camera Power and Control 49
14.2 Power Source Options 49
14.3 Ethernet Connections 50
14.4 Camera Connections 50
14.5 Connect the Camera to the Network 50
15
15.1 Typical IP Configuration with High PoE midspan (no I/O connections) 51
15.2 Typical Configuration with MIC-ALM-WAS-24 52
16
16.1 Physical reset button 53
17 18 19 20 21 22
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
4 en | Safety MIC IP ultra 7100i │ MIC IP starlight 7100i

1 Safety

1.1 About this Manual

This manual has been compiled with great care and the information it contains has been thoroughly verified. The text was complete and correct at the time of printing. Because of the ongoing development of products, the content of the manual may change without notice. Bosch Security Systems accepts no liability for damage resulting directly or indirectly from faults, incompleteness, or discrepancies between the manual and the product described.

1.2 Legal Information

Copyright
This manual is the intellectual property of Bosch Security Systems, and is protected by copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
2019-12 | 1.2 | Installation Manual Bosch Security Systems
MIC IP ultra 7100i │ MIC IP starlight 7100i Safety | en 5
!
!

1.3 Safety Precautions

In this manual, the following symbols and notations are used to draw attention to special situations:
Danger!
High risk: This symbol indicates an imminently hazardous situation such as “Dangerous Voltage” inside the product. If not avoided, this will result in an electrical shock, serious bodily injury, or death.
Warning!
Medium risk: Indicates a potentially hazardous situation. If not avoided, this may result in minor or moderate injury.
Caution!
Low risk: Indicates a potentially hazardous situation. If not avoided, this may result in property damage or risk of damage to the unit.
Notice!
This symbol indicates information or a company policy that relates directly or indirectly to the safety of personnel or protection of property.
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
6 en | Safety MIC IP ultra 7100i │ MIC IP starlight 7100i
!
!
!
!
!
!

1.4 Important Safety Instructions

Read, follow, and retain all of the following safety instructions. Heed all warnings on the unit and in the operating instructions before operation.
Caution!
TO REDUCE THE RISK OF ELECTRIC SHOCK, DISCONNECT THE POWER SOURCE WHILE INSTALLING THE DEVICE.
Caution!
Installation must be made by qualified personnel and conform to ANSI/NFPA 70 (the National Electrical Code® (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), and all applicable local codes. Bosch Security Systems accepts no liability for any damages or losses caused by incorrect or improper installation.
Warning!
INSTALL EXTERNAL INTERCONNECTING CABLES IN ACCORDANCE TO NEC, ANSI/NFPA70 (FOR US APPLICATION) AND CANADIAN ELECTRICAL CODE, PART I, CSA C22.1 (FOR CAN APPLICATION) AND IN ACCORDANCE TO LOCAL COUNTRY CODES FOR ALL OTHER COUNTRIES. BRANCH CIRCUIT PROTECTION INCORPORATING A 20 A, 2-POLE LISTED CIRCUIT BREAKER OR BRANCH RATED FUSES ARE REQUIRED AS PART OF THE BUILDING INSTALLATION. A READILY ACCESSIBLE 2-POLE DISCONNECT DEVICE WITH A CONTACT SEPARATION OF AT LEAST 3 mm MUST BE INCORPORATED.
Warning!
ROUTING OF EXTERNAL WIRING MUST BE DONE THROUGH A PERMANENTLY EARTHED METAL CONDUIT.
Warning!
THE CAMERA MUST BE MOUNTED DIRECTLY AND PERMANENTLY TO A NON-COMBUSTIBLE SURFACE.
Warning!
Risk of bodily injury Do not put a canted (35°) camera in an upright position on the camera base or on an unsecured DCA. In this position, the camera can fall over and can cause injury or be damaged. Put the canted camera on its side until installation.
– Do not open the camera unit. Doing so will invalidate the warranty. – Use common-sense safety precautions, especially in situations where there could be risk
of injury if any part of the assembly becomes detached and falls. Bosch recommends using the hinged DCA, which allows installers to “hang” the MIC camera temporarily on the DCA to make electrical connections, before bolting the camera to the DCA.
– Ensure that the unit case is properly earthed. If the product is at risk of being struck by
lightning, ensure that earth bonding connections are made correctly to the mounting of the base of the unit.
– Do not point the camera at the sun. Bosch Security Systems will not be liable for any
damage to cameras that have been pointed directly at the sun.
2019-12 | 1.2 | Installation Manual Bosch Security Systems
MIC IP ultra 7100i │ MIC IP starlight 7100i Safety | en 7
!
!
– Before transporting, supply power to the camera and rotate the camera head so that the
window points toward the base. This position of the camera head will help to protect the wiper and the window during transit.
– Make sure that the installation conditions comply with the specified stresses of vibration
and shock as mentioned in the datasheet.
Warning!
Do not manually back drive the camera The motor/gear head combinations used in the MIC cameras were designed to provide smooth pan/tilt movement of the camera during powered operation. The gear heads were not specifically designed to be manually “back-driven” under any circumstance. Although it might be possible to do so on unpowered units, there is no guarantee that “back­driving” will be possible on every unit. Some units may even enter a “locked-up” mechanical state. If the camera becomes “locked-up,” simply apply power to the camera. The pan/tilt functions of the camera should now operate properly.
Warning!
Moving parts! Moving parts may result in risk of injury, therefore, the device should be mounted so that it is accessible only to the technician/installer.
Notice!
Risk of injury or damage To prevent injury to your hands or damage to the wiper, do not touch the wiper with your hands, especially when the wiper is moving.
Notice!
Always use a shielded twisted pair (STP) connection cable and a shielded RJ45 network cable connector where the camera is used outdoors or the network cable is routed outdoors. Always use shielded cables/connectors in demanding indoor electrical environments where the network cable is located in parallel with electrical mains supply cables, or where large inductive loads such as motors or contactors are near the camera or its cable.
Notice!
Bosch recommends the use of surge/lightning protection devices (sourced locally) to protect network and power cables and the camera installation site. Refer to NFPA 780, Class 1 & 2, UL96A, or the equivalent code appropriate for your country/region, and to local building codes. Refer also to the installation instructions of each device (surge protector where the cable enters the building, midspan, and camera).
Notice!
Outdoor installation For details about the proper configuration for installing your camera outdoors with surge and lightning protection, refer to Best Practices for Outdoor Installation, page 58.
Notice!
To maintain the Type 6P rating when the camera is mounted to a MIC-DCA, installers must make sure that the user-supplied cable glands or conduit connections have Type 6P ratings.
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
8 en | Safety MIC IP ultra 7100i │ MIC IP starlight 7100i

1.5 Important Notices

For use in China: CHINA ROHS DISCLOSURE TABLE
Moving cameras
Hazardous substance table according to SJ/T 11364-2014
Pb
(Pb)
Housing & enclosures X O O O O O
PCBA with connectors X O X O O O
Cable assemblies O O O O O O
Image sensor assembly X O X O O O
Lens assembly X O X O O O
PT Motor control assembly X O X O O O
Fan assembly X O X O O O
This table was created according to the provisions of SJ/T 11364
O: The content of such hazardous substance in all homogeneous materials of such component is below the limit defined in GB/T 26572
X: The content of such hazardous substance in a certain homogeneous material is above the limit defined in GB/T 26572
Hg
(Hg)
Cd
(Cd)
Cr 6+
(Cr 6+)
PBB
(PBB)
PBDE
(PBDE)
The manufacturing datecodes of the products are explained in: http://www.boschsecurity.com/datecodes/
Notice!
This device is intended for use in public areas only. U.S. federal law strictly prohibits surreptitious recording of oral communications.
Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit may fall, causing serious injury and/or serious damage to the unit. Use only with mounting solutions specified by the manufacturer. When a cart is used, use caution and care when moving the cart/unit combination to avoid injury from tip-over. Quick stops, excessive force, or uneven surfaces may cause the cart/unit combination to overturn. Mount the unit per the installation instructions.
Adjustment of controls - Adjust only those controls specified in the operating instructions. Improper adjustment of other controls may cause damage to the unit. All-pole power switch - Incorporate an all-pole power switch, with a contact separation of at least 3 mm, into the electrical installation of the building. If the camera requires service, use this all-pole switch as the main disconnect device for switching off the voltage to the unit. Camera signal - Protect the cable with a primary protector if the camera signal is beyond 140 feet, in accordance with NEC800 (CEC Section 60).
2019-12 | 1.2 | Installation Manual Bosch Security Systems
MIC IP ultra 7100i │ MIC IP starlight 7100i Safety | en 9
Environmental statement - Bosch has a strong commitment towards the environment. This device has been designed to respect the environment as much as possible. Electrostatic-sensitive device - Use proper ESD safety precautions when handling the camera to avoid electrostatic discharge. Fuse rating - For security protection of the device, the branch circuit protection must be secured with a maximum fuse rating of 16A. This must be in accordance with NEC800 (CEC Section 60).
Grounding:
- Connect outdoor equipment to the unit's inputs only after this unit has had its ground terminal connected properly to a ground source.
- Disconnect the unit's input connectors from outdoor equipment before disconnecting the grounding terminal.
- Follow proper safety precautions such as grounding for any outdoor device connected to this unit. U.S.A. models only - Section 810 of the National Electrical Code, ANSI/NFPA No.70, provides information regarding proper grounding of the mount and supporting structure, size of grounding conductors, location of discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. Refer to the section ”Best Practices for Outdoor Installation” of the manual for more information on outdoor installations. Heat sources - Do not install unit near any heat sources such as radiators, heaters, or other equipment (including amplifiers) that produce heat. Moving - Before moving the unit, disconnect both the 24 VAC connection and the Ethernet cable connection (if using PoE). Outdoor signals - The installation for outdoor signals, especially regarding clearance from power and lightning conductors and transient protection, must be in accordance with NEC725 and NEC800 (CEC Rule 16-224 and CEC Section 60). Refer to the ”Best Practices for Outdoor Installation, page 58” section of the manual for more information on outdoor installations. Permanently connected equipment - Incorporate a readily accessible disconnect device in the building installation wiring. Power lines - Do not locate the camera near overhead power lines, power circuits, or electrical lights, nor where it may contact such power lines, circuits, or lights. Damage requiring service – Unplug the devices from the main AC power source and refer servicing to qualified service personnel whenever any damage to the device has occurred, such as:
- the power supply cable is damaged;
- an object has fallen on the device;
- the device has been dropped, or its enclosure has been damaged;
- the device does not operate normally when the user follows the operating instructions correctly. Servicing - Do not attempt to service this device yourself. Refer all servicing to qualified service personnel. This device has no user-serviceable internal parts.
Notice!
This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
10 en | Safety MIC IP ultra 7100i │ MIC IP starlight 7100i
FCC suppliers Declaration of Conformity
MIC IP ultra 7100i High-definition 4K PTZ camera
MIC IP starlight 7100i High-definition PTZ camera
Note: Changes or modifications not expressly approved by Bosch could void the user’s authority to operate the equipment.
FCC & ICES Information
(U.S.A. and Canadian Models Only)
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: – this device may not cause harmful interference, and – this device must accept any interference received, including interference that may cause
undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry Canada. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and radiates radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his expense. Intentional or unintentional modifications, not expressly approved by the party responsible for compliance, shall not be made. Any such modifications could void the user's authority to operate the equipment. If necessary, the user should consult the dealer or an experienced radio/television technician for corrective action.
Responsible party
Bosch Security Systems, Inc. 130 Perinton Parkway 14450 Fairport, NY, USA
www.boschsecurity.us
Refer to
– Best Practices for Outdoor Installation, page 58
2019-12 | 1.2 | Installation Manual Bosch Security Systems
MIC IP ultra 7100i │ MIC IP starlight 7100i Safety | en 11

1.6 Important Notices - Illumination Safety

The text in this section applies only to cameras which have the optional illuminator accessory.
Notice!
This product has been tested according to standard IEC62471:2006 “Photobiological safety of lamps and lamp systems”. The product emissions exceed the EXEMPT Group limit for both Retinal Blue Light and Cornea/Lens infrared hazard as defined by IEC 62471:2006. The product was found to meet the Risk Group 1 exposure limits for IR and White LEDs.
The IEC 62471 provides the methods to determine the risk group of any lamp or any product incorporating a lamp. The risk groups in IEC 62471 indicate the degree of risk from potential optical radiation hazards. The risk groups were developed based upon decades of lamp use experience and the analysis of accidental injuries related to optical radiation emission. EXEMPT Group – no optical hazard is considered reasonably foreseeable, even for continuous, unrestricted use. Typical examples are most frosted incandescent lamps and fluorescent lamps used in domestic applications. Risk Group 1 – products are safe for most use applications, except for very prolonged exposures where direct ocular exposures may be expected. An example of Risk Group 1 is a domestic battery operated torch (flashlight). Exposure Hazard Value (EHV) is a ratio of the Exposure Level (distance, exposure time) to Exposure Limit Value (ELV). When EHV is greater than 1, the device has exceeded the Exposure Limit Values for a particular Risk Group. The ELV is the level where optical radiation to the eye or skin is not expected to result in adverse biological effects. The Hazard Distance (HD) is the distance from the source at which the Exposure Level equals the appropriate ELV. In other words, when EHV=1 for a particular Risk Group. Regarding the Cornea / Lens infrared hazard of this product, the Exposure Hazard Value (EHV) at a test distance of 200mm is 2.19 based on EXEMPT Group exposure limits. The EHV based on Risk Group 1 limits is 0.386. The HD for the Exempt Group is 297 mm. Regarding the Retinal Blue Light hazard, the EHV is 22.9 based on the EXEMPT Group exposure limits and a test distance of 200 mm. The EHV based on Risk Group 1 limits is 0.266. The HD for the Exempt Group is 2675 mm. These values have been summarized in the table below:
EXEMPT Group Limits Risk Group 1 Limits
Hazard
Cornea / Lens
Infrared Hazard
Retinal Blue Light
Hazard
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
t, duration d, distance EHV t, duration d, distance EHV
1000 s Hazard Distance
10,000 s Hazard Distance
200 mm 279 mm
200 mm 2675 mm
2.19 100 s 200 mm 0.386
22.9 100s 200 mm 0.266
12 en | Safety MIC IP ultra 7100i │ MIC IP starlight 7100i

1.7 Customer Support and Service

If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions.
USA
Telephone: 800-366-2283 Fax: 800-366-1329 Email: cctv.repair@us.bosch.com
Customer Service
Telephone: 888-289-0096 Fax: 585-223-9180 Email: security.sales@us.bosch.com
Technical Support
Telephone: 800-326-1450 Fax: 717-735-6560 Email: technical.support@us.bosch.com
Canada
Telephone: 514-738-2434 Fax: 514-738-8480 Europe, Middle East, Africa, and Asia Pacific Regions Please contact your local distributor or Bosch sales office. Use this link:
https://www.boschsecurity.com/corporate/where-to-buy/index.html
More Information
For more information, please contact the nearest Bosch Security Systems location or visit
www.boschsecurity.com.
2019-12 | 1.2 | Installation Manual Bosch Security Systems
MIC IP ultra 7100i │ MIC IP starlight 7100i Introduction | en 13
!

2 Introduction

– This equipment should be unpacked and handled with care. Check the exterior of the
packaging for visible damage. If an item appears to have been damaged in shipment, notify the shipper immediately.
– Verify that all the parts listed in the Parts List below are included. If any items are
missing, notify your Bosch Security Systems Sales or Customer Service Representative.
– Do not use this product if any component appears to be damaged. Please contact Bosch
Security Systems in the event of damaged goods.
– The original packing carton (if undamaged) is the safest container in which to transport
the unit and must be used if returning the unit for service. Save it for possible future use.
Caution!
Take extra care lifting or moving MIC cameras because of their weight.
The MIC packaging is designed: – to allow installers to configure the camera inside the shipping box. – to provide a temporary table-top or desk-top stand.

2.1 Configuration with Project Assistant app

You can also use the Project Assistant app to complete the initial configuration of the camera. In order to use this device with the Project Assistant app by Bosch, you must download the app from the Bosch Download Store, from Google Play, or from the Apple Store. You can access the app in several ways: – Scan the QR code from the QIG. – From www.boschsecurity.com, select Support > Apps and Tools > Online Apps - Video >
Bosch Project Assistant app. Select the appropriate operating system, and then click the appropriate button to download and install the app.
– From Google Play Store (play.google.com), search for Bosch Project Assistant. Select the
app from the list. Click the Install button.
– From Apple Store (itunes.apple.com), search for Bosch Project Assistant. Select the app
from the list. Click the appropriate button to download and install the app.

2.2 Parts List - Camera

Quantity Component
1 MIC IP ultra 7100i camera
1 spanner tool [to remove and to attach the yoke caps in order to cant the
camera if desired, and to remove the access plug from the camera head when installing the optional illuminator accessory (sold separately)]
1 base gasket
1 RJ45 coupler
1 MAC address labels
1 Quick Installation Guide
1 Safety instructions
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
14 en | Introduction MIC IP ultra 7100i │ MIC IP starlight 7100i

2.3 Additional Tools

The following table lists additional tools (not supplied by Bosch) that may be required to install a MIC camera or its accessories:
1 Phillips-head screwdriver to secure the ground lug of the camera
1 Adjustable wrench or socket set to secure the base of the camera to mounting accessories
For canting cameras: 1 Torque wrench with a 5 mm Hex bit to remove/install bolts in the yoke arms
For installing an optional SD card on MIC enhanced models (MIC-7504-Z12xR, MIC-7522- Z30xR): a T20 Torx bit
2019-12 | 1.2 | Installation Manual Bosch Security Systems
MIC IP ultra 7100i │ MIC IP starlight 7100i Product Description | en 15

3 Product Description

The first ruggedized PTZ camera with UHD (“4K”) resolution, MIC IP ultra 7100i offers unmatched imaging and reliability in extreme environments. The camera’s ruggedized design meets customer expectations in demanding environments that exceed the capabilities of conventional IP cameras. Even in installations subject to harsh shock/vibration conditions and/or extreme weather, the camera provides high-quality video images. – Make sure that the installation conditions comply with the specified stresses of vibration
and shock as mentioned in the datasheet. A long-life silicone wiper blade mounted on a spring-loaded arm is standard on all MIC cameras.
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
16 en | Overview of Installation Steps MIC IP ultra 7100i │ MIC IP starlight 7100i
!
!

4 Overview of Installation Steps

Caution!
Installation must be made by qualified personnel and conform to ANSI/NFPA 70 (the National Electrical Code® (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), and all applicable local codes. Bosch Security Systems accepts no liability for any damages or losses caused by incorrect or improper installation.
Caution!
ELECTRIC SHOCK HAZARD To reduce the risk of electric shock, disconnect power to the camera and/or to the power supply unit before moving the camera, before installing any accessories, and before mounting the camera.
Before you install your MIC camera, inspect the camera for any scratches or damage to the surface finish/paint. If you notice damage to the paint, return the unit for a replacement.
1. Select the Mounting Location and Orientation.
2. Install the appropriate 24 VAC power supply (VG4-A-PSU1 or VG4-A-PSU2) or midspan (60 W version or 95 W version), and/or the alarm/washer interface (MIC-ALM-WAS-24) (each sold separately). Refer to the Installation Manual of the appropriate device for installation instructions.
3. Install grounded metal conduit (user-supplied) to the MIC DCA (sold separately) (and to the PSU if necessary), install wiring (user-supplied), and then make the necessary connections for power, telemetry, and video.
4. (Optional) Install an SD card (if your camera model supports this feature).
5. (Optional) Complete pre-configuration in the shipping box or on a table. If installing the camera in inverted orientation, complete this step on a table-top stand only.
6. Install the DCA and then install the camera on the DCA. OR
6. Install the camera directly to a mounting surface (such as an eave).
7. (Optional) Install the sunshield (sold separately).
8. (Optional) Install the illuminator (sold separately).
9. (Optional) Cant the camera.
10. Make the appropriate power and control connections.
2019-12 | 1.2 | Installation Manual Bosch Security Systems
MIC IP ultra 7100i │ MIC IP starlight 7100i Mounting | en 17

5 Mounting

5.1 Mounting Location and Orientation Options

Bosch designed MIC IP 7100i cameras for use in outdoor applications. In an enclosed installation area (for example, in a foundry, near a furnace, etc.), temperatures outside of the camera might exceed +65°C (+149°F). If you install a camera in an enclosed area, make sure that the operating temperature of the camera is a maximum of +60°C (+140°F). Make sure that air circulates around the camera to supply cooling. MIC cameras are designed for easy installation in various locations such as directly onto buildings and poles suitable to support CCTV equipment. Select a secure installation location and mounting orientation for the device. Ideally, this is a location where the device cannot be interfered with either intentionally or accidentally. Select a location where the MIC camera will not touch materials such as steel straps or cables. You can install the camera: – onto a MIC-DCA or a MIC wall mount (MIC-WMB) with a MIC shallow conduit adapter
(MIC-SCA). (Never install the wall mount only.)
or – directly to a mounting surface using the supplied base gasket and the appropriate
connector kit (sold separately):
– MIC-9K-IP67-5PK (IP67 Connector kit for MIC IP fusion 9000i, MIC IP ultra 7100i, and
MIC IP starlight 7100i cameras) To have an installation rated IP67, you must use the appropriate IP67 Connector Kit from Bosch. Confirm that no residual water or moisture is in the bottom of camera. Ground the camera as described in the chapter “Installing a MIC Camera on a Hinged DCA.” You can install the camera in one of three orientations: – upright (straight up, 90°) – inverted (straight down, 90°) – canted upright (tilted forward 35°) The most common type of mounting location is the top of a pole suitable to support CCTV equipment and that provides a robust mounting platform to minimize camera motion and typically has a large base cabinet for mounting ancillary equipment such as power supplies. Other locations for mounting the camera include the top of a building, the side (wall) of a building, the corner of a building, and under the eave of a building. The camera can also be mounted on the side of a lamp post, pole, or similar column using the Pole Mount Bracket (MIC-PMB). Be aware that lamp posts can often be subject to movement and are not suitable platforms in all conditions or for all applications.
Notice!
Outdoor installation For details about the proper configuration for installing your camera outdoors with surge and lightning protection, refer to Best Practices for Outdoor Installation, page 58.
Ensure that the location has the appropriate clearance from power and lightning conductors, in accordance with NEC725 and NEC800 (CEC Rule 16-224 and CEC Section 60). Do not install the device near: – Any heat sources – Any overhead power lines, power circuits, or electrical lights, or where the device may
contact power lines, circuits, or lights
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
18 en | Mounting MIC IP ultra 7100i │ MIC IP starlight 7100i
!
Isolate shielded CAT5e or CAT6 cable from any high voltage power lines in a separate grounded, metal conduit. Refer to the datasheet for test conditions for allowable transients / voltage fluctuations.
Mounting surface recommendations for MIC mounting accessories
The mounting surface should be capable of supporting the combined weight of the MIC camera + MIC Illuminator + MIC mounting accessory (DCA, wall mount, corner bracket, etc.). All expected conditions of load, vibration and temperature should be considered when planning an installation. The material should accommodate a minimum pull-out strength of 275 kg (600 lb). The mounting accessory should be secured to one of the following surfaces: – Concrete (solid / cast) – Concrete masonry unit (concrete block) – Brick (all types) – Metal (steel / aluminum, minimum 3 mm (0.125 in.) thick) In all situations, Bosch recommends referencing any applicable building codes or professional structural engineering guidelines for a secure installation.
Caution!
Risk of lightning strikes If the camera is installed in a highly exposed location where lightning strikes may occur, then Bosch recommends installing a separate lightning conductor within 0.5 m (1.6 ft) of the camera and at least 1.5 m (4.9 ft) higher than the camera. A good earth bonding connection to the camera housing itself will provide protection against damage from secondary strikes. The camera housing itself is constructed to cope with secondary strikes. If the correct lightning protection is applied, then no damage to the internal electronics or camera should result.
Installation in a damp environment (for example, near a coastline)
The fasteners and fixtures shipped with the camera help to keep the camera secure. Always use Bosch-supplied screws and other fasteners when installing or performing maintenance on the camera. Bosch-supplied hardware is properly treated and engineered for safe use with your MIC camera. The camera head has three (3) plastic screws, factory-installed, around each IR port to prevent corrosion in units that do not have accessories installed on the camera head. If you install a sunshield or an illuminator accessory, you must remove the plastic screws and replace them with the metal screws that ship with each accessory. Before installation, and periodically, inspect the metal parts of the camera for paint that is chipped or otherwise damaged. If you notice any paint damage, return the unit for a replacement. Avoid installation practices that may bring the camera’s metal mountings in contact with materials such as stainless steel. Such contacts can result in galvanic corrosion and degrade the cosmetic appearance of the camera. These cosmetic damages caused by improper installation are not covered by warranty as they do not affect the functionality of the camera.

5.2 Mounting Options

See the figures that follow for illustrations of the correct and the incorrect mounting orientations of MIC cameras.
2019-12 | 1.2 | Installation Manual Bosch Security Systems
MIC IP ultra 7100i │ MIC IP starlight 7100i Mounting | en 19
55° 55°
90° 90°
AutoPivot
MIC cameras are designed to be mounted upright (straight up, 90°), inverted (straight down, 90°), or canted upright (ball up, 35°). The tilt limits for the canted unit prevent it from working properly if mounted ball down. See the figures below for illustrations of the correct and the incorrect mounting orientations of MIC cameras.
Correct mounting orientation - upright Correct mounting orientation - inverted
Figure5.1: Tilt range, MIC IP ultra 7100i
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
20 en | Mounting MIC IP ultra 7100i │ MIC IP starlight 7100i
MIC-SPR-BD,
-WD, -MG
MIC-SCA-BD,
-WD, -MG MIC-WMB-BD,
-WD, -MG

5.3 Mounting Bracket Options

Bosch sells a complete series of mounting brackets that support multiple mounting configurations. Always use only Bosch-supplied mounts, which are designed for safe installation of your MIC camera. Refer to the MIC Series Mounting Brackets Installation Guide for complete installation instructions.
Mounting hardware recommendations for MIC mounting accessories
Fasteners are not supplied with the MIC mounting accessories for attachment to the mounting surface. The type of fastener necessary is dependent on the mounting surface. Fasteners can include wedge anchors, sleeve anchors, single expansion anchors, double expansion anchors, machine screws or ‘Thru-Bolting’ with a nut. Fasteners are to be of a structural grade (ISO Class 10.9, SAE Grade 8) and zinc plated for moderate corrosion resistance. When installed in marine or similarly corrosive environments, stainless hardware (A2-800, A4-800) is recommended. Fasteners are to be a minimum diameter of 8 mm (0.3125 in.). All bolts must extend through the mounting surface and be secured with a flat washer, lock washer and nut. All studs must be anchored to concrete or welded to a steel backing plate. In all situations, Bosch recommends referencing any applicable building codes or professional structural engineering guidelines for a secure installation.
Deep Conduit Adapter
The hinged DCA is well-suited to installations on top of a pole.
Wall Mount
Figure5.2: Typical Wall mount configuration
Note: Always install an SCA when you install a wall mount for any installation configuration. Route cables through the bottom of the SCA (to prevent water from running into the side or top of the SCA along the cables).
Pole Mount
The figure below identifies the three mounting accessories (each sold separately) that are necessary to mount the MIC camera on the side of a pole. Note: The figure identifies the part numbers, as well as the codes for the available colors (-BD for black, -WD for white, and -MG for grey) of each mounting accessory.
2019-12 | 1.2 | Installation Manual Bosch Security Systems
MIC IP ultra 7100i │ MIC IP starlight 7100i Mounting | en 21
MIC-WMB-BD,
-WD, -MG
MIC-SCA-BD,
-WD, -MG
MIC-PMB
MIC-CMB-BD,
-WD, -MG
MIC-SCA-BD,
-WD, -MG MIC-WMB-BD,
-WD, -MG
Figure5.3: Typical Pole mount configuration
Corner Mount
Figure5.4: Typical Corner mount configuration
Note: Always install an SCA when you install a wall mount for any installation configuration. Route cables through the bottom of the SCA (to prevent water from running into the side or top of the SCA along the cables).

5.4 Considerations for Mounting the Camera in Inverted Orientation

To change the camera orientation to “Inverted,” complete the following steps:
1. Remove the camera from the shipping box.
2. Apply power to the camera.
3. Access the web browser of the camera.
4. Access the page Configuration.
5. Navigate to Camera > Installer Menu > Orientation.
6. Select “Inverted.”
The camera head will rotate automatically into inverted position (180°). Note the position of the visor when the camera is installed in inverted orientation. The visor will now be near the body of the camera.
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
Loading...
+ 49 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
