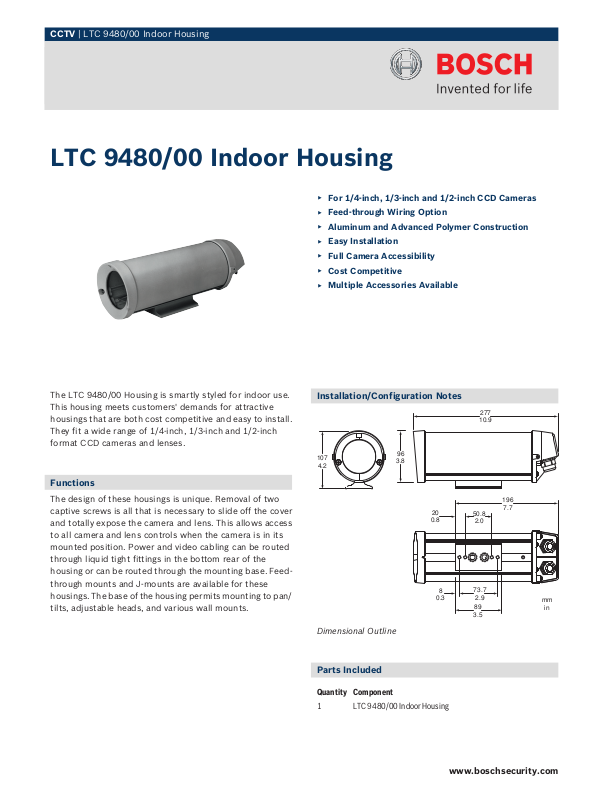

Bosch LTC-9480-00 Specsheet
CCTV | LTC 9480/00 Indoor Housing
277
10.9
196
7.7
50.8
2.0
20
0.8
107
4.2
96
3.8
8
0.3
89
3.5
73.7
2.9
mm
in
LTC 9480/00 Indoor Housing
For 1/4-inch, 1/3-inch and 1/2-inch CCD Cameras
▶
Feed-through Wiring Option
▶
Aluminum and Advanced Polymer Construction
▶
Easy Installation
▶
Full Camera Accessibility
▶
Cost Competitive
▶
Multiple Accessories Available
▶
The LTC 9480/00 Housing is smartly styled for indoor use.
This housing meets customers' demands for attractive
housings that are both cost competitive and easy to install.
They fit a wide range of 1/4-inch, 1/3-inch and 1/2-inch
format CCD cameras and lenses.
Functions
The design of these housings is unique. Removal of two
captive screws is all that is necessary to slide off the cover
and totally expose the camera and lens. This allows access
to all camera and lens controls when the camera is in its
mounted position. Power and video cabling can be routed
through liquid tight fittings in the bottom rear of the
housing or can be routed through the mounting base. Feedthrough mounts and J-mounts are available for these
housings. The base of the housing permits mounting to pan/
tilts, adjustable heads, and various wall mounts.
Installation/Configuration Notes
Dimensional Outline
Parts Included
Quantity Component
1 LTC 9480/00 Indoor Housing
www.boschsecurity.com
2 | LTC 9480/00 Indoor Housing
Technical Specifications
Electrical
Maximum Camera Power Use with 24 VAC cameras
not exceeding 30 W
Mechanical
Maximum Camera and Lens
68 x 54 x 197 mm (2.68 x 2.1 x 7.75 in.)
(W x H x L)
Cable Entry:
Two liquid tight rear fittings accept cable diameters from 4.3 mm to 11.9 mm
(0.17 in to 0.47 in.).Two bottom feed- through liquid tight fittings accept
cable diameters from 4.6 mm to 7.9 mm (0.18 in to 0.31 in.).
Window 3 mm (0.12 in.) thick UV-stabilized polycarbon-
ate.
Housing Mounting Four (4) available 1/4-20 tapped holes. Only one
set of two are required for mounting.
Camera Mounting Removable camera bracket. Mounted with two
screws.
Construction Aluminum cover, aluminum base, aluminum
mounting foot, polycarbonate faceplate, glass reinforced polycarbonate end caps, neoprene gasket, ethylene propylene seal, and all stainless
steel hardware.
Finish Dark mushroom.
Dimensions See LTC 9480/00 drawing.
Weight 1.4 kg (3 lb)
Environmental
1. The camera mounting block must be removed.
Ordering Information
LTC 9480/00 Indoor Housing
for camera/lens to 175 mm (6.9 in)
LTC9480/00
Salt Atmosphere MIL-STD-810E, Method 509, Procedure 1.
Enclosure Protection Designed to NEMA-3R, IP55.
Electromagnetic Compatibility
Safety CE, UL, cUL
Accessories
LTC 9080/00 Tamper
Resistant Kit
LTC 9215/00 Feedthrough Mount
Includes 10 screws and insertion tool to permit
tamper resistance for five housings.
Attached to the foot of the housings, allows wires
to be fed-through the mount and into the foot of
the housing.
LTC 9219/01 Feed-
Allows housing to be mounted from ceiling.
through J-Mount
Suggested Applications
Camera Lens
LTC 0335 Fixed/Varifocal
LTC 0355 Fixed/Varifocal
LTC 0435 Fixed/Varifocal
LTC 0455 Fixed/Varifocal
