Bosch LTC-8300-90 Specsheet

Video | LTC 8x00/90 Integrated Series Allegiant Matrix/Control Systems

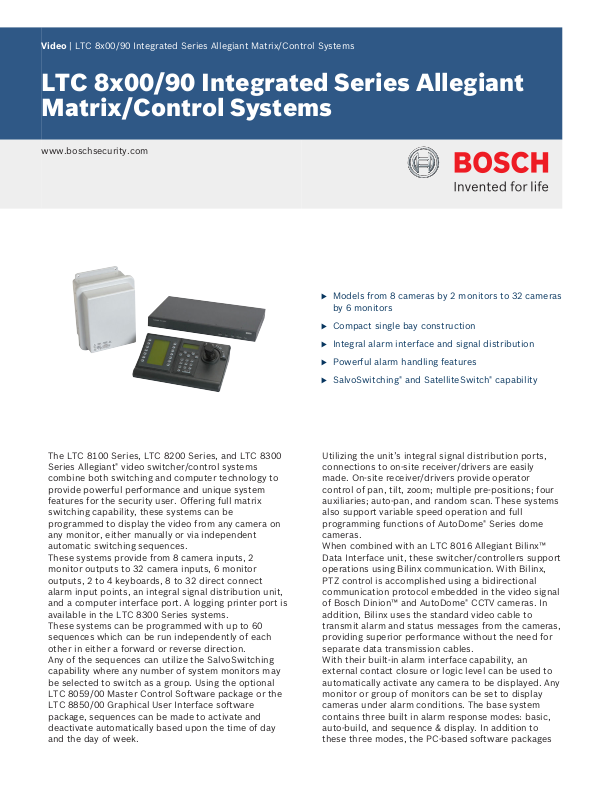

LTC 8x00/90 Integrated Series Allegiant
Matrix/Control Systems

www.boschsecurity.com

u Models from 8 cameras by 2 monitors to 32 cameras

by 6 monitors

The LTC 8100 Series, LTC 8200 Series, and LTC 8300
Series Allegiant® video switcher/control systems
combine both switching and computer technology to
provide powerful performance and unique system
features for the security user. Offering full matrix
switching capability, these systems can be
programmed to display the video from any camera on
any monitor, either manually or via independent
automatic switching sequences.
These systems provide from 8 camera inputs, 2
monitor outputs to 32 camera inputs, 6 monitor
outputs, 2 to 4 keyboards, 8 to 32 direct connect
alarm input points, an integral signal distribution unit,
and a computer interface port. A logging printer port is
available in the LTC 8300 Series systems.
These systems can be programmed with up to 60
sequences which can be run independently of each
other in either a forward or reverse direction.
Any of the sequences can utilize the SalvoSwitching
capability where any number of system monitors may
be selected to switch as a group. Using the optional
LTC 8059/00 Master Control Software package or the
LTC 8850/00 Graphical User Interface software
package, sequences can be made to activate and
deactivate automatically based upon the time of day
and the day of week.

u Compact single bay construction

u Integral alarm interface and signal distribution

u Powerful alarm handling features

u SalvoSwitching

®

and SatelliteSwitch® capability

Utilizing the unit’s integral signal distribution ports,
connections to on-site receiver/drivers are easily
made. On-site receiver/drivers provide operator
control of pan, tilt, zoom; multiple pre-positions; four
auxiliaries; auto-pan, and random scan. These systems
also support variable speed operation and full
programming functions of AutoDome® Series dome
cameras.
When combined with an LTC 8016 Allegiant Bilinx™
Data Interface unit, these switcher/controllers support
operations using Bilinx communication. With Bilinx,
PTZ control is accomplished using a bidirectional
communication protocol embedded in the video signal
of Bosch Dinion™ and AutoDome® CCTV cameras. In
addition, Bilinx uses the standard video cable to
transmit alarm and status messages from the cameras,
providing superior performance without the need for
separate data transmission cables.
With their built-in alarm interface capability, an
external contact closure or logic level can be used to
automatically activate any camera to be displayed. Any
monitor or group of monitors can be set to display
cameras under alarm conditions. The base system
contains three built in alarm response modes: basic,
auto-build, and sequence & display. In addition to
these three modes, the PC-based software packages

1

2

3

4 5

6

7 8 9

0

Shot

MonProd

Clr

BOSCH

1

2

3

4 5

6

7 8 9

0

Shot

MonProd

Clr

BOSCH

1

2

3 4 5 6

LTC 8300 Series

Main CPU Bay

2 | LTC 8x00/90 Integrated Series Allegiant Matrix/Control Systems

offer the ability to combine any or all of the three
standard modes within the same system. Alarm video
may be selected to reset either manually or
automatically. In addition, a 16‑character alarm title
can be selected to appear instead of the camera title
during alarm conditions.
System operation and programming is accomplished
using a full-function, ergonomically designed keyboard
(sold separately). Built-in operator priority levels and
the ability to restrict certain operators from controlling
designated functions provide maximum flexibility.
These systems include a black outlined 48-character
on-screen display for time-date, camera number,
camera ID (16-characters), an icon to identify
controllable cameras, and monitor (12-characters) or
status information. Over 235 characters are available
when programming camera ID and monitor titles.
Utilizing a Windows®-based PC and the optional
LTC 8059/00 Master Control Software package or
LTC 8850/00 GUI software, enhanced programming
and switching features can be obtained. A user­friendly spreadsheet format provides the ability to
enter camera and monitor titles, program of operator
names and priorities, 64 timed event actions, change
system parameters, program camera sequences, install
lockouts, and access the advanced alarm handling
screens with speed and efficiency. The programmed
information may then be transferred into the Allegiant
system, stored on disk, or printed out directly from a
printer connected to the PC.
The LTC 8850/00 Bosch GUI software is designed
around an intuitive graphic-based interface. The GUI
provides high performance programming, control and
monitoring of all system functions by using on-screen
icons to reflect real time status of the devices
controlled by the system. The LTC 8850/00 GUI
software also provides the ability to monitor system
status events. System alarms, switching functions,
sequence events, keyboard actions, and video loss
information can be viewed in real time on the PC
screen and, if desired, logged to the PC hard drive.
The software also provides the ability to enable an on­screen indicator for easy identification of controllable
cameras.
The LTC 8300 Series contain a logging printer output
port which accepts a standard RS 232 serial printer.
This provides a permanent record of system status
showing time and date for changes such as: incoming
alarms, acknowledgment of alarms, sequence loading,
user log-on to keyboard, transfer of system tables and
sequences, video loss messages, and a power up reset
message. In addition, the printer can be used to obtain
a hard copy of the system's configuration tables and
sequences.
These systems provide powerful macro capabilities.
The macros can be activated using Allegiant Series
keyboards, system time event functions, alarm
activations, and via special function icons in the
LTC 8850/00 GUI software.

These systems can serve as the master switcher in a
SatelliteSwitch® configuration. This innovative
SatelliteSwitch feature enables a single system to
communicate with remotely located "Satellite"
systems. Any Allegiant model can serve as a master or
remote Satellite switcher. This powerful feature
permits the design of a distributed matrix video
switching system with control at one central location
and individual control at the local sites. The main
control site can view/control local cameras plus
cameras located at any of the remotely distributed
Satellite sites. The Satellite sites can view/control only
cameras associated with their own site. When used in
this type of configuration, the main system can access
up to 256 cameras located anywhere in the system.
Windows is a registered trademark of Microsoft Corp.

Certifications and approvals

Electromagnetic
Compatibility (EMC)

Complies with FCC Part 15, ICES-003, and CE
regulations

Product Safety Complies with CE regulations, UL, CSA, EN,

and IEC Standards

Installation/configuration notes

Typical LTC 8300 Series Configuration Diagram

1 Additional System Cameras

2 Up to 32 Video Inputs Maximum

3 3 m (10 ft) Interconnect Cable Supplied with Keyboard

4 Video Coax

5 Up to six (6) Monitor Outputs

6 Maximum of four (4) Allegiant Series Full Function Keyboards up to

1.5 km (5000 ft) Away Using Optional Remote Hookup Kit

7 LTC 8300 Series Main CPU Bay

BOSCH BOSCH

1

2

3

4 5

6

7 8

9

0

Shot

Mon

Prod

Clr

BOSCH

BOSCH

3 | LTC 8x00/90 Integrated Series Allegiant Matrix/Control Systems

LTC 8300 Series Full Capacity Configuration Diagram
(32 Cameras by 6 Monitors)

1 Typical AutoDome Camera

2 Video Coax

3 Twisted-Pair Typical

4 32 Separate Alarm Inputs

5 Contact Closure or Active Low Logic Level

6 Six (6) Pairs of Relay Outputs

7 Pan and Tilt

8 Receiver/Driver

9 Up to 32 Receiver/Driver Units

10Up to 1.5 km (5000 ft) Using 18 AWG Shielded Twisted Pair

Cable (Belden 8786 or Equivalent)

11Optional LTC 8059/00 MCS or LTC 8850/00 GUI Software

Package can be Run on a Windows® based PC

12Additional System Cameras

133 m (10 ft) RS-232 Interface Cable provided with Optional

Software Package

14LTC 8300 Series Main CPU Bay

Typical Main Allegiant Control Center

1 Typical System Monitors

(Local and/or Remote Video)

2 Video

3 Typical Fixed Cameras

4 Typical Alarm Input Contact to Activate Local or Satellite Cameras

5 Typical Controllable Camera

6 Typical LTC 8100, LTC 8200, or LTC 8300 Allegiant System

7 Bi-Phase Data Lines to All Local PTZ Camera Sites

8 Typical IntuiKey Keyboard

9 Bi-Phase Control and Satellite Switching Data

10One (1) Bi-Phase Data Line to Each Remote Satellite Site

11Incoming Video TRUNK Lines From All Satellite Sites

12Typical Allegiant Satellite Site

13Typical Local Monitors (Local Video Only)

14Typical Fixed Cameras

15Serial RS-232 Logging Printer Capability

163 m (10 ft) Interconnect Cable Supplied with Keyboard

17Up to six (6) Monitor Outputs

18Maximum of 4 Allegiant Series Full-Function Keyboards up to

1.5 km (5000 ft) Using Optional Remote Hookup Kit

15Typical Alarm Input Contact (For Local Alarms Only)

16Bi-Phase Data

17IntuiKey Keyboard (PTZ Control of Local Cameras Only)

18LTC 8780 Data Converter

19LTC 8569 Code Merger

20Bi-Phase Control + Satellite Data

4 | LTC 8x00/90 Integrated Series Allegiant Matrix/Control Systems

Technical specifications

System

Capacities

Model No. LTC 8100 LTC 8200 LTC 8300

Video Inputs (Standard) 8 16 32

Video Inputs (Looping) 8 16 32

Video Inputs (Satellite) 256 256 256

Video Outputs 2 5 6

Alarm Inputs 8 16 32

Alarm Outputs 2 5 6

Bi-Phase Outputs 8 12 16

Keyboards 2 4 4

RS-232 Ports (Console) 1 1 1

RS-232 Ports (Printer) 0 0 1

Receiver/Drivers

8 16 32

(Standard)

Receiver/Drivers

256 256 256

(Satellite)

Electrical

Input Voltage Level 0.5 Vp-p to 2 Vp-p

(Composite Negative Sync)

Switching Crosspoint matrix

DC Output 0 V

1 Meets EIA/TIA - 250C Medium Haul Standard.

2 One camera to one monitor.

Environmental

Operating Temperature 4°C to 55°C (40°F to 131°F)

Storage Temperature –40°C to 60°C (–40°F to 140°F)

Altitude 4500 m (15,000 ft)

Humidity 0% to 95% relative, non-condensing

LTC 8100, LTC 8200, LTC 8300 Series Bay

Electrical

Model No. Voltage Range Nominal Power

LTC 8100/90 108 to 253 VAC, 50/60 Hz 15 W

LTC 8200/90 108 to 253 VAC, 50/60 Hz 17 W

LTC 8300/90 108 to 253 VAC, 50/60 Hz 18 W

2 Power at rated voltage fully loaded.

Connectors

Video Inputs and Monitor Outputs BNC

Looping Video Connections

LTC 8100 Series 8 BNC

2

Gain Unity ± 2% (75 Ohm terminated)

Pulse/Bar Ratio

2T Pulse K Factor

Bar Amplitude

Field Time Waveform
Distortion

1

1

1

1

94% to 106%

2.5% maximum

96% to 106%

2% maximum

Line Time Waveform Distortion11% maximum

Short Time Waveform
Distortion

1

Video Bandwidth (-3 dB)

Frequency Response

Signal-to-Noise

2

1

2

2% maximum

22 MHz

± 1.0 dB to 10.5 MHz

60 dB at 3.58 MHz unweighted
minimum
(Typical at 3.58 MHz)

Crosstalk (Adjacent Channel) -52 dB at 3.58 MHz

Differential Gain

Differential Phase

Chrominance Luminance Gain

Chrominance Nonlinear Phase

Luminance Nonlinearity

1

1

1

1

1

2% maximum

1.3° maximum

96% to 104%

2° maximum

4% maximum

LTC 8200 Series One 34-pin ribbon connector

used with the LTC 8808/00 video
interconnect panel (not included)

LTC 8300 Series Two 34-pin ribbon connectors

used with the LTC 8808/00 video
interconnect panel (not included)

External Accessory Interfaces

CONSOLE RS-232 port for external PC or control

interface (default = 19,200 baud) 9-pin D­type connector

ALARMS Inputs use removable screw terminal

connectors. Relay outputs provide alarm
output connections.
(Contact rating = 1.5 A at 30 VDC)

PRINTER
(LTC 8300 Series
only)

RS-232 port for system logging printer
(Default = 19,200 baud) 9-pin D-type
connector

BIPHASE OUT Multiple ports provide receiver/driver

connections when used in a daisy chain
configuration. Removable screw terminal
connector blocks.

KEYBOARDS 6-pin RS-485 ports for Allegiant keyboard

use

5 | LTC 8x00/90 Integrated Series Allegiant Matrix/Control Systems

Mechanical

Construction Steel chassis with sheet metal cover

and plastic bezel

Finish Charcoal

Dimensions

LTC 8100, LTC 8200 Series
(H x D x H)

LTC 8300 Series
(H x D x H)

440 x 305 x 40 mm
(17.3 x 12 x 1.7 in.)

440 x 305 x 89 mm
(17.3 x 12 x 3.5 in.)

Weight

• LTC 8100, LTC 8200

4 kg (8.8 lb)

Series

• LTC 8300 Series 4.8 kg (10.7 lb)

Rack Mount (Integral) Brackets for mounting one unit in a

48 cm (19 in.) EIA rack

• LTC 8100, LTC 8200

One (1) standard rack unit high

Series

• LTC 8300 Series Two (2) standard rack units high

Accessories

The Allegiant accessory products provide many optional features to the
base Allegiant switching systems. Accessory products include
keyboards, keyboard extension kits, Allegiant Bilinx Data Interface unit,
receiver/driver units, switcher/followers, and code merger units. All
accessory products are designed to be installer-friendly and compatible
throughout the Allegiant series systems. See the Allegiant Accessories
datasheet.

SFT‑INTSRV Integration Server Software

Allegiant integration software package

Order number SFT-INTSRV

Ordering information

LTC 8100/90 Allegiant Matrix Switcher

8 camera inputs/2 monitor outputs, incl. Biphase
outputs and alarm contacts, 108 to 253 VAC, 50/60 Hz

Order number LTC 8100/90

LTC 8200/90 Allegiant Matrix Switcher

16 camera inputs/5 monitor outputs, incl. Biphase
outputs and alarm contacts, 108 to 253 VAC, 50/60 Hz

Order number LTC 8200/90

LTC 8300/90 Allegiant Matrix Switcher

32 camera inputs/6 monitor outputs, incl. Biphase
outputs and alarm contacts,108 to 253 VAC, 50/60 Hz

Order number LTC 8300/90

Software Options

SFT-VASA Hybrid IP - Analog/Matrix Video over IP Inte­gration Software

Order number SFT-VASA

LTC 8850/00 GUI Allegiant Single User Software Pack­age

Order number LTC 8850/00

LTC 8059/00 Allegiant Master Control Software

Order number LTC 8059/00

6 | LTC 8x00/90 Integrated Series Allegiant Matrix/Control Systems

Represented by:

Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:

Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.us

Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[e-mail]
www.boschsecurity.com

Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.asia

Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn

Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[e-mail]
www.boschsecurity.com

© Bosch Security Systems 2013 | Data subject to change without notice
2363167755 | en, V1, 04. Oct 2013
