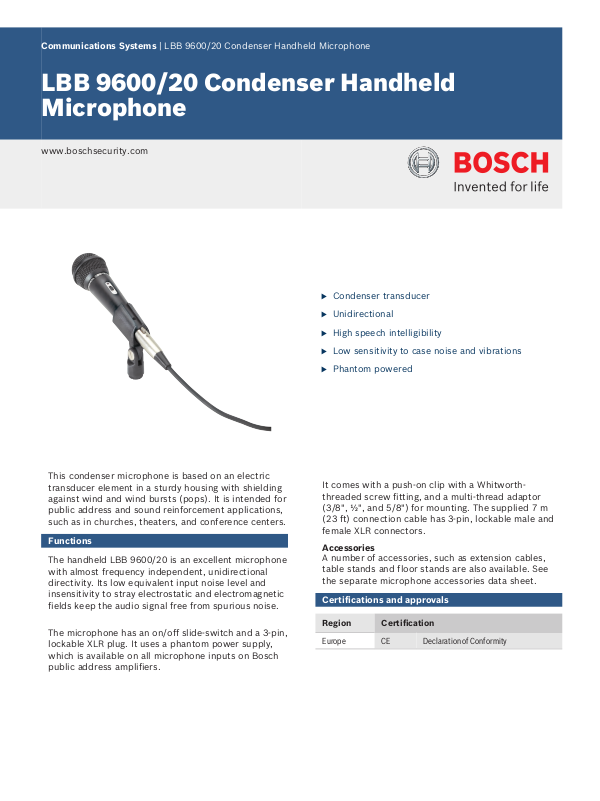

Communications Systems | LBB 9600/20 Condenser Handheld Microphone
LBB 9600/20 Condenser Handheld
Microphone
www.boschsecurity.com
u Condenser transducer
u Unidirectional
This condenser microphone is based on an electric
transducer element in a sturdy housing with shielding
against wind and wind bursts (pops). It is intended for
public address and sound reinforcement applications,
such as in churches, theaters, and conference centers.
Functions
The handheld LBB 9600/20 is an excellent microphone
with almost frequency independent, unidirectional
directivity. Its low equivalent input noise level and
insensitivity to stray electrostatic and electromagnetic
fields keep the audio signal free from spurious noise.
The microphone has an on/off slide-switch and a 3‑pin,
lockable XLR plug. It uses a phantom power supply,
which is available on all microphone inputs on Bosch
public address amplifiers.
u High speech intelligibility
u Low sensitivity to case noise and vibrations
u Phantom powered
It comes with a push-on clip with a Whitworththreaded screw fitting, and a multi-thread adaptor
(3/8", ½", and 5/8") for mounting. The supplied 7 m
(23 ft) connection cable has 3‑pin, lockable male and
female XLR connectors.
Accessories
A number of accessories, such as extension cables,
table stands and floor stands are also available. See
the separate microphone accessories data sheet.
Certifications and approvals
Region Certification
Europe CE Declaration of Conformity

2 | LBB 9600/20 Condenser Handheld Microphone
Installation/configuration notes
Circuit diagram
Frequency response
Technical specifications
Electrical*
Environmental
Operating temperature -20 °C to +55 °C (-4 °F to +131 °F)
Storage temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative humidity <95%
Ordering information
LBB 9600/20 Condenser Handheld Microphone
Condenser hand-held microphone, unidirectional,
matt-black finish, on/off switch, supplied with 7 m
(23 ft) cable, 3-pin lockable male and female XLR
connectors.
Order number LBB9600/20
Accessories
LBC 1221/01 Floor Stand
Microphone floor stand, three folding legs, matt black,
adjustable length from 850 to 1600 mm
(2.79 to 5.25 ft) with twist clamp, threaded connector
3/8" Whitworth.
Order number LBC1221/01
LBC 1226/01 Adjustable Boom
Microphone boom arm, matt black, maximum reach
670 mm (2.12 ft), length 840 mm (2.76 ft), fits onto
3/8' Whitworth threaded microphone stands.
Order number LBC1226/01
Phantom power supply
Voltage range 11 V to 52 V (acc. to DIN 45596 and
IEC 268-15A)
Current consumption <1.5 mA
Performance
Polar pattern Unidirectional
Frequency range 100 Hz to 16 kHz
Sensitivity 2 mV/Pa +/-‑3 dB
(-54 dB rel. to 1 V/Pa)
Rated output impedance 200 ohm
Equivalent input noise level 26 dB (A)
* Technical performance data acc. to IEC 60268-4
Mechanical
Dimensions (D x L) 54 x 170 mm (2.13 x 6.69 in)
Weight 245 g (8.64 oz)
Color Black
Switch On/off slide
Cable type
LBC 1227/01 Table Stand
Table microphone stand, matt black, heavy round castiron base, 130 mm (5.12 in) diameter with shockabsorbing rubber insert under surface, with
3/8” Whitworth stud.
Order number LBC1227/01
Cable length 7 m (23 ft)
Connector 3‑pin XLR (male)

3 | LBB 9600/20 Condenser Handheld Microphone
Represented by:
Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:
Bosch Security Systems, Inc.
12000 Portland Avenue South
Burnsville MN 55337, USA
Phone: +1-800-392-3497
Fax: +1-800-955-6831
audiosupport@us.bosch.com
www.boschsecurity.com
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
emea.securitysystems@bosch.com
www.boschsecurity.com
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
apr.securitysystems@bosch.com
www.boschsecurity.asia
Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone +86 21 22181111
Fax: +86 21 22182398
www.boschsecurity.com.cn
Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: +55 19 2103 2860
Fax: +55 19 2103 2862
latam.boschsecurity@bosch.com
www.boschsecurity.com
© Bosch Security Systems 2015 | Data subject to change without notice
1853753739 | en, V4, 01. Jul 2015
