Bosch KAN93VIFPG, KAN93VL30N User manual and assembly instructions

Fridge‐freezer

KAN..

en Installation instructions and instructions for use

Table of contents

Safety instructions 3............................

About these instructions 3........................

Risk of explosion 3..............................

Risk of electric shock 3..........................

Risk of cold burns 3.............................

Risk of injury 3..................................

Avoiding placing children and vulnerable people

at risk 4........................................

Damage 4......................................

Weight 4........................................

Information concerning disposal 4...............

Disposal of packaging 4.........................

Disposal of your old appliance 4..................

Scope of delivery 4.............................

Installing the appliance 5........................

Transporting 5...................................

Removing the appliance doors 5..................

Installation location 5............................

Subsurface 5....................................

Observe ambient temperature and ventilation 5....

Installing the spacers 6..........................

Installation dimensions and door opening angle 6..

Fixing the handle 6..............................

Aligning the appliance 6..........................

Aligning the doors 7.............................

Connecting the appliance 7......................

Electrical connection 7...........................

Getting to know your appliance 8................

Control and display panel 9......................

Switching on the appliance 10....................

Unlocking / locking buttons 10....................

Unlocking the buttons 10..........................

Locking the buttons 10............................

Setting the temperature 10........................

Freezer compartment 10..........................

Refrigerator compartment 10......................

Alarm 10........................................

Door alarm 10....................................

Usable capacity 10...............................

Freezer compartment 11..........................

Purchasing frozen food 11.........................

Drawers 11......................................

Freezing capacity 11..............................

Freezing fresh food 11...........................

Packing frozen food 11............................

Shelflifeoffrozenfood 12.........................

Freezer calendar 12..............................

Super freezing 12................................

Switching on super freezing 12.....................

Switching off super freezing 12.....................

Thawing froozen food 13.........................

Ice maker 13.....................................

ce-making process 13............................

Refrigerator compartment 14.....................

Storing food 14...................................

Note the chill zones in the refrigerator compartment 14

Fruit and vegetables crisper 14....................

Super cooling 14.................................

Switching on super cooling 14.....................

Switching off super cooling 14.....................

Variable interior design 15........................

Holiday mode 15.................................

Switching on holiday mode 15.....................

Switching off holiday mode 15.....................

Switching off and disconnecting the appliance 15..

Switching off the appliance 15.....................

Disconnecting the appliance 15....................

Defrosting 16....................................

Freezer compartment 16..........................

Refrigerator compartment 16......................

Cleaning the appliance 16........................

Procedure 16....................................

Interior fittings 16.................................

Defrosting 16.....................................

Light (LED) 17...................................

Tips for saving energy 17.........................

Operating noises 17..............................

Quite normal noises 17...........................

Preventing noises 17..............................

Eliminating minor faults yourself 18...............

Customer service 19.............................

Repair order and advice on faults 19...............

( Safety instructions

This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression.

The refrigeration circuit has been checked for leaks.

Ø Have the appliance repaired by the

manufacturer, Customer service or a similarly qualified person only.

Ø Use original parts supplied by the manu

facturer only. The manufacturer guarantees that these parts satisfy the safety requirements.

Risk of cold burns

About these instructions

Ø Read and follow the Installation instructions

and instructions for use. They contain important information on how to install, use and maintain the appliance.

Ø The manufacturer is not liable if you dis

regard the instructions and warnings in the Installation instructions and instructions for use.

Ø Retain all documents for subsequent use

or for the next owner.

Risk of explosion

Ø Never use electric appliances inside the

appliance (e.g. heaters or electric ice makers).

Ø Do not store products which contain

flammable propellant (e.g. spray cans) or explosive substances in the appliance.

Ø Store high-percentage alcohol tightly

sealed and in an upright position.

Ø Do not use additional means to accelerate

the defrosting process other than those recommended by the manufacturer.

Risk of electric shock

Improper installations and repairs may put the user at considerable risk.

Ø When installing the appliance, ensure

that the mains cable is not trapped or damaged.

Ø If the mains cable is damaged:

immediately disconnect the appliance from the electricity supply.

Ø Do not use multiple sockets, extension

leads or adapters.

Ø Never put frozen food straight from the

freezer compartment into your mouth.

Ø Avoid prolonged contact of skin with

frozen food, ice and the tubes in the freezer compartment.

Risk of injury

Containers which contain carbonated drinks may burst. Do not store containers which contain carbonated drinks in the freezer compartment.

Fire hazard / Danger due to refrigerants

The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not contribute to the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

Ø Do not damage the tubes.

If the tubes are damaged:

Ø Keep naked flames and ignition sources

away from the appliance.

Ø Ventilate the room. Ø Switch off the appliance and pull out the

mains plug.

Ø Please contact Customer service.

Fire hazard

Portable multiple outlets or power supplies may overheat, causing a fire.

Never leave portable multiple outlets or portable power supplies behind the appliance.

Avoiding placing children and vulnerable people at risk

Information concerning

At risk are:

Ø Children, Ø People who have limited physical, mental

or sensory abilities,

Ø People who have inadequate knowledge

concerning safe operation of the appliance.

Measures:

Ø Ensure that children and vulnerable people

have understood the hazards.

Ø Children or vulnerable people must be

supervised by a responsible person when using the appliance.

Ø Only children from 8 years and above may

use the appliance.

Ø Supervise children while the a ppliance is

being cleaned or maintained.

Ø Never allow children to play with the

appliance.

Risk of suffocation

Ø Keep children away from the packaging

and its parts.

Damage

To prevent damage:

Ø Do not stand or support yourself on the

base, runners or doors.

Ø Keep plastic parts and door seals free of

oil and grease.

Ø Pull the mains plug – not the power cord.

Weight

disposal

*Disposal of packaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaginginanenvironmentallyfriendlymanner.

Pleaseaskyourdealerorinquireatyourlocalauthority about current means of disposal.

*Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning

)

used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

: Warning

Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard with the mains

plug.

3. Do not take out the trays and receptacles: children

are therefore prevented from climbing in!

4. Do not allow children to play with the appliance

once it has spent its useful life. Danger of suffoca tion!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

The appliance is very heavy. The appliance should always be transported and set up by at least 2 persons.

Scope of delivery

After unpacking all parts, check for any damage in transit. If you have any complaints, please contact the dealer from whom you purchased the appliance or our Customer service.

The delivery consists of the following parts:

Ø Free-standing appliance Ø Bag containing installation materials Ø Interior fittings (depending on model) Ø Operating instructions Ø Customer service booklet Ø Warranty enclosure Ø Information on the energy consumption and noises

Installing the appliance

Transporting

Theapplianceisheavy.Secureinpositionduring transportation and installation.

Due to the weight/dimensions of the appliance and to minimise the risk of injury and damage to the appliance at least two persons are necessary to set-up the appliance safely.

Observe ambient temperature and ventilation

Ambient temperature

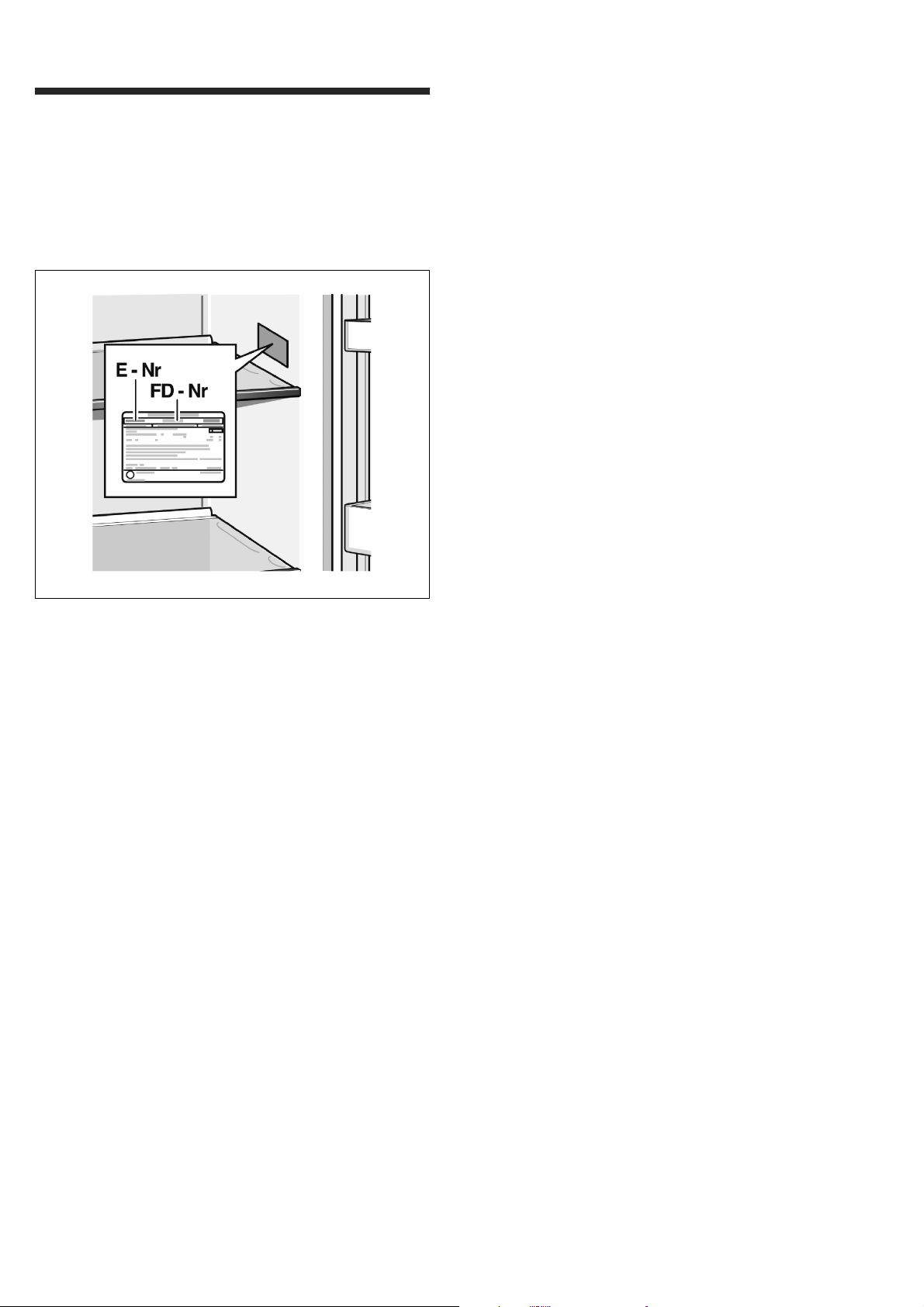

The climate class can be found on the rating plate. The climate class indicates within which ambient temperat ures the appliance can be operated. The rating plate is located in the refrigerator compartment at the right side.

Climate class Permitted ambient temperature

+10 °C to 32 °C

Removing the appliance doors

If the appliance will not fit through the house door, theappliancedoorscanbeunscrewed.

Caution!

Only Customer service may unscrew the appliance doors.

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source,e.g.acooker,radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:

Ø 3 cm to electric or gas cookers. Ø 30 cm to an oil or coal-fired cooker.

If installing the appliance next to another refrigerator or

freezer, ensure a minimum lateral distance of 25 m m

to prevent the formation of condensation.

If a panel or cupboard is installed above the appli ance, ensure that a gap of 30 mm is left so that the

appliance can be pulled out of the recess if required.

The air heated on the rear side of the appliance must be allowed to escape unhindered.

Note:

The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C.

Ventilation

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventila tion around the appliance for the dissipation of heat. For this reason, sufficient clear space should be avail able around the refrigerator. Suggest: It is advisable for there to be 50-70 mm of space from the back to the wall, at least 100 mm from its top, at least 100 mm from its side to the wall and a clear space upfront to allow the doors to open 135°.

+16 °C to 32 °C

+16°Cto38°C

+16 °C to 43 °C

100 mm

Subsurface

Caution!

Theapplianceisveryheavy.

The floor of the installation location must not give way; if required, reinforce floor.

To ensure that the doors can open a ll the way, observe lateral minimum distances when installing the appliance inacornerorrecess (~ chapter “Installation dimensions”).

If the depth of the adjacent kitchen equipment is more than 60 cm, observe lateral minimum distances in order to utilise the full door opening angle (~ chapter “Door opening angle”).

100 mm

1787 mm

100 mm

Installing the spacers

Remove two screws with screwdriver first, and take out the spacers from plastic bag and fix it to the back of theappliancethroughthescrewsthen.Thisensures that there is a minimum distance between the appli ance and the wall.

Installation dimensions and door opening angle

Aligning the appliance

To ensure that the appliance functions correctly, it must be set level with a spirit level.

Ø For sufficient leveling and air circulating in the lower

rear section of the appliance, the bottom feet may need to be adjusted.

Ø To allow the doors to selfclose, tilt back the top

backwards at about 15 mm or 0.5° by turning the adjustable feet.

Ø Whenever you want to move the appliance,

remember to turn the feet back up, so that the appliance can roll freely.

Ø The rollers, which are not castors, should be only

used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

Ø Reinstall the appliance when relocating.

135°130°

W W1 W2 D D1

908 mm

418 mm 277 mm 628 mm 1171 mm

Fixing the handle

Before you use the product, please check the handle of the refrigerator. If the handle is loose, you should fix it with the hexangular screwdriver in the clockwise direction, then it can be used normally.

0.5°

adjustable bottom feet
