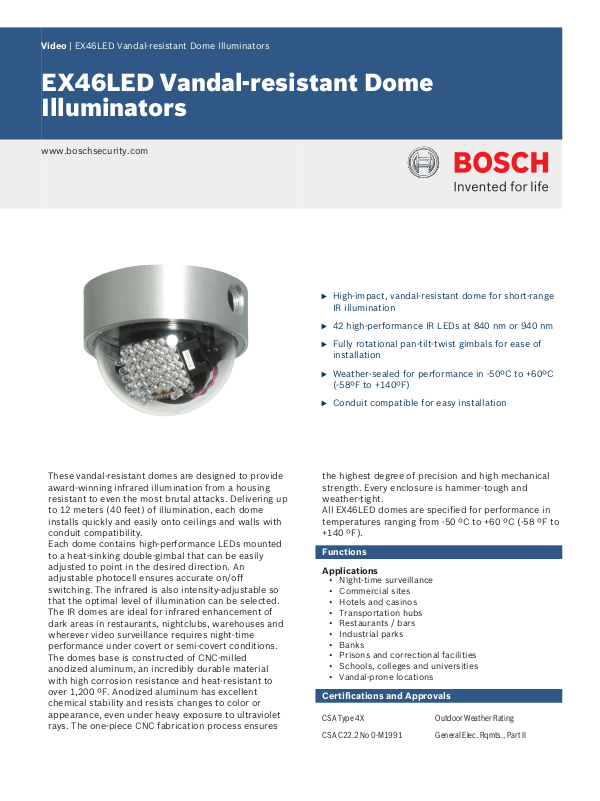

Bosch EX46LED8MBC, EX46LED9MBC Specsheet

Video | EX46LED Vandal-resistant Dome Illuminators

EX46LED Vandal-resistant Dome
Illuminators

www.boschsecurity.com

u High-impact, vandal-resistant dome for short-range

IR illumination

u 42 high-performance IR LEDs at 840 nm or 940 nm

u Fully rotational pan-tilt-twist gimbals for ease of

installation

u Weather-sealed for performance in -50ºC to +60ºC

(-58ºF to +140ºF)

u Conduit compatible for easy installation

These vandal-resistant domes are designed to provide
award-winning infrared illumination from a housing
resistant to even the most brutal attacks. Delivering up
to 12 meters (40 feet) of illumination, each dome
installs quickly and easily onto ceilings and walls with
conduit compatibility.
Each dome contains high-performance LEDs mounted
to a heat-sinking double-gimbal that can be easily
adjusted to point in the desired direction. An
adjustable photocell ensures accurate on/off
switching. The infrared is also intensity-adjustable so
that the optimal level of illumination can be selected.
The IR domes are ideal for infrared enhancement of
dark areas in restaurants, nightclubs, warehouses and
wherever video surveillance requires night-time
performance under covert or semi-covert conditions.
The domes base is constructed of CNC-milled
anodized aluminum, an incredibly durable material
with high corrosion resistance and heat-resistant to
over 1,200 ºF. Anodized aluminum has excellent
chemical stability and resists changes to color or
appearance, even under heavy exposure to ultraviolet
rays. The one-piece CNC fabrication process ensures

the highest degree of precision and high mechanical
strength. Every enclosure is hammer-tough and
weather-tight.
All EX46LED domes are specified for performance in
temperatures ranging from -50 ºC to +60 ºC (-58 ºF to
+140 ºF).

Functions

Applications

• Night-time surveillance

• Commercial sites

• Hotels and casinos

• Transportation hubs

• Restaurants / bars

• Industrial parks

• Banks

• Prisons and correctional facilities

• Schools, colleges and universities

• Vandal-prone locations

Certifications and Approvals

CSA Type 4X Outdoor Weather Rating

CSA C22.2 No 0-M1991 General Elec. Rqmts., Part II

94 (3.69)

Ø118 (4.63) mm (in)

2 | EX46LED Vandal-resistant Dome Illuminators

CSA C22.2 No 1-M94 Audio, Video, and Similar Equip.

CSA C22.2 No 94-M91 Special Purpose Enclosures

UL Std No 50 Enclosures for Elec Equip.

UL Std No 2044 Commercial CCTV Equip.

Installation/Configuration Notes

Dimensions

Technical Specifications

LED Type 850 nm or 940 nm

LED Beam Angles 30° medium or 60° wide

IR Control Adjustable IR intensity

Photocell Adjustable On/Off triggering

Electrical

Power Supply 12 - 24 VAC (50/60 Hz)

Power Draw 6 W max.

Power Protection VRB included

12 - 24 VDC

Mechanical

Gimbal Pan-Tilt-Twist for easy installation

Dome Construction Polycarbonate dome, 3 mm (1/8 in) thick

Base Construction CNC Anodized Aluminum

Weight 610 g (1.3 lbs)

Overall Dimension 118 mm (4.6 in) Diameter /

93 mm(3.7 in) H

Environmental

Operation Range -50 °C to +60 °C (-58 °F to +140 °F)

Ordering Information

EX46LED8MBC Vandel-resistant Dome IR Illuminator

LED IR illuminator, 850 nm, 30° medium beam,
anodized black, clear dome

Order number EX46LED8MBC

EX46LED8WBC Vandel-resistant Dome IR Illuminator

LED IR illuminator, 850 nm, 60° wide beam, anodized
black, clear dome

Order number EX46LED8WBC

EX46LED9MBC Vandel-resistant Dome IR Illuminator

LED IR illuminator, 940 nm, 30° medium beam,
anodized black, clear dome

Order number EX46LED9MBC

EX46LED9WBC Vandel-resistant Dome IR Illuminator

LED IR illuminator, 940 nm, 60° wide beam, anodized
black, clear dome

Order number EX46LED9WBC

EX46LED8MAC Vandel-resistant Dome IR Illuminator

LED IR illuminator, 850 nm, 30° medium beam,
brushed aluminum, clear dome

Order number EX46LED8MAC

EX46LED8WAC Vandel-resistant Dome IR Illuminator

LED IR illuminator, 850 nm, 60° wide beam, brushed
aluminum, clear dome

Order number EX46LED8WAC

EX46LED9MAC Vandel-resistant Dome IR Illuminator

LED IR illuminator, 940 nm, 30° medium beam,
brushed aluminum, clear dome

Order number EX46LED9MAC

EX46LED9WAC Vandel-resistant Dome IR Illuminator

LED IR illuminator, 940 nm, 60° wide beam, brushed
aluminum, clear dome

Order number EX46LED9WAC

Accessories

EXMB.045B Dome Pendant Bracket

Dome Pendant Bracket for EX40(N) and EX46LED,
black

Order number EXMB.045B

EXMB.045S Dome Pendant Bracket

Dome Pendant Bracket for EX40(N) and EX46LED,
clear aluminum

Order number EXMB.045S

UPA-2430-60 Power Supply

120 VAC, 60 Hz, 24 VAC, 30 VA Out

Order number UPA-2430-60

UPA-2420-50 Power Supply

220 VAC, 50 Hz, 24 VAC, 20 VA Out

Order number UPA-2420-50
