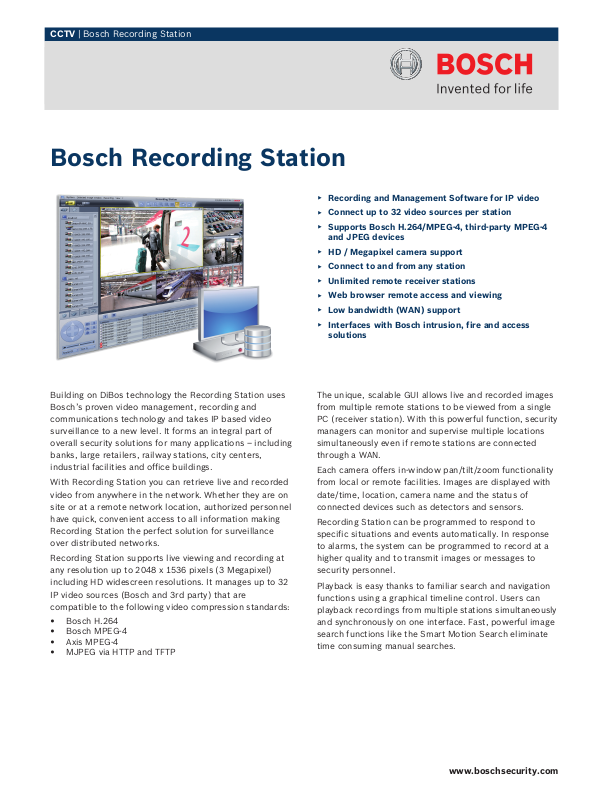

![](/html/aa/aafd/aafd509fb4de3976d39d328061b0c6d7215a4ff6684e58b8c589550b5e19e3e3/bg1.png)
CCTV | Bosch Recording Station
Bosch Recording Station
Recording and Management Software for IP video
▶
Connect up to 32 video sources per station
▶
Supports Bosch H.264/MPEG-4, third-party MPEG-4
▶
and JPEG devices
HD / Megapixel camera support
▶
Connect to and from any station
▶
Unlimited remote receiver stations
▶
Web browser remote access and viewing
▶
Low bandwidth (WAN) support
▶
Interfaces with Bosch intrusion, fire and access
▶
solutions
Building on DiBos technology the Recording Station uses
Bosch’s proven video management, recording and
communications technology and takes IP based video
surveillance to a new level. It forms an integral part of
overall security solutions for many applications – including
banks, large retailers, railway stations, city centers,
industrial facilities and office buildings.
With Recording Station you can retrieve live and recorded
video from anywhere in the network. Whether they are on
site or at a remote network location, authorized personnel
have quick, convenient access to all information making
Recording Station the perfect solution for surveillance
over distributed networks.
Recording Station supports live viewing and recording at
any resolution up to 2048 x 1536 pixels (3 Megapixel)
including HD widescreen resolutions. It manages up to 32
IP video sources (Bosch and 3rd party) that are
compatible to the following video compression standards:
Bosch H.264
•
Bosch MPEG-4
•
Axis MPEG-4
•
MJPEG via HTTP and TFTP
•
The unique, scalable GUI allows live and recorded images
from multiple remote stations to be viewed from a single
PC (receiver station). With this powerful function, security
managers can monitor and supervise multiple locations
simultaneously even if remote stations are connected
through a WAN.
Each camera offers in-window pan/tilt/zoom functionality
from local or remote facilities. Images are displayed with
date/time, location, camera name and the status of
connected devices such as detectors and sensors.
Recording Station can be programmed to respond to
specific situations and events automatically. In response
to alarms, the system can be programmed to record at a
higher quality and to transmit images or messages to
security personnel.
Playback is easy thanks to familiar search and navigation
functions using a graphical timeline control. Users can
playback recordings from multiple stations simultaneously
and synchronously on one interface. Fast, powerful image
search functions like the Smart Motion Search eliminate
time consuming manual searches.
www.boschsecurity.com
![](/html/aa/aafd/aafd509fb4de3976d39d328061b0c6d7215a4ff6684e58b8c589550b5e19e3e3/bg2.png)
2 | Bosch Recording Station
Export the video to an archive with the push of a single
button - all digitally watermarked to ensure the credibility
of your recordings. You can even export multiple cameras
from different recorders. Use the scheduled export to
recurrently backup your recordings on various storage
devices, such as external disk arrays and NAS (network
attached storage).
To ensure the highest security, all system access is
controlled by multiple user authorization levels which
determine individual permissions for each user to a very
high level of detail. These authorization levels determine
what a user can do in the system. Elements such as
camera viewing and control, playback and export of
recordings, as well the types of system configuration
settings that are allowed can be individually configured.
Events, such as login, log-off, status changes, image
transmission, video export, and system shutdown are
logged in a database and can be easily imported to
spreadsheet programs like MS Excel. Video authentication
is built-in to detect any attempt to alter the recorded
images.
Recording Station provides various interfaces to other
systems such as Bosch access solutions and alarm panels,
as well as external systems like ATM and POS terminals,
fire alarm systems, number plate capture equipment and
video content analysis solutions.
Integration with other security and building management
systems is accomplished using OPC (OLE for Process
Control). When even tighter integration is required, our
VideoSDK provides you with a complete toolbox of
modules for playback, searching, viewing and much, much
more.
Use Recording Station in a LAN environment with Bosch
Video Management System to advance to a true enterprise
solution which provides a comprehensive feature set such
as centralized user, event and alarm management, multimonitor workstations with zoom able sitemaps and CCTV
keyboard control.
Technical Specifications
Recording resolutions QCIF, CIF, 2CIF, 4CIF, HD 720p, HD 1080p
Megapixel (arbitrary JPEG resolution up to
2048 x 1536 pixels)
Recording rates per channel
Supported video codecs /
protocols
Supported Bosch MPEG-4
IP cameras
Supported Bosch H.264 IP
cameras
Supported Bosch H.264
and MPEG-4 encoders
(video servers)
Supported and tested AXIS
MPEG-4 IP cameras
Supported Bosch JPEG IP
cameras
Supported JPEG IP cameras from other manufacturers
Maximum number of configured remote station at
one receiver station
Number of simultaneously
connected remote stations
at one receiver station
Supported Languages Czech, Danish, Dutch, German, Greek, Eng-
HTTP Browser Access
(WAN)
Supported operating systems
PAL: 0,5 - 25 IPS
NTSC: 0,5 – 30 IPS
Bosch MPEG-4
Bosch H.264
Axis MPEG-4,
JPEG/MJPEG via HTTP/TFTP
Dinion IP, AutoDome IP, FlexiDome IP, Megapixel IP, Extreme IP
NBC/NDC-225/255-P
Dinion NBC-455-P, NBN-498-P
FlexiDome NDC-455-P, NDN-498-P
AutoDome Easy II
AutoDome VG4 IP
VIP X1 XF, VIPX1600 XFM4,
VideoJet X10/20/40
VIP X1600
VIP X1/X2, VIP 10
VideoJet 8004/8008
VideoJet 10S, VideoJet 1000
211, 211A, 211M, 221, 223M
NWC-0700/0800 Megapixel IP camera
NWC-0900 Day/Night Megapixel IP camera
IP cameras from Arecont Vision, Axis, Mobotix, Sony and other compatible cameras that
support HTTP/TFTP and provide fixed path
to JPEG image
200 (can be configured, visible in devices
list)
Maximum: 32
4 connections included free of charge
Expansion possible with BRS-XREM-01A /
BRS-XREM-04A
lish, Finnish, French, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish and Turkish
IIS must be installed and configured on the
Bosch Recording Station. A custom HTTP
port is possible.
ActiveX required on browser.
Maximum number of connections to one station: 3
Windows XP Professional SP3, 32-bit versions, .NET Framework 3.5 SP1 installed
Windows 7, 32-bit versions (NetLimiter not
supported)
Windows Server 2003, 32-bit versions, .NET Framework 3.5 SP1 installed
Windows Server 2008, 32-bit versions,
Desktop Experience installed (NetLimiter not
supported)
