Bosch B18IF800SP Instruction Manual
Freezer
Congélateur
Congelador
B18IF800SP
en Operating and installation
instructions
fr Notices d’utilisation et de
montage
es Instrucciones de uso y de
montaje
en Table of Contents 3
fr Table des matières 20
es Índice 38
2
en-us
en Table of Contents
Important Safety Instructions ............................................ 4
Definition .......................................................................... 4
WARNING: Before You Switch On the Appliance.... 4
Technical Safety.............................................................. 4
Important Information When Using the Appliance... 4
Children in the Household............................................ 4
General Regulations ...................................................... 4
State of California Proposition 65 Warnings............. 5
Information Concerning Disposal..................................... 5
* Disposal of Packaging............................................. 5
* Disposal of Your Old Appliance............................. 5
Installing the Appliance...................................................... 5
Transporting .................................................................... 5
Installation Location ....................................................... 5
Ventilation ............................................................................. 5
Scope of Delivery................................................................ 5
Connecting the Appliance................................................. 6
Water Connection........................................................... 6
Electrical Connection..................................................... 6
Getting to Know Your Appliance...................................... 7
Controls............................................................................ 8
Switching the Appliance On.............................................. 9
Operating Tips ................................................................ 9
Setting the Language ......................................................... 9
Setting the Temperature Unit............................................ 9
Setting the Temperature .................................................... 9
Freezer Compartment.................................................... 9
Special Functions................................................................ 9
Setup Mode ..................................................................... 9
Vacation Mode............................................................. 10
Sabbath Mode ............................................................. 10
Energy Saving Mode .................................................. 10
Alarm Function ................................................................. 11
Door Alarm ................................................................... 11
Temperature Alarm ..................................................... 11
Switching Off the Alarm.............................................. 11
Freezer Compartment ..................................................... 11
Using the Freezer Compartment .............................. 11
Freezing and Storing Food............................................. 11
Purchasing Frozen Food............................................ 11
Freezing Fresh Food ....................................................... 11
Packing Frozen Food ................................................. 11
Shelf Life of Frozen Food........................................... 12
enOperating instructions
Super Freezing .................................................................. 12
Switching On................................................................. 12
Switching Off ................................................................. 12
Thawing Frozen Food ...................................................... 12
Ice Maker............................................................................ 12
Switching On................................................................. 12
Switching Off ................................................................. 12
Water Filter ......................................................................... 13
Important Information Concerning the Water Filter 13
Exchanging the Filter Cartridge................................. 13
Specification and Performance Data Sheet................. 14
Interior Fittings................................................................... 15
Removing the Shelves ................................................ 15
Containers in the Freezer Compartment ................. 15
Switching Off and Disconnecting the Appliance......... 15
Switching the Appliance Off....................................... 15
Disconnecting the Appliance..................................... 15
Defrosting ........................................................................... 16
Cleaning the Appliance ................................................... 16
Proceed as Follows ..................................................... 16
Interior Fittings .............................................................. 16
Light (LED) ......................................................................... 16
Tips for Saving Energy..................................................... 16
Operating Noises.............................................................. 16
Normal Noises.............................................................. 16
Preventing Noises ........................................................ 16
Before Calling for Service ............................................... 17
Appliance....................................................................... 17
Ice Maker....................................................................... 17
Customer Service ............................................................. 19
3
en-us
, Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS!
Important Safety Instructions
Definition
, WARNING:
This indicates that death or serious injury may
result due to non-observance of this warning.
, CAUTION:
This indicates that minor or moderately severe
injury may result due to non-observance of this
warning.
WARNING: Before you Switch On the Appliance
Please read the instructions for use and installation
carefully. They contain important information on how to
install, use and maintain the appliance.
The manufacturer is not liable if you disregard the
instructions and warnings in the operating instructions.
Retain all documents for later use or for the subsequent
owner.
Technical Safety
If the power cord of this appliance is damaged, it must
be replaced by the manufacturer, customer service or a
similarly qualified person. Improper installations and
repairs may put the user at considerable risk.
Repairs may be performed by the manufacturer,
customer service or a similarly qualified person only.
Only original parts supplied by the manufacturer may
be used. The manufacturer guarantees that only these
parts satisfy the safety requirements.
IDo not use multiple outlets, extension leads or
adapters.
The appliance comes with a UL registered 3-wire power
cord.
Never sever or remove the third (earth) conductor from
the power cord.
The appliance requires a 3-pole socket. The socket
may be connected by an electrician only.
Where there is a 2-pole standard wall socket, it is the
personal responsibility of the customer to have this
socket replaced with a correctly grounded 3-pole wall
socket. Do not use any adapter plugs.
refrigerant tubes. Leaking refrigerant may cause eye
injuries or ignite.
■ Do not store products which contain flammable
propellants (e.g. spray cans) or explosive
substances in the appliance.
Explosion hazard!
■ Do not stand on or lean heavily against base of
appliance, drawers or doors, etc.
■ For defrosting and cleaning, pull the power cord plug
out or switch off the fuse. Do not pull out the power
cord plug by tugging on the power cord.
■ Store high-percentage alcohol tightly closed and
standing up.
■ Keep plastic parts and the door seal free of oil and
grease. Otherwise, parts and door seal will become
porous.
■ Never cover or block the ventilation openings for the
appliance.
■ Avoiding placing children and vulnerable people at
risk:
At risk are children, people who have limited
physical, mental or sensory abilities, as well as
people who have inadequate knowledge concerning
safe operation of the appliance.
Ensure that children and vulnerable people have
understood the hazards.
A person responsible for safety must supervise or
instruct children and vulnerable people who are
using the appliance.
Only children from 8 years and above may use the
appliance.
Supervise children who are cleaning and maintaining
the appliance.
Never allow children to play with the appliance.
Children in the Household
■ Keep children away from the packaging and its
parts.
Danger of suffocation from collapsible boxes and
foil!
■ Do not allow children to play with the appliance!
■ If the appliance features a lock:
Keep the key out of the reach of children!
Important Information When Using the Appliance
■ Never use electrical appliances inside the appliance
(e.g. heater, electric ice maker, etc.). Explosion
hazard!
■ Never defrost or clean the appliance with a steam
cleaner! The steam may penetrate electrical parts
and cause a short-circuit.
Risk of electric shock!
■ Do not use pointed or sharp-edged implements to
remove frost or layers of ice. You could damage the
4
General Provisions
The appliance is suitable
■ for freezing food,
■ for making ice,
■ for dispensing drinking water.
This appliance is intended for use in the home
and the home environment.
The refrigeration circuit has been checked for leaks.
This appliance is intended for use at an elevation of no
more than 2000 meters above sea level.
State of California Proposition 65 Warnings
, WARNING:
This product contains chemicals known to the
State of California to cause cancer, birth defects
or other reproductive harm.
Information Concerning Disposal
* Disposal of Packaging
The packaging protects your appliance from damage
during transit. All utilized materials are environmentally
safe and recyclable. Please help us by disposing the
packaging in an environmentally friendly manner.
Please ask your dealer or inquire at your local authority
about current means of disposal.
* Disposal of Your Old Appliance
Old appliances are not worthless trash! Valuable raw
materials can be reclaimed by recycling.
, WARNING:
1.
Pull out the Power Plug.
2.
Cut Off the Power Cord and discard with
the Power Plug.
3.
Do not take out the trays and shelves. This
helps to prevent children from climbing in!
4.
Do not allow children to play with
the appliance once it has spent its useful life.
Could cause suffocation!
Refrigerators contain refrigerant and gases in
the insulation. Refrigerant and gases must be disposed
of professionally. Ensure that tubing of the refrigerant
circuit is not damaged prior to proper disposal.
en-us
Installing the Appliance
Have a technician install and connect the appliance
according to the enclosed Installation Instructions.
, WARNING:
Do not install the appliance:
■ outdoors,
■ in an environment subject to drips of water,
■ in rooms with risk of frost.
Transporting
The appliances are heavy and must be secured during
transportation and installation.
Because of the weight/dimensions of the appliance
and to minimize the risk of injuries and damage
to the appliance at least two people are necessary
to set-up the appliance securely.
Installation Location
A dry, well-ventilated room is suitable as an installation
location. The installation location should not be
exposed to direct sunlight or placed near a heat
source, e.g. a cooker, radiator, etc. If installation next to
a heat source is unavoidable, use a suitable insulating
plate or observe the following minimum distances from
the heat source:
■ 1.2“ (3 cm) to electric or gas cookers.
■ 12“ (30 cm) to an oil or coal-fired cooker.
The floor of the installation location must not give way;
if required, reinforce floor. To ensure that the Ice Maker
functions correctly, the appliance must be upright.
Ventilation
The refrigeration unit is ventilated only via
the ventilation grille in the base. Never cover
the ventilation grille or place anything in front of it.
Otherwise the refrigeration unit must work harder,
increasing the power consumption.
Scope of Delivery
After unpacking all parts, check for any damage
in transit.
If you have any complaints, please contact the dealer
from whom you purchased the appliance or our
Customer Service department.
The following parts are included:
■ Built-in appliance
■ Interior fittings (depending on model)
■ Bag containing installation materials
■ Operating Instructions
■ Installation Instructions
■ Customer Service Booklet
■ Warranty enclosure
■ Information on the energy consumption and noises
5
en-us
Connecting the Appliance
Have a technician install and connect the appliance
according to the enclosed Installation Instructions.
Do not remove the transportation protection devices
from the shelves and storage compartments until
the appliance has been installed.
Always connect the water before the power.
Apart from statutory national regulations, you should
comply with all applicable local electricity and water
companies codes and requirements.
After installing the appliance, wait at least 1 hour before
switching the appliance On. During transportation
the oil in the compressor may have flowed into
the refrigeration system.
Before switching the appliance On for the first time,
clean the interior of the appliance (see chapter
“Cleaning the Appliance”).
Water Connection
, CAUTION:
Connect the appliance to a drinking water line
only:
■ Minimum pressure: 0.2 MPa (2 bar)
■ Maximum pressure: 0.8 MPa (8 bar)
■ Pressure over 0.8 MPa (8 bar): install
a pressure limiter between drinking water
connection and hose set:
The water may be connected only by a competent fitter
according to the local regulations of the appropriate
Water Supply company.
A cold water connection is necessary for operating
the automatic Ice Maker. The water pressure must be
between 29 and 116 p.s.i. (2.0 and 8.0 bar). The
installation must correspond to the local plumbing
regulations.
Install a separate shut-off valve in the cold water supply
line.
The Shut-Off-Valve should not be located behind
the appliance. It is recommended that you mount
the Shut-Off-Valve directly next to the appliance or at
another place that is easily accessible.
When installing the water connection, observe the
permitted installation areas for the water line.
For connection to the drinking water mains use only
water pipes which are suitable for drinking water.
Observe national regulations and the connection
conditions of the local Water Supply companies.
Electrical Connection
, WARNING:
Risk of electric shock
Connect the appliance to a grounded, 3-phase
outlet only. Never remove the ground phase. Do
not use any adapters.Do not use any extension
leads.
, WARNING:
Risk of electric shock
Incorrect connection of the appliance may result
in death, fire or electric shock. Improper
connection of the protective conductor may
result in electric shock. If you are in doubt as to
whether the appliance has been properly
grounded, have it tested by a qualified electrician
or Customer Service technician.
, WARNING:
Risk of electric shock
If the length of the power cord is inadequate,
never use multiple outlets or extension leads.
Instead, please contact Customer Service for
alternatives.
This appliance must be connected to a permanently
installed outlet.
The outlet must be near the appliance and also freely
accessible following installation of the appliance.
The appliance complies with protection class I. Connect
it to a correctly installed outlet. Correct means: with a
protective conductor, 110 V – 120 V/60 Hz alternating
current. The outlet must be protected by a 10 A – 16 A
fuse.
The appliance comes with a UL registered 3-wire power
cord. The appliance requires a 3-pole outlet.
Please observe the following table with regard to this:
Appliance Maximum Simultaneous Load
Freezer 18“ 3.5 amps
Check on the rating plate whether the indicated voltage
and current type match the values of your power
supply. The position of the rating plate can be found in
the chapter entitled „Customer Service“.
, WARNING:
Never connect the appliance to electronic
energy saving devices.
Our appliances can be used with mains and
sine-controlled inverters. Mains-controlled
inverters are used for photovoltaic systems
which are connected directly to the national grid.
Sine-controlled inverters must be used for
isolated applications (e.g. on ships or in
mountain lodges) which are not connected
directly to the national grid.
6
Getting to Know Your Appliance
These Operating Instructions refer to several models.
The diagrams may differ.
en-us
1 Light Switch
2 Controls
3 Glass shelves
4 Ice Maker
5 Ice Cube Container
6 Tray
7 Ventilation
8 Water Filter
9 Door Shelf
7
en-us
Controls
A POWER Button
Serves to switch the whole appliance On and Off.
B ICE Button
Serves to switch the Ice Maker On and Off.
See chapter “Ice Maker”.
C ALARM Button
Serves to switch the warning signal Off.
See chapter “Alarm function”.
DSUPER Button
Serves to switch the Super Freezing On and Off.
See chapter “Super Freezing”.
E Display Panel
The temperature in the Freezer Compartment is
shown in the Display Panel. Activated special
functions are shown via “symbol”.
The menus and setting options which are available
are represented on the Display Panel in the Setup
Mode. See chapter “Special Functions”.
F Selection Buttons BC
The temperature setting is activated using
the Selection Buttons, see chapter “Setting
the Temperature”.
For selecting a menu in the Setup Mode,
see chapter “Special Functions”, section “Setup
Mode”.
G Setting Buttons @ / A
The temperature can be changed using
the Setting Buttons, see chapter “Setting
the Temperature”.
More settings can be selected in the Setup Mode,
see chapter “Special Functions”.
H SETUP Button
This button starts and ends the Setup Mode.
If the Setup Mode is ended using
the SETUP Button, the changes that have been
made are stored.
I VACATION Button
This button is used to switch Vacation Mode On
and Off, see chapter “Special Functions”, section
“Vacation Mode”.
Note:
A sound can be heard every time a button is pushed
if this function is selected in the “Sound” menu during
the Setup Mode.
Symbols in the Display Field
Super Freezing is active (see chapter
“Super Freezing”).
Vacation Mode is active (see chapter
“Special Functions”).
For the setting options in the Setup Mode
(see chapter “Special Functions”).
A warning message is displayed
(see chapter “Alarm function”).
Ice Maker is switched on (see chapter “Ice
Maker”).
Signal to the Water Filter is displayed
(see chapter “Water Filter”).
8
en-us
Switching the Appliance On
Switch the appliance On with the POWER Button.
The appliance begins to cool. Light turns on when
the door is open.
, CAUTION:
Keep hands and fingers away from front and rear
openings of the freezer door or freezer drawer
when closing. Risk of injury to hands
or fingers.
Never allow children to climb on or play with
the freezer door.
Operating Tips
■ When the appliance has been switched on, it may
take several hours until the set temperature is
reached.
■ The fully automatic No Frost system ensures that
the Freezer Compartment remains free of ice.
Defrosting is not required.
Setting the Language
The Display Languages can be changed according
to the table in the chapter “Special Functions”, section
“Setup Mode”.
To change the Display Language:
1.
Press the SETUP Button.
2.
Press the B or C Selection Button, until the set
language is displayed.
3.
Press the @ or A Setting Button, until the desired
language is displayed.
4.
Press the SETUP Button, in order to store
the settings.
The set temperature is displayed again on the
Display Panel.
Setting the Temperature
Freezer Compartment
(can be selected from +7 °F (-14 °C) to –9 °F (-23 °C))
We recommend a setting of 0 °F (-18 °C).
1.
Press the B Selection Button.
2.
Set the temperature with the @ (warmer)
or A (cooler) Setting Button.
Special Functions
The following Special Functions can be selected
or displayed:
Setup Mode
In Setup Mode you can make your personal settings.
Switching On
Press the SETUP Button.
The first menu (temperature unit) is displayed on the
Display Panel.
Making Settings
1.
Switch on Setup Mode.
2.
Press the B or C Selection Button.
The next menu is displayed and its current setting
(mostly ON or OFF).

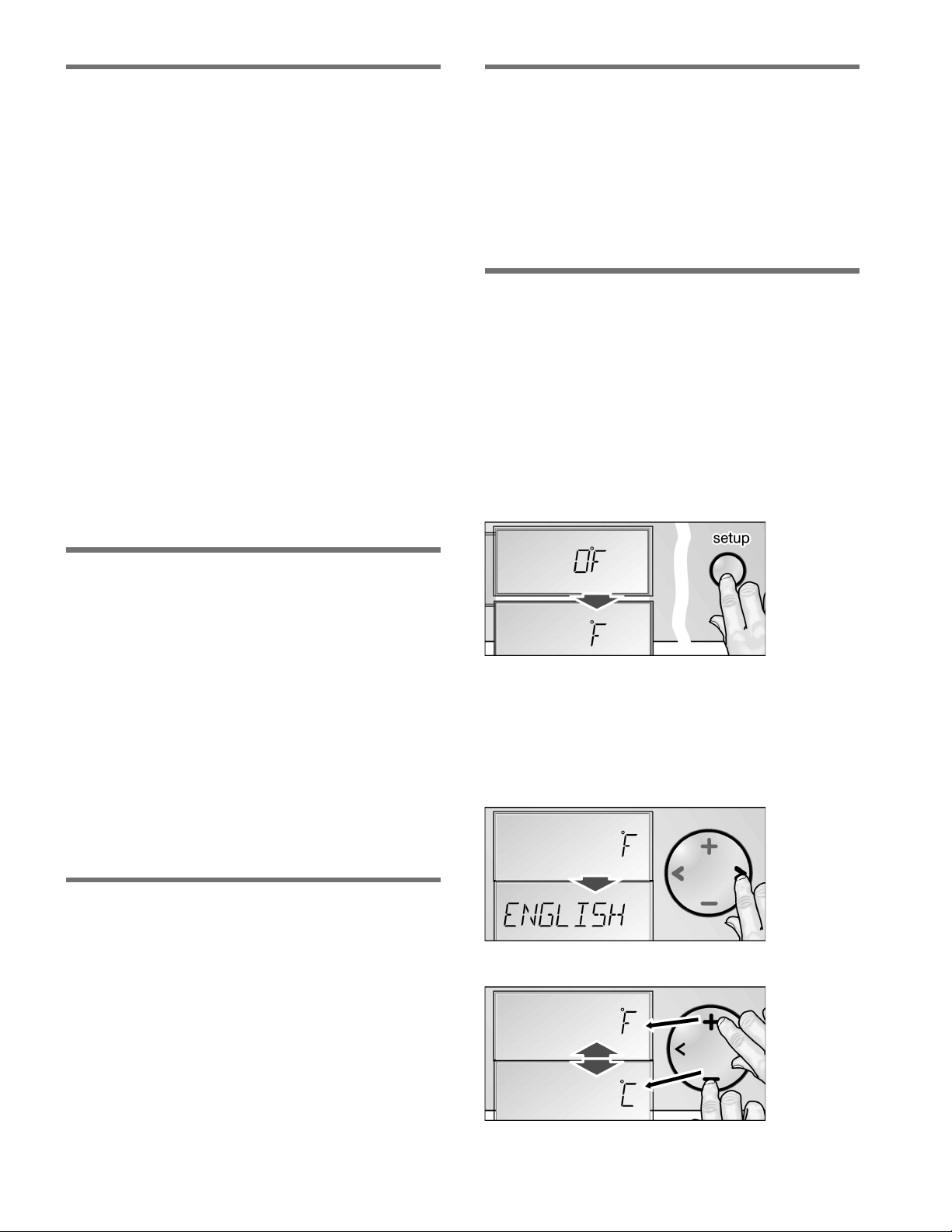

Setting the Temperature Unit
The temperature can be displayed in degrees
Celsius (°C) or degrees Fahrenheit (°F).
1.
Press the SETUP Button.
The first menu (Temperature Unit) is displayed.
2.
Press the @ or A Setting Button in order to switch
between degrees Fahrenheit (°F) and degrees
Celsius (°C).
3.
Press the SETUP Button, in order to store
the settings.
The set temperature is displayed again on the
Display Panel.
3.
Press the @ or A Setting Button.
4.
Press the B or C Selection Button to save and move
to the next menu.
9
en-us
Switching Off
Press the SETUP Button.
All of the changed settings are stored.
Note:
If no button is selected within 20 seconds, the Setup
Mode ends automatically. All of the changed settings
are stored. The set temperature is displayed again on
the Display Panel.
Menus in the Setup Mode
The following settings can be made.
Menu Possible setting
Temperature Unit °C (degrees Celsius)
°F (degrees Fahrenheit)
Language English
French
Spanish
Sound On
Off
Energy Saving Mode
(Eco Function)
On
Off
Vacation Mode
If leaving the appliance for a long period of time, you
can switch the appliance over to the energy-saving
Vacation Mode.
When Vacation Mode is switched On, the following
settings are made:
■ The appliance operates in Energy-Saving Mode.
■ The light is switched Off.
■ The “Super Freezing” function is ended (if activated).
Switching On
Press the VACATION Button.
The “VACATION” symbol is displayed on the Display
Panel.
Switching Off
Press the VACATION Button.
The previous settings and temperature values are
restored.
Sabbath Mode
When Sabbath Mode is switched On, the following
settings are switched Off:
■ Ice Maker
■ Acoustic Signal
■ Interior Light
■ Messages in the Display Panel
■ The background illumination of the Display Panel is
reduced
■ Buttons are locked.
Switching On
1.
Press and hold down the SUPER Button.
2.
Press the VACATION Button.
3.
Press the SUPER Button and hold down for a further
3seconds.
The “VACATION” symbol flashes on the Display
Panel and “SABBATH” is displayed.
Switching Off
Press the VACATION Button.
The previous settings and temperature values are once
again activated.
Energy Saving Mode
If the Energy Saving Function (Eco Function) is
activated, the appliance switches to the Energy Saving
Operation. This Energy Saving Function is preset
at the factory in order to reduce energy consumption.
The background illumination of the Display Panel is
likewise reduced.
Switching On
1.
Press the SETUP Button.
2.
Press the C Selection Button, until “ECO MODE”
and the current setting (OFF) is displayed.
3.
Press the @ Setting Button, in order to reset
the setting.
4.
Press the SETUP Button, in order to store
the setting.
“ECO” is displayed on the Display Panel.
Switching Off
1.
Press the SETUP Button.
2.
Press the C Selection Button, until “ECO MODE”
and the current setting (ON) is displayed.
3.
Press the A Setting Button, in order to reset
the setting.
4.
Press the SETUP Button, in order to store
the setting.
10
en-us
Alarm Function
Door Alarm
The Door Alarm switches On if an appliance door is left
open for longer than three minutes. Close the door
to switch Off the Warning Signal.
Temperature Alarm
The Temperature Alarm switches On if the Freezer
Compartment is too warm and the frozen food is at risk
of thawing.
The set temperature of the Freezer Compartment
flashes and “ALARM” is displayed on the display panel.
When the ALARM button is pressed, the temperature
display for the Freezer Compartment indicates for five
seconds the warmest temperature reached
in the Freezer Compartment.
Then this value is deleted. The temperature display for
the Freezer Compartment indicates the set Freezer
Compartment temperature without flashing.
Henceforth the “warmest temperature” will be redefined
and saved.
The alarm display goes out as soon as the set
temperature has been reached again.
The alarm may switch on without any risk
to the frozen food:
■ when the appliance is switched On,
■ when large quantities of fresh food are placed
in the appliance,
■ if the Freezer Compartment Door is open too long.
Switching Off the Alarm
Press the ALARM button to switch Off the Warning
Signal.
Freezer Compartment
, WARNING:
Do not store explosive substances in
the appliance. Risk of explosion!
, CAUTION:
Do not refreeze thawing or thawed food. Before
freezing the food, first boil or fry it. Never keep
frozen food longer than the maximum storage
duration.
Using the Freezer Compartment
■ To store deep-frozen food.
■ To freeze food.
■ To make ice cubes.
Note:
Ensure that the Freezer Compartment door has been
closed properly. If the door is open, the frozen food will
thaw. The Freezer Compartment will become covered
in thick ice. Also, energy is wasted due to high power
consumption!
Freezing and Storing Food
Purchasing Frozen Food
■ Packaging must not be damaged.
■ Use by the “expiration” date.
■ Temperature in the supermarket freezer must be
0 °F (-18 °C) or lower.
■ If possible, transport deep-frozen food in
an insulated bag and place immediately
in the Freezer Compartment.
Freezing Fresh Food
Freeze fresh and undamaged food only.
To retain the best possible nutritional value, flavor and
color, vegetables should be blanched before freezing.
Eggplants, peppers, zucchini and asparagus do not
require blanching.
Literature on freezing and blanching can be found
in bookshops.
Note:
Keep food that is to be frozen away from food that
is already frozen.
■ The following foods are suitable for freezing:
Cakes and pastries, fish and seafood, meat, game,
poultry, vegetables, fruit, herbs, eggs without shells,
dairy products such as cheese, butter and quark,
and ready meals and leftovers such as soups, stews,
cooked meat and fish, potato dishes, soufflés and
desserts.
■ The following foods are not suitable for freezing:
Types of vegetables that are usually consumed raw
such as lettuce or radishes, eggs in shells, grapes,
whole apples, pears and peaches, hard-boiled eggs,
yogurt, soured milk, sour cream, crème fraîche and
mayonnaise.
Packing Frozen Food
To prevent food from losing its flavor or drying out,
place in airtight containers.
1.
Place food in packaging.
2.
Remove air.
3.
Seal the wrapping.
4.
Label packaging with contents and date of freezing.
Suitable Packaging:
Cling wrap, tubular film made of polyethylene,
aluminum foil, freezer containers.
These products are available from specialist outlets.
Unsuitable Packaging:
Wrapping paper, greaseproof paper, cellophane, bin
liners and used shopping bags.
Items Suitable for Sealing Packaged Food:
Rubber bands, plastic clips, string, cold-resistant
adhesive tape, etc.
Bags and tubular film made of polyethylene can
be sealed with a film heat sealer.
11
en-us
Shelf Life of Frozen Food
Depends on the type of food.
At a temperature of 0 °F (-18 °C):
■ Fish, sausage, ready meals and cakes and pastries:
up to 6 months
■ Cheese, poultry and meat:
up to 8 months
■ Vegetables and fruit:
up to 12 months
Super Freezing
Food should be frozen solid as quickly as possible
in order to retain vitamins, nutritional value, appearance
and flavor.
To prevent an undesirable temperature rise when
placing fresh food in the Freezer Compartment, switch
On super freezing several hours beforehand. As a rule,
4 – 6 hours is adequate. 24 hours are necessary when
using the maximum freezer capacity fully.
After 2 days the temperature set before super freezing
is automatically restored.
Ice Maker
The Ice Maker makes ice cubes.
The Ice Maker starts to make ice cubes as soon as
the appliance has reached the set temperature. When
the Ice Cube Container is full, the Ice Maker stops ice
production automatically.
, CAUTION:
Do not place bottles or food in the Ice Cube
Container in order to cool them quickly. The Ice
Maker may be blocked and could be damaged.
Switching On
Note:
If the Ice Maker is used for the first time and/or after
a long period of not being used, do not use the ice that
is produced in the first day for hygienic reasons. Throw
the ice cubes away and clean the Ice Cube Container.
1.
Make sure that Ice Cube Container is in its place
and locked into position.
2.
Press the ICE button.
The symbol “ICE” is lit on the Display Panel.
Switching On
Press the SUPER Button.
The Display Panel indicates the symbol “SUPER¾”.
Switching Off
Press the SUPER Button.
Thawing Frozen Food
Depending on the type and application, select one of
the following options:
■ at room temperature,
■ in the refrigerator,
■ in an electric oven, with/without convection,
■ in the microwave.
Note:
Do not refreeze thawing or thawed food. Only ready
meals (boiled or fried) may be refrozen.
Do not store the frozen produce for the maximum
storage period.
Switching Off
Note:
Before switching the Ice Maker Off, it is most important
that you switch the Water Supply to the appliance Off
for a few hours.
Press the ICE button.
Removing Ice Cubes
Pull out the Ice Cube Container and remove the ice
cubes.
12
Water Filter
, WARNING:
Do not use the appliance in places where
the water quality is risky or not sufficiently known
about without suitable disinfection, before
and after filtering.
A Filter Cartridge for filtering particles can be obtained
from Customer Service or a specialist dealer.
, CAUTION:
■ After installing a new Filter Cartridge, always
discard the ice produced within the first
24 hours after switching On the Ice Maker.
■ If the ice has not been used for a prolonged
period, pour all ice cubes out of the Ice Cube
Container and also discard the ice produced
within the next 24 hours.
■ If the appliance or the ice has not been used
actively for several weeks or months or if the
ice cubes have an unpleasant taste or odor,
change the Filter Cartridge.
■ Air trapped in the system may cause water to
escape and the Filter Cartridge to be ejected.
Caution when removing.
■ The Filter Cartridge must be changed at least
every 6 months.
Important Information Concerning the Water Filter
After use, the water system is subject to low pressure.
Be careful when removing the Filter Cartridge!
en-us
Exchanging the Filter Cartridge
1.
Turn the Filter Cap on the base of the appliance by
90–180° anti-clockwise.
2.
Pull out the Filter Cartridge.
3.
Take a new Filter Cartridge from the packet
and remove the protective cap.
4.
Take the Filter Cap off of the used Filter Cartridge.
5.
Place the Filter Cap on the fresh Filter Cartridge.
6.
With the Filter Cap in a horizontal position, feed
the Filter Cartridge into the opening on the appliance
base as far as it will go.
7.
Turn the Filter Cartridge 90–180° in a clockwise
direction.
8.
Pour water out of the used Filter Cartridge. The Filter
Cartridge can be disposed of in the household trash.
Note:
The appliance could be used without a Water Filter.
If you select this option, replace the Water Filter with
a Particle Cartridge. In this case the Filter Display can
be deactivated to prevent the Filter Change Display. To
purchase a Water Filter Replacement Cartridge, contact
your local dealer or call 1-800-944-2904.
13
en-us
Specification and Performance Data Sheet
For filter model: 9000 077 095
Using replacement cartridge: 9000 077 104
The model was tested by NSF International with
reference to ANSI/NSF Standards 42 & 53
and certified for a reduction in the substances cited
below.
The concentration of the indicated substances which
are dissolved in water and penetrate the system was
reduced to a value below or equal to the permitted limit
value in accordance with NSF/ANSI 42 and 53 for
water discharged out of the appliance.
Note:
Even though the tests were conducted under standard
laboratory conditions, the actual performance may
deviate from these tests.
The system was tested and certified on
model 9000 077 095 by NSF International
with reference to ANSI/NSF Standard 53
for a reduction in cysts and turbidity, as
well as with reference to ANSI/NSF
Standard 42 for a reduction in the taste
and odor of chlorine.
Nominal particle class: I
Nominal service life:
739.68 gallons (2,800 liters)
Substance Average in
Cysts * 166,500 Min. 50,000/l 1 99.99 99.95 1 99.99 511077-03
Particle
class 1
particle
size > 0.5
to < 1.0 μm
Taste
of chlorine
and
turbidity
inflow
5,700,000 At least
1.9 2.0 mg/l + - 10 % 0.05 97.3 > 50 % 0.06 96.84 511081-03
* Based on the use of Cryptosporium parvum ocysts.
Application Guidelines / Water Supply Parameters:
Water Pressure 30 - 120 psi
Water Temperature * 33 °F - 100 °F
Inflow
concentration
10,000 particles/ml
(207 - 827 kPa)
(0.6 °C - 38 °C)
Waste water
concentration
30.583 99.52 > 85 % 69.000 98.9 511079-03
Average
reduction
as %
Max. permitted
concentration
in waste water
Max.
waste
water
Min.
reduction
as %
NSF test
Without appropriate disinfection before and after
connecting it to the system, this product should NOT
be used if the water is microbiologically
contaminated or if the quality has not been
ascertained. A system certified for cyst reduction
should be used for disinfected water which possibly
contains filterable cysts.
A one-year warranty is issued for the entire system
Flow Rate 0.75 gpm (2.83 l/min.)
(except disposable cartridge). With reference
to disposable cartridges a warranty is issued for
■ The system is to be installed and operated
according to the guidelines recommended by
the manufacturer.
■ The Filter is to be changed every 6 - 9 months.
■ Rinse the new Filter thoroughly for 5 minutes.
■ More detailed information can be found on
the Warranty Card.
material and processing faults only. As the service life
of disposable cartridges depends on the local water
conditions, no warranty is issued for them.
More detailed information on the prices of spare parts
is available from your appliance dealer or parts
salesman on site.
Manufactured by:
Cuno Engineered Products
1000 Apollo Road
Eagan, MN 55121-2240 U.S.A.
14
Interior Fittings
Removing the Shelves
You can reposition the Shelves inside the appliance
and Door Shelves as required.
Lift the Shelves and remove.
Shelves inside the Compartment
Door Shelves
en-us
Containers in the Freezer Compartment
The Containers in the Freezer Compartment can be
taken out for cleaning.
1.
Lift Tray slightly and take out.
2.
Lift Tray at front slightly and insert into the runners.
3.
Lower Tray and push back.
Switching Off and Disconnecting the Appliance
Switching the Appliance Off
1.
Press the POWER Button.
2.
Unplug the Power Plug.
Disconnecting the Appliance
If you do not use the appliance for a prolonged period:
1.
Before switching Off, it is most important that you
switch the Water Supply to the appliance Off for
afew hours.
2.
Take all food out of the appliance.
3.
Switch the appliance Off.
4.
Unplug the Power Plug or switch the fuse Off.
5.
Empty and clean the Ice Cube Container
(see chapter “Cleaning the Appliance”).
6.
Clean the appliance interior (see chapter “Cleaning
the Appliance”).
7.
Leave the appliance doors open to prevent odors
from forming.
15
en-us
Defrosting
Defrosting is actuated automatically.
Cleaning the Appliance
, WARNING:
Never clean the appliance with a steam cleaner!
, CAUTION:
■ Do not use abrasive, chloride or acidic
cleaning agents or solvents.
■ Do not use scouring or abrasive sponges.
The metallic surfaces could corrode.
■ Never clean Shelves and Containers in
the dishwasher. The parts may become
deformed!
Proceed as Follows
1.
Before cleaning: Switch the appliance Off.
2.
Unplug the Power Plug or switch the fuse Off.
3.
Take out the frozen food and store in a cool location.
Place the ice pack (if enclosed) on the food.
4.
Clean the appliance with a soft cloth, lukewarm
water and a little pH neutral cleaning liquid. Prevent
the rinsing water from running into the light.
5.
Wipe the Door Seal with clear water only and then
wipe dry thoroughly.
6.
After cleaning, reconnect and switch the appliance
back On.
7.
Put the frozen food back in the Freezer
Compartment.
Interior Fittings
All variable parts of the appliance can be taken out for
cleaning (see chapter “Interior Fittings”).
Cleaning the Ice Cube Container
If ice cubes have not been dispensed for a prolonged
period, they will shrink, have a stale taste and stick
together. Therefore, the Ice Cube Container should
be cleaned regularly.
, CAUTION:
A full Ice Cube Container is heavy.
1.
Remove the Ice Cube Container.
2.
Pull out the Ice Cube Container, empty and clean
with lukewarm water.
3.
Dry the Ice Cube Container to prevent new ice cubes
from sticking to it.
4.
Insert the Ice Cube Container.
Ice cube production continues.
Light (LED)
Your appliance features a maintenance-free LED Light.
These lights may be repaired by Customer Service
or authorized technicians only.
Tips for Saving Energy
■ Install the appliance in a dry, well ventilated room!
The appliance should not be installed in direct
sunlight or near a heat source (e.g. radiator, cooker).
If required, use an insulating plate.
■ Do not block the Ventilation Openings
in the appliance.
■ Allow warm food and drinks to cool down before
placing in the appliance!
■ When thawing frozen products, place them
in the refrigerator. Use the coldness of the frozen
food to cool food.
■ Open the appliance as briefly as possible!
Operating Noises
Normal Noises
Droning
Motors are running (e.g. refrigeration units, fan).
Bubbling, humming or gurgling noises
Refrigerant is flowing through the tubing or water is
flowing into the Ice Maker.
Clicking
Motor, switches or solenoid valves are switching On/
Off.
Rumbling
Ready ice cubes from the Ice Maker are falling into
the Ice Cube Container.
Preventing Noises
The appliance is not level
Please align the appliance with a spirit level. Use the
Height-Adjustable Feet or place packing underneath
them.
The appliance is not free-standing
Please move the appliance away from adjacent units or
appliances.
Containers or Shelves wobble or stick
Please check the removable parts and re-insert them
correctly, if required.
Bottles or containers are touching each other
Move the bottles or containers slightly away from each
other.
16
Before Calling for Service
Before you call Customer Service:
Please check whether you can troubleshoot yourself based on the following information.
Customer Service will charge you for advice – even if the appliance is still under guarantee!
Appliance
Fault Possible cause Remedial action
Appliance has no refrigeration
capacity.
The light does not work.
The display does not
illuminate.
The refrigeration unit is
switching On more frequently
and for longer.
The light (LED) does not work. The LED lamp is defective. Call Customer Service.
Display indicates “E..”. Electronics have detected a fault. Call Customer Service.
Display indicates
“LOWPOWER”.
Display indicates
“HIGHVOLT”.
Ice Maker
Appliance has been switched Off. Press the POWER Button.
Power failure. Check whether the power is on.
The fuse has been switched Off. Check the fuse.
The Power Plug has not been
inserted properly.
Appliance opened frequently. Do not open the appliance unnecessarily.
The Ventilation Openings have been
covered.
Large quantities of fresh food are
placed in the freezer.
Light switch is jammed. Check whether it can be moved.
The line voltage falls below
the permitted limiting value.
The line voltage exceeds
the permitted limiting value.
Check whether the Power Plug is secure.
Remove obstacles.
Switch Super Freezing On.
When the line voltage reaches the stipulated
value again, the warning message goes out.
If the warning message lasts for longer,
inform the energy supply company.
When the line voltage reaches the stipulated
value again, the warning message goes out.
If the warning message lasts for longer,
inform the energy supply company.
en-us
Fault Possible cause Remedial action
The Ice Maker doesn’t work. Ice Maker is not connected
to the power supply.
Ice Maker does not contain any fresh
water.
Temperature in the Freezer
Compartment is too warm.
The Ice Maker does not make
enough ice or the ice is
deformed.
The appliance or Ice Maker has only
just been switched On.
A lot of ice has been taken. Approximately 24 hours is needed until
Low water pressure. Connect the appliance to the stipulated
The Filter Cartridge is blocked or
needs to be replaced.
Temperature in the Freezer
Compartment is too warm.
Call Customer Service.
Ensure that the water is properly connected.
Set temperature slightly colder in the
Freezer Compartment.
Approximately 24 hours is needed until ice
production starts.
the Ice Cube Container is filled again.
water pressure only (see chapter
“Connecting Appliance”, section “Water
Connection”).
Exchange the Filter Cartridge.
Set temperature slightly colder
in the Freezer Compartment.
17
en-us
Fault Possible cause Remedial action
The Ice Maker does not make
any ice.
Ice forms in the inflow hose
to the Ice Maker.
Water runs from the appliance. The Water Connection Hose is not
The Ice Maker is switched Off. Switch the Ice Maker On at the control
panel.
The appliance is not supplied with
water.
Water Supply has kinks. Turn Off the Water Supply at the Shut Off
Low Water Pressure. Connect the appliance to the stipulated
Temperature in the freezer space is
too warm.
Ice Cube Container is not properly
inserted.
Incorrect Shut Off Tap installed. Incorrect Shut Off Taps can cause low water
Low Water Pressure. Connect the appliance to the stipulated
Shut Off Tap incorrectly opened. Open Shut Off Tap fully.
properly sealed.
Incorrect Shut Off Tap installed. Incorrect taps can cause low water pressure
Contact the installer or the Water Supply
company.
Tap. Smoothen out the kinks, exchange
where necessary.
water pressure only (see chapter
“Connecting Appliance”, section “Water
Connection”).
Check Freezer Compartment temperature
and, if required, set slightly colder.
Check the position, re-insert where
necessary.
pressure and damage to the appliance.
water pressure only (see chapter
“Connecting Appliance”, section “Water
Connection”).
Replace the hose with a manufacturer’s
original part.
and damage to the appliance.
18
Loading...
