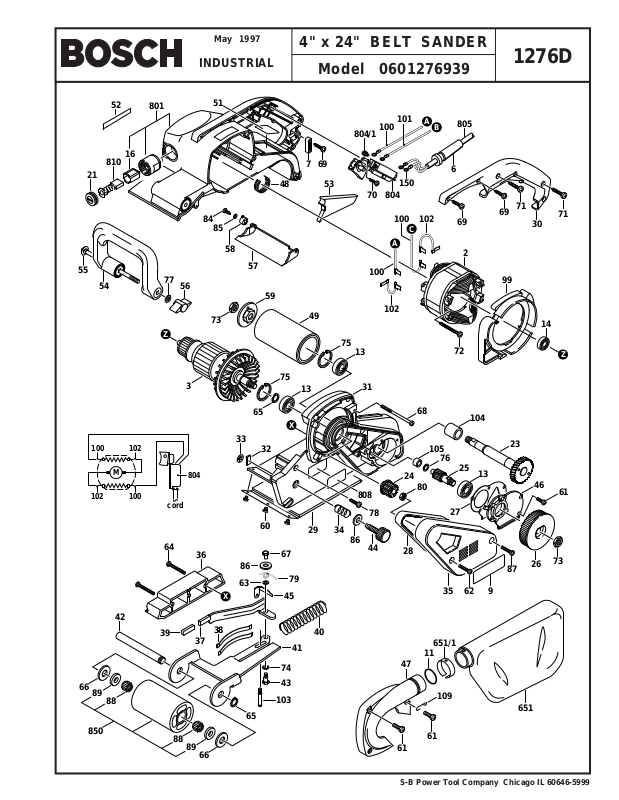

Bosch 601276939 User Manual
May 1997
INDUSTRIAL
4" x 24" BELT SANDER
1276D
Model 0601276939
55
21
54
52
810
16
801
77
Z
56
51
101
150
100
A
102
C
100
804/1
69
7
13
49
53
75
13
31
70
100
804
A
102
48
84
85
58
57
59
73
75
3
805
B
6
71
69
69
2
99
72
71
30
14
Z
66
100
89
850
88
M
42
102
100102
39
cord
64
88
804
89
36
37
66
38
61
28
47
24
68
80
105
11
61
76
35
651/1
109
27
25
62
104
13
23
46
61
73
26
87
9
651
65
X
33
32
808
78
60
67
86
63
X
65
79
45
41
74
43
103
29
40
34
86
44
S-B Power Tool Company Chicago IL 60646-5999
1276D 4" x 24" BELT SANDER
F/CPos. Part Number Description {Qty} F/CPos. Part Number Description {Qty}
2 2 610 908 604 Field 120V 22
3 2 610 908 606 Armature w/Fan 120V AW
6 3 600 707 506 Strain Relief 11
7 2 601 035 001 Cord Clamp 89
9 2 610 911 727 Label "1276D" 9
11 2 610 992 403 O-Ring 78
13 1 900 905 161 Ball Bearing {3} 61
14 3 600 900 512 Ball Bearing 60
16 3 600 422 503 Brush Holder {2} 25
21 3 603 463 503 Brush Cap {2} 25
23 2 610 908 618 Drive Shaft 4" 40
24 2 610 908 622 Toothed Pulley 36
25 2 610 908 621 Pinion Gear 33
26 2 610 908 623 Toothed Pulley 36
27 3 601 015 503 Gasket 79
28 3 604 736 505 Drive Belt 50
29 2 610 908 625 Platen Assembly 88
30 3 605 500 576 Handle Cover 74
31 2 610 908 627 Transmission Housing 72
32 2 610 908 628 Wear Plate {2} 65
33 1 600 146 001 Lock Washer {2} 89
34 2 610 990 029 Tracking Adjust Spring 27
35 2 610 990 025 Drive Belt Cover 70
36 3 605 510 525 Belt Guard 9
37 3 601 923 502 Belt Change Lever 64
38 2 610 908 629 Tracking Spring {2} 27
39 2 610 908 630 Lever Cap 9
40 3 604 619 500 Tension Spring 27
41 2 610 908 632 Pulley Support Fork 62
42 2 610 908 634 Pulley Shaft 54
43 3 603 453 500 Screw 80
44 2 610 908 637 Tracking Knob 63
45 2 610 908 638 Wear Plate 92
46 3 605 510 505 Bearing Plate 38
47 3 605 500 579 Exhaust Cover 70
48 2 610 911 048 Tolerance Ring 22mm 82
49 2 610 908 642 Drive Pulley 50
51 2 610 967 533 Label "Warning" 9
52 2 610 911 699 Label "Bosch" 9
53 2 610 908 651 Switch Cover 70
54 2 610 908 652 Auxiliary Handle 74
55 2 610 908 653 Carriage Bolt 89
56 1 603 339 006 Wing Knob 63
57 2 610 908 655 Adjustable Cover 70
58 2 610 908 656 Position Knob 63
59 2 610 908 657 Pulley Cover 70
60 2 610 911 095 Screw {3} 89
61 3 603 415 540 Screw {7} 89
62 3 603 429 514 Screw 89
63 2 916 011 010 Washer 65
64 3 603 429 513 Screw {2} 89
65 2 916 650 003 Retaining Ring {2} 89
66 2 610 908 658 Washer {2} 65
67 3 603 315 500 Locking Nut 80
68 2 610 991 306 Screw {3} 89
69 2 910 611 020 Screw {4} 89
70 2 910 611 424 Screw {2} 89
71 2 910 611 028 Screw {3} 89
72 2 610 908 660 Screw {2} 89
73 2 610 990 040 Nut {2} 89
74 3 600 150 505 Spring Washer 65
75 2 610 908 661 Retaining Ring {2} 89
76 3 600 100 504 Washer 65
77 2 916 011 014 Washer 65
78 2 910 611 013 Screw {2} 89
79 2 610 990 039 Spring 80
80 2 610 908 663 Nut 89
84 2 910 641 086 Screw 89
85 2 610 991 341 Thrust Washer 65
86 2 610 992 475 Washer {2} 65
87 2 914 411 051 Screw 89
88 3 600 910 504 Needle Bearing {2} 65
89 1 600 290 016 Oil Seal {2} 77
99 2 610 908 665 Air Deflector 24
100 2 610 908 666 Cable 250mm {2} 10
102 2 610 908 668 Cable 250mm {2} 10
103 3 603 405 509 Pin 66
104 3 600 301 501 Bushing 82
105 3 600 301 502 Bushing 82
109 3 604 680 500 Static Clip 9
150 3 601 353 500 Terminal Ring {4} 11
651 2 610 906 292 Bag Assy. w/pos. 651/1 9
651/1 3 601 253 503 Bag Clip 9
801 2 610 991 330 Motor Housing Assy. 71
w/pos. 16
804 3 607 000 677 Switch On/Off 15
804/1 3 603 433 506 Screw {4} 89
805 3 604 460 514 Cord 120V 16/2 11
808 3 601 119 595 Nameplate 9
810 2 610 908 677 Brush Set 120V 26
850 2 610 908 644 Driven Pulley Assembly 48
w/pos. 88, 89
Service Notes:
+ = Not Illustrated * = As Required F/C = Failure Code AW = Refer to AW Labor Time Chart
