Bos DEVILLE 170 User Manual

Handmade in France

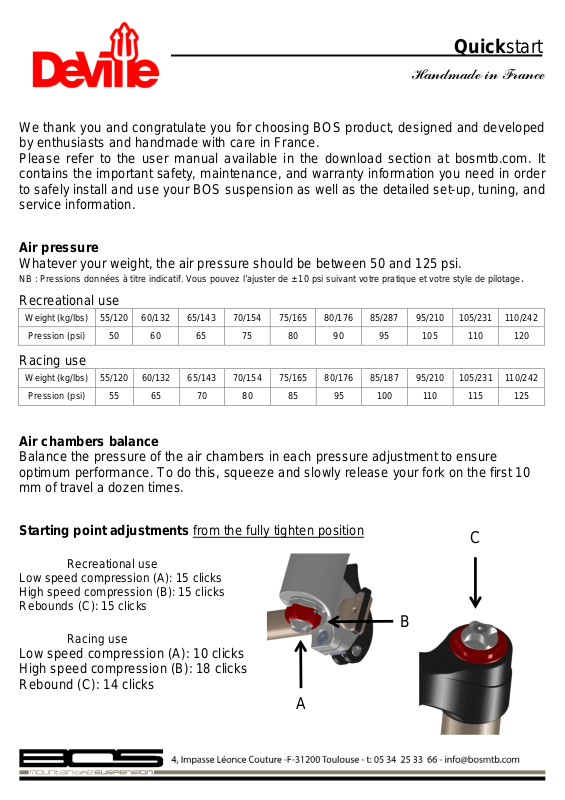

Quickstart

We thank you and congratulate you for choosing BOS product, designed and developed
by enthusiasts and handmade with care in France.
Please refer to the user manual available in the download section at bosmtb.com. It
contains the important safety, maintenance, and warranty information you need in order
to safely install and use your BOS suspension as well as the detailed set-up, tuning, and
service information.

Air pressure
Whatever your weight, the air pressure should be between 50 and 125 psi.

NB : Pressions données à titre indicatif. Vous pouvez l’ajuster de ± 10 psi suivant votre pratique et votre style de pilotage.

Recreational use

Weight (kg/lbs) 55/120 60/132 65/143 70/154 75/165 80/176 85/287 95/210 105/231 110/242

Pression (psi) 50 60 65 75 80 90 95 105 110 120

Racing use

Weight (kg/lbs) 55/120 60/132 65/143 70/154 75/165 80/176 85/187 95/210 105/231 110/242

Pression (psi) 55 65 70 80 85 95 100 110 115 125

Air chambers balance
Balance the pressure of the air chambers in each pressure adjustment to ensure
optimum performance. To do this, squeeze and slowly release your fork on the first 10
mm of travel a dozen times.

Starting point adjustments from the fully tighten position

Recreational use
Low speed compression (A): 15 clicks
High speed compression (B): 15 clicks
Rebounds (C): 15 clicks

Racing use

Low speed compression (A): 10 clicks

C

B

High speed compression (B): 18 clicks
Rebound (C): 14 clicks

A
