Bos Deville User Manual

Model year 2014

USER MANUAL

WARRANTY

Terms and conditions

BOS MTB offers warranty on its products on the following terms :
BOS MTB guarantees to the original purchaser that the BOS
product for which they received this warranty is free from defects in
material and workmanship for one year from the date of original
retail purchase. A proof a purchase will be asked for any warranty
claim. This warranty is not transferable to a subsequent purchaser.
Wear and tear parts such as dust seals, Oring, bushings, rear shock
mouting hardwares, stanchions, threaded parts and bolts are not
covered under this warranty.

Terms

This warranty is subject to legal jurisdictional or warranty rights of
the country where it has been originally purchased, which will prevail
if different from the terms herein listed.

Limits

BOS MTB cannot be liable for any loss, inconvenience damages,
whether direct, incidental, consequential, resulting from the use of its
products, local legislation prevailing.

Warranty exclusions

This warranty does not cover the following cases:

• Damage to products resulting from improper assembly other than
listed below

• Products that have been modified by the owner or a third party

• Improper use

• Damages resulting from an accident, crash under any
circumstances

• Invalid servicing procedures and servicing time frame not
respected

• Replacement of the original parts by parts from others
manufacturers

• Products whose serial numbers has been altered, defaced or
removed.

Warranty procedure

The owner should always refer to an approved BOS center for any
warranty claim. A proof a purchase is compulsory for any warranty
claim. Otherwise the warranty claim will not be considered. Always
contact BOS MTB warranty department before returning any
products that may fall under this warranty. If “the faulty parts” do not
fall under warranty, the customer will be charged for any costs in
respect with warranty such as transport and package back and forth.

SETTINGS & MAINTENANCE

>>>

1. ASSEMBLY

Fitting your Idylle onto your bike demands care and attention.
For your safety, please do respect the following instructions.

1.1. the steerer tube

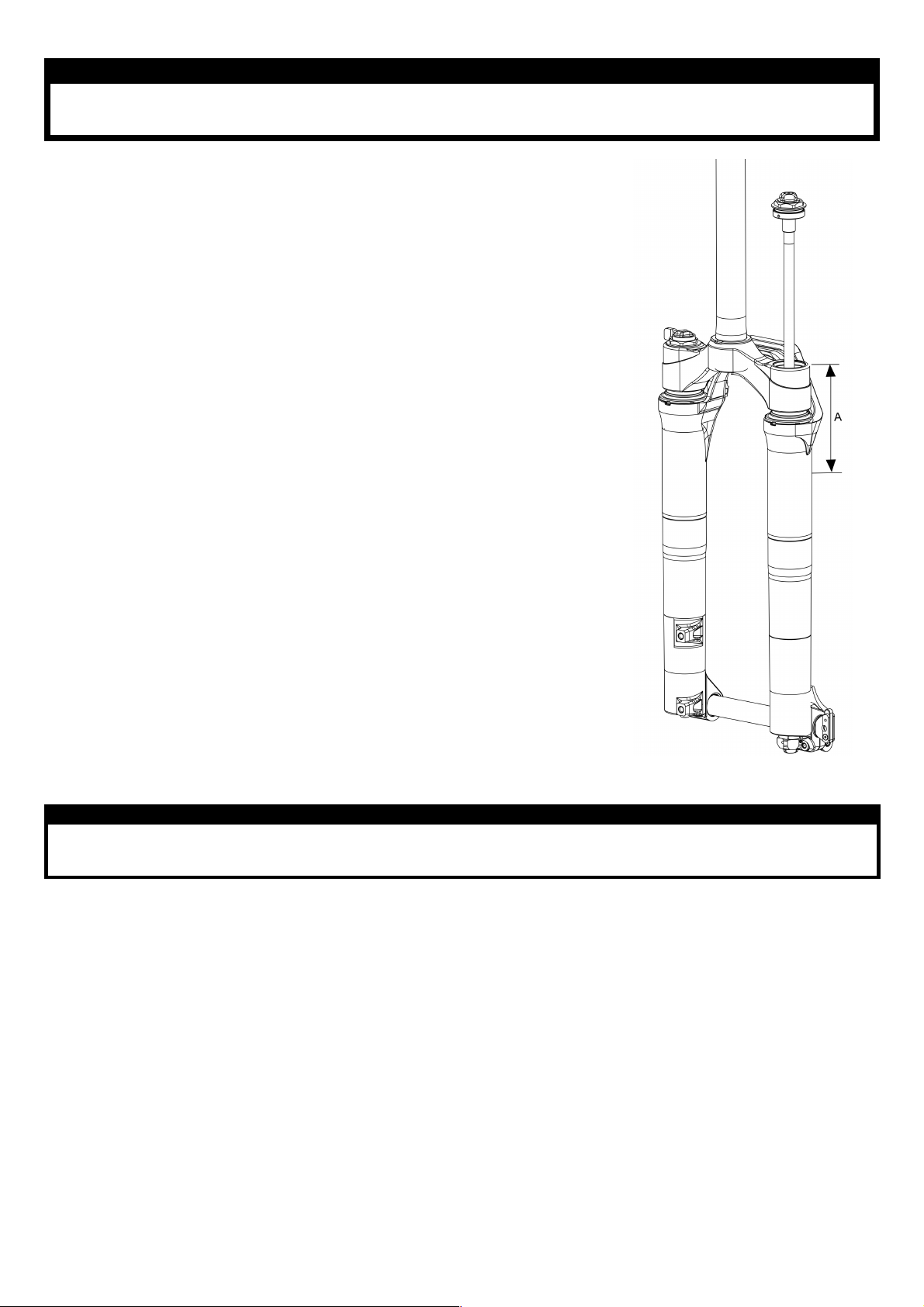

Before cutting the steerer tube, first you have to take some measurements : height of the headset, length of the
headtube of the frame, height of the stem and then add 5 to 10mm.

Calculate the lenght as below :

Add the length of the headtube of the frame to the height of the headset and to height of the headset plus 5 to

10mm.

CAUTION

Never attempt to remove or replace the steerer or upper tubes independently from the crown. Modifying the
integrated crown, steerer, or upper tubes can cause an assembly failure, resulting in a loss of control of the
bicycle and serious injury.

1.2. INSTALLING THE FRONT WHEEL (20mm or 15mm axle)

To assemble the front wheel, check the following procedure

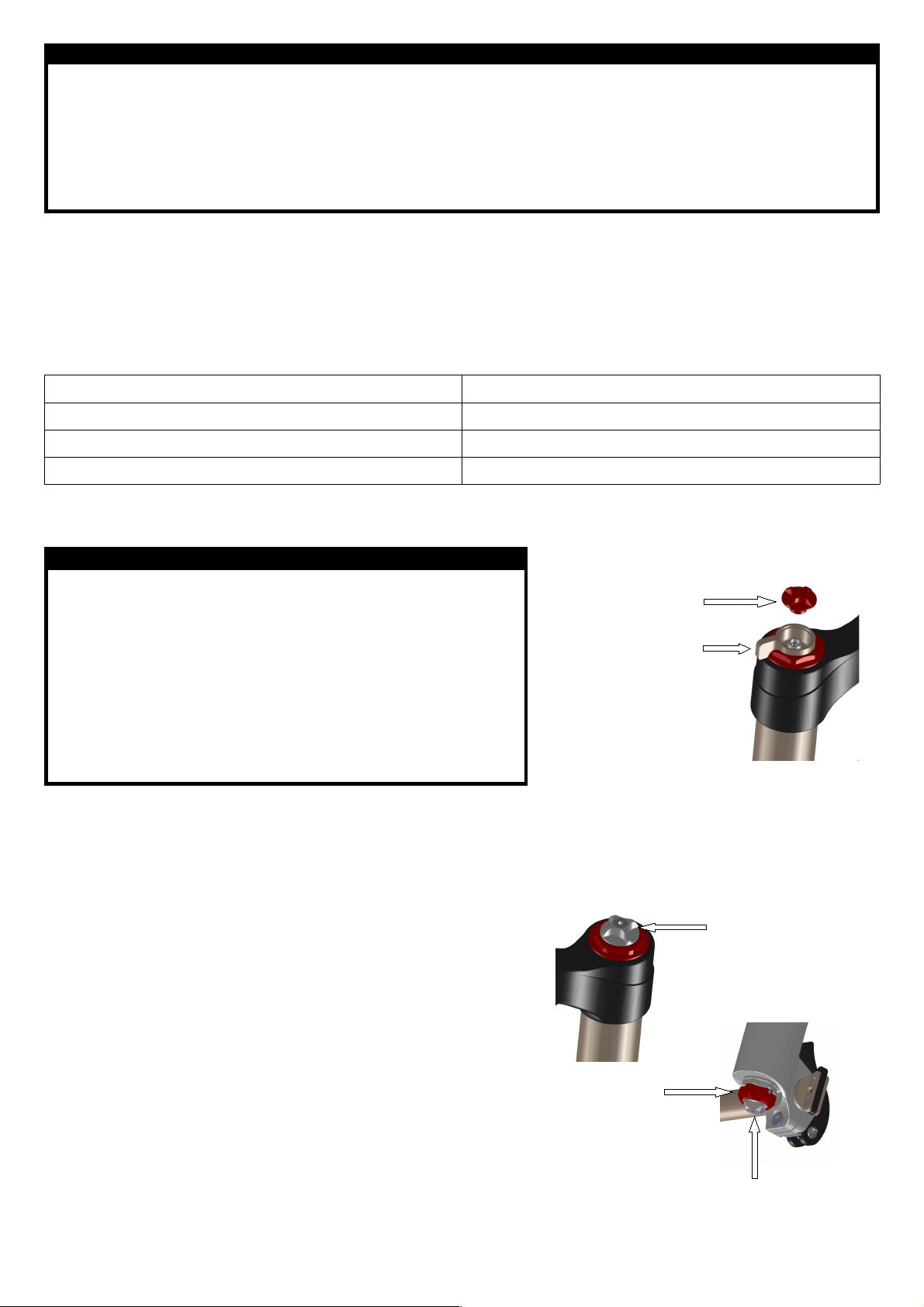

1. Open the quick release on right side of the fork (1).

2. Open the folding lever (2)

3. Unscrew the axle (3) and remove it

4. Install the wheel.

5. Insert the axle and screw it completely. Fold the lever. Close the quick release.

IMPORTANT

The torque of the QR screws (A) is originally settled between 4 and 4,5 N.m. It may be useful to check it
regularly.

1.3. MONTING THE 15mm AXLE ADAPTATER SLEEVE

The transition from 20mm to 15mm axle requires the mounting of an adapter sleeve on the left side of the legs. To

assemble the adapter, proceed as follows:

– Screw by hand the 15mm adapter sleeve (1)
– Tighten up to the torque 12N.m
– Refer to the section 1.2 for the 15mm axle wheel mounting

(1)
