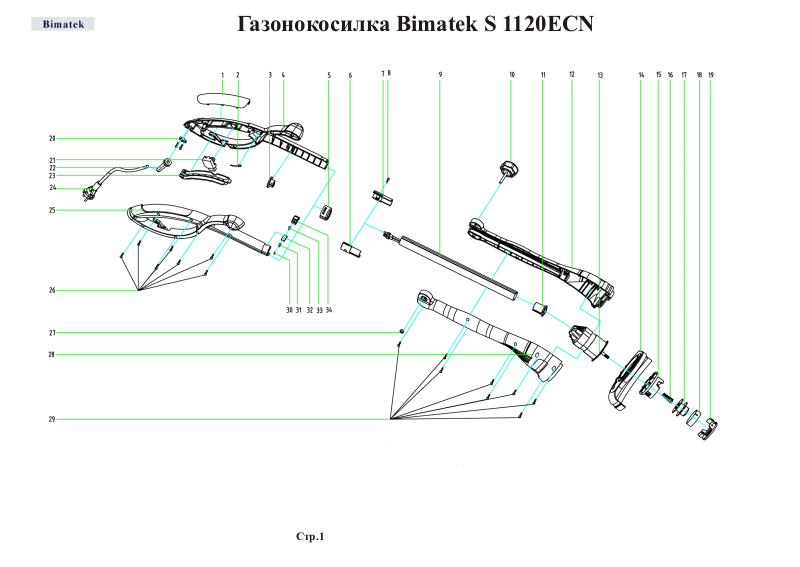

BORK S 1120ECN Explode view

Газонокосилка Bimatek S 1120ECN

Ñòð.1

Art. Item Parts Name
S1120-1 1 Hose
S1120-2 2 Capacitor - 0.33uF250V
S1120-3 3 Lever Holder Assembly

Upper Receptacle
Lower Receptacle
Connector
Self Tapping Screw
Coffee Wire
Blue Wire

Copper Joint
S1120-4 4 Left Handle Housing
S1120-5 5 Iron Bushing
S1120-6 6 Left Back Block
S1120-7 7 Right Back Block
S1120-8 8 Self Tapping Screw
S1120-9 9 Aluminium Tube Assembly

Aluminium Tube

Spring Wire with a Plug
S1120-10 10 Knob
S1120-11 11 Front Block
S1120-12 12 Left Chief Housing
S1120-13 13 Motor Assembly

Stator

Armature

Stator

Armature

Front Motor

Back Motor

Bearing

Bearing

Carbon Brush

Carbon Brush Holder

Connector

Flat Washer

Screw

Screw

Ñòð.2
