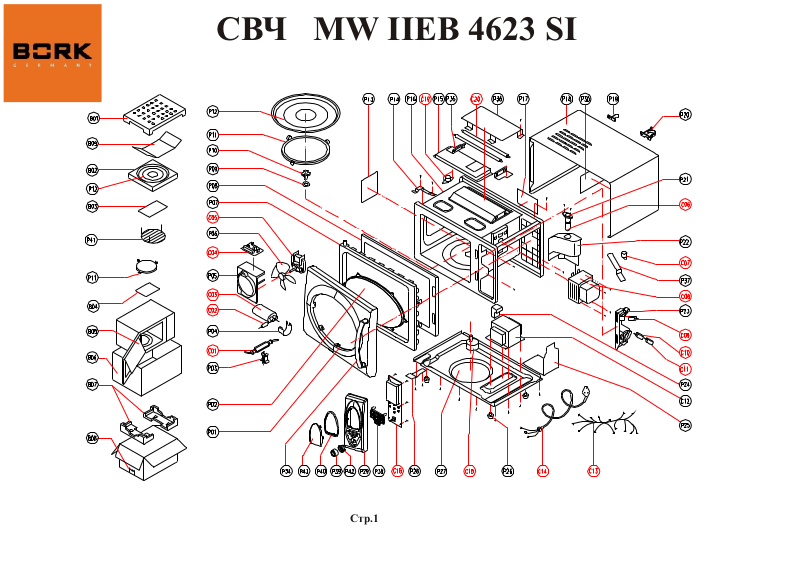

BORK MW IIEB 4623 SI Exploded view

ÑÂ× MW IIEB 4623 SI

Ñòð.1

Перечень запасных частей на СВЧ

Номер на чертеже Наименование Номер на чертеже Наименование
MW IIEB 4623 SI-P01 door (with inlaids) MW IIEB 4623 SI-C01 h.v. fuse
MW IIEB 4623 SI-P02 door window MW IIEB 4623 SI-C02 h.v. diode
MW IIEB 4623 SI-P03 fuse socket MW IIEB 4623 SI-C03 h.v. capacitor
MW IIEB 4623 SI-P04 capacitor holder MW IIEB 4623 SI-C04 wave filter
MW IIEB 4623 SI-P05 fan shroud MW IIEB 4623 SI-C05 fan motor
MW IIEB 4623 SI-P06 fan blade MW IIEB 4623 SI-C06 lamp
MW IIEB 4623 SI-P07 door frame MW IIEB 4623 SI-C07 thermostat
MW IIEB 4623 SI-P08 choke cover MW IIEB 4623 SI-C08 magnetron
MW IIEB 4623 SI-P09 washer MW IIEB 4623 SI-C09 microswitch
MW IIEB 4623 SI-P10 shaft MW IIEB 4623 SI-C10 microswitch
MW IIEB 4623 SI-P11 roller ring MW IIEB 4623 SI-C11 microswitch
MW IIEB 4623 SI-P12 glass tray MW IIEB 4623 SI-C12 transformer
MW IIEB 4623 SI-P13 splash shield MW IIEB 4623 SI-C13 wiring harness
MW IIEB 4623 SI-P14 upper hinge MW IIEB 4623 SI-C14 power cord
MW IIEB 4623 SI-P15 air guide MW IIEB 4623 SI-C15 turntable motor
MW IIEB 4623 SI-P16 cavity MW IIEB 4623 SI-C16 p.c. board
MW IIEB 4623 SI-P17 label MW IIEB 4623 SI-C19 thermostat
MW IIEB 4623 SI-P18 outer enclosure MW IIEB 4623 SI-C20 heater of convection
MW IIEB 4623 SI-P19 heater holder MW IIEB 4623 SI-B01 upper foam cushion
MW IIEB 4623 SI-P20 power cord holder MW IIEB 4623 SI-B02 turntable cushion
MW IIEB 4623 SI-P21 lamp socket MW IIEB 4623 SI-B03 plastic bag
MW IIEB 4623 SI-P22 air duct MW IIEB 4623 SI-B04 manual
MW IIEB 4623 SI-P23 microswitch mounting MW IIEB 4623 SI-B05 protection film
MW IIEB 4623 SI-P26 foot MW IIEB 4623 SI-B06 plastic bag
MW IIEB 4623 SI-P27 base plate MW IIEB 4623 SI-B07 lower cushion
MW IIEB 4623 SI-P28 lower hinge MW IIEB 4623 SI-B08 carton
MW IIEB 4623 SI-P29 keyboard (with inlaids) MW IIEB 4623 SI-B09 cardboard
MW IIEB 4623 SI-P30 Insulation film
MW IIEB 4623 SI-P34 handle
MW IIEB 4623 SI-P35 heater bracket
MW IIEB 4623 SI-P36 outer heat insulated
MW IIEB 4623 SI-P37 base plate
MW IIEB 4623 SI-P38 key pads
MW IIEB 4623 SI-P39 knob
MW IIEB 4623 SI-P40 display
MW IIEB 4623 SI-P41 baking plate
MW IIEB 4623 SI-P42

decor at e r i ng

MW IIEB 4623 SI-P43

decor at e r i ng

MW IIEB 4623 SI

Ñòð.2
