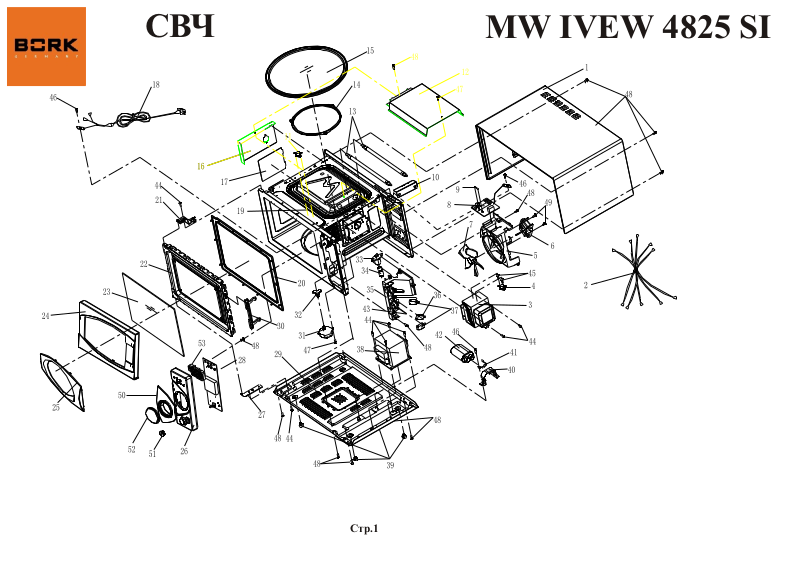

Перечень запасных частей СВЧ MW IWEW 4825

Номер на чертеже Название детали Спецификация MW IVEW 4825-1 Cabine t SECC T=0. 6 MW IVEW 4825-2 Wireassy MW IVEW 4825-3 Magnetron 2M219J 900W MW IVEW 4825-4 Magnetron thermostat 150°C MW IVEW 4825-5 Windg uide MW IVEW 4825-6 Fanmotor MW IVEW 4825-7 Fan MW IVEW 4825-8 MW IVEW 4825-9 Fuse MW IVEW 4825-10 MW IVEW 4825-11 thermostat 90°C MW IVEW 4825-12 Top Cover SECC T=0. 4 MW IVEW 4825-13 MW IVEW 4825-14 TT-ring assembly MW IVEW 4825-15 Turnta ble ? 315 1260g MW IVEW 4825-16 Left Cover SECC T=0. 4 MW IVEW 4825-17 Mica plate MW IVEW 4825-18 Power Code MW IVEW 4825-19 Cavity assembly MW IVEW 4825-20 Gas ket MW IVEW 4825-21 Stopper_top assembly MW IVEW 4825-22 Door_plate assembly SECC T=0. 6 MW IVEW 4825-23 Gl ass MW IVEW 4825-24 Door frame MW IVEW 4825-25 MW IVEW 4825-26 Control pannel assembl MW IVEW 4825-27 Stopper_under assembly MW IVEW 4825-28 MW IVEW 4825-29 Base plate MW IVEW 4825-30 Hook MW IVEW 4825-31 Turntable motor MW IVEW 4825-32 TT-driver MW IVEW 4825-33 Lamp holder MW IVEW 4825-34 Lamp MW IVEW 4825-35 Loc k MW IVEW 4825-36 Interlock switch MW IVEW 4825-37 Monitor switch MW IVEW 4825-38 Hi gh-voltage trasformer MW IVEW 4825-39 Foot MW IVEW 4825-40 Holder H.V.C SECC T=0. 6 MW IVEW 4825-41 Hi gh-voltage diode MW IVEW 4825-42 Hi gh-voltage capacitor 1.05 + 0. 03uF MW IVEW 4825-43 Lever MW IVEW 4825-44 9# Screw MW IVEW 4825-45 16# Screw MW IVEW 4825-46 5# Screw MW IVEW 4825-47 3# Screw MW IVEW 4825-48 6# Screw MW IVEW 4825-49 Screw 4X25 MW IVEW 4825-50 MW IVEW 4825-51 MW IVEW 4825-52 MW IVEW 4825-53
