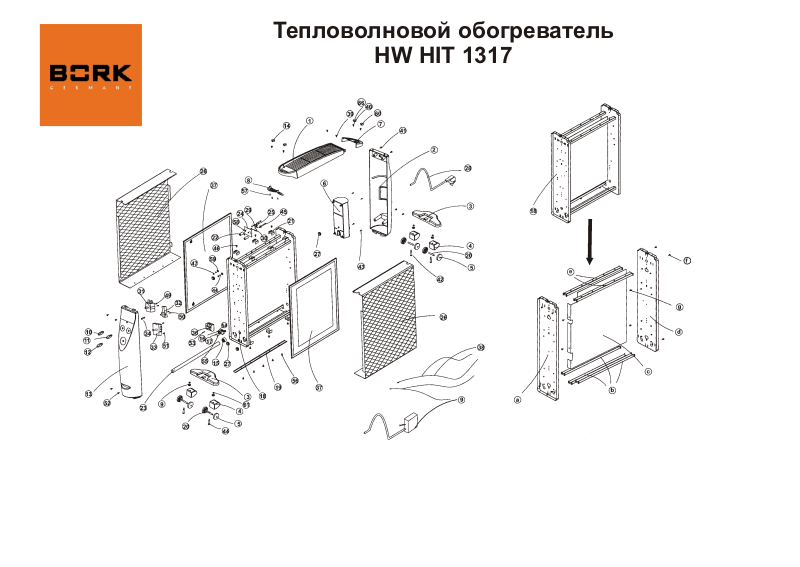

BORK HW HIT 1317 Exploded view

Тепловолновой обогреватель
HW HIT 1317

Перечень запасных частей тепловолнового

NO Art. NAME MATERIAL

1 HW HIT 1317-1 cover pp
2 HW HIT 1317-2 back panel pp
3 HW HIT 1317-3 bracket ABS
4 HW HIT 1317-4 wheel bracket pp
5 HW HIT 1317-5 truckle PP
6 HW HIT 1317-6 connect cordbox PP
7 HW HIT 1317-7 tip PP
8 HW HIT 1317-8 handle cover PP

9 HW HIT 1317-9 ionizer PP
10 HW HIT 1317-10 power on/off switch ABS
11 HW HIT 1317-11 temperature ABS
12 HW HIT 1317-12 timer switch ABS
13 HW HIT 1317-13 front panel PP
14 HW HIT 1317-14 bolt cover PP
15 HW HIT 1317-15 cord terminal PP
16 HW HIT 1317-16 cord fix board ABS
17 HW HIT 1317-17 cord fix board ABS
18 HW HIT 1317-18 bracket parts

18(a) HW HIT 1317-18(a) front board 0.8
18(b) HW HIT 1317-18(b) fix strip 0.8
18(c) HW HIT 1317-18(c) split parts
18(d) HW HIT 1317-18(d) behind board
18(e) HW HIT 1317-18(e) fix strip 0.8

18(f) HW HIT 1317-18(f) bolt

18(g) HW HIT 1317-18(g) bolt

19 HW HIT 1317-19 web fix slice ST4X12FT
20 HW HIT 1317-20 axle ST4X12FT

21 HW HIT 1317-21 fix button 0.8

22

HW HIT 1317-22 supporter
23 HW HIT 1317-23 aluminium tube
24 HW HIT 1317-24 protect board 5 0.8
25 HW HIT 1317-25 rivet 45#

0.6

0.8

45#

обогревателя HW HIT 1317

Ñòð.2

26 HW HIT 1317-26 metal web 1
27 HW HIT 1317-27 rubber loop rubber
28 HW HIT 1317-28 power cord 125V/12A 1.25mm L=2m
29 HW HIT 1317-29 temperature switch 125V/15A Tf:120° C
30 HW HIT 1317-30 fuse 125V/15A Tf:128° C
31 HW HIT 1317-31 power switch 250V/16A
32 HW HIT 1317-32 thermostat 125V/15A Tf:95° C
33 HW HIT 1317-33 timer 100V/12A 50Hz/60Hz
34 HW HIT 1317-34 neon light 100V/50Hz 60Hz

36 HW HIT 1317-36 trinomial board

400V/4mm

2

37 HW HIT 1317-37 heating parts 100V/650W
38 HW HIT 1317-38 1015/2133 16AWG
39 HW HIT 1317-39 bolt ST4X12FT
40 HW HIT 1317-40 bolt ST4X12FT
41 HW HIT 1317-41 bolt ST4X10C
42 HW HIT 1317-42 bolt. M4X30
43 HW HIT 1317-43 bolt ST4X20C
44 HW HIT 1317-44 spring gasket 4
45 HW HIT 1317-45 bolt M4X30
46 HW HIT 1317-46 bolt ST4X12C
47 HW HIT 1317-47 nut M4
48 HW HIT 1317-48 bolt ST4X12C
49 HW HIT 1317-49 bolt ST3X20C
50 HW HIT 1317-50 bolt M3X16
51 HW HIT 1317-51 bolt ST3X25C
52 HW HIT 1317-52 bolt ST4X10C
53 HW HIT 1317-53 bolt ST4X25C
54 HW HIT 1317-54 bolt ST4X25C
55 HW HIT 1317-55 bolt M3X25
56 HW HIT 1317-56 bolt ST4X12C
57 HW HIT 1317-57 bolt ST3X12C
58 HW HIT 1317-58 gasket 02.5
59 HW HIT 1317-59 gasket 4
60 HW HIT 1317-60 right bolt cover PP
61 HW HIT 1317-61
62 HW HIT 1317-62
63 HW HIT 1317-63
64 HW HIT 1317-64 gasket 3
65 HW HIT 1317-65 gasket 3
66 HW HIT 1317-66 let bot cover PP

Ñòð.3

Схема электрических соединений

Ñòð.4
