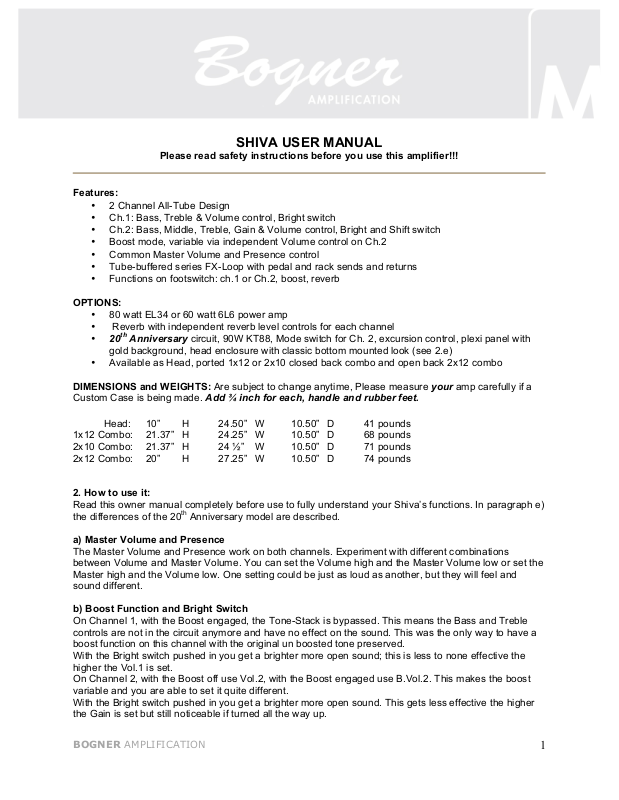

SHIVA USER MANUAL
Please read safety instructions before you use this amplifier!!!
Features:
•2 Channel All-Tube Design
•Ch.1: Bass, Treble & Volume control, Bright switch
•Ch.2: Bass, Middle, Treble, Gain & Volume control, Bright and Shift switch
•Boost mode, variable via independent Volume control on Ch.2
•Common Master Volume and Presence control
•Tube-buffered series FX-Loop with pedal and rack sends and returns
•Functions on footswitch: ch.1 or Ch.2, boost, reverb
OPTIONS:
•80 watt EL34 or 60 watt 6L6 power amp
•Reverb with independent reverb level controls for each channel
•20th Anniversary circuit, 90W KT88, Mode switch for Ch. 2, excursion control, plexi panel with gold background, head enclosure with classic bottom mounted look (see 2.e)
•Available as Head, ported 1x12 or 2x10 closed back combo and open back 2x12 combo
DIMENSIONS and WEIGHTS: Are subject to change anytime, Please measure your amp carefully if a Custom Case is being made. Add¾inch for each, handle and rubber feet.
Head: |
10” |
H |
24.50” |
W |
10.50” |
D |
41 pounds |
1x12 Combo: |
21.37” |
H |
24.25” |
W |
10.50” |
D |
68 pounds |
2x10 Combo: |
21.37” |
H |
24½” |
W |
10.50” |
D |
71 pounds |
2x12 Combo: |
20” |
H |
27.25” |
W |
10.50” |
D |
74 pounds |
2. How to use it:
Read this owner manual completely before use to fully understand your Shiva’s functions. In paragraph e) the differences of the 20th Anniversary model are described.
a) Master Volume and Presence
The Master Volume and Presence work on both channels. Experiment with different combinations between Volume and Master Volume. You can set the Volume high and the Master Volume low or set the Master high and the Volume low. One setting could be just as loud as another, but they will feel and sound different.
b) Boost Function and Bright Switch
On Channel 1, with the Boost engaged, the Tone-Stack is bypassed. This means the Bass and Treble controls are not in the circuit anymore and have no effect on the sound. This was the only way to have a boost function on this channel with the original un boosted tone preserved.
With the Bright switch pushed in you get a brighter more open sound; this is less to none effective the higher the Vol.1 is set.
On Channel 2, with the Boost off use Vol.2, with the Boost engaged use B.Vol.2. This makes the boost variable and you are able to set it quite different.
With the Bright switch pushed in you get a brighter more open sound. This gets less effective the higher the Gain is set but still noticeable if turned all the way up.
BOGNER AMPLIFICATION |
1 |
c) Effects Loop
Your individual channel volume levels control how hot the effects loop send signal is, depending on the effect unit you may have to keep the channel volumes lower but you can then turn up the "Global Master Volume" to control your amps overall volume. The Shiva's Loop is a series Loop between the Pre and Power Amp, if you have an older version Shiva made prior to 12/1/05 see below for special info. Current version Shiva’s made after 12/1/05 now have two Effect loop sends and one effect loop return. One send is a low-level Pedal/Instrument level and the other send is a hotter-level Rack/Line effects level. You can only use ONE loop send at a time. This newer version Shiva eliminates the need for the special "Effects loop cable" that older version Shiva’s made prior to 12/1/05 sometimes needed to prevent effects from being overloaded from the hot loop send the older Shiva’s had. Current Shiva’s allow you to use the new low-level Pedal/Instrument level send for pedals and rack effects with inputs that overload easily. The new hotter-level Rack/Line level loop send is perfect for rack effects or pedal effects with a lot of headroom on their input stage. If you notice, after plugging in an effect through the loop that your tone is distorting or too compressed, try using the low-level Pedal/Instrument level send for pedals and rack effects with inputs that overload easily. If you're still overloading the effects input, remember to lower the individual channel volume levels since they control how hot the effects loop send signal is, you can then turn up the "Global Master Volume" to control your amps overall volume. If you would like to use the Shiva as a "Power Amp" only with other manufactures Preamps, plug your external preamps output into the "Power Amp In" Input jack on the back panel, located near the Effects Loop section. The "Power Amp In" bypasses the Shiva's preamp, you can still use the Master volume and Presence controls since these controls are part of the power amp circuit.
NOTE for Older Shiva's made prior to 12/1/05 Effects Loop: The Loop is a series Loop between the Pre and Power Amp; designed for line level-Fx (we used a Rocktron Intelifex). If you want to use an instrument level (floor) Effect unit or if your line level (rack) Effect unit is too sensitive for the hot send signal, you can use our special built in Boost Amp. All you need is a special level ducking cable, available from us or you can make your own, see the "How to Make Effects Cable" link on Shiva portion of our website. Plug this special cable between the Effects Loop Send output and Input of your Effect unit, make sure to insert into the Effects unit input the modified 1/4" plug. Plug the output of your Effects into the input of the Boost Amp (located on the back) and hook up the output of the Boost Amp to the return of the Fx Loop with a short jumper cable. This is necessary because of the lower output send level so it does not distort the input of your FX but we have to bring the level back up after it leaves the FX in order to keep the original tone of the amp. Remember (if you use the Loop) the Channel Volume controls work like send levels, the higher you set the Volume, the more Level comes into the Effect. Set the Master Volume for overall Volume. The Loop circuit is always in the sound chain (even if nothing is hooked up to it). If you want to bypass your FX, you would have to do it on the FX unit.
If you plug into the send you tap the signal of the Pre Amp and you could also send it to a recording device, mixer or another power amp etc. It would not be necessary to return the signal back into the amp. On the other hand if you plug into the return you disconnect the Pre Amp from the Power Amp. You could use your Shiva just as a Power Amp. As always, you must have the amp under load from a speaker cab or load box or damage may occur.
d) Reverb
If you switch the Reverb in, you hear a slight level loss. This is because the reverb circuit loads the amp down. On most amps you don't hear that because they don't have real reverb bypass and the amp is down loaded all the time. We decided not to do this because we like the open sound of the amp if you don't use the reverb. It is possible to change that with a very easy modification. Contact the factory for details. You have individual Reverb controls for each channel located on the back panel.
BOGNER AMPLIFICATION |
2 |
