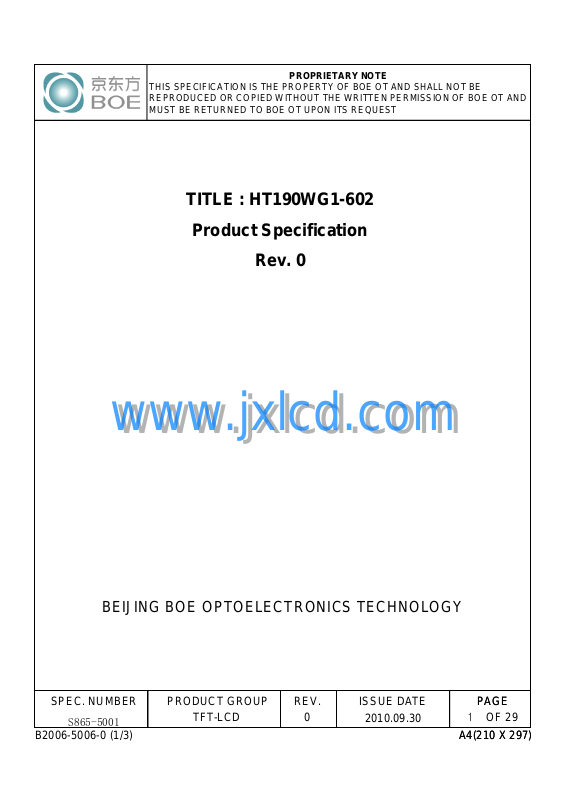

BOE OPTOELECTRONICS HT190WG1-602 SPECIFICATION

PROPRIETARY NOTE

THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OT AND
MUST BE RETURNED TO BOE OT UPON ITS REQUEST

TITLE : HT190WG1-602

Product Specification

Rev. 0

www.jxlcd.com

www.jxlcd.com

BEIJING BOE OPTOELECTRONICS TECHNOLOGY

SPEC. NUMBER

S865-5001

B2006-5006-0 (1/3) A4(210 X 297)

PRODUCT GROUP REV. ISSUE DATE

TFT-LCD

2010.09.30

PAGE

PAGE

1

OF 290

A4(210 X 297)

PRODUCT GROUP

TFT- LCD PRODUCT 0 2010.09.30

REVISION HISTORY

REV. ECN No. DESCRIPTION OF CHANGES DATE PREPARED

0 Initial Release 2010.09.30’ Hu Ming

REV

ISSUE DATE

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S865-5001

SPEC. TITLE PAGE

2

HT190WG1-602 Product Specification

OF 29

B2006-5006-0 (2/3) A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

2010.09.30

Contents

No. Item Page

1.0 General Description 4

2.0 Absolute Maximum Ratings 6

3.0 Electrical specifications 7

4.0 Optical specifications 8

5.0 Interface Connection 10

6.0 Signal Timing Specifications 14

7.0 Signal Timing waveforms of Interface Signal 16

8.0 Input Signals, Display Colors & Gray Scale of Colors 18

9.0 Power Sequence 19

10.0 Mechanical Characteristics 20

www.jxlcd.com

11.0 Reliability Test 21

12.0 Handling & Cautions 22

13.0 Product Serial Number 23

14.0 Packing 24

15.0 Appendix 26

www.jxlcd.com

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

3

OF 29

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

1.0 General Description

1.1 Introduction

HT190WG1-602 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 19.0 inch
diagonally measured active area with WXGA+ resolutions (1440 horizontal by 900 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16,7 M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.

CN21
CN22

Connector (CN

LVDS
Input
Signal

LVDS Rx

+

T/CON

+

Mini-LVDS Tx

G1

…………

Source Driver

S1

…………

S1440

TFT LCD Panel

2010.09.30

www.jxlcd.com

www.jxlcd.com

VDD

1

)

1.2 Features

 LVDS Interface with 2 pixel / clock
 High-speed response
 Low power consumption
 6-bit (Hi-FRC) color depth, display 16,7 M colors
 Incorporated edge type back-light (Four lamps)
 High luminance and contrast ratio, low reflection and wide viewing angle
 DE (Data Enable) only
 RoHS Compliance
 TCO03 Compliance

DC/DC

Gamma

Vcom

1440 ×××× 900

G900

CN23
CN24

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

4

OF 29

PRODUCT GROUP

REV

ISSUE DATE

1.3 Application

 Desktop Type of PC & Workstation Use
 Slim-Size Display for Stand-alone Monitor
 Display Terminals for Control System
 Monitors for Process Controller

1.4 General Specification

The followings are general specifications at the model HT190WG1-602.

<Table 1. General Specifications>

Parameter Specification Unit

0TFT- LCD PRODUCT

2010.09.30

Remarks

Active area 408.24(H) × 255.15(V) mm
Number of pixels 1440(H) ×900(V) pixels
Pixel pitch 0.2835(H) ×0.2835(V) mm
Pixel arrangement RGB Vertical stripe
Display colors 16.7M colors
Display mode Normally White
Dimensional outline 428.0(H) × 278.0(V) × 17.0 (D) typ. mm
Weight 2000 (max.) g
Surface Treatment Haze 25%, 3H
Back-light Top/Bottom edge side, 4-CCFL type

www.jxlcd.com

www.jxlcd.com

± 0.5mm

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

5

OF 29

PRODUCT GROUP

2 0

2 02 0

2 0

4 0

4 04 0

4 0

1 0 0

1 0 01 0 0

1 0 0

REV

ISSUE DATE

0TFT- LCD PRODUCT

2.0 ABSOLUTE MAXIMUM RATINGS

The followings are maximum values which, if exceed, may cause faulty operation or

damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.

< Table 2. Absolute Maximum Ratings>

Symbol Min. Max. Unit Remarks

Parameter

Power Supply Voltage V
Logic Supply Voltage V
Back-light Lamp Current I
Back-light Lamp frequency F
Operating Temperature T
Storage Temperature T

BL

DD

IN

OP

ST

VSS-0.5 6.5 V
VSS-0.3 VDD+0.3 V

3 8 mA

L

30 80 kHz

0 +50

-20 +60

[VSS=GND=0V]

℃

℃

2010.09.30

Ta = 25 ℃

Note 1
Note 1

Note : 1) Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39 OC max. and no condensation of water.

www.jxlcd.com

www.jxlcd.com

90

8 0

8 0

8 08 0

6 0

6 0

6 06 0

O p e ra tin g R a n g e

O p e ra tin g R a n g e

O p e ra tin g R a n g eO p e ra tin g R a n g e

4 0

4 0

4 04 0

Relative Humidity (%RH)

Relative Humidity (%RH)

Relative Humidity (%RH)

Relative Humidity (%RH)

-2 0

-2 0-2 0

2 0

2 0

2 02 0

S to ra g e R a n g e

S to ra g e R a n g e

S to ra g e R a n g eS to ra g e R a n g e

5

0000

T e m p e ra tu re (˚C )

T e m p e ra tu re (˚C )

T e m p e ra tu re (˚C )T e m p e ra tu re (˚C )

6 0

6 0 8 0

6 06 0

8 0-2 0

8 08 0

SPEC. NUMBER

S865-5001

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

6

OF 29

B2006-5006-0 (3/3) A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

2010.09.30

3.0 ELECTRICAL SPECIFICATIONS

3.1Electrical Specifications

< Table 3. Electrical specifications >

Parameter

Power Supply Voltage V
Power Supply Current I
In-Rush Current I
Permissible Input Ripple Voltage V
High Level Differential Input

Threshold Voltage
Low Level Differential Input

Threshold Voltage
Back-light Lamp Voltage V
Back-light Lamp Current I
Back-light Lamp operating Frequency F

Lamp Start Voltage

www.jxlcd.com

Lamp Life 40,000 50,000 - Hrs IBL= 6.5 mA

www.jxlcd.com

DD

DD

RUSH

RF

V

IH

V

BL

BL

IL

L

Min. Typ. Max. Unit Remarks

4.5 5.0 5.5 V

- 800 1100 mA

- 2.0 3.0 A Note 2

- - 100 mV VDD= 5.0V

- - +100 mV

-100 - - mV

- 740 - V

3.0 6.5 8.0 mA
45 - 60 KHz Note 3

- - 1400 V

- - 1700 V

rms

rms

rms

rms

[Ta =25±2 ℃]

Note1

Vcm = 1.2V typ.

25℃, Note 4
0℃, Note 4

P

D

Power Consumption

Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.

The current draw and power consumption specified is for VDD=5.0V, Frame rate=76Hz and
Clock frequency =56.3MHz. Test Pattern of power supply current

a) Typ : Color Bar pattern
b) Max : Dot pattern

P

BL

P

total

- 4.0 W

- 19.24 W IBL=6.5mA, Note 5

- 23.24 W

2. Duration of rush current is about 2 ms and rising time of VDD is 520 μs ± 20 %

3. The lamp frequency should be selected as different as possible from the horizontal
synchronous frequency and its harmonics to avoid interference, which may cause line flow on the display

4. The voltage above this value should be applied to the lamps for more than 1 second to start-up. Otherwise the

lamps may not be turned on.

5. Calculated value for reference (VBL× IBL) ×4 excluding inverter loss.

SPEC. NUMBER

S865-5001

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

7

OF 29

B2006-5006-0 (3/3) A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

2010.09.30

4.0 OPTICAL SPECIFICATION

4.1 Overview

The test of Optical specifications shall be measured in a dark room (ambient luminance ≤ 1 lux and temperature =
25±2℃) with the equipment of Luminance meter system (Goniometer system and TOPCONE BM-5) and test unit shall
be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0°. We refer
to θ

θ9) as the 9 o’clock direction (“left”) and θ

Ø, the center of the measuring spot on the Display surface shall stay fixed. The measurement shall be executed after 30
minutes warm-up period. VDD shall be 5.0V +/-10% at 25°C. Optimum viewing angle direction is 6 ’clock.

4.2 Optical Specifications

Viewing Angle range

Viewing Angle range

Luminance Contrast ratio CR
Luminance of White Y

White luminance uniformity ΔY 75 80 % Note 4

(=θ3) as the 3 o’clock direction (the “right”), θ

Ø=0

Ø=270

(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θ and/or

(= θ12) as the 12 o’clock direction (“upward”), θ

Ø=90

[VDD = 5.0V, Frame rate = 60Hz, Clock = 54MHz, IBL= 6.5mA, Ta =25±2 ℃]

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Θ

Horizontal

Vertical

Horizontal

www.jxlcd.com

Vertical

www.jxlcd.com

White

Reproduction

of color

Response

Time

Cross Talk CT - - 2.0 % Note 7

Red

Green

Blue

Rising T

Falling T

3

Θ

9

Θ

12

Θ

6

Θ

3

Θ

9

Θ

12

Θ

6

w

W

x

W

y

R

x

R

y

G

x

G

y

B

x

B

y

r

f

CR > 10

CR > 5

Θ = 0°

(Center)

Normal

Viewing

Angle

Ta= 25° C

Θ = 0°

70 85 - Deg.
70 85 - Deg.
70 80 - Deg.
70 80 - Deg.
85 - - Deg.
85 - - Deg.
85 - - Deg.

85 - - Deg.
700 1000 Note 2
270 300 cd/m

0.283 0.313 0.343

0.299 0.329 0.359

0.610 0.640 0.670

0.306 0.336 0.366

0.249 0.279 0.309

0.573 0.603 0.633

0.110 0.140 0.171

0.038 0.068 0.098

1.5 2.5 ms

3.5 5.5 ms

2

Ø=180

Note 1

Note 3

Note 5

Note 6

(=

SPEC. NUMBER

S865-5001

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

8

OF 29

B2006-5006-0 (3/3) A4(210 X 297)

PRODUCT GROUP

ts ) * 100

REV

ISSUE DATE

0TFT- LCD PRODUCT

Note :

1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are
determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock
direction with respect to the optical axis which is normal to the LCD surface.

2. Contrast measurements shall be made at viewing angle of θ= 0° and at the center of the LCD
surface. Luminance shall be measured with all pixels in the view field set first to white, then

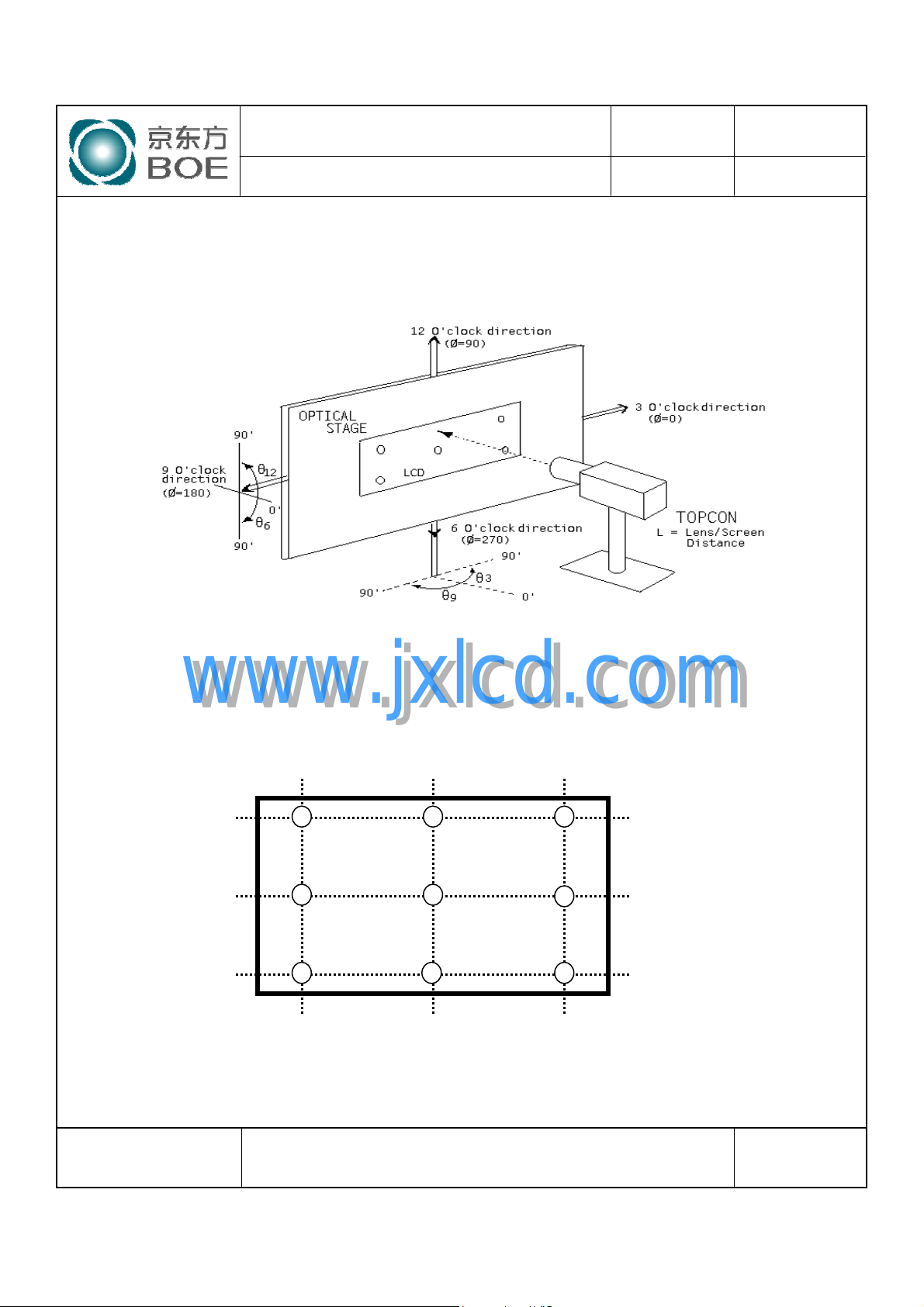

to the dark (black) state. (See FIGURE 1 shown in Appendix) Luminance Contrast Ratio
(CR) is defined mathematically.

CR =

3. Center Luminance of white is defined as the LCD surface. Luminance shall be measured with
all pixels in the view field set first to white. This measurement shall be taken at the locations
shown in FIGURE 2 for a total of the measurements per display.

4. The White luminance uniformity on LCD surface is then expressed as :
ΔY = ( Minimum Luminance of 9points / Maximum Luminance of 9poin
(See FIGURE 2 shown in Appendix).

5. The color chromaticity coordinates specified in Table 4. shall be calculated from the spectral

6. The electro-optical response time measurements shall be made as FIGURE 3 shown in

7. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the

www.jxlcd.com

data measured with all pixels first in red, green, blue and white. Measurements shall be made
at the center of the panel.

Appendix by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Td, and 90% to 10% is Tr.

luminance (YA) of a 25mm diameter area, with all display pixels set to a gray level, to the
luminance (YB) of that same area when any adjacent area is driven dark. (See FIGURE 4
shown in Appendix).

www.jxlcd.com

Luminance when displaying a white raster

Luminance when displaying a black raster

2010.09.30

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

9

OF 29

PRODUCT GROUP

REV

ISSUE DATE

5.0 INTERFACE CONNECTION.

5.1 Electrical Interface Connection

●

CN11 Module Side Connector : UJU IS100-L30O-C23 or Equivalent

User Side Connector : JAE FI-X30H or Equivalent

Pin No Symbol Function Remark

1 RXO0- Negative Transmission data of Pixel 0 (ODD)
2 RXO0+ Positive Transmission data of Pixel 0 (ODD)
3 RXO1- Negative Transmission data of Pixel 1 (ODD)
4 RXO1+ Positive Transmission data of Pixel 1 (ODD)
5 RXO2- Negative Transmission data of Pixel 2 (ODD)
6 RXO2+ Positive Transmission data of Pixel 2 (ODD)
7 GND Power Ground
8 RXOC- Negative Transmission Clock (ODD)

9 RXOC+ Positive Transmission Clock (ODD)
10 RXO3- Negative Transmission data of Pixel 3 (ODD)
11 RXO3+ Positive Transmission data of Pixel 3 (ODD)
12 RXE0- Negative Transmission data of Pixel 0 (EVEN)
13 RXE0+ Positive Transmission data of Pixel 0 (EVEN)
14 GND Power Ground

www.jxlcd.com

www.jxlcd.com

15 RXE1- Negative Transmission data of Pixel 1 (EVEN)
16 RXE1+ Positive Transmission data of Pixel 1 (EVEN)
17 GNG Power Ground
18 RXE2- Negative Transmission data of Pixel 2 (EVEN)
19 RXE2+ Positive Transmission data of Pixel 2 (EVEN)
20 RXEC- Negative Transmission Clock (EVEN)
21 RXEC+ Positive Transmission Clock (EVEN)
22 RXE3- Negative Transmission data of Pixel 3 (EVEN)
23 RXE3+ Positive Transmission data of Pixel 3 (EVEN)
24 GND Power Ground Note 1
25 (CE) LCD internal use only Internal Use
26 (CTL) Internal Use
27 NC No. Connection
28 VDD

30 VDD

0TFT- LCD PRODUCT

Power Supply: +5V29 VDD

2010.09.30

Note 1 : This pin should be connected with GND.

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

10

OF 29

PRODUCT GROUP

REV

ISSUE DATE

5.2 LVDS Interface (Tx; THC63LVDF83A or Equivalent)

5.2.1 ODD LVDS Interface

OUT0-

OUT1-

OUT2-

OUT3-

Interface

TFT-LCD

(Rx)

RXO0-

RXO0+

RXO1-

RXO1+

RXO2-

RXO2+

RXO CLK-

RXO CLK+

RXO3-

RXO3+

Input

Signal

OR0
OR1
OR2
OR3
OR4

OR5
OG0
OG1
OG2
OG3
OG4

O
D
D

L
V
D

S

OG5

OB0

www.jxlcd.com

www.jxlcd.com

OB1

OB2

OB3

OB4

OB5

Hsync
Vsync

DE

MCLK

OR6

OR7
OG6
OG7

OB6

OB7

RSVD

Transmitter Remark

Pin No.

51
52
54
55
56

3
4
6

7
11
12
14
15
19
20
22
23
24
27
28
30
31

50

2

8
10
16
18
25

Pin No.

48
47

46
45

42
41

40
39

38
37

System (Tx)

OUT0+

OUT1+

OUT2+

CLK OUT-

CLK OUT+

OUT3+

0TFT- LCD PRODUCT

HT190WG1-602

(CN11)
Pin No.

1
2

3
4

5
6

8
9

10
11

2010.09.30

SPEC. NUMBER

S865-5001

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

11

OF 29

B2006-5006-0 (3/3) A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

5.2.2 EVEN LVDS Interface

Input

Signal

ER0
ER1
ER2
ER3
ER4
ER5
EG0
EG1
EG2
EG3
EG4

E
V
E
N

L
V
D

S

EG5
EB0

www.jxlcd.com

EB1

www.jxlcd.com

EB2
EB3
EB4

EB5
Hsync
Vsync

DE

MCLK

ER6

ER7

EG6

EG7

EB6

EB7
RSVD

Pin No.

51
52
54
55
56

11
12
14
15
19
20
22
23
24
27
28
30
31

50

10
16
18
25

0TFT- LCD PRODUCT

HT190WG1-602

(CN11)

Pin No.

12
13

15
16

18
19

20
21

22
23

OUT0-

OUT1-

OUT2-

OUT3-

Interface

TFT-LCD

(Rx)

RXO0-

RXO0+

RXO1-

RXO1+

RXO2-

RXO2+

RXO CLK-

RXO CLK+

RXO3-

RXO3+

Transmitter Remark

Pin No.

48
47

3
4
6
7

46
45

42
41

40
39

2
8

38
37

System (Tx)

OUT0+

OUT1+

OUT2+

CLK OUT-

CLK OUT+

OUT3+

2010.09.30

SPEC. NUMBER

S865-5001

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

12

OF 29

B2006-5006-0 (3/3) A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

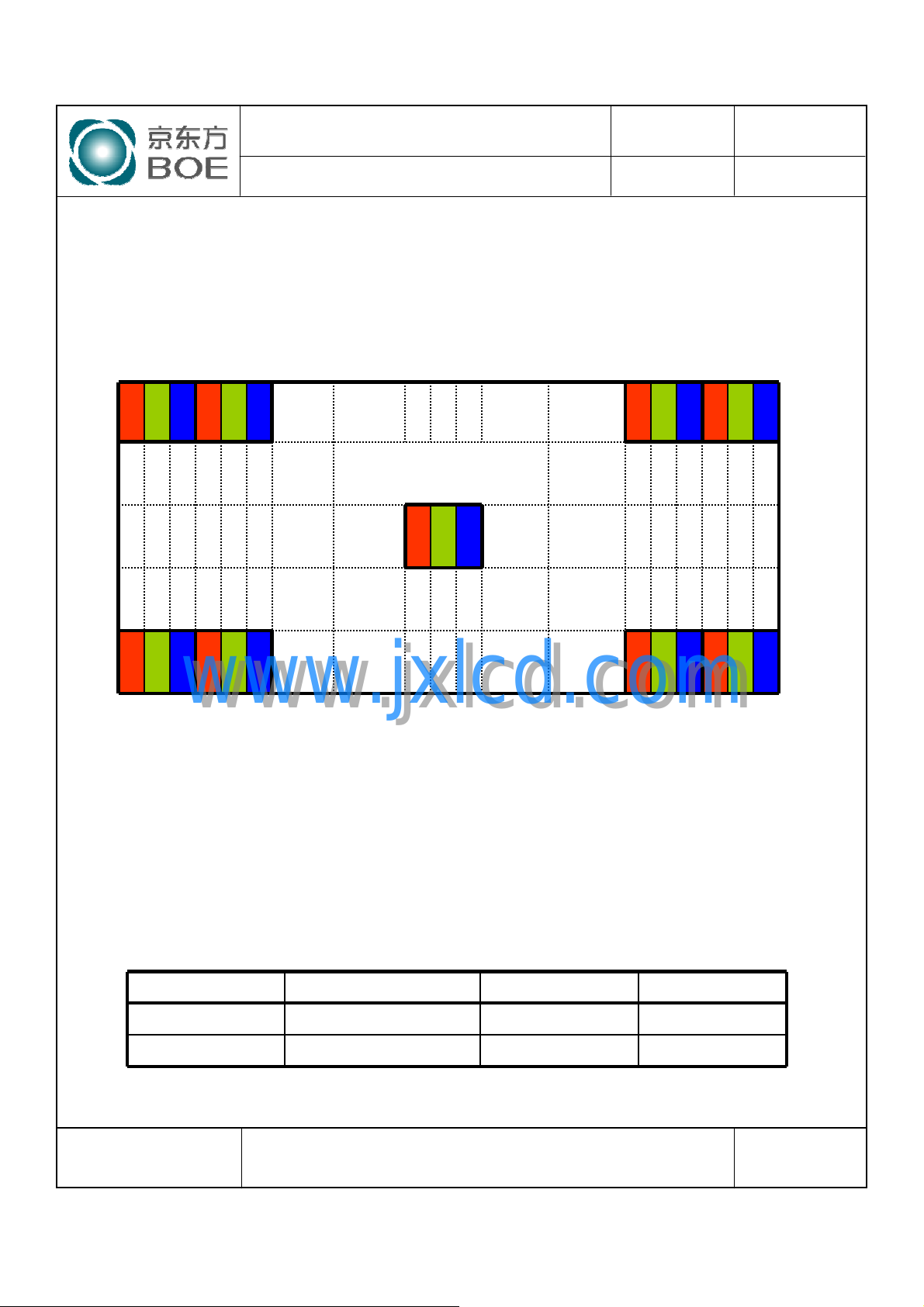

5.3 Data Input Format

ODD
(1,1)

R G B R G B R G B R G B

EVEN

(2,1) (1439,1) (1440,1)

1 Pixel = 3 Dots

R G B

2010.09.30

R G B R G B R G B R G B

www.jxlcd.com

(1,900) (2,900) (1439,900) (1440, 900)

5.4 Back-light Interface Connection

●CN 21,22,23,24 Module Side Connector :35001HS-02L(YeonHo) or Equivalent

www.jxlcd.com

Display Position of Input Data (V-H)

User Side Connector :35001WR-02L(YeonHo) or Equivalent

PIN NO. INPUT COLOR FUNCTION

1 HOT Pink & Blue High Voltage
2 COLD Black & White Ground

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

13

OF 29

PRODUCT GROUP

REV

ISSUE DATE

6.0 SIGNAL TIMING SPECIFICATION

6.1

The HT190WG1-602 is operated by the DE only..

Item Symbols Min Typ Max Unit

Frequency 1/Tc 41.5 44.5 65.7 MHz

Clock

Data

Data Enable Setup Time Tes 4 - - ns

Frame Period Tv

High Time Tch 4 - - ns
Low Time Tcl 4 - - ns
Setup time Tds 4 - - ns

Hold time Tdh 4 - - ns

0TFT- LCD PRODUCT

918 926 1050 lines

56 60 76 Hz

2010.09.30

17.9 16.7 13.1 ms

Vertical Display Period Tvd - 900 - lines

www.jxlcd.com

www.jxlcd.com

One line Scanning Period Th 760 800 1400 clocks

Horizontal Display Period Thd 720 720 720 clocks

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

14

OF 29

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

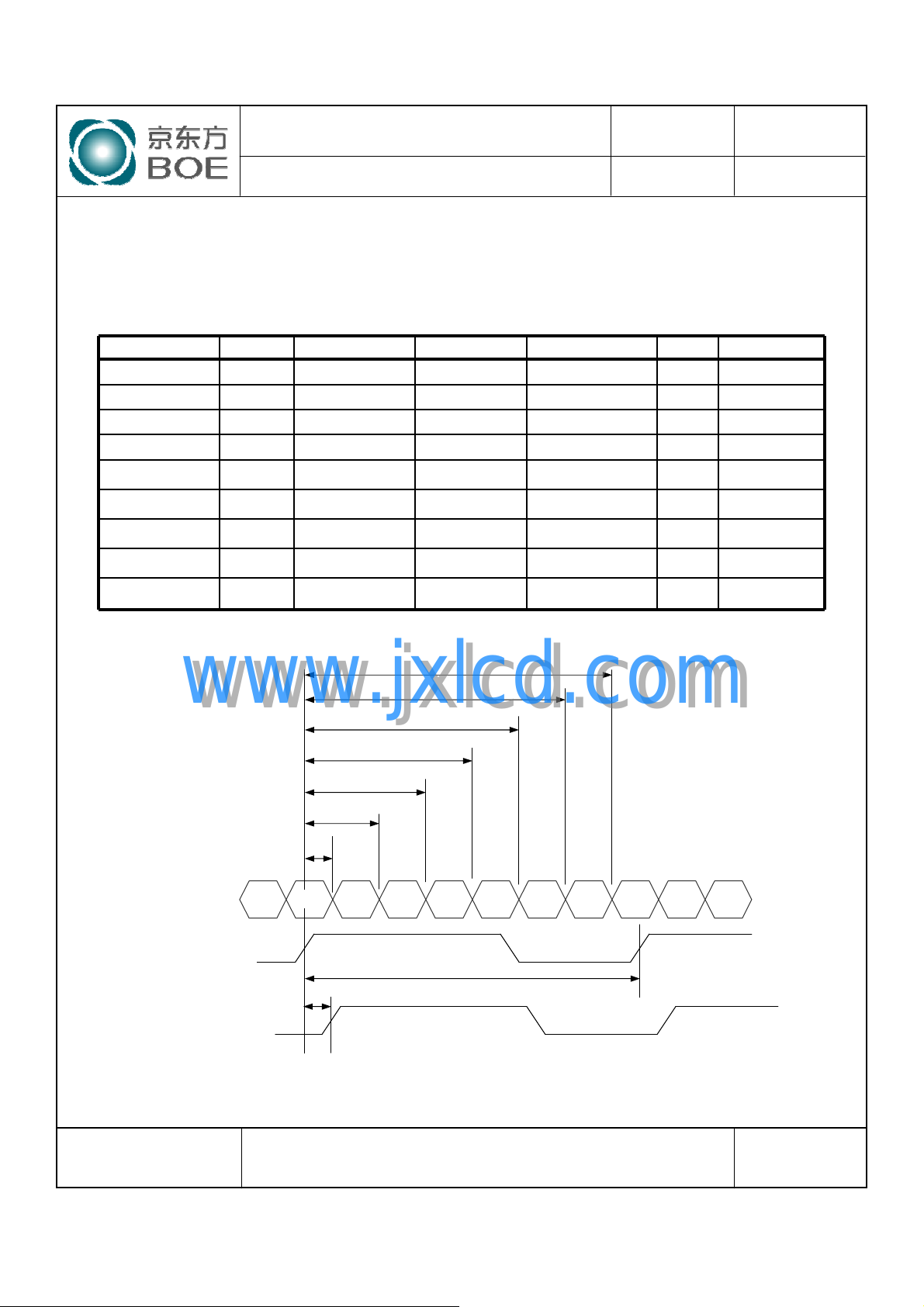

6.2 LVDS Rx Interface Timing Parameter

The specification of the LVDS Rx interface timing parameter is shown in Table 4.

<Table 4. LVDS Rx Interface Timing Specification>

Item Symbol Min Typ Max Unit Remark

CLKIN Period tRCIP 14.7 18.5 - msec

CLK Difference tCdiff -tRCIP*(3/7) 0 +tRCIP*(3/7) nsec

Input Data 0 tRIP1 -0.4 0.0 +0.4 nsec
Input Data 1 tRIP0 tRCIP/7-0.4 tRCIP/7 tRCIP/7+0.4 nsec

Input Data 2 tRIP6 2 ×tRCIP/7-0.4 2 ×tRCIP/7 2 ×tRCIP/7+0.4 nsec
Input Data 3 tRIP5 3 ×tRCIP/7-0.4 3 ×tRCIP/7 3 ×tRCIP/7+0.4 nsec
Input Data 4 tRIP4 4 ×tRCIP/7-0.4 4 ×tRCIP/7 4 ×tRCIP/7+0.4 nsec
Input Data 5 tRIP3 5 ×tRCIP/7-0.4 5 ×tRCIP/7 5 ×tRCIP/7+0.4 nsec
Input Data 6 tRIP2 6 ×tRCIP/7-0.4 6 ×tRCIP/7 6 ×tRCIP/7+0.4 nsec

2010.09.30

tRIP2

tRIP5

tRIP3

tRIP4

tRCIP

Vdiff=0[v]Vdiff=0[v]

www.jxlcd.com

www.jxlcd.com

tRIP6

tRIP0

tRIP1

RXO/Ez +/-

* Z = 0, 1, 2,3

RxOCLKIN+

RxECLKIN+ tCdiff

* Vdiff = (RXO/Ez+)-(RXO/Ez-),…. ,(RXO/ECLK+)-(RXO/ECLK-)

Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0Rx3

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

15

OF 29

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL

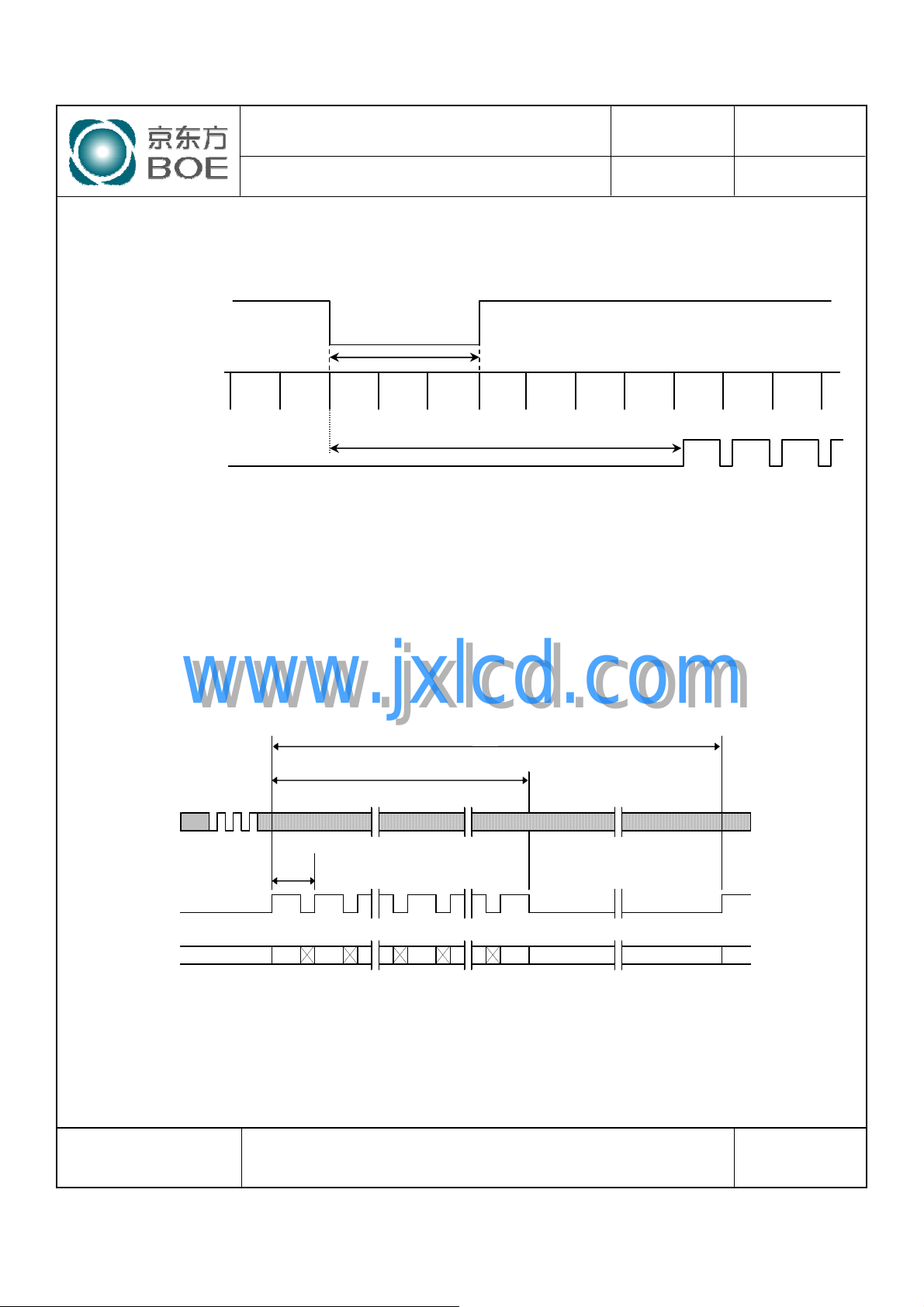

7.1 Sync Timing Waveforms

V-Sync

H-Sync

DE

1) Need over 3 H-sync during V-Sync Low

2) Fix H-Sync width from V-Sync falling edge to first rising edge

Over 3 H-sync

Fix H-Sync width Area

2010.09.30

7.2 Vertical Timing Waveforms

www.jxlcd.com

www.jxlcd.com

MCLK

Th

DE

R7 ~ R0

G7 ~ G0

B7 ~ B0

x,1 x,2 x,y x+1,1x,900Invalid Data DataInvalid

Tv

Tvd

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

16

OF 29

PRODUCT GROUP

REV

ISSUE DATE

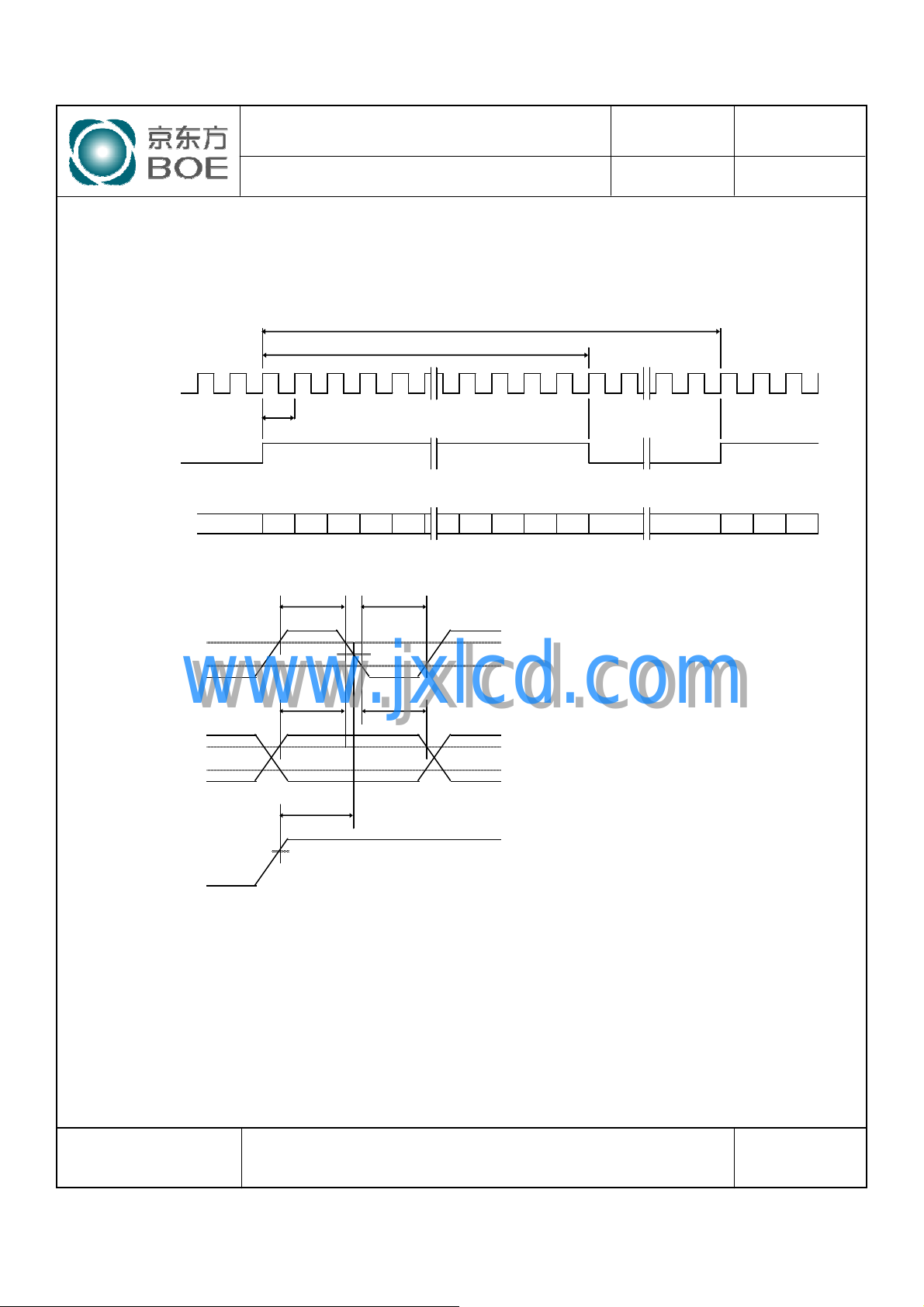

7.3 Horizontal Timing Waveforms

MCLK

Tc

DE

RA7 ~RA0

GA7 ~GA0

BA7 ~BA0

D1 D2 Dn Data D1 D2 D3

Tch

Thd

Tcl

Th

D638 D639 D720

0TFT- LCD PRODUCT

Invalid

2010.09.30

2.0V

MCLK

www.jxlcd.com

www.jxlcd.com

Data

DE

Tds

Valid

Tes

2.0V

1.5V

Tdh

Data

0.8V

2.0V

0.8V

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

17

OF 29

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

2010.09.30

8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS

Color & Gray Scale

Basic Colors

Gray Scale
of RED

Gray Scale
of GREEN

Gray Scale
of BLUE

Gray Scale
of WHITE

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Blue 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Green 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Red 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△ ↑ ↑ ↑
▽ ↓ ↓ ↓

Brighter 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

▽

Red 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0

△ ↑ ↑ ↑

www.jxlcd.com

▽ ↓ ↓ ↓

www.jxlcd.com

Brighter 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0

▽

Green 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0

△ ↑ ↑ ↑
▽ ↓ ↓ ↓

Brighter 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 1

▽

Blue 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0

△ ↑ ↑ ↑
▽ ↓ ↓ ↓

Brighter 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1

▽

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED DATA GREEN DATA BLUE DATA

0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1

1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0

SPEC. NUMBER

S865-5001

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

18

OF 29

B2006-5006-0 (3/3) A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

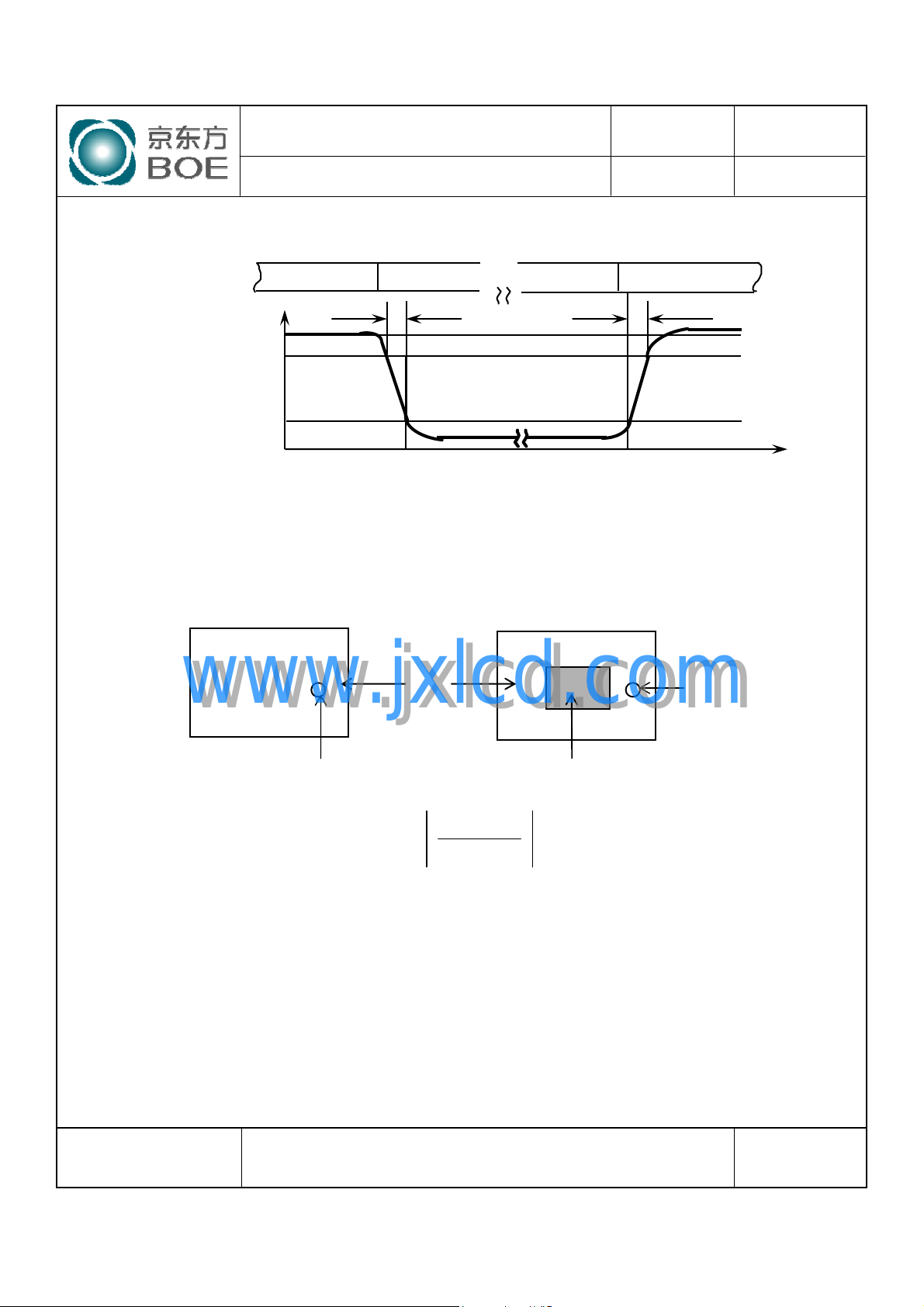

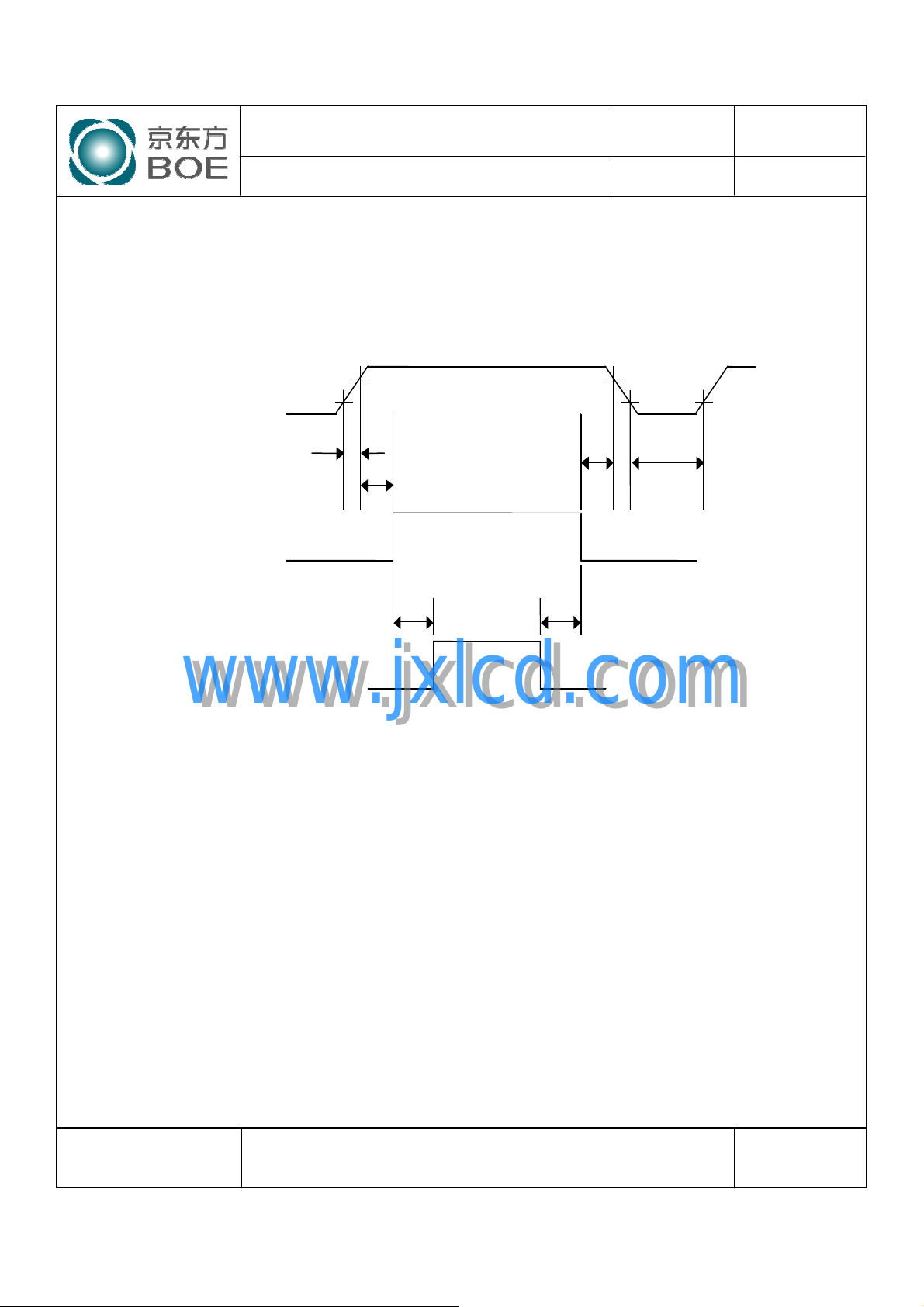

9.0 POWER SEQUENCE

To prevent a latch-up or DC operation of the LCD module, the power on/off sequence
shall be as shown in below

Power Supply

Interface Signal

0.9VDD

0.1VDD

0V

T1

T2

Valid

0V

T5 T6

0.9VDD

T3

0.1VDD

T4

2010.09.30

Back- light

● 0.5 ms ≤ T1 ≤ 10 ms

● 0 ≤ T2 ≤ 50 ms

● 0 ≤ T3 ≤ 50 ms

● 1 sec ≤ T4

● 200 ms ≤ T5

● 200 ms ≤ T6

www.jxlcd.com

www.jxlcd.com

0V

Notes:

1. When the power supply VDD is 0V, Keep the level of input signals on
the low or keep high impedance.

2. Do not keep the interface signal high impedance when power is on.
Back Light must be turn on after power for logic and interface signal
are valid.

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

19

OF 29

PRODUCT GROUP

REV

ISSUE DATE

0TFT- LCD PRODUCT

10.0 MECHANICAL CHARACTERISTICS

10.1 Dimensional Requirements

FIGURE 6 (located in Appendix) shows mechanical outlines for the model HT190WG1-602.
Other parameters are shown in Table 5.

<Table 5. Dimensional Parameters>

Parameter Specification Unit

Dimensional outline
Weight
Active area
Pixel pitch
Number of pixels
Back-light

428.0 ×278.0×17.0 (D) typ.
2000 (max.)

408.24(H) × 255.15(V)

0.2835(H) ×0.2835(V)
1440(H)×900(V) (1 pixel = R + G + B dots)
Top / Bottom edge side 4-CCFL type

2010.09.30

mm

gram

mm
mm

pixels

10.2 Mounting

www.jxlcd.com

See FIGURE 5. (shown in Appendix)

10.3 Anti-Glare and Polarizer Hardness.

The surface of the LCD has an anti-glare coating to minimize reflection and a coating to reduce
scratching.

10.4 Light Leakage

There shall not be visible light from the back-lighting system around the edges of the screen as
seen from a distance 50cm from the screen with an overhead light level of 350lux.

www.jxlcd.com

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

20

OF 29

PRODUCT GROUP

REV

ISSUE DATE

11.0 RELIABLITY TEST

The Reliability test items and its conditions are shown in below.

<Table 6. Reliability Test Parameters >

No Test Items

High temperature storage test Ta = 60 ℃, 240 hrs

1

Low temperature storage test Ta = -20 ℃, 240 hrs

2

High temperature & high humidity

3

operation test
High temperature operation test Ta = 50 ℃, 240hrs

4

Low temperature operation test Ta = 0 ℃, 240hrs

5

Thermal shock Ta = -20 ℃ ↔ 60 ℃ (0.5 hr), 100 cycle

6

Vibration test

7

(non-operating)

Ta = 50 ℃, 80%RH, 240hrs

Frequency 10 ~ 300 Hz, Sweep rate 30 min
Gravity / AMP 1.5 G
Period ±X, ±Y, ±Z 30 min

Conditions

0TFT- LCD PRODUCT

2010.09.30

Gravity

www.jxlcd.com

www.jxlcd.com

Shock test

8

(non-operating)

Electro-static discharge test

9

(non-operating)

Pulse width

Direction ±X, ±Y, ±Z Once for each

Air : 150 pF, 330Ω, 15 KV
Contact : 150 pF, 330Ω, 8 KV

50G

11msec, sine wave

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

21

OF 29

PRODUCT GROUP

REV

ISSUE DATE

12.0 HANDLING & CAUTIONS

(1) Cautions when taking out the module

 Pick the pouch only, when taking out module from a shipping package.

(2) Cautions for handling the module

 As the electrostatic discharges may break the LCD module, handle the LCD

module with care. Peel a protection sheet off from the LCD panel surface as
slowly as possible.

 As the LCD panel and back - light element are made from fragile glass material,

impulse and pressure to the LCD module should be avoided.

 As the surface of the polarizer is very soft and easily scratched, use a soft dry

cloth without chemicals for cleaning.

 Do not pull the interface connector in or out while the LCD module is operating.
 Put the module display side down on a flat horizontal plane.
 Handle connectors and cables with care.

(3) Cautions for the operation

 When the module is operating, do not lose CLK, ENAB signals. If any one of

these signals is lost, the LCD panel would be damaged.

 Obey the supply voltage sequence. If wrong sequence is applied, the module

would be damaged.

(4) Cautions for the atmosphere

www.jxlcd.com

www.jxlcd.com

 Dew drop atmosphere should be avoided.
 Do not store and/or operate the LCD module in a high temperature and/or

humidity atmosphere. Storage in an electro-conductive polymer packing pouch

and under relatively low temperature atmosphere is recommended.

(5) Cautions for the module characteristics

 Do not apply fixed pattern data signal to the LCD module at product aging.
 Applying fixed pattern for a long time may cause image sticking.

(6) Other cautions

 Do not disassemble and/or re-assemble LCD module.
 Do not re-adjust variable resistor or switch etc.
When returning the module for repair or etc., Please pack the module not to be

broken. We recommend to use the original shipping packages.

0TFT- LCD PRODUCT

2010.09.30

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

22

OF 29

PRODUCT GROUP

REV

ISSUE DATE

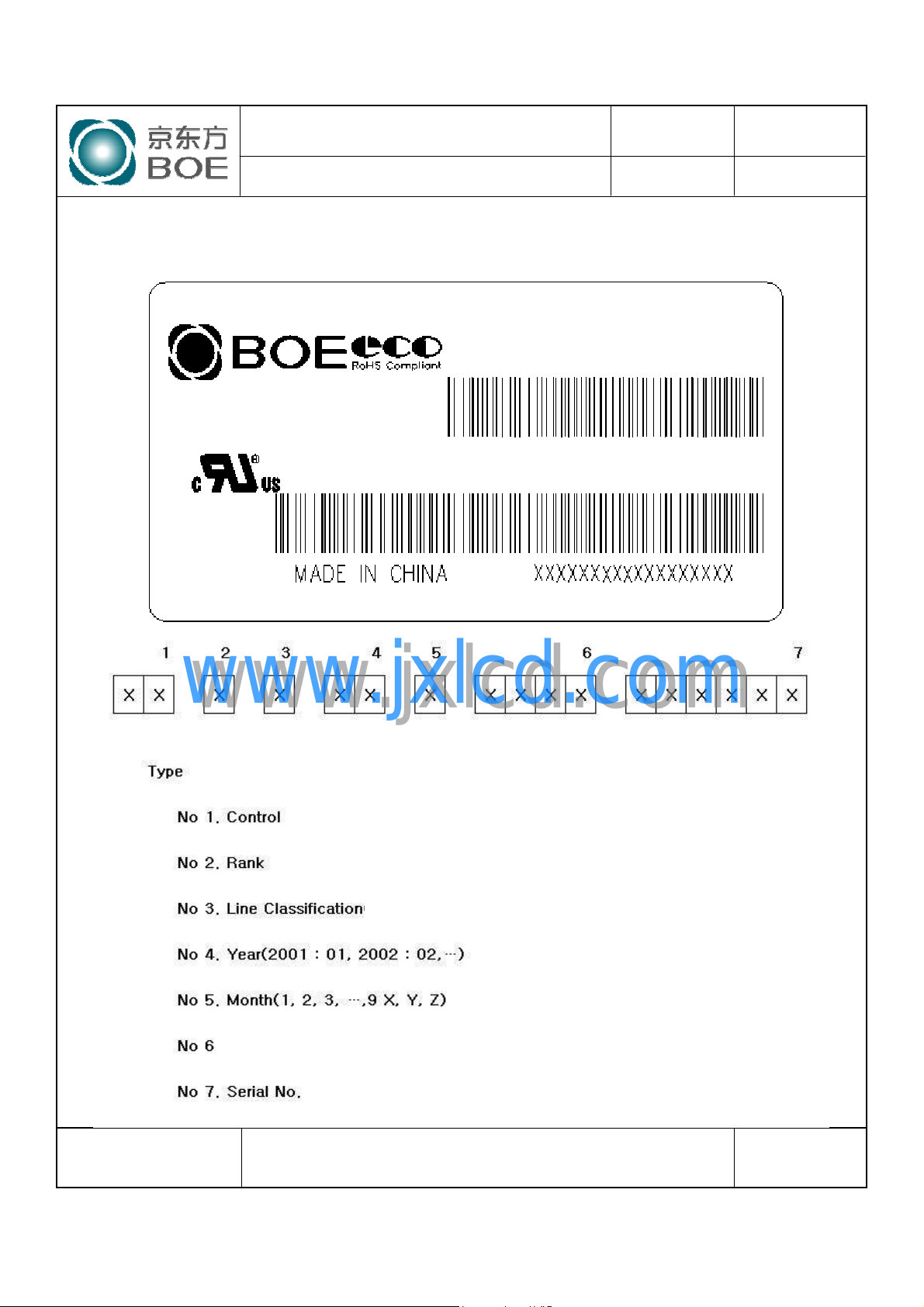

13.0 PRODUCT SERIAL NUMBER

0TFT- LCD PRODUCT

HT190WG1-602

2010.09.30

www.jxlcd.com

www.jxlcd.com

Internal use

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

23

OF 29

PRODUCT GROUP

REV

ISSUE DATE

14.0 Packing

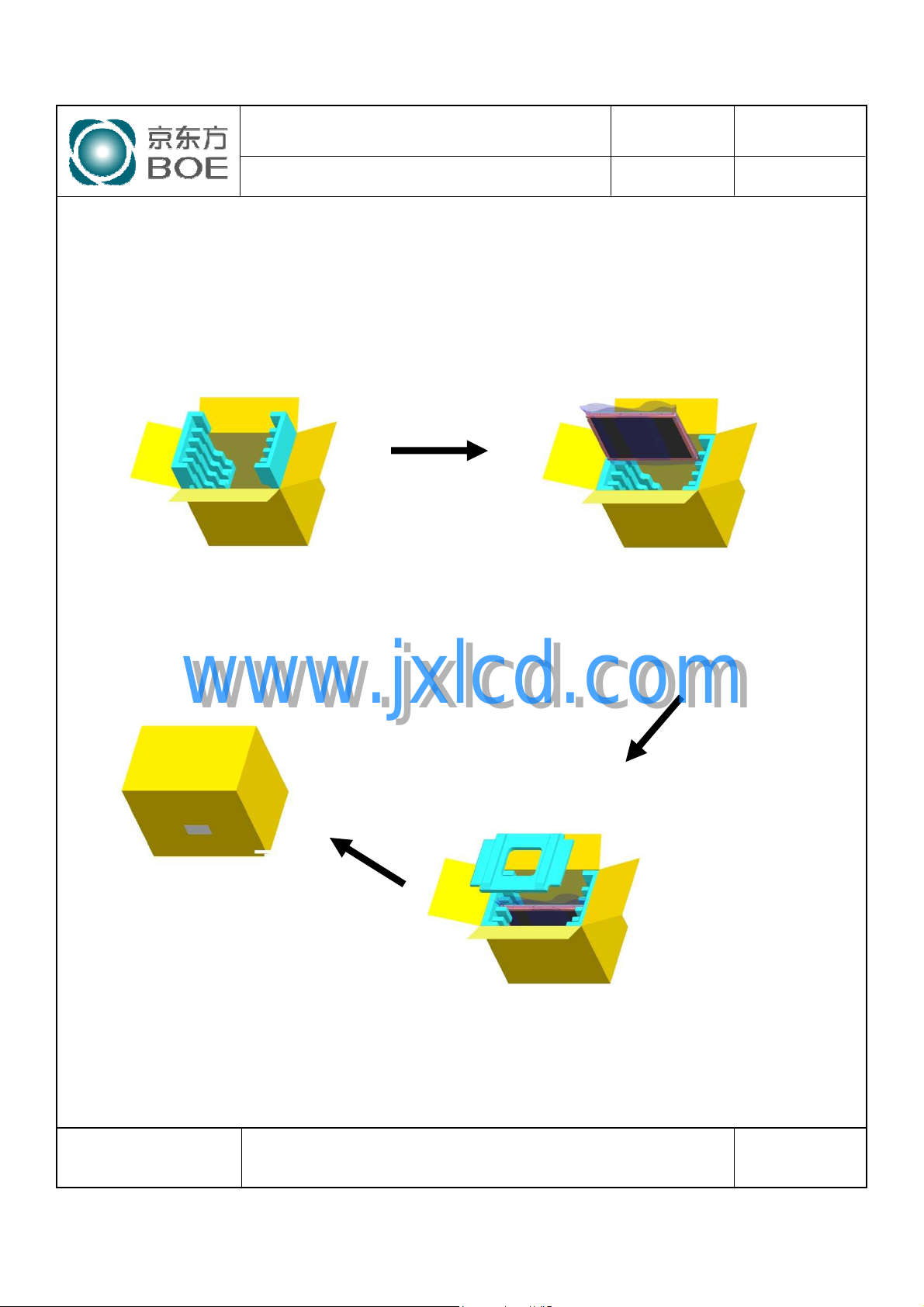

14.1 Packing Order

Put Pad into the box.

After sealing the box,
attach Packing Label on
the attach position sign

www.jxlcd.com

area of the box.

www.jxlcd.com

0TFT- LCD PRODUCT

As shown in the
figure, place the
Modules bundled by
shielding bag in the
box.

2010.09.30

Place a cover on the
top of the box.

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

24

OF 29

PRODUCT GROUP

REV

ISSUE DATE

14.2 Packing Note

 Box Dimension : 346mm(W) × 526mm(D) × 448mm(H)
 Package Quantity in one Box : 7pcs

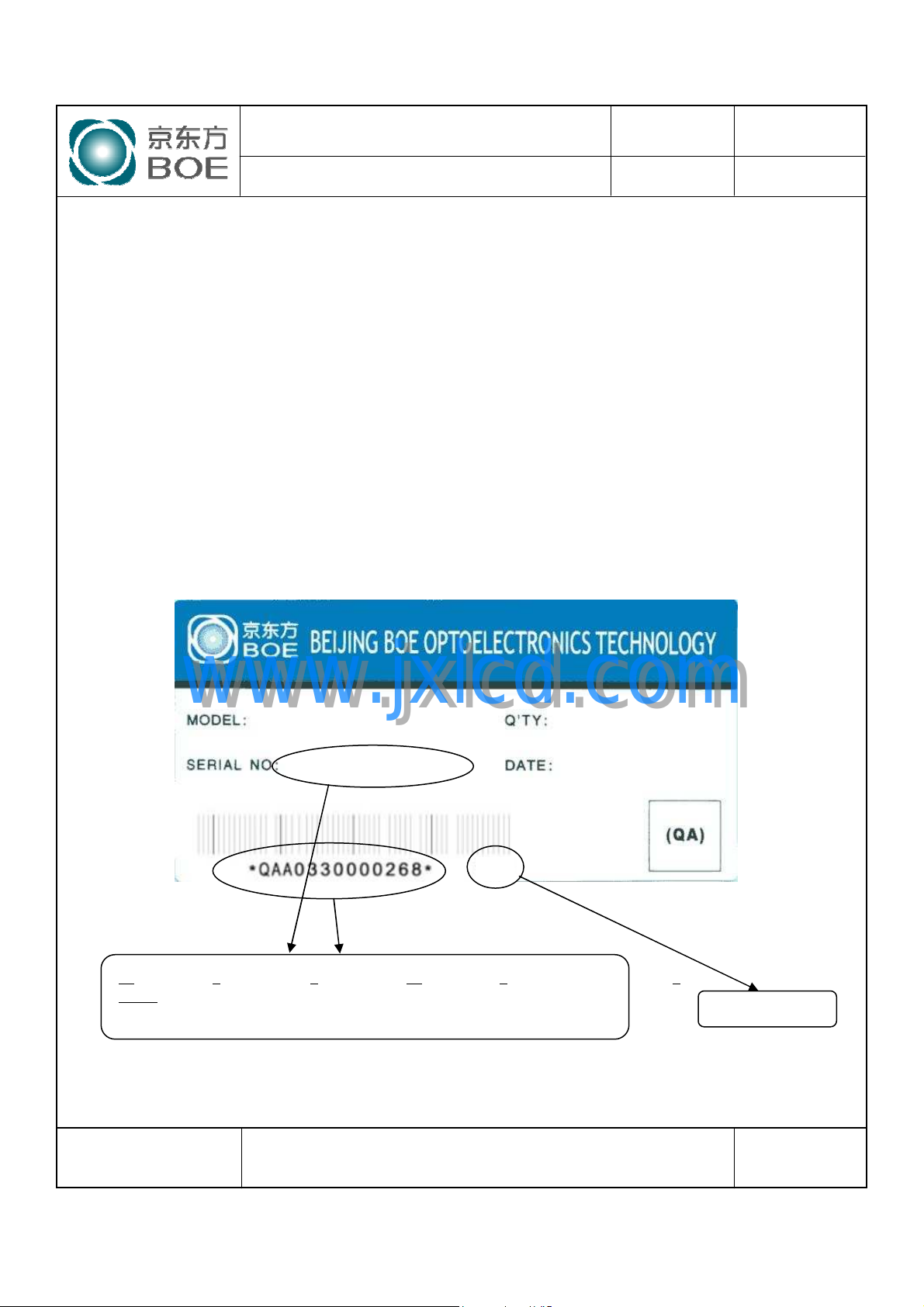

14.3 Box label

 Label Size : 108 mm (L) × 56 mm (W)
 Contents

Model : HT190WG1
Q`ty : Module Q`ty in one box
Serial No. : Box Serial No. See next page for detail description.
Date : Packing Date
FG Code : FG Code of Product

0TFT- LCD PRODUCT

2010.09.30

www.jxlcd.com

www.jxlcd.com

HT190WG1- 602

0000000000000

0000000000000

00000000000000000000000000

XXXX

XXXX

XXXXXXXX

00 0 0 00 0 0
00000
Type Grade Line Year Month ITEM-CODE Serial_no

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

7777

20

2010

10....08.15

2020

1010

08.15

08.1508.15

FG CODE

PAGE

25

OF 29

PRODUCT GROUP

REV

ISSUE DATE

15.0 Appendix

Figure 1. Measurement Set Up

0TFT- LCD PRODUCT

(L = 50 c m )

2010.09.30

Figure 2. White Luminance and Uniformity Measurement Locations (9 points)

www.jxlcd.com

www.jxlcd.com

144 720 1296

1) 1

1) 4 1) 5

1) 7 1) 8 1) 9

1) 2 1) 3

1) 6

90

450

810

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

26

OF 29

PRODUCT GROUP

REV

ISSUE DATE

Display data

Optical
Response

Figure 3. Response Time Testing

White(TFT OFF)

T

R

100%

90%

10%

0%

Figure 4. Cross Modulation Test Description

VIEW AREA VIEW AREA

Black(TFT ON)

0TFT- LCD PRODUCT

White(TFT OFF)

T

F

2010.09.30

Time

(480,300)

www.jxlcd.com

www.jxlcd.com

YA(720,450)

Cross-Talk (%) = × 100

Where: YA= Initial luminance of measured area (cd/m2)

YB= Subsequent luminance of measured area (cd/m2)

The location measured will be exactly the same in both patterns

L31

YB- Y

Y

A

A

(860,300)

YB(720,450)

(860,600)(480,600)

L0

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

27

OF 29

PRODUCT GROUP

REV

ISSUE DATE

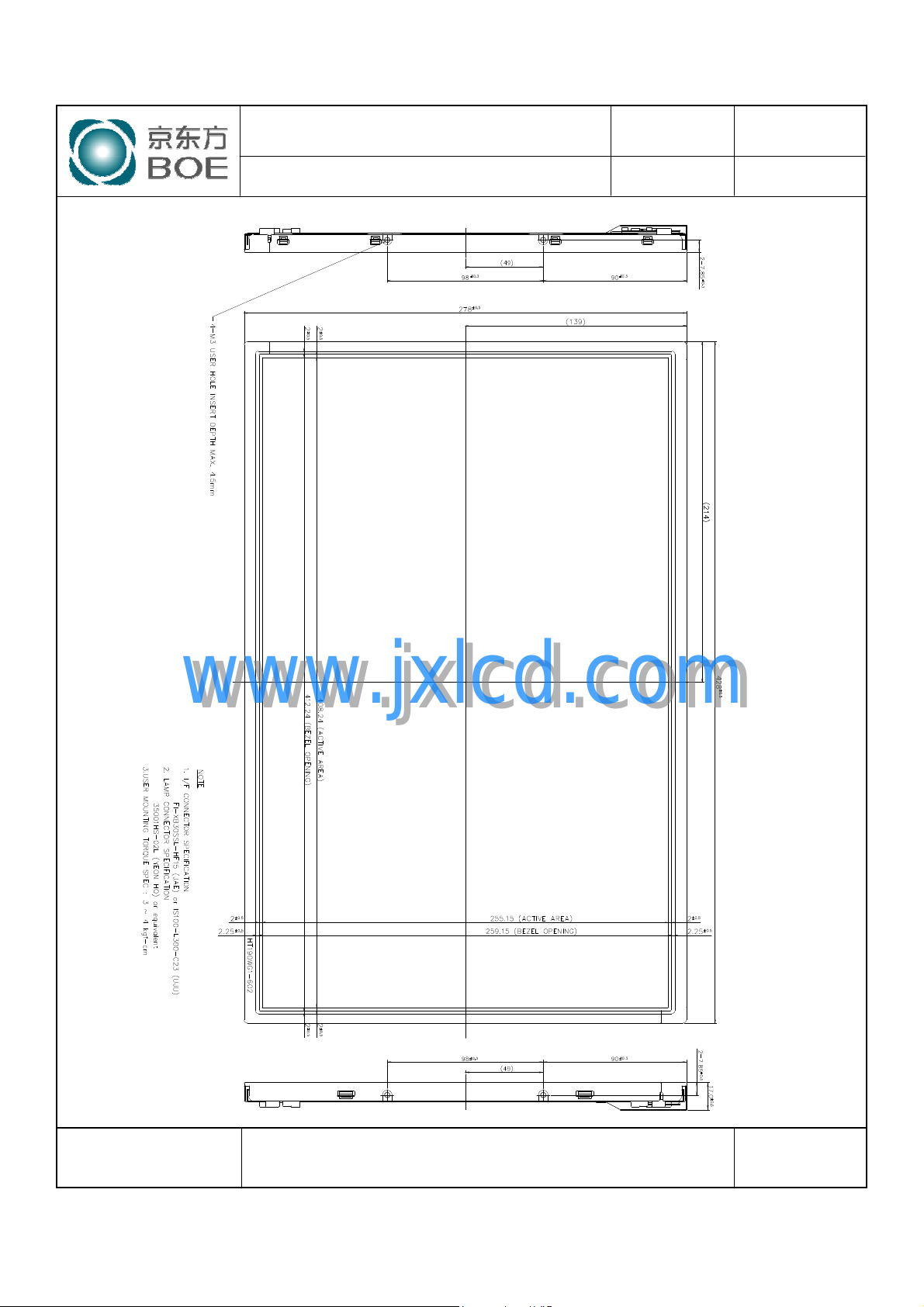

Figure 5. TFT-LCD Module Outline Dimensions (Front view)

0TFT- LCD PRODUCT

2010.09.30

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

28

OF 29

PRODUCT GROUP

REV

ISSUE DATE

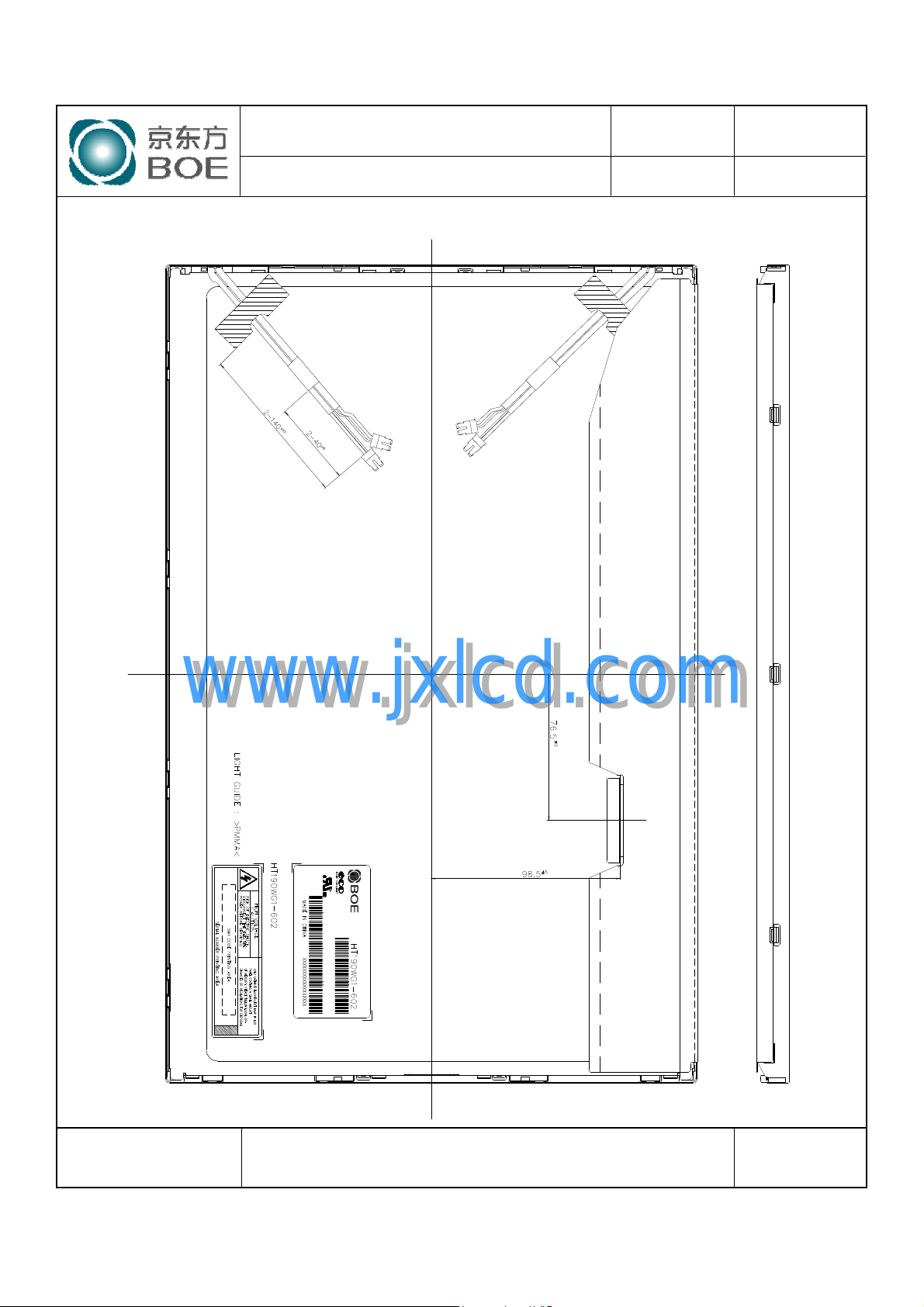

Figure 6. TFT-LCD Module Outline Dimensions (Rear view)

0TFT- LCD PRODUCT

2010.09.30

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S865-5001

B2006-5006-0 (3/3) A4(210 X 297)

SPEC. TITLE

HT190WG1-602 Product Specification

PAGE

29

OF 29
