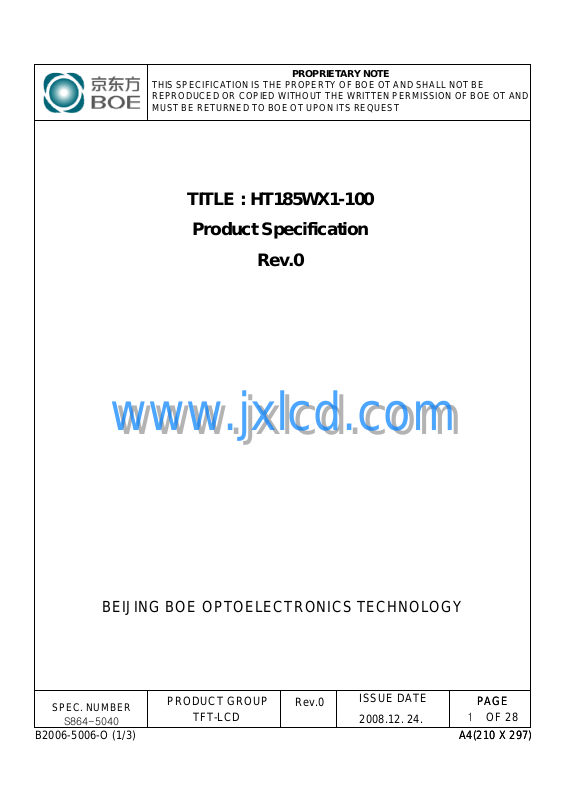

BOE OPTOELECTRONICS HT185WX1-100 SPECIFICATION

PROPRIETARY NOTE

THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OTAND
MUST BE RETURNED TO BOE OT UPON ITS REQUEST

TITLE : HT185WX1-100

Product Specification

Rev.0

www.jxlcd.com

www.jxlcd.com

BEIJING BOE OPTOELECTRONICS TECHNOLOGY

SPEC. NUMBER

S864-5040

B2006-5006-O (1/3)

PRODUCT GROUP

TFT-LCD

Rev.0

ISSUE DATE

2008.12. 24.

PAGE

PAGE

1

OF 28

A4(210 X 297)

A4(210 X 297)

PRODUCT GROUP

TFT- LCD PRODUCT 0 Dec. 24. 08’

REV

ISSUE DATE

REVISION HISTORY

REV. ECN No. DESCRIPTION OF CHANGES DATE PREPARED

0 Initial Release Dec.24.08’ Qiu HaiJun

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S864-5040

B2006-5006-O (2/3) A4(210 X 297)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

2

OF 28

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

0

Dec. 24. 08’

Contents

No. Item Page

1.0 General Description 4

2.0 Absolute Maximum Ratings 6

3.0 Electrical Specifications 7

4.0 Optical Specifications 8

5.0 Interface Connection 10

6.0 Signal Timing Specifications 13

7.0 Signal Timing Waveforms of Interface Signal 15

8.0 Input Signals, Display Colors & Gray Scale of Colors 17

9.0 Power Sequence 18

10.0 Mechanical Characteristics 19

www.jxlcd.com

11.0 Reliability Test 20

12.0 Handling& Cautions 21

13.0 Product Serial Number 22

14.0 Packing 23

15.0 Appendix 25

www.jxlcd.com

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

3

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

0

1.0 GENERAL DESCRIPTION

1.1 Introduction

HT185WX1-100 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 18.5 inch
diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.

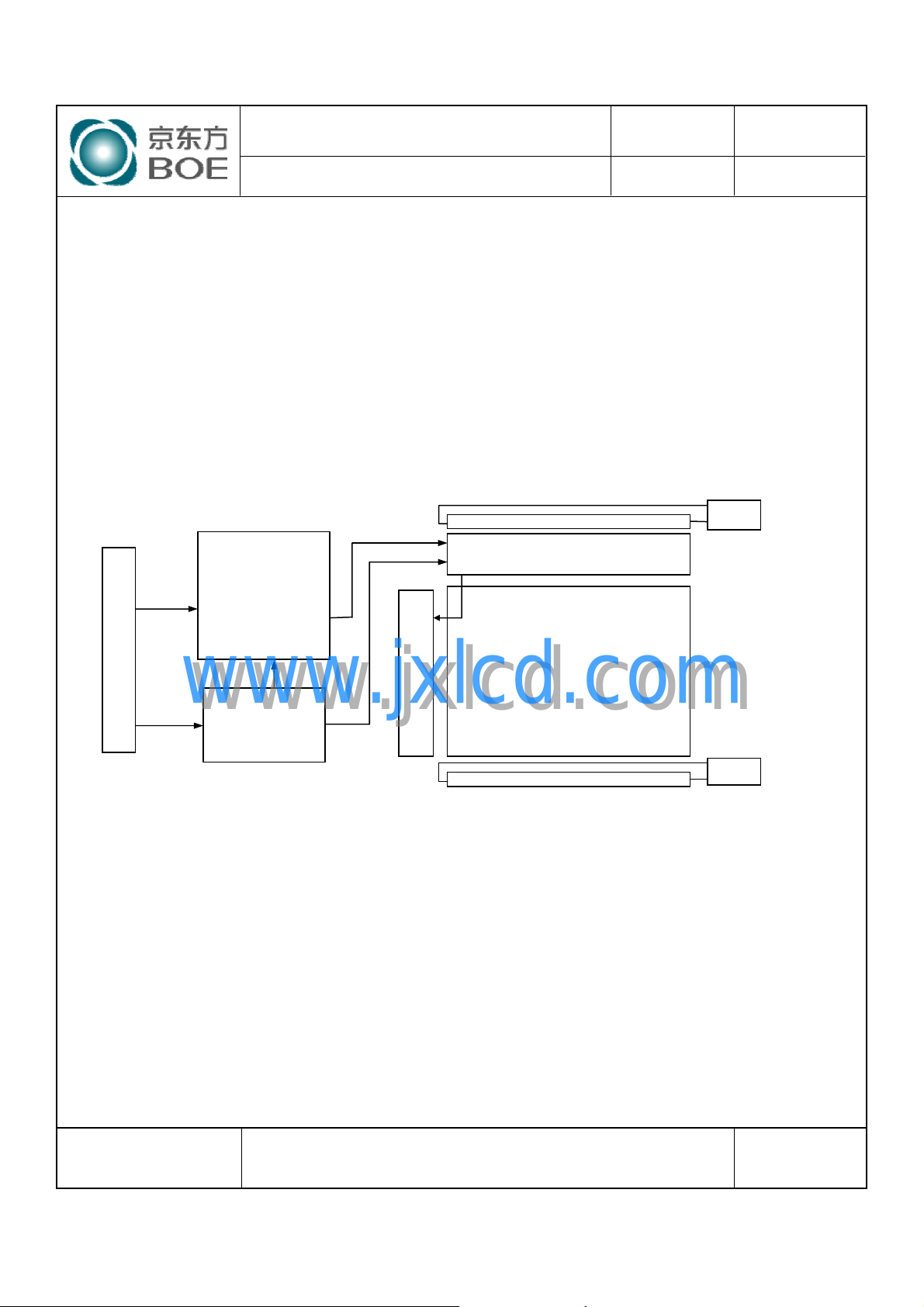

CN21

Connector (CN

LVDS
Input
Signal

LVDS Rx

+

T/CON

+

Mini LVDS Tx

Gate Driver

Source Driver

TFT LCD Panel

Dec. 24. 08’

www.jxlcd.com

www.jxlcd.com

VDD

1

)

1.2 Features

z LVDS Interface with 1 pixel / clock
z High-speed response
z Low power consumption
z 6-bit (Hi-FRC) color depth, display 16. 7M colors
z Incorporated edge type back-light (Two lamps)
z High luminance and contrast ratio, low reflection and wide viewing angle
z DE (Data Enable) only
z RoHS /TCO’ 03 Compliant

DC/DC

Gamma

Vcom

1366 × 768

CN22

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

4

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

1.3 Application

z Desktop Type of PC & Workstation Use
z Slim-Size Display for Stand-alone Monitor
z Display Terminals for Control System
z Monitors for Process Controller

1.4 General Specification

The followings are general specifications at the model HT185WX1-100.

<Table 1. General Specifications>

Parameter Specification Unit

0

Dec. 24. 08’

Remarks

Active area 409.8(H) × 230.4(V) mm
Number of pixels 1366(H) ×768(V) pixels
Pixel pitch 0.3(H) ×0.3(V) mm
Pixel arrangement RGB Vertical stripe
Display colors 16.7M colors
Display mode Normally White
Dimensional outline 430.4(H) × 254.6(V) × 16.5(D) typ. mm
Weight 2000 (max.) g
Surface Treatment Haze 25%, 3H
Back-light Top/Bottom edge side, 2-CCFL type

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

5

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

0

2.0 ABSOLUTE MAXIMUM RATINGS

The followings are maximum values which, if exceed, may cause faulty operation or

damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.

< Table 2. Absolute Maximum Ratings> [VSS=GND=0V]

Symbol Min. Max. Unit Remarks

Parameter

Power Supply Voltage V
Logic Supply Voltage V
Back-light Lamp Current I
Back-light Lamp frequency F
Operating Temperature T
Storage Temperature T

BL

DD

IN

L

OP

ST

-0.3 5.0

VSS-0.3 VDD+0.3 V

38.0mA

40 80 kHz

0+50

-20 +60

V

℃

℃

Dec. 24. 08’

Ta = 25 ℃

1)

1)

Note : 1) Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39 OC max. and no condensation of water.

www.jxlcd.com

www.jxlcd.com

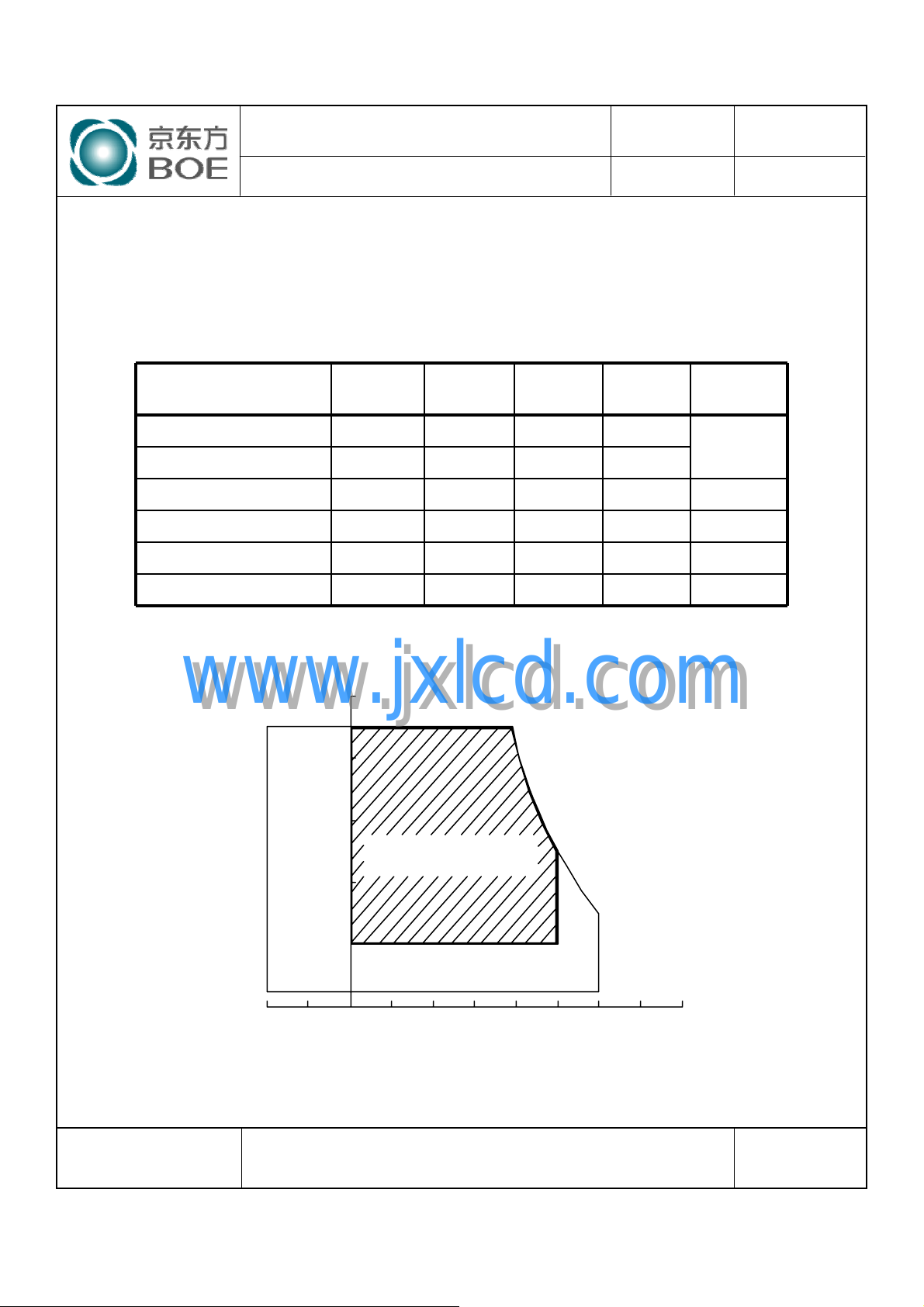

Relative Humidity (%RH)

100

80

60

40

20

90

O perating R ange

Storage Range

5

0

(39,90)

(50,50)

(60,30)

20 40 60 80-20

Tem perature (˚C)

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

6

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

3.0 ELECTRICAL SPECIFICATIONS

3.1Electrical Specifications

< Table 3. Electrical specifications >

Parameter Min. Typ. Max. Unit Remarks

Power Supply Voltage V
Power Supply Current I
In-Rush Current I
Permissible Input Ripple Voltage V
High Level Differential Input

Threshold Voltage
Low Level Differential Input

Threshold Voltage

Back-light Lamp Voltage V
Back-light Lamp Current I
Back-light Lamp operating Frequency F

Lamp Start Voltage

www.jxlcd.com

www.jxlcd.com

DD

DD

RUSH

RF

V

IH

V

IL

BL

BL

L

4.5 5.0 5.5 V

-100 - - mV

3.0 7.5 8.0 mA
40 - 80 KHz Note 3

0

rms

rms

rms

rms

Note1

V
V

25℃, Note 4
0℃, Note 4

- 600 1000 mA

- 2.0 3.0 A Note 2

- - 100 mV VDD= 5.0V

- - +100 mV

mV600-200|VID|Differential input voltage

1.51.21.0VcmDifferential input common mode voltage

- 730 880 V

- - 1400 V

- - 1800 V

Dec. 24. 08’

[Ta =25±2 ℃]

=100mV,

IH

=-100mV

IL

Lamp Life 50,000 - - Hrs I

P

D

Power Consumption

Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.

The current draw and power consumption specified is for VDD=5.0V, Frame rate=75Hz and
Clock frequency = 95MHz. Test Pattern of power supply current

a) Typ : Color Bar pattern
b) Max : Skip Sub Pixel Pattern

P

BL

P

total

-35W

- 10.68 14.0 W IBL=7.5 mA, Note 5

- 13.68 19 W

2. Duration of rush current is about 2 ms and rising time of VDD is 520 μs ± 20 %

3. The lamp frequency should be selected as different as possible from the horizontal
synchronous frequency and its harmonics to avoid interference, which may cause line flow on the display

4. The voltage above this value should be applied to the lamps for more than 1 second to start-up. Otherwise the

lamps may not be turned on.

5. Calculated value for reference (V

SPEC. NUMBER

S864-5040

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

× IBL) ×2 excluding inverter loss.

BL

B2006-5006-O (3/3)

= 7.5 mA

BL

7

A4(210 X 297)

PAGE

OF 28

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

0

Dec. 24. 08’

4.0 OPTICAL SPECIFICATION

4.1 Overview

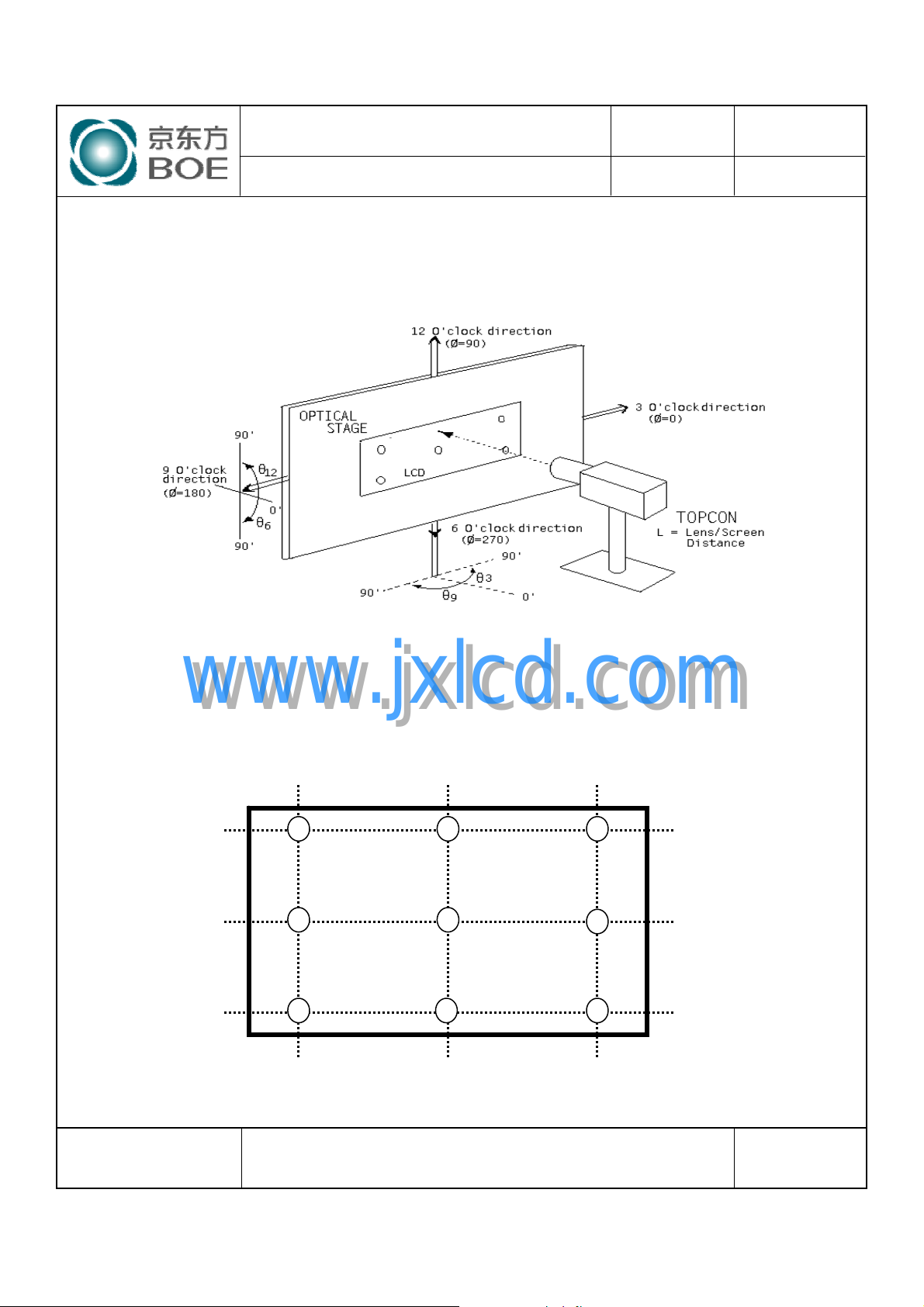

The test of Optical specifications shall be measured in a dark room (ambient luminance ≤ 1 lux and temperature =
25±2℃) with the equipment of Luminance meter system (Goniometer system and TOPCONE BM-5) and test unit shall
be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0°. We refer
to θ

θ

Ø, the center of the measuring spot on the Display surface shall stay fixed. The measurement shall be executed after 30
minutes warm-up period. VDD shall be 5.0V +/-10% at 25°C. Optimum viewing angle direction is 6 ’clock.

4.2 Optical Specifications

Viewing Angle range

Viewing Angle range

Luminance Contrast ratio CR
Luminance of White Y
White luminance uniformity ΔY7580%Note 4

(=θ3) as the 3 o’clock direction (the “right”), θ

Ø=0

) as the 9 o’clock direction (“left”) and θ

9

(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θ and/or

Ø=270

(= θ12) as the 12 o’clock direction (“upward”), θ

Ø=90

[VDD = 5.0V, Frame rate = 60Hz, Clock = 78MHz, IBL= 7.5mA, Ta =25±2 ℃]

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Θ

Horizontal

Vertical

Horizontal

www.jxlcd.com

Reproduction

of color

Response

Time

Cross Talk CT - - 2.0 % Note 7

Vertical

www.jxlcd.com

White

Red

Green

Blue

Rising T

Falling T

3

Θ

9

Θ

12

Θ

6

Θ

3

Θ

9

Θ

12

Θ

6

w

W

x

W

y

R

x

R

y

G

x

G

y

B

x

B

y

r

f

CR > 10

CR > 5

Θ = 0°

(Center)

Normal

Viewing

Angle

70 85 - Deg.
70 85 - Deg.
70 80 - Deg.
70 80 - Deg.
85 - - Deg.
85 - - Deg.
85 - - Deg.

85 - - Deg.
700 1000 Note 2
200 250 cd/m

0.283 0.313 0.343

0.299 0.329 0.359

0.614 0.644 0.674

0.336

0.285

0.593

0.141

0.076

1.5 2.5 ms

3.5 5.5 ms

0.3660.306

0.3150.255

0.6230.563

0.1710.111

0.1060.046

(=

Ø=180

Note 1

2

Note 3

Note 5

Note 6

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

8

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

0

Dec. 24. 08’

Note :

1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are
determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock
direction with respect to the optical axis which is normal to the LCD surface.

2. Contrast measurements shall be made at viewing angle of θ= 0° and at the center of the LCD
surface. Luminance shall be measured with all pixels in the view field set first to white, then
to the dark (black) state. (See FIGURE 1 shown in Appendix) Luminance Contrast Ratio
(CR) is defined mathematically.

CR =

3. Center Luminance of white is defined as the LCD surface. Luminance shall be measured with
all pixels in the view field set first to white. This measurement shall be taken at the locations
shown in FIGURE 2 for a total of the measurements per display.

4. The White luminance uniformity on LCD surface is then expressed as :
ΔY = ( Minimum Luminance of 9points / Maximum Luminance of 9points ) * 100
(See FIGURE 2 shown in Appendix).

5. The color chromaticity coordinates specified in Table 4. shall be calculated from the spectral

6. The electro-optical response time measurements shall be made as FIGURE 3 shown in

7. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the

www.jxlcd.com

data measured with all pixels first in red, green, blue and white. Measurements shall be made
at the center of the panel.

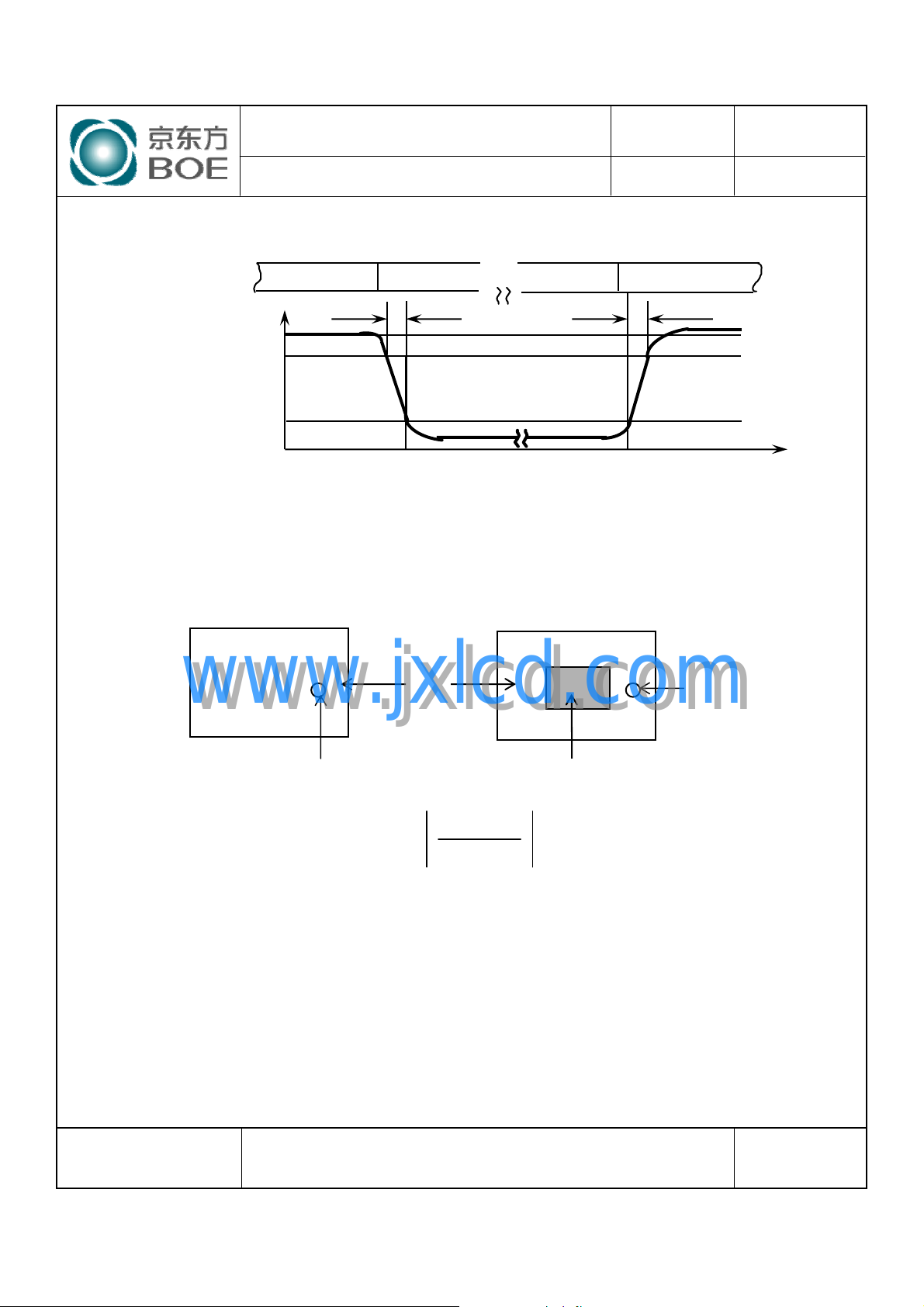

Appendix by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Td, and 90% to 10% is Tr.

luminance (Y
luminance (YB) of that same area when any adjacent area is driven dark. (See FIGURE 4
shown in Appendix).

www.jxlcd.com

) of a 25mm diameter area, with all display pixels set to a gray level, to the

A

Luminance when displaying a white raster

Luminance when displaying a black raster

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

9

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

5.0 INTERFACE CONNECTION.

5.1 Electrical Interface Connection

● CN11 Module Side Connector : UJU IS100-30O-C23 or Equivalent

User Side Connector : JAE FI-X30H or Equivalent

Pin No Symbol Function Remark

1
2
3
4
5
6
7
8

9
10
11
12
13
14

www.jxlcd.com

www.jxlcd.com

15
16
17
18
19
20
21
22
23
24

25

NC No connection
CE No connection

CTL No connection
GND GND Ground
RX0- Negative LVDS differential data input. Channel 0
RX0+ Positive LVDS differential data input. Channel 0

GND Ground

RX1- Negative LVDS differential data input. Channel 1
RX1+ Positive LVDS differential data input. Channel 1

GND Ground
RX2- Negative LVDS differential data input. Channel 2
RX2+ Positive LVDS differential data input. Channel 2
GND Ground

RXCLK- Negative LVDS differential clock input.

RXCLK+ Positive LVDS dif f erential clock input.

GND Ground

RX3- Negative LVDS differential data input. Channel 3
RX3+ Positive LVDS differential data input. Channel 3
GND Ground

NC Not connection, this pin should be open.
NC Not connection, this pin should be open.

NC Not connection, this pin should be open.
GND Ground
GND Ground
GND Ground

0

Dec. 24. 08’

internal use
internal use

26
27
28
29
30

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

VCC
VCC
VCC
VCC
VCC

5V Power supply

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

10

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

5.2 LVDS Interface (Tx; THC63LVDF83A or Equivalent)

5.2.1 LVDS Interface

OUT0-

OUT1-

OUT2-

OUT3-

Interface

TFT-LCD

(Rx)

RXO0-

RXO0+

RXO1-

RXO1+

RXO2-

RXO2+

RXO CLK-

RXO CLK+

RXO3-

RXO3+

Input

Signal

OR0
OR1
OR2
OR3
OR4
OR5
OG0
OG1
OG2
OG3
OG4
OG5
OB0

L
V
D

S

OB1

www.jxlcd.com

www.jxlcd.com

OB2
OB3
OB4

OB5
Hsync
Vsync

DE

MCLK

OR6

OR7

OG6

OG7

OB6

OB7
RSVD

Transmitter Remark

Pin No.

51
52
54
55
56

3
4
6

7
11
12
14
15
19
20
22
23
24
27
28
30
31

50

2

8
10
16
18
25

Pin No.

48
47

46
45

42
41

40
39

38
37

System (Tx)

OUT0+

OUT1+

OUT2+

CLK OUT-

CLK OUT+

OUT3+

0

HT185WX1-100

(CN11)
Pin No.

1
2

3
4

5
6

8
9

10
11

Dec. 24. 08’

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

11

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

5.3 Data Input Format

(1,1) (2,1) (1365,1) (1366,1)

R G B R G B R G B R G B

1 Pixel = 3 Dots

R G B

0

Dec. 24. 08’

R G B R G B R G B R G B

www.jxlcd.com

(1,768) (2,768) (1365,768) (1366,768)

5.4 Back-light Interface Connection

www.jxlcd.com

Display Position of Input Data (V-H)

:35001HS-02L (Yeon Ho) or EquivalentModule Side Connector●CN 21,22

User Side Connector

:35001HS-02L(Yeon Ho) or Equivalent

FUNCTIONCOLORINPUTPIN NO.

High VoltagePink or BlueHOT1

GroundWhite or BlackCOLD2

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

12

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

6.0 SIGNAL TIMING SPECIFICATION

6.1 The HT185WX1-100 is operated by the DE only.

Clock

TvFrame Period

0

-4/7Tc-TchHigh Time

-4/7Tc-TclLow Time

Dec. 24. 08’

UnitMaxTypMinSymbolsItem

MHz95781/TcFrequency

lines888806778

Hz756050
ms13.316.720

lines-768-TvdVertical Display Period
clocks193615601446ThOne line Scanning Period
clocks-1366-ThdHorizontal Display Period

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

13

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

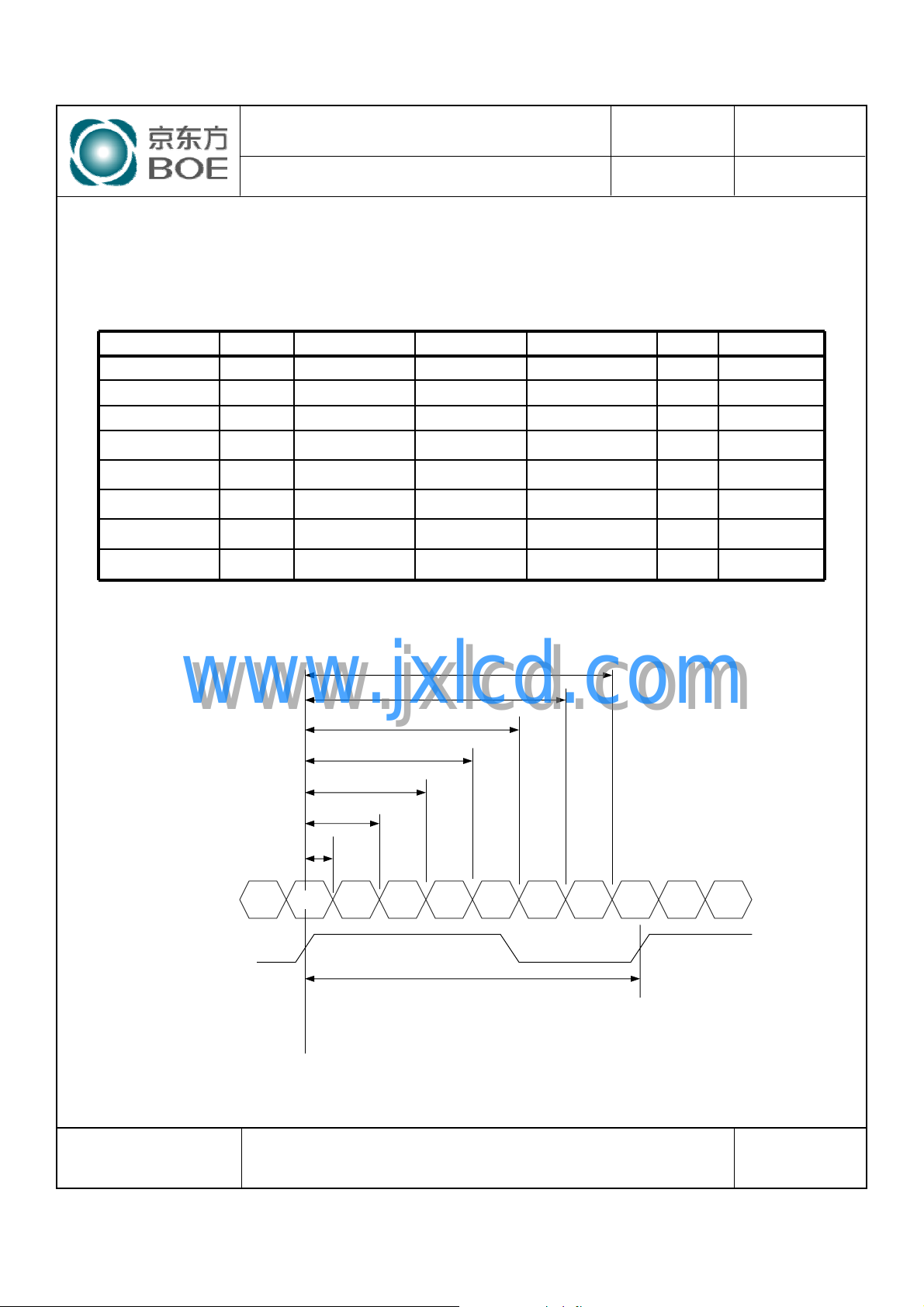

6.2 LVDS Rx Interface Timing Parameter

The specification of the LVDS Rx interface timing parameter is shown in Table 4.

<Table 4. LVDS Rx Interface Timing Specification>

Item Symbol Min Typ Max Unit Remark

CLKIN Period tRCIP 10.60 13.25 20.00 nsec

Input Data 0 tRIP1 -0.4 0.0 +0.4 nsec
Input Data 1 tRIP0 tRCIP/7-0.4 tRCIP/7 tRCIP/7+0.4 nsec

Input Data 2 tRIP6 2 ×tRCIP/7-0.4 2 ×tRCIP/7 2 ×tRCIP/7+0.4 nsec
Input Data 3 tRIP5 3 ×tRCIP/7-0.4 3 ×tRCIP/7 3 ×tRCIP/7+0.4 nsec
Input Data 4 tRIP4 4 ×tRCIP/7-0.4 4 ×tRCIP/7 4 ×tRCIP/7+0.4 nsec
Input Data 5 tRIP3 5 ×tRCIP/7-0.4 5 ×tRCIP/7 5 ×tRCIP/7+0.4 nsec
Input Data 6 tRIP2 6 ×tRCIP/7-0.4 6 ×tRCIP/7 6 ×tRCIP/7+0.4 nsec

0

Dec. 24. 08’

tRIP2

tRIP4

tRIP5

tRIP3

tRCIP

Vdiff=0[v]Vdiff=0[v]

www.jxlcd.com

www.jxlcd.com

tRIP6

tRIP0

tRIP1

RXz +/-

* Z = 0, 1, 2,3

RxCLK+

* Vdiff = (RXz+)-(RXz-),…. ,(RXCLK+)-(RXCLK-)

Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0Rx3

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

14

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

0

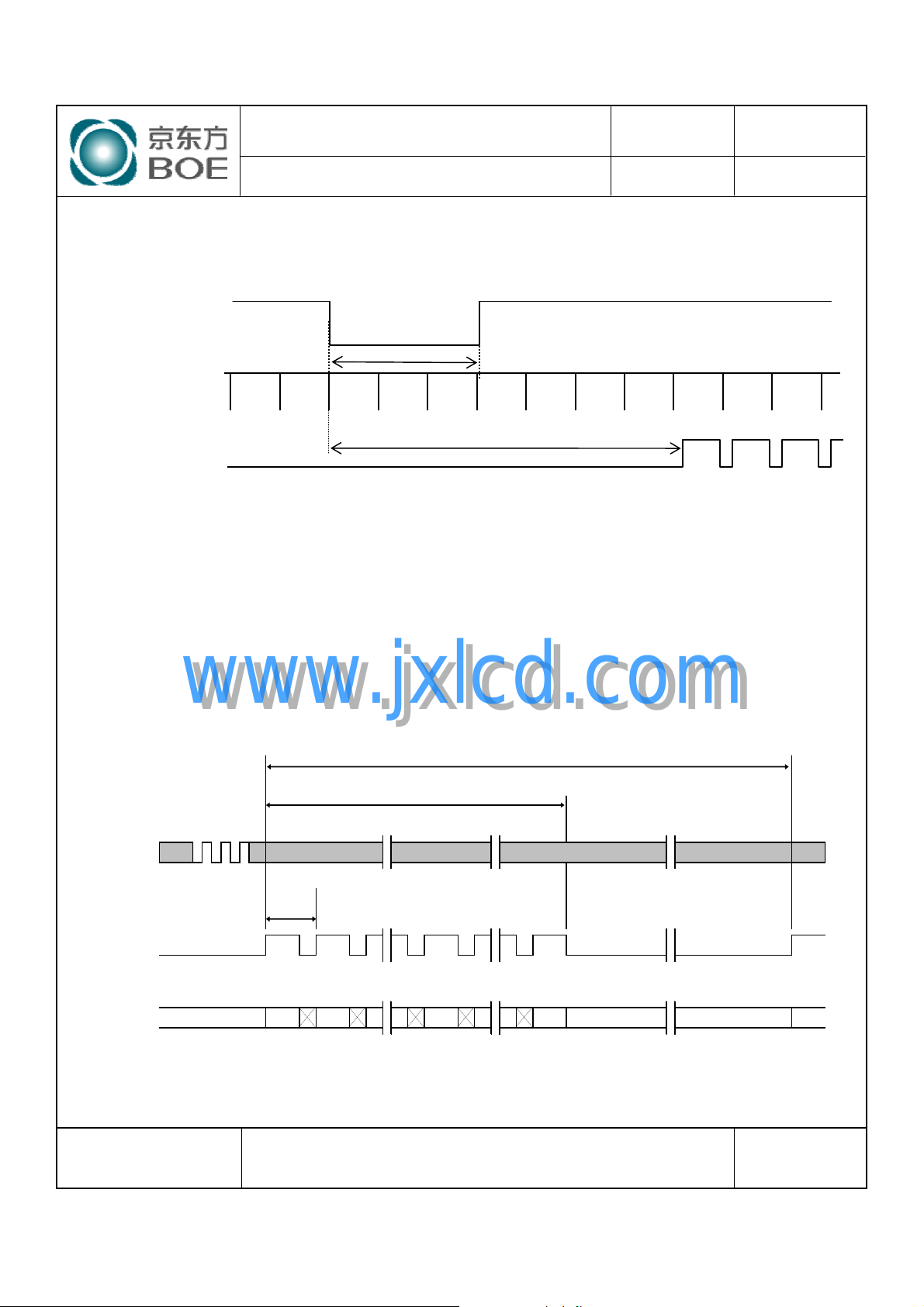

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL

7.1 Sync Timing Waveforms

V-Sync

H-Sync

DE

1) Need over 3 H-sync during V-Sync Low

2) Fix H-Sync width from V-Sync falling edge to first rising edge

Over 3 H-sync

Fix H-Sync width Area

Dec. 24. 08’

7.2 Vertical Timing Waveforms

www.jxlcd.com

www.jxlcd.com

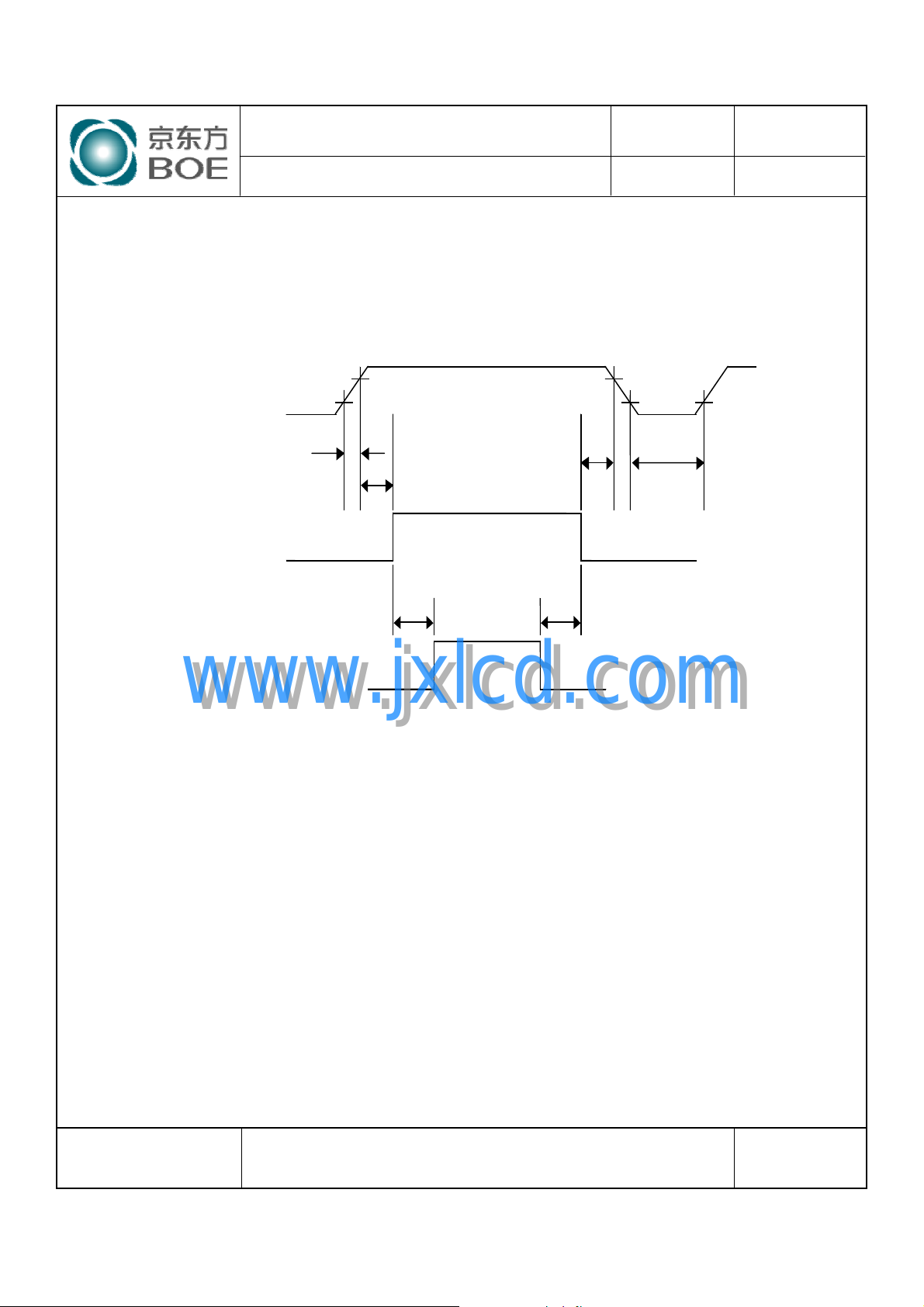

MCLK

Th

DE

R7 ~ R0

G7 ~ G0

B7 ~ B0

Invalid Data DataInvalid

x,1 x,2 x,y x+1,1

Tv

Tvd

x,1050

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

15

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

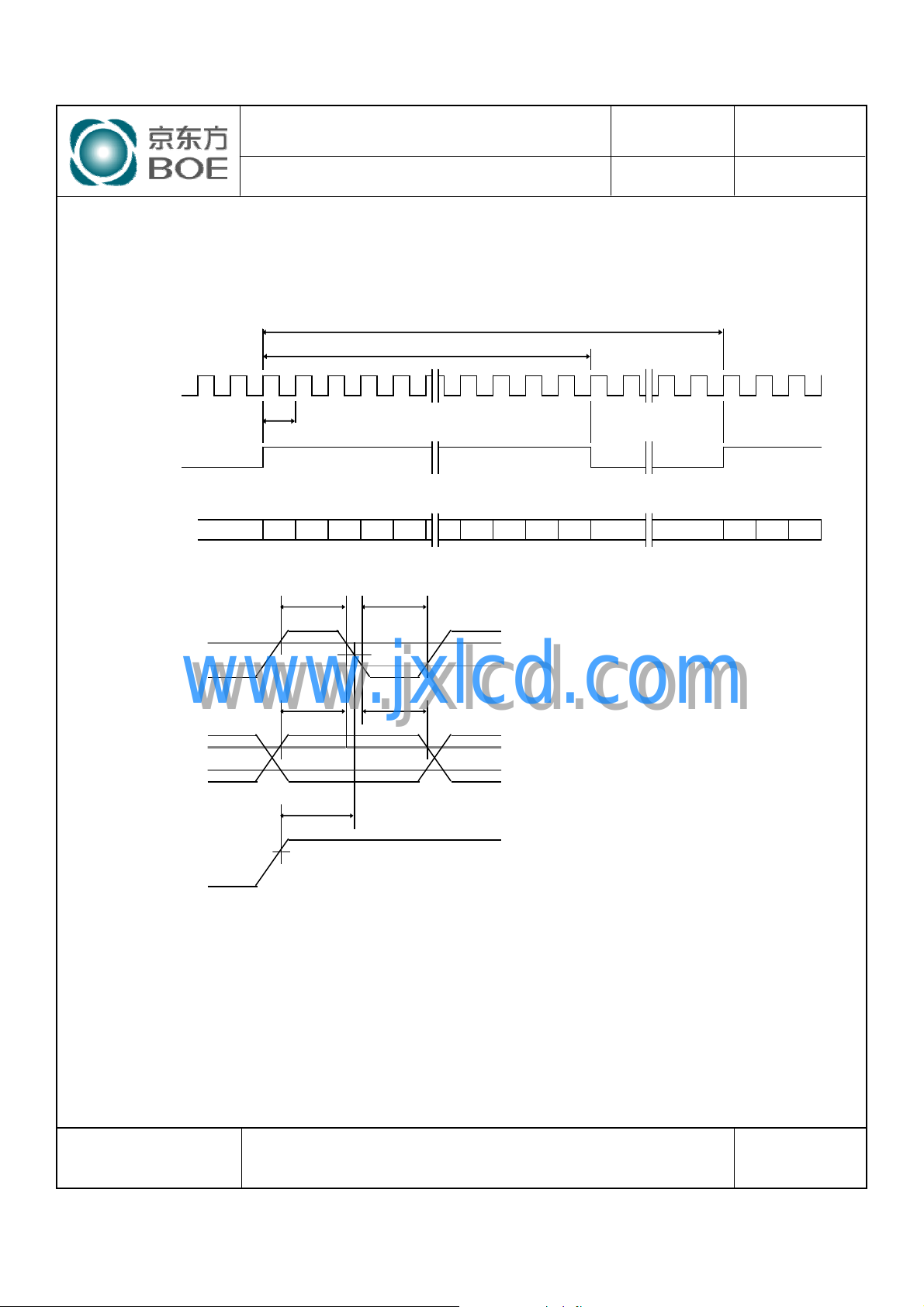

7.3 Horizontal Timing Waveforms

MCLK

Tc

DE

RA7 ~RA0

GA7 ~GA0

BA7 ~BA0

D1 D2 Dn Data D1 D2 D3

Tch

Thd

Tcl

Th

D1048 D1049 D1050

0

Invalid

Dec. 24. 08’

2.0V

MCLK

www.jxlcd.com

www.jxlcd.com

Data

DE

Tds

Valid

Tes

2.0V

1.5V

Tdh

Data

0.8V

2.0V

0.8V

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

16

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

0

Dec. 24. 08’

8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS

Color & Gray Scale

Basic Colors

Gray Scale
of RED

Gray Scale
of GREEN

Gray Scale
of BLUE

Gray Scale
of WHITE

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 000000000000000000000000

Blue 000000000000000011111111

Green 000000001111111100000000

Cyan 000000001111111111111111

Red 111111110000000000000000

Magenta 111111110000000011111111

Yellow 111111111111111100000000

White 111111111111111111111111
Black 000000000000000000000000

△

Darker 000000100000000000000000

△↑ ↑ ↑
▽↓ ↓ ↓

Brighter 111111010000000000000000

▽

Red 111111110000000000000000

Black 000000000000000000000000

△

Darker 000000000000001000000000

△↑ ↑ ↑

www.jxlcd.com

▽↓ ↓ ↓

www.jxlcd.com

Brighter 000000001111110100000000

▽

Green 000000001111111100000000
Black 000000000000000000000000

△

Darker 000000000000000000000010

△↑ ↑ ↑
▽↓ ↓ ↓

Brighter 000000000000000011111101

▽

Blue 000000000000000011111111

Black 000000000000000000000000

△

Darker 000000100000001000000010

△↑ ↑ ↑
▽↓ ↓ ↓

Brighter 111111011111110111111101

▽

White 111111111111111111111111

RED DATA GREEN DATA BLUE DATA

000000010000000000000000

111111100000000000000000

000000000000000100000000

000000001111111000000000

000000000000000000000001

000000000000000011111110

000000010000000100000001

111111101111111011111110

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

17

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

0

9.0 POWER SEQUENCE

To prevent a latch-up or DC operation of the LCD module, the power on/off sequence
shall be as shown in below

Power Supply

Interface Signal

0.9VDD

0.1VDD

0V

T1

T2

Valid

0V

T5 T6

0.9VDD

T3

0.1VDD

T4

Dec. 24. 08’

Back- light

● 0.5 ms ≤ T1 ≤ 10 ms

● 0 ≤ T2 ≤ 50 ms

● 0 ≤ T3 ≤ 50 ms

● 1 sec ≤ T4

● 200 ms ≤ T5

● 200 ms ≤ T6

www.jxlcd.com

www.jxlcd.com

0V

Notes:

1. When the power supply VDD is 0V, keep the level of input signals on
the low or keep high impedance.

2. Do not keep the interface signal high impedance when power is on.

3. Back Light must be turn on after power for logic and interface signal are valid.

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

18

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

0

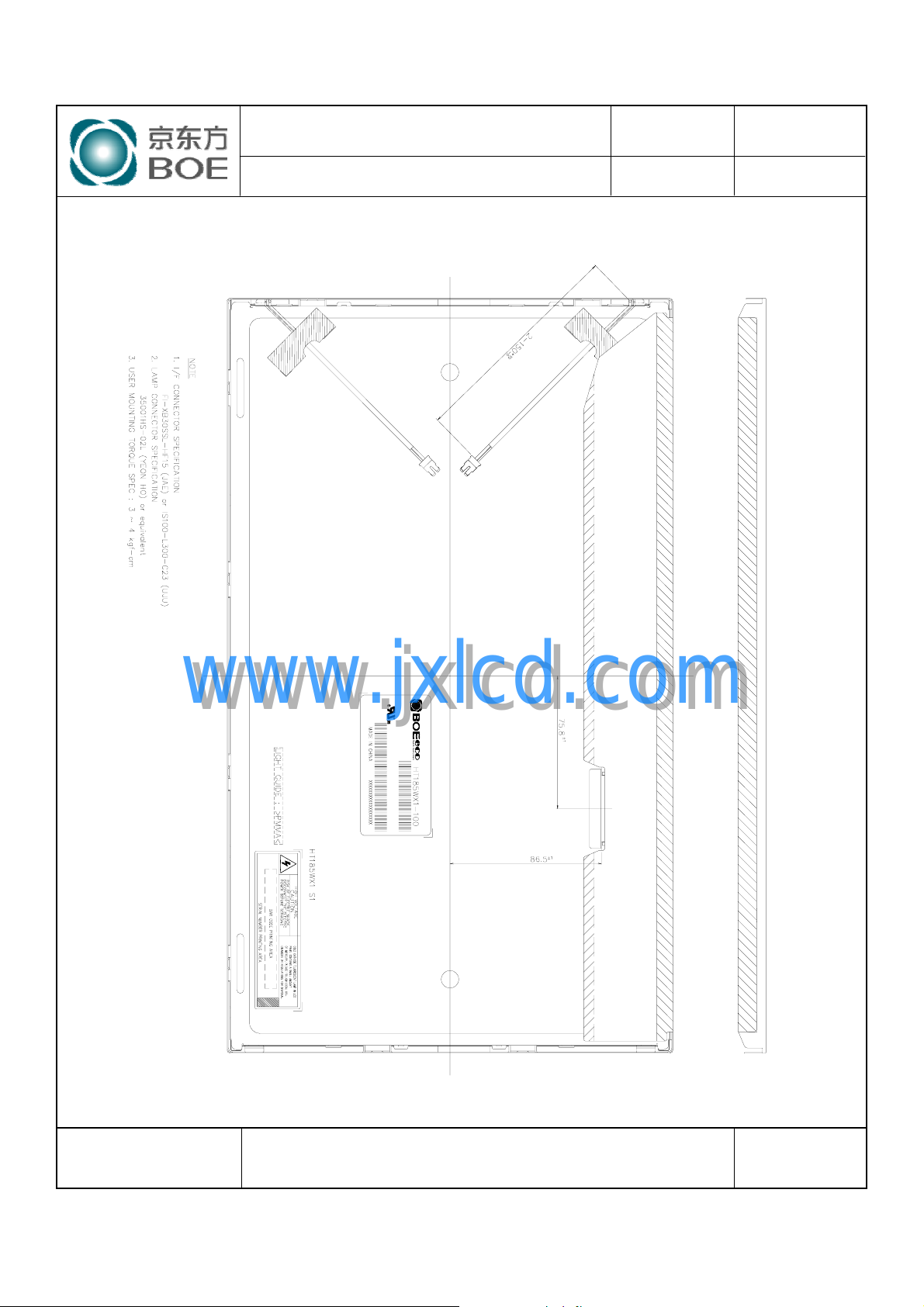

10.0 MECHANICAL CHARACTERISTICS

10.1 Dimensional Requirements

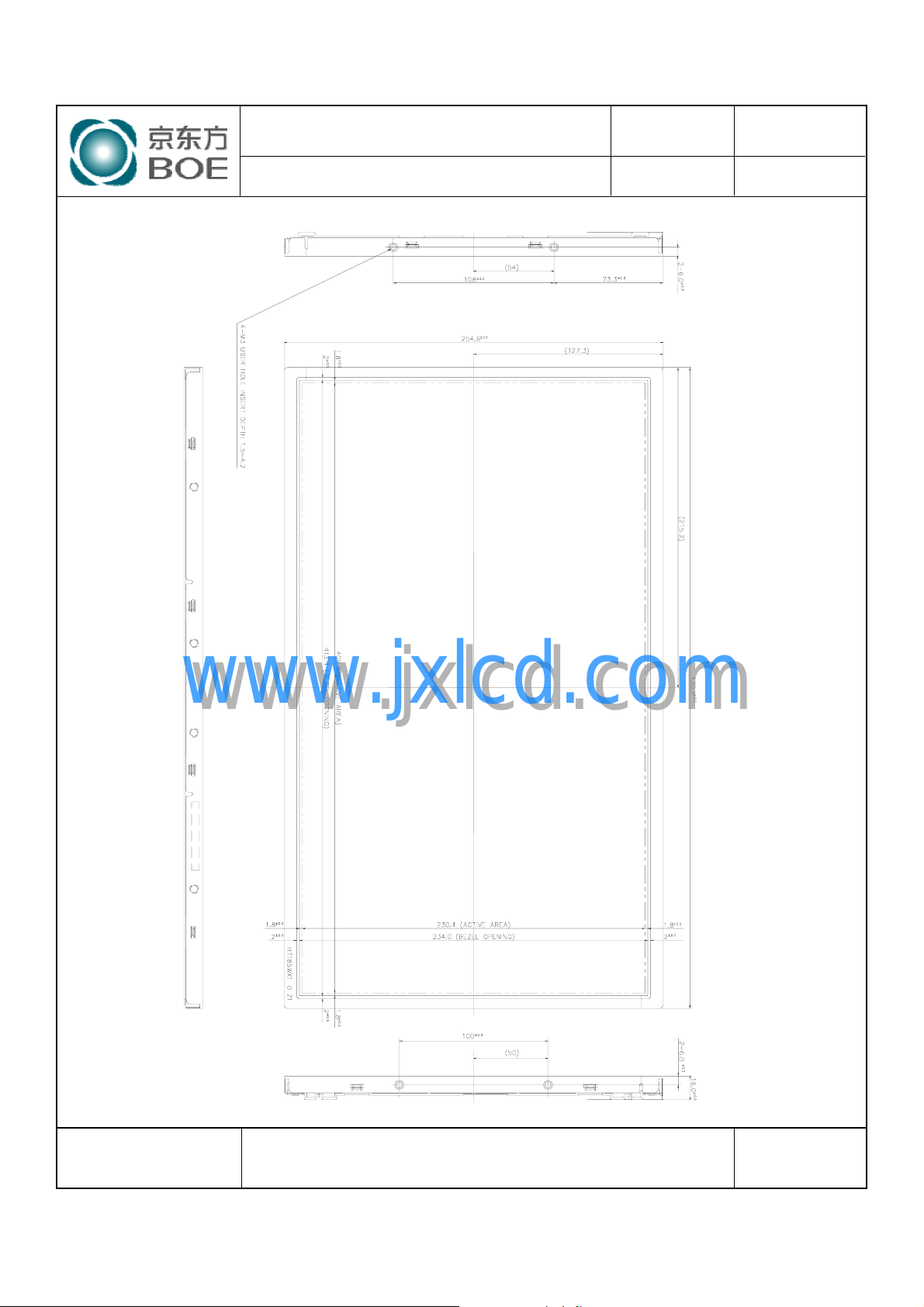

FIGURE 6 (located in Appendix) shows mechanical outlines for the model HT185WX1-100.
Other parameters are shown in Table 5.

<Table 5. Dimensional Parameters>

Parameter Specification Unit

Dimensional outline
Weight
Active area
Pixel pitch
Number of pixels
Back-light

430.4 ×254.6×16.5
2000 (max.)

409.8(H) × 230.4(V)

0.3(H) ×0.3(V)
1366(H)×768(V) (1 pixel = R + G + B dots)
Top / Bottom edge side 2-CCFL type

Dec. 24. 08’

mm

gram

mm
mm

pixels

www.jxlcd.com

www.jxlcd.com

10.2 Mounting

See FIGURE 5. (shown in Appendix)

10.3 Anti-Glare and Polarizer Hardness.

The surface of the LCD has an anti-glare coating to minimize reflection and a coating to reduce
scratching.

10.4 Light Leakage

There shall not be visible light from the back-lighting system around the edges of the screen as
seen from a distance 50cm from the screen with an overhead light level of 350lux.

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

19

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

11.0 RELIABLITY TEST

The Reliability test items and its conditions are shown in below.

<Table 6. Reliability Test Parameters >

No Test Items

High temperature storage test Ta = 60 ℃, 240 hrs

1

Low temperature storage test Ta = -20 ℃, 240 hrs

2

High temperature & high humidity

3

operation test
High temperature operation test Ta = 50 ℃, 240hrs

4

Low temperature operation test Ta = 0 ℃, 240hrs

5

Thermal shock Ta = -20 ℃↔60 ℃ (0.5 hr), 100 cycle

6

Vibration test

7

(non-operating)

Ta = 50 ℃, 80%RH, 240hrs

Frequency 10 ~ 300 Hz, Sweep rate 30 min
Gravity / AMP 1.5 G
Period ±X, ±Y, ±Z 30 min

Conditions

0

Dec. 24. 08’

Gravity

www.jxlcd.com

www.jxlcd.com

Shock test

8

(non-operating)

Electro-static discharge test

9

(non-operating)

Pulse width

Direction ±X, ±Y, ±Z Once for each

Air : 150 pF, 330Ω, 15 KV
Contact : 150 pF, 330Ω, 8 KV

50G

11msec, sine wave

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

20

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

12.0 HANDLING & CAUTIONS

(1) Cautions when taking out the module

y Pick the pouch only, when taking out module from a shipping package.

(2) Cautions for handling the module

y As the electrostatic discharges may break the LCD module, handle the LCD

module with care. Peel a protection sheet off from the LCD panel surface as
slowly as possible.

y As the LCD panel and back - light element are made from fragile glass material,

impulse and pressure to the LCD module should be avoided.

y As the surface of the polarizer is very soft and easily scratched, use a soft dry

cloth without chemicals for cleaning.

y Do not pull the interface connector in or out while the LCD module is operating.
y Put the module display side down on a flat horizontal plane.
y Handle connectors and cables with care.

(3) Cautions for the operation

y When the module is operating, do not lose CLK, ENAB signals. If any one of

these signals is lost, the LCD panel would be damaged.

y Obey the supply voltage sequence. If wrong sequence is applied, the module

would be damaged.

(4) Cautions for the atmosphere

www.jxlcd.com

www.jxlcd.com

y Dew drop atmosphere should be avoided.
y Do not store and/or operate the LCD module in a high temperature and/or

humidity atmosphere. Storage in an electro-conductive polymer packing pouch

and under relatively low temperature atmosphere is recommended.

(5) Cautions for the module characteristics

y Do not apply fixed pattern data signal to the LCD module at product aging.
y Applying fixed pattern for a long time may cause image sticking.

(6) Other cautions

y Do not disassemble and/or re-assemble LCD module.
y Do not re-adjust variable resistor or switch etc.
yWhen returning the module for repair or etc., Please pack the module not to be

broken. We recommend to use the original shipping packages.

0

Dec. 24. 08’

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

21

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

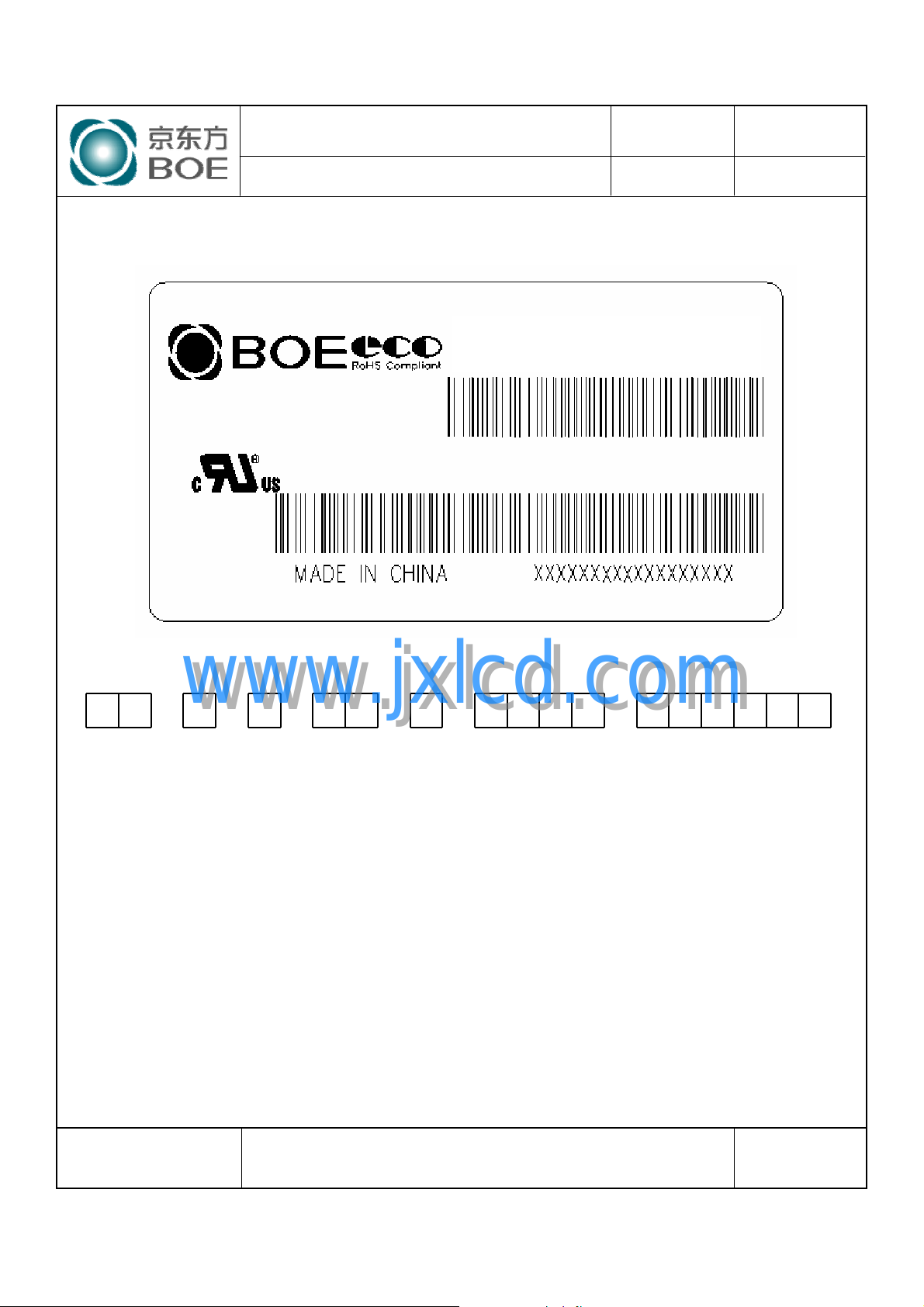

13.0 PRODUCT SERIAL NUMBER

0

HT185WX1-100

Dec. 24. 08’

1 2 3 4 5 6 7

www.jxlcd.com

XX X X XX X XXXX XXXXXX

1. Control Number

2. Rank / Grade

3. Line Classification

4. Year (2001 : 01, 2002 : 02, …)

www.jxlcd.com

5. Month (1,2,3, … , 9, X, Y, Z)

6. Internal Use

7. Serial Number

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

22

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

14.0 Packing

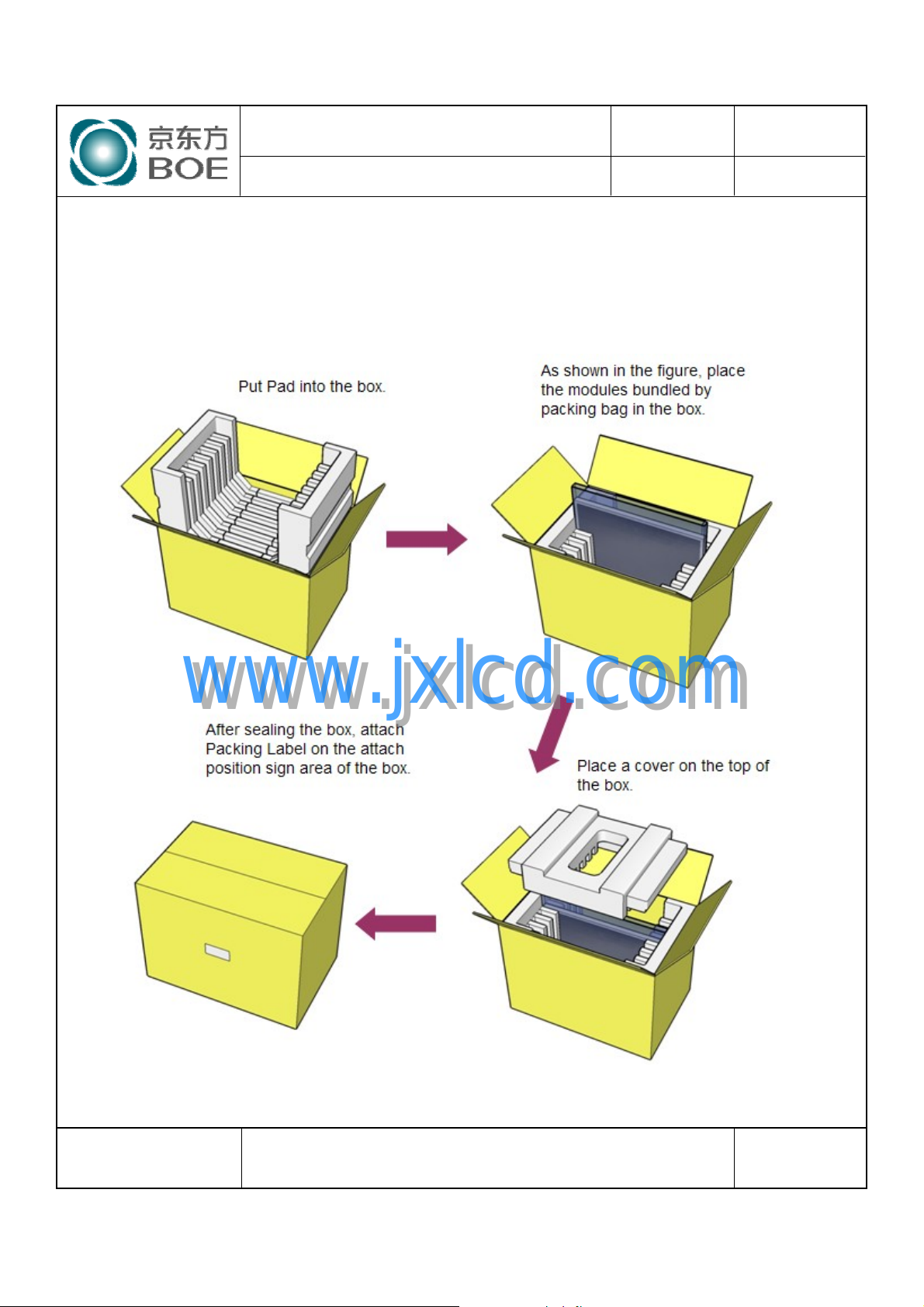

14.1 Packing Order

TFT- LCD PRODUCT

0

Dec. 24. 08’

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

23

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

14.2 Packing Note

y Box Dimension : 346mm(W) × 521mm(L) × 403mm(H)
y Package Quantity in one Box : 7pcs

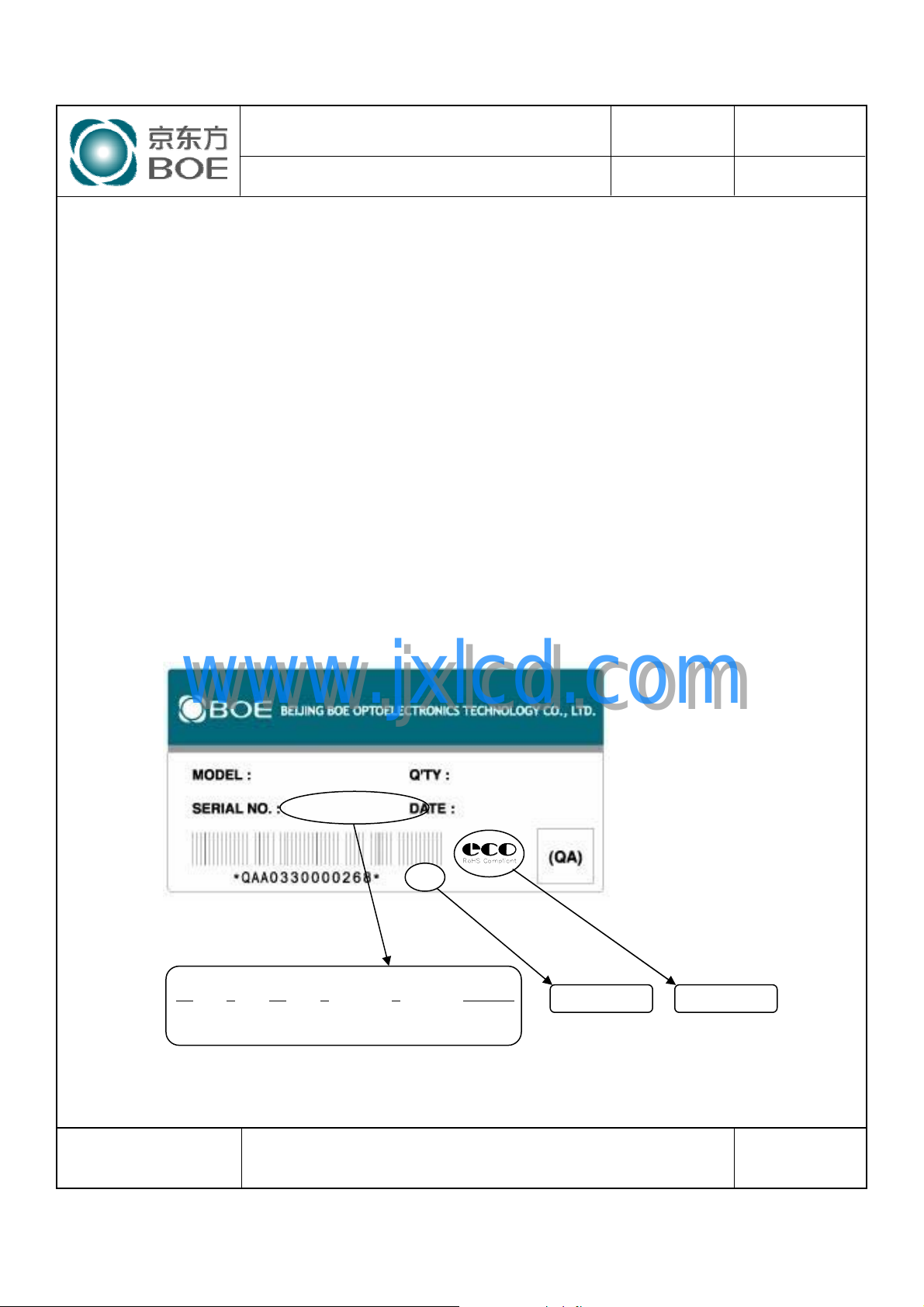

14.3 Box label

y Label Size : 108 mm (L) × 56 mm (W)
y Contents

Model : HT185WX1
Q`ty : Module Q`ty in one box
Serial No. : Box Serial No. See next page for detail description.
Date : Packing Date
FG Code : FG Code of Product

0

Dec. 24. 08’

www.jxlcd.com

www.jxlcd.com

00 0 00 0 0 000000
Type Grade Year Month ITEM-CODE Serial_no

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

HT185WX1-100

0000000000000

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

XXXX

8

200X.X.XX

Internal use RoHS Mark

A4(210 X 297)

24

PAGE

OF 28

PRODUCT GROUP

REV

ISSUE DATE

15.0 APPENDIX

Figure 1. Measurement Set Up

TFT- LCD PRODUCT

0

(L = 5 0 c m )

Dec. 24. 08’

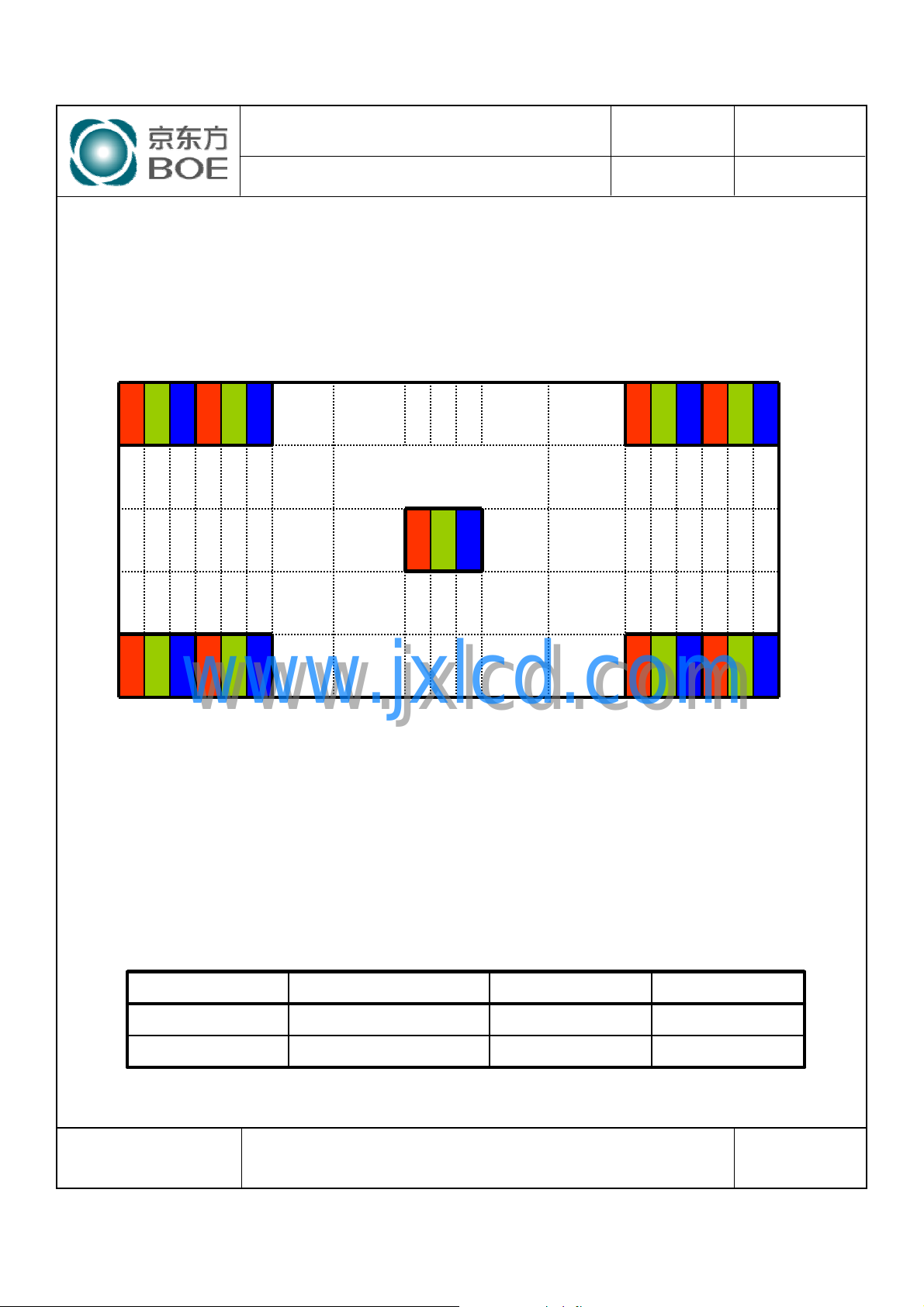

Figure 2. White Luminance and Uniformity Measurement Locations (9 points)

www.jxlcd.com

www.jxlcd.com

136 683 1229

1) 1

1) 4 1) 5

1) 7 1) 8 1) 9

1) 2 1) 3

1) 6

77

384

691

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

25

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

Display data

Optical
Response

TFT- LCD PRODUCT

Figure 3. Response Time Testing

White(TFTOFF)

TR

100%

90%

10%

0%

Figure 4. Cross Modulation Test Description

VIEW AREA VIEW AREA

Black(TFT ON)

0

White(TFTOFF)

TF

Time

Dec. 24. 08’

(D/4, W/4)

www.jxlcd.com

www.jxlcd.com

(D, W)

YA(7D/8,W/2)

Cross-Talk (%) = × 100

Where: YA= Initial luminance of measured area (cd/m2)

YB= Subsequent luminance of measured area (cd/m2)

The location measured will be exactly the same in both patterns

L31

YB-Y

Y

A

(3D/4, 3W/4)

(D, W)

L0

A

YB(7D/8,W/2)

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

26

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

Figure 5. TFT-LCD Module Outline Dimensions (Front view)

0

Dec. 24. 08’

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

27

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

Figure 6. TFT-LCD Module Outline Dimensions (Rear view)

0

Dec. 24. 08’

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S864-5040

B2006-5006-O (3/3)

SPEC. TITLE

HT185WX1-100 Product Specification_Rev.0

PAGE

28

OF 28

A4(210 X 297)
