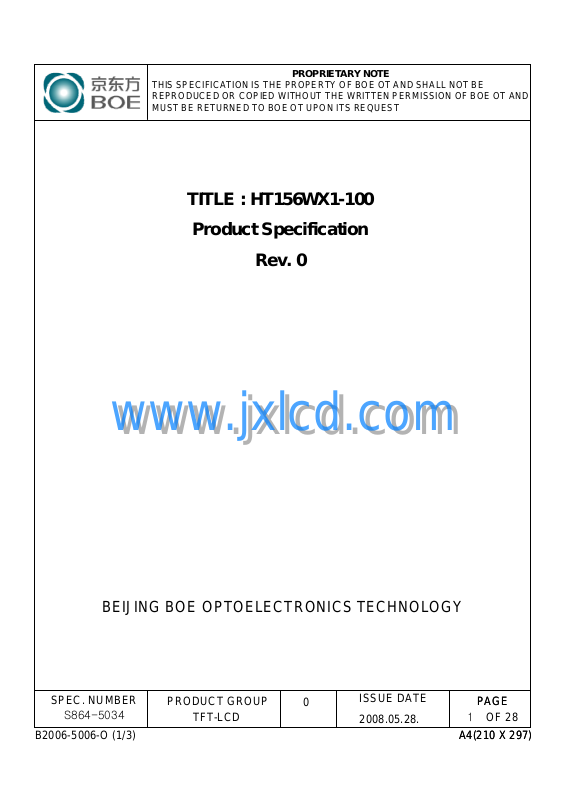

THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OTAND
MUST BE RETURNED TO BOE OT UPON ITS REQUEST
TITLE : HT156WX1-100
Product Specification
Rev. 0
www.jxlcd.com
www.jxlcd.com
BEIJING BOE OPTOELECTRONICS TECHNOLOGY
SPEC. NUMBER
S864-5034
PRODUCT GROUP
TFT-LCD
0
ISSUE DATE
2008.05.28.
PAGE
PAGE
1
OF 28
B2006-5006-O (1/3)
A4(210 X 297)
A4(210 X 297)
Page 2
PRODUCT GROUP
TFT- LCD PRODUCT0May. 28. 08’
REV
ISSUE DATE
REVISION HISTORY
REV.ECN No.DESCRIPTION OF CHANGES DATE PREPARED
0Initial ReleaseMay. 28. 08’权宁万
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
S864-5034
B2006-5006-O (2/3)A4(210 X 297)
SPEC. TITLE
HT156WX1-100 Product Specification
2
PAGE
OF 28
Page 3
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
0
May. 28.08’
Contents
No.ItemPage
1.0General Description4
2.0Absolute Maximum Ratings6
3.0Electrical specifications7
4.0Optical specifications8
5.0Interface Connection10
6.0Signal Timing Specifications13

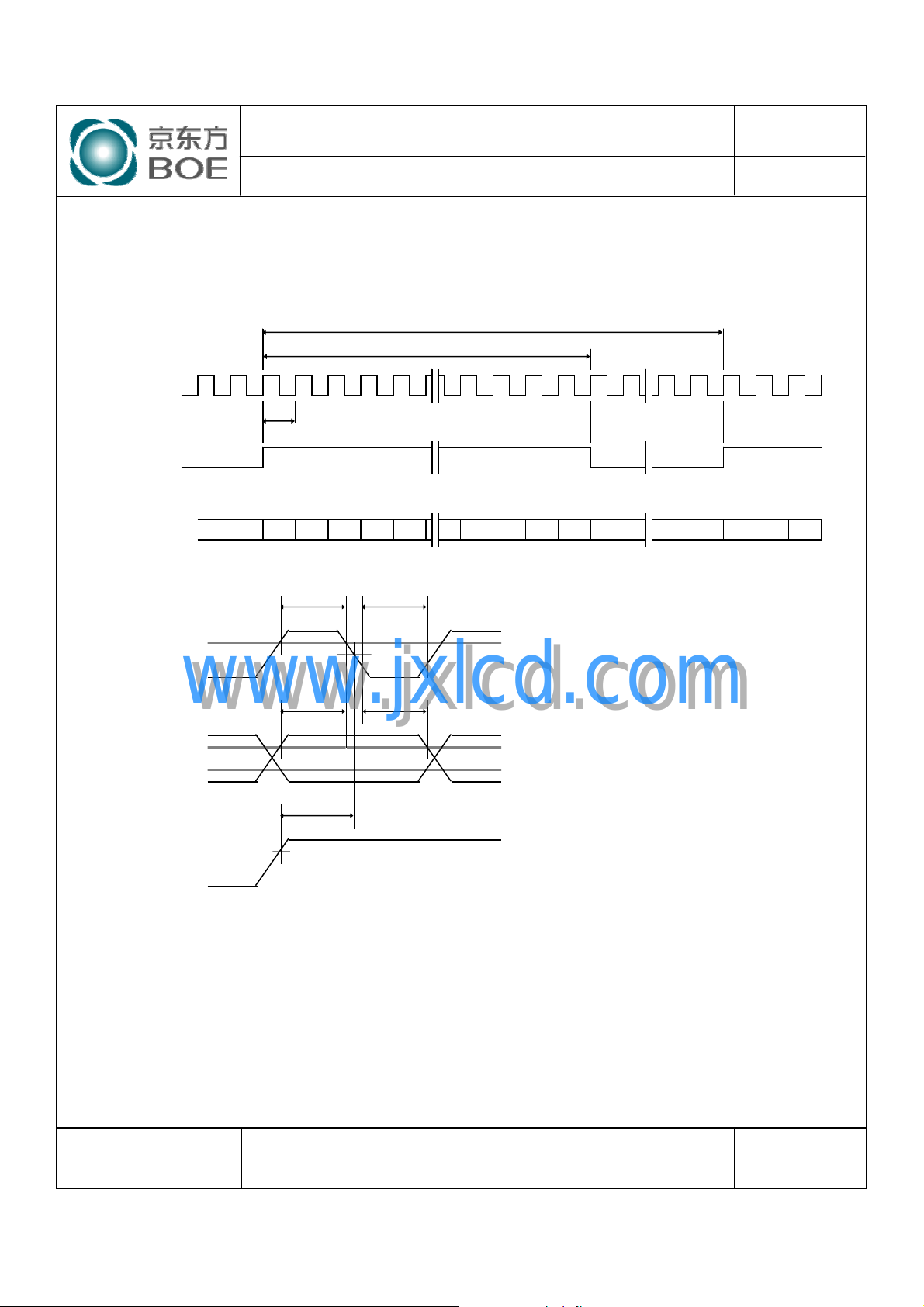

7.0Signal Timing waveforms of Interface Signal15
8.0Input Signals, Display Colors & Gray Scale of Colors17
9.0Power Sequence18
10.0Mechanical Characteristics19
www.jxlcd.com
11.0Reliability Test20
12.0Handling & Cautions 21

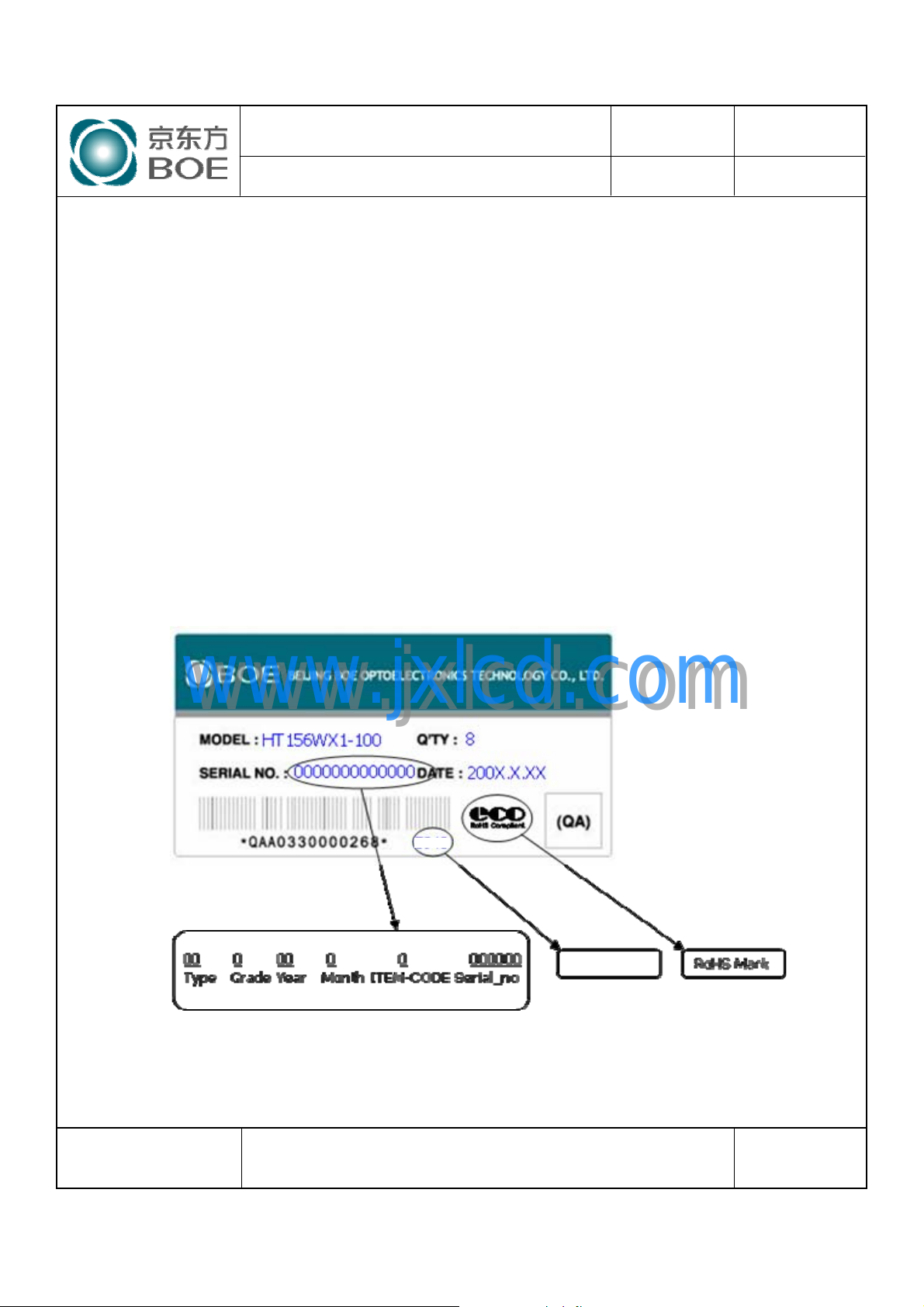

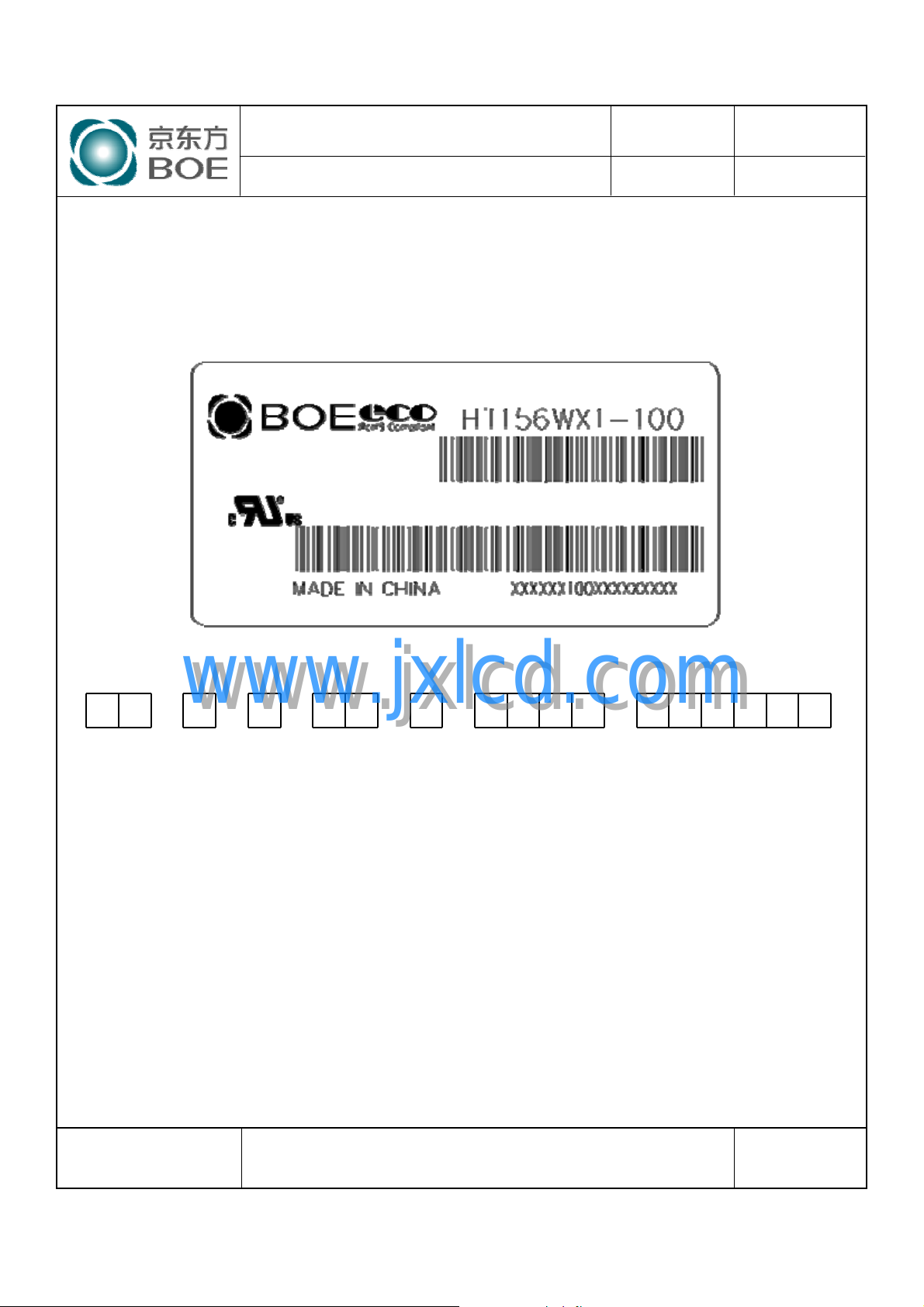

13.0Product Serial Number22
14.0Packing23
15.0Appendix25
www.jxlcd.com
SPEC. NUMBER
S864-5034
B2006-5006-O (3/3)
SPEC. TITLE
HT156WX1-100 Product Specification
PAGE
3
OF 28
A4(210 X 297)
Page 4
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
0
1.0 GENERAL DESCRIPTION
1.1 Introduction
HT156WX1-100 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 15.6 inch
diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.

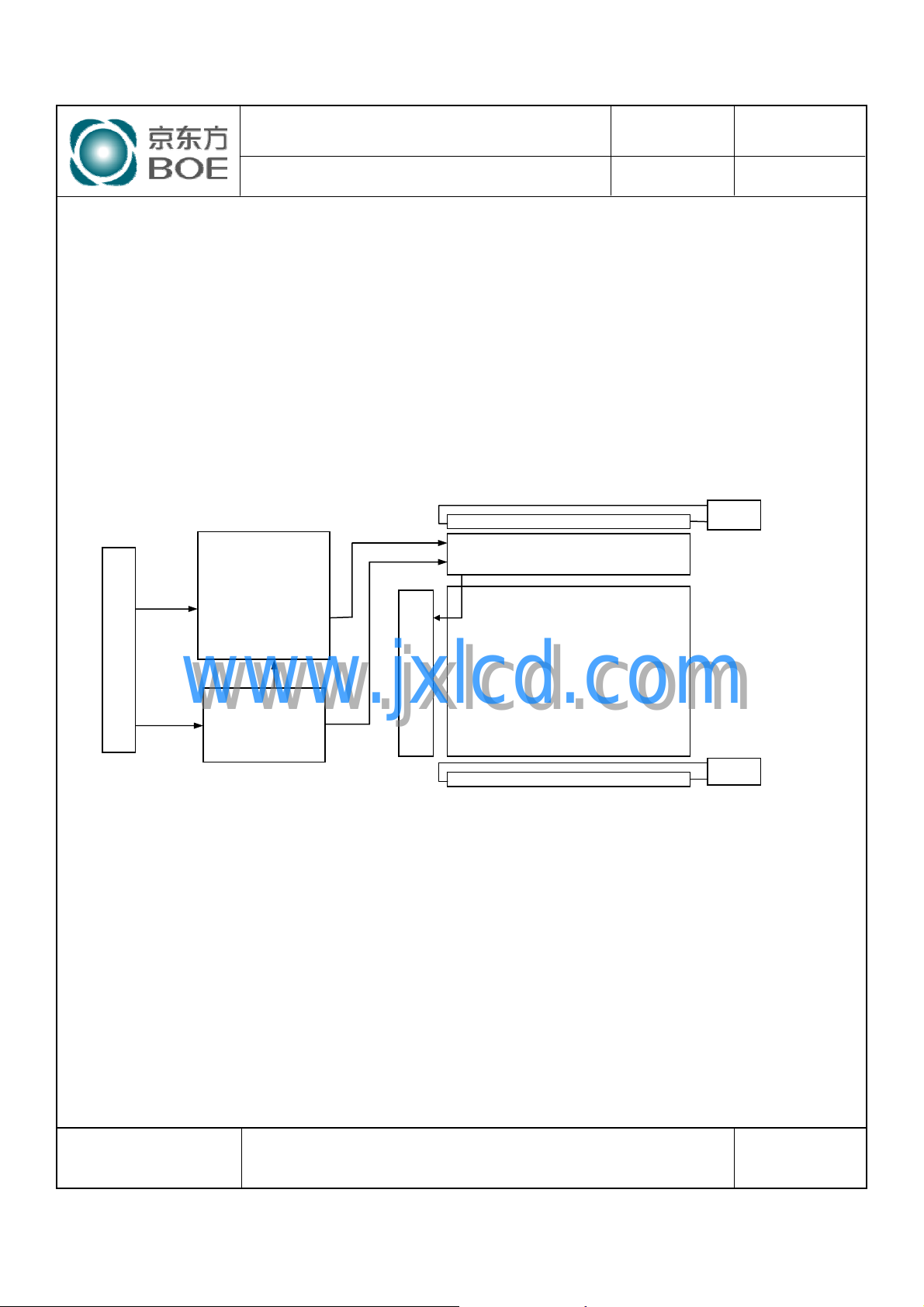

CN21
Connector (CN
LVDS
Input
Signal
LVDS Rx
+
T/CON
+
RSDS Tx
Gate Driver
Source Driver
TFT LCD Panel
May. 28.08’
www.jxlcd.com
www.jxlcd.com
VDD
1
)
1.2 Features
z LVDS Interface with 1 pixel / clock
z High-speed response
z Low power consumption
z 6-bit (Hi-FRC) color depth, display 16. 7M colors
z Incorporated edge type back-light (Two lamps)
z High luminance and contrast ratio, low reflection and wide viewing angle
z DE (Data Enable) only
z RoHS Compliant
DC/DC
Gamma
Vcom
1366 × 768
CN22
SPEC. NUMBER
S864-5034
B2006-5006-O (3/3)
SPEC. TITLE
HT156WX1-100 Product Specification
PAGE
4
OF 28
A4(210 X 297)
Page 5
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
1.3 Application
z Desktop Type of PC & Workstation Use
z Slim-Size Display for Stand-alone Monitor
z Display Terminals for Control System
z Monitors for Process Controller
1.4 General Specification
The followings are general specifications at the model HT156WX1-100.
<Table 1. General Specifications>
ParameterSpecificationUnit
0
May. 28.08’
Remarks
Active area 344.232(H) × 193.536(V) mm
Number of pixels 1366(H) ×768(V)pixels
Pixel pitch 0.252(H) ×0.252(V)mm

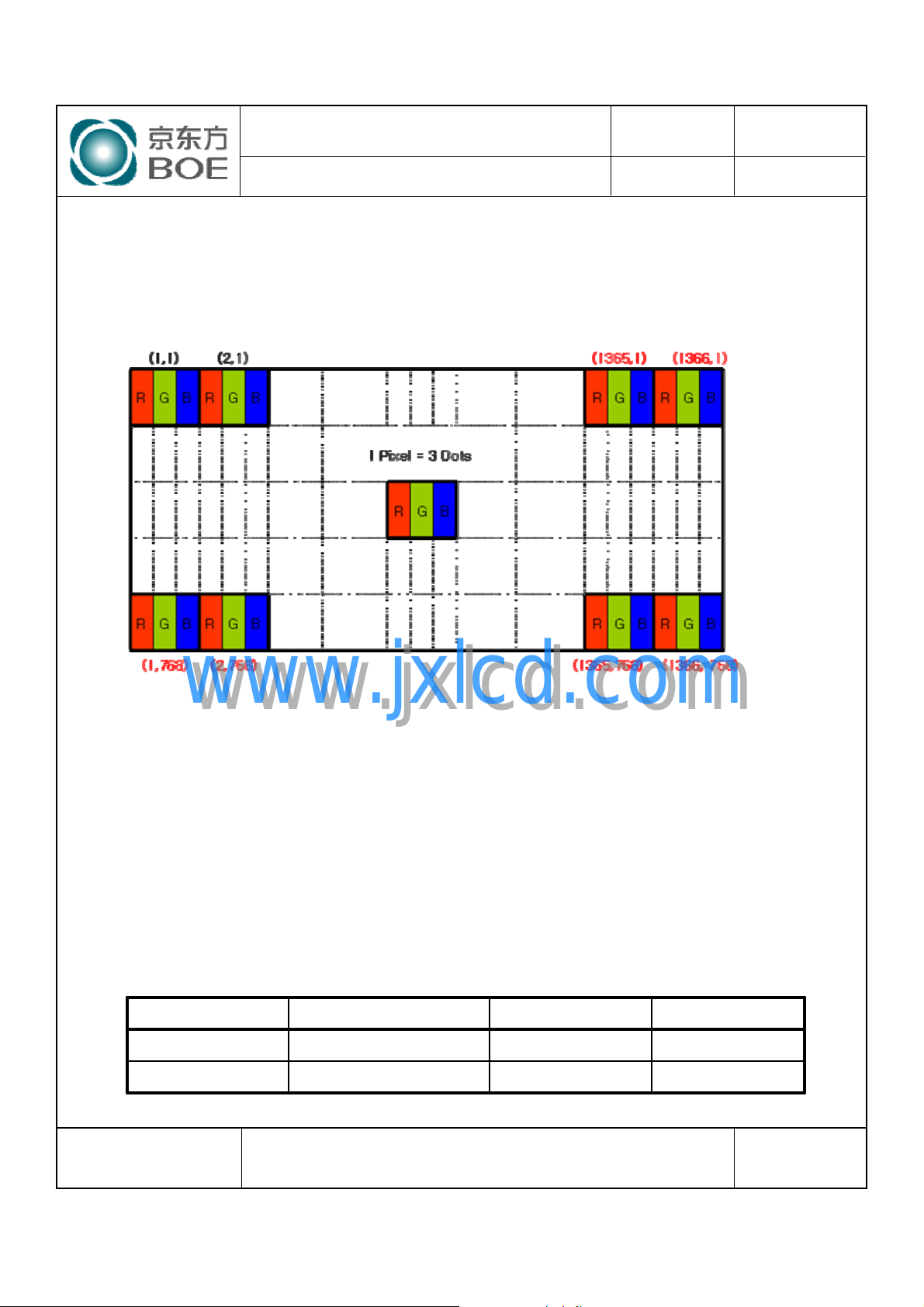

Pixel arrangementRGB Vertical stripe
Display colors16.7Mcolors
Display modeNormally White
Dimensional outline363.8(H) × 215.9(V) × 14.3(D) typ.mm
Weight 1300 (max.)g
Surface TreatmentHaze 25%, 3H
Back-lightTop/Bottom edge side, 2-CCFL typeNote 1
Note : 1. CCFL (Cold Cathode Fluorescent Lamp)
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
S864-5034
B2006-5006-O (3/3)
SPEC. TITLE
HT156WX1-100 Product Specification
PAGE
5
OF 28
A4(210 X 297)
Page 6
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
0

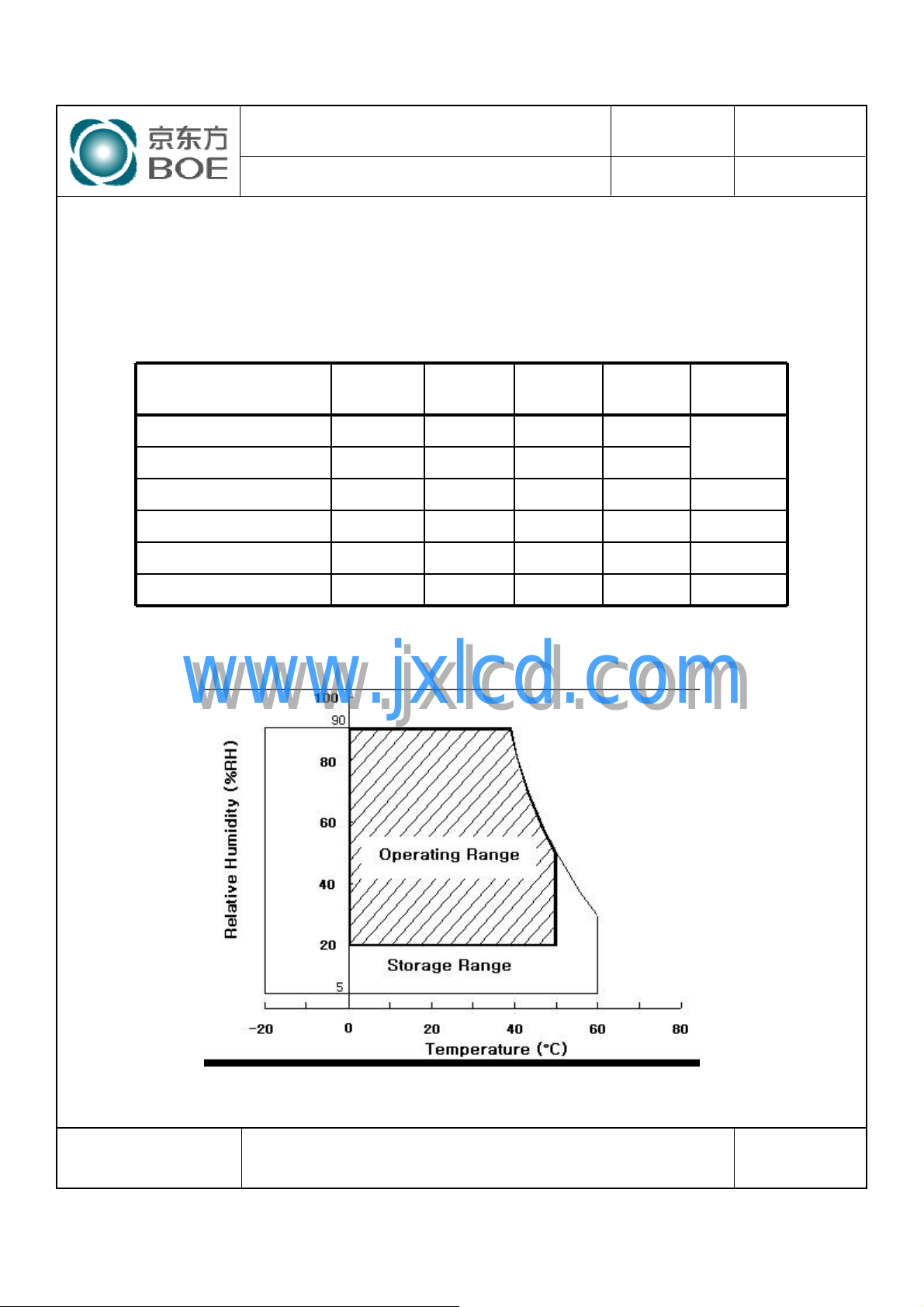

2.0 ABSOLUTE MAXIMUM RATINGS

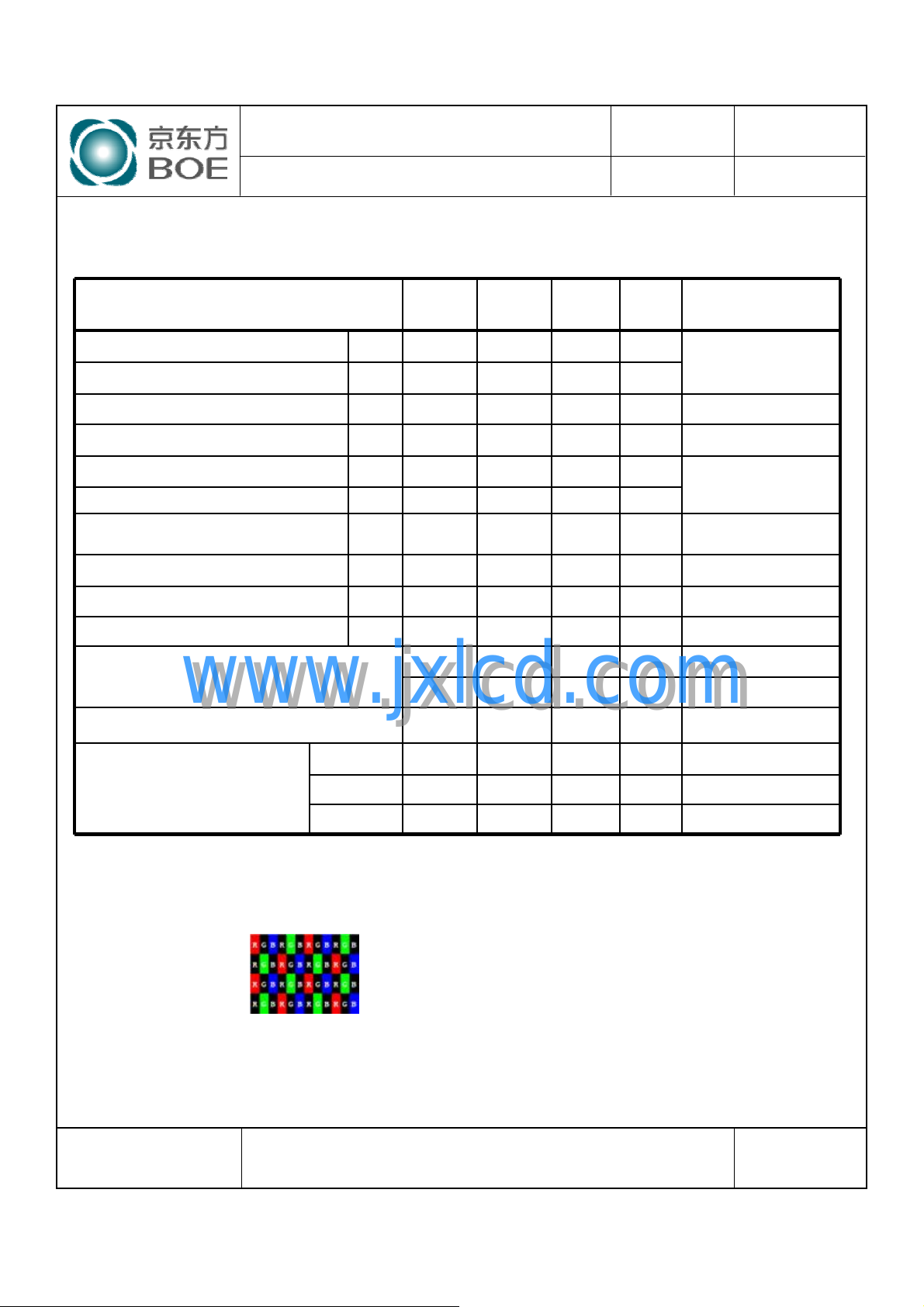

The followings are maximum values which, if exceed, may cause faulty operation or
damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.
Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.
The current draw and power consumption specified is for VDD=5.0V, Frame rate=63Hz and
Clock frequency = 79.2MHz. Test Pattern of power supply current
a) Typ : Color Bar pattern
b) Max : Skip Sub Pixel Pattern
P
BL
P
total
-2.503.00W
-8.969.92WIBL=7 mA, Note 5
-11.4612.92W
2. Duration of rush current is about 2 ms and rising time of VDD is 520 μs ± 20 %
3. The lamp frequency should be selected as different as possible from the horizontal
synchronous frequency and its harmonics to avoid interference, which may cause line flow on the display
4. The voltage above this value should be applied to the lamps for more than 1 second to start-up. Otherwise the
lamps may not be turned on.
5. Calculated value for reference (V
SPEC. NUMBER
S864-5034
SPEC. TITLE
HT156WX1-100 Product Specification
× IBL) ×2 excluding inverter loss.
BL
B2006-5006-O (3/3)
PAGE
7
OF 28
A4(210 X 297)
Page 8
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
0
May. 28.08’
4.0 OPTICAL SPECIFICATION
4.1 Overview

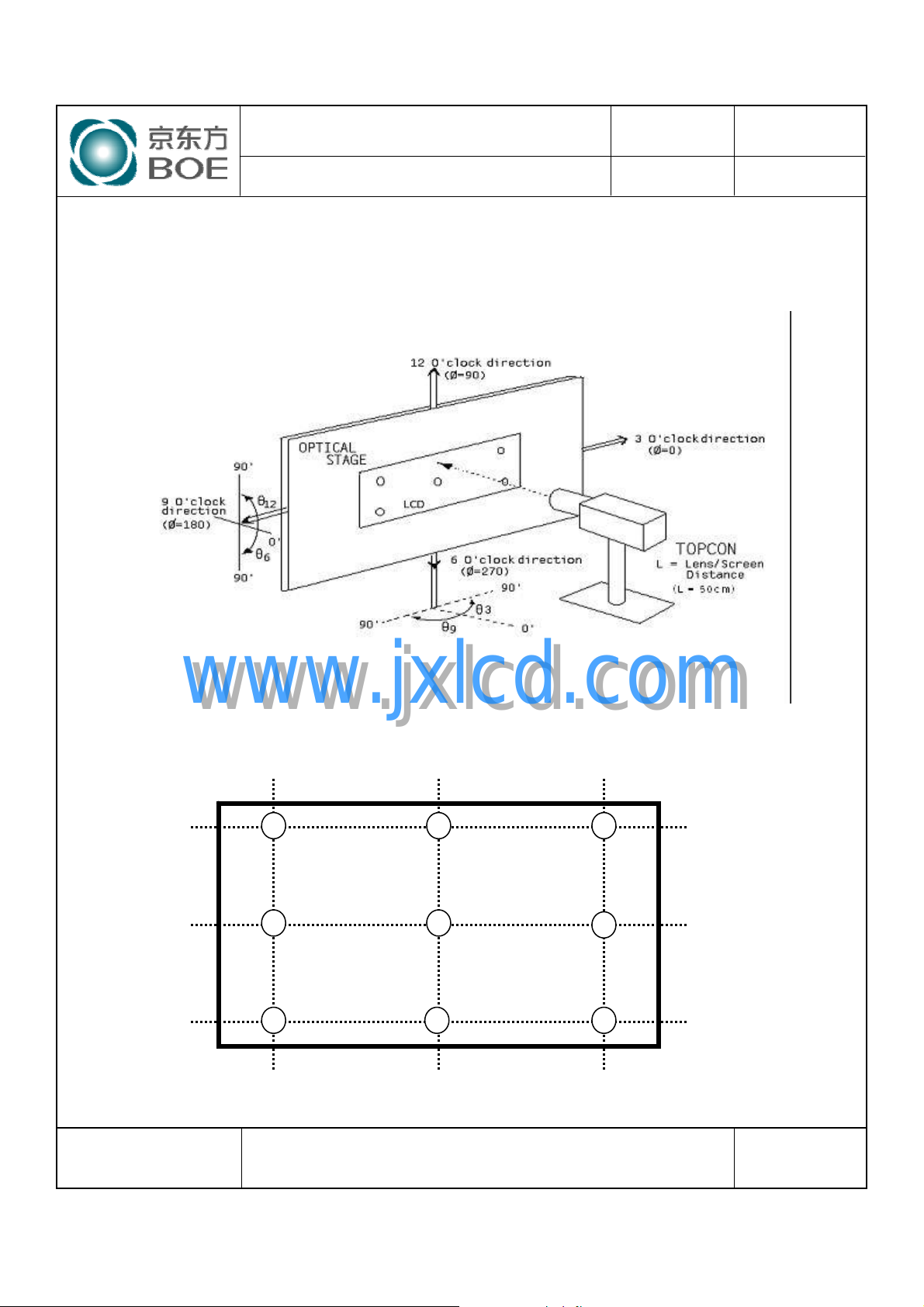

The test of Optical specifications shall be measured in a dark room (ambient luminance ≤ 1 lux and temperature =
25±2℃) with the equipment of Luminance meter system (Goniometer system and TOPCONE BM-5) and test unit shall
be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0°. We refer
to θ
θ
Ø, the center of the measuring spot on the Display surface shall stay fixed. The measurement shall be executed after 30
minutes warm-up period. VDD shall be 5.0V +/-10% at 25°C. Optimum viewing angle direction is 6 ’clock.
4.2 Optical Specifications
Viewing Angle range
Luminance Contrast ratioCR
Luminance of WhiteY
White luminance uniformityΔY
(=θ3) as the 3 o’clock direction (the “right”), θ
Ø=0
) as the 9 o’clock direction (“left”) and θ
9
(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θ and/or
1.Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are
determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock
direction with respect to the optical axis which is normal to the LCD surface. (see FIGURE 1)
2.Contrast measurements shall be made at viewing angle of θ= 0° and at the center of the LCD
surface. Luminance shall be measured with all pixels in the view field set first to white, then to
the dark (black) state. (See FIGURE 1 shown in Appendix) Luminance Contrast Ratio (CR) is
defined mathematically.
CR =
3.Center Luminance of white is defined as the LCD surface. Luminance shall be measured with
all pixels in the view field set first to white. This measurement shall be taken at the locations
shown in FIGURE 2 for a total of the measurements per display.
4.The White luminance uniformity on LCD surface is then expressed as :
ΔY = ( Minimum Luminance of 9points / Maximum Luminance of 9points ) * 100
(See FIGURE 2 shown in Appendix).
5. The color chromaticity coordinates specified in Table 4. shall be calculated from the spectral
data measured with all pixels first in red, green, blue and white. Measurements shall be made
at the center of the panel.

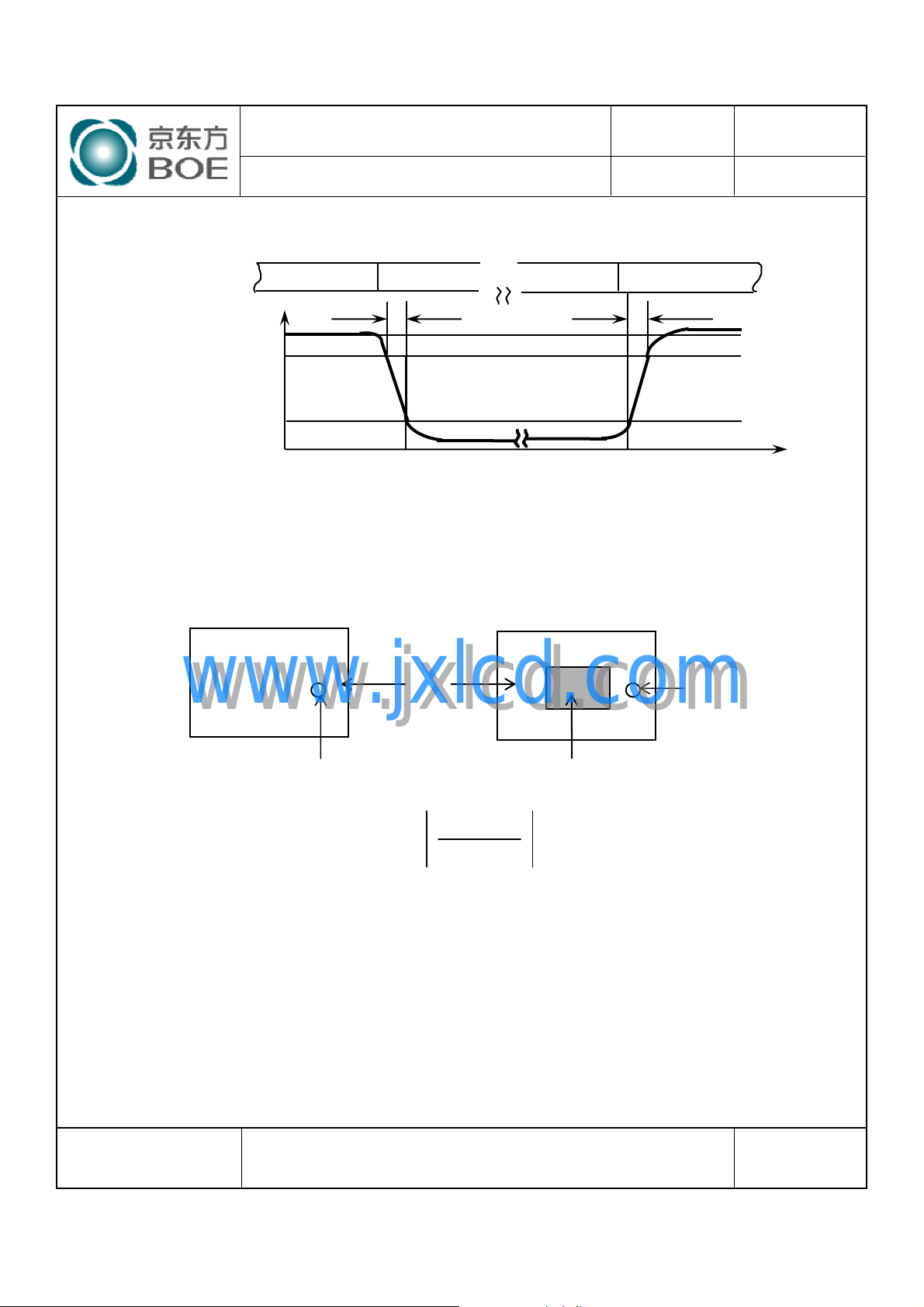

6. The electro-optical response time measurements shall be made as FIGURE 3 shown in
Appendix by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Td, and 90% to 10% is Tr.
7. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the
luminance (Y
luminance (YB) of that same area when any adjacent area is driven dark. (See FIGURE 4
shown in Appendix).
www.jxlcd.com
www.jxlcd.com
) of a 25mm diameter area, with all display pixels set to a gray level, to the
A
Luminance when displaying a white raster
Luminance when displaying a black raster
SPEC. NUMBER
S864-5034
B2006-5006-O (3/3)
SPEC. TITLE
HT156WX1-100 Product Specification
PAGE
9
OF 28
A4(210 X 297)
Page 10
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
0
5.0INTERFACE CONNECTION.
5.1 Electrical Interface Connection
● CN11 Module Side Connector : UJU IS100-30O-C23(PB-FREE)or Equivalent
User Side Connector : JAE FI-X30H or Equivalent
<Table 5. Pin Assignments for the Interface Connector>
Pin NoSymbolFunctionRemark
1NCNo connection
2NC (CE)
3NC (CTL)Internal Use
4GND GND Ground
5RX0-Negative LVDS differential data input. Channel 0
6RX0+Positive LVDS differential data input. Channel 0
7GND Ground
8RX1-Negative LVDS differential data input. Channel 1
9RX1+Positive LVDS differential data input. Channel 1
10GNDGround
11RX2-Negative LVDS differential data input. Channel 2
12RX2+ Positive LVDS differential data input. Channel 2
13GNDGround
www.jxlcd.com
14RXCLK-Negative LVDS differential clock input.
www.jxlcd.com
15RXCLK+Positive LVDS differential clock input.
16GNDGround
17RX3-Negative LVDS differential data input. Channel 3
18RX3+Positive LVDS differential data input. Channel 3
19GNDGround
20NCNot connection, this pin should be open.
21NCNot connection, this pin should be open.
22
23GNDGround
24GNDGround
25GNDGround
26VDD5.0V power supply
27VDD5.0V power supply
28VDD5.0V power supply
29VDD5.0V power supply
30VDD5.0V power supply
NCReserved. (For internal test used)
LCD internal use only
Internal Use
May. 28.08’
SPEC. NUMBER
S864-5034
B2006-5006-O (3/3)
SPEC. TITLE
HT156WX1-100 Product Specification
PAGE
10
OF 28
A4(210 X 297)
Page 11
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
5.2 LVDS Interface (Tx; THC63LVDF83A or Equivalent)
<Table 6. Pin connection in case of using Thine THC63LVDF83A>

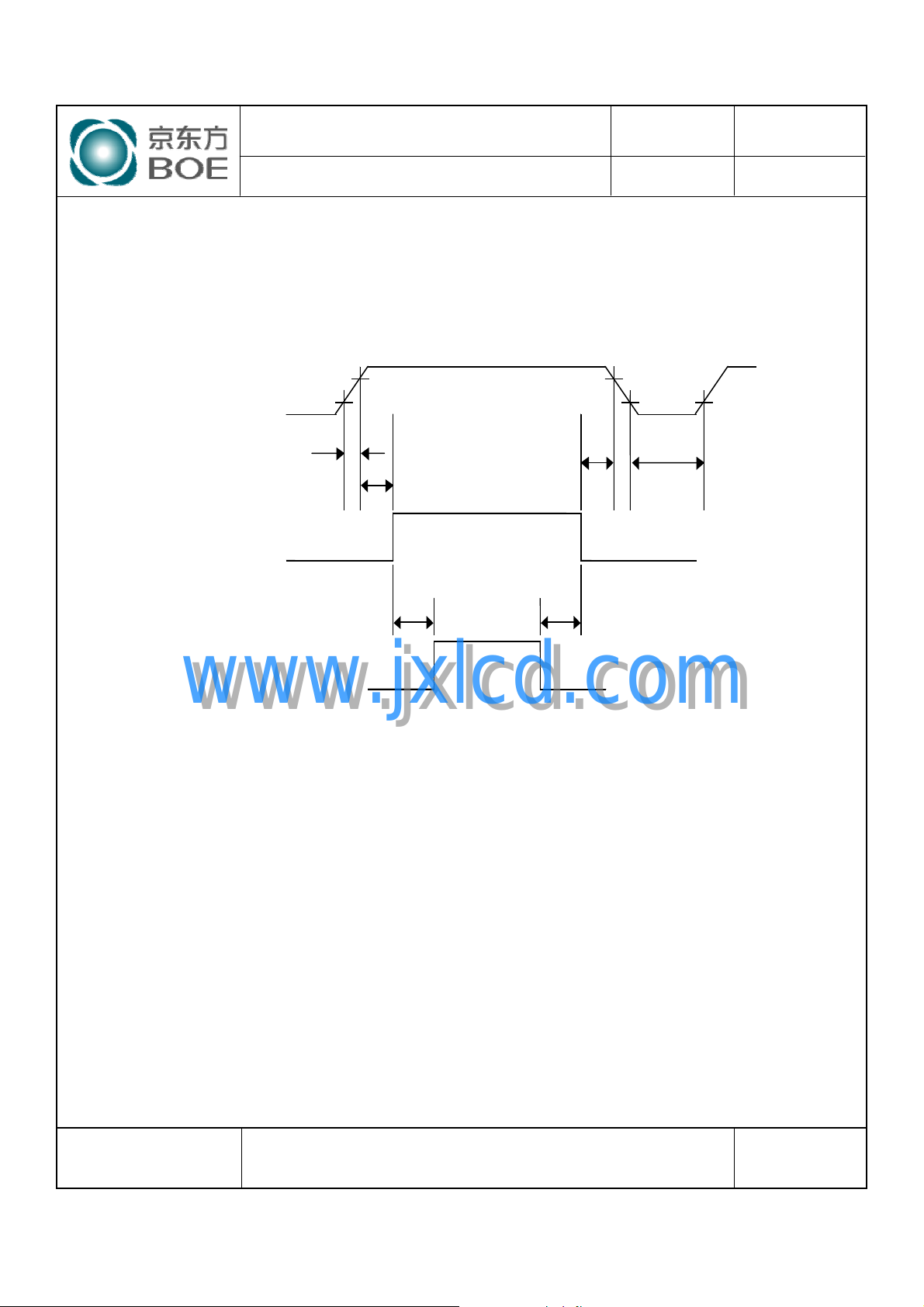

To prevent a latch-up or DC operation of the LCD module, the power on/off sequence
shall be as shown in below
Power Supply
Interface Signal
0.9VDD
0.1VDD
0V
T1
T2
Valid
0V
T5T6
0.9VDD
T3
0.1VDD
T4
May. 28.08’
Back- light
● 0.5 ms ≤ T1 ≤ 10 ms
● 0 ≤ T2 ≤ 50 ms
● 0 ≤ T3 ≤ 50 ms
● 1 sec ≤ T4
● 200 ms ≤ T5
● 200 ms ≤ T6
www.jxlcd.com
www.jxlcd.com
0V
Notes:
1. When the power supply VDD is 0V, keep the level of input signals on
the low or keep high impedance.
2. Do not keep the interface signal high impedance when power is on.
Back Light must be turn on after power for logic and interface signal
are valid.
SPEC. NUMBER
S864-5034
B2006-5006-O (3/3)
SPEC. TITLE
HT156WX1-100 Product Specification
PAGE
18
OF 28
A4(210 X 297)
Page 19
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
0
10.0 MECHANICAL CHARACTERISTICS
10.1 Dimensional Requirements

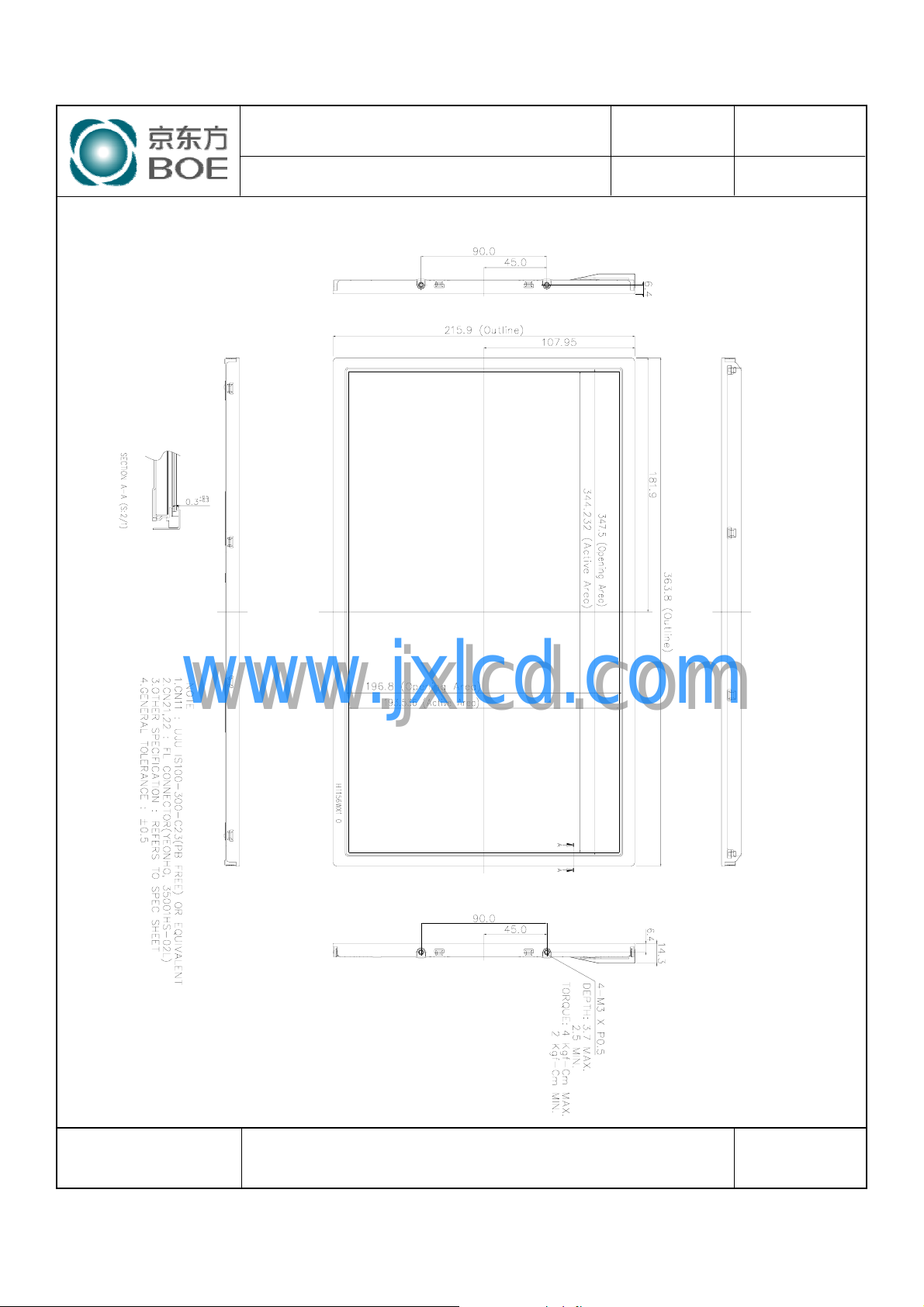

FIGURE 6 (located in Appendix) shows mechanical outlines for the model HT156WX1-100.
Other parameters are shown in Table 11.
<Table 11. Dimensional Parameters>
ParameterSpecificationUnit
Dimensional outline
Weight
Active area
Pixel pitch
Number of pixels
Back-light
363.8 ×215.9×14.3 (typ.)
1300 (max.)
344.232(H) ×193.536(V)
0.252(H) ×0.252(V)
1366(H) ×768(V) (1 pixel = R + G + B dots)
Top / Bottom edge side 2-CCFL type
May. 28.08’
mm
gram
mm
mm
pixels
www.jxlcd.com
www.jxlcd.com
10.2 Mounting

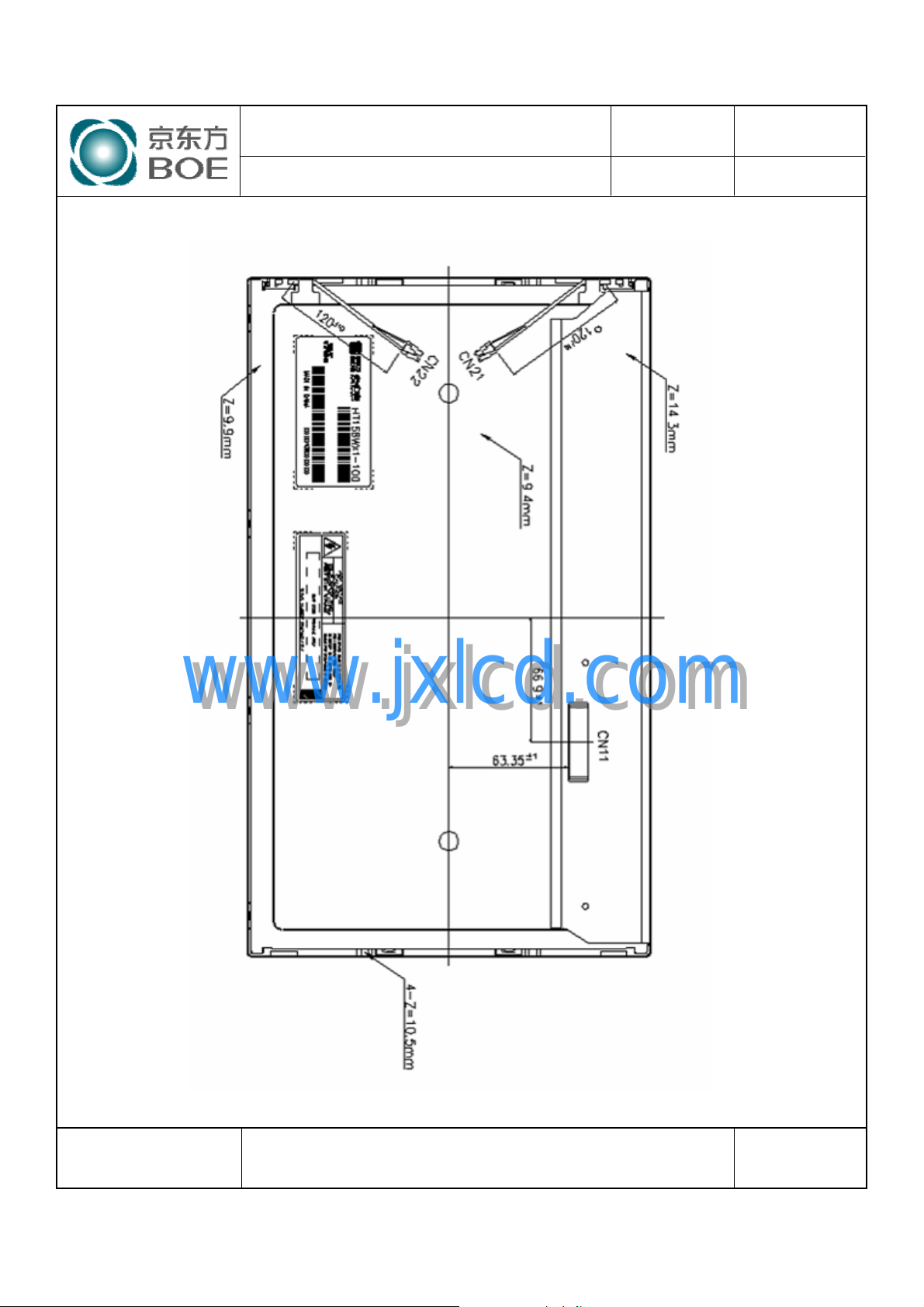

See FIGURE 5. (shown in Appendix)
10.3 Anti-Glare and Polarizer Hardness.
The surface of the LCD has an anti-glare coating to minimize reflection and a coating to reduce
scratching.
10.4 Light Leakage
There shall not be visible light from the back-lighting system around the edges of the screen as
seen from a distance 50cm from the screen with an overhead light level of 350lux.
SPEC. NUMBER
S864-5034
SPEC. TITLE
HT156WX1-100 Product Specification
19
PAGE
OF 28
B2006-5006-O (3/3)
A4(210 X 297)
Page 20
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
11.0 RELIABLITY TEST
The Reliability test items and its conditions are shown in below.
<Table 12. Reliability Test Parameters >
NoTest Items
High temperature storage testTa = 60 ℃, 240 hrs
1
Low temperature storage testTa = -20 ℃, 240 hrs
2
High temperature & high humidity
3
operation test
High temperature operation testTa = 50 ℃, 240hrs
4
Low temperature operation testTa = 0 ℃, 240hrs
5
Thermal shockTa = -20 ℃↔60 ℃ (0.5 hr), 100 cycle
6
Vibration test
7
(non-operating)
Ta = 50 ℃, 80%RH, 240hrs
Frequency10 ~ 300 Hz, Sweep rate 30 min
Gravity / AMP1.5 G
Period±X, ±Y, ±Z 30 min
y Pick the pouch only, when taking out module from a shipping package.
(2) Cautions for handling the module
y As the electrostatic discharges may break the LCD module, handle the LCD
module with care. Peel a protection sheet off from the LCD panel surface as
slowly as possible.
y As the LCD panel and back - light element are made from fragile glass material,
impulse and pressure to the LCD module should be avoided.
y As the surface of the polarizer is very soft and easily scratched, use a soft dry
cloth without chemicals for cleaning.
y Do not pull the interface connector in or out while the LCD module is operating.
y Put the module display side down on a flat horizontal plane.
y Handle connectors and cables with care.
(3) Cautions for the operation
y When the module is operating, do not lose CLK, ENAB signals. If any one of
these signals is lost, the LCD panel would be damaged.
y Obey the supply voltage sequence. If wrong sequence is applied, the module
would be damaged.
(4) Cautions for the atmosphere
www.jxlcd.com
www.jxlcd.com
y Dew drop atmosphere should be avoided.
y Do not store and/or operate the LCD module in a high temperature and/or
humidity atmosphere. Storage in an electro-conductive polymer packing pouch
and under relatively low temperature atmosphere is recommended.
(5) Cautions for the module characteristics
y Do not apply fixed pattern data signal to the LCD module at product aging.
y Applying fixed pattern for a long time may cause image sticking.
(6) Other cautions
y Do not disassemble and/or re-assemble LCD module.
y Do not re-adjust variable resistor or switch etc.
y When returning the module for repair or etc., Please pack the module not to be
broken. We recommend to use the original shipping packages.
0
May. 28.08’
SPEC. NUMBER
S864-5034
B2006-5006-O (3/3)
SPEC. TITLE
HT156WX1-100 Product Specification
PAGE
21
OF 28
A4(210 X 297)
Page 22
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
13.0 PRODUCT SERIAL NUMBER
0
May. 28.08’
1 2 3 4 5 6 7
www.jxlcd.com
XXXXXXXXXXXXXXXXX
1. Control Number
2. Rank / Grade
3. Line Classification
(BOE OT : A/B/C)
4. Year (2001 : 01, 2002 : 02, …)
www.jxlcd.com
5. Month (1,2,3, … , 9, X, Y, Z)
6. BOE OT internal use
7. Serial Number
SPEC. NUMBER
S864-5034
B2006-5006-O (3/3)
SPEC. TITLE
HT156WX1-100 Product Specification
PAGE
22
OF 28
A4(210 X 297)
Page 23
PRODUCT GROUP
REV
ISSUE DATE
14.0 Packing

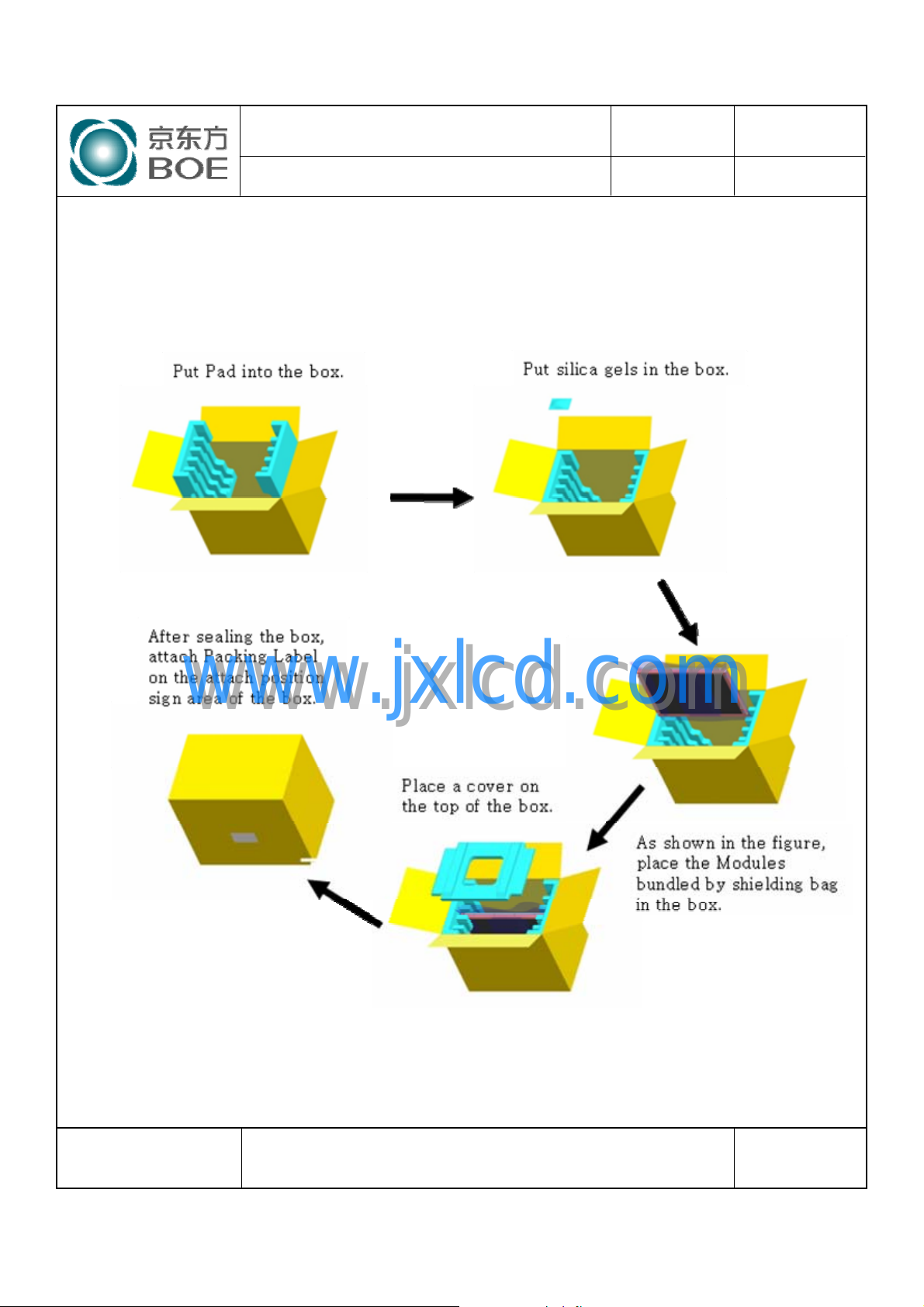

14.1 Packing Order
TFT- LCD PRODUCT
0
May. 28.08’
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
S864-5034
SPEC. TITLE
HT156WX1-100 Product Specification
23
PAGE
OF 28
B2006-5006-O (3/3)
A4(210 X 297)
Page 24
PRODUCT GROUP
REV
ISSUE DATE
TFT- LCD PRODUCT
14.2 Packing Note
y Box Dimension : 333mm(W) × 365mm(D) × 455mm(H)
y Package Quantity in one Box : 8pcs
y Box Quantity in one Pallet : 18boxes
14.3 Box label
y Label Size : 108 mm (L) × 56 mm (W)
y Contents
Model : HT156WX1-100
Q`ty : Module Q`ty in one box
Serial No. : Box Serial No. See next page for detail description.
Date : Packing Date
0
May. 28.08’
www.jxlcd.com
www.jxlcd.com
SPEC. NUMBER
S864-5034
SPEC. TITLE
HT156WX1-100 Product Specification
5310
Internal Use
24
PAGE
OF 28
B2006-5006-O (3/3)
A4(210 X 297)
Page 25
PRODUCT GROUP
REV
ISSUE DATE
15.0 APPENDIX
Figure 1. Measurement Set Up
TFT- LCD PRODUCT
0
May. 28.08’
Figure 2. White Luminance and Uniformity Measurement Locations (9 points)
www.jxlcd.com
www.jxlcd.com
Figure 2. White Luminance and Uniformity Measurement Locations (9 points)
1366801230
1)1
1)2)3)
1)41)5
4)5)6)
1)71)81)9
1)21)3
1)6
9)8)7)
77
384
691
SPEC. NUMBER
S864-5034
B2006-5006-O (3/3)
SPEC. TITLE
HT156WX1-100 Product Specification
PAGE
25
OF 28
A4(210 X 297)
Page 26
PRODUCT GROUP
REV
ISSUE DATE
Display data
Optical
Response
TFT- LCD PRODUCT
Figure 3. Response Time Testing
White(TFTOFF)
TR
100%
90%
10%
0%
Figure 4. Cross Modulation Test Description
VIEW AREAVIEW AREA
Black(TFT ON)
0
White(TFTOFF)
TF
Time
May. 28.08’
(D/4, W/4)
www.jxlcd.com
www.jxlcd.com
(D, W)
YA(7D/8,W/2)
Cross-Talk (%) =× 100
Where: YA= Initial luminance of measured area (cd/m2)
YB= Subsequent luminance of measured area (cd/m2)
The location measured will be exactly the same in both patterns
