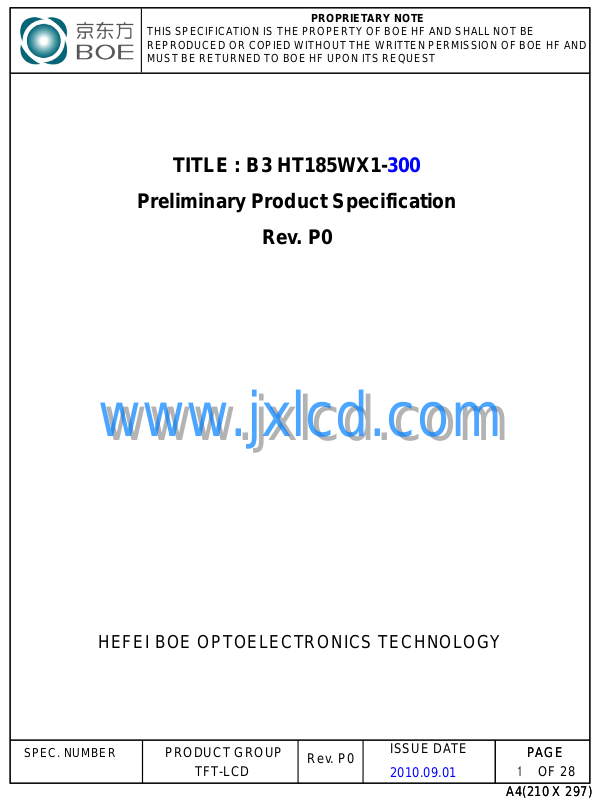

BOE OPTOELECTRONICS HT185WX1-300 SPECIFICATION

PROPRIETARY NOTE

THIS SPECIFICATION IS THE PROPERTY OF BOE HF AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMIS SION OF BOE HF AND
MUST BE RETURNED TO BOE HF UPON ITS REQUEST

TITLE : B3 HT185WX1-300

Preliminary Product Specification

Rev. P0

www.jxlcd.com

www.jxlcd.com

HEFEI BOE OPTOELECTRONICS TECHNOLOGY

SPEC. NUMBER

PRODUCT GROUP

TFT-LCD

Rev. P0

ISSUE DATE

2010.09.01

PAGE

PAGE

1

OF 28

A4(210 X 297)

A4(210 X 297)

PRODUCT GROUP

TFT- LCD PRODUCT P0 Sept. 1. 10’

REV

ISSUE DATE

REVISION HISTOR Y

REV. ECN No. DESCRIPTION OF CHANGES DATE PREPARED

P 0 2010.09.01

www.jxlcd.com

www.jxlcd.com

丁渊

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification_ Rev.P0

PAGE

2

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

P0

Sept. 1. 10’

Contents

No. Item Page

1.0 General Description 4

2.0 Absolute Maximum Ratings 6

3.0 Electrical Specificat ions 7

4.0 Optical Specifications 8

5.0 Interface Connection 10

6.0 Signal Timing Specifications 13

7.0 Signal Timing Waveforms of Interface Signal 15

8.0 Input Signals, Display C olors & Gray Scale of Colors 17

9.0 Power Sequence 18

10.0 Mechanical Characteristics 19

www.jxlcd.com

11.0 Reliability Test 20

12.0 Handling& Cautions 21

13.0 Product Serial Number 22

14.0 Packing 23

15.0 Appendix 25

www.jxlcd.com

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

3

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

P0

1.0 GENERAL DESCRIPTION

1.1 Introduction

HT185WX1-300 is a color active matrix TFT LCD module using amorphous silicon TFT's

(Thin Film Transistors) as an active switching devices. This module has a 18.5 inch
diagonally measured active area wit h WXGA resolutions (1366 horizontal by 768 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.

Connector (CN

LVDS
Input
Signal

LVDS Rx

+

T/CON

+

Mini LVDS Tx

Gate Driver

Source Driver

LED Light Bar

TFT LCD Panel

Sept. 1. 10’

www.jxlcd.com

www.jxlcd.com

VDD

1

)

1.2 Features

 LVDS Interface with 1 pixel / clock
 High-speed response
 Low power consumption
 6-bit (Hi-FRC) color depth, display 16. 7M colors
 Incorporated edge type back-light (One Light Bar)
 High luminance and contrast ratio, low reflection and wide viewing angle
 DE (Data Enable) only
 RoHS /TCO 5.0 Compliant

DC/DC

Gamma

Vcom

1366 × 768

CN2

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

4

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

1.3 Application

 Desktop Type of PC & W or kstation Use
 Slim-Size Display for Stand-alone Monitor
 Display Terminals for Control System
 Monitors for Process Controller

1.4 General Specification

The followings are general specifications at the model HT185WX1-300.

<Table 1. General Specifications>

Parameter Specification Unit

P0

Sept. 1. 10’

Remarks

Active area
Number of pixels
Pixel pitch
Pixel arrangement RGB Ver tical stripe
Display colors 16.7M colors
Display mode Normally White
Dimensional outline
Weight
Surface Treatment
Back-light right edge side, 1- LED Li ght bar

www.jxlcd.com

www.jxlcd.com

409.8(H) × 230.4(V)
1366(H) ×768(V)

0.3(H) ×0.3(V)

430.4(H) × 254.6(V) × 10.9(D) typ.

（1330） (typ.)

Haze 25%, 3H

mm

pixels

mm

mm

g

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

5

OF 28

A4(210 X 297)

PRODUCT GROUP

020406080

-20

204060

80

100

Operating Range

Storage Range

Rel at i ve Humi di t y (%RH

Temperature (˚C)

REV

ISSUE DATE

TFT- LCD PRODUCT

P0

2.0 ABSOLUTE MAXIMUM RA TINGS

The followings are maximum values which, if exceed, may cause faulty operation or

damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.

< Table 2. Absolute Maximum Ratings>

Symbol Min. Max. Unit Remarks

Parameter

Power Supply Voltage V
Logic Supply Voltage V
Back-light Lamp Current I
Back-light Lamp frequenc y F
Operating Temperature T
Storage Temperature T

BL

DD

IN

OP

ST

-0.5 5.5

VSS-0.3 VDD+0.3 V

3 8.0 mA

L

40 80 kHz

0 +50

-20 +60

[VSS=GND=0V]

V

℃

℃

Sept. 1. 10’

Ta = 25 ℃

1)

1)

Note : 1) Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39 OC max. and no condensation of water.

www.jxlcd.com

www.jxlcd.com

90

(39,90)

(50,50)

(60,30)

5

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

6

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

P0

3.0 ELECTRICAL SPECIFICATIONS

3.1Electrical Sp ecification s

< Table 3. Electrical specifications >

Parameter Min. Typ. Max. Unit Remarks

Power Supply Voltage V
Power Supply Current I
In-Rush Current I
Permissible Input Ripple Voltage V
High Level Differential Input

Threshold Voltag e
Low Level Differential Input

Threshold Voltag e
Differential input voltage |V

Differential input common mode voltage Vcm 1.0 1.2 1.5

LED ChannelVoltage V
LED Channel Current I

LED Lifetime 30,000 - - Hrs I

DD

DD

RUSH

RF

V

IH

V

IL

| 200 - 600 mV

ID

L

L

4.5 5.0 5.5 V

- 600 1000 mA

- 2.0 3.0 A Note 2

- - 100 mV VDD= 5.0V

- - +100 mV

-100 - - mV

- 41.6

- 60 - mA

（44.2）

V

Sept. 1. 10’

[Ta =25±2 ℃]

Note1

=100mV,

V

IH

VIL=-100mV

P

D

Power Consumpt ion

Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.

www.jxlcd.com

www.jxlcd.com

The current draw and power consumption specified is for VDD=5.0V, Frame rate=75Hz and
Clock frequency = 95MHz. Test Pattern of power supply current

a) Typ : Color Bar pattern
b) Max : Skip Sub Pixel Pattern

P

BL

P

total

- 3 4.5 W

- 9.98 - W IL=60 mA, Note 5

- 12.98 - W

2. Duration of rush current is about 2 ms and rising time of VDD is 520 μs ± 20 %

3. The lamp frequency should be selected as different as possible from the horizontal
synchronous frequency and its harmonics to avoid interference, which may cause line flow on the display

4. The voltage above this value should be applied to the lamps for more than 1 second to start-up. Otherwise the

lamps may not be turned on.

5. Calculated value for reference (V

SPEC. NUMBER

SPEC. TITLE

× IL) ×4(channel) excluding driver loss. (LED Light bar: 13S4P)

L

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

7

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

P0

Sept. 1. 10’

4.0 OPTICAL SPECIFICATION

4.1 Overview

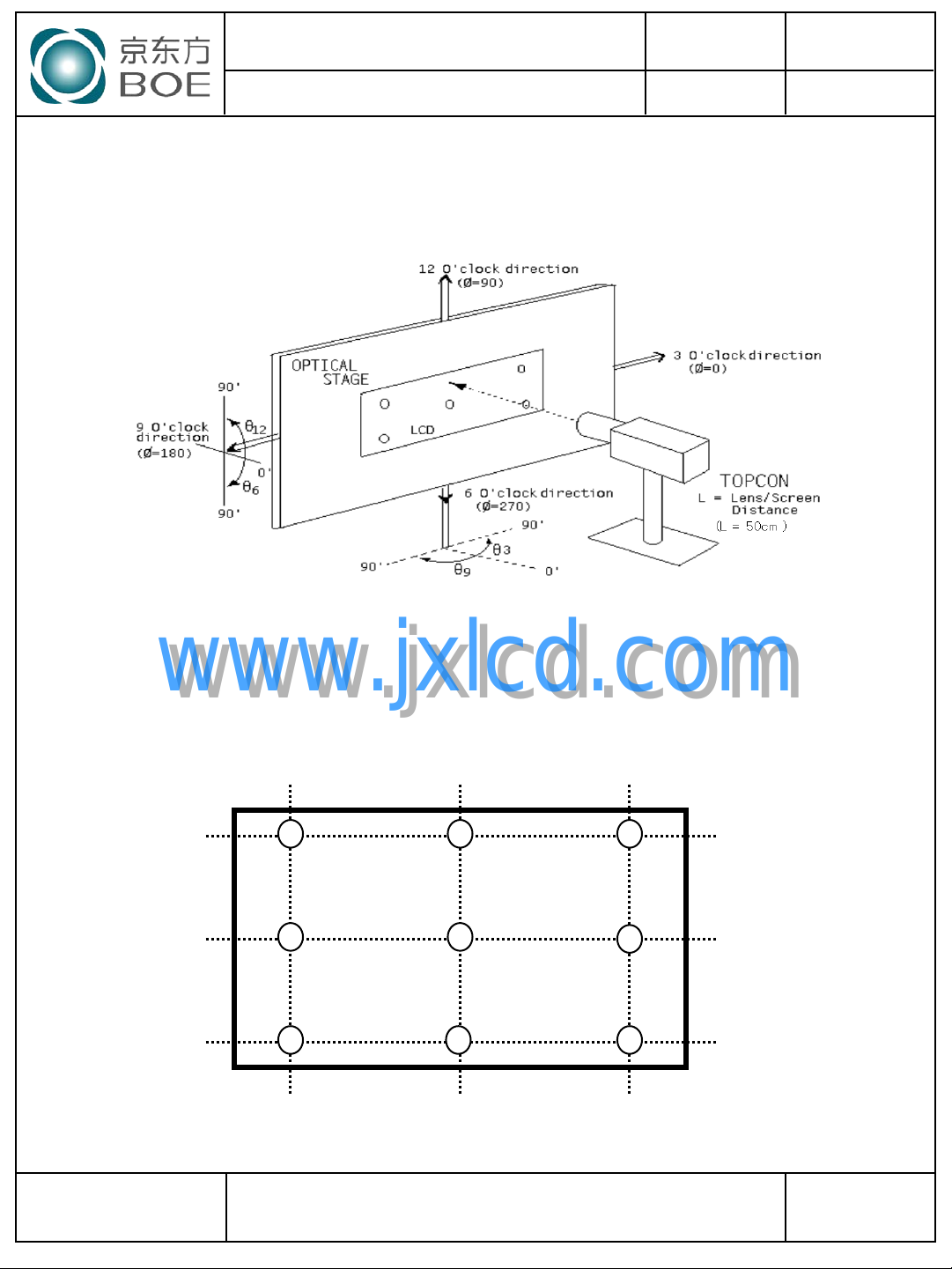

The test of Optical specifications shall be measured in a dark room (ambient luminance ≤ 1 lux and temperature =

25±2℃) with the equipment of Luminance meter system (Goniometer system and TOPCONE BM-5) and test unit shall

be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0°. We refer to

(=θ3) as the 3 o’clock direction (the “right”), θ

θ

Ø=0

the 9 o’clock direction (“left”) and θ

Ø=270

(= θ

) as the 6 o’clock direction (“bottom”). While scanning θ and/or Ø, the

6

center of the measuring spot on the Display surface shall stay fixed. The measurement shall be executed after 30
minutes warm-up period. VDD shall be 5.0V +/-10% at 25°C. Optimum viewing angle direction is 6 ’clock.

4.2 Optical Specifications

[VDD = 5.0V, Frame rate = 60Hz, Clock = 78MHz, IBL= 7.5mA, Ta =25±2 ℃]

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Θ

Horizontal

Viewing Angle range

Vertical

Horizontal

Viewing Angle range

www.jxlcd.com

Luminance Contrast ratio CR
Luminance of White Y
White luminance uniformity ΔY 75 80 % Note 4

Reproduction

of color

Response

Time

Cross Talk CT - - 2.0 % Note 7

Vertical

www.jxlcd.com

White

Red

Green

Blue

Rising T

Falling

3

Θ

9

Θ

12

Θ

6

Θ

3

Θ

9

Θ

12

Θ

6

w

W

x

W

y

R

x

R

y

G

x

G

y

B

x

B

y

r

T

f

(= θ12) as the 12 o’clock direction (“upward”), θ

Ø=90

70 85 - Deg.

CR > 10

CR > 5

Θ = 0°

(Center)

Normal

Viewing

Angle

70 85 - Deg.
70 80 - Deg.
70 80 - Deg.
85 - - Deg.
85 - - Deg.
85 - - Deg.

85 - - Deg.
700 1000 Note 2
200 250 cd/m

0.283 0.313 0.343

0.299 0.329 0.359

TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD
TBD TBD TBD

1.5 2.5 ms

3.5 5.5 ms

Ø=180

2

(= θ

Note 1

Note 3

Note 5

Note 6

9

) as

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

8

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

Note :

1. Viewing angle i s the angle at which the contrast r ati o i s greater t han 10. The vi ewi ng are
determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock
direction with respect to the optical axis which is normal to the LCD surface.

2.

Contrast measurements shall be made at viewing angle of θ= 0° and at the cent er of the LCD
surface. Luminance shall be measured with all pixels in the view field set first to white, then
to the dark (black) state. (See FIGURE 1 shown in Appendix) Luminance Contrast Ratio (CR)
is defined mathematically.

CR =

3. Center Luminance of white is defined as the LCD surface. Luminance shall be measured with
all pixels in the view field set first to white. This measurement shall be taken at the locations
shown in FIGURE 2 for a total of the measurements per display.

4. The White luminance uniformity on LCD surface is then expressed as :
ΔY = ( Minimum Luminance of 9points / Maximum Luminance of 9points ) * 100
(See FIGURE 2 shown in Appendix).

5. The color chromaticity coordinates specified in Table 4. shall be calculated from the spectral

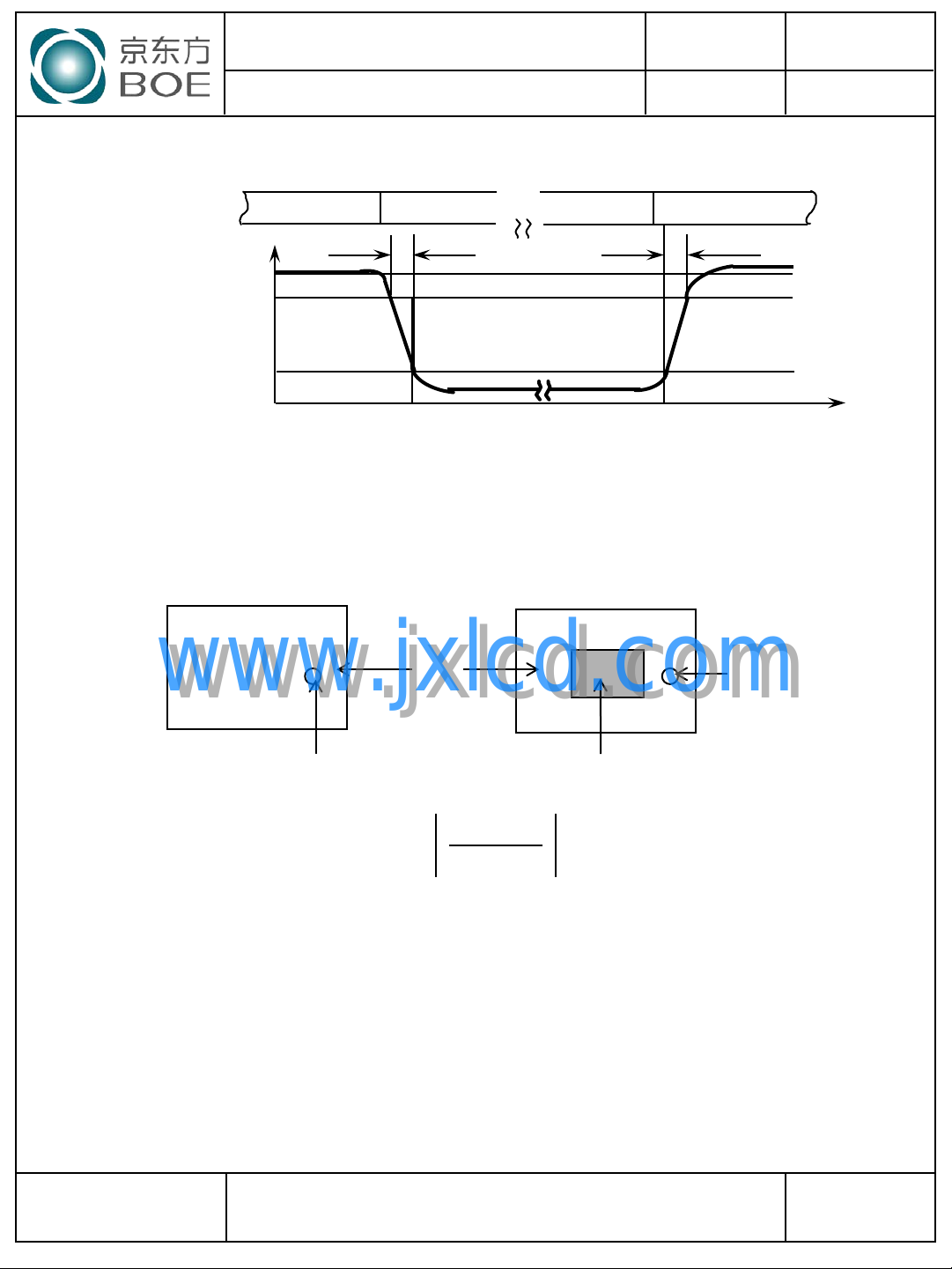

6. The electro-optical response time measurements shall be made as FIGURE 3 shown in

7. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the

www.jxlcd.com

data measured with all pi x el s firs t in red, green, blue and white. Measurement s sha ll be m ade
at the center of the panel.

Appendix by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Td, and 90% to 10% is Tr.

luminance (YA) of a 25mm diameter area, with all display pixels set to a gray level, to the
luminance (YB) of that same area when any adj acent area is driven dark. (S ee FIGURE 4
shown in Appendix).

www.jxlcd.com

Luminance when displaying a white raster

Luminance when displaying a black raster

P0

Sept. 1. 10’

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

9

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

5.0 INTERFACE CONNECTION.

5.1 Electrical Interface Connection

● CN1 Module Side Connector : UJU IS100-30O-C23 or Equivalent

User Side Connector : JAE FI-X30H or Equivalent

Pin No Symbol Function Remark

1
2
3
4
5
6
7
8

9
10
11
12
13
14

www.jxlcd.com

www.jxlcd.com

15
16
17
18
19
20
21
22
23
24

25

NC No connection

CE No connection

CTL No connection
GND GND Ground
RX0- Negative LVDS differential data input. Channel 0

RX0+ Positive LVDS differential data input. Channel 0

GND Ground

RX1- Negative LVDS differential data input. Channel 1

RX1+ Positive LVDS differential data input. Channel 1

GND Ground

RX2- Negative LVDS differential data input. Channel 2
RX2+ Positi ve LVDS differential data input. Channel 2

GND Ground

RXCLK- Negative LVDS differential clock input.

RXCLK+ Positive LVDS differential clock input.

GND Ground

RX3- Negative LVDS differential data input. Channel 3

RX3+ Positive LVDS differential data input. Channel 3

GND Ground

NC Not connection, this pin should be open.
NC Not connection, this pin should be open.

NC Not connection, this pin should be open.
GND Ground
GND Ground
GND Ground

P0

Sept. 1. 10’

internal use
internal use

26
27
28
29
30

SPEC. NUMBER

VCC 5V Power supply
VCC
VCC
VCC
VCC

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

10

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

5.2 LVDS Interface (Tx; THC63LVDF83A or Equivalent)

5.2.1 L VDS Interface

Input

Signal

OR0
OR1
OR2
OR3
OR4
OR5
OG0
OG1
OG2
OG3
OG4
OG5
OB0

L
V
D

S

OB1

www.jxlcd.com

www.jxlcd.com

OB2
OB3
OB4

OB5
Hsync
Vsync

DE

MCLK

OR6

OR7

OG6

OG7

OB6

OB7
RSVD

Transmitter Remark

Pin No.

51
52
54
55
56

3
4
6

7
11
12
14
15
19
20
22
23
24
27
28
30
31

50

2

8
10
16
18
25

Pin No.

48
47

46
45

42
41

40
39

38
37

Syste m (T x)

OUT0-

OUT0+

OUT1-

OUT1+

OUT2-

OUT2+

CLK OUT-

CLK OUT+

OUT3-

OUT3+

Interface

TFT-LCD

(Rx)

RXO0-

RXO0+

RXO1-

RXO1+

RXO2-

RXO2+

RXO CLK-

RXO CLK+

RXO3-

RXO3+

P0

HT185WX1-300

(CN11)
Pin No.

1
2

3
4

5
6

8
9

10
11

Sept. 1. 10’

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

11

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

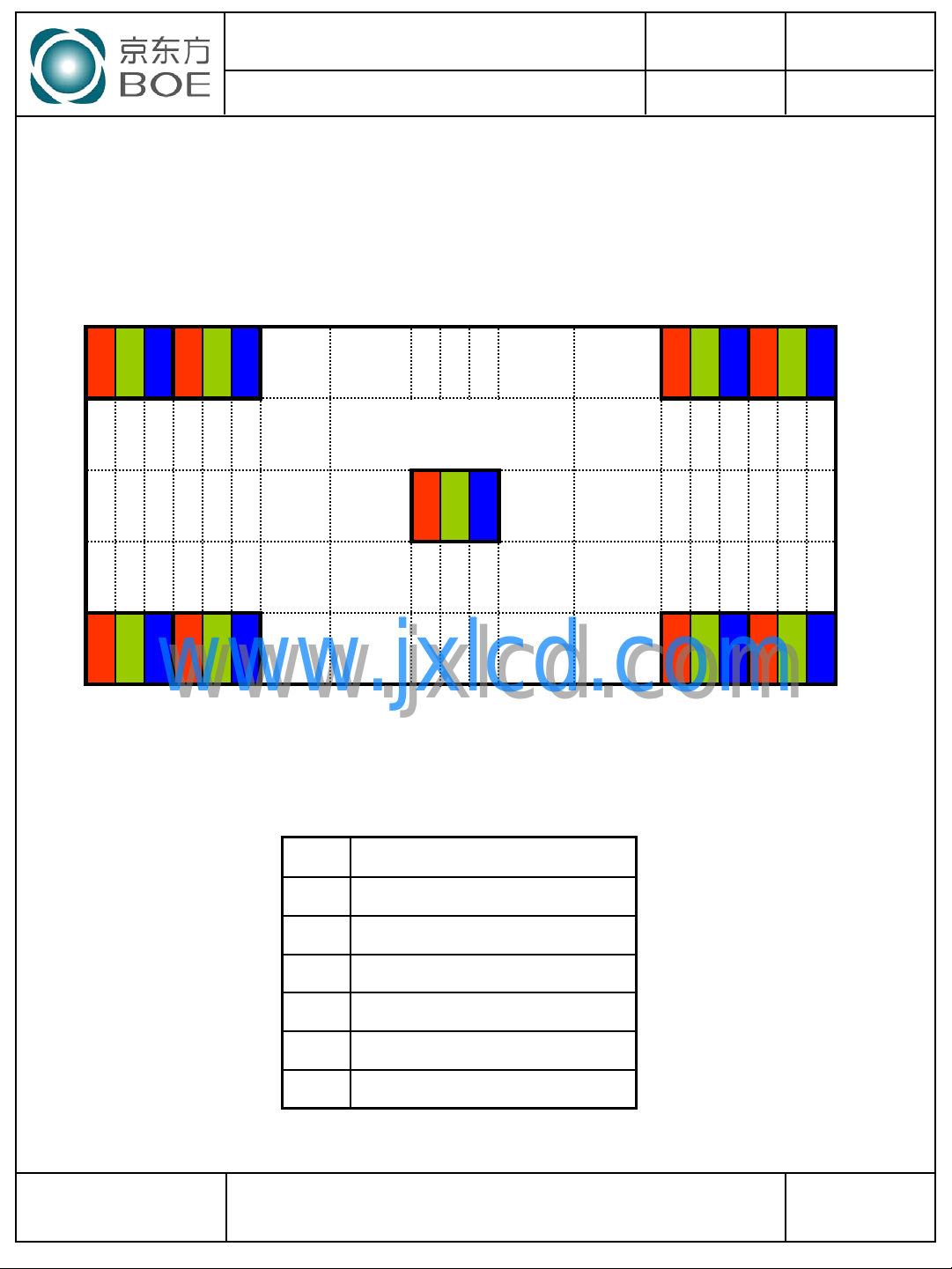

5.3 Data Input Format

(1,1) (2,1) (1365,1) (1366,1)

R G B R G B R G B R G B

1 Pixel = 3 Dots

R G B

P0

Sept. 1. 10’

R G B R G B R G B R G B

www.jxlcd.com

(1,768) (2,768) (1365,768) (1366,768)

5.4 Back-light Interface Connection

www.jxlcd.com

Display Position of Input Data (V-H)

LED LightBar Connector●CN 2

Pin Function

1
2
3
4
5
6

Channel 1 Current Feedback
Channel 2 Current Feedback

LED Power Supply

LED Power Supply
Channel3 Current Feedback
Channel4 Current Feedback

:CI1406M1HRL-NH or equivalent

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

12

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

6.0 SIGNAL TIMING SPECIFICATION

6.1 The HT185WX1-300 is operated by the DE only.

Item Symbols Min Typ Max Unit

Frequency 1/Tc 50 78 95 MHz

Clock

Frame Period Tv

Vertical Display Period Tvd - 768 - lines

One line Scanning Period Th 1446 1560 1936 clocks

High Time Tch - 4/7Tc -

Low Time Tcl - 4/7Tc -

P0

778 806 888 lines

50 60 75 Hz
20 16.7 13.3 ms

Sept. 1. 10’

Horizontal Display Period Thd - 1366 - clocks

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

13

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

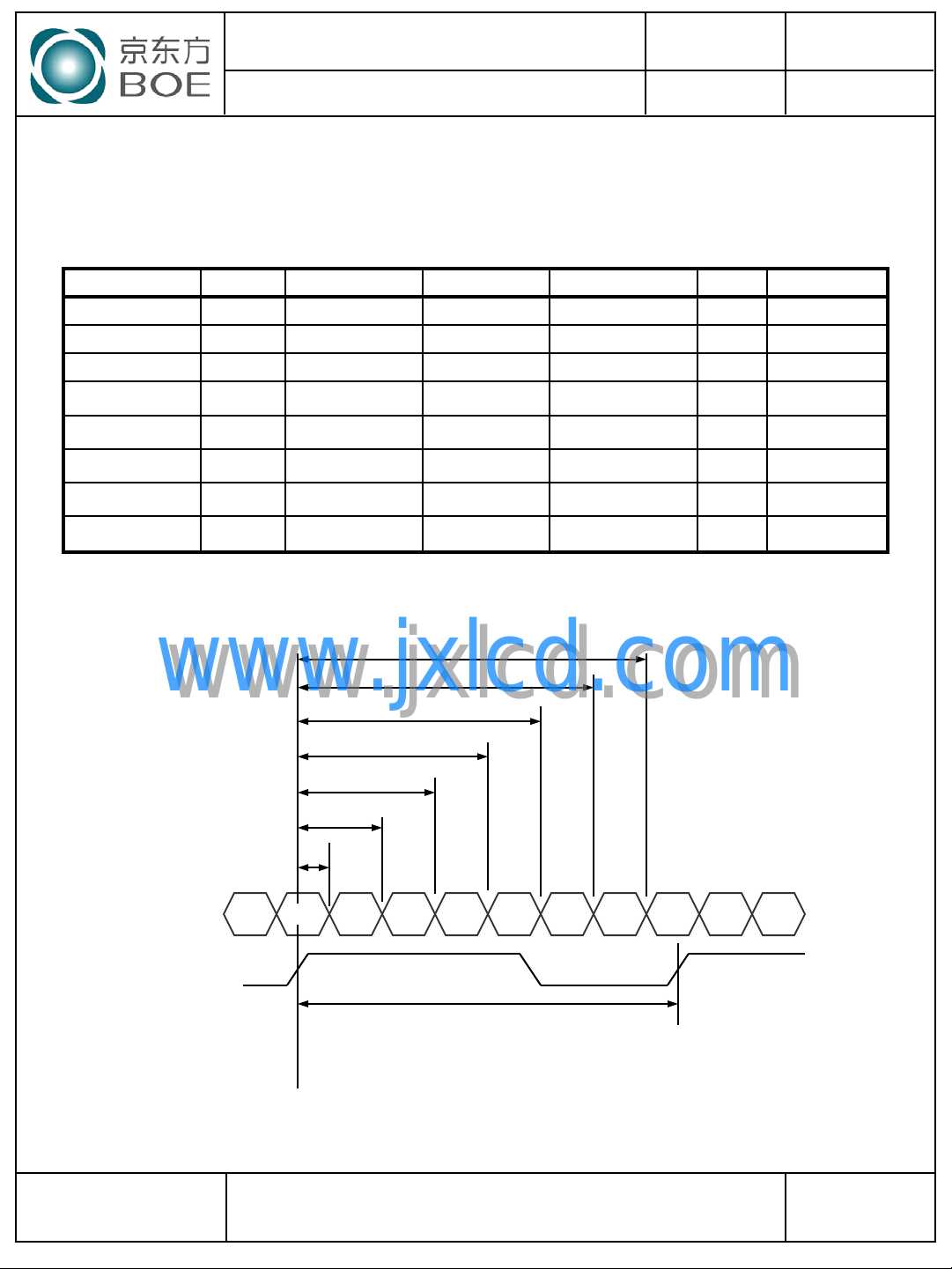

6.2 LVDS Rx Interface Timing Parameter

The specification of the LVDS Rx interface timing param eter is shown in Table 4.

<Table 4. LVDS Rx Interface Timing Specification>

Item Symbol Min Typ Max Unit Remark

CLKIN Period tRCIP 10.60 13.25 20.00 nsec

Input Data 0 tRIP1 -0.4 0.0 +0.4 nsec
Input Data 1 tRIP0 tRCIP/7-0.4 tRCIP/7 tRCIP/7+0.4 nsec

Input Data 2 tRIP6 2 ×tRCIP/7-0.4 2 ×tRCIP/7 2 ×tRCIP/7+0.4 nsec
Input Data 3 tRIP5 3 ×tRCIP/7-0.4 3 ×tRCIP/7 3 ×tRCIP/7+0.4 nsec
Input Data 4 tRIP4 4 ×tRCIP/7-0.4 4 ×tRCIP/7 4 ×tRCIP/7+0.4 nsec
Input Data 5 tRIP3 5 ×tRCIP/7-0.4 5 ×tRCIP/7 5 ×tRCIP/7+0.4 nsec
Input Data 6 tRIP2 6 ×tRCIP/7-0.4 6 ×tRCIP/7 6 ×tRCIP/7+0.4 nsec

P0

Sept. 1. 10’

tRIP2

tRIP4

tRIP5

tRIP3

tRCIP

Vdiff=0[v]Vdiff=0[v]

www.jxlcd.com

www.jxlcd.com

tRIP6

tRIP0

tRIP1

RXz +/-

* Z = 0, 1, 2,3

RxCLK+

* Vdiff = (RXz+)-(RXz-),…. ,(RXCLK+)-(RXCLK-)

Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0Rx3

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

14

OF 28

A4(210 X 297)

PRODUCT GROUP

MCLK

DE

x,1 x,2 x,y x+1,1

x,1050

Invalid Dat a

Data

Invalid

Th

Tv

Tvd

R7 ~ R0

G7 ~ G0

B7 ~ B0

REV

ISSUE DATE

TFT- LCD PRODUCT

P0

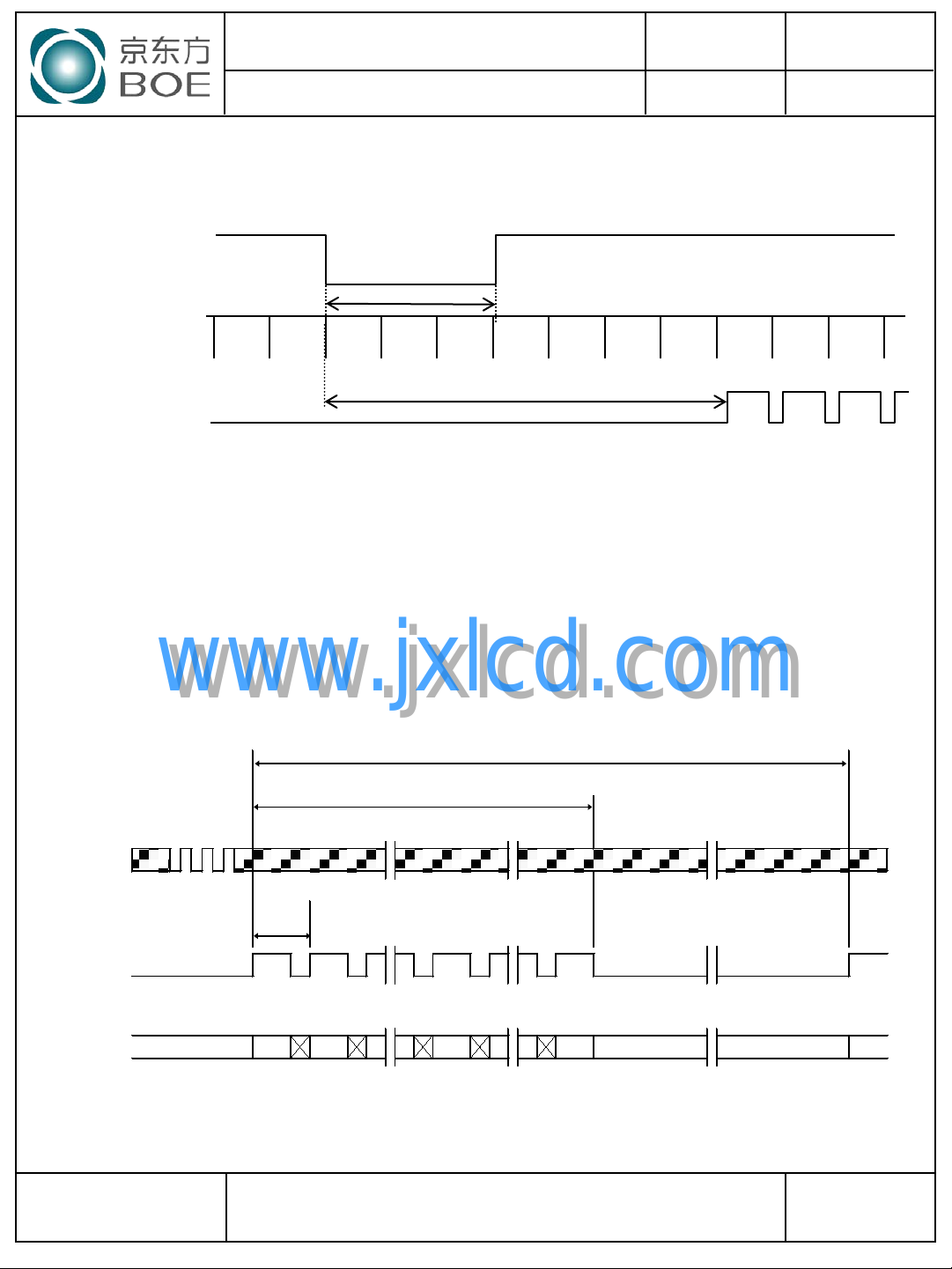

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL

7.1 Sync Timing Waveforms

V-Sync

H-Sync

DE

1) Need over 3 H-sync during V-Sync Low

2) Fix H-Sync width from V-Sync falling edge to first rising edge

Over 3 H-sync

Fix H-Sync width Area

Sept. 1. 10’

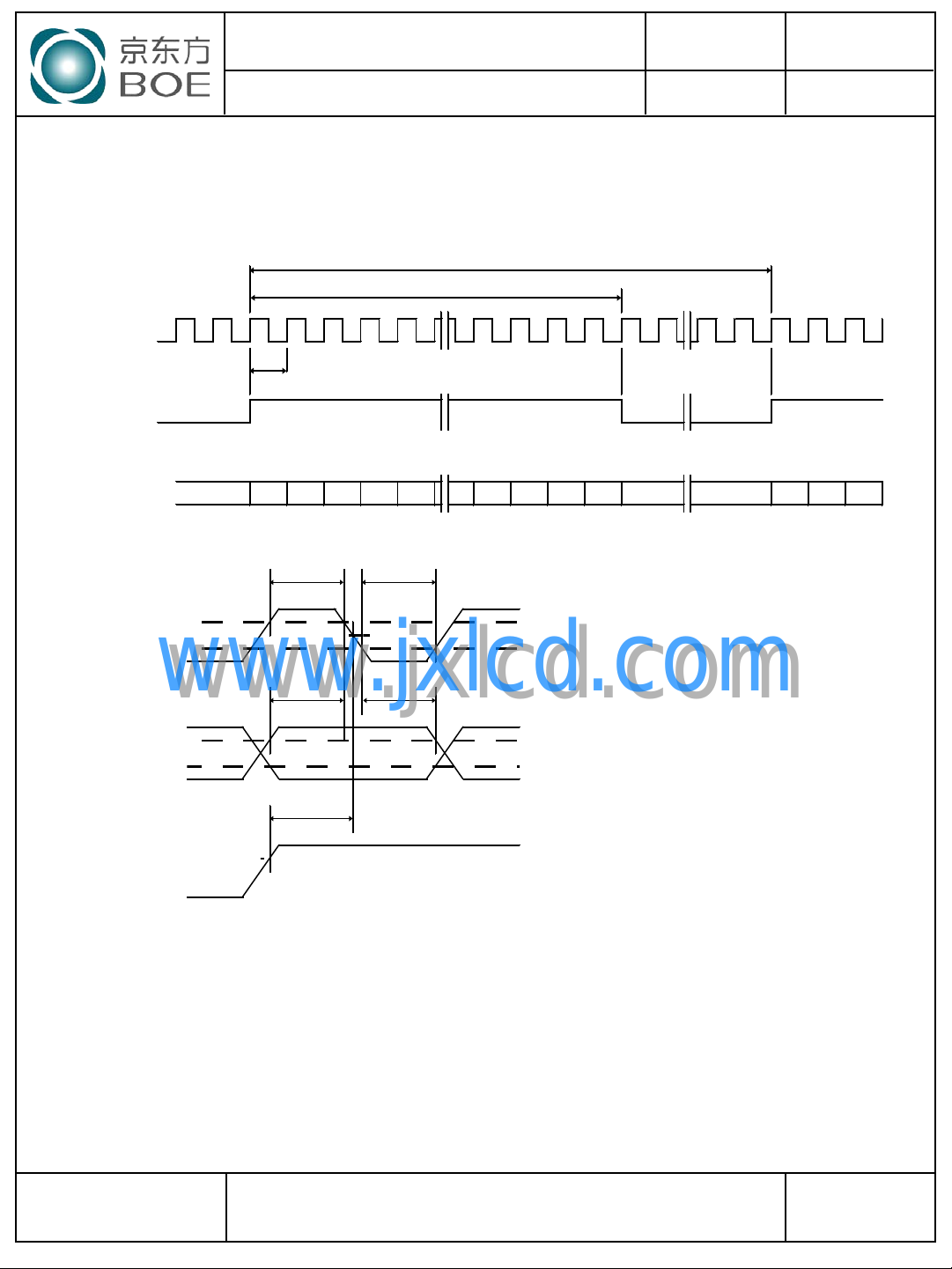

7.2 Vertical Timing Waveforms

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

15

A4(210 X 297)

PAGE

OF 28

PRODUCT GROUP

MCLK

DE

D1 D2 Dn Data D1 D2 D3

Invalid

D1048

D1049

D1050

Th

Thd

Tc

RA7 ~RA0

GA7 ~GA0

BA7 ~BA0

Tch

Tcl

Tdh

Tds

2.0V

0.8V

2.0V

0.8V

Tes

2.0V

MCLK

Valid

Data

Data

DE

1.5V

REV

ISSUE DATE

TFT- LCD PRODUCT

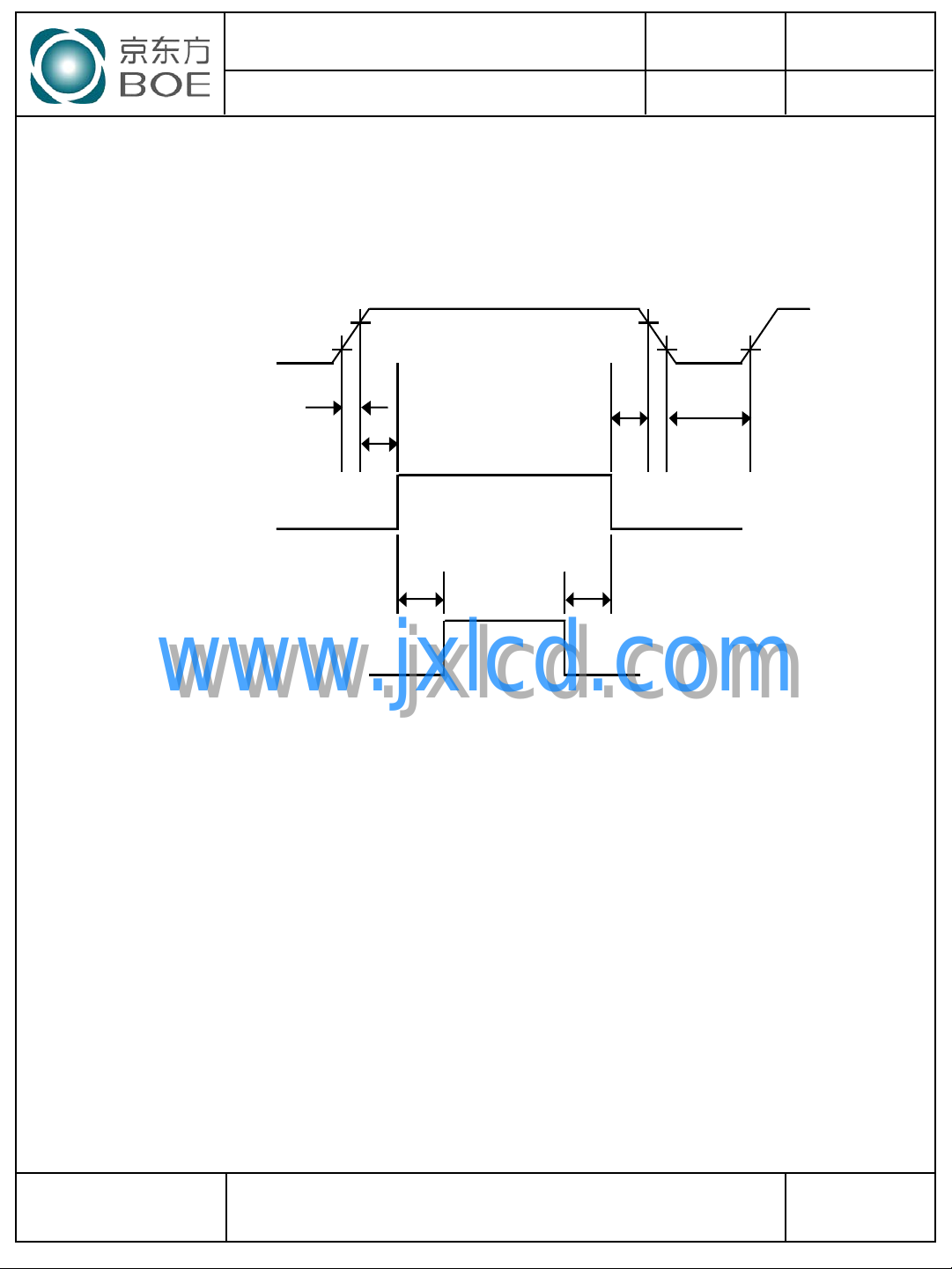

7.3 Horizontal Timing Waveforms

P0

Sept. 1. 10’

SPEC. NUMBER

www.jxlcd.com

www.jxlcd.com

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

16

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

P0

Sept. 1. 10’

8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS

Color & Gray Scale

Basic Colors

Gray Scale
of RED

Gray Scale
of GREEN

Gray Scale
of BLUE

Gray Scale
of WHITE

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Blue 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Green 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Red 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△
▽

Brighter 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

▽

Red 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0

△

www.jxlcd.com

▽

www.jxlcd.com

Brighter 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0

▽

Green 0 0 0 0 0 0 0 0 1 1 1
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0

△
▽

Brighter 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 1

▽

Blue 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0

△
▽

Brighter 1 1 1 1 1 1 0 1 1

▽

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED DATA GREEN DATA BLUE DATA

1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 1 0 0 0

↑ ↑ ↑
↓ ↓ ↓

1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

↑ ↑ ↑
↓ ↓ ↓

0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

↑ ↑ ↑
↓ ↓ ↓

0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1

↑ ↑ ↑
↓ ↓ ↓

1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 0

0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 0 0 0 0 0 0 0 0

0 0 0 0 0 0 1 1 1 1 1 1 1 0

1 1 1 1 1 0 1 1 1 1 1 1 1 0 1

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

17

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

P0

9.0 POWER SEQUENCE

To prevent a latch-up or DC operation of the LCD module, the power on/off sequence
shall be as shown in below

Power Supply

Interface Signal

0.9VDD

0.1VDD

0V

T1

T2

Valid

0V

T5 T6

0.9VDD

T3

0.1VDD

T4

Sept. 1. 10’

Back- light

● 0.5 ms ≤ T1 ≤ 10 ms

● 0 ≤ T2 ≤ 50 ms

● 0 ≤ T3 ≤ 50 ms

● 1 sec ≤ T4

● 200 ms ≤ T5

● 200 ms ≤ T6

www.jxlcd.com

www.jxlcd.com

0V

Notes:

1. When the power supply VDD is 0V, keep the level of input signals on
the low or keep high impedance.

2. Do not keep the interface signal high impedance when power is on.

3. Back Light must be turn on after power for logic and interface signal are valid.

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

18

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

P0

10.0 MECHANICAL CHARACTERISTICS

10.1 Dimensional Requirements

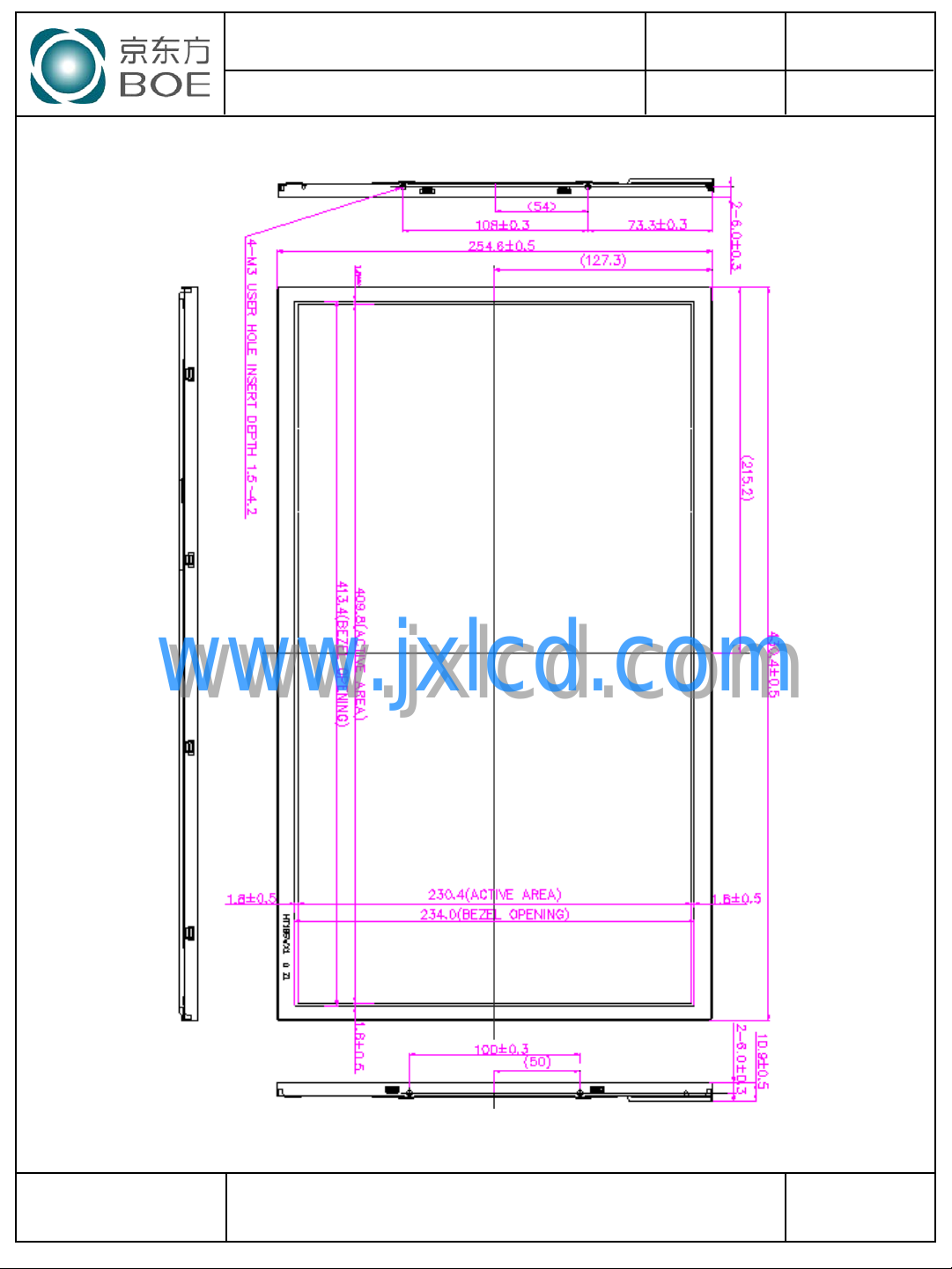

FIGURE 6 (located in Appendix) shows mechanical outlines for the model HT185WX1-300.
Other parameters are shown in Table 5.

<Table 5. Dimensional P aramet ers>

Parameter Specification Unit

Dimensional outline
Weight
Active area
Pixel pitch
Number of pixels
Back-light

430.4 ×254.6×10.9

(1330) (typ.)

409.8(H) × 230.4(V)

0.3(H) ×0.3(V)
1366(H)×768(V) (1 pixel = R + G + B dots)

Right edge side 1-LED Light bar Type

Sept. 1. 10’

mm

gram

mm
mm

pixels

www.jxlcd.com

www.jxlcd.com

10.2 Mounting

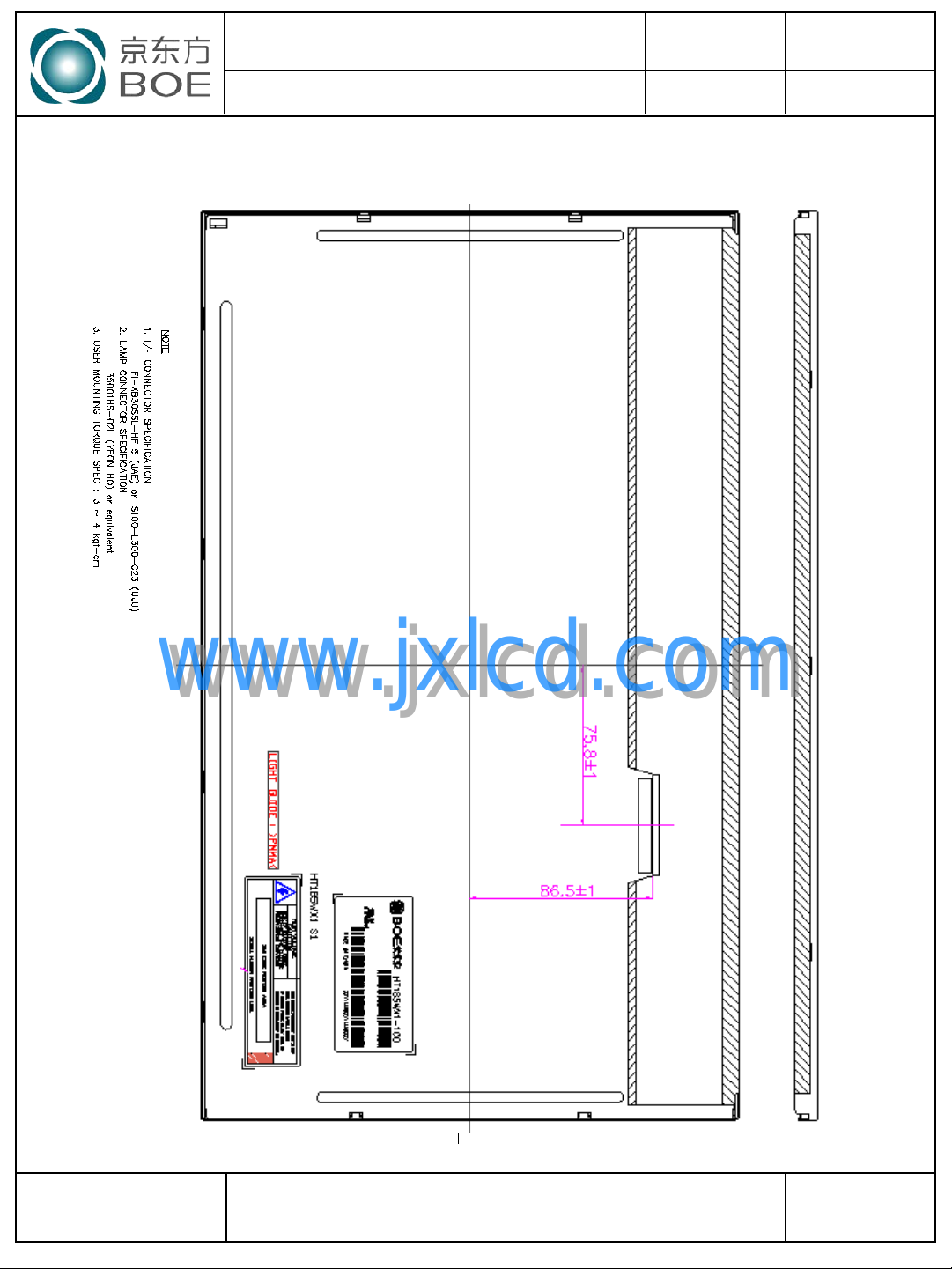

See FIGURE 5. (shown in Appendix)

10.3 Anti-Glare and Polarizer Hardness.

The surface of the LCD has an ant i-glar e coating to mini m iz e refl ect ion and a coating to reduce
scratching.

10.4 Light Leakage

There shall not be visible light from the back-lighting system around the edges of the screen as
seen from a distance 50cm from the screen with an overhead light level of 350lux.

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

19

PAGE

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

11.0 RELIABLITY TEST

The Reliability test items and its conditions are shown in below.

<Table 6. Reliabilit y Test Parameters >

No Test Items

High temperature storage test

1

Low temperature storage test

2

High temperature & high humidity

3

operation test
High temperature operation test

4

Low temperature operation test

5

Thermal shock

6

Vibration test

7

(non-operating)

Ta = 60 ℃, 240 hrs
Ta = -20 ℃, 240 hrs

Ta = 50 ℃, 80%RH, 240hrs

Ta = 50 ℃, 240hrs
Ta = 0 ℃, 240hrs
Ta = -20 ℃ ↔ 60 ℃ (0.5 hr), 100 cycle

Frequency 10 ~ 300 Hz, Sweep rate 30 min
Gravity / AMP 1.5 G
Period

P0

Conditions

±X, ±Y, ±Z 30 min

Sept. 1. 10’

Gravity

www.jxlcd.com

www.jxlcd.com

Shock test

8

(non-operating)

Electro-static discharg e test

9

(non-operating)

10 Altitude test

Pulse width

Direction

Air : 150 pF, 330Ω, 15 KV
Contact : 150 pF, 330Ω, 8 KV

Operating: 0 to 16400ft , 0 to 40°
Non Operating: 0 to 40000ft, -20 to 40°

50G

11msec, sine wave

±X, ±Y, ±Z Once for each

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

20

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

12.0 HANDLING & CAUTIONS

(1) Cautions when taking out the module

 P ick the pouch only, when taking out module from a shipping package.

(2) Cautions for handling the module

 As the elect ros t ati c discharges may break the LCD m odul e, handle the LCD

module with care. Peel a pr ot ecti on sheet off from the LCD panel surface as
slowly as possible.

 As the LCD panel and back - light element are made from fragile glass material,

impulse and pressure to the LCD module should be avoided.

 As the surface of the polarizer is very soft and easily scratched, use a soft dry

cloth without chemicals for cleaning.

 Do not pull the interface connector in or out while the LCD module is operating.
 P ut the module display side down on a flat horizontal plane.
 Handle connectors and cabl es wi th care.

(3) Cautions for the operation

 When the module is operating, do not lose CLK, ENAB signals. If any one of

these signals is lost, the LCD panel would be damaged.

 Obey the supply voltage sequence. If wrong sequence is applied, the module

would be damaged.

(4) Cautions for the atmosphere

www.jxlcd.com

www.jxlcd.com

 Dew drop atmosphere should be avoided.
 Do not store and/or operate the LCD module in a high temperature and/or

humidity atmosphere. Storage in an electro-conductive polymer packing pouch

and under relatively low temperature atmosphere is recommended.

(5) Cautions for the module characteristics

 Do not apply fixed pattern data signal to the LCD module at product aging.
 Applying fix ed pattern for a long time may cause image sticking.

(6) Other cautions

 Do not disassemble and/or re-assemble LCD module.
 Do not re-adjust variable resistor or switch etc.
When returning the module for repair or etc., Please pack the module not to be

broken. We recommend to use the original shipping packages.

P0

Sept. 1. 10’

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

21

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

13.0 PRODUCT SERIAL NUMBER

P0

HT185WX1-300

Sept. 1. 10’

www.jxlcd.com

www.jxlcd.com

1 2 3 4 5 6 7

X X X X X X X X X X X X X X X X X

1. Control Number

2. Rank / Grade

3. Line Classification

4. Year (2001 : 01, 2002 : 02, …)

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

5. Month (1,2,3, … , 9, X, Y, Z)

6. Internal Use
7 . Seria l Number

22

PAGE

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

14.0 Packing

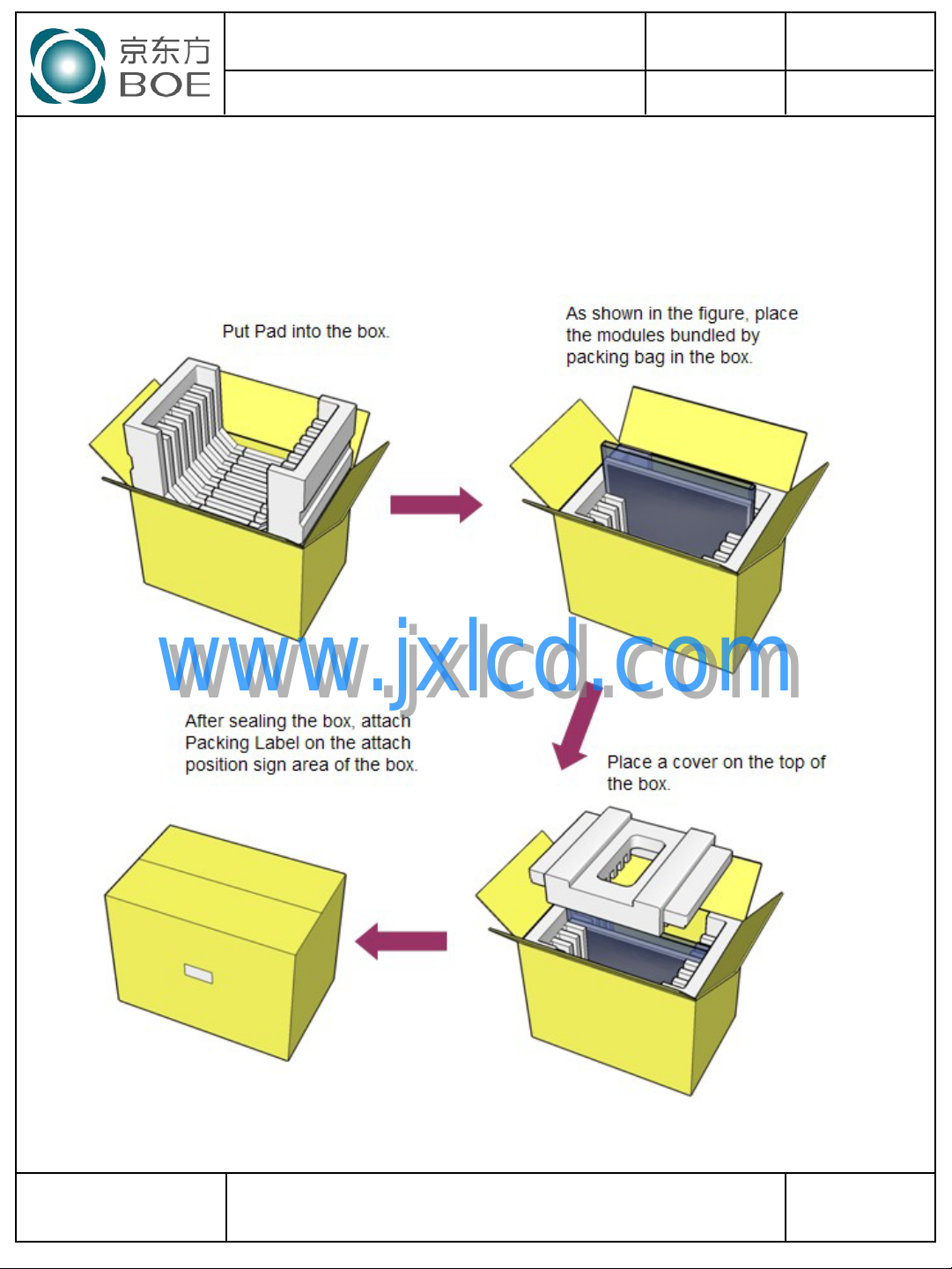

14.1 Packing Order

TFT- LCD PRODUCT

P0

Sept. 1. 10’

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

23

PAGE

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

14.2 Packing Note

 Box Dimension : 346mm(W) × 521mm(L) × 403mm(H)
 Package Quantity in one Box : 10pcs

14.3 Box label

 Label Size : 108 mm (L) × 56 mm (W)
 Contents

Model : HT185WX1
Q`ty : Module Q`ty in one box
Serial No. : Box Serial No. See next page for detail description.
Date : Packing Date
FG Code : FG Code of Product

P0

Sept. 1. 10’

www.jxlcd.com

www.jxlcd.com

00 0 00 0 0 000000
Type Grade Year Month ITEM-CODE Serial_no

HT185WX1-300

0000000000000

5940

10

201X.X.XX

FG CODE

RoHS Mark

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

24

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

15.0 APPENDIX

Figure 1. Measurement Set Up

TFT- LCD PRODUCT

P0

Sept. 1. 10’

Figure 2. White Luminance and Uniformity Measurement Locations (9 points)

www.jxlcd.com

www.jxlcd.com

136 683 1229

1) 1

1) 4 1) 5

1) 7 1) 8 1) 9

1) 2 1) 3

1) 6

77

384

691

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

25

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

Display data

Optical
Response

TFT- LCD PRODUCT

Figure 3. Response Time Testing

White(TFT OFF)

TR

100%

90%

10%

0%

Figure 4. Cross Modulation Test Description

VIEW AREA VIEW AREA

Black(TFT ON)

P0

White(TFT OFF)

TF

Time

Sept. 1. 10’

(D/4, W/4)

www.jxlcd.com

www.jxlcd.com

(D, W)

YA(7D/8,W/2)

Cross-Talk (%) =

Where: Y

The location measured will be exactly the s ame i n both patterns

= Initial luminance of measured area (cd/m2)

A

YB= Subsequent luminanc e of m easur ed area (cd/m2)

L31

YB- Y

Y

A

(3D/4, 3W/4)

(D, W)

L0

A

× 100

YB(7D/8,W/2)

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

PAGE

26

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

Figure 5. TFT-LCD Module Outline Dimensions (Front view)

P0

Sept. 1. 10’

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

27

PAGE

OF 28

A4(210 X 297)

PRODUCT GROUP

REV

ISSUE DATE

TFT- LCD PRODUCT

Figure 6. TFT-LCD Module Outline Dimensions (Rear view)

P0

Sept. 1. 10’

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC. TITLE

B3 HT185WX1-300 Preliminary Product Specification _Rev.P0

28

PAGE

OF 28

A4(210 X 297)
