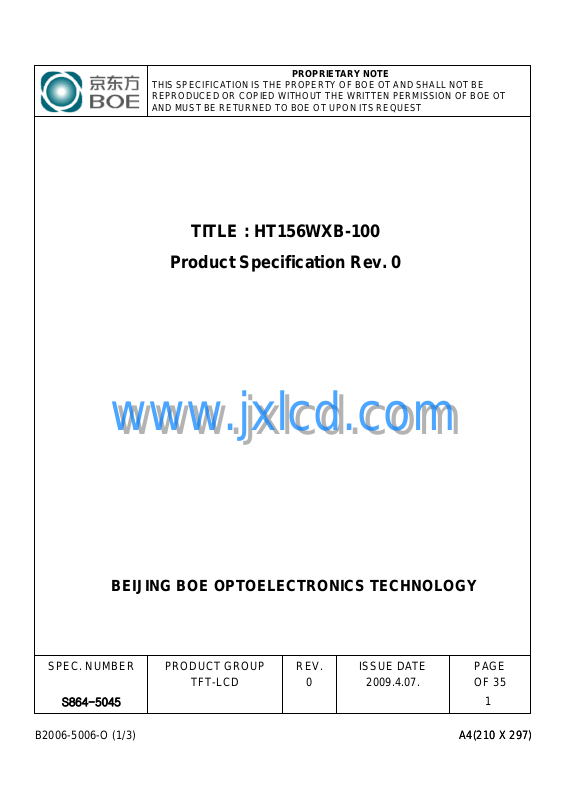

BOE OPTOELECTRONICS HT156WXB-100 SPECIFICATION

Page 1

PROPRIETARY NOTE

THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OT AND MUST BE RETURNED TO BOE OT UPON ITS REQUEST

TITLE : HT156WXB-100

Product Specification Rev. 0

www.jxlcd.com

BEIJING BOE OPTOELECTRONICS TECHNOLOGY

SPEC. NUMBER

S864-5045

PRODUCT GROUP

TFT-LCD

REV.

ISSUE DATE

2009.4.07.

PAGE OF 35

B2006-5006-O (1/3) A4(210 X 297) A4(210 X 297)

Page 2

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REVISION HISTORY

REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED

0 - Initial Release 2009.04.07. D. K. Yoon

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

S864-5045

B2006-5006-O (2/3) A4(210 X 297)

HT156WXB-100 Product Specification

OF 352

Page 3

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REV ISSUE DATE

Contents

No. Items Page

1.0 General Description 4

2.0 Absolute Maximum ratings 6

3.0 Electrical specifications. 7

4.0 Optical specifications. 9

5.0 Interface Connection 14

6.0 Signal Timing Specification 18

7.0 Signal Timing waveforms 20

8.0 Input Signals, Display Colors & Gray Scale of Colors 22

www.jxlcd.com

9.0 Power Sequence 23

10.0 Connector description 24

11.0 Mechanical Characteristics 25

12.0 Reliability Test 26

13.0 Handling & Cautions. 26

14.0 Label 27

15.0 Packing information 29

16.0 Mechanical Outline Dimension 30

17.0 EDID Table 32

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 353

Page 4

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REV ISSUE DATE

1.0 GENERAL DESCRIPTION

1.1 Introduction

HT156WXB-100 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 15.6 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this module is suitable for Notebook PC. The LED Driver for back-light driving is built in this model. All input signals are LVDS interface compatible.

6 strings, 9pcs/string

LED Driver

LVDS

Connector

Input Signal

1.2 Features

z 1 Channel LVDS Interface with 1 pixel / clock z Thin and light weight z 6-bit color depth, display 262K colors z Single LED Lighting Bar. (Top side/Horizontal Direction) z Data enable signal mode z Side Mounting Frame z Green Product (RoHS & Halogen free product) z On board LED Driving circuit z Low driving voltage and low power consumption z On board EDID chip

www.jxlcd.com

VDD

LVDS Rx

T/CON

Mini-LVDS Tx

DC/DC

Gamma

Vcom

BACK LIGHT (Fluorescent Lamp)

LED Lighting Bar

Gate Driver

TFT LCD Panel

1366 ×768

Source Driver

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 354

Page 5

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

1.3 Application

z Notebook PC (Wide type)

1.4 General Specification

The followings are general specifications at the model HT156WXB-100. (listed in Table 1.)

Parameter Specification Unit Remarks

Active area 344.232(H) ×193.536(V) mm Number of pixels 1366 (H) ×768 (V) pixels

REV ISSUE DATE

Pixel pitch 0.252 (H) ×0.252 (V) mm Pixel arrangement RGB Vertical stripe Display colors 262K colors

www.jxlcd.com

Display mode Normally White Dimensional outline Weight 450 (max) g Surface treatment Glare (Clear Black) / Hard coating 3H Back-light Upper edge side, 1-LED Lighting Bar type Note 1 Power consumption P

Notes : 1. LED Lighting Bar (6trrings, 9pcs/string)

www.jxlcd.com

359.3±0.5 (H) ×209.5±0.5 (V) ×5.5 (D:max)

: 1.3 (max) W

: 4.1 (max) W

: 5.4 (max) W

total

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 355

Page 6

PRODUCT GROUP

Temp

(

)

(40,

)

(

)

REV ISSUE DATE

TFT LCD PRODUCT 0 2009.4.07.

2.0 ABSOLUTE MAXIMUM RATINGS

The followings are maximum values which, if exceed, may cause faulty operation or damage to the unit. The operational and non-operational maximum voltage and current values are listed in Table 2.

< Table 2. Absolute Maximum Ratings>

Ta=25+/-2°C

Parameter Symbol Min. Max. Unit Remarks

Power Supply Voltage V Logic Supply Voltage V Operating Temperature T Storage Temperature T

-0.3 4.0 V

Vss-0.3 VDD+0.3 V

0+50

-20 +60

℃

Note 1

Note 2

Notes : 1. Permanent damage to the device may occur if maximum values are exceeded

functional operation should be restricted to the condition described under normal operating conditions.

2. Temperature and relative humidity range are shown in the figure below. 95 % RH Max. ( 40 OC ≥ Ta)

www.jxlcd.com

Maximum wet - bulb temperature at 39 OC or less. (Ta > 40 OC) No condensation.

Relative Humudity

100

Operating Range

50, 50

(60, 27)

Storage Range

-40 -20 0 20 40 60 80

SPEC. NUMBER

S864-5045

SPEC TITLE HT156WXB-100 Product Specification

erature

℃

PAGE

OF 356

B2006-5006-O (3/3) A4(210 X 297)

Page 7

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

3.0 ELECTRICAL SPECIFICATIONS

3.1 Electrical Specifications

REV ISSUE DATE

< Table 3. Electrical specifications >

Parameter Min. Typ. Max. Unit Remarks

Power Supply Voltage V Permissible Input Ripple

Voltage Power Supply Current I Positive-going Input

Threshold Voltage Negative-going Input

Threshold Voltage Differential Input Voltage V

Power Consumption

www.jxlcd.com

IT+

IT-

Ta=25+/-2°C

3.0 3.3 3.6 V Note 1

--100mVAt V

- 303 400 mA Note 1

--100mV Vcm = 1.2V typ.

-100 - - mV

200 - 600 mV

- 1.0 1.3 W Note 1

- 3.8 4.1 W Note 2

= 3.3V

total

Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.

The current draw and power consumption specified is for 3.3V at 25℃.

a) Typ : Window XP pattern b) Max : Vertical 2 line skip pattern

2. Calculated value for reference (VLED × ILED)

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

-4.85.4W

PAGE

OF 357

Page 8

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

3.0 ELECTRICAL SPECIFICATIONS

3.2 Backlight Unit

REV ISSUE DATE

< Table 4. LED Driving guideline specifications >

Parameter Min. Typ. Max. Unit Remarks

LED Forward Voltage V LED Forward Current I LED Power Consumption P

LED Life-Time N/A 10,000 - - Hour Power supply voltage for

LED Driver

EN Control

Level

PWM

Control

Level

Backlight on 2.0 5.0 V

Backlight off 0 1.0 V

www.jxlcd.com

PWM High

Level

PWM Low

Level

LED

3.0 3.2 3.4 V

-20 mA -

3.8 4.1 W

71220V

2.0 5.0 V

00.1V

Ta=25+/-2°C

Note 1

IF = 20mA

PWM Control Frequency F

Duty Ratio - 20 - 100 %

Notes : 1. Calculator Value for reference ILED × VLED = PLED

2. The LED Life-time define as the estimated time to 50% degradation of initial luminous.

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PWM

180 200 220 Hz

PAGE

OF 358

Page 9

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT 0 2009.4.07.

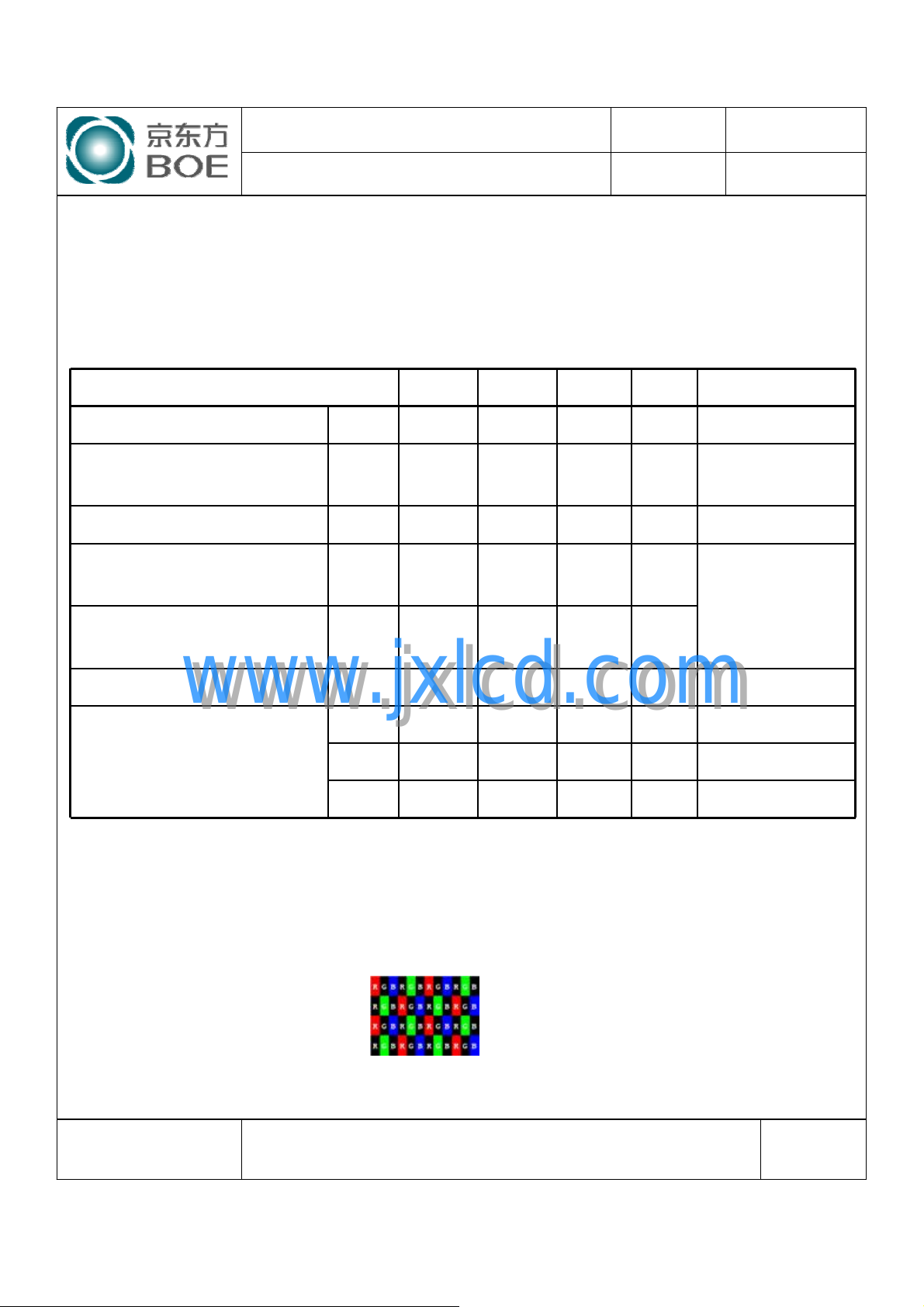

4.0 OPTICAL SPECIFICATION

4.1 Overview

The test of Optical specifications shall be measured in a dark room (ambient luminance ≤ 1 lux and temperature = 25±2℃) with the equipment of Luminance meter system (Goniometer system and TOPCON BM-5) and test unit shall be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0°. We refer to θØ=0 (=θ3 ) as the 3 o’clock direction (the “right”), θØ=90 (= θ12 ) as the 12 o’clock direction (“upward”), θØ=180 (= θ9 ) as the 9 o’clock direction (“left”) and θØ=270(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θand/or Ø, the center of the measuring spot on the Display surface shall stay fixed. The backlight should be operating for 30 minutes prior to measurement. VDD shall be 3.3+/- 0.3V at 25°C. Optimum viewing angle direction is 6 ’clock.

4.2 Optical Specifications

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Viewing Angle

range

Luminance Contrast ratio CR

Luminance of

White White

Luminance

uniformity

White Chromaticity

Reproduction

of color

Response Time

(Rising + Falling)

Cross Talk C T

Horizontal

Vertical

www.jxlcd.com

5 Points Y 5 Points ΔY5 80 - -

13 Points ΔY13 65 - -

Red

Green

Blue x

Θ Θ

3 9

G B

CR > 10

Θ = 0°

LED = 20mA

Θ = 0°

Ta= 25° C

Θ = 0° Θ = 0°

-45-Deg.

-15-Deg.

-35-Deg.

400 500 Note 2 187 220 - cd/m

0.263 0.313 0.363

0.279 0.329 0.379 (0.619) (0.341)

Typ.

(-0.05)

- 8 16 ms Note 6

- - 2.0 % Note 7

(0.317) (0.594) (0.162) (0.088)

Typ.

(+0.05)

Note 1

Note 3

Note 4

Note 5

SPEC. NUMBER

S864-5045

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 359

B2006-5006-O (3/3) A4(210 X 297)

Page 10

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

Notes : 1. Viewing angle is the angle at which the contrast ratio is greater than 10. The

viewing angles are determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock direction with respect to the optical axis which is normal to the LCD surface (see FIGURE 1).

2. Contrast measurements shall be made at viewing angle of Θ= 0 and at the center of the LCD surface. Luminance shall be measured with all pixels in the view field set first to white, then to the dark (black) state . (see FIGURE 1) Luminance Contrast Ratio (CR) is defined mathematically.

Luminance when displaying a white raster

CR =

Luminance when displaying a black raster

REV ISSUE DATE

3. Center Luminance of white is defined as luminance values of 5 point average

across the LCD surface. Luminance shall be measured with all pixels in the view field set first to white. This measurement shall be taken at the locations shown in FIGURE 2 for a total of the measurements per display.

www.jxlcd.com

4. The White luminance uniformity on LCD surface is then expressed as : ΔY = Minimum Luminance of 5(or 13) points / Maximum Luminance of 5(or 13) points (see FIGURE 2 and FIGURE 3).

5. The color chromaticity coordinates specified in Table 5 shall be calculated from the spectral data measured with all pixels first in red, green, blue and white. Measurements shall be made at the center of the panel.

6. The electro-optical response time measurements shall be made as FIGURE 4 by switching the “data” input signal ON and OFF. The times needed for the luminance to change from 10% to 90% is Tr, and 90% to 10% is Td.

7. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the luminance (YA) of a 25mm diameter area, with all display pixels set to a gray level, to the luminance (YB) of that same area when any adjacent area is driven dark. (See FIGURE 5).

www.jxlcd.com

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3510

Page 11

4.3 Optical measurements

Photo detector

(TOPCON BM-5A)

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

Figure 1. Measurement Set Up

REV ISSUE DATE

Field = 2

TFT-LCD module

Optical characteristics measurement setup

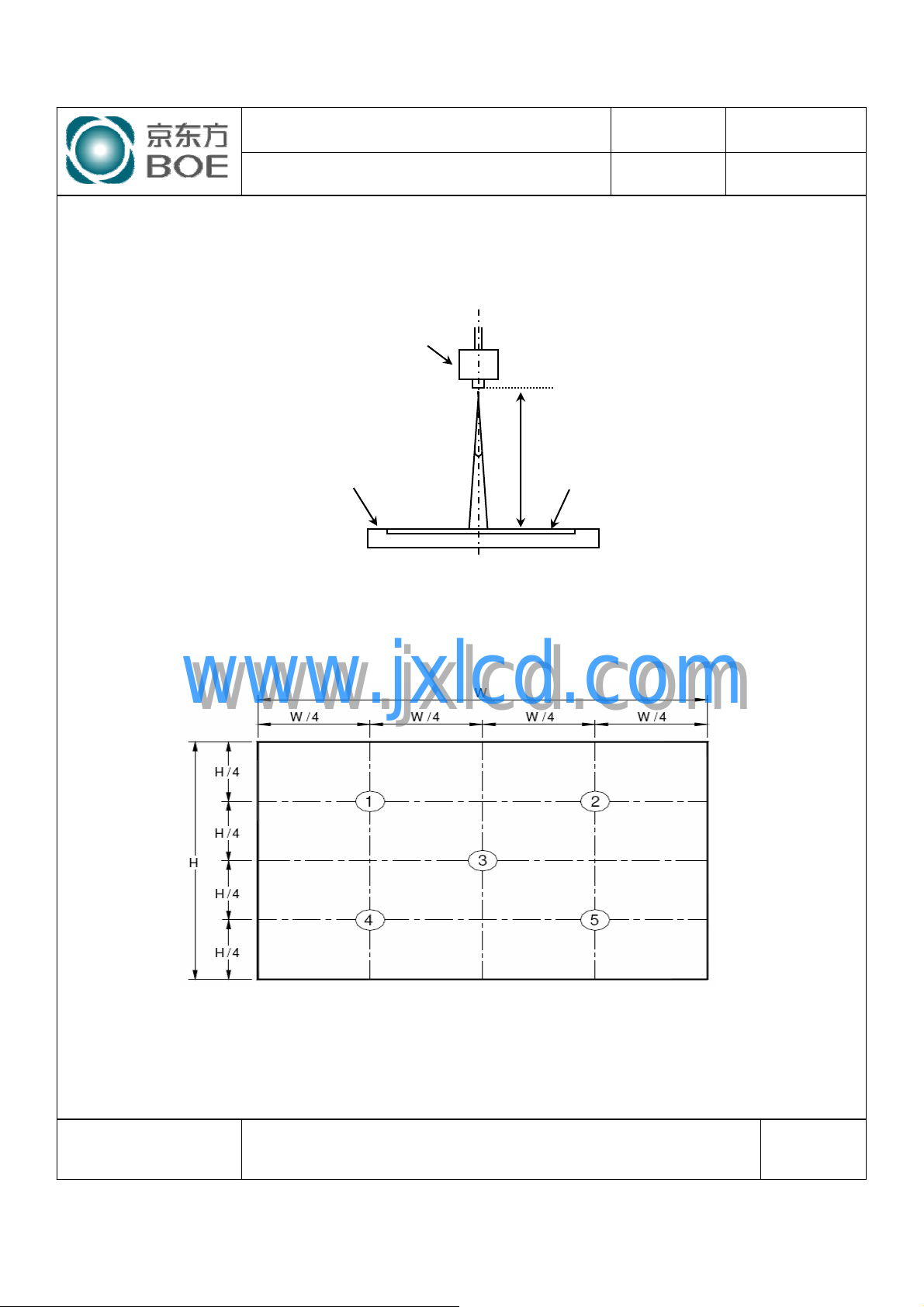

Figure 2. White Luminance and Uniformity Measurement Locations (5 points)

www.jxlcd.com

50 cm

LCD panel

Center of the screen

Center Luminance of white is defined as luminance values of center 5 points across the LCD surface. Luminance shall be measured with all pixels in the view field set first to white. This measurement shall be taken at the locations shown in FIGURE 2 for a total of the measurements per display.

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3511

Page 12

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

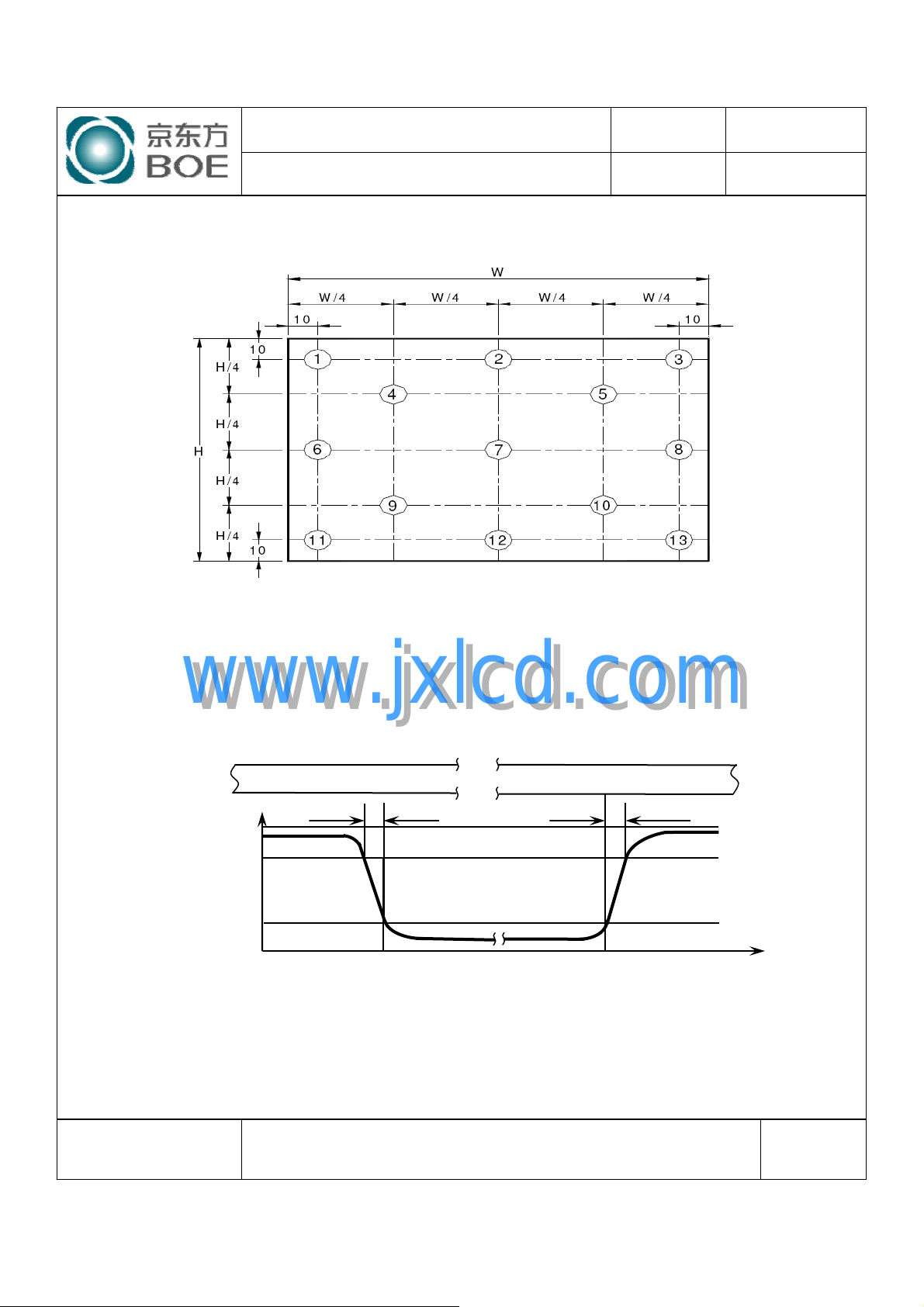

Figure 3. Uniformity Measurement Locations (13 points)

REV ISSUE DATE

The White luminance uniformity on LCD surface is then expressed as : ΔY5 = Minimum Luminance of five points / Maximum Luminance of five points (see FIGURE 2) , ΔY13 = Minimum Luminance of 13 points /Maximum Luminance of 13 points (see FIGURE 3).

www.jxlcd.com

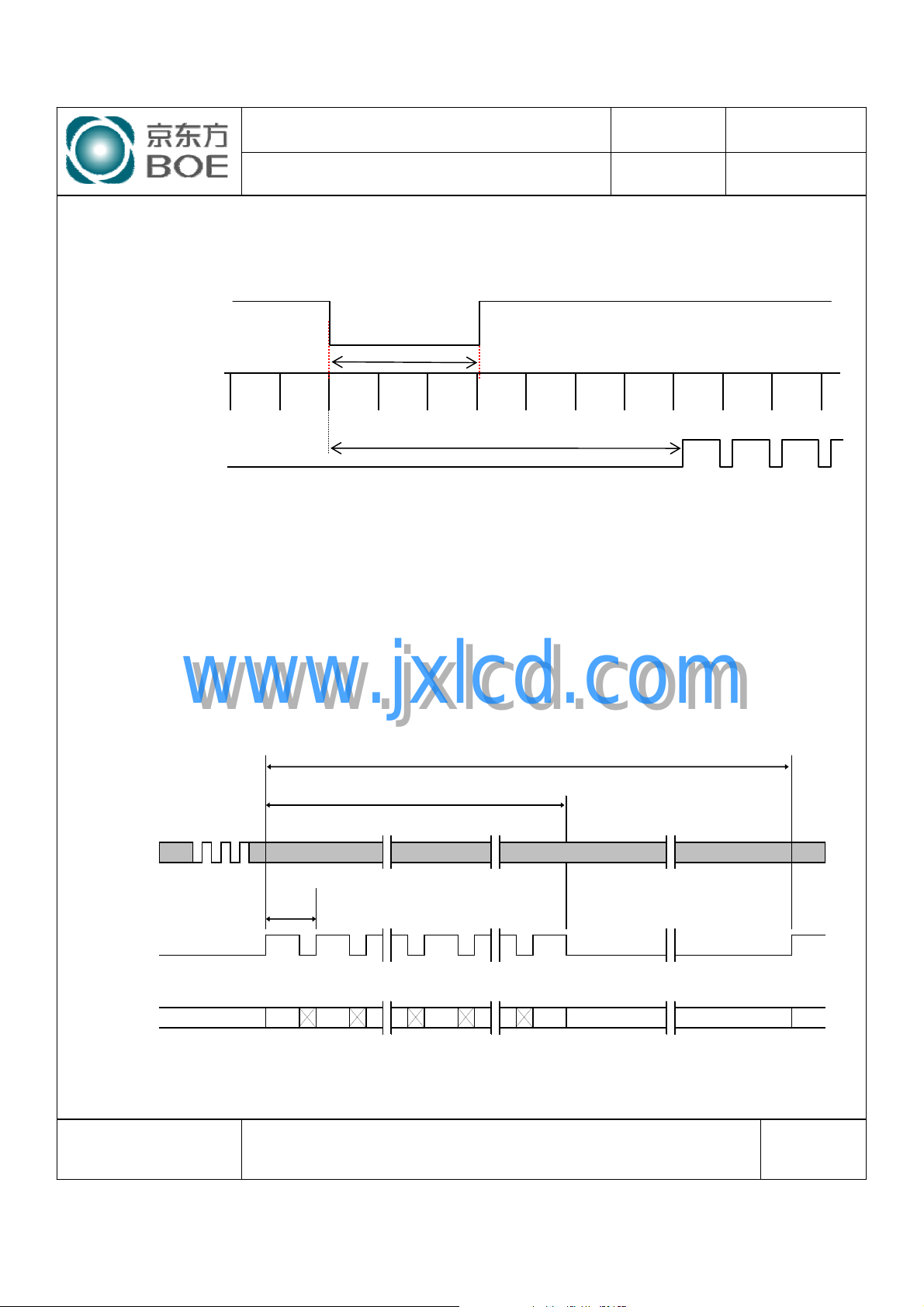

Figure 4. Response Time Testing

Display data

Optical Response

The electro-optical response time measurements shall be made as shown in FIGURE 4 by switching the “data” input signal ON and OF F. The times needed for the luminance to change from 10% to 90% is Td and 90% to 10% is Tr.

White(TFT OFF)

100%

90%

10%

Black(TFT ON)

White(TFT OFF)

Time

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3512

Page 13

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

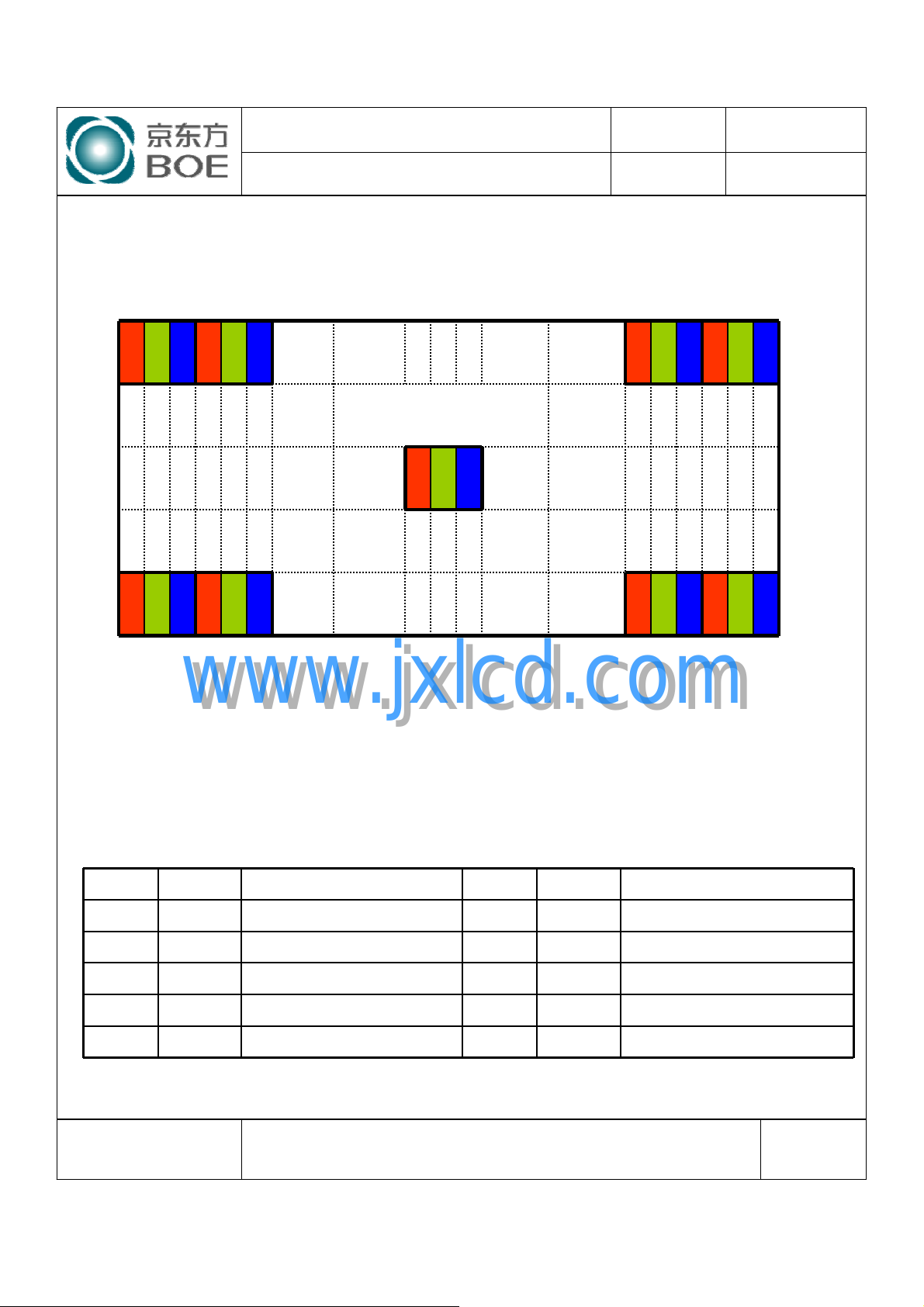

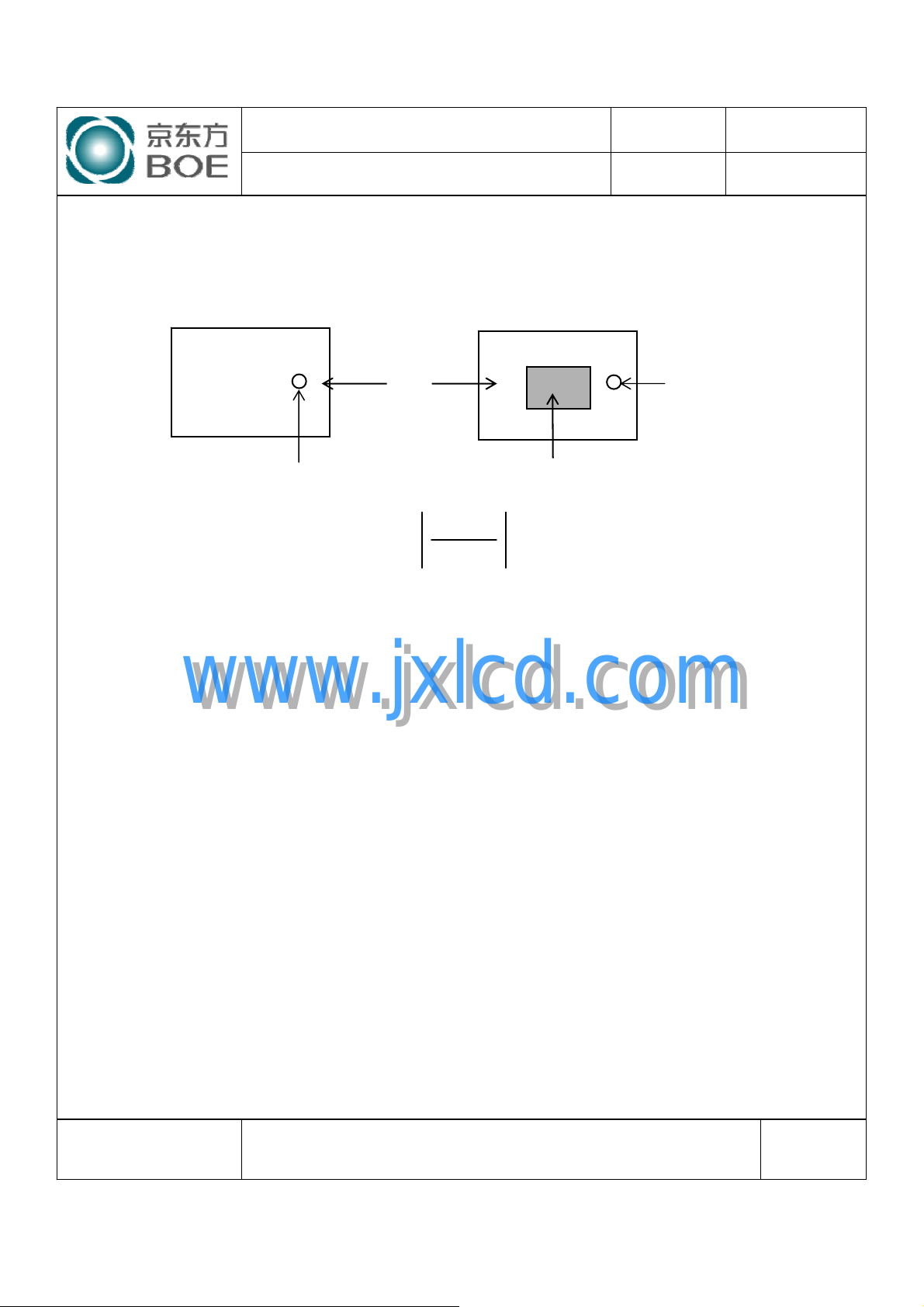

Figure 5. Cross Modulation Test Description

REV ISSUE DATE

VIEW AREA

L31

(1195, 384)

YB-Y

Cross-Talk (%) = × 100

Where:

YA= Initial luminance of measured area (cd/m2) YB= Subsequent luminance of measured area (cd/m2)

The location measured will be exactly the same in both patterns

Cross-Talk of one area of the LCD surface by another shall be measured by comparing the luminance (YA) of a 25mm diameter area, with all display pixels set to a gray level, to the luminance (YB) of that same area when any adjacent area is driven dark (Refer to FIGURE 5).

www.jxlcd.com

VIEW AREA

342,192

1025,192

YB(1195, 384)

1025,576342,576

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 35

Page 14

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REV ISSUE DATE

5.0 INTERFACE CONNECTION.

5.1 Electrical Interface Connection

The electronics interface connector is I-PEX 20455-040E-12 or Compatible or equivalent. The mating connector part number is I-PEX 20455-040T-11 or Compatible. The connector interface pin assignments are listed in Table 6.

Terminal Symbol Functions

Pin No. Symbol Description

1 NC No Connection (Reserve) 2 VDDIN Power Supply, 3.3V (typ.) 3 VDDIN Power Supply, 3.3V (typ.) 4 VDC VDC 3.3Vpower for EDID 5 NC NC No Connection (Reserve) 6 CLK EDID EDID Clock 7 Data EDID EDID Data 8 RxIN0- Transmission Data of 0 Negative -

9 RxIN0+ Transmission Data of 0 Positive + 10 GND Ground 11 RxIN1- Transmission Data of 1 Negative 12 RxIN1+ Transmission Data of 1 Positive +

www.jxlcd.com

13 GND Ground 14 RxIN2- Transmission Data of 2 Negative 15 RxIN2+ Transmission Data of 2 Positive + 16 GND Ground 17 RxCLKIN- Sampling Clock of Negative 18 RxCLKIN+ Sam plin g Clo ck of Po sitive + 19 GND Ground 20 NC No Connection

21 22 23 24 25 26 27 28 29 30

NC No Connection

GND Ground

NC No Connection NC No Connection

GND Ground

(CE)

(CTL)

GND Ground

NC No Connection NC No Connection

LCD internal use only

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3514

Page 15

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

Terminal Symbol Functions

Pin No. Symbol Description

31 VLED_GND LED Ground 32 VLED_GND LED Ground 33 VLED_GND LED Ground 34 NC No Connection 35 PWM System PWM Signal Input 36 LED_EN LED enable pin(+3V Input) 37 NC No Connection (Reserve) 38 VLED LED Power Supply 7V-20V 39 VLED LED Power Supply 7V-20V 40 VLED LED Power Supply 7V-20V

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

HT156WXB-100 Product Specification

OF 3515

Page 16

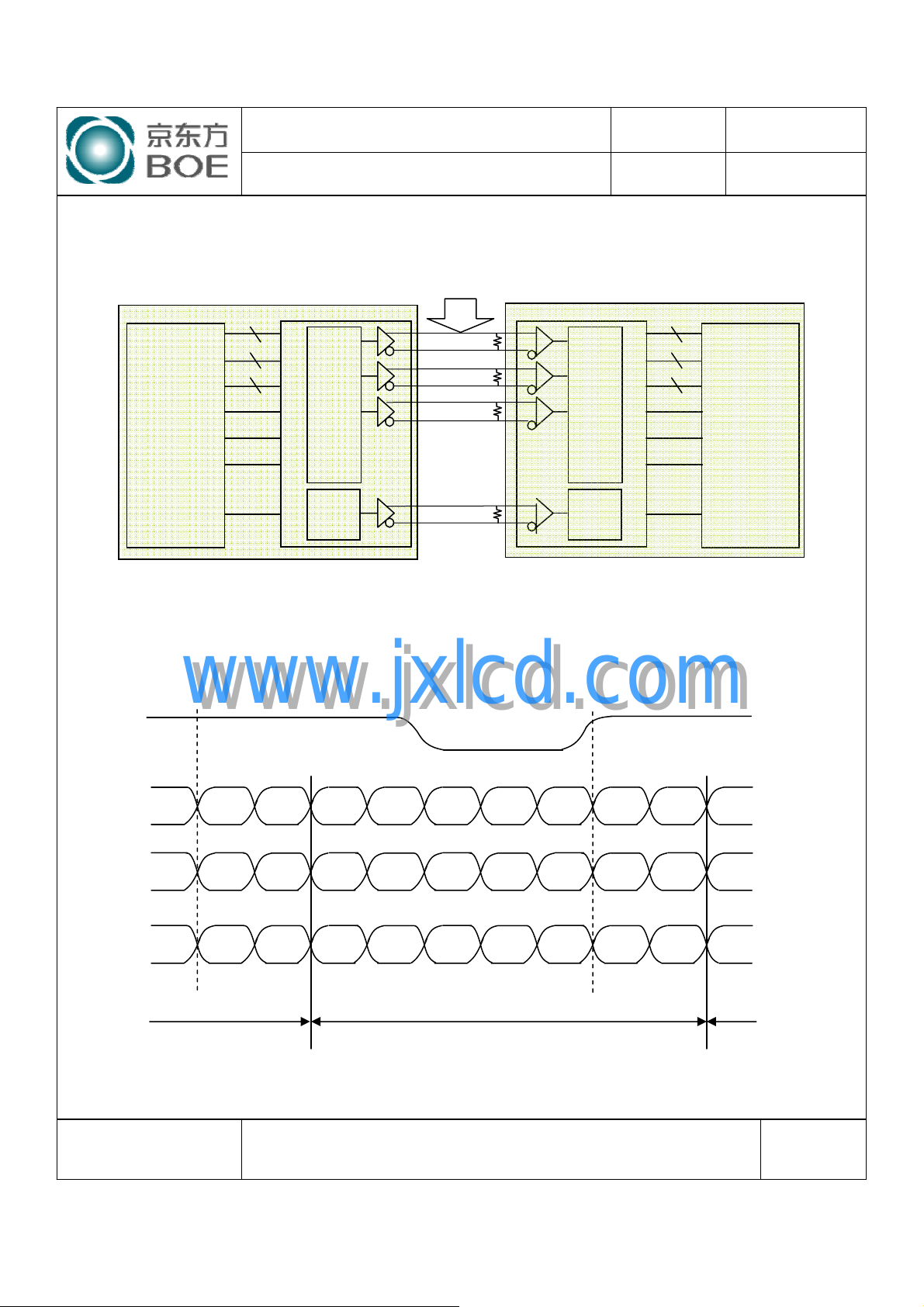

5-2. LVDS Interface

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT 0 2009.4.07.

PC Side

CN1 R0~R5 G0~G5

B0~B5

Hsync Vsync

CLK

6 6

TTL Parallel-to-LVDS

PLL

100 ohm

Note. Transmitter : Thine THC63LVDM63A or equivalent.

Transmitter is not contained in Module.

5.3.LVDS Input signal

www.jxlcd.com

CLK+

Vdiff=0V

TFT-LCD Side

LVDS to TTL Parallel

PLL

6 6

R0~R5 G0~G5

B0~B5

Hsync Vsync

CLK

Rin0

Rin1

Rin2

Prior cycle

GO R5 R4 R3 R2 R1 R0

B1 B0 G5 G4 G3 G2 G1

DE Vsync B5 B4 B3 B2Hsync

Signal for 1 DCLK cycle Next cycle

Note. Pin connection in case of using Thine THC63LVDM63A

SPEC. NUMBER

S864-5045

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3516

B2006-5006-O (3/3) A4(210 X 297)

Page 17

5.3 Data Input Format

(1,1) (2,1) (1365,1) (1366,1)

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REV ISSUE DATE

R G B R G B R G B R G B

(1,768) (2,768) (1365,768) (1366, 768)

www.jxlcd.com

5.4 Back-light & LCM Interface Connection

1 Pixel = 3 Dots

R G B

Display Position of Input Data (V-H)

www.jxlcd.com

Interface Connector: MS24022P10 or Equivalent

Pin No. Symbol Description Pin No. Symbol Description

1 Vout LED anode connection 6 LED2 LED cathode connection 2 Vout LED anode connection 7 LED3 LED cathode connection 3 Vout LED anode connection 8 LED4 LED cathode connection 4 NC No Connection 9 LED5 LED cathode connection 5 LED1 LED cathode connection 10 LED6 LED cathode connection

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3517

Page 18

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

6.0 SIGNAL TIMING SPECIFICATION

6.1 The HT156WXB-100 is operated by the DE only.

Item Symbols Min Typ Max Unit

Frequency 1/Tc 50 72.3 - MHz

REV ISSUE DATE

Clock

Frame Period Tv

Vertical Display Period Tvd 768 768 768 lines

One line Scanning

Horizontal Display

High Time Tch - 4/7 - Tc

Low Time Tcl - 3/7 - Tc

778 790 802 lines

-60- Hz

- 16.7 - ms

Period

www.jxlcd.com

Th 1446 1526 1586 clocks

Thd 1366 1366 1366 clocks

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3518

Page 19

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

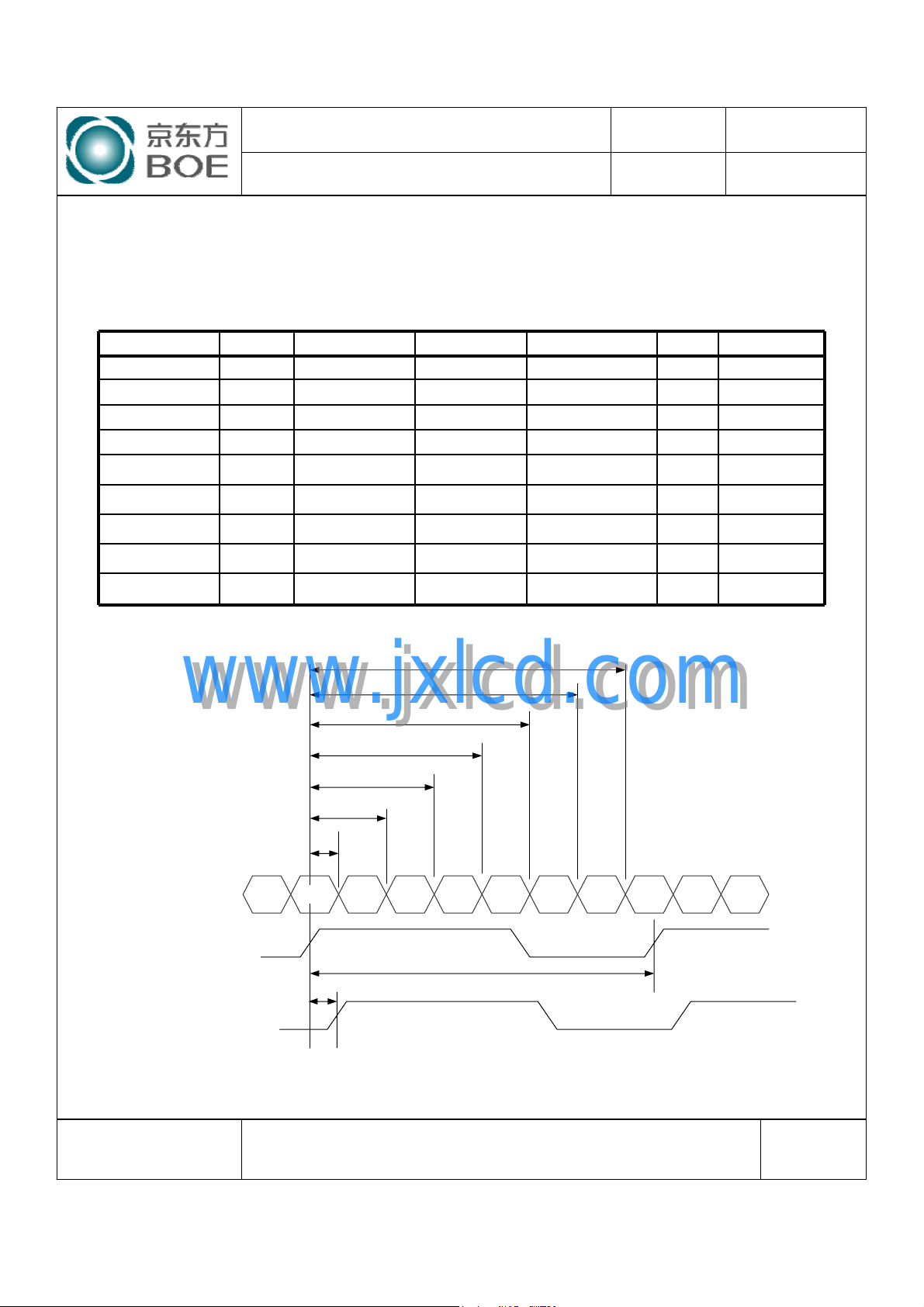

6.2 LVDS Rx Interface Timing Parameter

The specification of the LVDS Rx interface timing parameter is shown in Table 8.

Item Symbol Min Typ Max Unit Remark

CLKIN Period tRCIP - 13.83 20 nsec

CLK Difference tCdiff -tRCIP*(3/7) 0 +tRCIP*(3/7) nsec

Input Data 0 tRIP1 -0.4 0.0 +0.4 nsec Input Data 1 tRIP0 tRICP/7-0.4 tRICP/7 tRICP/7+0.4 nsec

Input Data 2 tRIP6 2 ×tRICP/7-0.4 2 ×tRICP/7 2 ×tRICP/7+0.4 nsec Input Data 3 tRIP5 3 ×tRICP/7-0.4 3 ×tRICP/7 3 ×tRICP/7+0.4 nsec Input Data 4 tRIP4 4 ×tRICP/7-0.4 4 ×tRICP/7 4 ×tRICP/7+0.4 nsec Input Data 5 tRIP3 5 ×tRICP/7-0.4 5 ×tRICP/7 5 ×tRICP/7+0.4 nsec

REV ISSUE DATE

Input Data 6 tRIP2 6 ×tRICP/7-0.4 6 ×tRICP/7 6 ×tRICP/7+0.4 nsec

tRIP2

www.jxlcd.com

tRIP5

tRIP6

tRIP0

tRIP1

RXO/Ez +/-

* Z = 0, 1, 2,3

RxOCLKIN+

RxECLKIN+ tCdiff

Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0Rx3

tRIP3

tRIP4

tRCIP

Vdiff=0[v]Vdiff=0[v]

* Vdiff = (RXO/Ez+)-(RXO/Ez-),…. ,(RXO/ECLK+)-(RXO/ECLK-)

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3519

Page 20

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REV ISSUE DATE

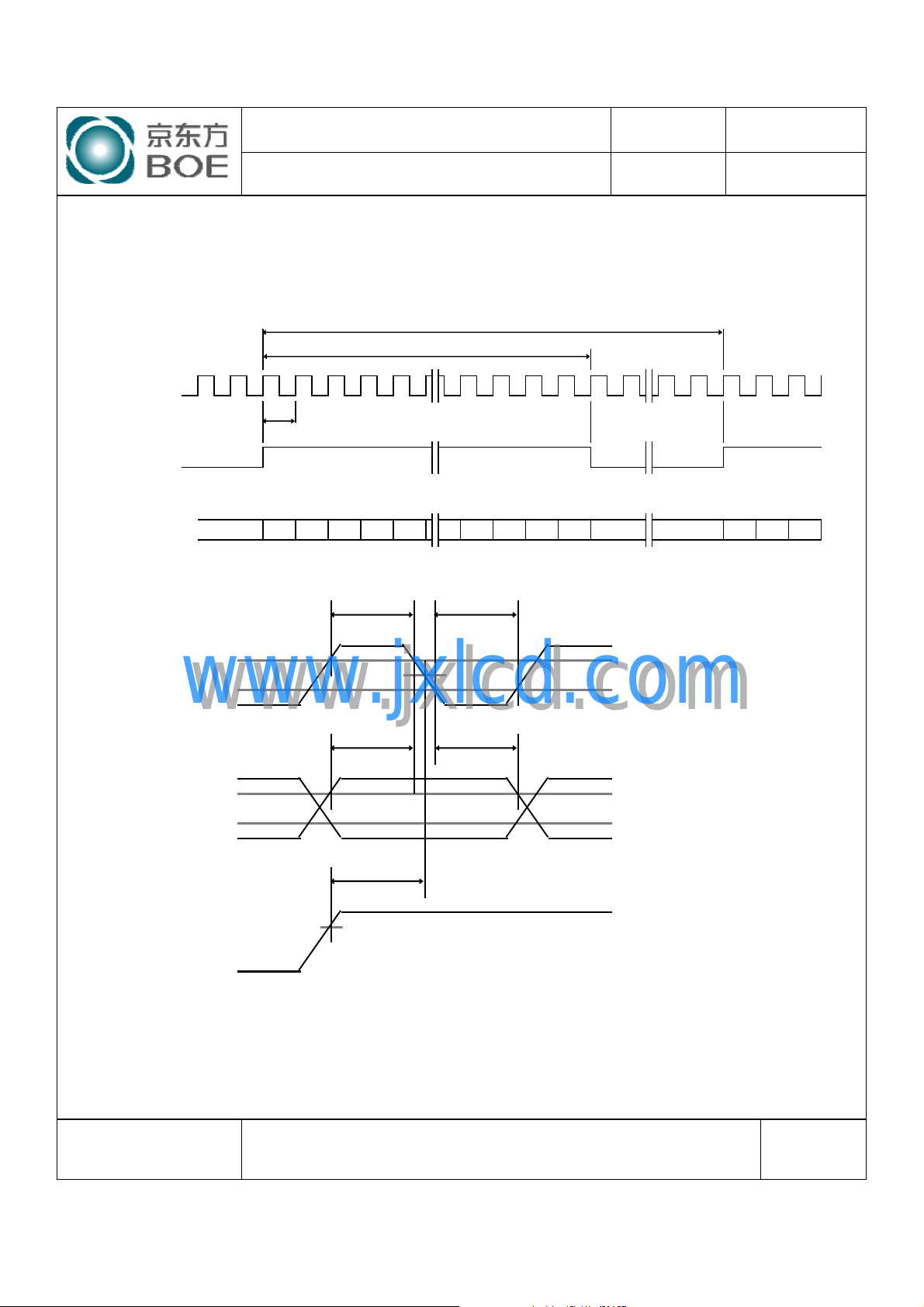

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL

7.1 Sync Timing Waveforms

V-Sync

H-Sync

1) Need over 3 H-sync during V-Sync Low

2) Fix H-Sync width from V-Sync falling edge to first rising edge

7.2 Vertical T i m i ng Waveforms

www.jxlcd.com

Over 3 H-sync

Fix H-Sync width Area

Tvd

MCLK

R7 ~ R0

G7 ~ G0

B7 ~ B0

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

Invalid Data DataInvalid

x,1 x,2 x,y x+1,1

SPEC TITLE HT156WXB-100 Product Specification

x,1050

PAGE

OF 3520

Page 21

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

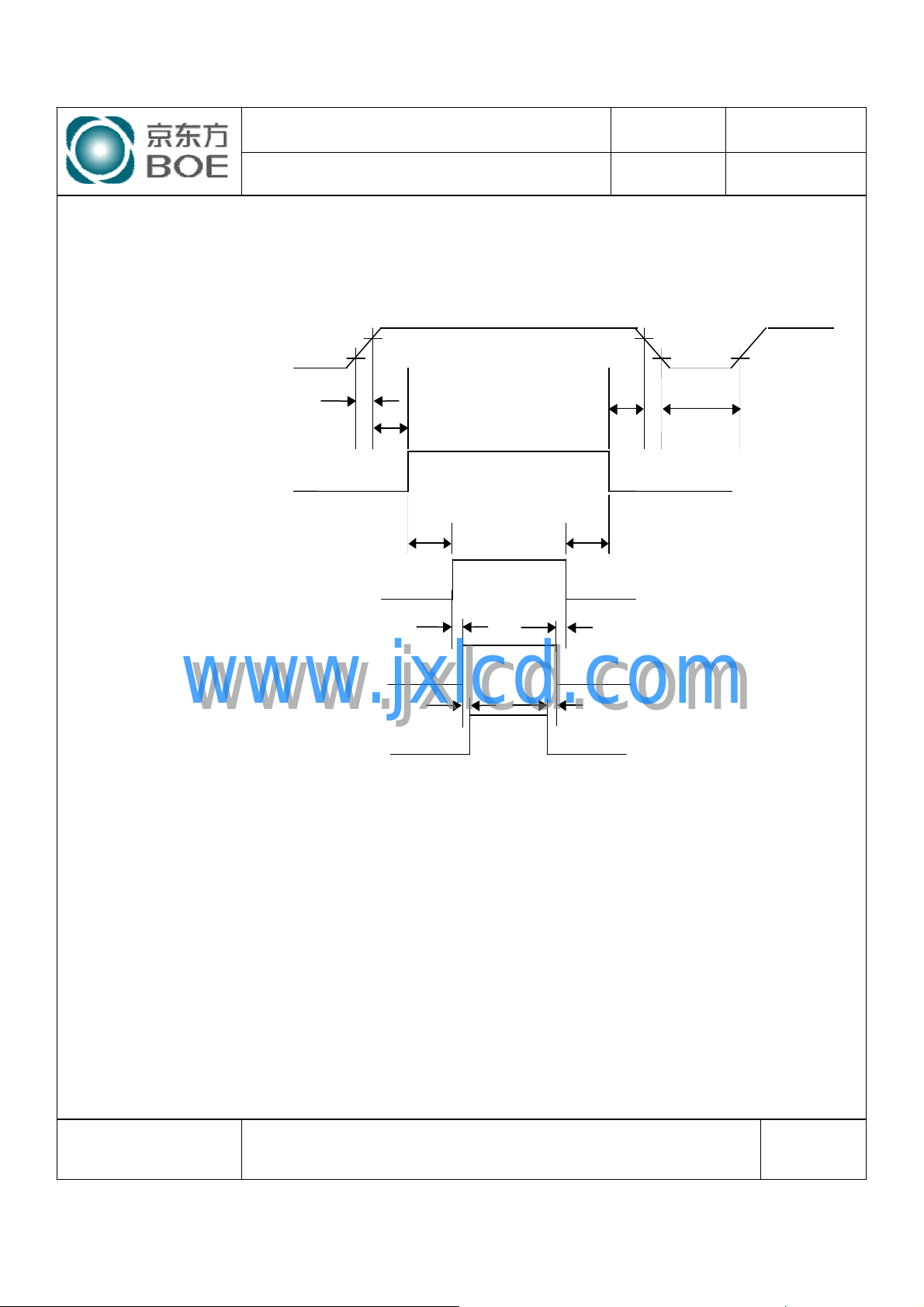

7.3 Horizontal Timing Waveforms

Thd

MCLK

RA7 ~RA0

GA7 ~GA0

BA7 ~BA0

D1 D2 Dn Data D1 D2 D3

D1048 D1049 D1050

REV ISSUE DATE

Invalid

Tch

Tcl

2.0V

MCLK

www.jxlcd.com

Tds

Data

Valid

1.5V

0.8V

Tdh

2.0V

Data

0.8V

Tes

2.0V

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3521

Page 22

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT 0 2009.4.07.

8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS

Colors & Data signal

Gray scale R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 B4 B5

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

Basic Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

colors Light Blue 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1

Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 Purple 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 Yellow 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Gray scale

of Red

Gray scale

of Green

Gray scale

of Blue

Gray △ 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0

scale Darker 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0

White

& Brighter 1 0 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1

Black

△↑↑↑ ▽↓↓↓

Brighter 1 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

▽

Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△ 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0

Darker 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

www.jxlcd.com

△↑↑↑

www.jxlcd.com

▽↓↓↓

Brighter 0 0 0 0 0 0 1 0 1 1 1 1 0 0 0 0 0 0

▽ 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0

Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0

△↑ ▽↓

Brighter 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1

▽

Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

▽↓↓↓

▽

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0

↓ ↓

0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1

↑↑↑

0 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1

↑ ↓

SPEC. NUMBER

S864-5045

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3522

B2006-5006-O (3/3) A4(210 X 297)

Page 23

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REV ISSUE DATE

9.0 POWER SEQUENCE

To prevent a latch-up or DC operation of th e LCD module, the power on/off sequence shall be as shown in below

Power Supply

Interface Signal

Backlight Power on

PWM for LED Driver

( Dimming signal)

Enable for LED Driver

( Backlight on/off)

www.jxlcd.com

0.9VDD

0.1VDD

Valid

T3 T8

T5 T6

0.9VDD

0.1VDD

T10

● T1 ≤ 10 ms

● 0 ms ≤ T2 ≤ 50 ms

● 200 ms ≤ T3

● 10 ms ≤ T4

● 10 ms ≤ T5

● 0 ms ≤ T6

● 10 ms ≤ T7

● 200 ms ≤ T8

● 0 ms ≤ T9 ≤ 50 ms

● 1s ≤ T10

Notes:

1. When the power supply VDD is 0V, keep the level of input signals on the low or keep high impedance.

2. Do not keep the interface signal high impedance when power is on. Back Light must be turn on after power for logic and interface signal are valid.

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3523

Page 24

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

10.0 Connector Description

Physical interface is described as for the connector on LCM. These connectors are capable of accommodating the following signals and will be following components.

10.1 TFT LCD Module

Connector Name /Description For Signal Connector

Manufacturer IPEX or Compatible Type/ Part Number I-PEX 20455-040E-12 or Compatible Mating housing/ Part Number I-PEX 20455-040T-11 or Compatible

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

HT156WXB-100 Product Specification

OF 3524

Page 25

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

11.0 MECHANICAL CHARACTERISTICS

11.1 Dimensional Requirements

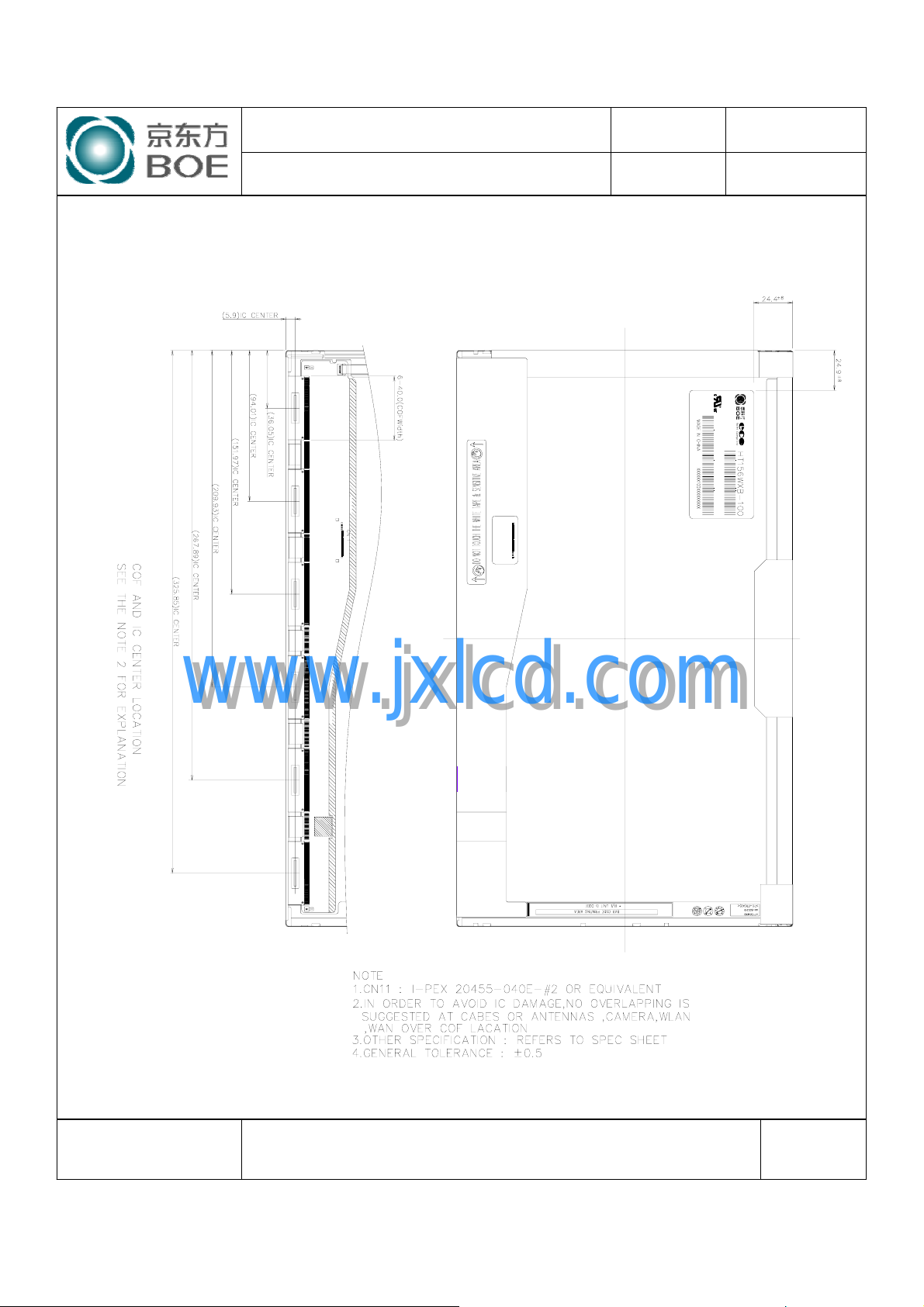

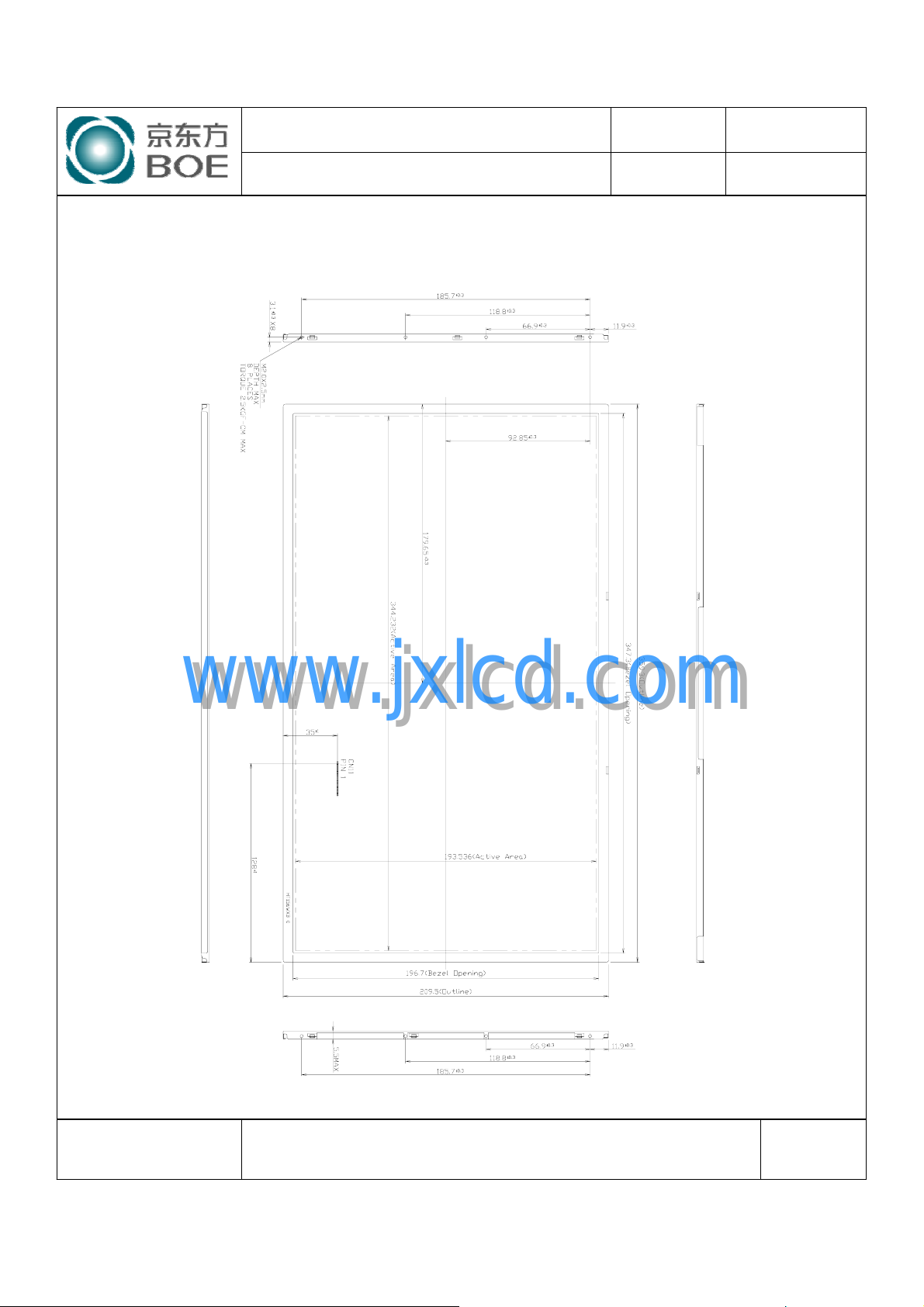

FIGURE 6 shows mechanical outlines for the model HT156WXB-100. Other parameters are shown in Table 9.

Parameter Specification Unit

Active Area 344.232 (H) ×193.536 (V)

Number of pixels 1366 (H) X 768 (V) (1 pixel = R + G + B dots)

Pixel pitch 0.252 (H) X 0.252 (V)

Pixel arrangement RGB Vertical stripe

Display colors 262,144

REV ISSUE DATE

Display mode Normally white

Dimensional outline 359.3±0.5×209.5±0.5×5.5(max) mm

Weight 450 (max) gram

www.jxlcd.com

Back Light

10.2 Mounting

See FIGURE 6.

10.3 Glare and Polarizer Hardness.

The surface of the LCD has an glare coating to maximize readability and hard coating to reduce scratching.

10.4 Light Leakage

There shall not be visible light from the back-lighting system around the edges of the screen as seen from a distance 50cm from the screen with an overhead light level of 350lux.

www.jxlcd.com

Connector : MS24022P10

LED, Horizontal-LED Array type

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3525

Page 26

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

12.0 RELIABILITY TEST

The Reliability test items and its conditions are shown in below.

No Test Items Conditions

1 High temperature storage test Ta = 60 ℃, 240 hrs 2 Low temperature storage test Ta = -20 ℃, 240 hrs

REV ISSUE DATE

3 4 High temperature operation test Ta = 50 ℃, 240 hrs

5 Low temperature operation test Ta = 0 ℃, 240 hrs 6 Thermal shock Ta = -20 ℃↔60 ℃ (0.5 hr), 100 cycle

13.0 HANDLING & CAUTIONS

(1) Cautions when taking out the module

y Pick the pouch only, when taking out module from a shipping package.

(2) Cautions for handling the module

y As the electrostatic discharges may break the LCD module, handle the LCD module with y As the LCD panel and back - light element are made from fragile glass material, impulse y As the surface of the polarizer is very soft and easily scratched, use a soft dry cloth y Do not pull the interface connector in or out while the LCD module is operating.

y Put the module display side down on a flat horizontal plane. y Handle connectors and cables with care.

(3) Cautions for the operation

y When the module is operating, do not lose CLK, ENAB signals. If any one of these

y Obey the supply voltage sequence. If wrong sequence is applied, the module

High temperature & high humidity operation test

Vibration test (non-operating)

Shock test (non-operating)

Electro-static discharge test (non-operating)

www.jxlcd.com

care. Peel a protection sheet off from the LCD panel surface as slowly as possible. and pressure to the LCD module should be avoided. without chemicals for cleaning.

signals is lost, the LCD panel would be damaged.

would be damaged.

Ta = 50 ℃, 50%RH, 240 hrs

1.5G, 1~500Hz sine +X,+Y+Z Sweep rate : 30min.

220G, Half Sine Wave 2msec ±X,±Y,±Z Once for each direction

Air : 150 pF, 330Ω, 15 KV Contact : 150 pF, 330Ω, 8 KV

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3526

Page 27

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

(4) Cautions for the atmosphere

y Dew drop atmosphere should be avoided. y Do not store and/or operate the LCD module in a high temperature and/or humidity

atmosphere. Storage in an electro-conductive polymer packing pouch and under relatively low temperature atmosphere is recommended.

(5) Cautions for the module characteristics

y Do not apply fixed pattern data signal to the LCD module at product aging. y Applying fixed pattern for a long time may cause image sticking.

(6) Other cautions

y Do not disassemble and/or re-assemble LCD module. y Do not re-adjust variable resistor or switch etc. y When returning the module for repair or etc., Please pack the module not to be broken.

We recommend to use the original shipping packages.

REV ISSUE DATE

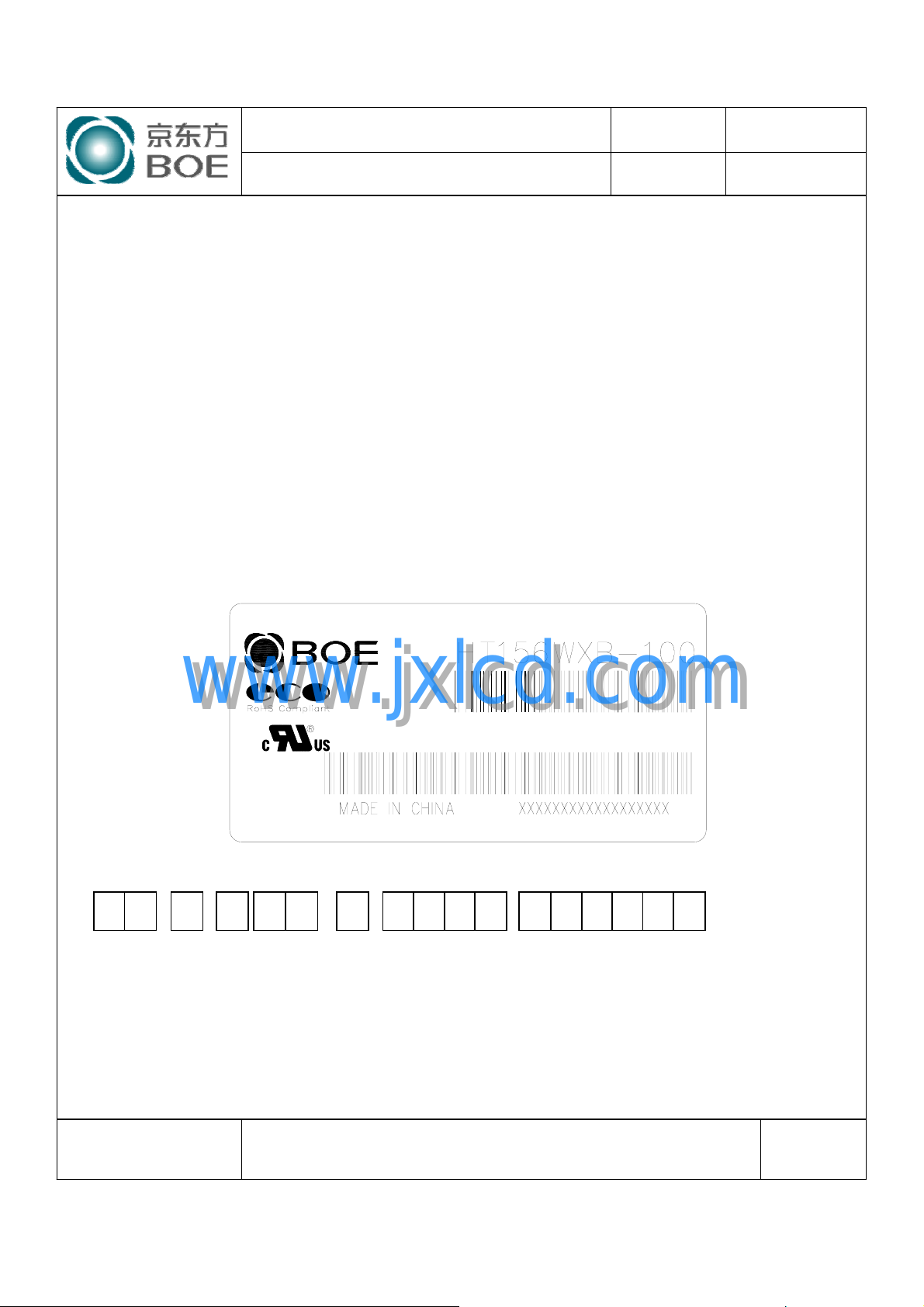

14.0 LABEL

(1) Product label

www.jxlcd.com

Type designation

No 1. Control Number

No 2. Rank / Grade

23 4

XXXXXX X100XX X XXX

No 5. Month (1, 2, 3, …, 9, X, Y, Z)

No 6. Product Identification (FG)

No 7. Serial Number

No 3. Line classification (BOE OT:A/BC)

No 4. Year (05 : 2005, 06: 2006, …)

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 3527

Page 28

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

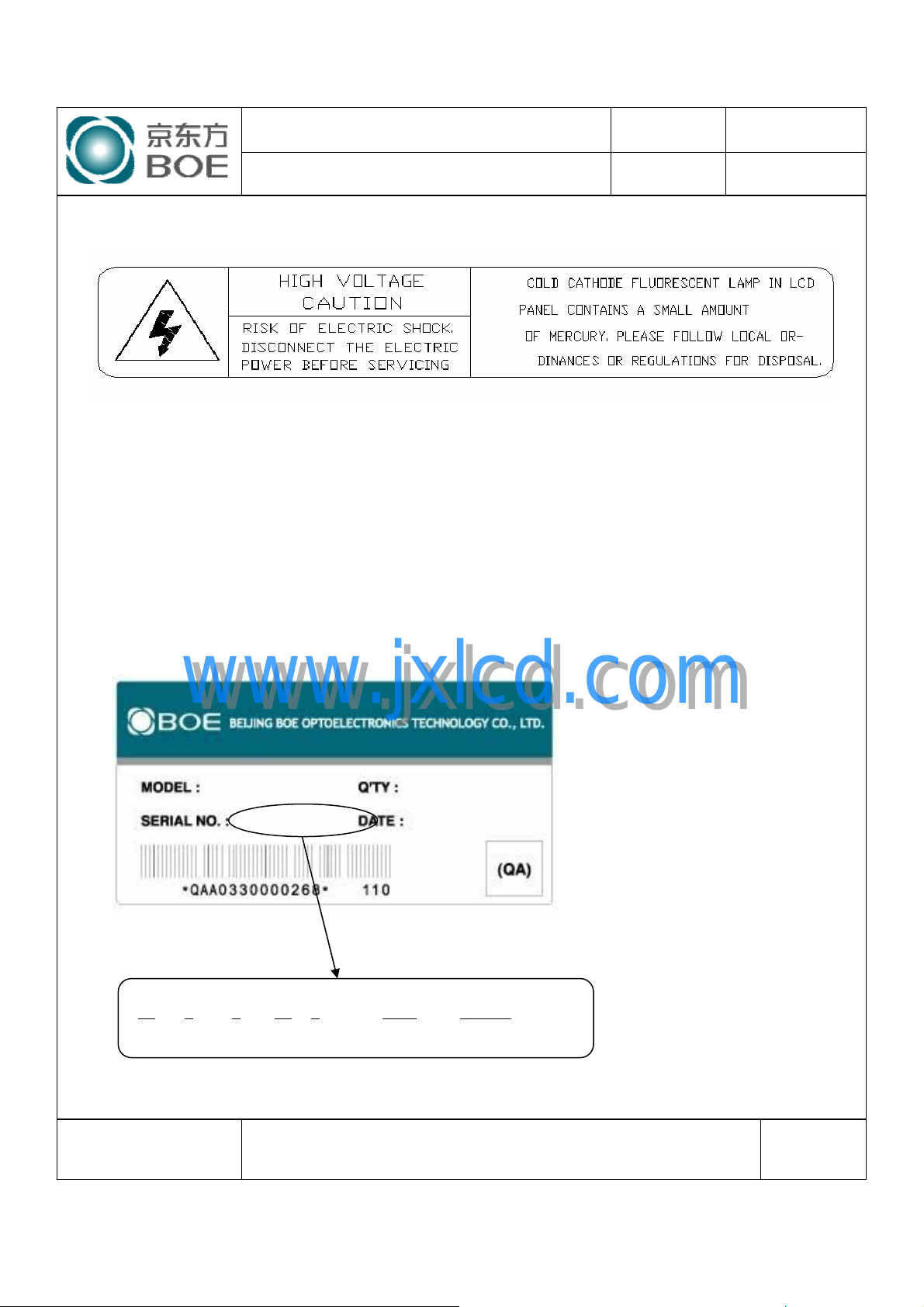

(2) High voltage caution label

(3) Box label

Label Size: 110 mm (L) × 56 mm (W) Contents Model: HT156WXB-100 Q`ty: Module Q`ty in one box Serial No.: Box Serial No. See next figure for detail description. Date: Packing Date Internal use of Product

REV ISSUE DATE

www.jxlcd.com

HT156WXB-100

00 0 0 00 0 0000 000000 Type Grade Line Year Month Internal use Serial No

SPEC. NUMBER

0000000000000

SPEC TITLE

200X.X.XX

PAGE

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

HT156WXB-100 Product Specification

OF 3528

Page 29

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

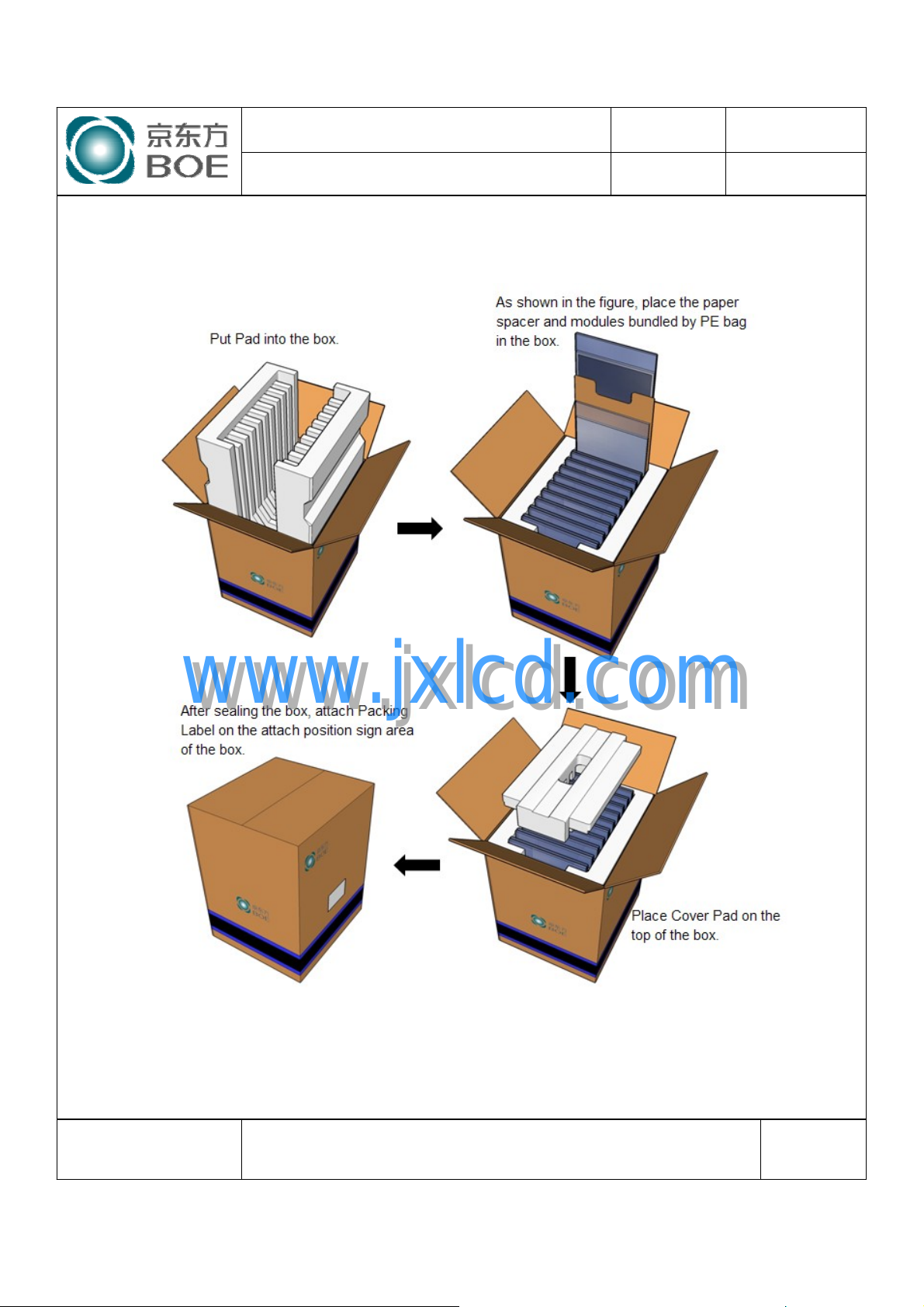

15.0 PACKING INFORMATION

15.1 Packing order

REV ISSUE DATE

www.jxlcd.com

15.2 Notes

z Box Dimension: 364mm(W) x 332mm(D) x 453mm(H) z Package Quantity in one Box: 20pcs z Total Weight: 11kg

SPEC. NUMBER

SPEC TITLE

PAGE

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

HT156WXB-100 Product Specification

OF 3529

Page 30

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

16.0 MECHANICAL OUTLINE DIMENSION

Figure 6. TFT-LCD Module Outline Dimension (Front View)

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

HT156WXB-100 Product Specification

OF 35

Page 31

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

Figure 7. TFT-LCD Module Outline Dimensions (Rear view)

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

HT156WXB-100 Product Specification

OF 35

Page 32

17.0 EDID Table

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REV ISSUE DATE

Address

(HEX)

00 00 0 0 01 FF 255 255 02 FF 255 255 03 FF 255 255 04 FF 255 255 05 FF 255 255 06 FF 255 255 07 00 0 0 08 09 9

09 E5 229 0A 82 130 0B 05 5 0C 00 0 0D 00 0 0E 00 0

0F 00 0

10 Week of manufacture 00 0 0

11 Y ear of Manufac t ure 13 19 2009 M anufac t ured i n 2009

12 EDID Structure Ver. 01 1 1 EDID Ver 1.0

13 E DID revisi on # 03 3 3 EDID Rev. 0. 3

14 Video i nput defini t i on 80 128 -

15 M ax H im age si ze 22 34 34 34 cm (Approx )

16 M ax V i m age si ze 13 19 19 19 cm (A pprox)

17 Display Gam m a 78 120 2. 2 Gamma cu rve = 2. 2

18 Feature s upport 0A 10

19 Red/Green l ow bits 22 34 - Red / Green Low Bits 1A Blue/ Whi te low bits C0 192 - B l ue / White Low Bi ts 1B Red x high bi ts 95 149 0. 583 Red (x) = 10010101 (0. 58348) 1C Red y hi gh bi t s 56 86 0. 338 Red (y) = 01010110 (0. 33836) 1D Green x high bi t s 4E 78 0.305 Green (x) = 01001110 (0. 30482) 1E Green y hi gh bi t s 8E 142 0.557 Green (y ) = 10001110 (0.55656)

1F Blue x hi gh bi t s 26 38 0. 148 Blue (x) = 00100110 (0. 14812)

20 BLue y high bi ts 24 36 0.141 Blue (y) = 00100100 (0.14068)

21 W hite x hi gh bi t s 50 80 0.313 W hi t e (x) = 01010000 (0. 313)

22 W hite y hi gh bi t s 54 84 0.329 W hi t e (y) = 01010100 (0. 329)

Function Hex Dec

Header EDID Header

ID Manufact urer Nam e B O E ID = BOE

ID Product Code 1410 ID = 0582 W XGA

32-bit serial No.

www.jxlcd.com

values. Notes

RGB di splay, P referred Timming

mode

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 353232

Page 33

PRODUCT GROUP

(

)

(

)

REV ISSUE DATE

TFT LCD PRODUCT 0 2009.4.07.

Address

(HEX)

23 Est abl i shed t i m i ng 1 00 0 -

24 Est abl i shed t i m i ng 2 00 0 -

25 Est abl i shed t i m i ng 3 00 0 -

26 01 1

27 01 1

28 01 1

29 01 1 2A 01 1 2B 01 1 2C 01 1 2D 01 1 2E 01 1

2F 01 1

30 01 1

31 01 1

32 01 1

33 01 1

34 01 1

35 01 1

36 41 65

37 1C 28

38 56 86 1366 Hor A c tive = 1366

39 A0 160 160 Hor B l anking = 160 3A 50 80 3B 00 0 768 Ver A ct ive = 768

3C 16 22 22 V er Bl anking = 22 3D 30 48 3E 30 48 48 Hor Sy nc Offset = 48

3F 20 32 32 H Sync P ul s e Wi dth = 32

40 36 54 3 V s ync Offset = 3 li ne

41 00 0 6 V Sy nc P ul se widt h : 6 l i ne

42 58 88 344

43 C1 193 193

44 10 16 -

45 00 0 0 Hor B order (pi xels)

46 00 0 0 Verti cal Border (Lines)

47 19 25 -

Function Hex Dec

St andard t i m i ng #1 Not Used

St andard t i m i ng #2 Not Used

St andard t i m i ng #3 Not Used

St andard t i m i ng #4 Not Used

St andard t i m i ng #5 Not Used

St andard t i m i ng #6 Not Used

St andard t i m i ng #7 Not Used

St andard t i m i ng #8 Not Used

www.jxlcd.com

Detail ed tim i ng/moni tor

descriptor #1

(60Hz)

values. Notes

72.33 72.33MHz Mai n clock

4 bit s of Hor. A ct i ve + 4 bit s of Hor.

Blankin

4 bit s of Ver. Ac tive + 4 bit s of Ver.

Blankin

Horizontal Image Size = 344 m m

Low 8 bits

Vert i cal Im age S i ze = 193 mm

Low 8 bits

4 bits of Hor Image Size + 4 bi t s of

Ver Ima

e Si ze

SPEC. NUMBER

S864-5045

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 353333

B2006-5006-O (3/3) A4(210 X 297)

Page 34

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REV ISSUE DATE

Address

(HEX)

48 00 0 49 00 0 4A 00 0 4B 0F 15 4C 00 0 4D 0A 10 4E 00 0 4F 00 0 50 00 0 51 20 0 52 20 0 53 20 0 54 20 0 55 20 0 56 20 0 57 20 0 58 20 0 59 20 32 5A 00 0 5B 00 0 5C 00 0 5D FE 254 5E 00 0 5F 42 66 B 60 4F 79 O 61 45 69 E 62 20 32 63 4F 79 O 64 54 84 T 65 0A 10 66 20 32 67 20 32 68 20 32 69 20 32 6A 20 32 6B 20 32

Function Hex Dec

Detail ed timing/moni tor

descri pt or #2

www.jxlcd.com

Detail ed timing/moni tor

descri pt or #3

values. Notes

ASCII Data String Tag

Manufacturer name : BOE OT

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 353434

Page 35

PRODUCT GROUP

TFT LCD PRODUCT 0 2009.4.07.

REV ISSUE DATE

Address

(HEX)

6C 00 0

6D 00 0

6E 00 0

6F FE 254

70 00 0

71 48 72 H

72 54 84 T

73 31 49 1

74 35 53 5

75 36 54 6

76 57 87 W

77 58 88 X

78 42 66 B

79 2D 45 -

7A 31 49 1

7B 30 48 0

7C 30 48 0

7D 0A 10

7E Extension flag 00 0

7F Checksum 61 97 -

Function Hex Dec v alues. Notes

Detailed timing/monitor

descriptor #4

www.jxlcd.com

Product Name Tag (ASCII)

Model name : HT156WXB-100

SPEC. NUMBER

S864-5045

B2006-5006-O (3/3) A4(210 X 297)

SPEC TITLE HT156WXB-100 Product Specification

PAGE

OF 353535
