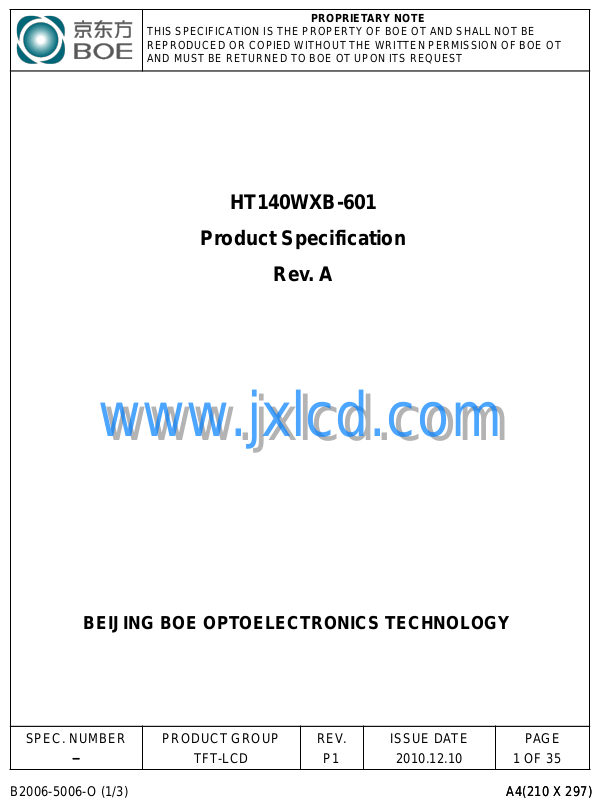

BOE OPTOELECTRONICS HT140WXB-601 SPECIFICATION

PROPRIETARY NOTE

THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OT AND MUST BE RETURNED TO BOE OT UPON ITS REQUEST

HT140WXB-601

Product Specification

Rev. A

www.jxlcd.com

BEIJING BOE OPTOELECTRONICS TECHNOLOGY

SPEC. NUMBER

-

B2006-5006-O (1/3)

PRODUCT GROUP

TFT-LCD

REV.

P1

ISSUE DATE

2010.12.10

PAGE OF 35

1

A4(210 X 297) A4(210 X 297)

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

REVISION HISTORY

REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED

P0 - Initial Release 2010.7.22 Xue Hailin

Update surface treatment-(page 5)

P1 -

Update optical measurement locations(Page 11,12) Update Label EDID

www.jxlcd.com

2010.12.10 Chris Huang

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (2/3) A4(210 X 297)

PAGE

2

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

Contents

No. Items Page

1.0 General Description 4

2.0 Absolute Maximum ratings 6

3.0 Electrical specifications. 7

4.0 Optical specifications. 9

5.0 Interface Connection 14

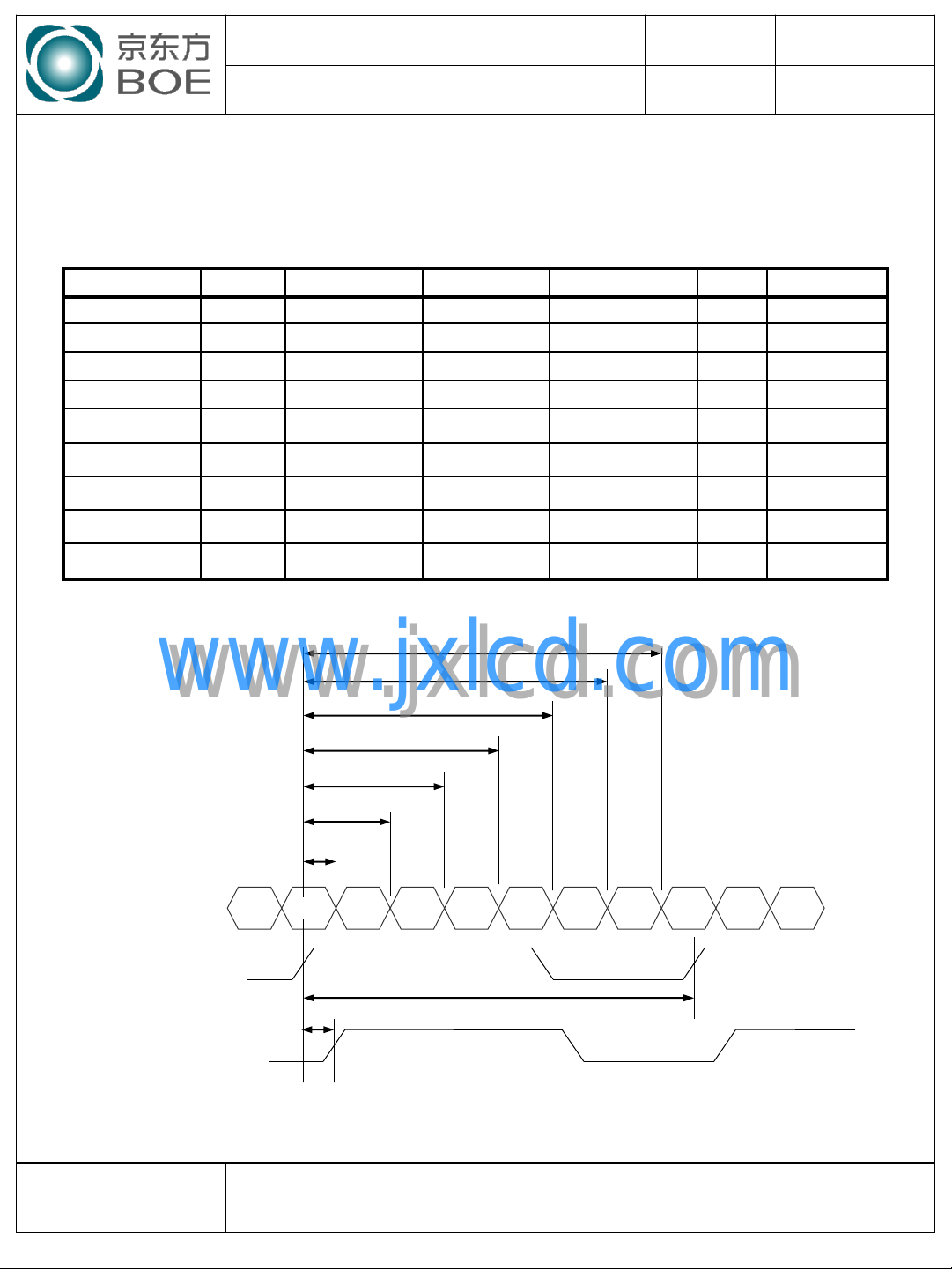

6.0 Signal Timing Specification 18

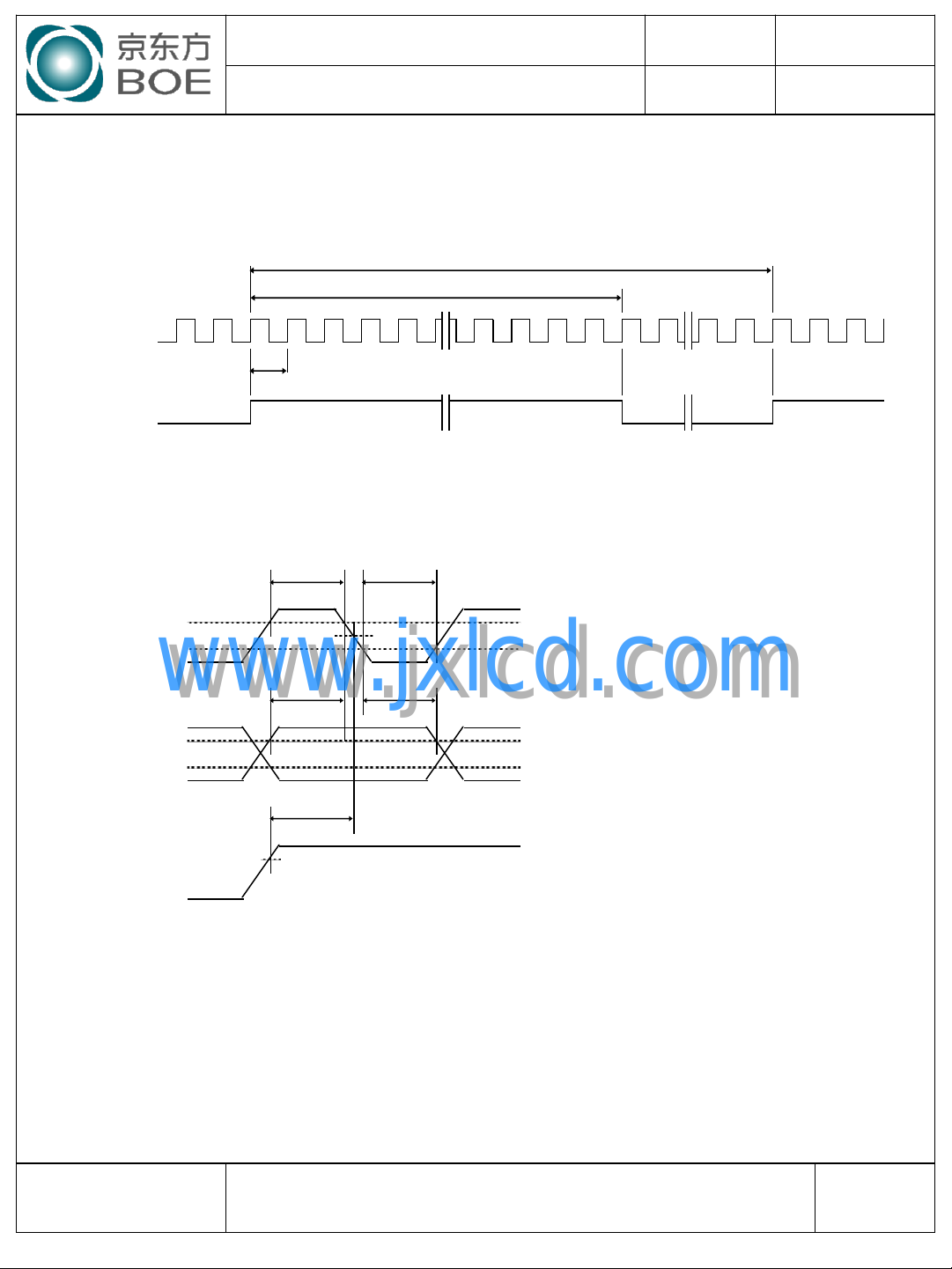

7.0 Signal Timing waveforms 20

8.0 Input Signals, Display Colors & Gray Scale of Colors 22

www.jxlcd.com

9.0 Power Sequence 23

10.0 Connector description 24

11.0 Mechanical Characteristics 25

12.0 Reliability Test 26

13.0 Handling & Cautions. 26

14.0 Label 27

15.0 Packing information 29

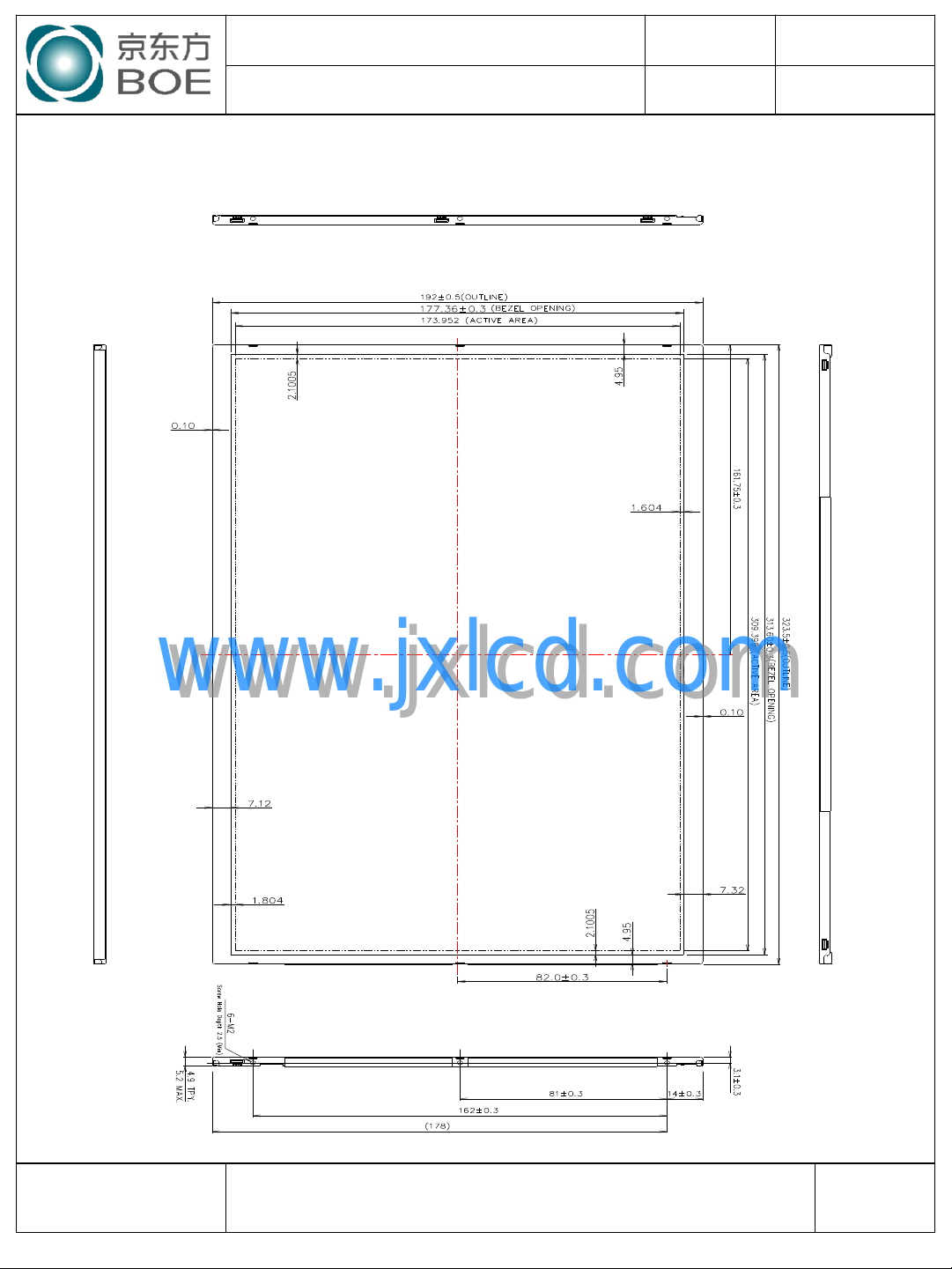

16.0 Mechanical Outline Dimension 30

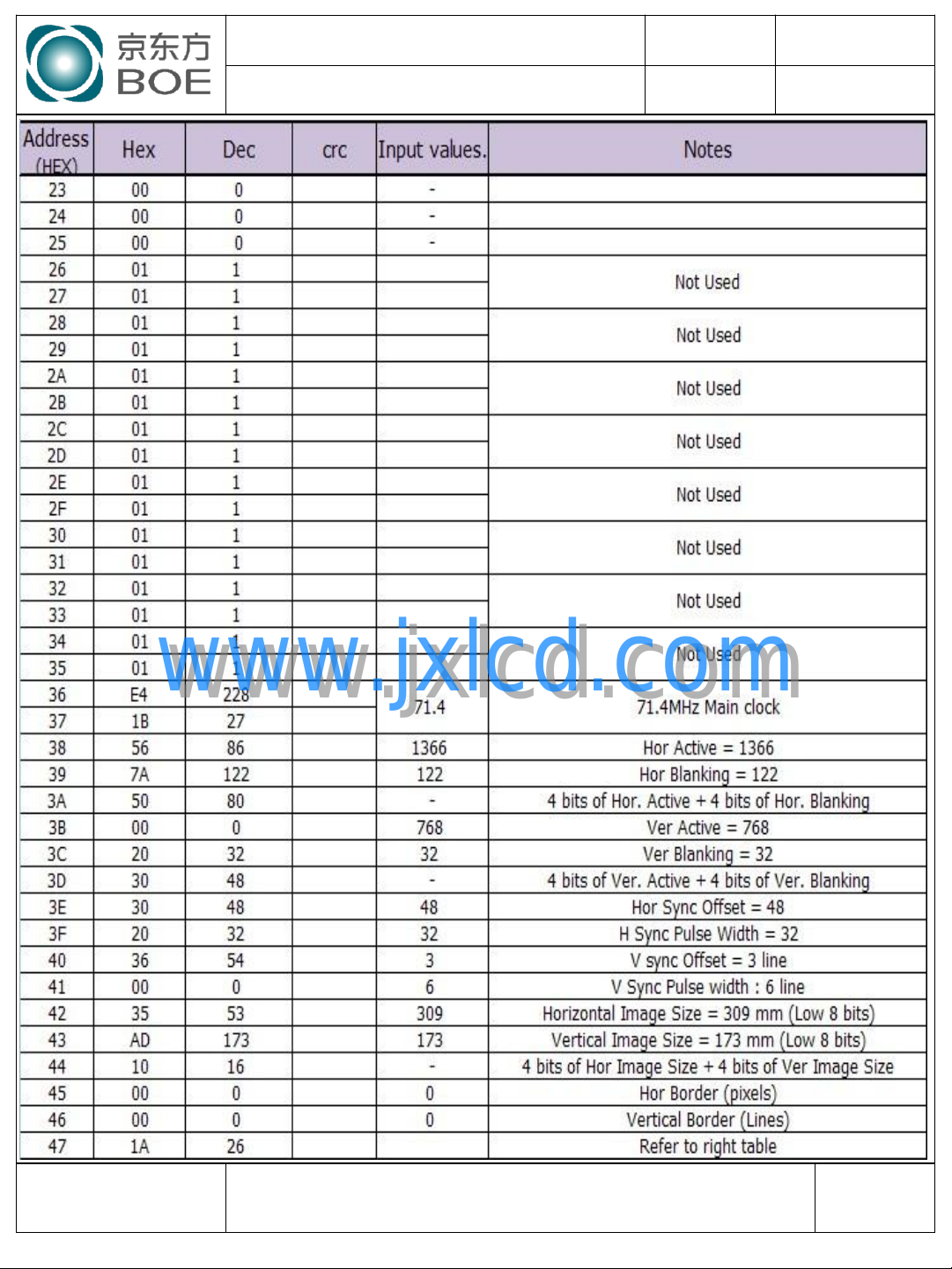

17.0 EDID Table 32

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

3

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

1.0 GENERAL DESCRIPTION

1.1 Introduction

HT140WXB-601 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 14.0 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical

pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in

vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this module is suitable for Notebook PC. The LED Driver for back-light driving is built in this model. All input signals are LVDS interface compatible.

LED Driver

LVDS

Connector

Input Signal

1

1.2 Features

 1 Channel LVDS Interface with 1 pixel / clock  Thin and light weight  6-bit color depth, display 262K colors  Single LED Lighting Bar. (Top side/Horizontal Direction)  Data enable signal mode  Side Mounting Frame

 Green Product (RoHS & Halogen free product)

 On board LED Driving circuit  Low driving voltage and low power consumption  On board EDID chip

www.jxlcd.com

VDD

LVDS Rx

+

T/CON

+

Mini-LVDS Tx

DC/DC

Gamma

Vcom

LED Lighting Bar

TFT LCD Panel

BACK LIGHT (Fluorescent Lamp)

1366 × 768

Source Driver

Gate Driver

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

4

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

1.3 Application

 Notebook PC (Wide type)

1.4 General Specification

The followings are general specifications at the model HT140WXB-601. (listed in Table 1.)

Parameter Specification Unit Remarks

REV ISSUE DATE

Active area Number of pixels Pixel pitch

Pixel arrangement RGB Vertical stripe Display colors 262K colors

www.jxlcd.com

Display mode Normally White Dimensional outline Weight 350 (max) g

Surface treatment Anti-Glare (Haze 40)

Back-light Upper edge side, 1-LED Lighting Bar type Note 1 Power consumption PD : 1.1 (max) W

www.jxlcd.com

309.4(H) × 173.95(V) 1366 (H) × 768 (V)

0.2265(H) × 0.2265 (V)

323.5 (H) × 192 (V) × 5.2 (D:max)

PBL : 3.0 (max) W

mm

pixels

mm

P

: 4.1 (max) W

total

Notes : 1. LED Lighting Bar (40*LED Array)

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

5

OF 35

PRODUCT GROUP

Operating Range

Storage Range

-40 -20 0 20 40 60 80

Temperature (℃)

(40, 95)

(50, 80)

(60, 27)

1008060

40

20

90

Relative Humudity

5

Storage Range

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

2.0 ABSOLUTE MAXIMUM RATINGS

The followings are maximum values which, if exceed, may cause faulty operation or

damage to the unit. The operational and non-operational maximum voltage and current values are listed in Table 2.

< Table 2. Absolute Maximum Ratings>

Parameter Symbol Min. Max. Unit Remarks

Power Supply Voltage VDD -0.3 4.0 V Logic Supply Voltage VIN Vss-0.3 VDD+0.3 V Operating Temperature TOP 0 +50 Storage Temperature TST -20 +60

Notes : 1. Permanent damage to the device may occur if maximum values are exceeded

functional operation should be restricted to the condition described under normal

operating conditions.

2. Temperature and relative humidity range are shown in the figure below. 95 % RH Max. ( 40 OC ≥ Ta) Maximum wet - bulb temperature at 39 OC or less. (Ta > 40 OC) No condensation.

www.jxlcd.com

℃ ℃

Ta=25+/-2°C

Note 1

Note 2

SPEC. NUMBER - SPEC TITLE

B2006-5006-O (3/3) A4(210 X 297)

HT140WXB-601 Product Specification

PAGE

6

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

3.0 ELECTRICAL SPECIFICATIONS

3.1 Electrical Specifications

REV ISSUE DATE

< Table 3. Electrical specifications >

Parameter Min. Typ. Max. Unit Remarks

Power Supply Voltage VDD 3.0 3.3 3.6 V Note 1 Permissible Input Ripple

Voltage Power Supply Current IDD - 205 - mA Note 1 Positive-going Input

Threshold Voltage Negative-going Input

Threshold Voltage Differential Input Voltage VID 200 - 600 mV

Power Consumption

www.jxlcd.com

VRF - - 100 mV At VDD = 3.3V

V

- - 100 mV

IT+

V

-100 - - mV

IT-

PD - 0.68 1.1 W Note 1

PBL - 2.85 3.0 W Note 2

Ta=25+/-2°C

Vcm = 1.2V typ.

P

- 3.53 4.1 W

total

Notes : 1. The supply voltage is measured and specified at the interface connector of LCM. The current draw and power consumption specified is for 3.3V at 25℃. a) Typ : Window XP pattern b) Max : Vertical 2 line skip pattern

2. Calculated value for reference (VLED × ILED) SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

7 7

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

3.0 ELECTRICAL SPECIFICATIONS

3.2 Backlight Unit

REV ISSUE DATE

< Table 4. LED Driving guideline specifications >

Parameter Min. Typ. Max. Unit Remarks

LED Forward Voltage VF 3.0 3.2 3.4 V LED Forward Current IF - 20 mA LED Power Consumption P

LED Life-Time N/A 15,000 - - Hour IF = 20mA

Power supply voltage for

LED Driver

EN Control

Level

PWM

Control

Level

Backlight on 2.0 5.0 V

Backlight off 0 1.0 V

www.jxlcd.com

PWM High

Level

PWM Low

Level

V

LED

6 12 21 V

2.0 5.0 V

0 0.1 V

2.85 3.0 W Note 1

Ta=25+/-2°C

PWM Control Frequency F

Duty Ratio - 5 - 100 %

Notes : 1. Power supply voltage12V for LED Driver, Driver efficiency 90%, Calculator Value for reference IF × VF × 40 / 0.9 = PLED

2. The LED Life-time define as the estimated time to 50% degradation of initial luminous.

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PWM

180 - 10,000 Hz

PAGE

8 8

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

4.0 OPTICAL SPECIFICATION

4.1 Overview

The test of Optical specifications shall be measured in a dark room (ambient luminance  1 lux and temperature = 252℃) with the equipment of Luminance meter system (Goniometer system and TOPCON BM-5) and test unit shall be located at an approximate distance 50cm from the LCD surface at a viewing angle of θ and Φ equal to 0. We refer to θØ=0 (=θ3 ) as the 3 o’clock direction (the “right”), θØ=90 (= θ12 ) as the 12 o’clock direction (“upward”), θØ=180 (= θ9 ) as the 9 o’clock direction (“left”) and θØ=270(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θand/or Ø, the center of the measuring spot on the Display surface shall stay fixed. The backlight should be operating for 30 minutes prior to measurement. VDD shall be 3.3+/- 0.3V at 25C.

Optimum viewing angle direction is 6 ’clock.

4.2 Optical Specifications

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Θ

Viewing Angle

range

Luminance Contrast ratio CR Θ = 0 300 400 Note 2

Luminance of

White White

Luminance

uniformity

White Chromaticity

Reproduction

of color

Response Time

(Rising + Falling)

Cross Talk CT Θ = 0 - - 2.0 % Note 7

Horizontal

Vertical

www.jxlcd.com

5 Points Yw 5 Points ΔY5 80 - -

13 Points ΔY13 65 - -

Red

Green

Blue xB 0.120 0.150 0.180

3

Θ

40 45 - Deg.

9

Θ

15 20 - Deg.

12

Θ

30 40 - Deg.

6

xw yw 0.299 0.329 0.359 xR yR 0.323 0.353 0.383 xG 0.295 0.325 0.355 yG 0.519 0.549 0.579

yB 0.080 0.110 0.140

T

RT

CR > 10

Θ = 0

ILED = 20mA

Θ = 0

Ta= 25 C

Θ = 0

40 45 - Deg.

Note 1

170 200 - cd/m2 Note 3

Note 4

0.283 0.313 0.343

0.552 0.582 0.612

- 8 16 ms Note 6

Note 5

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

9

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

Notes : 1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing angles are determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock direction with respect to the optical axis which is normal to the LCD surface (see FIGURE 1).

2. Contrast measurements shall be made at viewing angle of Θ= 0 and at the center of the LCD surface. Luminance shall be measured with all pixels in the view field set first to white, then to the dark (black) state . (see FIGURE 1) Luminance Contrast Ratio (CR) is defined mathematically.

3. Center Luminance of white is defined as luminance values of 5 point average across the LCD surface. Luminance shall be measured with all pixels in the view field set first to white. This measurement shall be taken at the locations shown in FIGURE 2 for a total of the measurements per display.

4. The White luminance uniformity on LCD surface is then expressed as : ΔY = Minimum Luminance of 5(or 13) points / Maximum Luminance of 5(or 13) points (see FIGURE 2 and FIGURE 3).

5. The color chromaticity coordinates specified in Table 5 shall be calculated from

the spectral data measured with all pixels first in red, green, blue and white.

Measurements shall be made at the center of the panel.

6. The electro-optical response time measurements shall be made as FIGURE 4 by switching the “data” input signal ON and OFF. The times needed for the luminance to change from 10% to 90% is Tr, and 90% to 10% is Td.

7. Cross-Talk of one area of the LCD surface by another shall be measured by comparing the luminance (YA) of a 25mm diameter area, with all display pixels set to a gray level, to the luminance (YB) of that same area when any adjacent

area is driven dark. (See FIGURE 5).

www.jxlcd.com

CR =

Luminance when displaying a white raster

Luminance when displaying a black raster

REV ISSUE DATE

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

10

OF 35

PRODUCT GROUP

4.3 Optical measurements

Photo detector (TOPCON BM-5A)

REV ISSUE DATE

TFT LCD PRODUCT P1 2010.12.10

Figure 1. Measurement Set Up

Field = 2

TFT-LCD module

Optical characteristics measurement setup

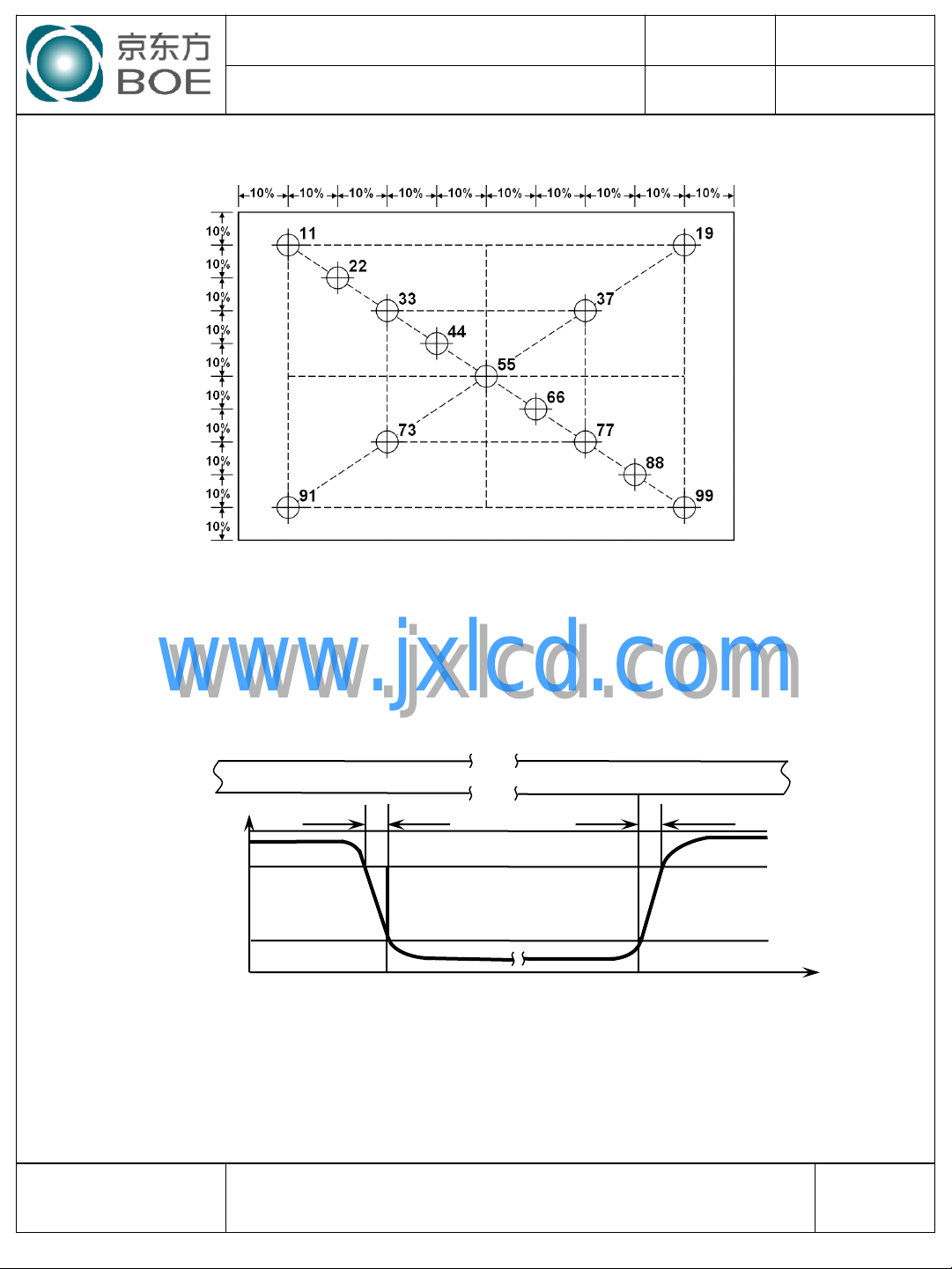

Figure 2. White Luminance and Uniformity Measurement Locations (5 points)

www.jxlcd.com

o

50 cm

LCD panel

Center of the screen

Note:

• Center point is defined as point 55

• 5 points are defined as point 33,37,55,73,77

• 11 points are defined as point 11,22,33,44,55, 66,77,88,99,19,91

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

11

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

Figure 3. Uniformity Measurement Locations (13 points)

REV ISSUE DATE

The White luminance uniformity on LCD surface is then expressed as : ΔY5 =

Minimum Luminance of five points / Maximum Luminance of five points (see

FIGURE 2) , ΔY13 = Minimum Luminance of 13 points /Maximum Luminance of

13 points (see FIGURE 3).

www.jxlcd.com

Figure 4. Response Time Testing

Display data

Optical Response

The electro-optical response time measurements shall be made as shown in

FIGURE 4 by switching the “data” input signal ON and OFF. The times needed

for the luminance to change from 10% to 90% is Td and 90% to 10% is Tr.

White(TFT OFF)

TR

100% 90%

10% 0%

Black(TFT ON)

White(TFT OFF)

TF

Time

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

12

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

Figure 5. Cross Modulation Test Description

REV ISSUE DATE

VIEW AREA

L31

YA (1195, 384)

YB - YA

Cross-Talk (%) =

YB

Where: YA = Initial luminance of measured area (cd/m2) YB = Subsequent luminance of measured area (cd/m2) The location measured will be exactly the same in both patterns

Cross-Talk of one area of the LCD surface by another shall be measured by

comparing the luminance (YA) of a 25mm diameter area, with all display pixels set to a gray level, to the luminance (YB) of that same area when any adjacent area is driven dark (Refer to FIGURE 5).

www.jxlcd.com

VIEW AREA

342,192

L0

× 100

1025, 192

YB(1195, 384)

1025,576 342,576

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

13

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

5.0 INTERFACE CONNECTION.

5.1 Electrical Interface Connection

The electronics interface connector is I-PEX 20455-040E-12 or Compatible or equivalent. The mating connector part number is I-PEX 20455-040T-11 or Compatible. The connector interface pin assignments are listed in Table 6.

Terminal Symbol Functions

Pin No. Symbol Description

1 NC No Connection 2 VDDIN Power Supply, 3.3V (typ.) 3 VDDIN Power Supply, 3.3V (typ.) 4 VDC VDC 3.3Vpower for EDID 5 BISTC BIST control(Note.1) 6 CLK EDID EDID Clock 7 Data EDID EDID Data 8 RxIN0- Transmission Data of 0 Negative -

9 RxIN0+ Transmission Data of 0 Positive + 10 GND Ground 11 RxIN1- Transmission Data of 1 Negative 12 RxIN1+ Transmission Data of 1 Positive +

www.jxlcd.com

13 GND Ground 14 RxIN2- Transmission Data of 2 Negative 15 RxIN2+ Transmission Data of 2 Positive + 16 GND Ground 17 RxCLKIN- Sampling Clock of Negative 18 RxCLKIN+ Sampling Clock of Positive +

19 CE_EN Color Engine Enable

20 NC No Connection

21 22 23 24 25

26

27 28 29 30

NC No Connection

GND Ground

NC No Connection NC No Connection

GND Ground

(CE)

(CTL)

GND Ground

NC No Connection NC No Connection

LCD internal use only

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

14

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

Terminal Symbol Functions

Pin No. Symbol Description

31 VLED_GND LED Ground 32 VLED_GND LED Ground

33 VLED_GND LED Ground

34 NC No Connection 35 PWM System PWM Signal Input 36 LED_EN LED enable pin(+3.3V Input) 37 DCR_EN Dynamic Backlight Enable 38 VLED LED Power Supply 6V-21V 39 VLED LED Power Supply 6V-21V 40 VLED LED Power Supply 6V-21V

Note.1

-BIST=“H (3.3V)” : Display BIST pattern @ No LVDS CLK or DE

REV ISSUE DATE

(white->black->red->green->blue->white…)

-BIST=“L(GND or NC)” : Display black pattern @ No LVDS CLK or DE

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

15

OF 35

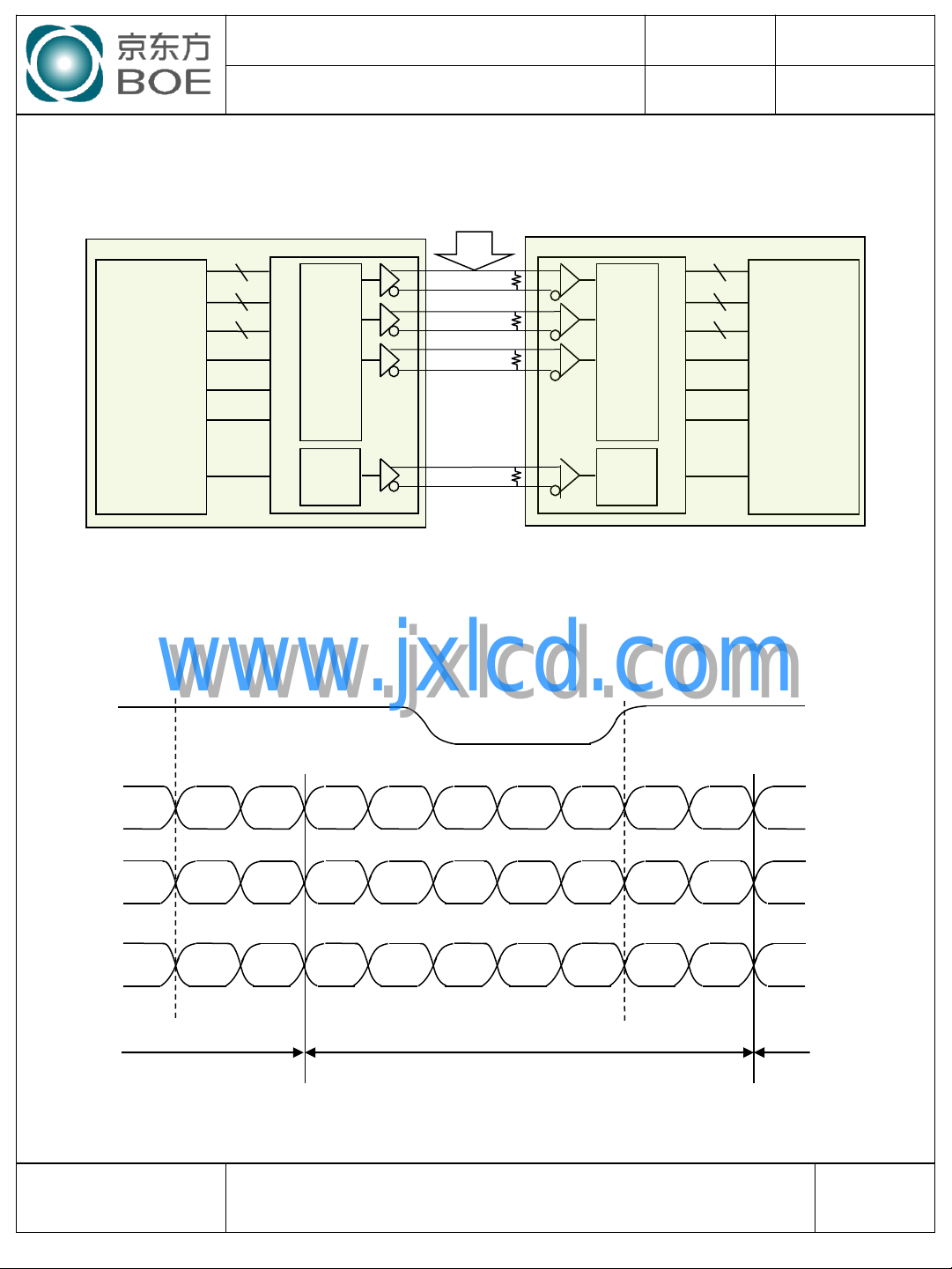

5-2. LVDS Interface

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT P1 2010.12.10

PC Side

CN1 R0~R5 G0~G5

B0~B5

Hsync Vsync

DE

CLK

6 6

6

PLL

TTL Parallel-to-LVDS

100 ohm

Note. Transmitter : Thine THC63LVDM63A or equivalent. Transmitter is not contained in Module.

5.3.LVDS Input signal

www.jxlcd.com

CLK+

Vdiff=0V

TFT-LCD Side

LVDS to TTL Parallel

PLL

6 6

6

R0~R5 G0~G5

B0~B5

Hsync Vsync

DE

CLK

Rin0

Rin1

Rin2

Prior cycle

GO R5 R4 R3 R2 R1 R0

B1 B0 G5 G4 G3 G2 G1

DE Vsync B5 B4 B3 B2 Hsync

Signal for 1 DCLK cycle Next cycle

Note. Pin connection in case of using Thine THC63LVDM63A

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

PAGE

16

OF 35

B2006-5006-O (3/3) A4(210 X 297)

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

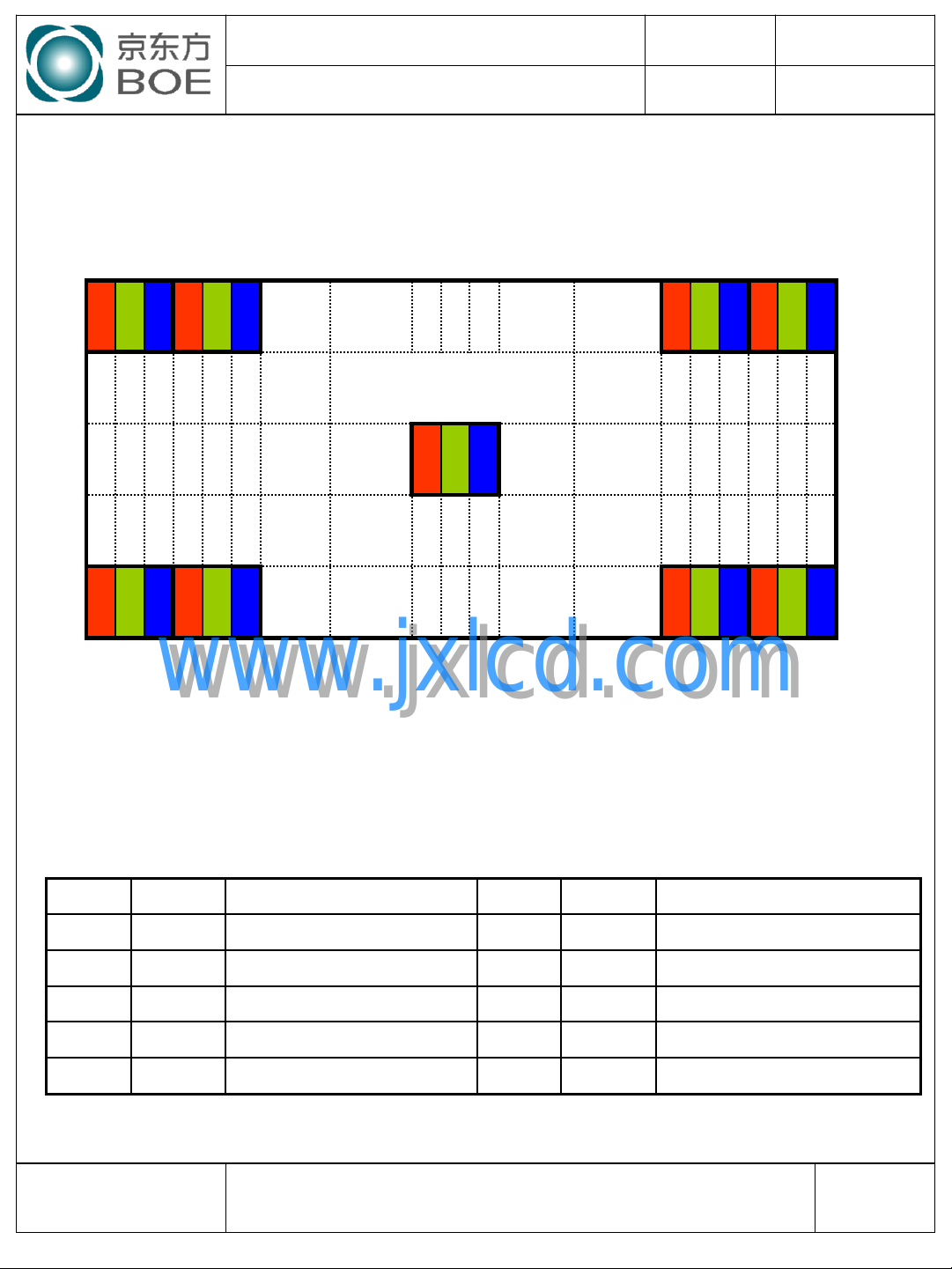

5.3 Data Input Format

(1,1)

R G B R G B R G B R G B

(2,1)

1 Pixel = 3 Dots

R G B

REV ISSUE DATE

(1365,1) (1366,1)

R G B R G B R G B R G B

(1,768) (2,768) (1365,768) (1366, 768)

www.jxlcd.com

5.4 Back-light & LCM Interface Connection

Interface Connector: MS24022P10 or Equivalent

Pin No. Symbol Description Pin No. Symbol Description

1 Vout LED anode connection 6 LED1 LED cathode connection 2 Vout LED anode connection 7 LED2 LED cathode connection 3 Vout LED anode connection 8 LED3 LED cathode connection 4 NC No Connection 9 LED4 LED cathode connection 5 NC No Connection 10 LED5 LED cathode connection

Display Position of Input Data (V-H)

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

17

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

6.0 SIGNAL TIMING SPECIFICATION

6.1 The HT140WXB-501 is operated by the DE only.

Item Symbols Min Typ Max Unit

Frequency 1/Tc 45 72.3 76.3 MHz

REV ISSUE DATE

Clock

Frame Period Tv

Vertical Display Period Tvd 768 768 768 lines

One line Scanning

Horizontal Display

High Time Tch - 4/7 - Tc

Low Time Tcl - 3/7 - Tc

778 790 802 lines

40 60 - Hz

- 16.7 - ms

Period

www.jxlcd.com

Th 1446 1526 1586 clocks

Thd 1366 1366 1366 clocks

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

18

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

6.2 LVDS Rx Interface Timing Parameter The specification of the LVDS Rx interface timing parameter is shown in Table 8.

Item Symbol Min Typ Max Unit Remark

CLKIN Period tRCIP - 13.83 25 nsec

CLK Difference tCdiff

Input Data 0 tRIP1 -0.4 0.0 +0.4 nsec

Input Data 1 tRIP0 tRICP/7-0.4 tRICP/7 tRICP/7+0.4 nsec Input Data 2 tRIP6 2 × tRICP/7-0.4 2 × tRICP/7 2 × tRICP/7+0.4 nsec

Input Data 3 tRIP5 3 × tRICP/7-0.4 3 × tRICP/7 3 × tRICP/7+0.4 nsec Input Data 4 tRIP4 4 × tRICP/7-0.4 4 × tRICP/7 4 × tRICP/7+0.4 nsec Input Data 5 tRIP3 5 × tRICP/7-0.4 5 × tRICP/7 5 × tRICP/7+0.4 nsec

-tRCIP*(3/7)

0

+tRCIP*(3/7)

REV ISSUE DATE

nsec

Input Data 6 tRIP2 6 × tRICP/7-0.4 6 × tRICP/7 6 × tRICP/7+0.4 nsec

tRIP2

www.jxlcd.com

tRIP1

RXO/Ez +/-

* Z = 0, 1, 2,3

Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0 Rx3

RxOCLKIN+

RxECLKIN+ tCdiff

tRIP5

tRIP6

tRIP0

tRIP3

tRIP4

tRCIP

Vdiff=0[v] Vdiff=0[v]

* Vdiff = (RXO/Ez+)-(RXO/Ez-),…. ,(RXO/ECLK+)-(RXO/ECLK-)

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

19

OF 35

PRODUCT GROUP

MCLK

DE

Th

Tv

Tvd

TFT LCD PRODUCT P1 2010.12.10

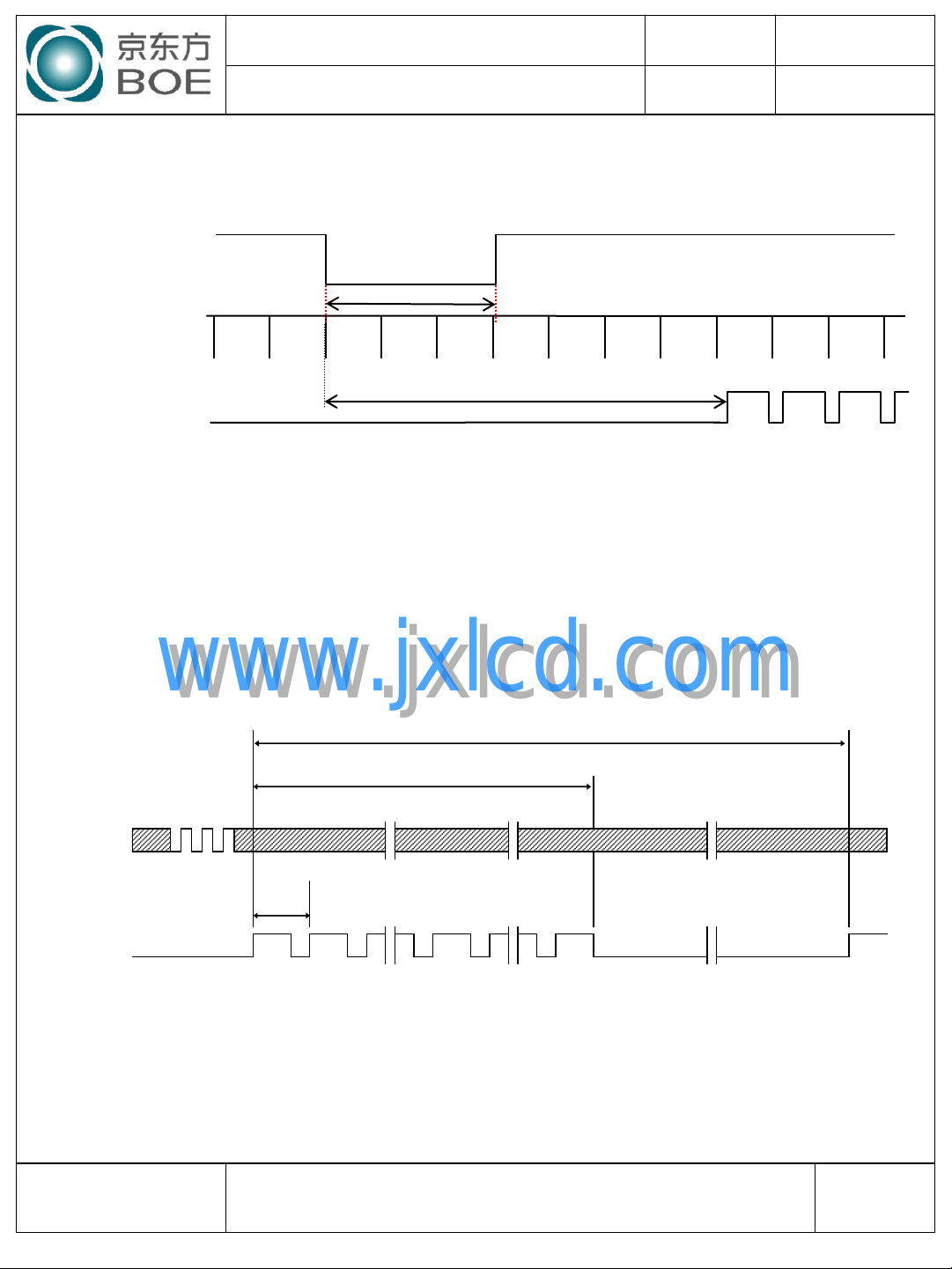

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL

7.1 Sync Timing Waveforms

REV ISSUE DATE

V-Sync

H-Sync

DE

1) Need over 3 H-sync during V-Sync Low

2) Fix H-Sync width from V-Sync falling edge to first rising edge

7.2 Vertical Timing Waveforms

www.jxlcd.com

Over 3 H-sync

Fix H-Sync width Area

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

20

OF 35

PRODUCT GROUP

MCLK

DE

Th

Thd

Tc

Tch

Tcl

Tdh

Tds

2.0V

0.8V

2.0V

0.8V

Tes

2.0V

MCLK

Valid

Data

DE

1.5V

TFT LCD PRODUCT P1 2010.12.10

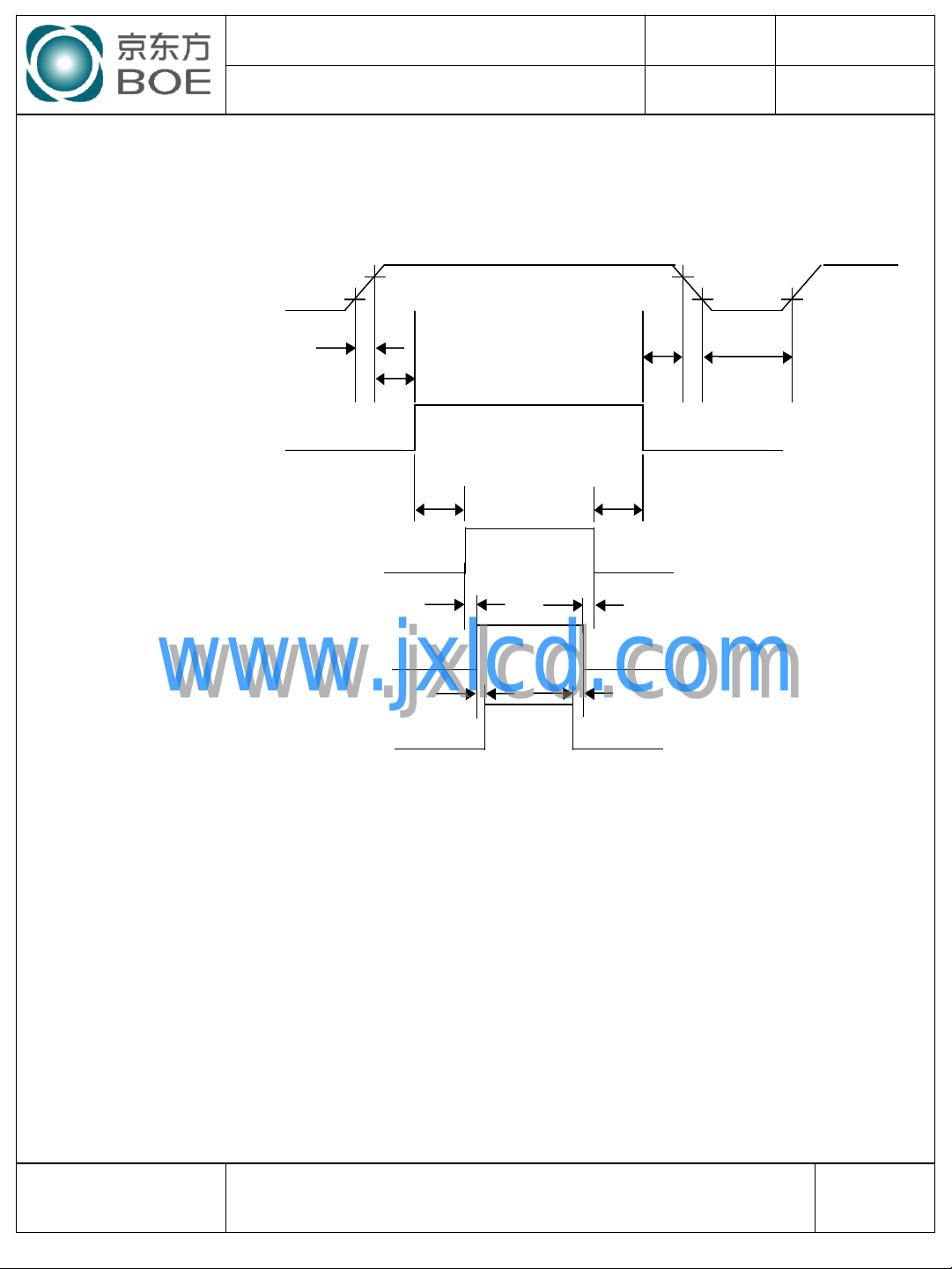

7.3 Horizontal Timing Waveforms

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

PAGE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

21

OF 35

PRODUCT GROUP

Colors & Data signal

Gray scale R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 B4 B5

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

Basic Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

colors Light Blue 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1

Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 Purple 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 Yellow 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△ 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Darker 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

↑ ↑ ↑

▽ ↓ ↓ ↓

Brighter 1 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

▽ 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△ 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0

Darker 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

△

↑ ↑ ↑

▽ ↓ ↓ ↓

Brighter 0 0 0 0 0 0 1 0 1 1 1 1 0 0 0 0 0 0

▽ 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0

Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△ 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0

△

↑ ↓ ↑

▽ ↓ ↓ ↓

Brighter 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1

▽ 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1

Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Gray △ 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0

scale Darker 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0

of

△ ↑ ↑ ↑

White

▽ ↓ ↓ ↓

& Brighter 1 0 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1

Black

▽ 0 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Gray scale

of Red

Gray scale

of Green

Gray scale

of Blue

REV ISSUE DATE

TFT LCD PRODUCT P1 2010.12.10

8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

PAGE

22 22

OF 35

B2006-5006-O (3/3) A4(210 X 297)

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

9.0 POWER SEQUENCE

To prevent a latch-up or DC operation of the LCD module, the power on/off sequence shall be as shown in below

REV ISSUE DATE

Power Supply

Interface Signal

Backlight Power on

PWM for LED Driver

( Dimming signal)

Enable for LED Driver

( Backlight on/off)

www.jxlcd.com

0V

0.9VDD

0.1VDD

T1

0V

T2

Valid

T3 T8

T4

T5 T6

0.9VDD

0.1VDD

T9

T10

T7

● T1  10 ms

● 0 ms  T2  50 ms

● 200 ms  T3

● 10 ms  T4

● 10 ms  T5

● 0 ms  T6

● 10 ms  T7

● 200 ms  T8

● 0 ms  T9  50 ms

● 1s  T10

Notes:

1. When the power supply VDD is 0V, keep the level of input signals on

the low or keep high impedance.

2. Do not keep the interface signal high impedance when power is on. Back Light must be turn on after power for logic and interface signal are valid.

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

23 23

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

10.0 Connector Description

Physical interface is described as for the connector on LCM. These connectors are capable of accommodating the following signals and will be following components.

10.1 TFT LCD Module

Connector Name /Description For Signal Connector

Manufacturer IPEX or Compatible Type/ Part Number I-PEX 20455-040E-12 or Compatible Mating housing/ Part Number I-PEX 20455-040T-11 or Compatible

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

PAGE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

24

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

11.0 MECHANICAL CHARACTERISTICS

11.1 Dimensional Requirements

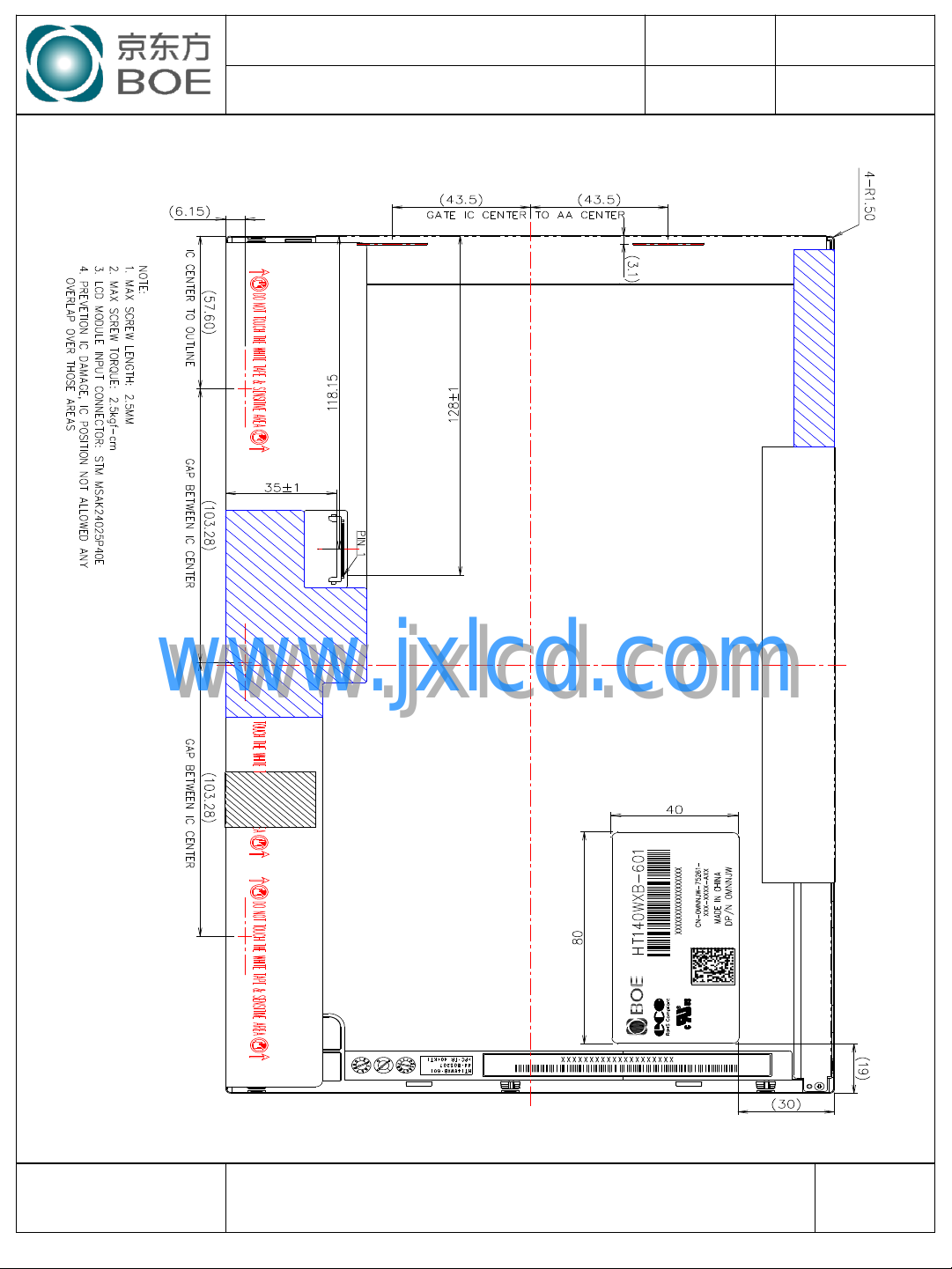

FIGURE 6 shows mechanical outlines for the model HT140WXB-601. Other parameters are shown in Table 9.

Parameter Specification Unit

REV ISSUE DATE

Active Area

Number of pixels 1366 (H) X 768 (V) (1 pixel = R + G + B dots)

Pixel pitch 0.2265 (H) X 0.2265 (V)

Pixel arrangement RGB Vertical stripe

Display colors 262K

Display mode Normally white

Dimensional outline 323.5*192*5.2 (max) mm

Weight 350 (max) gram

www.jxlcd.com

Back Light

10.2 Mounting

See FIGURE 6.

10.3 Glare and Polarizer Hardness.

The surface of the LCD has an glare coating to maximize readability and hard coating to reduce scratching.

10.4 Light Leakage

There shall not be visible light from the back-lighting system around the edges of the screen as seen from a distance 50cm from the screen with an overhead light level of 350lux.

www.jxlcd.com

309.40 (H) × 173.95 (V)

Connector : MS24022P10

LED, Horizontal-LED Array type

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

25

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

12.0 RELIABILITY TEST

The Reliability test items and its conditions are shown in below.

No Test Items Conditions

1 High temperature storage test 2 Low temperature storage test

Ta = 60 ℃, 240 hrs Ta = -20 ℃, 240 hrs

REV ISSUE DATE

3 4 High temperature operation test

5 Low temperature operation test 6 Thermal shock

7

8

9

13.0 HANDLING & CAUTIONS

(1) Cautions when taking out the module  Pick the pouch only, when taking out module from a shipping package. (2) Cautions for handling the module  As the electrostatic discharges may break the LCD module, handle the LCD module with care. Peel a protection sheet off from the LCD panel surface as slowly as possible.

 As the LCD panel and back - light element are made from fragile glass material, impulse

and pressure to the LCD module should be avoided.  As the surface of the polarizer is very soft and easily scratched, use a soft dry cloth without chemicals for cleaning.  Do not pull the interface connector in or out while the LCD module is operating.  Put the module display side down on a flat horizontal plane.  Handle connectors and cables with care. (3) Cautions for the operation  When the module is operating, do not lose CLK, ENAB signals. If any one of these signals is lost, the LCD panel would be damaged.

 Obey the supply voltage sequence. If wrong sequence is applied, the module

would be damaged.

High temperature & high humidity

operation test

Vibration test (non-operating)

Shock test

(non-operating) Electro-static discharge test

(non-operating)

www.jxlcd.com

Ta = 50 ℃, 80%RH, 240 hrs Ta = 50 ℃, 240 hrs

Ta = 0 ℃, 240 hrs Ta = -20 ℃ ↔ 60 ℃ (0.5 hr), 100 cycle

1.5G, 10~500Hz,Half Sine X,Y,Z / Sweep rate : 1 hour

220G, Half Sine Wave 2msec

±X,±Y,±

Air : 150 pF, 330Ω, 15 KV Contact : 150 pF, 330Ω, 8 KV

Z Once for each direction

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

26

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

(4) Cautions for the atmosphere  Dew drop atmosphere should be avoided.  Do not store and/or operate the LCD module in a high temperature and/or humidity atmosphere. Storage in an electro-conductive polymer packing pouch and under relatively low temperature atmosphere is recommended.

(5) Cautions for the module characteristics  Do not apply fixed pattern data signal to the LCD module at product aging.

 Applying fixed pattern for a long time may cause image sticking.

(6) Other cautions  Do not disassemble and/or re-assemble LCD module.  Do not re-adjust variable resistor or switch etc.  When returning the module for repair or etc., Please pack the module not to be broken. We recommend to use the original shipping packages.

REV ISSUE DATE

14.0 LABEL

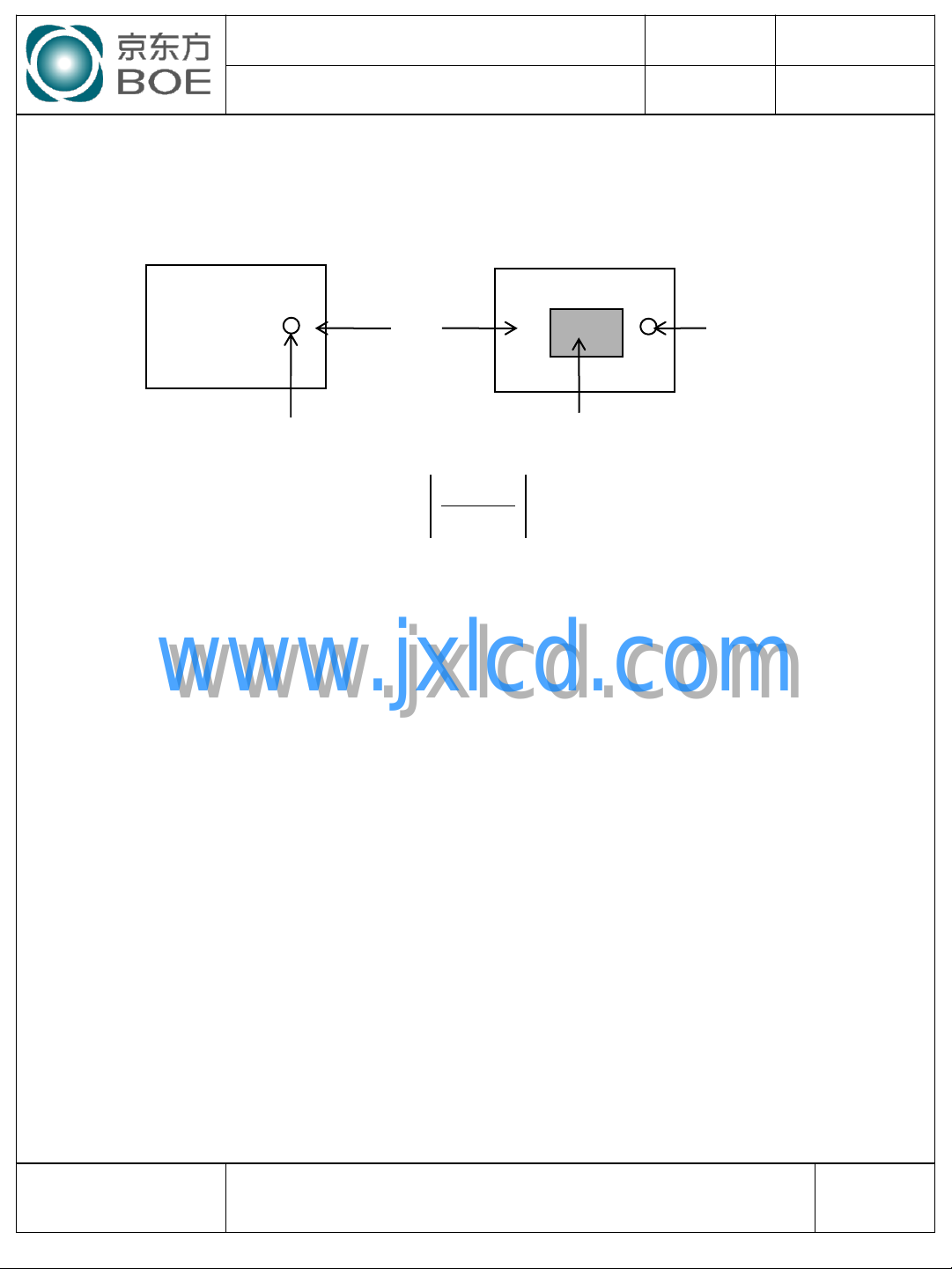

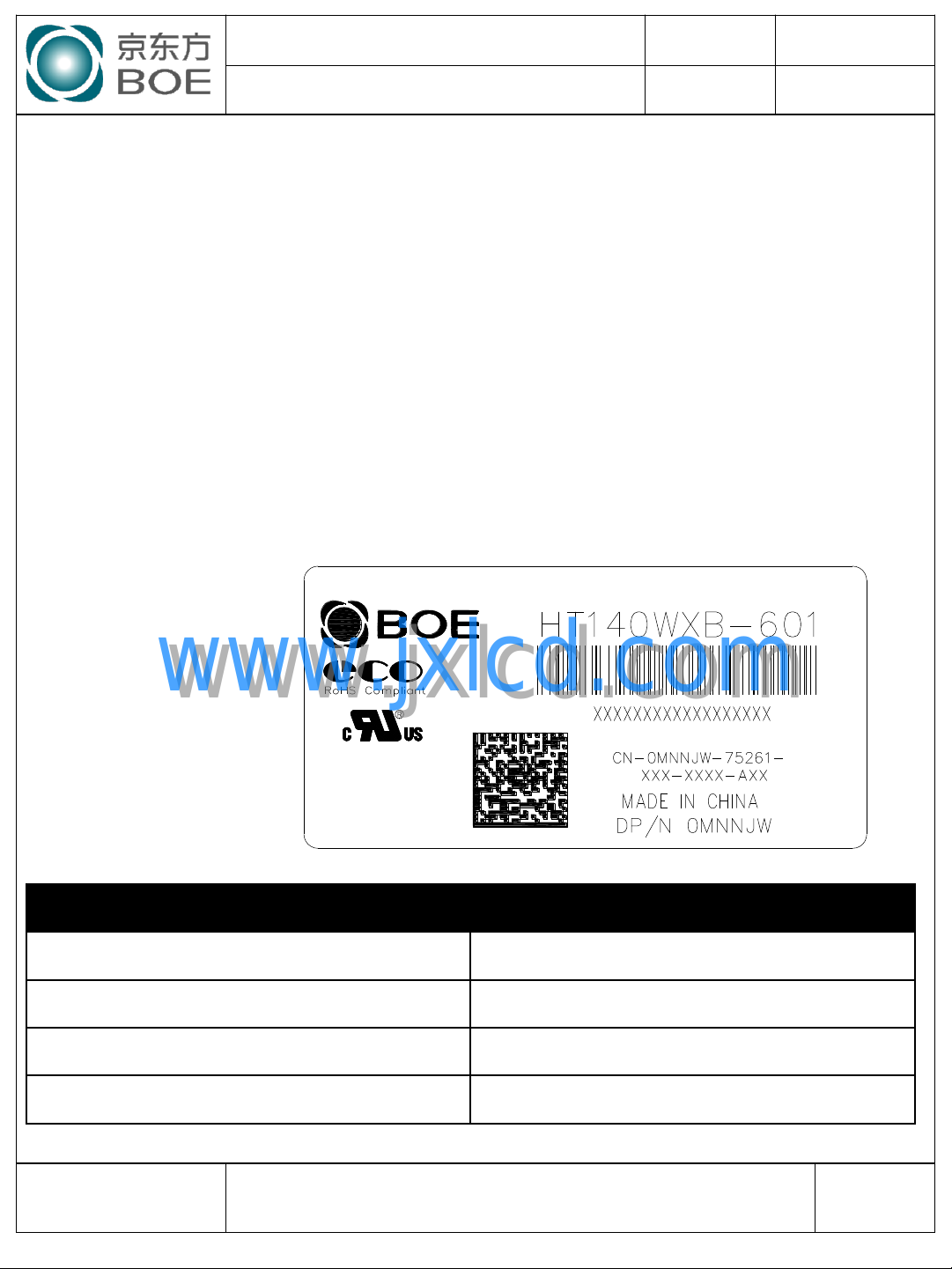

(1) Product label

www.jxlcd.com

BUILD PHASE REVISION

SST (WS) X00, X01, X02, … X09

PT (ES) X10, X11, X12, … X19

ST (CS) X20, X21, X23, … X29

XB (MP) A00, A01, A02, … A99

SPEC. NUMBER - SPEC TITLE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PAGE

27

OF 35

PRODUCT GROUP

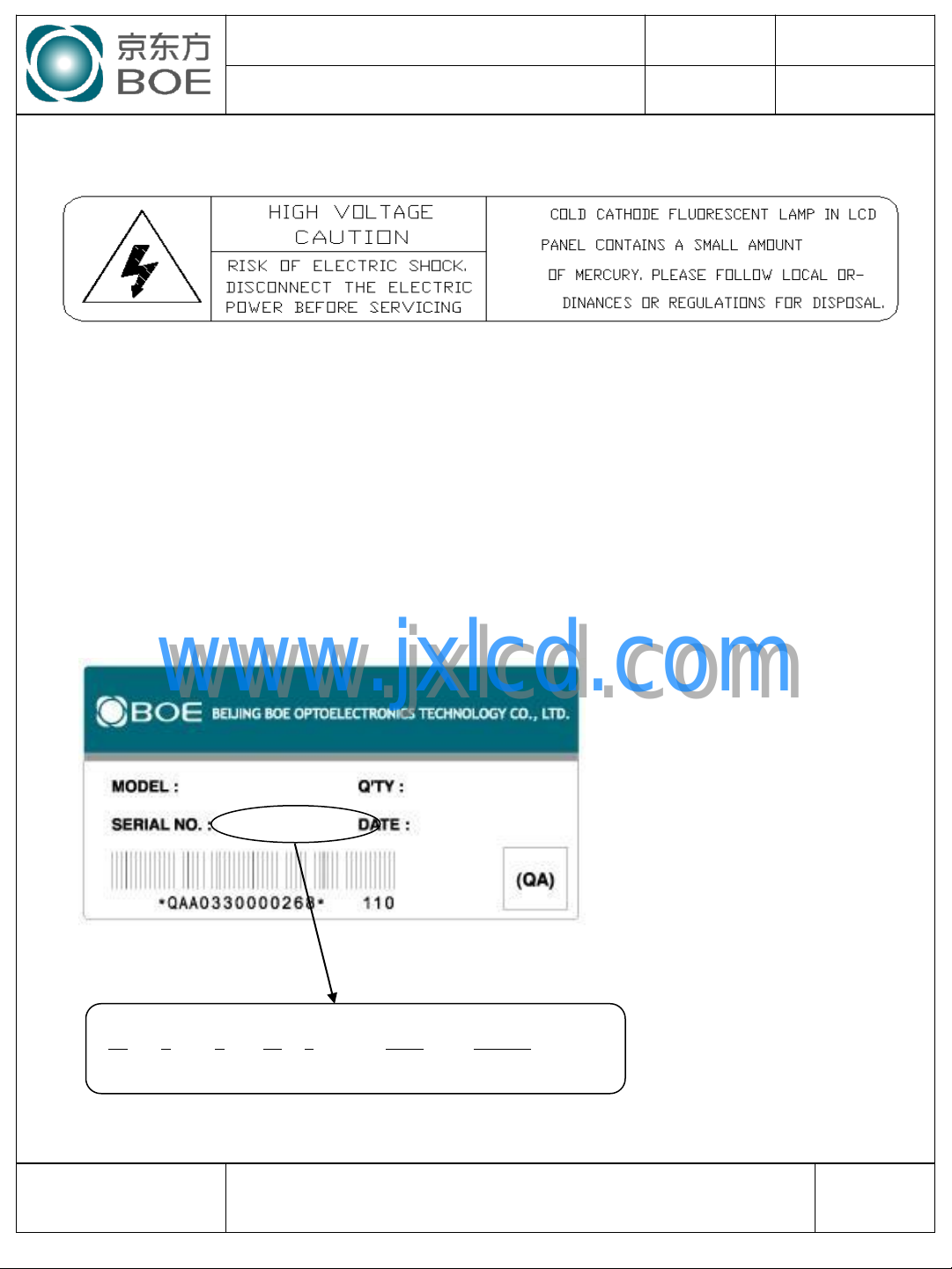

(2) High voltage caution label

(3) Box label

Label Size: 110 mm (L)  56 mm (W)

Contents Model: HT140WXB-601 Q`ty: Module Q`ty in one box Serial No.: Box Serial No. See next figure for detail description. Date: Packing Date Internal use of Product

REV ISSUE DATE

TFT LCD PRODUCT P1 2010.12.10

www.jxlcd.com

HT140WXB-601

0000000000000

00 0 0 00 0 0000 000000

Type Grade Line Year Month Internal use Serial No

SPEC. NUMBER - SPEC TITLE

38

201X.X.XX

PAGE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

28

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

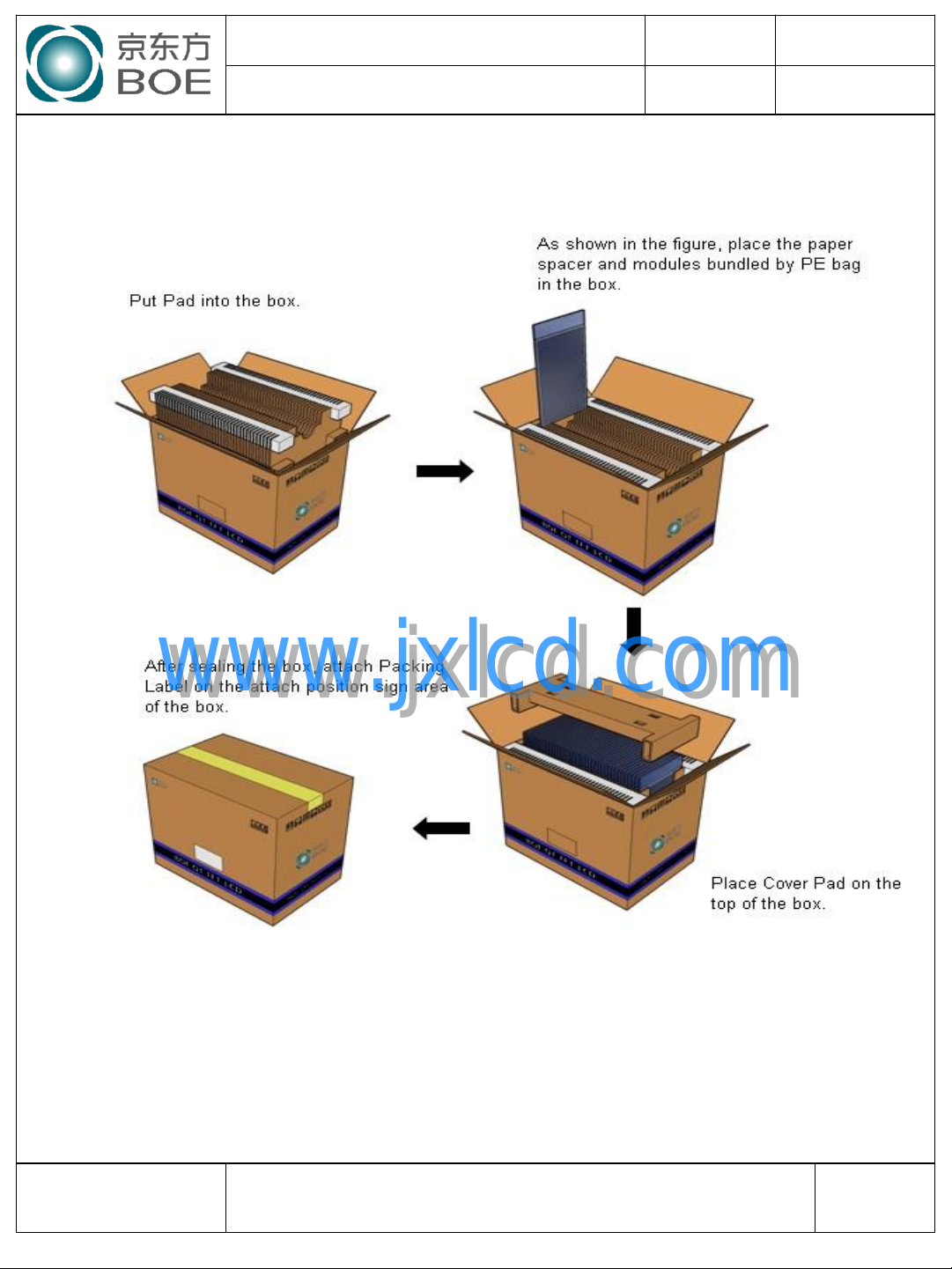

15.0 PACKING INFORMATION

15.1 Packing order

REV ISSUE DATE

www.jxlcd.com

15.2 Notes

 Box Dimension: 526mm(W) x 346mm(D) x 448mm(H)  Package Quantity in one Box: 38pcs  Total Weight: 16kg

SPEC. NUMBER - SPEC TITLE

PAGE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

29

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

16.0 MECHANICAL OUTLINE DIMENSION

Figure 6. TFT-LCD Module Outline Dimension (Front View)

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

PAGE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

30

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

Figure 7. TFT-LCD Module Outline Dimensions (Rear view)

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

PAGE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

31

OF 35

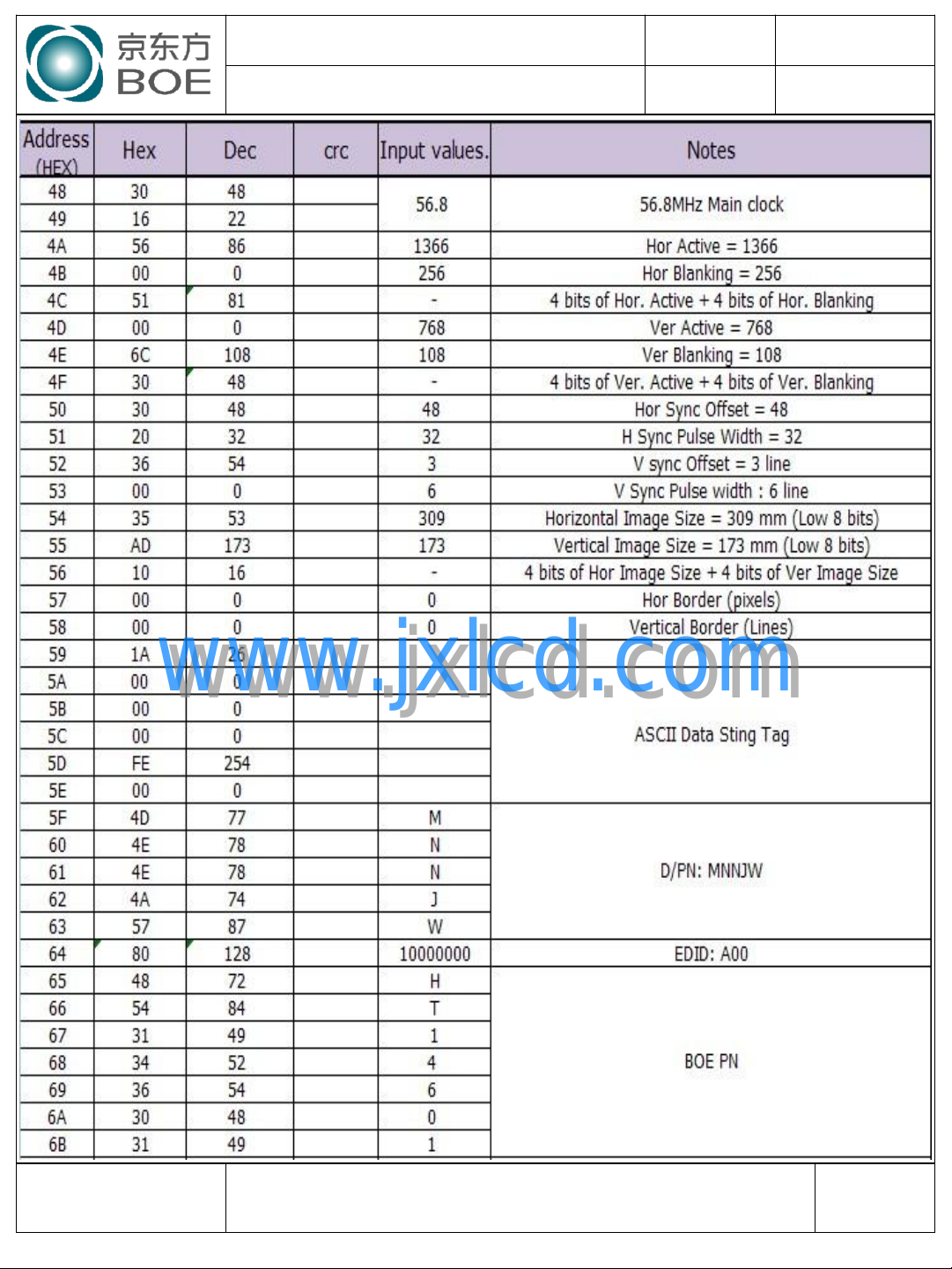

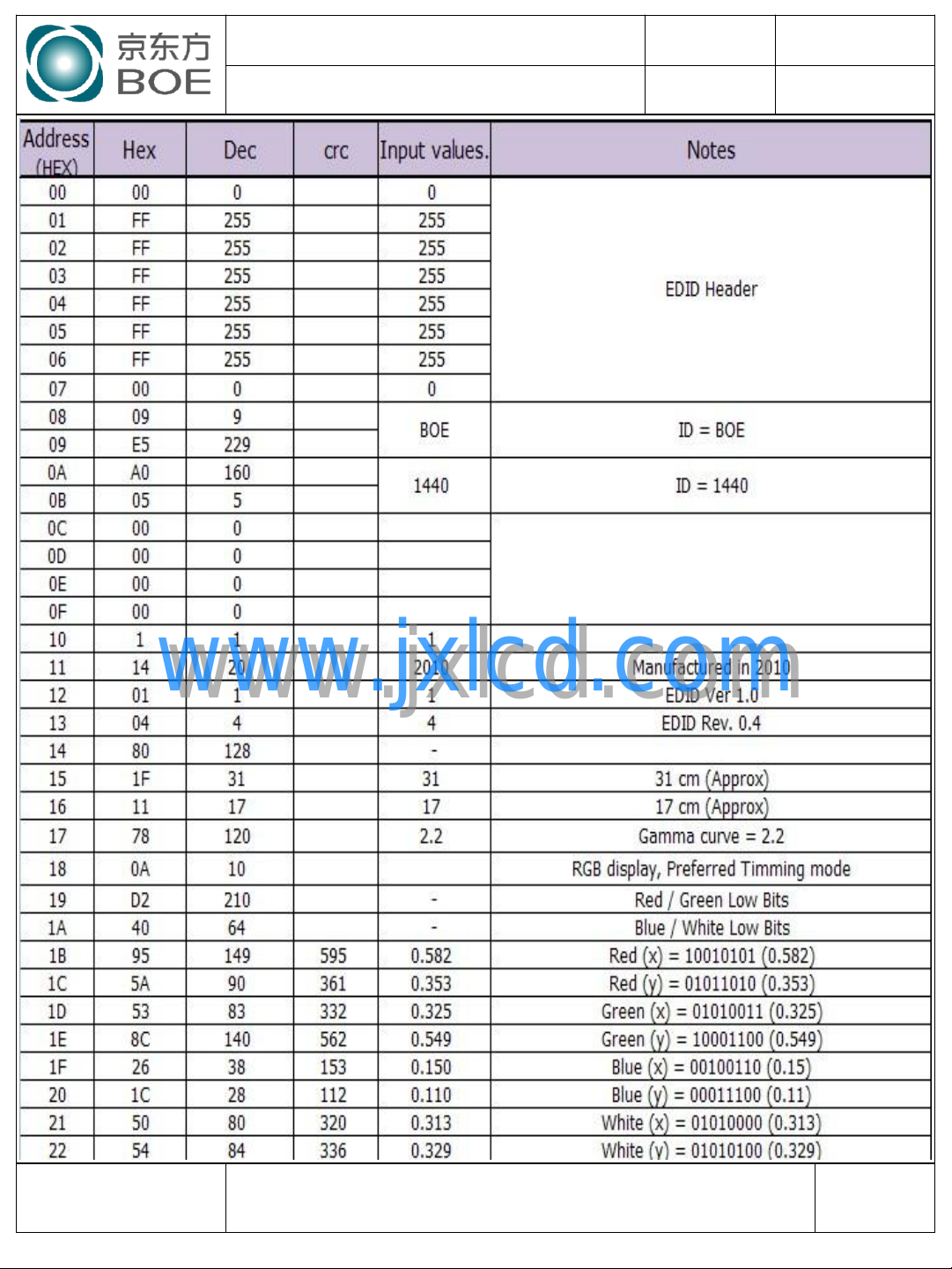

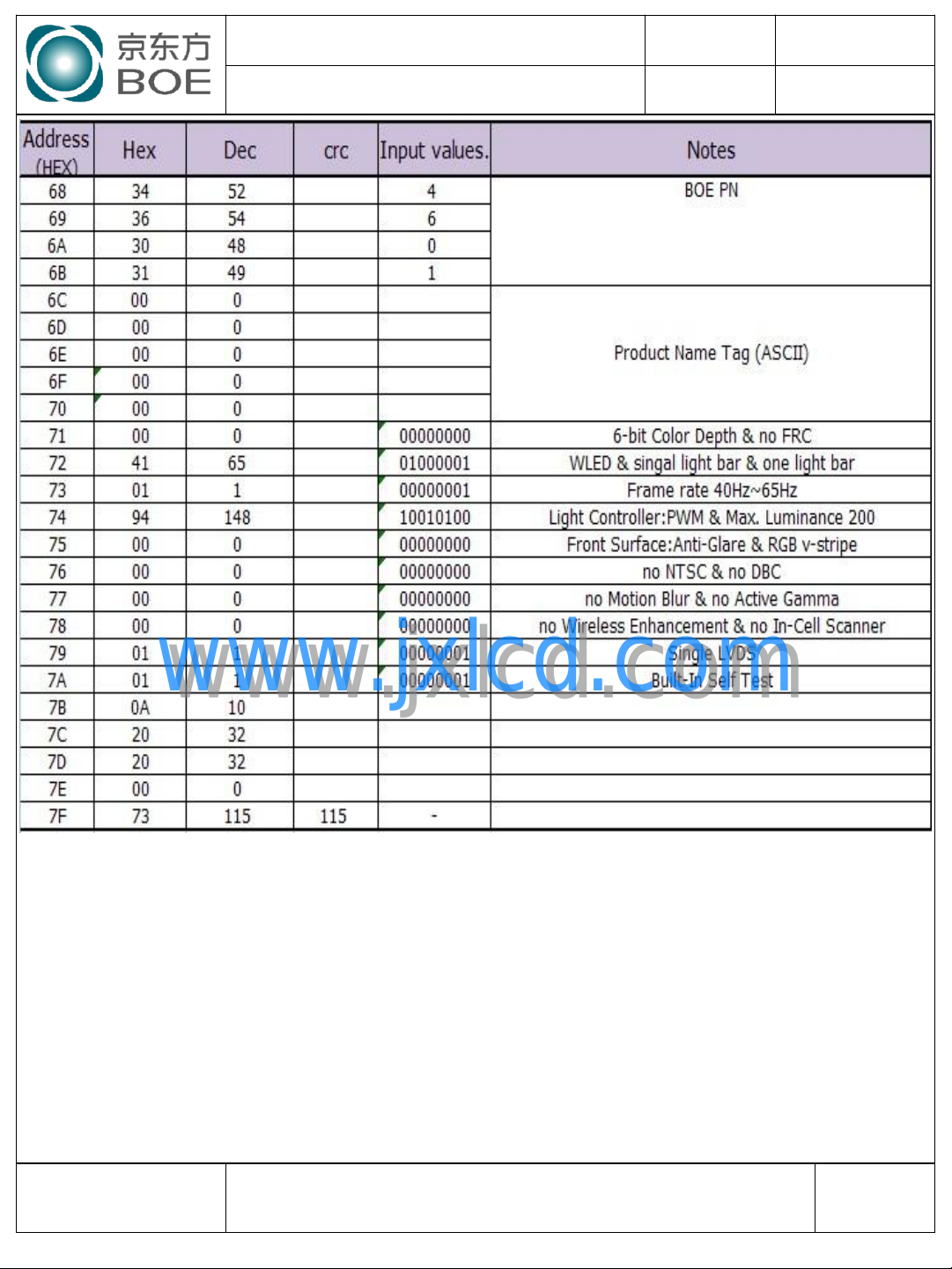

17.0 EDID Table

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

PAGE

32

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

32 32 32 32

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

PAGE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

33

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

PAGE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

34

OF 35

PRODUCT GROUP

TFT LCD PRODUCT P1 2010.12.10

REV ISSUE DATE

www.jxlcd.com

SPEC. NUMBER - SPEC TITLE

PAGE

HT140WXB-601 Product Specification

B2006-5006-O (3/3) A4(210 X 297)

35

OF 35
