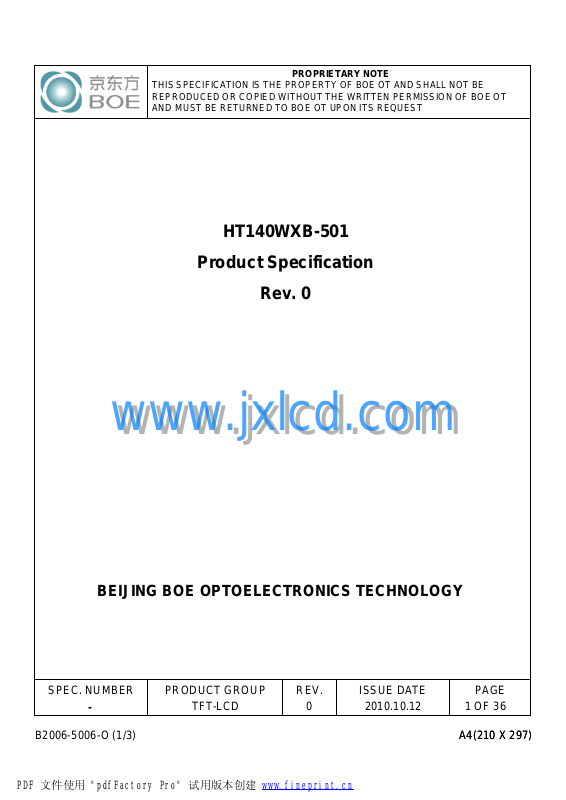

BOE OPTOELECTRONICS HT140WXB-501 SPECIFICATION

PROPRIETARY NOTE

THIS SPECIFICATION IS THE PROPERTY OF BOE OTAND SHALL NOTBE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OT
AND MUST BE RETURNED TO BOE OTUPON ITS REQUEST

HT140WXB-501

ProductSpecification

Rev.0

www.jxlcd.com

www.jxlcd.com

BEIJING BOE OPTOELECTRONICS TECHNOLOGY

SPEC. NUMBER

PRODUCT GROUP

REV.

ISSUE DATE

PAGE

-

B2006-5006-O (1/3) A4(210 X 297) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

TFT-LCD

0

2010.10.12

OF 36

1

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

REVISION HISTORY

REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED

0 - Initial Release 2010.10.12 XueHailin

REV ISSUE DATE

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

-

B2006-5006-O (2/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

HT140WXB-501-1931Product Specification

OF 362

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

REV ISSUE DATE

Contents

No. Items Page

1.0 General Description 4

2.0 Absolute Maximum ratings 6

3.0 Electrical specifications. 7

4.0 Optical specifications. 10

5.0 Interface Connection 15

6.0 Signal Timing Specification 19

7.0 Signal Timing waveforms 21

8.0 Input Signals, Display Colors & Gray Scale of Colors 23

www.jxlcd.com

www.jxlcd.com

9.0 Power Sequence 24

10.0 Connector description 25

11.0 Mechanical Characteristics 26

12.0 Reliability Test 27

13.0 Handling & Cautions. 27

14.0 Label 28

15.0 Packing information 30

16.0 Mechanical Outline Dimension 31

17.0 EDID Table 33

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 363

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

REV ISSUE DATE

1.0 GENERAL DESCRIPTION

1.1 Introduction

HT140WXB-501is a color active matrix TFT LCD module using amorphous siliconTFT's
(Thin Film Transistors) as an active switching devices. This module has a 14.0inch
diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical Stripe and this module can display 262,144 colors.The TFT-LCD panel used for this
module is a low reflection and higher color type. Therefore, this module is suitable for
Notebook PC. The LED Driver for back-light driving is built in this model.
All input signals are LVDS interface compatible.

LED Driver

LVDS

Connector

Input
Signal

1

1.2 Features

l 1 Channel LVDS Interface with 1 pixel / clock
l Thin and light weight
l 6-bit color depth, display 262K colors
l Single LED Lighting Bar. (Top side/Horizontal Direction)
l Data enable signal mode
l Side Mounting Frame
l Green Product (RoHS& Halogen free product)
l On board LED Driving circuit
l Low driving voltage and low power consumption
l On board EDID chip

www.jxlcd.com

www.jxlcd.com

VDD

LVDS Rx

+

T/CON

+

Mini-LVDS Tx

DC/DC

Gamma

Vcom

TFT LCD Panel

BACK LIGHT (Fluorescent Lamp)

LED Lighting Bar

Gate Driver

1366 ×768

Source Driver

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 364

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

1.3 Application

l Notebook PC (Wide type)

1.4 General Specification

The followings are general specifications at the model HT140WXB-501.(listed in Table 1.)

<Table 1. General Specifications>

Parameter Specification Unit Remarks

Active area 309.4(H) ×173.95(V) mm
Number of pixels 1366 (H) ×768 (V) pixels

REV ISSUE DATE

Pixel pitch 0.2265(H) ×0.2265(V) mm
Pixel arrangement RGB Vertical stripe
Display colors 262K colors

www.jxlcd.com

Display mode Normally White
Dimensional outline 323.5(H) ×192(V) ×5.2(D:max) mm
Weight 350 (max) g
Surface treatment Glare (Clear Black) / Hard coating 3H
Back-light Upper edge side, 1-LED Lighting Bar type Note 1
Power consumption PD: 1.1(max) W

Notes : 1. LED Lighting Bar (40*LED Array)

www.jxlcd.com

P

: 3.0(max) W

BL

P

: 4.1(max) W

total

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 365

PRODUCT GROUP

Storage Range

Temperature (

)

1008060

40

20

90

Relative Humudity

5

Storage Range

TFT LCD PRODUCT 0 2010.10.12

REV ISSUE DATE

2.0 ABSOLUTE MAXIMUM RATINGS

The followings are maximum values which, if exceed, may cause faulty operation or
damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.

< Table 2. Absolute Maximum Ratings>

Parameter Symbol Min. Max. Unit Remarks

Power Supply Voltage V
Logic Supply Voltage V
Operating Temperature T
Storage Temperature T

Notes : 1. Permanent damage to the device may occur if maximum values are exceeded

functional operation should be restricted to thecondition described under normal
operating conditions.

2. Temperature and relative humidity range are shownin the figure below.
95 % RH Max. ( 40 OC ≥ Ta)

www.jxlcd.com

www.jxlcd.com

Maximum wet -bulb temperature at 39 OC or less. (Ta > 40 OC) No condensation.

DD

IN

OP

ST

-0.3 4.0 V

Vss-0.3 VDD+0.3 V

0 +50

-20 +60

(40, 95)

℃

℃

Ta=25+/-2°C

Note 1

Note 2

Operating Range

-40 -20 0 20 40 60 80

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

(50, 80)

(60, 27)

℃

PAGE

OF 366

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

3.0 ELECTRICAL SPECIFICATIONS

3.1 Electrical Specifications

< Table 3. Electrical specifications > Ta=25+/-2°C

Parameter Min. Typ. Max. Unit Remarks

REV ISSUE DATE

Power Supply Voltage V
Permissible Input Ripple

Voltage
Power Supply Current I
Positive-going Input

Threshold Voltage
Negative-going Input

Threshold Voltage
Differential Input Voltage |VID| 100 - 600 mV Note 2

Power Consumption

www.jxlcd.com

www.jxlcd.com

P

V

V

V

P

DD

P

total

DD

RF

IT+

IT-

D

BL

3.0 3.3 3.6 V Note 1

- - 100 mV At VDD= 3.3V

- 205 - mA Note 1

- - 100 mV
VCM = 1.2V typ.

-100 - - mV

- 0.68 1.1 W Note 1

- 2.85 3.0 W Note 3

- 3.53 4.1 W

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3677

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.

The current draw and power consumption specified is for 3.3V at 25℃.

a) Typ: Window XP pattern
b) Max : Vertical 2 line skip pattern

2. Differential Signal Waveform

REV ISSUE DATE

www.jxlcd.com

www.jxlcd.com

3. Calculated value for reference (VLED × ILED)

SPEC. NUMBER

SPEC TITLE

PAGE

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

HT140WXB-501-1931Product Specification

OF 3688

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

3.0 ELECTRICAL SPECIFICATIONS

3.2 Backlight Unit

REV ISSUE DATE

< Table 4. LED Driving guideline specifications >

Parameter Min. Typ. Max. Unit Remarks

LED Forward Voltage V
LED Forward Current I
LED Power Consumption P

LED Life-Time N/A 15,000 - - Hour
Power supply voltage for

LED Driver

EN Control

Level

PWM

Control

Level

Backlight on 2.0 5.0 V

Backlight off 0 1.0 V

www.jxlcd.com

www.jxlcd.com

PWM High

Level

PWM Low

Level

V

F

F

LED

LED

3.0 3.2 3.4 V -

- 20 mA -

2.85 3.0 W Note 1

6 12 21 V

2.0 5.0 V

0 0.1 V

Ta=25+/-2°C

IF = 20mA

PWM Control Frequency F

Duty Ratio - 5 - 100 %

Notes : 1. Power supply voltage12Vfor LED Driver, Driver efficiency 90%,

Calculator Value for referenceIF×VF ×40 / 0.9 = PLED

2. The LED Life-time define as the estimated time to 50% degradation of initial luminous.

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PWM

180 - 10,000 Hz

PAGE

OF 3699

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT 0 2010.10.12

4.0 OPTICAL SPECIFICATION

4.1 Overview

The test of Optical specifications shall be measured in a dark room (ambient luminance ≤ 1
luxandtemperature = 25±2℃) with the equipment of Luminance meter system (Goniometer
system and TOPCON BM-5) and test unit shall be located at an approximate distance
50cm from the LCD surface at a viewing angle of θ and Φ equal to 0°. We refer to θØ=0
(=θ3 ) as the 3 o’clock direction (the “right”), θØ=90 (= θ12 ) as the 12 o’clock direction
(“upward”), θØ=180 (= θ9 ) as the 9 o’clock direction (“left”) and
θØ=270(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θand/or Ø, the center
of the measuring spot on the Display surface shall stay fixed. The backlight should be
operating for 30 minutes prior to measurement. VDD shall be3.3+/-0.3V at 25°C.
Optimum viewing angle direction is 6 ’clock.

4.2 Optical Specifications

<Table 5. Optical Specifications>

Parameter Symbol Condition Min. Typ. Max. Unit Remark

Θ

Θ

T

Θ

Θ

3
9

12

6

w

x

w

y

w

x

R

y

R

x

G

y

G

x

B

y

B

RT

CR > 10

Θ = 0°

ILED = 20mA

Θ = 0°

Θ = 0°

Ta= 25° C

Θ = 0°

Viewing Angle

range

Luminance Contrast ratio CR Θ = 0° 500 600 Note 2

Luminance of

White
White

Luminance

uniformity

White Chromaticity

Reproduction

of color

ResponseTime

(Rising + Falling)

Cross Talk CT Θ = 0° - - 2.0 % Note 7

Horizontal

Vertical

www.jxlcd.com

www.jxlcd.com

5 Points Y
5 Points ΔY5 80 - -

13 Points ΔY13 65 - -

Red

Green

Blue

40 45 - Deg.
40 45 - Deg.
15 20 - Deg.
30 40 - Deg.

180 200 - cd/m

0.283 0.313 0.343

0.299 0.329 0.359

0.553 0.583 0.613

0.324 0.354 0.384

0.284 0.314 0.344

0.517 0.547 0.577

0.119 0.149 0.179

0.092 0.122 0.152

- 8 16 ms Note 6

2

Note 1

Note 3

Note 4

Note 5

SPEC. NUMBER

-

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3610

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

Notes : 1. Viewing angle is the angle at which the contrast ratio is greater than 10. The

viewing angles are determined for the horizontal or 3, 9 o’clock direction and the
vertical or 6, 12 o’clock direction with respect to the optical axis which is normal
to the LCD surface (see FIGURE 1).

2. Contrast measurements shall be made at viewing angle of Θ= 0 and at the center
of the LCD surface. Luminance shall be measured with all pixels in the view field
set first to white, then to the dark (black) state .
(see FIGURE 1) Luminance Contrast Ratio (CR) is defined mathematically.

Luminance when displaying a white raster

CR =

Luminance when displaying a black raster

REV ISSUE DATE

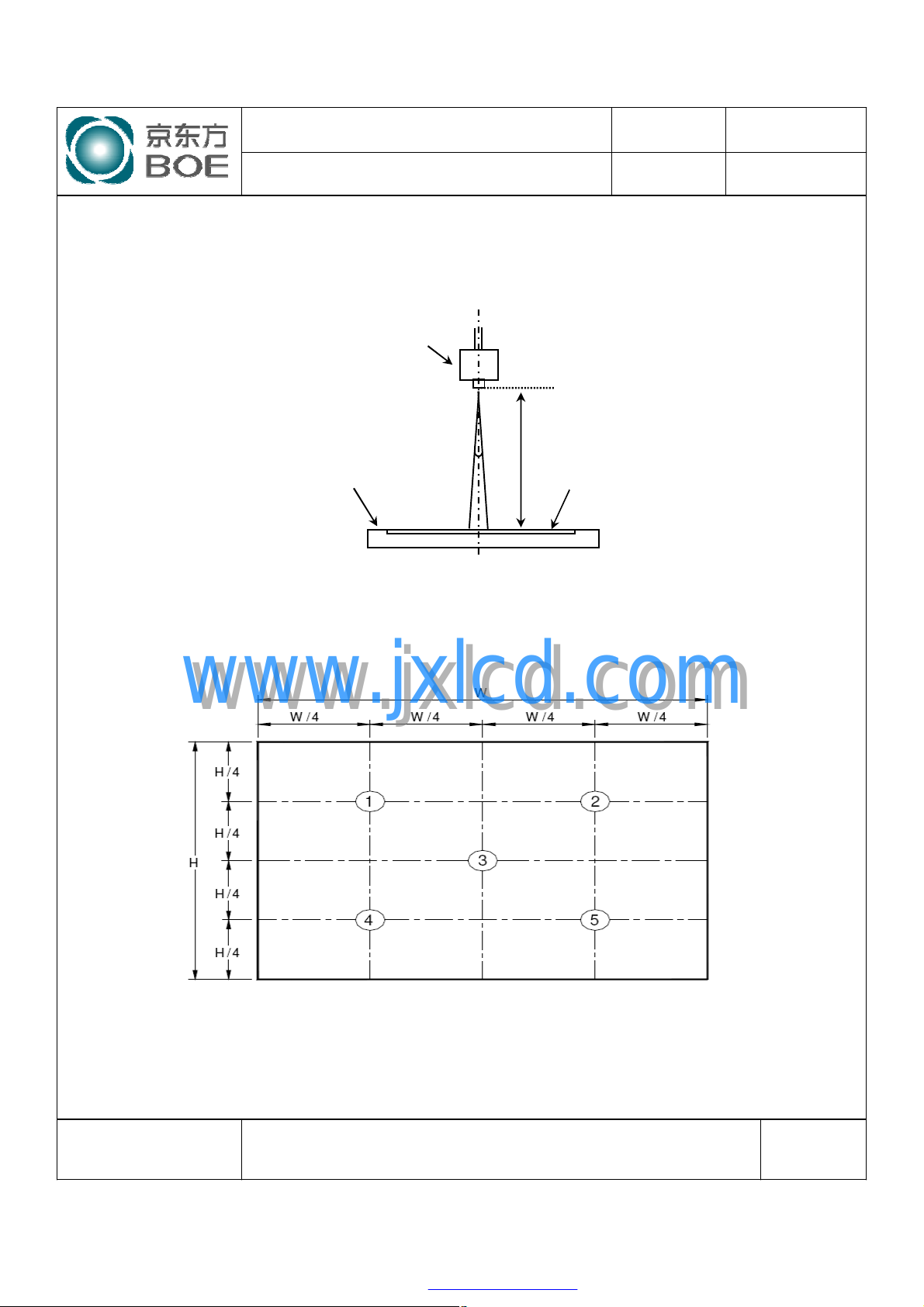

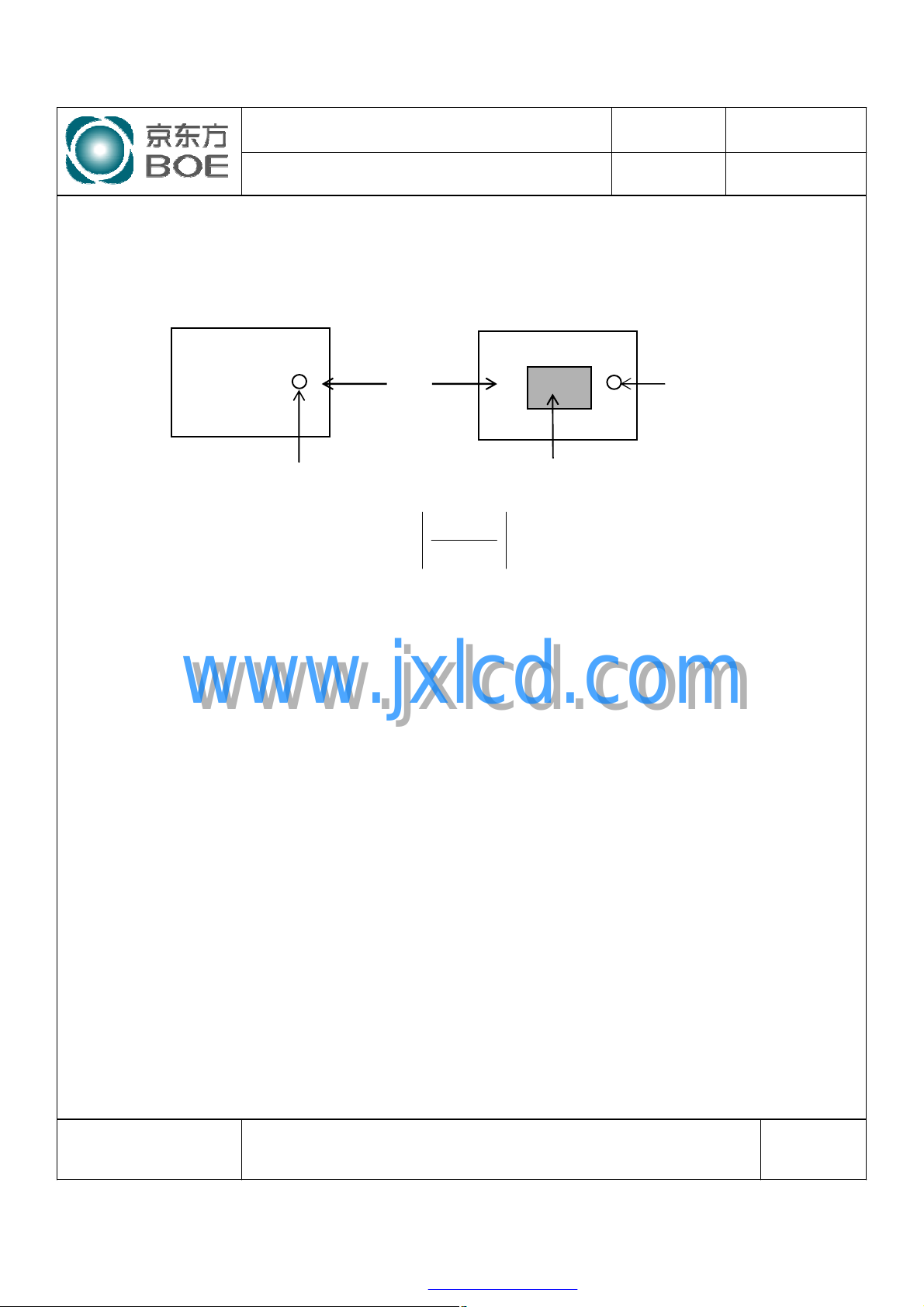

3. Center Luminance of white is defined as luminancevalues of 5 point average

across the LCD surface. Luminance shall be measured with all pixels in the view
field set first to white. This measurement shall be taken at the locations shown
in FIGURE 2 for a total of the measurements per display.

www.jxlcd.com

4. The White luminance uniformity on LCD surface is then expressed as : ΔY =
Minimum Luminance of 5(or 13) points / Maximum Luminance of 5(or 13) points
(see FIGURE 2 and FIGURE 3).

5. The color chromaticity coordinates specified in Table 5 shall be calculated from
the spectral data measured with all pixels first in red, green, blue and white.
Measurements shall be made at the center of the panel.

6. The electro-optical response time measurements shall be made as FIGURE 4
by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Tr, and 90% to 10% is Td.

7. Cross-Talk of one area of the LCD surface by another shall be measuredby
comparing the luminance (YA) of a 25mm diameter area, with all display pixels
set to a gray level, to the luminance (YB) of thatsame area when any adjacent
area is driven dark. (See FIGURE 5).

www.jxlcd.com

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3611

4.3 Optical measurements

Photo detector

(TOPCON BM-5A)

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

Figure 1. Measurement Set Up

REV ISSUE DATE

Field = 2

TFT-LCD module

Optical characteristics measurement setup

Figure 2. White Luminance and Uniformity Measurement Locations (5 points)

www.jxlcd.com

www.jxlcd.com

o

50 cm

LCD panel

Center of the screen

Center Luminance of white is defined as luminance values of center 5 points
across the LCD surface. Luminance shall be measured with all pixels in the view
field set first to white. This measurement shall be taken at thelocations shown in
FIGURE 2 for a total of the measurements per display.

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3612

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

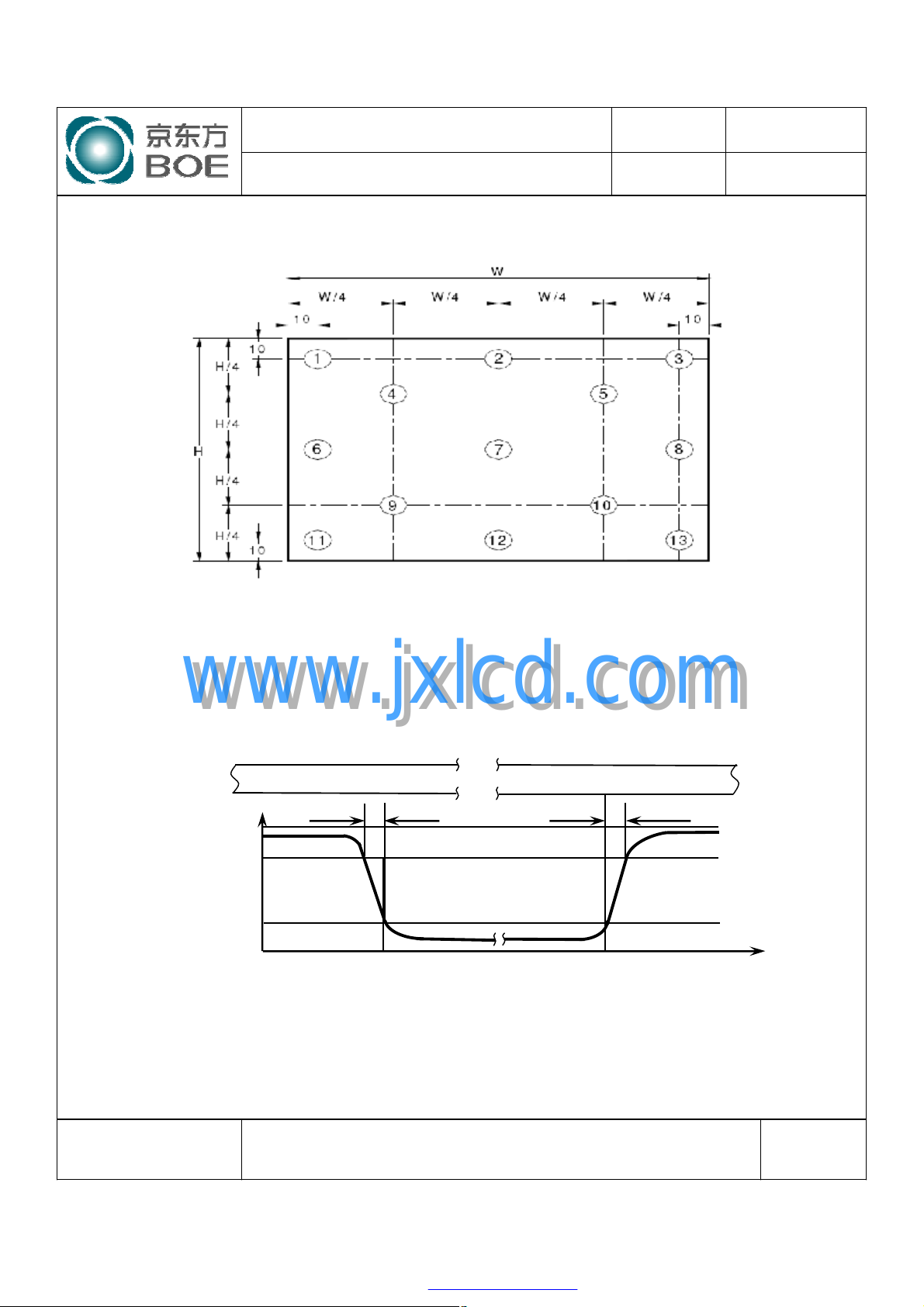

Figure 3. Uniformity Measurement Locations (13 points)

REV ISSUE DATE

The White luminance uniformity on LCD surface is then expressed as : ΔY5 =
Minimum Luminance of five points / Maximum Luminance of five points (see
FIGURE 2) , ΔY13 = Minimum Luminance of 13 points /Maximum Luminance of
13 points (see FIGURE 3).

www.jxlcd.com

www.jxlcd.com

Figure 4. Response Time Testing

Display data

Optical
Response

The electro-optical response time measurements shall be made as shown in
FIGURE 4 by switching the “data” input signal ON and OFF. The times needed
for the luminance to change from 10% to 90% is Td and 90% to 10%is Tr.

White(TFTOFF)

TR

100%

90%

10%

0%

Black(TFTON)

White(TFTOFF)

TF

Time

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3613

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

Figure 5. Cross Modulation Test Description

REV ISSUE DATE

VIEW AREA

L31

YA(1195, 384)

YB-Y

Cross-Talk (%) = × 100

Y

A

Where:

YA= Initial luminance of measured area (cd/m2)
YB= Subsequent luminance of measured area (cd/m2)

The location measured will be exactly the same in both patterns

Cross-Talk of one area of the LCD surface by another shall be measuredby
comparing the luminance (YA) of a 25mm diameter area, with all display pixels
set to a gray level, to the luminance (YB) of that same area when any adjacent
area is driven dark (Refer to FIGURE 5).

www.jxlcd.com

www.jxlcd.com

VIEW AREA

342,192

A

1025, 192

YB(1195, 384)

1025,576342,576

L0

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3614

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

REV ISSUE DATE

5.0 INTERFACE CONNECTION.

5.1 Electrical Interface Connection

The electronics interface connector is I-PEX 20455-040E-12 or Compatible or
equivalent. The mating connector part number is I-PEX 20455-040T-11 or Compatible.
The connector interface pin assignments are listed in Table 6.

<Table 6. Pin Assignments for the Interface Connector>

Terminal Symbol Functions

Pin No. Symbol Description

1 NC No Connection
2 VDDIN Power Supply, 3.3V (typ.)
3 VDDIN Power Supply, 3.3V (typ.)
4 VDC VDC 3.3Vpower for EDID
5 NC No Connection
6 CLK EDID EDID Clock
7 Data EDID EDID Data
8 RxIN0- Transmission Data of 0 Negative -

9 RxIN0+ Transmission Data of 0 Positive +
10 GND Ground
11 RxIN1- Transmission Data of 1 Negative ­12 RxIN1+ Transmission Data of 1 Positive +

www.jxlcd.com

www.jxlcd.com

13 GND Ground
14 RxIN2- Transmission Data of 2 Negative ­15 RxIN2+ Transmission Data of 2 Positive +
16 GND Ground
17 RxCLKIN- Sampling Clock of Negative ­18 RxCLKIN+ Sampling Clock of Positive +
19 NC No Connection
20 NC No Connection

21
22 GND Ground
23
24 NC No Connection
25
26 (CE)
27
28 GND Ground
29
30

NC No Connection

NC No Connection

GND Ground

(CTL)

NC No Connection
NC No Connection

LCD internal use only

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3615

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

Terminal Symbol Functions

Pin No. Symbol Description

31 VLED_GND LED Ground
32 VLED_GND LED Ground
33 VLED_GND LED Ground
34 NC No Connection
35 PWM System PWM Signal Input
36 LED_EN LED enable pin(+3.3V Input)
37 NC No Connection
38 VLED LED Power Supply 6V-21V
39 VLED LED Power Supply 6V-21V
40 VLED LED Power Supply 6V-21V

REV ISSUE DATE

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

HT140WXB-501-1931Product Specification

OF 3616

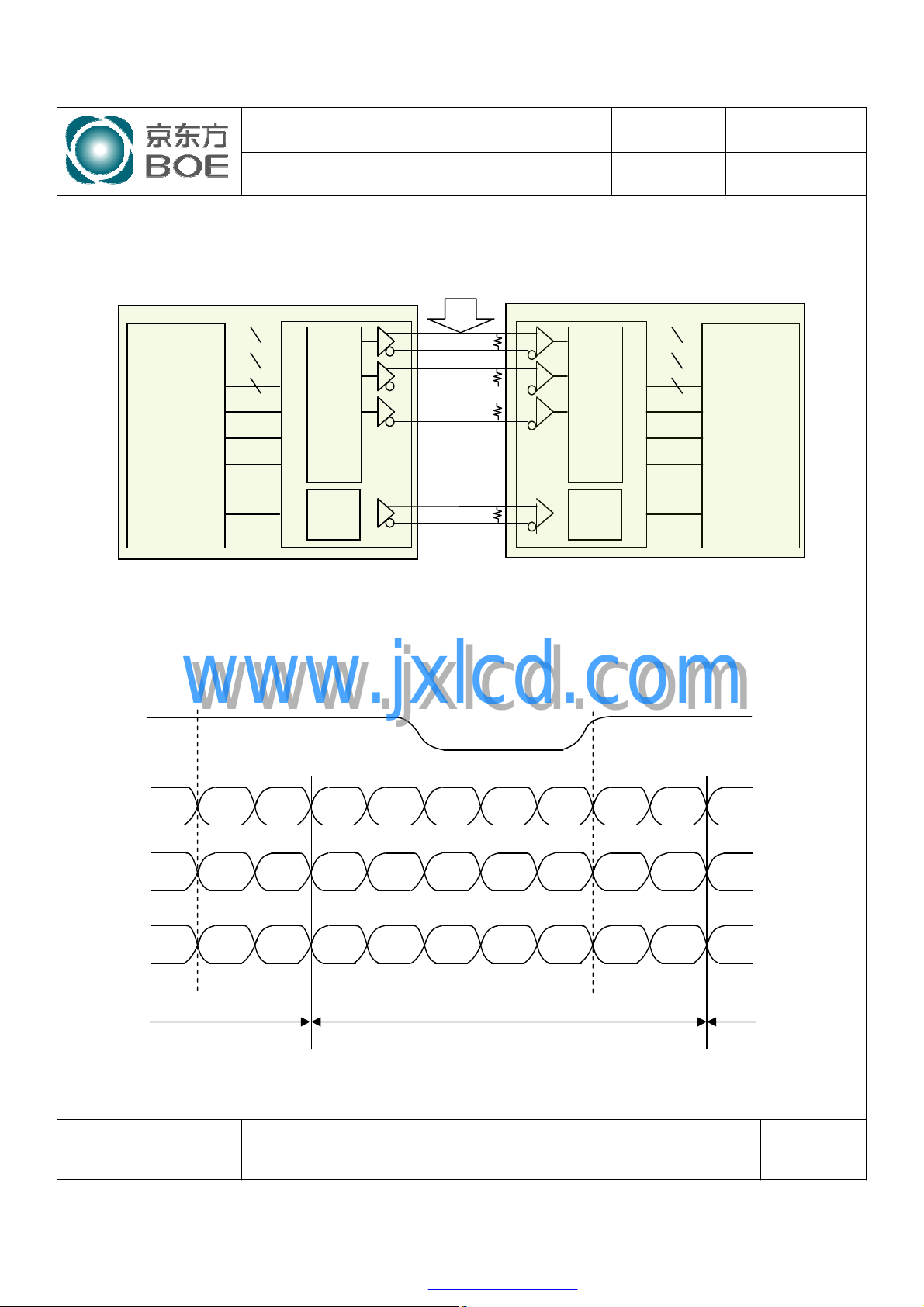

5-2. LVDS Interface

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT 0 2010.10.12

PC Side

CN1

R0~R5
G0~G5
B0~B5

Hsync
Vsync

DE

CLK

6
6

6

PLL

TTL Parallel-to-LVDS

100 ohm

100 ohm

100 ohm

100 ohm

Note. Transmitter : ThineTHC63LVDM63A or equivalent.

Transmitter is not contained in Module.

5.3.LVDS Input signal

www.jxlcd.com

www.jxlcd.com

CLK+

Vdiff=0V

TFT-LCD Side

LVDS to TTL Parallel

PLL

6
6

6

R0~R5
G0~G5
B0~B5

Hsync
Vsync

DE

CLK

Rin0

Rin1

Rin2

Prior cycle

GO R5 R4 R3 R2 R1 R0

B1 B0 G5 G4 G3 G2 G1

DE Vsync B5 B4 B3 B2Hsync

Signal for 1 DCLK cycle Next cycle

Note. Pin connection in case of using ThineTHC63LVDM63A

SPEC. NUMBER

-

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3617

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

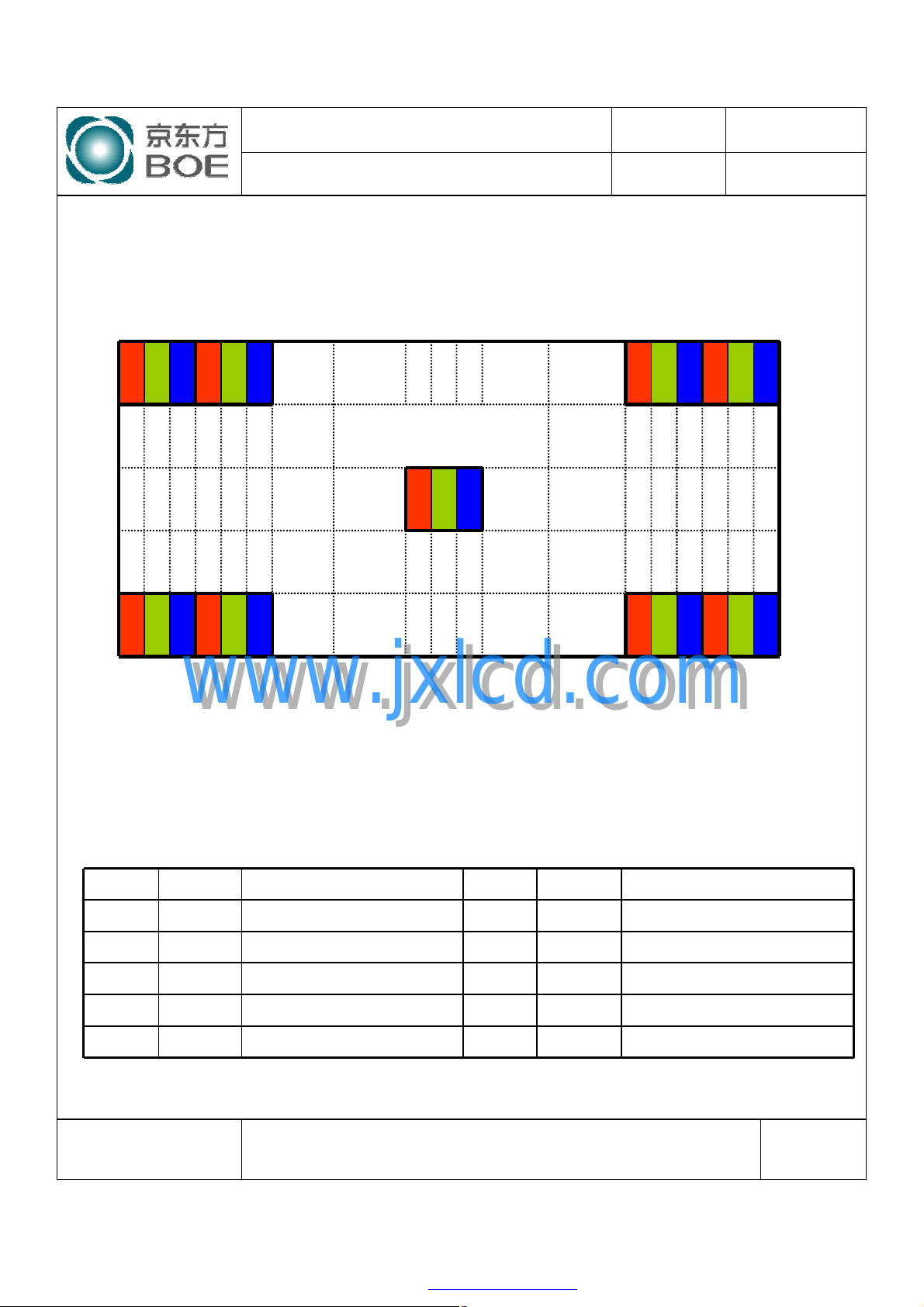

5.3 Data Input Format

<Table 6. Pin Assignments for the Interface Connector>

(1,1) (2,1) (1365,1) (1366,1)

R G B R G B R G B R G B

1 Pixel = 3 Dots

R G B

REV ISSUE DATE

R G B R G B R G B R G B

(1,768) (2,768) (1365,768) (1366, 768)

www.jxlcd.com

www.jxlcd.com

5.4 Back-light & LCM Interface Connection

Interface Connector: MS24022P10 or Equivalent

<Table 7. Pin Assignments for the BLU & LCM Connector>

Pin No. Symbol Description Pin No. Symbol Description

1 LED1 LED cathode connection 6 NC No Connection
2 LED2 LED cathode connection 7 NC No Connection
3 LED3 LED cathode connection 8 Vout LED anode connection
4 LED4 LED cathode connection 9 Vout LED anode connection
5 LED5 LED cathode connection 10 Vout LED anode connection

Display Position of Input Data (V-H)

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3618

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

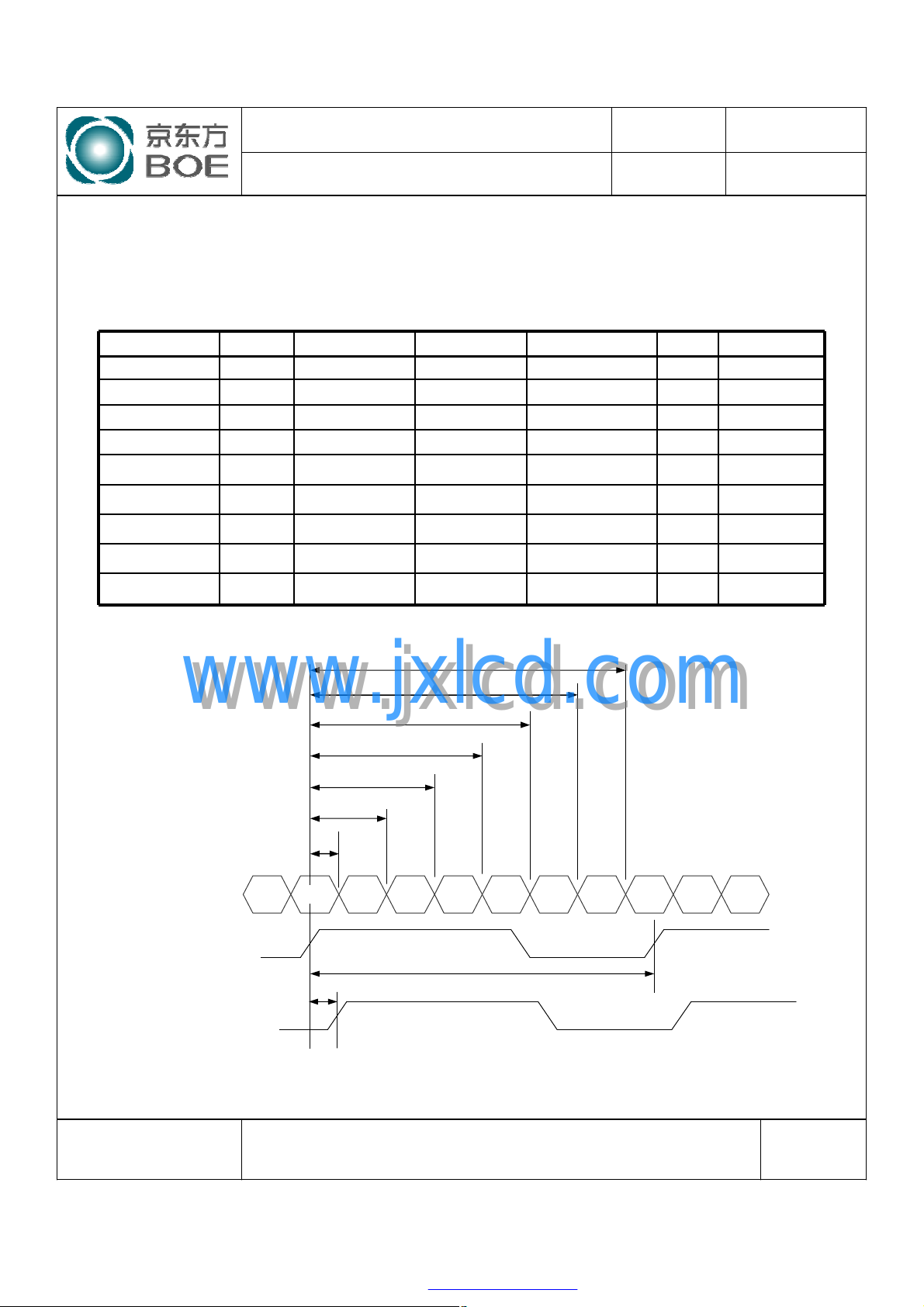

6.0 SIGNAL TIMING SPECIFICATION

6.1 The HT140WXB-501 is operated by the DE only.

Item Symbols Min Typ Max Unit

Frequency 1/Tc 67.5 72.3 76.3 MHz

REV ISSUE DATE

Clock

Frame Period Tv

Vertical Display Period Tvd 768 768 768 lines

One line Scanning

Horizontal Display

High Time Tch - 4/7 - Tc

Low Time Tcl - 3/7 - Tc

778 790 802 lines

- 60 - Hz

- 16.7 - ms

Period

Period

www.jxlcd.com

www.jxlcd.com

Th 1446 1526 1586 clocks

Thd 1366 1366 1366 clocks

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3619

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

6.2 LVDS Rx Interface Timing Parameter

The specification of the LVDS Rx interface timing parameter isshown in Table 8.

<Table 8. LVDS Rx Interface Timing Specification>

Item Symbol Min Typ Max Unit Remark

CLKIN Period tRCIP - 13.83 25 nsec

CLK Difference tCdiff -tRCIP*(3/7) 0 +tRCIP*(3/7) nsec

Input Data 0 tRIP1 -0.4 0.0 +0.4 nsec
Input Data 1 tRIP0 tRICP/7-0.4 tRICP/7 tRICP/7+0.4 nsec

Input Data 2 tRIP6 2 ×tRICP/7-0.4 2 ×tRICP/7 2 ×tRICP/7+0.4 nsec
Input Data 3 tRIP5 3 ×tRICP/7-0.4 3 ×tRICP/7 3 ×tRICP/7+0.4 nsec
Input Data 4 tRIP4 4 ×tRICP/7-0.4 4 ×tRICP/7 4 ×tRICP/7+0.4 nsec
Input Data 5 tRIP3 5 ×tRICP/7-0.4 5 ×tRICP/7 5 ×tRICP/7+0.4 nsec

REV ISSUE DATE

Input Data 6 tRIP2 6 ×tRICP/7-0.4 6 ×tRICP/7 6 ×tRICP/7+0.4 nsec

tRIP2

www.jxlcd.com

www.jxlcd.com

tRIP5

tRIP6

tRIP0

tRIP1

RXO/Ez+/-

* Z = 0, 1, 2,3

RxOCLKIN+

RxECLKIN+ tCdiff

Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0Rx3

tRIP3

tRIP4

tRCIP

Vdiff=0[v]Vdiff=0[v]

* Vdiff= (RXO/Ez+)-(RXO/Ez-),…. ,(RXO/ECLK+)-(RXO/ECLK-)

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3620

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

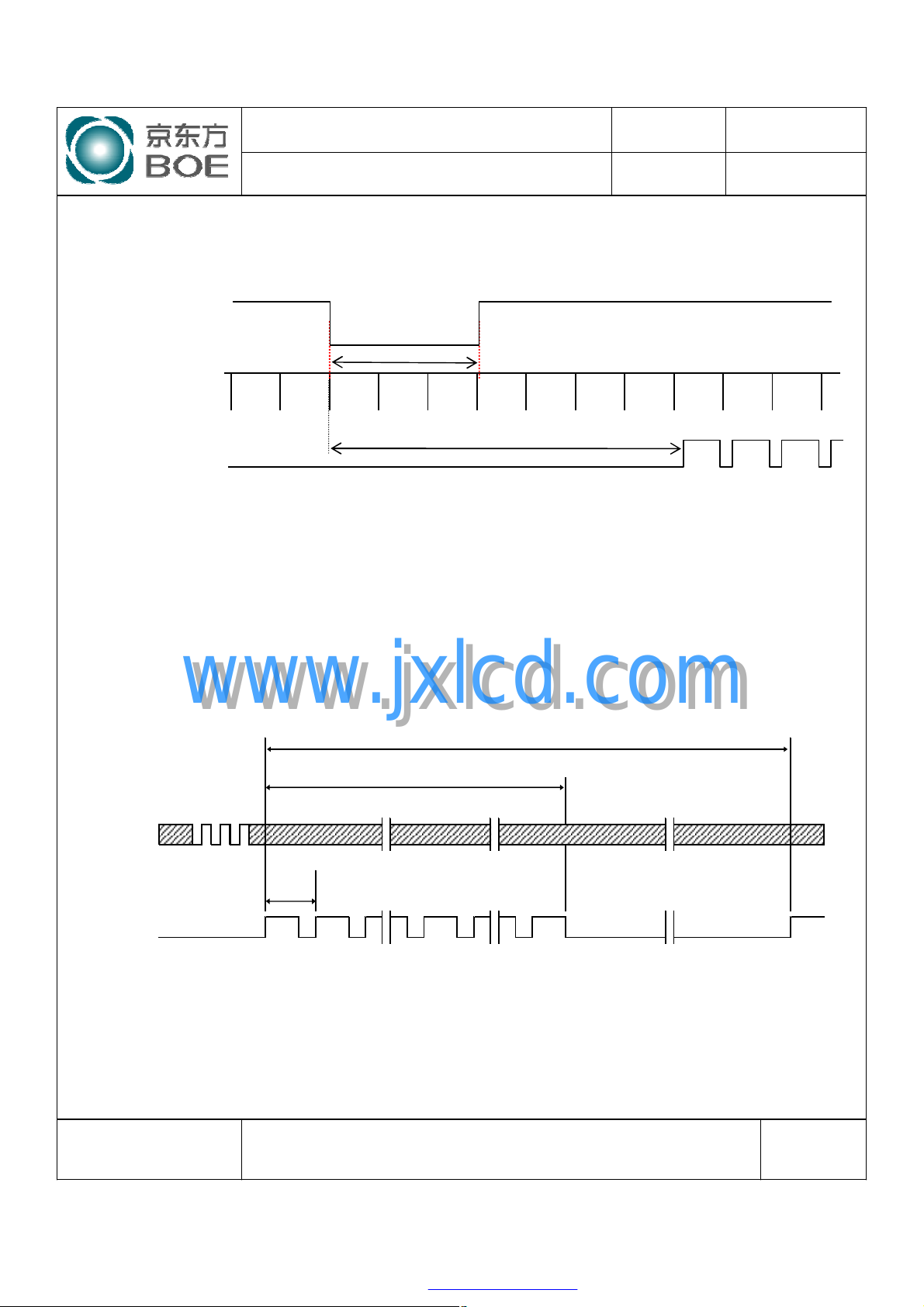

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL

7.1 Sync Timing Waveforms

REV ISSUE DATE

V-Sync

H-Sync

DE

1) Need over 3 H-sync during V-Sync Low

2) Fix H-Sync width from V-Sync falling edge to first rising edge

7.2 VerticalTiming Waveforms

www.jxlcd.com

www.jxlcd.com

Over 3 H-sync

Fix H-Sync width Area

Tv

Tvd

MCLK

Th

DE

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3621

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

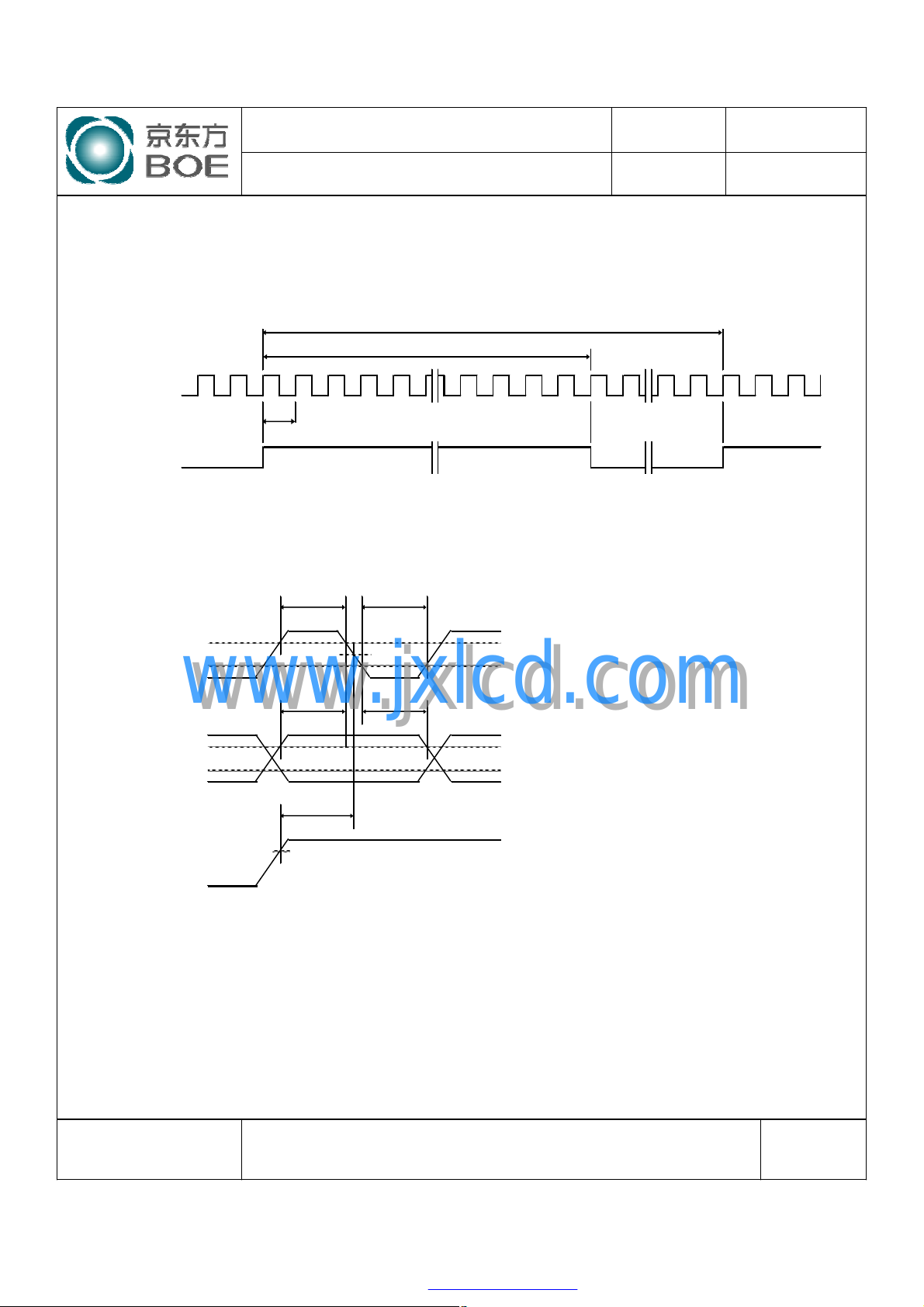

7.3 Horizontal Timing Waveforms

MCLK

Tc

DE

REV ISSUE DATE

Th

Thd

Tch

MCLK

www.jxlcd.com

www.jxlcd.com

Data

DE

Tds

Valid

Tes

2.0V

Tcl

1.5V

Tdh

Data

2.0V

0.8V

2.0V

0.8V

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3622

PRODUCT GROUP

White

1 1 1 1 1 1

1 1 1 1 1 1

1 1 1 1 1 1

Red

1 1 1 1 1 1

0 0 0 0 0 0

0 0 0 0 0 0

Green

0 0 0 0 0 0

1 1 1 1 1 1

0 0 0 0 0 0

Blue

0 0 0 0 0 0

0 0 0 0 0 0

1 1 1 1 1 1

△

0 1 1 1 1 1

0 1 1 1 1 1

0 1 1 1 1 1

White

1 1 1 1 1 1

1 1 1 1 1 1

1 1 1 1 1 1

REV ISSUE DATE

TFT LCD PRODUCT 0 2010.10.12

8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS

Colors & Data signal

Gray scale R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 B4 B5

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

Basic Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

colors Light Blue 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1

Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
Purple 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Gray scale

of Red

△

Darker 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△ ↑ ↑ ↑
▽ ↓ ↓ ↓

Brighter 1 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

▽

1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

Gray scale

of Green

Gray scale

of Blue

Gray

scale Darker 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0

of

White

Black

www.jxlcd.com

△ ↑ ↑ ↑

www.jxlcd.com

▽ ↓ ↓ ↓

Brighter 0 0 0 0 0 0 1 0 1 1 1 1 0 0 0 0 0 0

▽

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0

△ ↑
▽ ↓

Brighter 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1

▽

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

▽ ↓ ↓ ↓

& Brighter 1 0 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1

▽

0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0

↓
↓

0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1

1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0

↑ ↑ ↑

↑
↓

SPEC. NUMBER

-

SPEC TITLE
HT140WXB-501-1931Product Specification

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

PAGE

OF 362323

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

REV ISSUE DATE

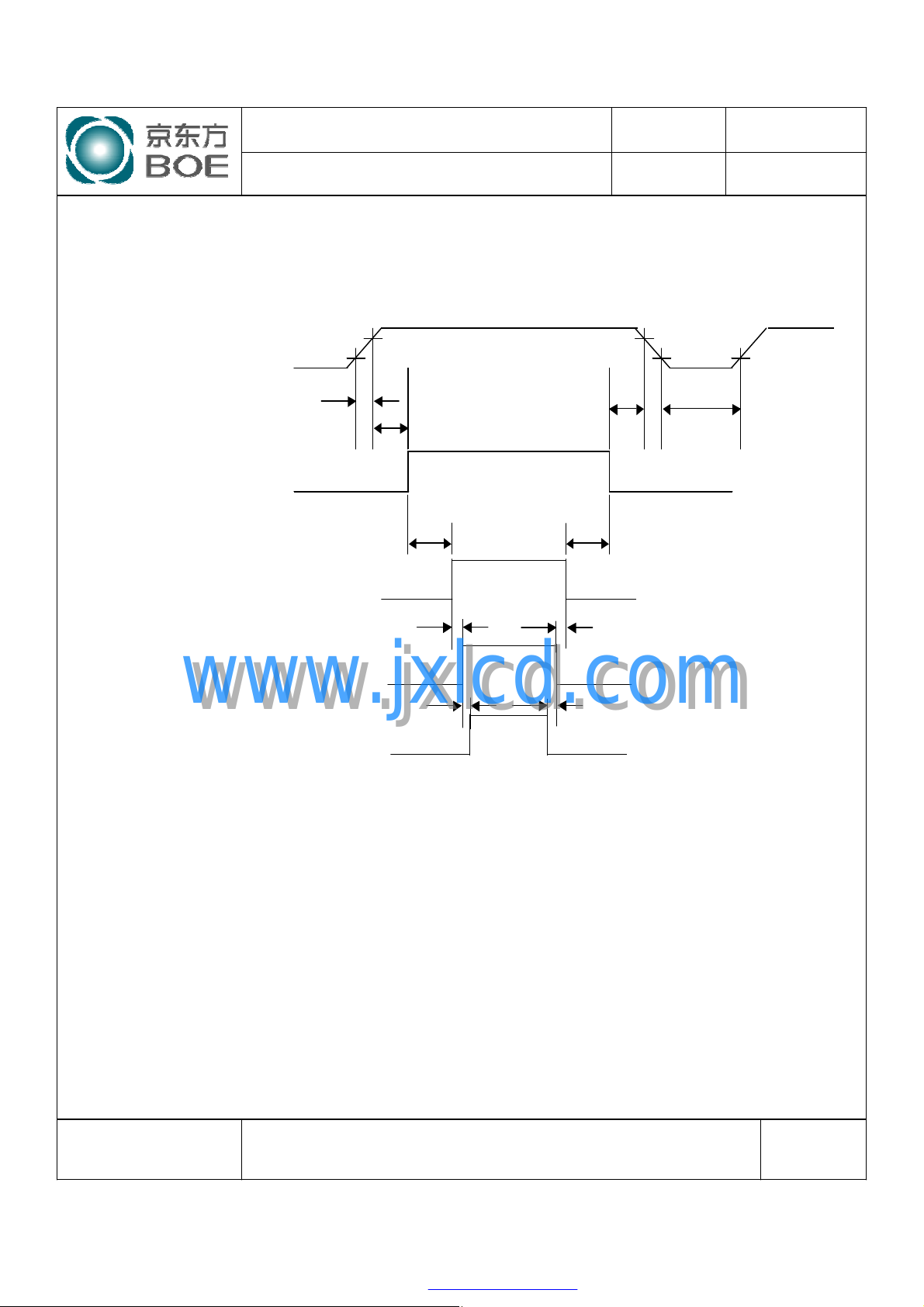

9.0 POWER SEQUENCE

To prevent a latch-up or DC operation of the LCD module, the power on/off
sequence shall be as shown in below

Power Supply

Interface Signal

Backlight Power on

PWM for LED Driver

( Dimming signal)

Enable for LED Driver

( Backlight on/off)

www.jxlcd.com

www.jxlcd.com

0V

0V

0.9VDD

0.1VDD

T1

0V

T2

Valid

T3 T8

T4

T5 T6

0.9VDD

0.1VDD

T9

T10

T7

● T1 ≤ 10 ms

● 0 ms ≤ T2 ≤ 50 ms

● 200 ms ≤ T3

● 10 ms ≤ T4

● 10 ms ≤ T5

● 0 ms ≤ T6

● 10 ms ≤ T7

● 200 ms ≤ T8

● 0 ms ≤ T9 ≤ 50 ms

● 1s ≤ T10

Notes:

1. When the power supply VDD is 0V, keep the level of input signals on
the low or keep high impedance.

2. Do not keep the interface signal high impedance when power is on.
Back Light must be turn on after power for logic and interface signal
are valid.

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 362424

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

10.0 Connector Description

Physical interface is described as for the connector on LCM.
These connectors are capable of accommodating the following signals and will
be following components.

10.1 TFT LCD Module

Connector Name /Description For Signal Connector

Manufacturer IPEX or Compatible
Type/ Part Number I-PEX 20455-040E-12 or Compatible
Mating housing/ Part Number I-PEX 20455-040T-11 or Compatible

REV ISSUE DATE

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

HT140WXB-501-1931Product Specification

OF 3625

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

11.0 MECHANICAL CHARACTERISTICS

11.1 Dimensional Requirements

FIGURE 6 shows mechanical outlines for the model HT140WXB-501.
Other parameters are shown in Table 9.

<Table 9. Dimensional Parameters>

Parameter Specification Unit

Active Area 309.40 (H) ×173.95 (V)

Number of pixels 1366 (H) X 768 (V) (1 pixel = R + G + B dots)

Pixel pitch 0.2265(H) X 0.2265(V)

Pixel arrangement RGB Vertical stripe

Display colors 262K

REV ISSUE DATE

Display mode Normally white

Dimensional outline 323.5*192*5.2 (max) mm

Weight 350 (max) gram

www.jxlcd.com

Back Light

10.2 Mounting

See FIGURE 6.

10.3 Glare and Polarizer Hardness.

The surface of the LCD has an glare coating to maximize readability and hard coating
to reduce scratching.

10.4 Light Leakage

There shall not be visible light from the back-lighting system around the edges of the
screen as seen from a distance 50cm from the screen with anoverhead light level of 350lux.

www.jxlcd.com

Connector : MS24022P10

LED, Horizontal-LED Array type

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3626

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

12.0 RELIABILITY TEST

The Reliability test items and its conditions are shown in below.

<Table 10. Reliability test>

No Test Items Conditions

1 High temperature storage test Ta = 60 ℃, 240 hrs
2 Low temperature storage test Ta = -20 ℃, 240 hrs

REV ISSUE DATE

3
4 High temperature operation test Ta = 50 ℃, 240 hrs

5 Low temperature operation test Ta = 0 ℃, 240 hrs
6 Thermal shock Ta = -20 ℃↔60 ℃ (0.5 hr), 100 cycle

7

8

9

13.0 HANDLING & CAUTIONS

(1) Cautions when taking out the module

Ÿ Pick the pouch only, when taking out module from a shipping package.

(2) Cautions for handling the module

Ÿ As the electrostatic discharges may break the LCD module, handle the LCD module with
Ÿ As the LCD panel and back -light element are made from fragile glass material,impulse
Ÿ As the surface of the polarizer is very soft and easily scratched, use a soft drycloth
Ÿ Do not pull the interface connector in or out while the LCD module is operating.

Ÿ Put the module display side down on a flat horizontal plane.
Ÿ Handle connectors and cables with care.

(3) Cautions for the operation

Ÿ When the module is operating, do not lose CLK, ENAB signals. Ifany one of these

signals is lost, the LCD panel would be damaged.

Ÿ Obey the supply voltage sequence. If wrong sequence is applied,the module

would be damaged.

High temperature & high humidity
operation test

Vibration test
(non-operating)

Shock test
(non-operating)

Electro-static discharge test
(non-operating)

www.jxlcd.com

www.jxlcd.com

care. Peel a protection sheet off from the LCD panel surface as slowly as possible.
and pressure to the LCD module should be avoided.
without chemicals for cleaning.

Ta = 50 ℃, 80%RH, 240 hrs

1.5G, 10~500Hz,Half Sine
X,Y,Z / Sweep rate : 1 hour

220G, Half Sine Wave 2msec

±X,±Y,±

Air : 150 pF, 330Ω, 15 KV
Contact : 150 pF, 330Ω, 8 KV

Z Once for each direction

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3627

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

(4) Cautions for the atmosphere

Ÿ Dew drop atmosphere should be avoided.
Ÿ Do not store and/or operate the LCD module in a high temperature and/or humidity

atmosphere. Storage in an electro-conductive polymer packing pouch and under relatively
low temperature atmosphere is recommended.

(5) Cautions for the module characteristics

Ÿ Do not apply fixed pattern data signal to the LCD module at product aging.
Ÿ Applying fixed pattern for a long time may cause image sticking.

(6) Other cautions

Ÿ Do not disassemble and/or re-assemble LCD module.
Ÿ Do not re-adjust variable resistor or switch etc.
Ÿ When returning the module for repair or etc., Please pack the module not to be broken.

We recommend to use the original shipping packages.

REV ISSUE DATE

14.0 LABEL

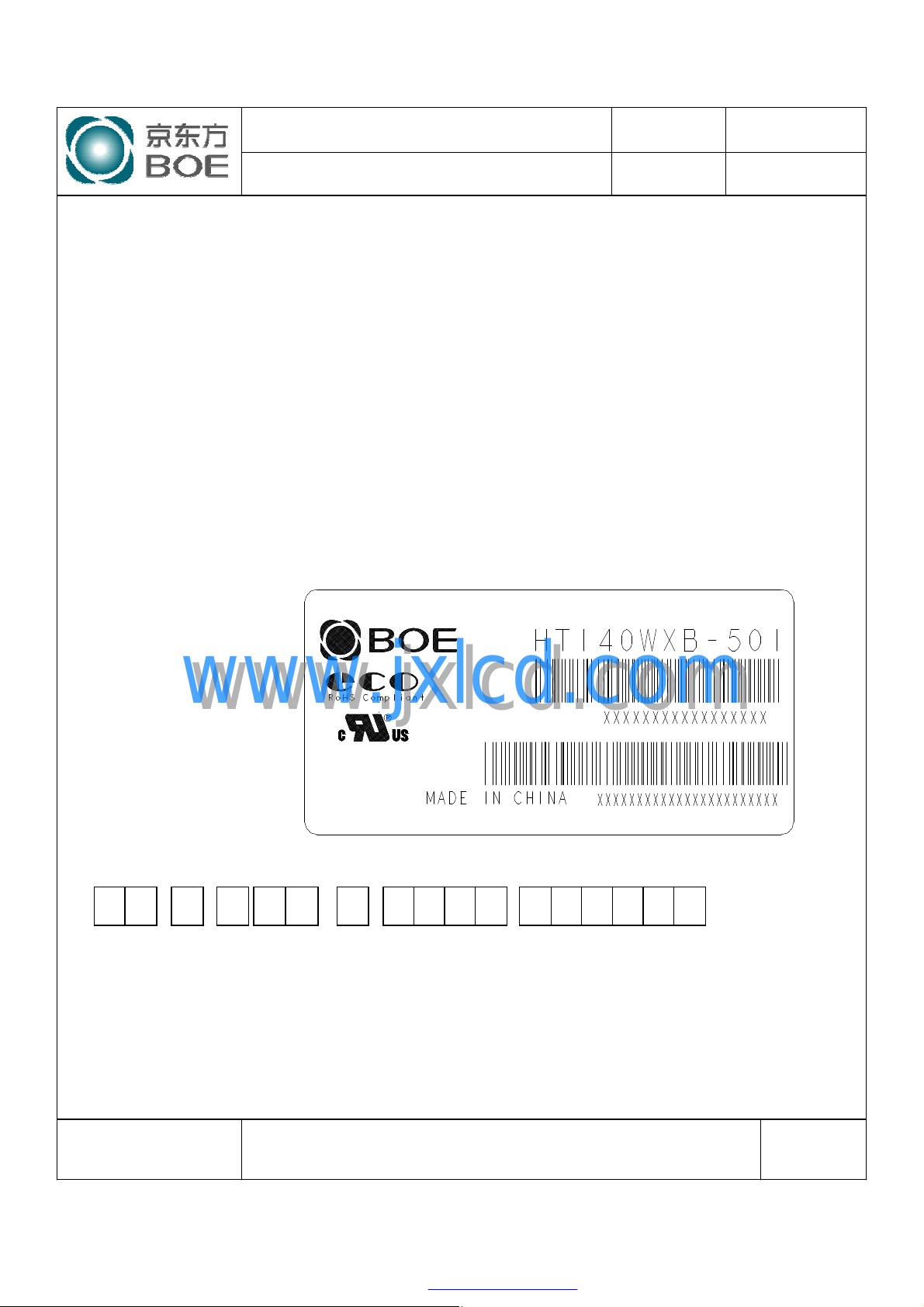

(1) Product label

www.jxlcd.com

www.jxlcd.com

1

Type designation

No 1. Control Number
No 2. Rank / Grade

2 3 4

5

6 7

X

X X X XX X XX X XX X X XX X

No 5. Month (1, 2, 3, …, 9, X, Y, Z)
No 6. Product Identification (FG)
No 7. Serial Number

No 3. Line classification(BOE OT:A/BC)
No 4. Year (10: 2010, 11: 2011, …)

SPEC. NUMBER

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 3628

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

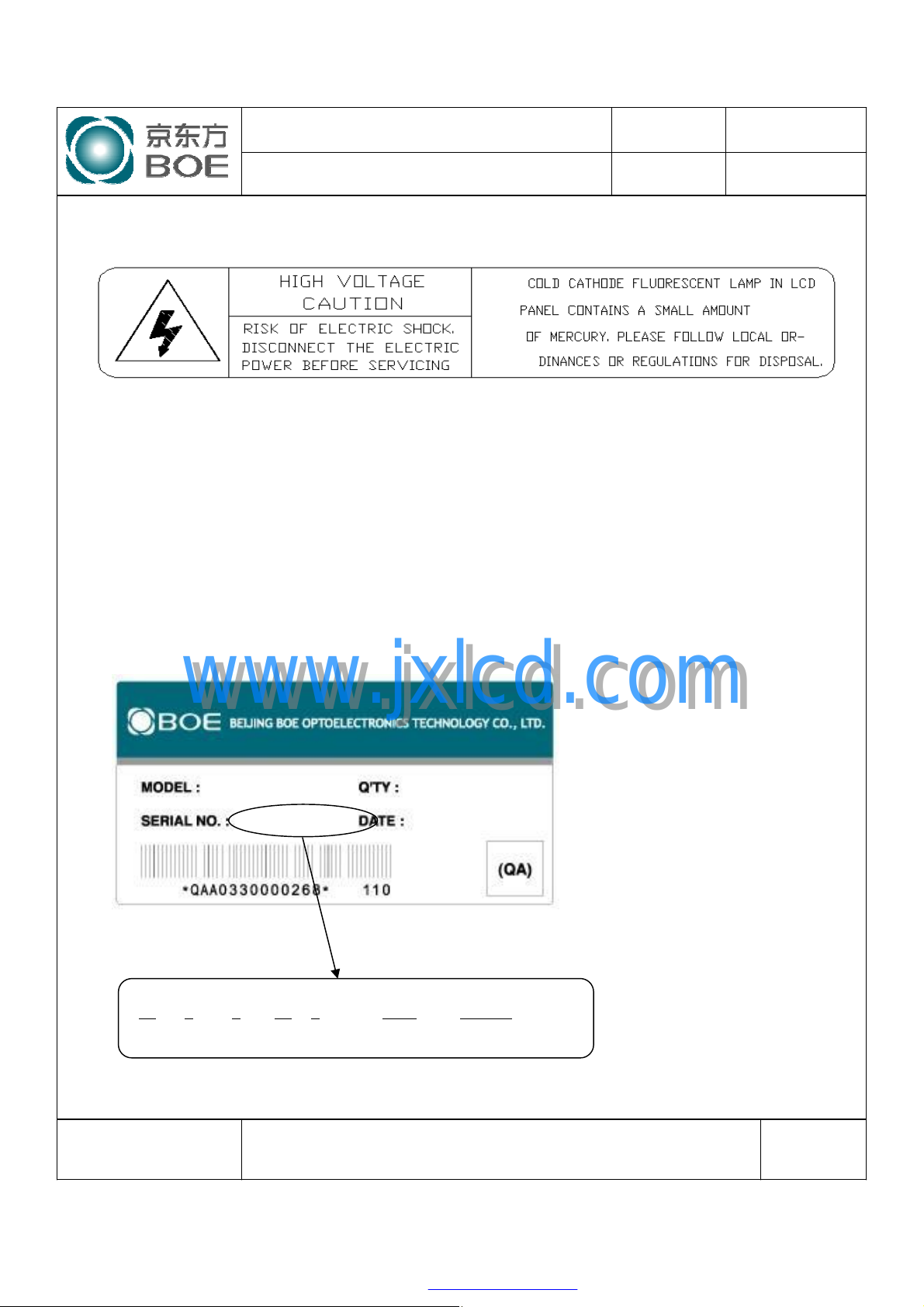

(2) High voltage caution label

(3) Box label

Label Size: 110 mm (L) × 56 mm (W)
Contents
Model: HT140WXB-501
Q`ty: Module Q`tyin one box
Serial No.: Box Serial No. See next figure for detail description.
Date: Packing Date
Internal use of Product

REV ISSUE DATE

www.jxlcd.com

www.jxlcd.com

HT140WXB-501

00 0 0 00 0 0000 000000
Type Grade Line Year Month Internal use Serial No

SPEC. NUMBER

0000000000000

SPEC TITLE

38
201X.X.XX

PAGE

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

HT140WXB-501-1931Product Specification

OF 3629

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

15.0 PACKING INFORMATION

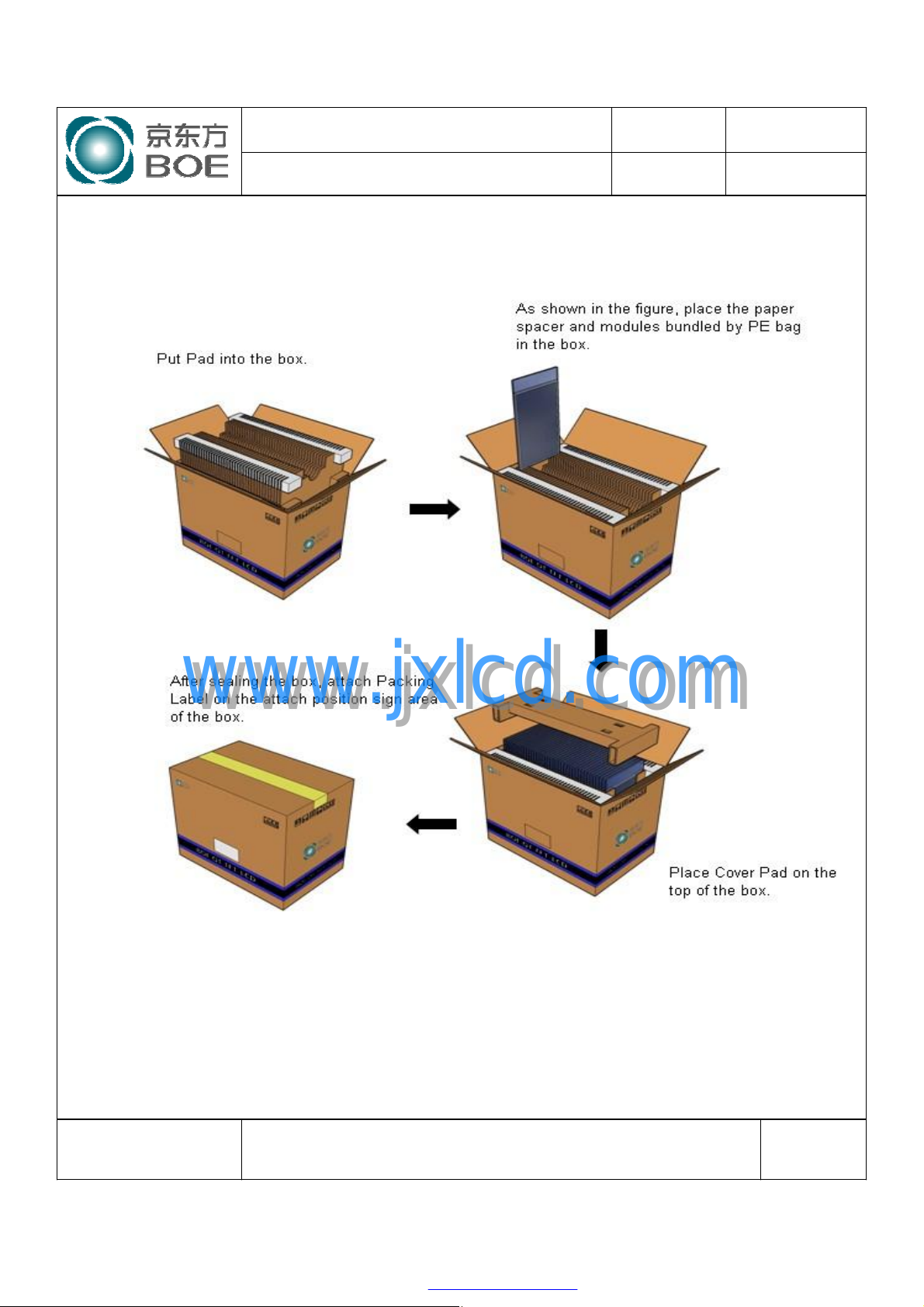

15.1 Packing order

REV ISSUE DATE

www.jxlcd.com

www.jxlcd.com

15.2 Notes

l Box Dimension: 526mm(W) x 346mm(D) x 448mm(H)
l Package Quantity in one Box: 38pcs
l Total Weight: 16kg

SPEC. NUMBER

SPEC TITLE

PAGE

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

HT140WXB-501-1931Product Specification

OF 3630

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

16.0 MECHANICAL OUTLINE DIMENSION

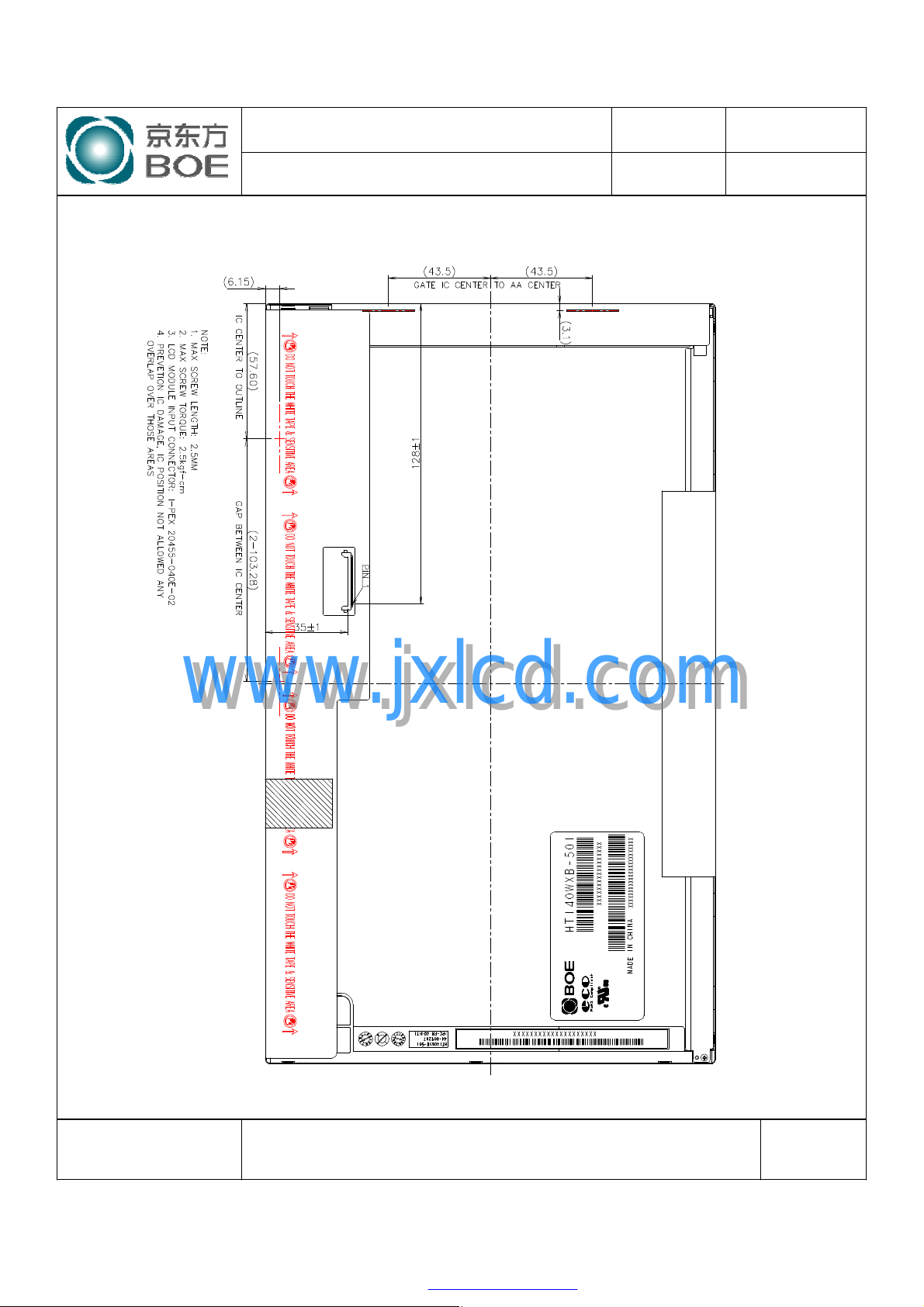

Figure 6. TFT-LCD Module Outline Dimension (Front View)

REV ISSUE DATE

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

HT140WXB-501-1931Product Specification

OF 3631

PRODUCT GROUP

TFT LCD PRODUCT 0 2010.10.12

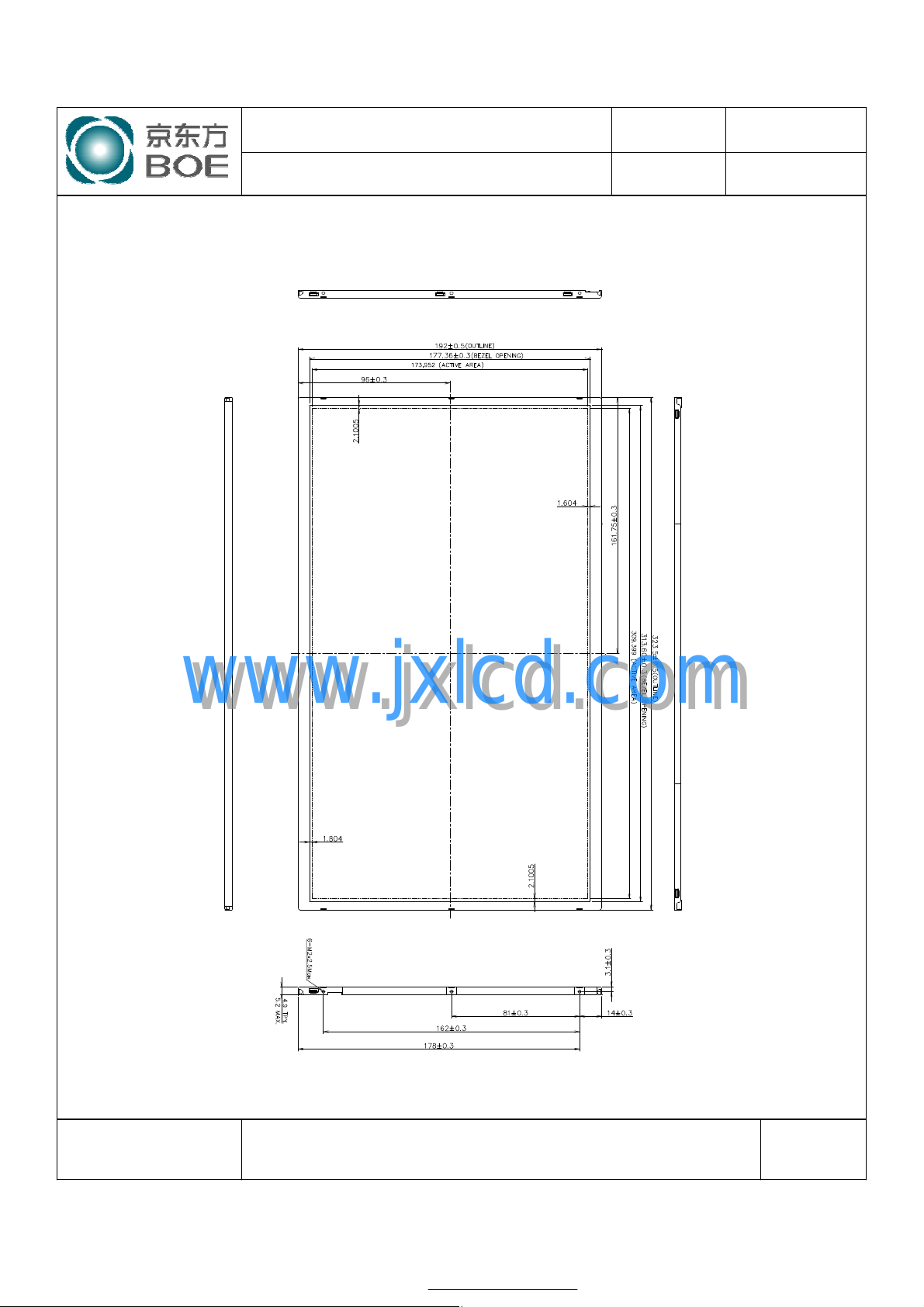

Figure 7. TFT-LCD Module Outline Dimensions (Rear view)

REV ISSUE DATE

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

SPEC TITLE

PAGE

-

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

HT140WXB-501-1931Product Specification

OF 3632

17.0 EDID Table

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT 0 2010.10.12

Address

(HEX)

00 00 0 0
01 FF 255 255
02 FF 255 255
03 FF 255 255
04 FF 255 255
05 FF 255 255
06 FF 255 255
07 00 0 0
08 09 9
09 E5 229

0A 9F 159

0B 05 5
0C 00 0
0D 00 0

0E 00 0

0F 00 0

10 Week of manufacture 1 1 1

11 Year of Manufacture 14 20 2010 Manufactured in 2010

12 EDID Structure Ver. 01 1 1 EDID Ver 1.0

13 EDID revision # 03 3 3 EDID Rev. 0.3

14 Video input definition 80 128 -

15 Max H image size 1F 31 31 31 cm (Approx)

16 Max V image size 11 17 17 17 cm (Approx)

17 Display Gamma 78 120 2.2 Gamma curve = 2.2

18 Feature support 0A 10 RGB display, Preferred Timming mode

19 Red/Green low bits 24 36 - Red / Green Low Bits
1A Blue/White low bits 00 00 - Blue / White Low Bits

1B Red x high bits 95 149 0.583 Red (x) = 10010011 (0.583)
1C Red y high bits 5A 90 0.354 Red (y) = 01010101 (0.354)
1D Green x high bits 50 80 0.314 Green (x) = 01010101 (0.314)

1E Green y high bits 8C 140 0.547 Green (y) = 10010101 (0.547)

1F Blue x high bits 26 38 0.149 Blue (x) = 00100111 (0.149)

20 BLue y high bits 1F 31 0.122 Blue (y) = 00011110 (0.122)

21 White x high bits 50 80 0.313 White (x) = 01010000 (0.313)

22 White y high bits 54 84 0.329 White (y) = 01010100 (0.329)

Function Hex Dec Input values. Notes

Header EDID Header

ID Manufacturer Name BOE ID = BOE

ID Product Code 1439 ID = 1439

32-bit serial No.

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

-

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 363333333333

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT 0 2010.10.12

Address

(HEX)

23 Established timing 1 00 0 ­24 Established timing 2 00 0 ­25 Established timing 3 00 0 ­26 01 1
27 01 1
28 01 1
29 01 1

2A 01 1

2B 01 1
2C 01 1
2D 01 1

2E 01 1

2F 01 1

30 01 1

31 01 1

32 01 1

33 01 1

34 01 1

35 01 1

36 3E 62

37 1C 28

38 56 86 1366 Hor Active = 1366

39 A0 160 160 Hor Blanking = 160
3A 50 80 - 4 bits of Hor. Active + 4 bits of Hor. Blanking

3B 00 0 768 Ver Active = 768
3C 16 22 22 Ver Blanking = 22
3D 30 48 - 4 bits of Ver. Active + 4 bits of Ver. Blanking

3E 30 48 48 Hor Sync Offset = 48

3F 20 32 32 H Sync Pulse Width = 32

40 36 54 3 V sync Offset = 3 line

41 00 0 6 V Sync Pulse width : 6 line

42 35 53 309 Horizontal Image Size = 309 mm (Low 8 bits)

43 AD 173 173 Vertical Image Size = 173 mm (Low 8 bits)

44 10 16 -

45 00 0 0 Hor Border (pixels)

46 00 0 0 Vertical Border (Lines)

47 1A 26 Refer to right table

Function Hex Dec Input values.

Standard timing #1 Not Used

Standard timing #2 Not Used

Standard timing #3 Not Used

Standard timing #4 Not Used

Standard timing #5 Not Used

Standard timing #6 Not Used

Standard timing #7 Not Used

Standard timing #8 Not Used

www.jxlcd.com

www.jxlcd.com

Detailed timing/monitor

descriptor #1

72.3 72.3MHz Main clock

Notes

SPEC. NUMBER

-

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 363434343434

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT 0 2010.10.12

Address

(HEX)

48 3E 62
49 1C 28

4A 56 86 1366 Hor Active = 1366

4B A0 160 160 Hor Blanking = 160
4C 50 80 - 4 bits of Hor. Active + 4 bits of Hor. Blanking
4D 00 0 768 Ver Active = 768

4E 16 22 22 Ver Blanking = 22

4F 30 48 - 4 bits of Ver. Active + 4 bits of Ver. Blanking

50 30 48 48 Hor Sync Offset = 48

51 20 32 32 H Sync Pulse Width = 32

52 36 54 3 V sync Offset = 3 line

53 00 0 6 V Sync Pulse width : 6 line

54 35 53 309 Horizontal Image Size = 309 mm (Low 8 bits)

55 AD 173 173 Vertical Image Size = 173 mm (Low 8 bits)

56 10 16 -

57 00 0 0 Hor Border (pixels)

58 00 0 0 Vertical Border (Lines)

59 1A 26 Refer to right table
5A 00 0

5B 00 0
5C 00 0
5D FE 254

5E 00 0

5F 42 66 B

60 4F 79 O

61 45 69 E

62 20 32

63 4F 79 O

64 54 84 T

65 0A 10

66 20 32

67 20 32

68 20 32

69 20 32
6A 20 32

6B 20 32

Function Hex Dec Input values.

72.3 72.3MHz Main clock

Detailed timing/monitor

descriptor #2

www.jxlcd.com

www.jxlcd.com

Detailed timing/monitor

descriptor #3

Manufacture name : BOEOT

Notes

ASCII Data Sting Tag

SPEC. NUMBER

-

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 363535353535

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

PRODUCT GROUP

REV ISSUE DATE

TFT LCD PRODUCT 0 2010.10.12

Address

(HEX)

6C 00 0

6D 00 0

6E 00 0

6F FE 254

70 00 0

71 48 72 H

72 54 84 T

73 31 49 1

74 34 52 4

75 30 48 0

76 57 87 W

77 58 88 X

78 42 66 B

79 2D 45 -

7A 35 53 5

7B 30 48 0

7C 31 49 1

7D 0A 10

7E Extension flag 00 0

7F Checksum 03 3 -

Function Hex Dec Input values.

Detailed timing/monitor

descriptor #4

www.jxlcd.com

www.jxlcd.com

Notes

Product Name Tag (ASCII)

Model name : HT140WXB-501

SPEC. NUMBER

-

SPEC TITLE
HT140WXB-501-1931Product Specification

PAGE

OF 363636363636

B2006-5006-O (3/3) A4(210 X 297)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
