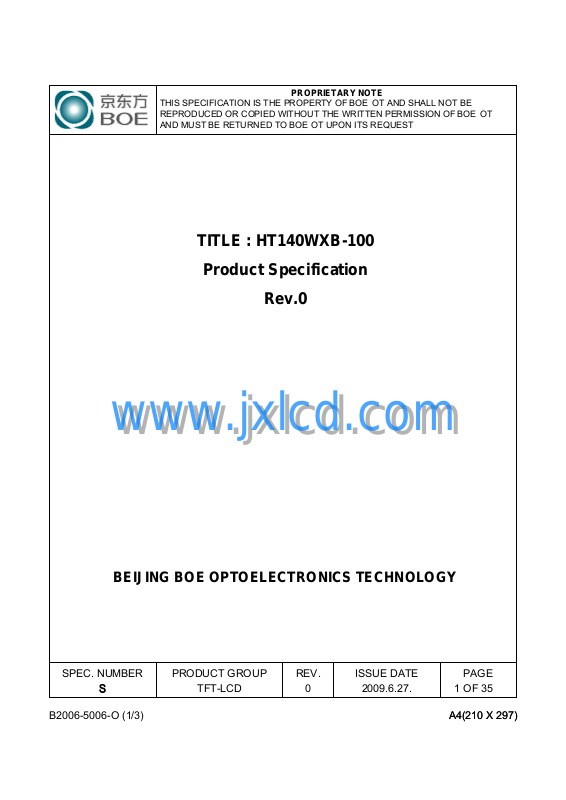

BOE OPTOELECTRONICS HT140WXB-100 SPECIFICATION

PROPRIETARY NOTE

THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OT
AND MUST BE RETURNED TO BOE OT UPON ITS REQUEST

TITLE : HT140WXB-100

Product Specification

Rev.0

www.jxlcd.com

www.jxlcd.com

BEIJING BOE OPTOELECTRONICS TECHNOLOGY

SPEC. NUMBER

S

PRODUCT GROUP

TFT-LCD

REV.

0

ISSUE DATE

2009.6.27.

PAGE
OF 35

1

B2006-5006-O (1/3) A4(210 X 297) A4(210 X 297)

PRODUCT GROUP

REVISION HISTORY

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

PREPARED DATE DESCRIPTION OF CHANGES ECN NO.REV.

Xu Yubo2009.6.27.Initial Release-0

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

2

OF 35

B2006-5006-O (2/3)

A4(210 X 297)

PRODUCT GROUP

Contents

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

PageItemsNo.

4General Description1.0

6Absolute Maximum ratings2.0

7Electrical specifications.3.0

9Optical specifications.4.0

14Interface Connection5.0

18Signal Timing Specification6.0

www.jxlcd.com

www.jxlcd.com

20Signal Timing waveforms7.0

22Input Signals, Display Colors & Gray Scale of Colors8.0

23Power Sequence9.0

24Connector description10.0

25Mechanical Characteristics11.0

26Reliability Test12.0

26Handling & Cautions.13.0

27Label14.0

29Packing information15.0

30Mechanical Outline Dimension 16.0

32EDID Table 17.0

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

3

OF 35

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

1.0 GENERAL DESCRIPTION

1.1 Introduction

HT140WXB-100 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 14.0 inch
diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this
module is a low reflection and higher color type. Therefore, this module is suitable for
Notebook PC. The LED Driver for back-light driving is built in this model.
All input signals are LVDS interface compatible.

LED Driver

LVDS

Connector

Input
Signal

1

www.jxlcd.com

VDD

www.jxlcd.com

1.2 Features

z 1 Channel LVDS Interface with 1 pixel / clock
z Thin and light weight
z 6-bit color depth, display 262K colors
z Single LED Lighting Bar. (Top side/Horizontal Direction)
z Data enable signal mode
z Side Mounting Frame
z Green Product (RoHS & Halogen free product)
z On board LED Driving circuit
z Low driving voltage and low power consumption
z On board EDID chip

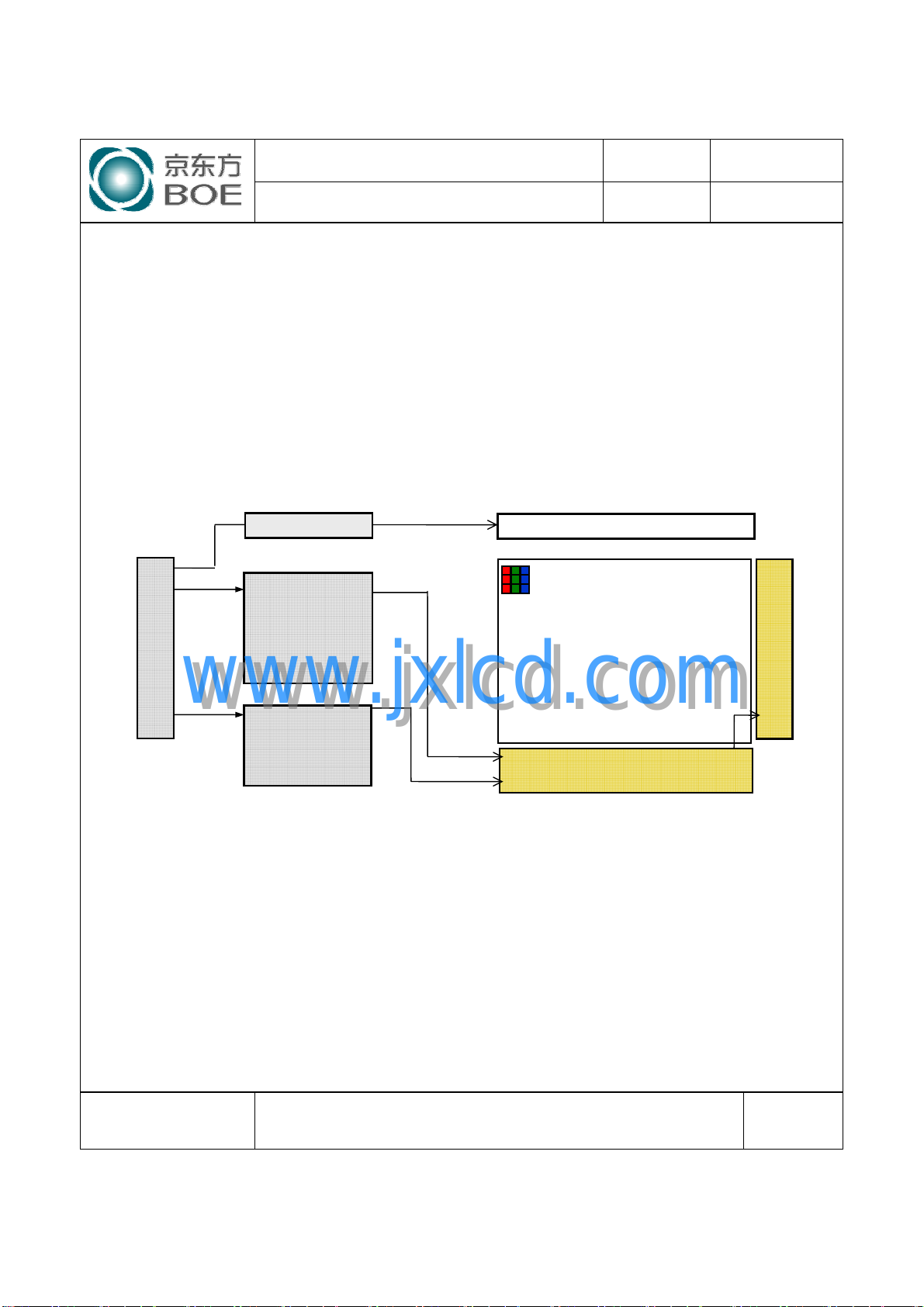

LVDS Rx

+

T/CON

+

Mini-LVDS Tx

DC/DC

Gamma

Vcom

LED Lighting Bar

TFT LCD Panel

BACK LIGHT (Fluorescent Lamp)

1366 ×768

Source Driver

Gate Driver

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

4

OF 35

A4(210 X 297)

PRODUCT GROUP

1.3 Application

z Notebook PC (Wide type)

1.4 General Specification

The followings are general specifications at the model HT140WXB-100. (listed in Table 1.)

<Table 1. General Specifications>

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

RemarksUnitSpecificationParameter

Active area

Number of pixels

Pixel pitch

www.jxlcd.com

www.jxlcd.com

Power consumption

309.4(H) ×173.95(V)

1366 (H) ×768 (V)

0.2265(H) ×0.2265 (V)

RGB Vertical stripePixel arrangement

Normal WhiteDisplay mode

Glare (Clear Black) / Hard coating 3HSurface treatment

: 1.1 (max)

D

: 3.5 (max)

BL

: 4.6 (max)

total

mm

pixels

mm

colors262KDisplay colors

mm323.5 (H) ×192 (V) ×5.2 (D:max)Dimensional outline

g350 (max)Weight

Note 1Upper edge side, 1-LED Lighting Bar typeBack-light

WP

WP

WP

Notes : 1. LED Lighting Bar (48*LED Array)

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

5

OF 35

A4(210 X 297)

PRODUCT GROUP

Temp

(

)

(40,

)

ty

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

2.0 ABSOLUTE MAXIMUM RATINGS

The followings are maximum values which, if exceed, may cause faulty operation or
damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.

< Table 2. Absolute Maximum Ratings>

Ta=25+/-2°C

RemarksUnitMax.Min.SymbolParameter

Power Supply Voltage

Logic Supply Voltage

Operating Temperature

Storage Temperature

DD

IN

OP

ST

DD

+0.3Vss-0.3V

+500T

+60-20T

V4.0-0.3V

Note 1

VV

℃

Note 2

℃

Notes : 1. Permanent damage to the device may occur if maximum values are exceeded
functional operation should be restricted to the condition described under normal
operating conditions.

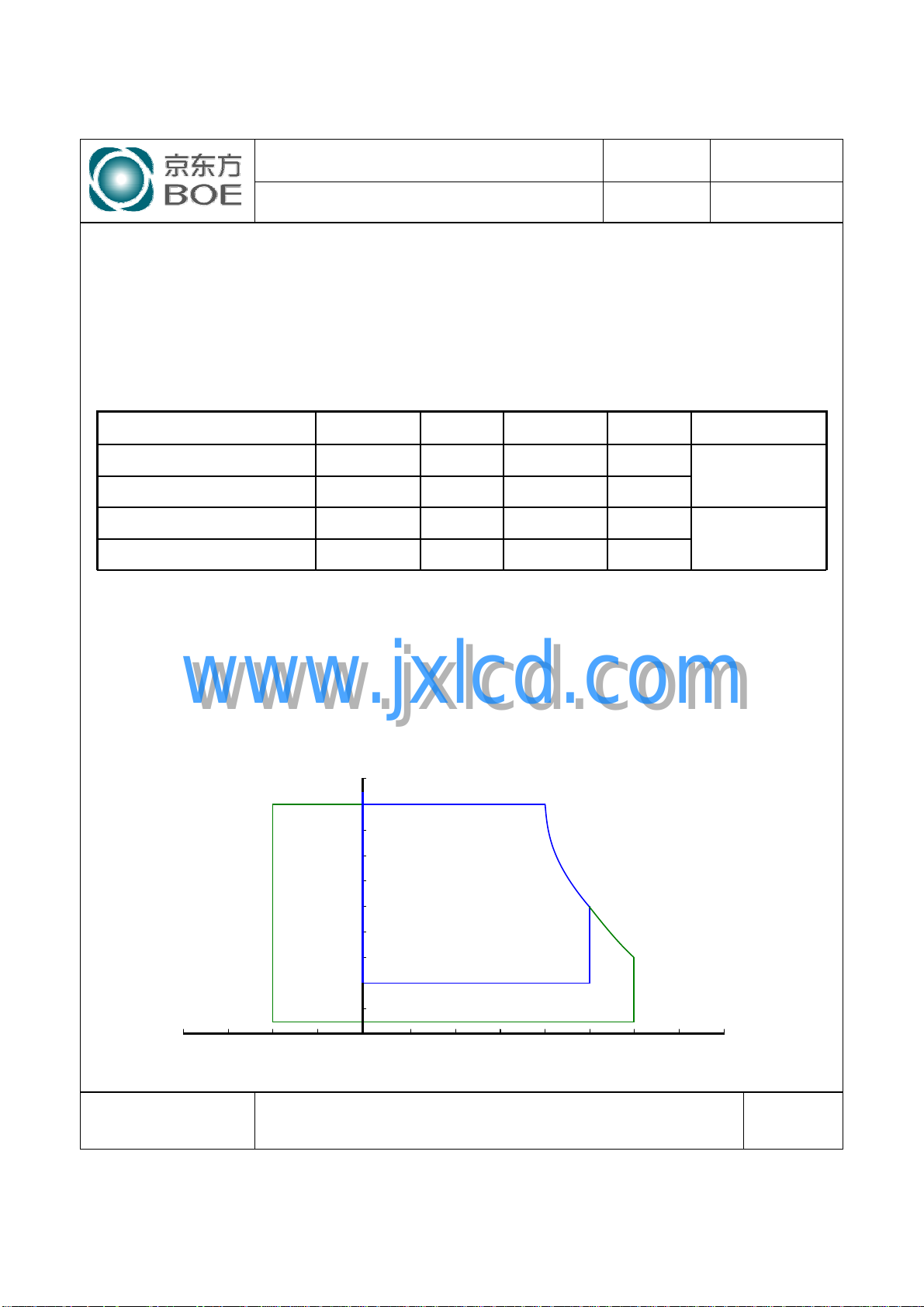

2. Temperature and relative humidity range are shown in the figure below.
95 % RH Max. ( 40
Maximum wet - bulb temperature at 39

www.jxlcd.com

www.jxlcd.com

O

C ≥ Ta)

Relative Humudi

100

90

80

O

C or less. (Ta > 40 OC) No condensation.

90

SPEC. NUMBER

B2006-5006-O (3/3)

60

Operating Range

40

20

Storage Range

5

-40 -20 0 20 40 60 80

(50, 50)

(60, 27)

erature

SPEC TITLE

S

HT140WXB-100 Product Specification

℃

PAGE

6

OF 35

A4(210 X 297)

PRODUCT GROUP

3.0 ELECTRICAL SPECIFICATIONS

3.1 Electrical Specifications

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Parameter Min. Typ. Max. Unit Remarks

Power Supply Voltage

Permissible Input Ripple Vol
tage

Power Supply Current

Positive-going Input Thresh
old Voltage

Negative-going Input Thresh
old Voltage

Differential Input Voltage

Power Consumption

www.jxlcd.com

www.jxlcd.com

Table 3. Electrical specifications >

<

V

DD

V

RF

I

DD

V

IT+

V

IT-

V

ID

P

D

P

BL

P

total

3.0 3.3 3.6 V Note 1

--100mV

- 242 333 mA Note 1

--100mV

-100 - - mV

200 - 600 mV

- 0.8 1.1 W Note 1

- 3.3 3.5 W Note 2

-4.14.6W

Ta=25+/-2°C

At V

V

= 3.3V

DD

cm = 1.2V typ.

Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.
The current draw and power consumption specified is for 3.3V at 25℃.
a) Typ : Window XP pattern
b) Max : Vertical 2 line skip pattern

2. Calculated value for reference (V

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

LED

×

I

LED

)

A4(210 X 297)

PAGE

77

OF 35

PRODUCT GROUP

3.0 ELECTRICAL SPECIFICATIONS

3.2 Backlight Unit

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Table 4. LED Driving guideline specifications >

<

Parameter Min. Typ. Max. Unit Remarks

LED Forward Voltage

LED Forward Current

LED Power Consumption

LED Life-Time N/A 10,000 - - Hour

Power supply voltage for LE
D Driver

EN Control

Level

PWM Contr

ol Level

Backlight on 2.0 5.0 V

Backlight off 0 1.0 V

www.jxlcd.com

www.jxlcd.com

PWM High Le

vel

PWM Low Le

vel

V

F

I

F

P

LED

V

LED

3.0 3.2 3.4 V

-20 mA -

3.3 3.5 W

71220V

2.0 5.0 V

00.1V

Ta=25+/-2°C

-

Note 1

F = 20mA

I

PWM Control Frequency

Duty Ratio - 20 - 100 %

Notes : 1. Calculator Value for reference I

2. The LED Life-time define as the estimated time to 50% degradation of initial luminous.

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

F

PWM

180 200 220 Hz

LED

LED = PLED

V

×

PAGE

88

OF 35

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

4.0 OPTICAL SPECIFICATION

4.1 Overview

The test of Optical specifications shall be measured in a dark room (ambient luminance ≤ 1
lux and temperature = 25±2℃) with the equipment of Luminance meter system (Goniometer
system and TOPCON BM-5) and test unit shall be located at an approximate distance
50cm from the LCD surface at a viewing angle of θ and Φ equal to 0°. We refer to θ¬=0
(=θ3 ) as the 3 o’clock direction (the “right”), θ¬=90 (= θ12 ) as the 12 o’clock direction
(“upward”), θ¬=180 (= θ9 ) as the 9 o’clock direction (“left”) and
θ¬=270(= θ6 ) as the 6 o’clock direction (“bottom”). While scanning θand/or ¬, the center
of the measuring spot on the Display surface shall stay fixed. The backlight should be
operating for 30 minutes prior to measurement. VDD shall be 3.3+/- 0.3V at 25°C.
Optimum viewing angle direction is 6 ’clock.

4.2 Optical S pecifications

<Table 5. Optical Specifications>

Remark UnitMax. Typ.Min.ConditionSymbolParameter

Viewing Angle r

ange

www.jxlcd.com

www.jxlcd.com

Luminance of

White

White Luminan

ce uniformity

White Chromaticity

Reproduction

of color

Response Time

(Rising + Falling)

Horizontal

Vertical

5 Points

5 Points

13 Points

Red

Green

Blue

Θ
Θ

Θ

Θ

CRLuminance Contrast ratio

Y

Δ

Y13

x
y
x
y
x
y

x

y

T

CTCross Talk

3

9

12

6

w

Y5

w

w

R

R

G

G

B

B

RT

CR > 10

Θ = 0°

= 0

Θ

°

LED = 20mA

I

= 0

Θ

°

= 0

Θ

°

Ta= 25° C

Θ = 0

°

= 0

Θ

°

-220187

--80

--65Δ

0.3430.3130.283

0.3590.3290.299

0.6460.6160.586

0.3850.3550.325

0.6440.6140.584

0.1760.1460.116

0.1230.0930.063

Deg.-45­Deg.-45­Deg.-15­Deg.-35-

0.3560.3260.296

ms16-

2

Note 1

Note 2500400

Note 3cd/m

Note 4

Note 5

Note 68

Note 7 %2.0--

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

9

OF 35

A4(210 X 297)

PRODUCT GROUP

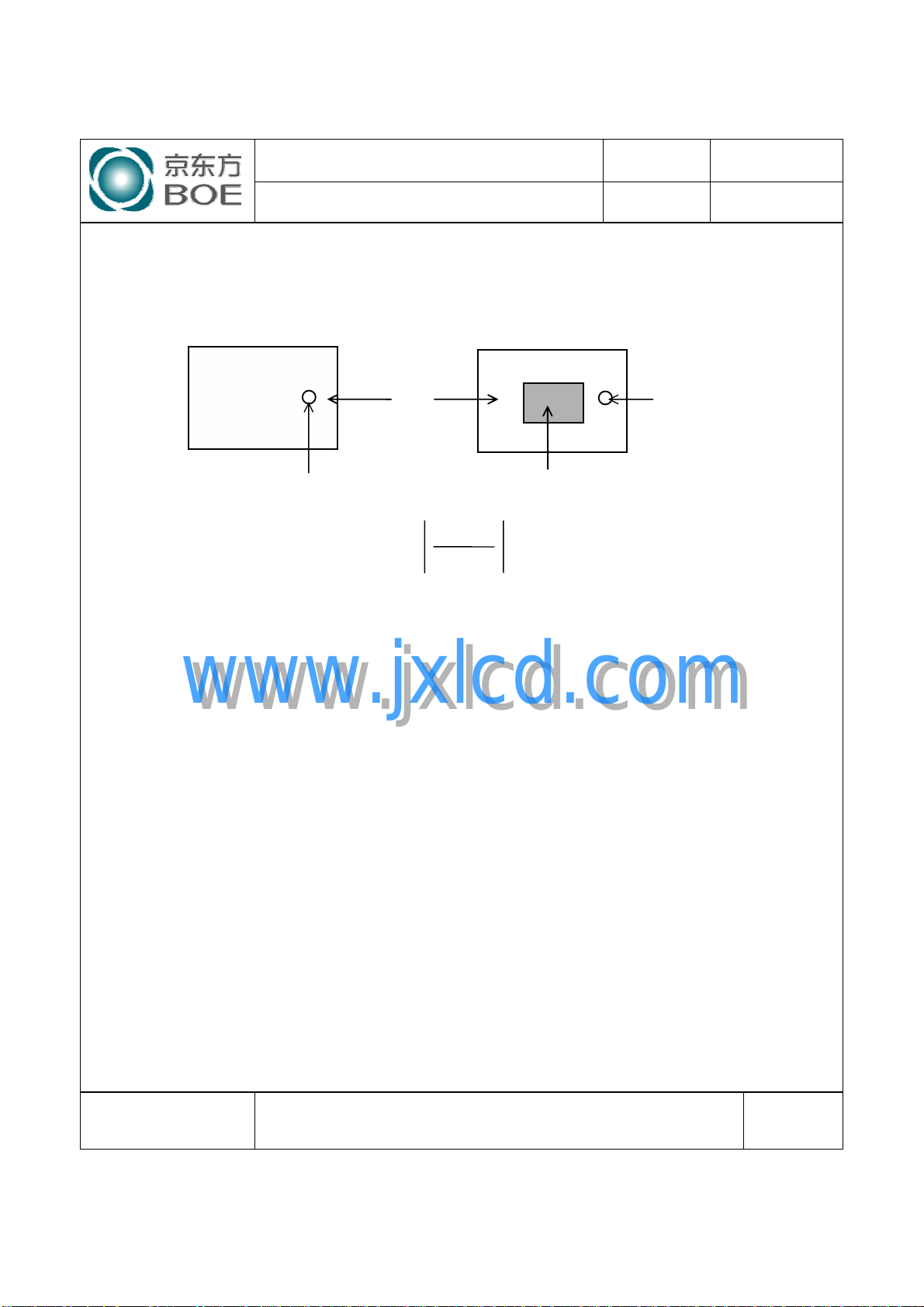

Notes : 1. Viewing angle is the angle at which the contrast ratio is greater than 10. The
viewing angles are determined for the horizontal or 3, 9 o ’clock direction and the
vertical or 6, 12 o’clock direction with respect to the optical axis which is normal
to the LCD surface (see FIGURE 1).

2. Contrast measurements shall be made at viewing angle of Θ= 0 and at the center
of the LCD surface. Luminance shall be measured with all pixels in the view field
set first to white, then to the dark (black) state .
(see FIGURE 1) Luminance Contrast Ratio (CR) is defined mathematically.

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

CR =

3. Center Luminance of white is defined as luminance values of 5 point average
across the LCD surface. Luminance shall be measured with all pixels in the view
field set first to white. This measurement shall be taken at the locations shown

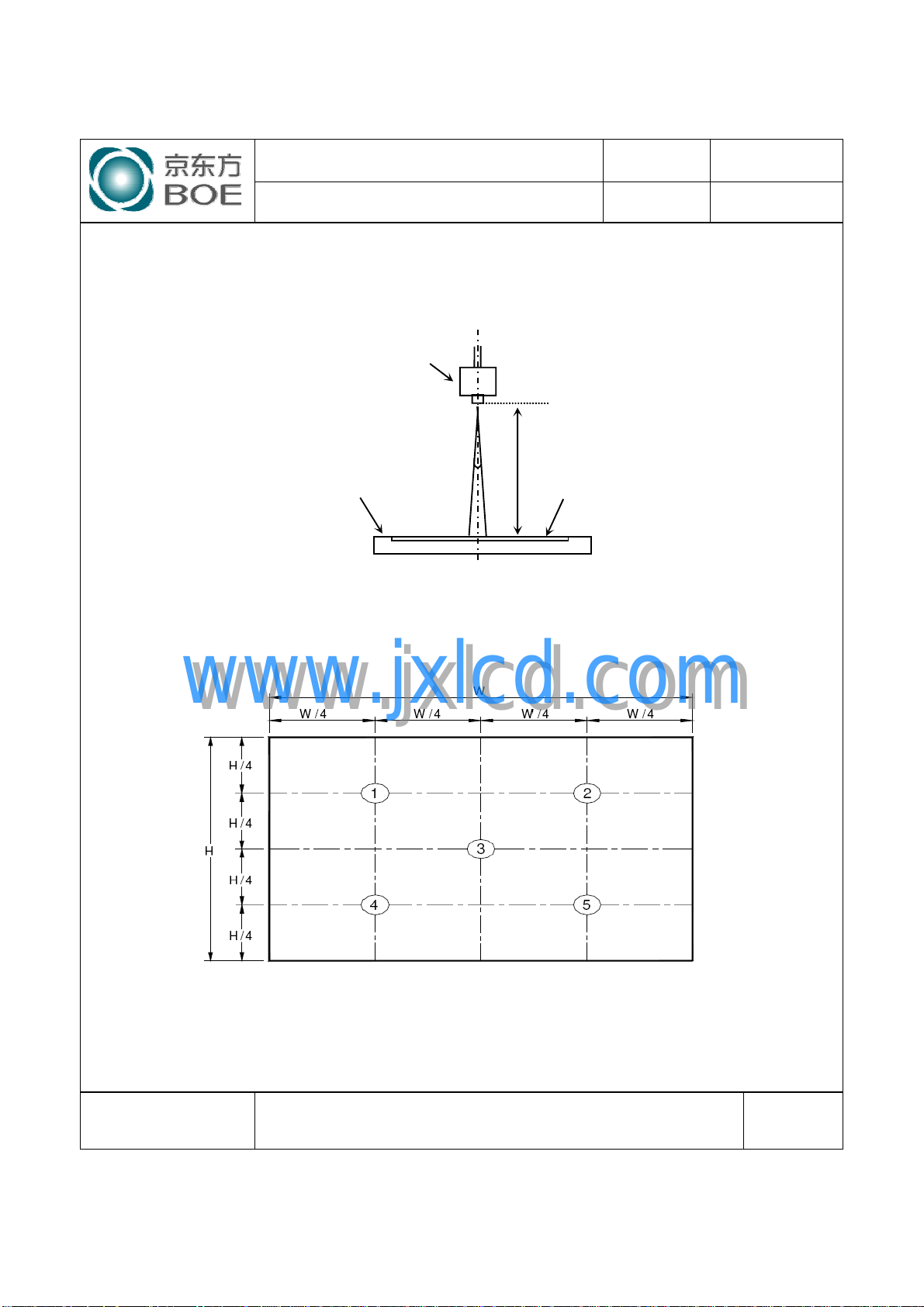

in FIGURE 2 for a total of the measurements per display.

www.jxlcd.com

4. The White luminance uniformity on LCD surface is then expressed as : ΔY =
Minimum Luminance of 5(or 13) points / Maximum Luminance of 5(or 13) points
(see FIGURE 2 and FIGURE 3).

5. The color chromaticity coordinates specified in Table 5 shall be calculated from
the spectral data measured with all pixels first in red, green, blue and white.
Measurements shall be made at the center of the panel.

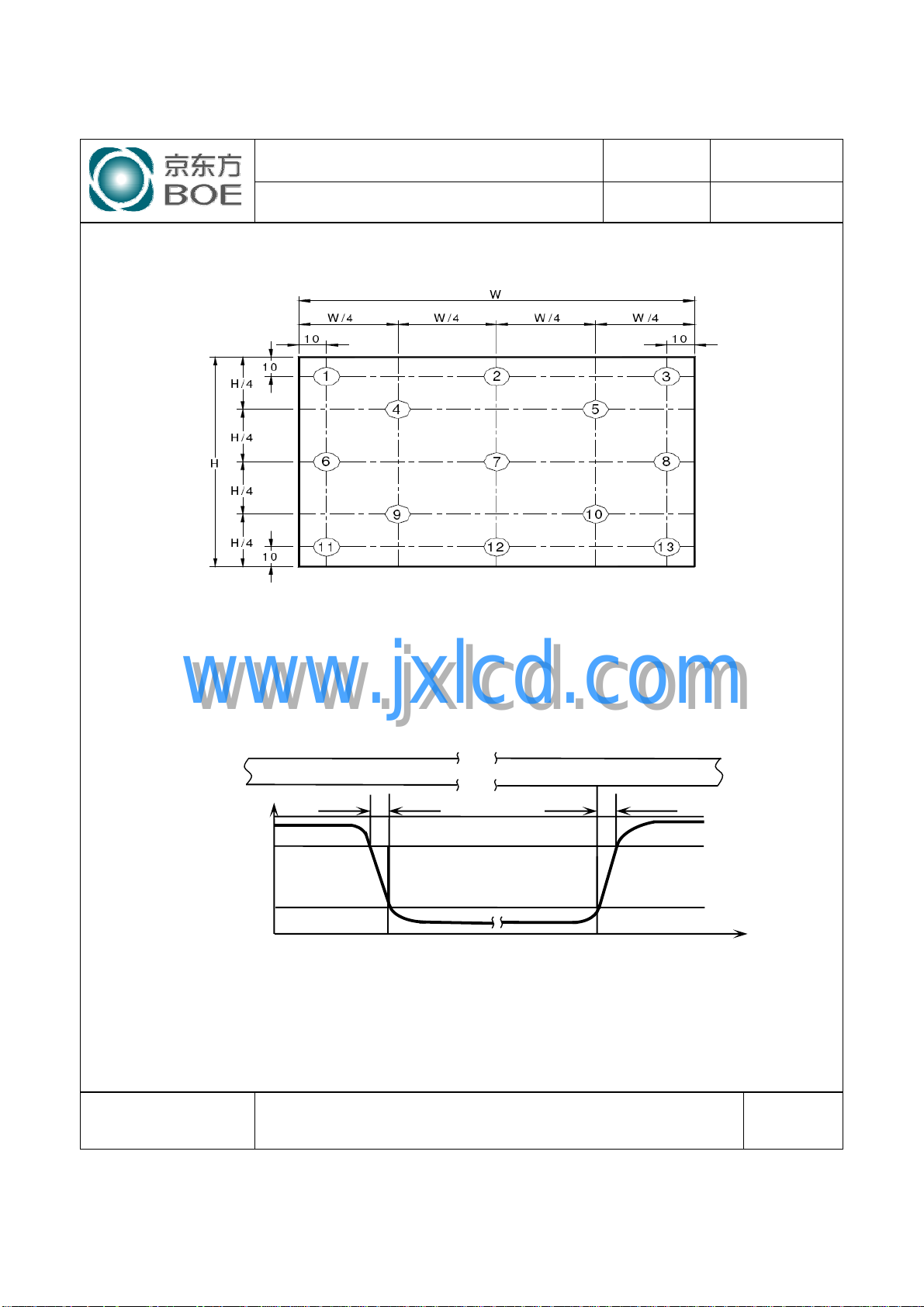

6. The electro-optical response time measurements shall be made as FIGURE 4
by switching the “data” input signal ON and OFF. The times needed for the
luminance to change from 10% to 90% is Tr, and 90% to 10% is Td.

www.jxlcd.com

Luminance when displaying a white raster
Luminance when displaying a black raster

7. Cross-Talk of one area of the LCD surface by another shall be measured by
comparing the luminance (YA) of a 25mm diameter area, with all display pixels
set to a gray level, to the luminance (YB) of that same area when any adjacent
area is driven dark. (See FIGURE 5).

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

10

OF 35

A4(210 X 297)

4.3 Optical measurements

PRODUCT GROUP

Figure 1. Measurement Set Up

Photo detector
(TOPCON BM-5A)

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Field = 2

TFT-LCD module

Optical characteristics measurement setup

Figure 2. White Luminance and Uniformity Measurement Locations (5 points)

www.jxlcd.com

www.jxlcd.com

o

50 cm

LCD panel

Center of the screen

Center Luminance of white is defined as luminance values of center 5 points acro
ss the LCD surface. Luminance shall be measured with all pixels in the view field se
t first to white. This measurement shall be taken at the locations shown in FIGURE
2 for a total of the measurements per display.

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

11

OF 35

A4(210 X 297)

PRODUCT GROUP

Figure 3. Uniformity Measurement Locations (13 points)

The White luminance uniformity on LCD surface is then expressed as : ΔY5 = Mi
nimum Luminance of five points / Maximum Luminance of five points (see FIGU
RE 2) , ΔY13 = Minimum Luminance of 13 points /Maximum Luminance of 13 po
ints (see FIGURE 3).

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

www.jxlcd.com

www.jxlcd.com

Display data

Optical
Response

The electro-optical response time measurements shall be made as shown in FIG
URE 4 by switching the “data” input signal ON and OFF. The times needed for th
e luminance to change from 10% to 90% is Td and 90% to 10% is Tr.

SPEC. NUMBER

S

100%
90%

10%
0%

Figure 4. Response Time Testing

White(TFT OFF)

TR

SPEC TITLE
HT140WXB-100 Product Specification

Black(TFT ON)

White(TFT OFF)

F

T

Time

PAGE

12

OF 35

B2006-5006-O (3/3)

A4(210 X 297)

PRODUCT GROUP

Figure 5. Cross Modulation Test Description

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

VIEW AREA

L31

(1195, 384)

Y

A

Cross-Talk (%) =

Where:
Y
Y
The location measured will be exactly the same in both patterns

www.jxlcd.com

www.jxlcd.com

Cross-Talk of one area of the LCD surface by another shall be measured by com
paring the luminance (YA) of a 25mm diameter area, with all display pixels set to
a gray level, to the luminance (YB) of that same area when any adjacent area is
driven dark (Refer to FIGURE 5).

= Initial luminance of measured area (cd/m2)

A

= Subsequent luminance of measured area (cd/m2)

B

YB - Y

Y

342,192

A

B

VIEW AREA

1025, 192

1025,576342,576

L0

× 100

(1195, 384)

Y

B

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

13

OF 35

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

5.0 INTERFACE CONNECTION.

5.1 Electrical Interface C onnection

The electronics interface connector is I-PEX 20455-040E-12 or Compatible or
equivalent. The mating connector part number is I-PEX 20455-040T-11 or Compatible.
The connector interface pin assignments are listed in Table 6.

<Table 6. Pin Assignments for the Interface Connector>

FunctionsSymbolTerminal

DescriptionSymbolPin No.

No Connection (Reserve)NC1

Power Supply, 3.3V (typ.)VDDIN2

Power Supply, 3.3V (typ.)VDDIN3

VDC 3.3Vpower for EDIDVDC4

NC No Connection (Reserve)NC5

EDID ClockCLK EDID6

EDID DataData EDID7

Transmission Data of 0 Negative -RxIN0-8

Transmission Data of 0 Positive +RxIN0+9

GroundGND10

Transmission Data of 1 Negative -RxIN1-11

www.jxlcd.com

www.jxlcd.com

23

26

30

(CE)

(CTL)27

Transmission Data of 1 Positive +RxIN1+12

GroundGND13

Transmission Data of 2 Negative -RxIN2-14

Transmission Data of 2 Positive +RxIN2+15

GroundGND16

Sampling Clock of Negative -RxCLKIN-17

Sampling Clock of Positive +RxCLKIN+18

GroundGND19

No ConnectionNC20
No ConnectionNC21
GroundGND22

No ConnectionNC
No ConnectionNC24
GroundGND25

LCD internal use only

GroundGND28
No ConnectionNC29

No ConnectionNC

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

14

OF 35

A4(210 X 297)

PRODUCT GROUP

LED GroundVLED_GND31

LED GroundVLED_GND32

LED GroundVLED_GND33

No ConnectionNC34

System PWM Signal InputPWM35

LED enable pin(+3V Input)LED_EN36

No Connection (Reserve)NC37

LED Power Supply 7V-20VVLED38

LED Power Supply 7V-20VVLED39

LED Power Supply 7V-20VVLED40

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

FunctionsSymbolTerminal

DescriptionSymbolPin No.

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

15

OF 35

B2006-5006-O (3/3)

A4(210 X 297)

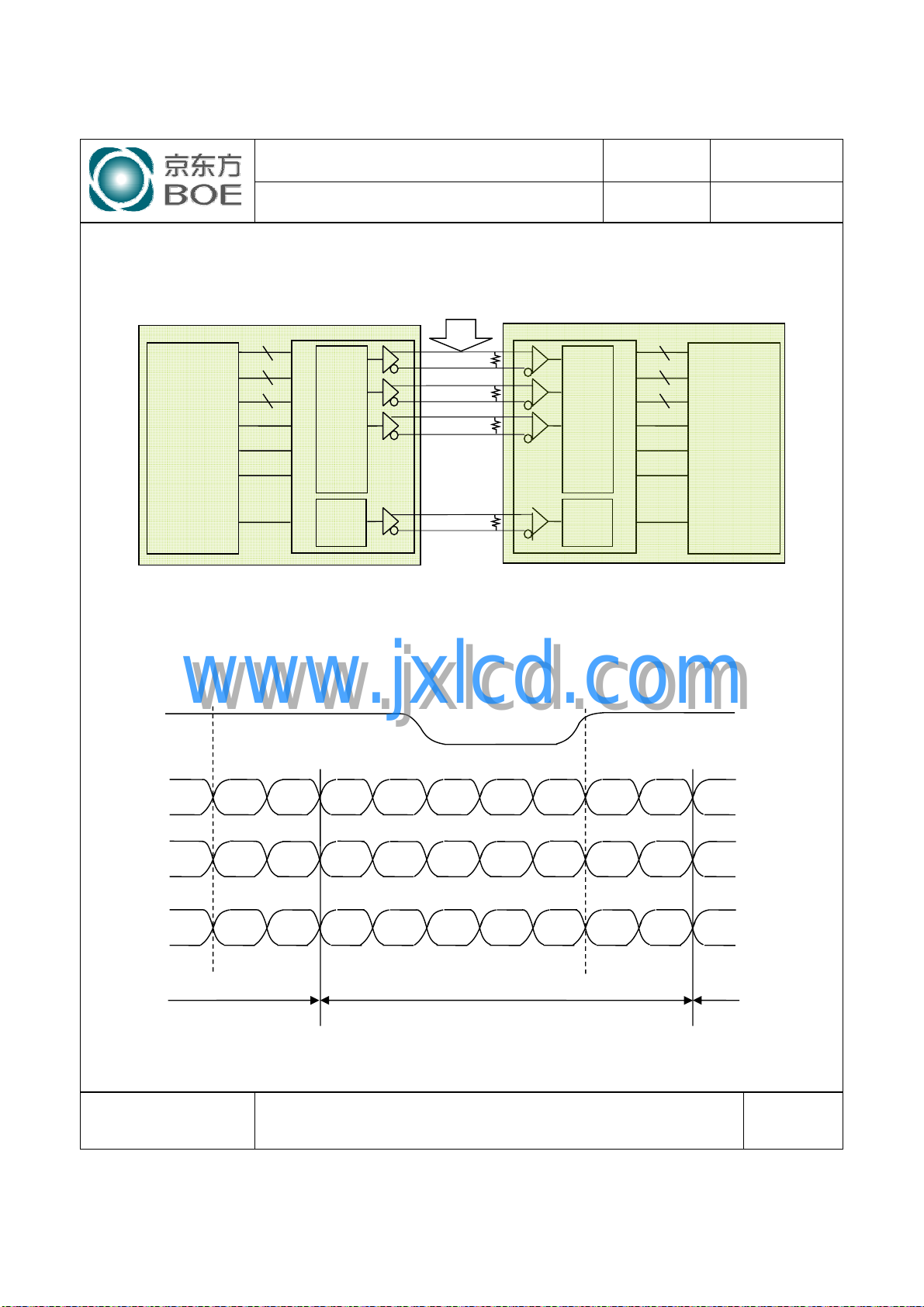

5-2. LVDS Interface

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

PC Side

CN1

100 ohm

100 ohm

100 ohm

100 ohm

R0~R5

G0~G5

B0~B5

Hsync

Vsync

DE

CLK

6

6

6

TTL Parallel-to-LVDS

PLL

Note. Transmitter : Thine THC63LVDM63A or equivalent.
Transmitter is not contained in Module.

5.3.LVDS Input signal

www.jxlcd.com

CLK+

www.jxlcd.com

Vdiff=0V

TFT-LCD Side

LVDS to TTL Parallel

PLL

6

6

6

R0~R5

G0~G5

B0~B5

Hsync

Vsync

DE

CLK

Rin0

Rin1

Rin2

Prior cycle

Note. Pin connection in case of using Thine THC63LVDM63A

SPEC. NUMBER

S

B2006-5006-O (3/3)

GO

B1 B0 G5 G4 G3 G2 G1

DE Vsync B5 B4 B3 B2Hsync

R5 R4 R3 R2 R1 R0

Signal for 1 DCLK cycle Next cycle

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

16

OF 35

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

5.3 Data Input Format

(1,1) (2,1) (1365,1) (1366,1)

RGBRGB RGBRGB

RGBRGB RGBRGB

(1,768) (2,768) (1365,768) (1366, 768)

www.jxlcd.com

www.jxlcd.com

<Table 6. Pin Assignments for the Interface Connector>

1 Pixel = 3 Dots

RGB

Display Position of Input Data (V-H)

5.4 Back-light & LCM Interface Connection

Interface Connector: MS24022P10 or Equivalent

<Table 7. Pin Assignments for the BLU & LCM Connector>

Pin No. Symbol Description Pin No. Symbol Description

1 Vout LED anode connection 6 LED2 LED cathode connection

2 Vout LED anode connection 7 LED3 LED cathode connection

3 Vout LED anode connection 8 LED4 LED cathode connection

4 NC No Connection 9 LED5 LED cathode connection

5 LED1 LED cathode connection 10 LED6 LED cathode connection

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

17

OF 35

A4(210 X 297)

PRODUCT GROUP

6.0 SIGNAL TIMING SPECIFICATION

6.1 The HT156WXB-100 is operated by the DE only.

Item Symbols Min Typ Max Unit

Frequency 1/Tc 40 72.3 - MHz

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Clock

Frame Period Tv

Vertical Display Period Tvd 768 768 768 lines

One line Scanning Peri

Horizontal Display Peri

www.jxlcd.com

www.jxlcd.com

High Time Tch - 4/7 - Tc

Low Time Tcl - 3/7 - Tc

778 790 802 lines

-60- Hz

-16.7- ms

od

od

Th 1446 1526 1586 clocks

Thd 1366 1366 1366 clocks

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

18

OF 35

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

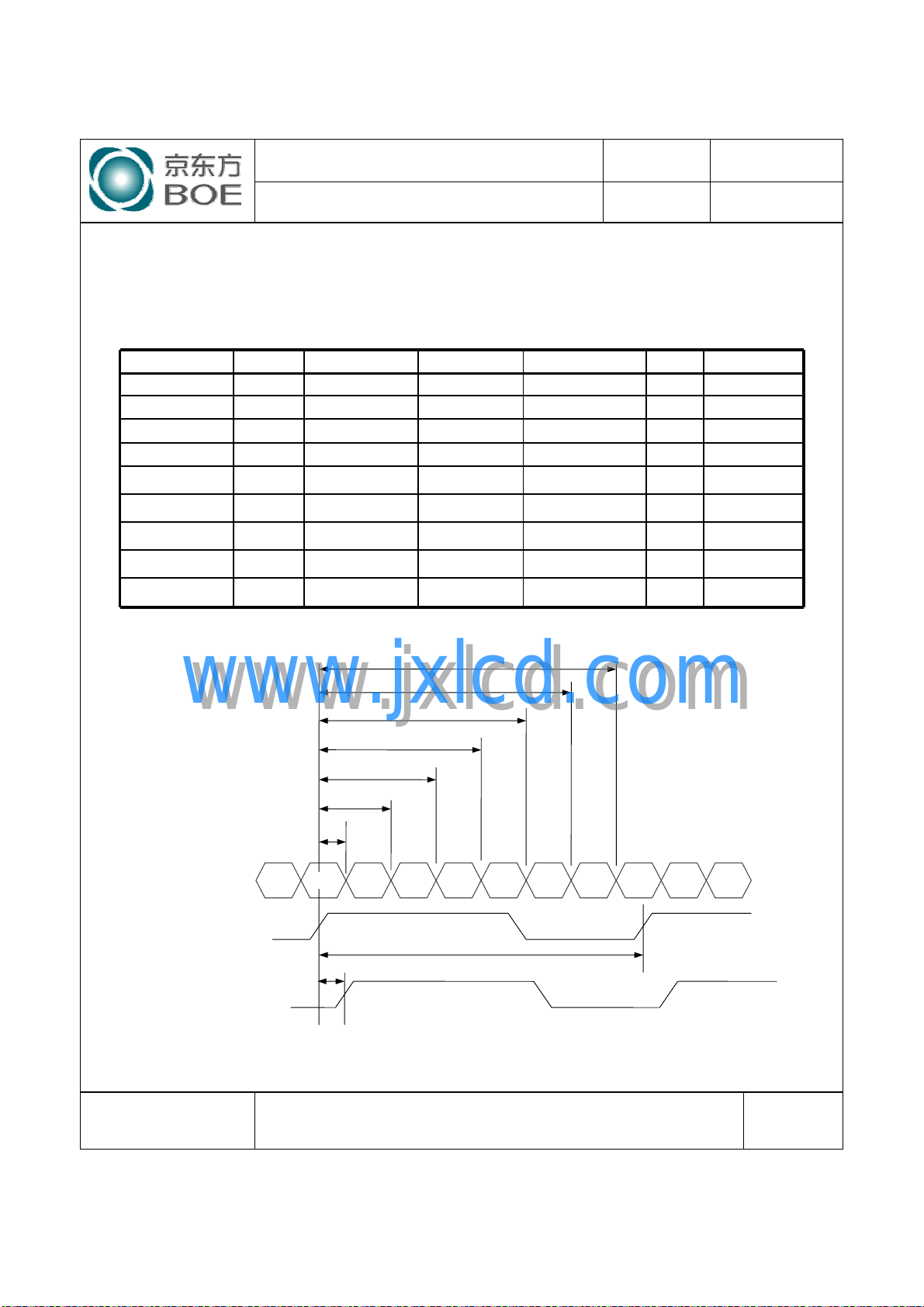

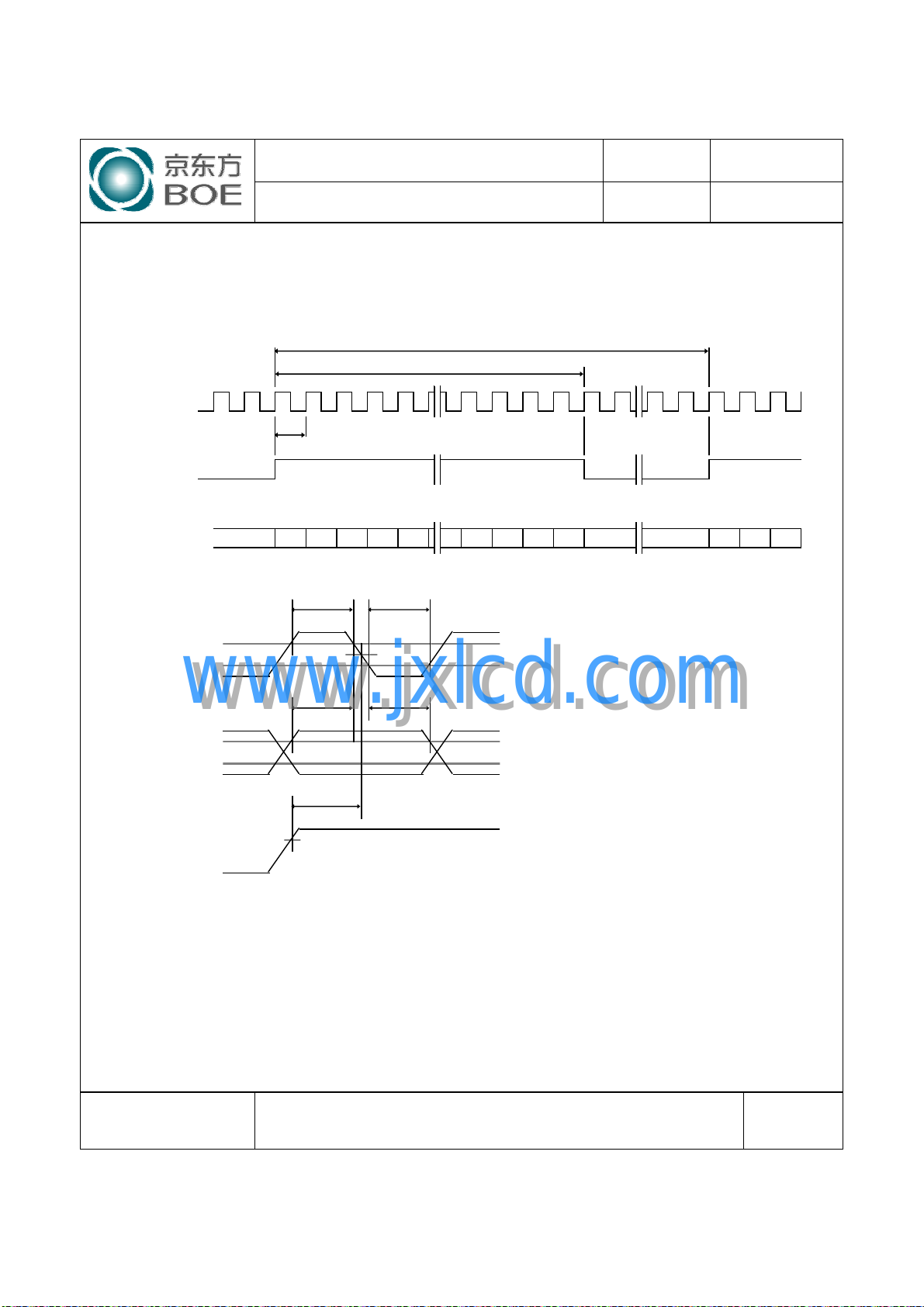

6.2 LVDS Rx Interface Timing Parameter

The specification of the LVDS Rx interface timing parameter is shown in Table 8.

<Table 8. LVDS Rx Interface Timing Specification>

Item Symbol Min Typ Max Unit Remark

CLK Difference tCdiff -tRCIP*(3/7) 0 +tRCIP*(3/7) nsec

Input Data 0 tRIP1 -0.4 0.0 +0.4 nsec
Input Data 1 tRIP0 tRICP/7-0.4 tRICP/7 tRICP/7+0.4 nsec

Input Data 2 tRIP6
Input Data 3 tRIP5
Input Data 4 tRIP4 4 ×tRICP/7-0.4 4 ×tRICP/7 4 ×tRICP/7+0.4 nsec
Input Data 5 tRIP3
Input Data 6 tRIP2

www.jxlcd.com

www.jxlcd.com

2 ×tRICP/7-0.4 2 ×tRICP/7 2 ×tRICP/7+0.4
3 ×tRICP/7-0.4 3 ×tRICP/7 3 ×tRICP/7+0.4

5 ×tRICP/7-0.4 5 ×tRICP/7 5 ×tRICP/7+0.4
6 ×tRICP/7-0.4 6 ×tRICP/7 6 ×tRICP/7+0.4

tRIP3

tRIP4

nsec2513.83-tRCIPCLKIN Pe riod

nsec
nsec

nsec
nsec

tRIP2

RXO/Ez +/-

* Z = 0, 1, 2,3

RxOCLKIN+

RxECLKIN+ tCdiff

SPEC. NUMBER

S

B2006-5006-O (3/3)

tRIP5

tRIP6

tRIP0

tRIP1

Rx2 Rx1 Rx0 Rx6 Rx5 Rx4 Rx3 Rx2 Rx1 Rx0Rx3

tRCIP

* Vdiff = (RXO/Ez+)-(RXO/Ez-),…. ,(RXO/ECLK+)-(RXO/ ECLK-)

SPEC TITLE
HT140WXB-100 Product Specification

Vdiff=0[v]Vdiff=0[v]

PAGE

19

OF 35

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

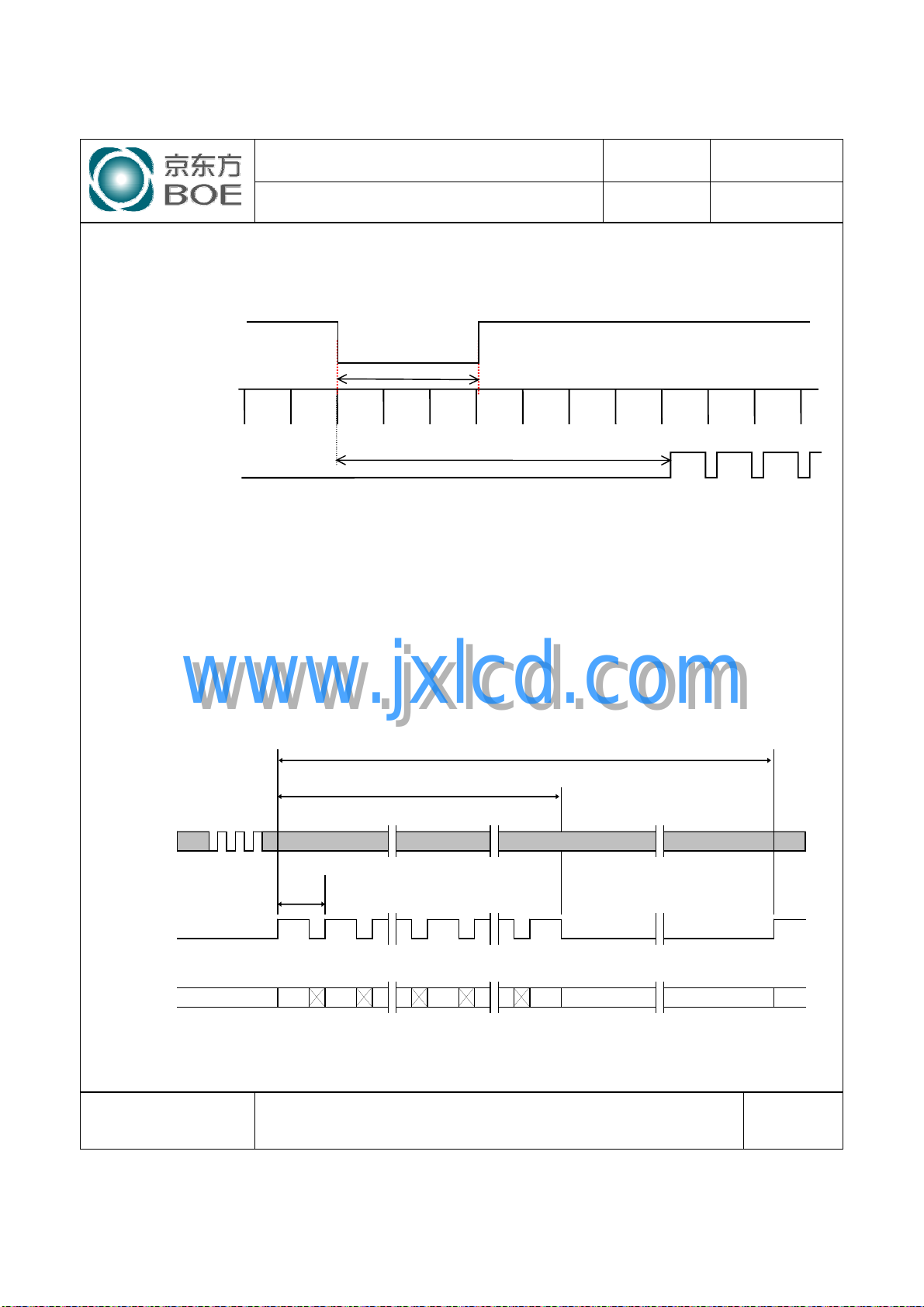

7.0 SIGNAL TIMING WAVEFORMS OF INTERFACE SIGNAL

7.1 Sync Timing Waveforms

V-Sync

H-Sync

DE

1) Need over 3 H-sync during V-Sync Low

2) Fix H-Sync width from V-Sync falling edge to first rising edge

7.2 Vertical Timing Wa veforms

www.jxlcd.com

www.jxlcd.com

Over 3 H-sync

Fix H-Sync width Area

MCLK

DE

R7 ~ R0

G7 ~ G0

B7 ~ B0

SPEC. NUMBER

B2006-5006-O (3/3)

Invalid Data DataInvalid

S

Tv

Tvd

Th

x,1 x,2 x,y x+1,1

SPEC TITLE
HT140WXB-100 Product Specification

x,1050

A4(210 X 297)

PAGE

20

OF 35

PRODUCT GROUP

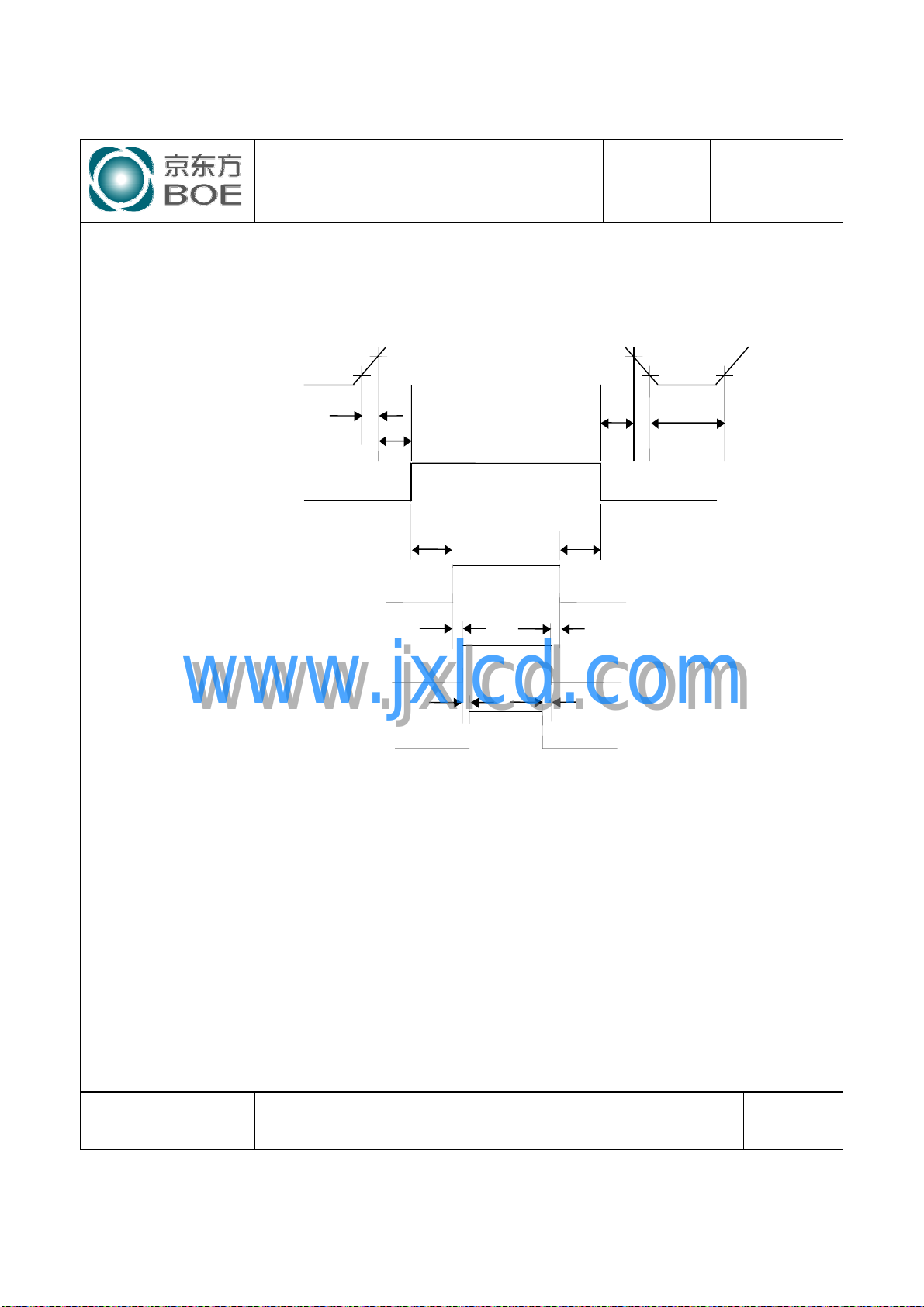

7.3 Horizontal Timing Waveforms

MCLK

Tc

DE

RA7 ~RA0

GA7 ~GA0

BA7 ~BA0

D1 D2 Dn Data D1 D2 D3

Thd

Th

D1048 D1049 D1050

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Invalid

Tch

MCLK

www.jxlcd.com

www.jxlcd.com

Data

DE

Tds

Valid

Tes

2.0V

Tcl

1.5V

Tdh

Data

2.0V

0.8V

2.0V

0.8V

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

21

OF 35

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

8.0 INPUT SIGNALS, BASIC DISPLAY COLORS & GRAY SCALE OF COLORS

Colors & Data signal

Gray scale R0 R1 R2 R3 R4 R5 G0 G1 G2 G3 G4 G5 B0 B1 B2 B3 B4 B5

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

Basic Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

colors Light Blue 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1

Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
Purple 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△ 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Darker 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Gray scale

of Red

Gray scale

of Gr een

Gray scale

www.jxlcd.com

www.jxlcd.com

of Blue

Gray △ 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0

scale Darker 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0

of

White ▽↓ ↓ ↓

& Brighter 1 0 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1

Black

△↑ ↑ ↑
▽↓ ↓ ↓

Brighter 1 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

▽ 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

Red 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△ 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0

Darker 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

△↑ ↑ ↑
▽↓ ↓ ↓

Brighter 0 0 0 0 0 0 1 0 1 1 1 1 0 0 0 0 0 0

▽ 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0

Green 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

△

Darker 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0

△↑
▽↓

Brighter 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1

▽ 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1

Blue 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

ᇞ

▽ 0 1 1 1 1 1 0 1 1 1 1 1 0 1 1 1 1 1

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0

↓
↓

↑↑↑

↑
↓

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

2222

OF 35

A4(210 X 297)

PRODUCT GROUP

9.0 POWER SEQUENCE

To prevent a latch-up or DC operation of the LCD module, the power on/off seq
uence shall be as shown in below

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Power Supply

Interface Signal

Backlight Power on

PWM for LED Driver

( Dimming signal)

www.jxlcd.com

www.jxlcd.com

Enable for LED Driver

( Backlight on/off)

0V

0V

0.9VDD

0.1VDD

T1

0V

T2

Valid

T3 T8

T4

T5 T6

0.9VDD

0.1VDD

T9

T10

T7

T1 ≤ 10 ms

●

0 ms ≤ T2 ≤ 50 ms

●

200 ms ≤ T3

●

10 ms ≤ T4

●

10 ms ≤ T5

●

Notes:

1. When the power supply VDD is 0V, keep the level of input signals on

the low or keep high impedance.

2. Do not keep the interface signal high impedance when power is on.
Back Light must be turn on after power for logic and interface signal
are valid.

SPEC. NUMBER

S

B2006-5006-O (3/3)

0 ms ≤ T6

●

10 ms ≤ T7

●

200 ms ≤ T8

●

0 ms ≤ T9 ≤ 50 ms

●

1s ≤ T10

●

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

2323

OF 35

A4(210 X 297)

PRODUCT GROUP

10.0 Connector Description

Physical interface is described as for the connector on LCM.
These connectors are capable of accommodating the following signals and will
be following components.

10.1 TFT LCD Module

For Signal ConnectorConnector Name /Description

IPEX or CompatibleManufacturer
I-PEX 20455-040E-12 or CompatibleType/ Part Number
I-PEX 20455-040T-11 or CompatibleMating housing/ Part Number

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

24

OF 35

B2006-5006-O (3/3)

A4(210 X 297)

PRODUCT GROUP

11.0 MECHANICAL CHARACTERISTICS

11.1 Dimensional Requirements

FIGURE 6 shows mechanical outlines for the model HT140WXB-100.
Other parameters are shown in Table 9.

<Table 9. Dimensional Parameters>

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

UnitSpecificationParameter

Active Area

1366 (H) X 768 (V) (1 pixel = R + G + B dots)Number of pixels

www.jxlcd.com

www.jxlcd.com

Back Light

LED, Horizontal-LED Array type

10.2 Mounting

See FIGURE 6.

10.3 Glare and Polarizer Hardness.

309.40 (H) ×173.95 (V)

0.2265 (H) X 0.2265 (V)Pixel pitch

RGB Vertical stripePixel arrangement

262KDisplay colors

Normally whiteDisplay mode

mm323.5*192*5.2 (max)Dimensional outline

gram350 (max)Weight

Connector : MS24022P10

The surface of the LCD has an glare coating to maximize readability and hard coating
to reduce scratching.

10.4 Light Leakage

There shall not be visible light from the back-lighting system around the edges of the
screen as seen from a distance 50cm from the screen with an overhead light level of 350lux.

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

25

OF 35

A4(210 X 297)

PRODUCT GROUP

12.0 RELIABILITY TEST

The Reliability test items and its conditions are shown in below.

<Table 10. Reliability test>

Conditions Test ItemsNo

Ta = 60 ℃, 240 hrsHigh temperature storage test1
Ta = -20 ℃, 240 hrsLow temperature storage test2

High temperature & high humidity

3

operation test

Thermal shock6

Vibration test

7

(non-operating)

Ta = 50 ℃, 80%RH, 240 hrs

Ta = 50 ℃, 240 hrsHigh temperature operation test4
Ta = 0 ℃, 240 hrsLow temperature operation test5
Ta = -20 ℃ ↔ 60 ℃ (0.5 hr), 100 cycle

1.5G, 10~500Hz Sine
X,Y,Z / Sweep rate : 1hour

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Shock test

8

(non-operating)

Electro-static discharge test

9

(non-operating)

13.0 HANDLING & CAUTIONS

(1) Cautions when taking out the module
y Pick the pouch only, when taking out module from a shipping package.
(2) Cautions for handling the module
y As the electrostatic discharges may break the LCD module, handle the LCD module with
care. Peel a protection sheet off from the LCD panel surface as slowly as possible.
y As the LCD panel and back - light element are made from fragile glass material, impulse
and pressure to the LCD module should be avoided.
y As the surface of the polarizer is very soft and easily scratched, use a soft dry cloth
without chemicals for cleaning.
y Do not pull the interface connector in or out while the LCD module is operating.
y Put the module display side down on a flat horizontal plane.
y Handle connectors and cables with care.

(3) Cautions for the operation
y When the module is operating, do not lose CLK, ENAB signals. If any one of these
signals is lost, the LCD panel would be damaged.
y Obey the supply voltage sequence. If wrong sequence is applied, the module
would be damaged.

www.jxlcd.com

www.jxlcd.com

220G, Half Sine Wave 2msec
±X,±Y,±Z Once for each direction

Air : 150 pF, 330Ω, ± 15 KV
Contact : 150 pF, 330Ω, ± 8 KV

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

26

OF 35

A4(210 X 297)

PRODUCT GROUP

(4) Cautions for the atmosphere
y Dew drop atmosphere should be avoided.
y Do not store and/or operate the LCD module in a high temperature and/or humidity
atmosphere. Storage in an electro-conductive polymer packing pouch and under relatively
low temperature atmosphere is recommended.

(5) Cautions for the module characteristics
y Do not apply fixed pattern data signal to the LCD module at product aging.
y Applying fixed pattern for a long time may cause image sticking.

(6) Other cautions
y Do not disassemble and/or re-assemble LCD module.
y Do not re-adjust variable resistor or switch etc.
y When returning the module for repair or etc., Please pack the module not to be broken.
We recommend to use the original shipping packages.

14.0 LABEL

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

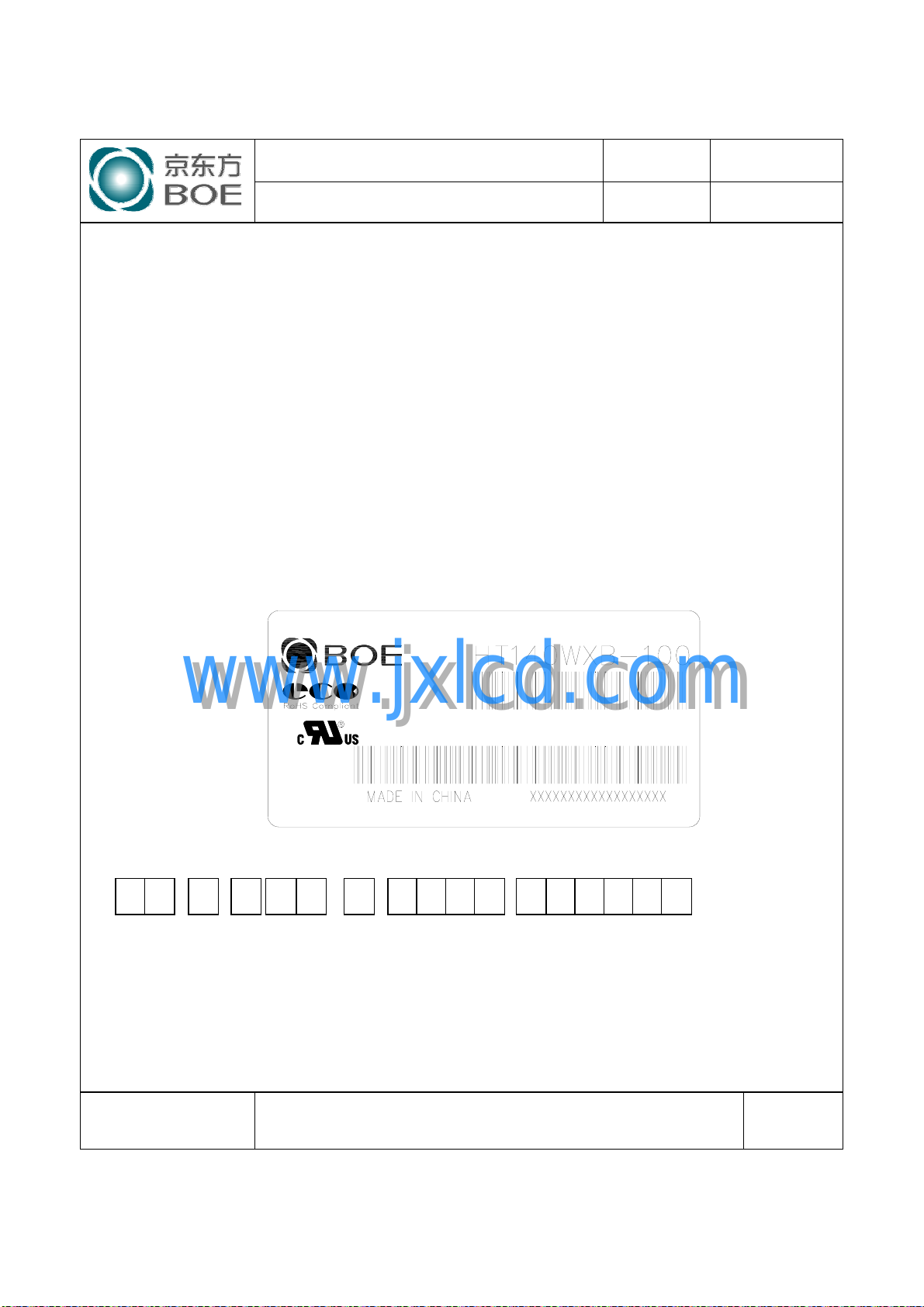

(1) Product label

www.jxlcd.com

www.jxlcd.com

1

Type designation

No 1. Control Number

No 2. Rank / Grade

No 3. Line classification (BOE OT:A/BC)

No 4. Year (05 : 2005, 06: 2006, …)

23 4

5

67

X

XXXXXX X100XX X XXX

No 5. Month (1, 2, 3, …, 9, X, Y, Z)

No 6. Product Identification (FG)

No 7. Serial Number

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

27

OF 35

A4(210 X 297)

PRODUCT GROUP

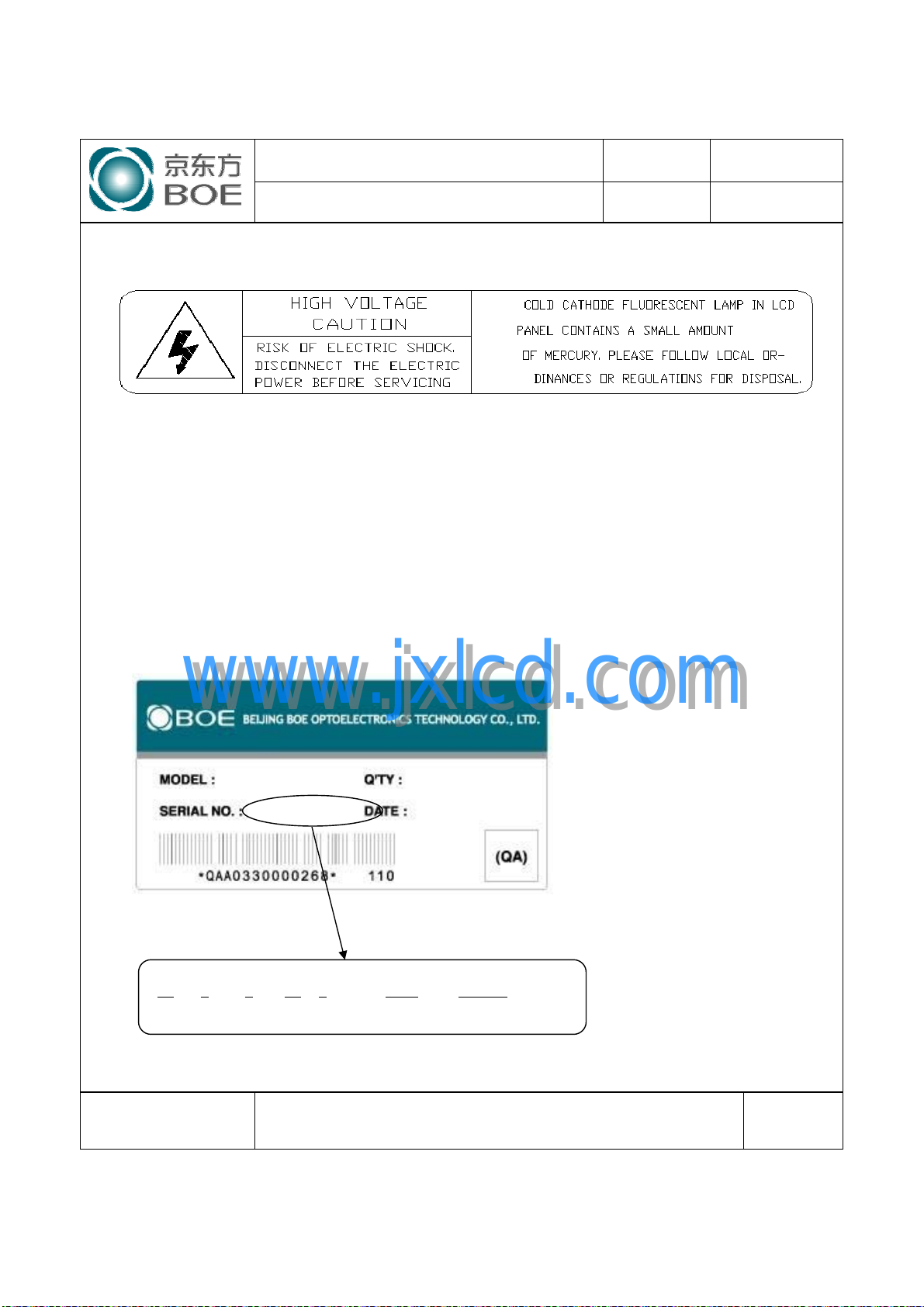

(2) High voltage caution label

(3) Box label

Label Size: 110 mm (L) × 56 mm (W)
Contents
Model: HT140WXB-100
Q`ty: Module Q`ty in one box
Serial No.: Box Serial No. See next figure for detail description.
Date: Packing Date
Internal use of Product

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

www.jxlcd.com

www.jxlcd.com

HT140WXB-100

00 0 0 00 0 0000 000000
Type Grade Line Year Month Internal use Serial No

SPEC. NUMBER

S

38

0000000000000

SPEC TITLE
HT140WXB-100 Product Specification

200X.X.XX

PAGE

28

OF 35

B2006-5006-O (3/3)

A4(210 X 297)

PRODUCT GROUP

15.0 PACKING INFORMATION

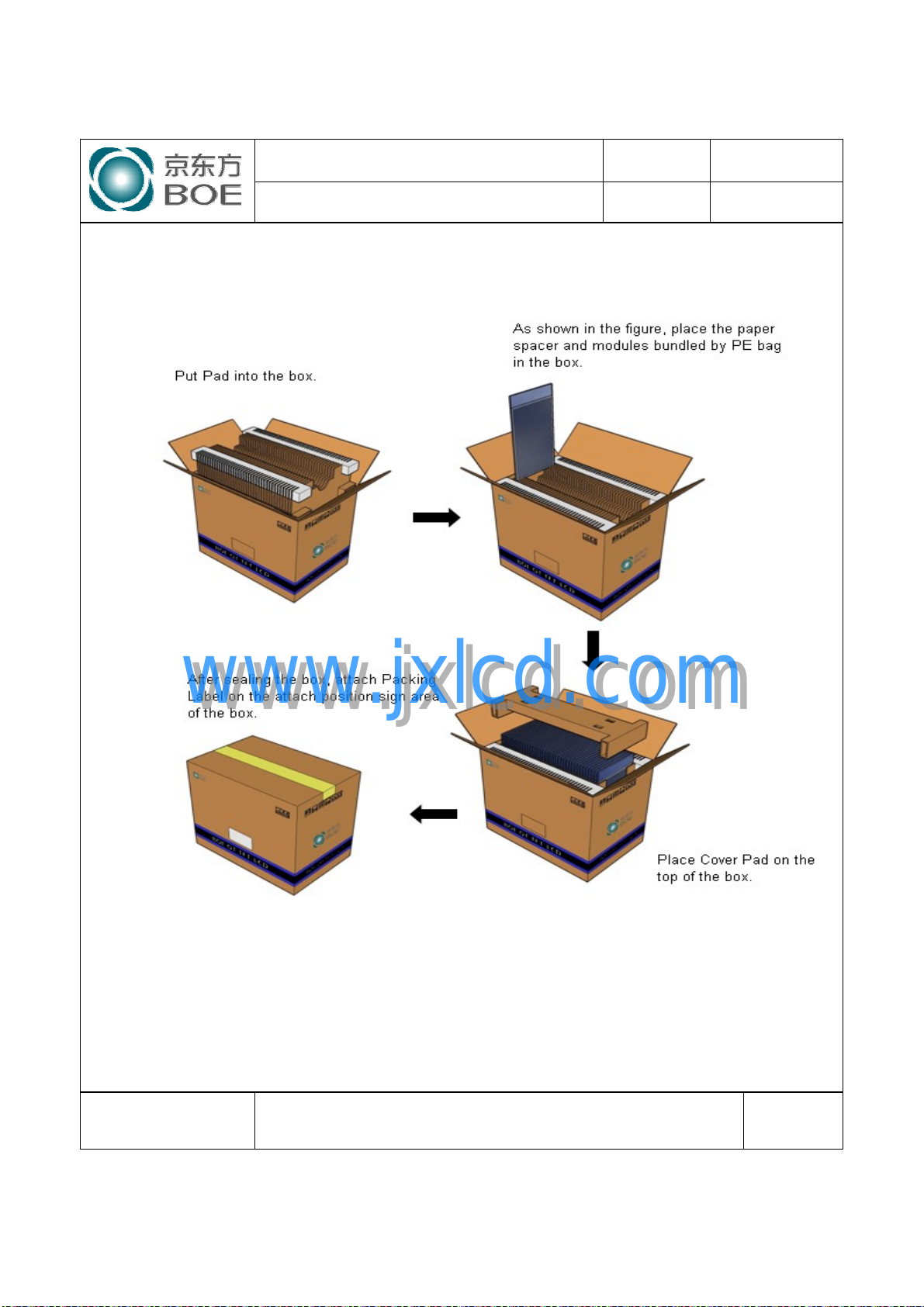

15.1 Packing order

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

www.jxlcd.com

www.jxlcd.com

15.2 Notes

Box Dimension: 526mm(W) x 346mm(D) x 448mm(H)

z

Package Quantity in one Box: 38pcs

z

Total Weight: 16kg

z

SPEC. NUMBER

S

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

29

OF 35

B2006-5006-O (3/3)

A4(210 X 297)

PRODUCT GROUP

16.0 MECHANICAL OUTLINE DIMENSION

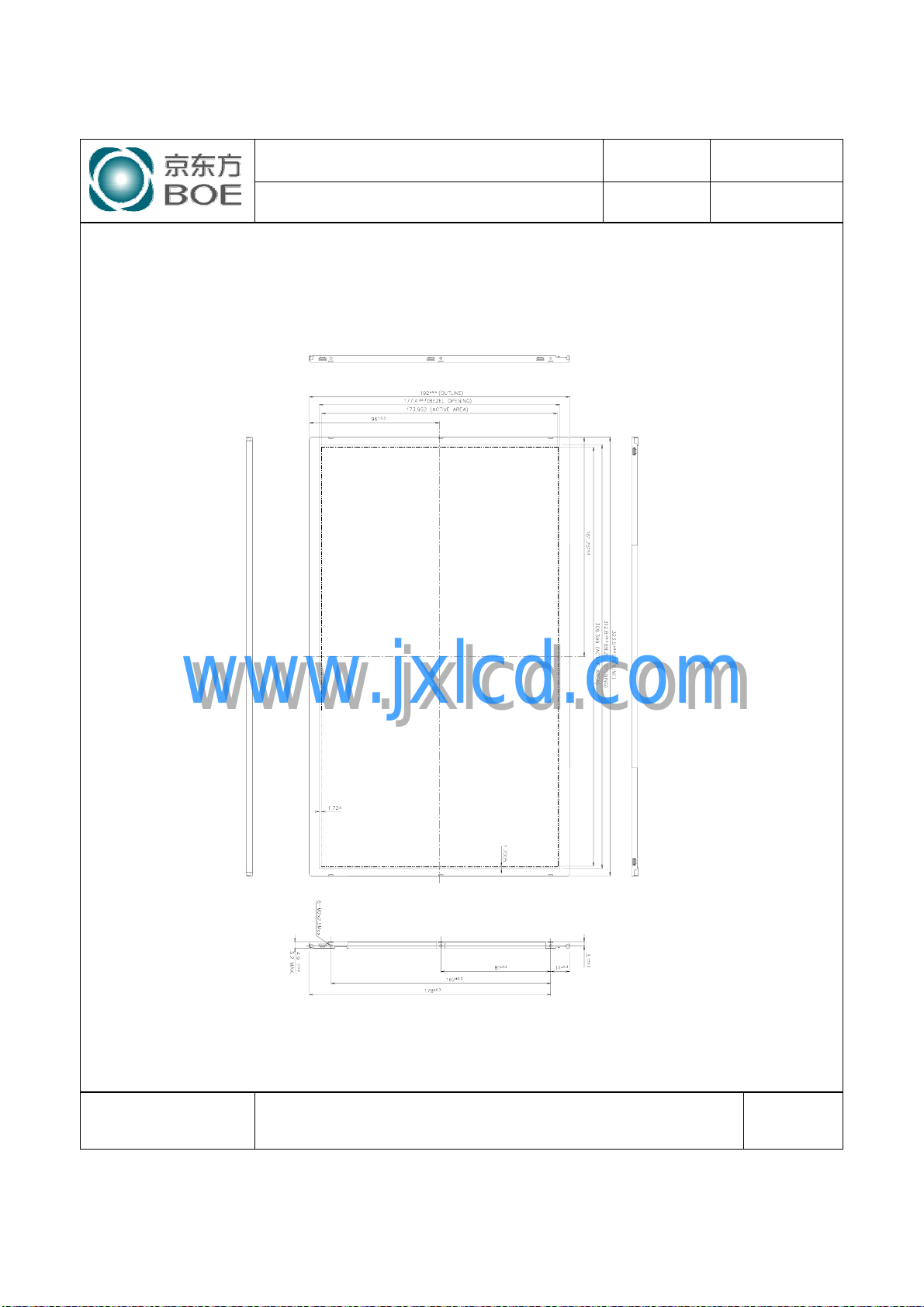

Figure 6. TFT-LCD Module Outline Dimension (Front View)

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

30

OF 35

B2006-5006-O (3/3)

A4(210 X 297)

PRODUCT GROUP

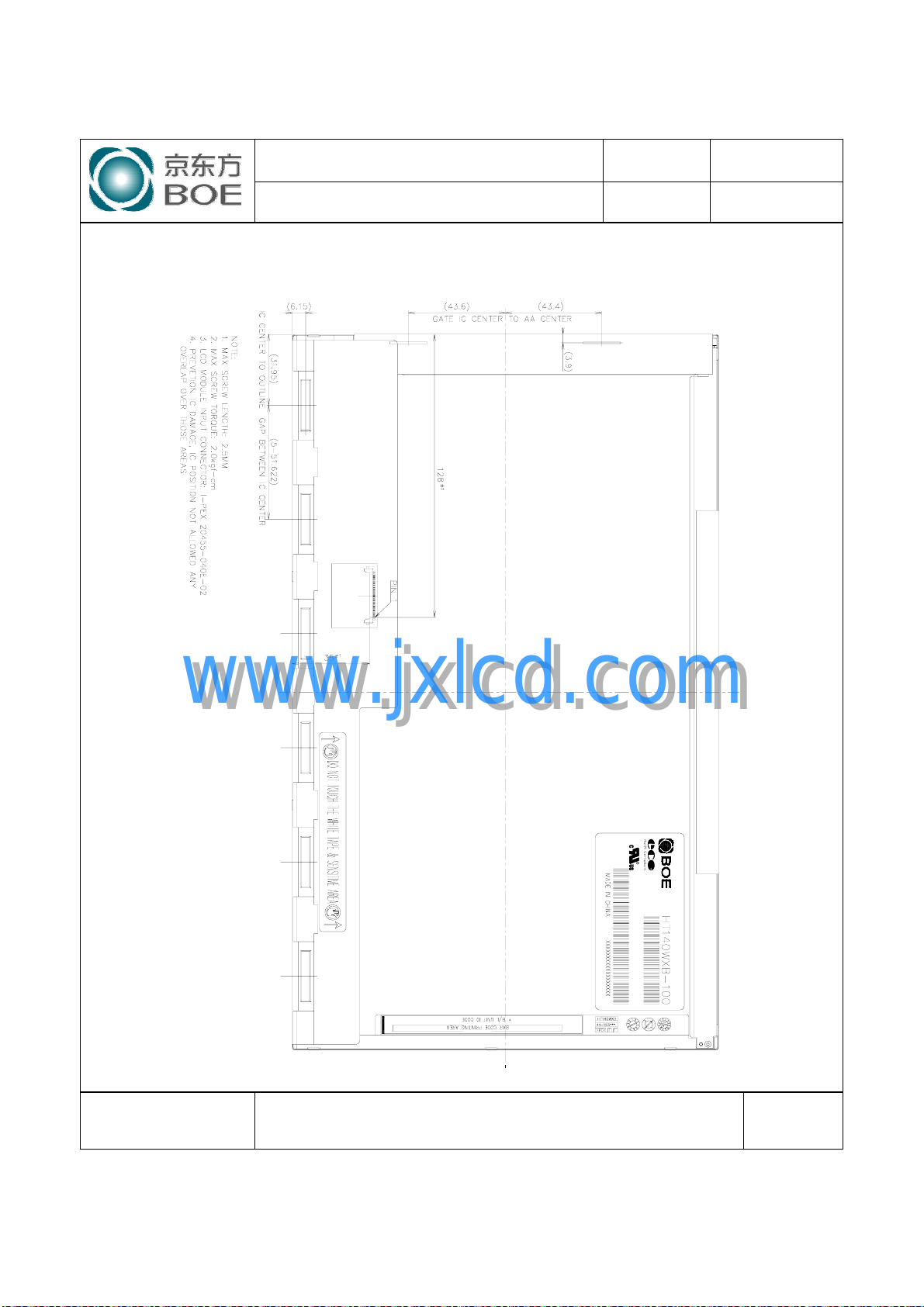

Figure 7. TFT-LCD Module Outline Dimensions (Rear view)

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

www.jxlcd.com

www.jxlcd.com

SPEC. NUMBER

S

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

31

OF 35

B2006-5006-O (3/3)

A4(210 X 297)

17.0 EDID Table

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Address

(HEX)

00 00 0 0

01 FF 255 255

02 FF 255 255

03 FF 255 255

04 FF 255 255

05 FF 255 255

06 FF 255 255

07 00 0 0

08 09 9

09 E5 229

0A 86 134

0B 05 5

0C 00 0

0D 00 0

0E 00 0

0F 00 0

10 Week of manufact ure 01 1 1

11 Year of Manufacture 13 19 2009 Manufactured in 2009

12 EDID Structure Ver. 01 1 1 EDID Ver 1.0

13 EDID revision # 03 3 3 EDID Rev. 0.3

14 Video input definition 80 128 -

15 Max H image size 1F 31 31 31 cm (Approx)

16 Max V image size 11 17 17 17 cm (Approx)

17 Display Gamma 78 120 2.2 Gamma curve = 2.2

18 Feature support 0A 10 RGB display, Preferred Timming mode

19 Red/Green low bits 22 34 - Red / Green Low Bits

1A Blue/White low bits C0 192 - Blue / White Low Bits

1B Red x high bits 95 149 0.583 Red (x) = 10010101 (0.58348)

1C Red y high bits 56 86 0.338 Red (y) = 01010110 (0.33836)

1D Green x high bits 4E 78 0.305 Green (x) = 01001110 (0.30482)

1E Green y high bits 8E 142 0.557 Green (y) = 10001110 (0.55656)

1F Blue x high bits 26 38 0.148 Blue (x) = 00100110 (0.14812)

20 BLue y high bits 24 36 0.141 Blue (y) = 00100100 (0.14068)

21 White x high bits 50 80 0.313 White (x) = 01010000 (0.313)

22 White y high bits 54 84 0.329 White (y) = 01010100 (0.329)

Function Hex Dec values.

Header EDID Header

ID Manufacturer Name BOE ID = BOE

ID Product Code 1414 ID = 1414 WXGA

32-bit serial No.

www.jxlcd.com

www.jxlcd.com

Notes

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

323232

OF 35

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Address

(HEX)

23 Established timing 1 00 0 ­24 Established timing 2 00 0 ­25 Established timing 3 00 0 ­26 01 1
27 01 1
28 01 1

29 01 1
2A 01 1
2B 01 1
2C 01 1
2D 01 1
2E 01 1

2F 01 1

30 01 1

31 01 1

32 01 1

33 01 1

34 01 1

35 01 1

36 41 65

37 1C 28

38 56 86 1366 Hor Active = 1366

39 A0 160 160 Hor Blanking = 160

Function Hex Dec

Standard timing #1 Not Used

Standard timing #2 Not Used

Standard timing #3 Not Used

Standard timing #4 Not Used

Standard timing #5 Not Used

Standard timing #6 Not Used

Standard timing #7

Standard timing #8 Not Used

www.jxlcd.com

www.jxlcd.com

values. Notes

Not Used

72.33 72.33MHz Main clock

3A 50 80 - 4 bits of Hor. Active + 4 bits of Hor. Blanking

3B 00 0 768 Ver Active = 768
3C 16 22 22 Ver Blanking = 22

3D 30 48 - 4 bits of Ver. Active + 4 bits of Ver. Blanking

3E 30 48 48 Hor Sync Offset = 48

3F 20 32 32 H Sync Pulse Width = 32

40 36 54 3 V sync Offset = 3 line

41 00 0 6 V Sync Puls e width : 6 line

42 35 53 309 Horizontal Image Size = 309 mm (Low 8 bits)

43 AD 173 173 Vertical Image Size = 173 mm (Low 8 bits )

44 10 16 - 4 bits of Hor Image Size + 4 bits of Ver Image Size

45 00 0 0 Hor B order (pixels )

46 00 0 0 Vertical Border (Lines)

47 19 25 -

SPEC. NUMBER

Detailed timing/monitor

descriptor #1

(60Hz)

SPEC TITLE

S

HT140WXB-100 Product Specification

B2006-5006-O (3/3)

PAGE

333333

OF 35

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Address

(HEX)

48 00 0
49 00 0
4A 00 0
4B FE 0
4C 00 0
4D 0A 0
4E 20 0
4F 20 0
50 20 0
51 20 0
52 20 0
53 20 0
54 20 0
55 20 0
56 20 0
57 20 0
58 20 0
59 20 0
5A 00 0
5B 00 0
5C 00 0
5D FE 254
5E 00 0
5F 42 66 B
60 4F 79 O
61 45 69 E
62 20 32
63 4F 79 O
64 54 84 T
65 0A 10
66 20 32
67 20 32
68 20 32
69 20 32
6A 20 32
6B 20 32

SPEC. NUMBER

S

Function Hex Dec

Detailed timing/monitor

descriptor #2

www.jxlcd.com

www.jxlcd.com

Detailed timing/monitor

descriptor #3

SPEC TITLE
HT140WXB-100 Product Specification

values. Notes

ASCII Data String Tag

Manufacturer name : BOE OT

PAGE

343434

OF 35

B2006-5006-O (3/3)

A4(210 X 297)

PRODUCT GROUP

ISSUE DATEREV

2009.6.27.0TFT LCD PRODUCT

Address

(HEX)

6C 00 0
6D 00 0
6E 00 0
6F FE 254
70 00 0
71 48 72 H
72 54 84 T
73 31 49 1
74 34 52 4
75 30 48 0
76 57 87 W
77 58 88 X
78 42 66 B
79 2D 45 ­7A 31 49 1
7B 30 48 0
7C 30 48 0
7D 0A 10
7E Extension flag 00 0
7F Checksum 51 81 -

www.jxlcd.com

Function Hex Dec values. Notes

Detailed timing/monitor

descriptor #4

www.jxlcd.com

Product Name Tag (ASCII)

Model name : HT140WXB-100

SPEC. NUMBER

S

B2006-5006-O (3/3)

SPEC TITLE
HT140WXB-100 Product Specification

PAGE

353535

OF 35

A4(210 X 297)
