BMW S 1000 R 2016 Owner's Manual

Download

Page 1

Rider's Manual (US Model)

S 1000 R

BMW Motorrad

The Ultimate

Riding Machine

Page 2

Motorcycle/Retailer Data

Motorcycle Data

Model

Vehicle identification number

Color number

Initial registration

License plate

Retailer Data

Contact in Service

Ms./Mr.

Phone number

Retailer's address/phone number (company stamp)

Page 3

Welcome to BMW

Congratulations on choosing a motorcycle from BMW Motorrad and welcome to the community of BMW motorcycle owners and riders. Familiarize yourself with your new motorcycle so that you can ride it safely and confidently in all highway traffic situations.

Suggestions and complaints

If you have any questions concerning your motorcycle, your authorized BMW Motorrad retailer is always happy to provide advice and assistance.

We wish you many miles of safe and enjoyable riding on your BMW

About this Rider's Manual

Please read this Rider's Manual carefully before starting to use your new BMW. It contains important information on how to operate the controls and how to get the most benefit from your BMW's advanced technical features. In addition, it contains information on maintenance and care to help you maintain your vehicle's reliability and safety, as well as its value.

BMW Motorrad.

01 41 8 565 357

*01418565357*

Page 4

Table of Contents

1 General instructions . ... 5

Overview .. . . . . . . . . . . . . . . . . . . . 6

Abbreviations and

symbols .. . . . . . . . . . . . . . . . . . . . . 6

Equipment . . . . . . . . . . . . . . . . . . . 7

Technical data . . . . . . . . . . . . . . . 7

Notice concerning current sta-

tus . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2 Overviews . .. .. .. .. . .. .. .. 9

General view, left side . . . . . . . 11

General view of left side with

DDC . . . . . . . . . . . . . . . . . . . . . . . . 13

General view, right side . . . . . 15

Underneath seat . . . . . . . . . . . . 16

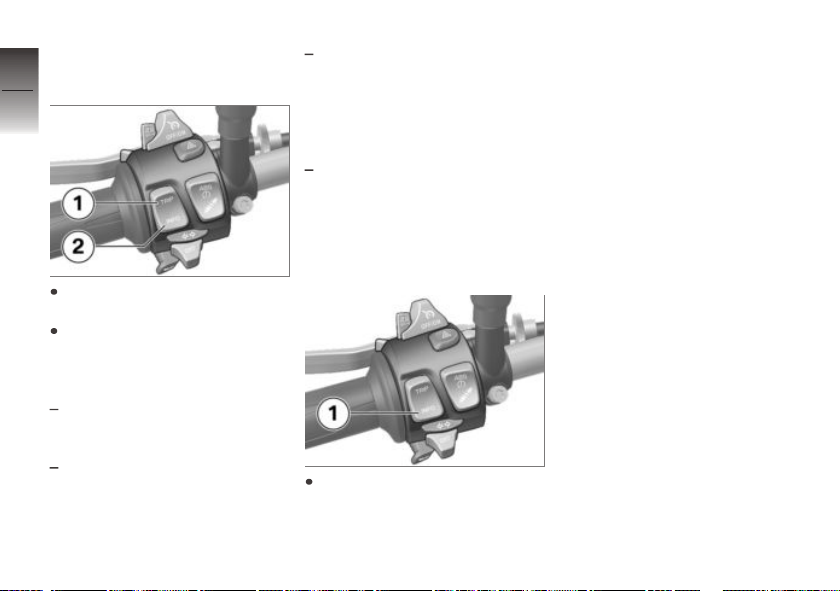

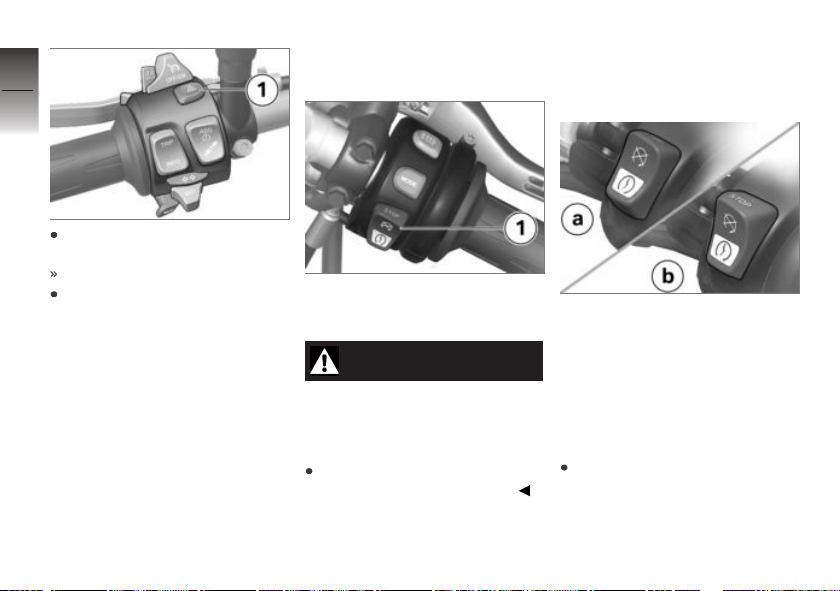

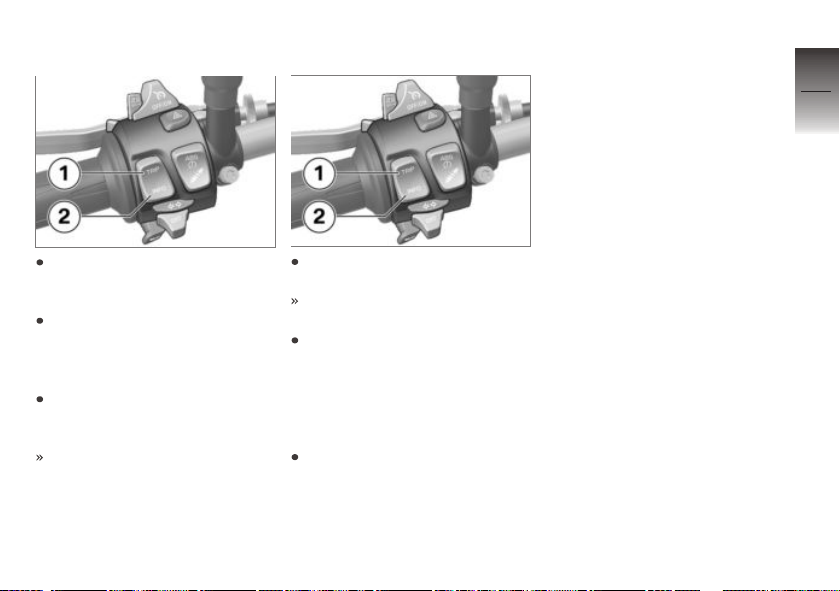

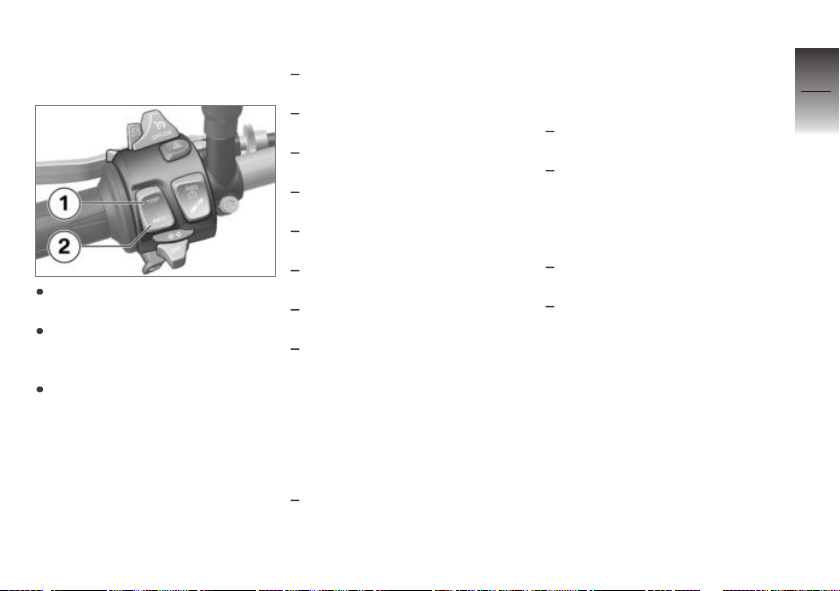

Multifunction switch, left . . . . 17

Multifunction switch,

right . . . . . . . . . . . . . . . . . . . . . . . . . 18

Instrument cluster . . . . . . . . . . . 19

3 Displays . . .. .. .. .. . .. .. .. 21

Warning and indicator

lights . . . . . . . . . . . . . . . . . . . . . . . . 22

Multifunction display . . . . . . . . 24

Warning lights . . . . . . . . . . . . . . . 25

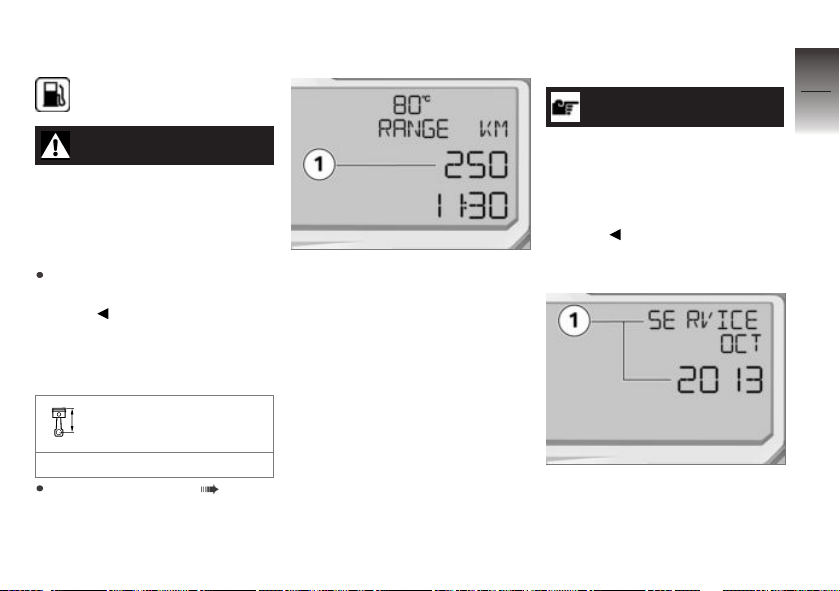

Fuel down to reserve. . . . . . . . 37

Cruising range. . . . . . . . . . . . . . . 37

Service display . . . . . . . . . . . . . . 37

4 Operation . .. . .. .. .. .. .. .. 39

Steering and ignition

lock . . . . . . . . . . . . . . . . . . . . . . . . . 40

Ignition . . . . . . . . . . . . . . . . . . . . . . 40

EWS Electronic immobi-

lizer . . . . . . . . . . . . . . . . . . . . . . . . . 41

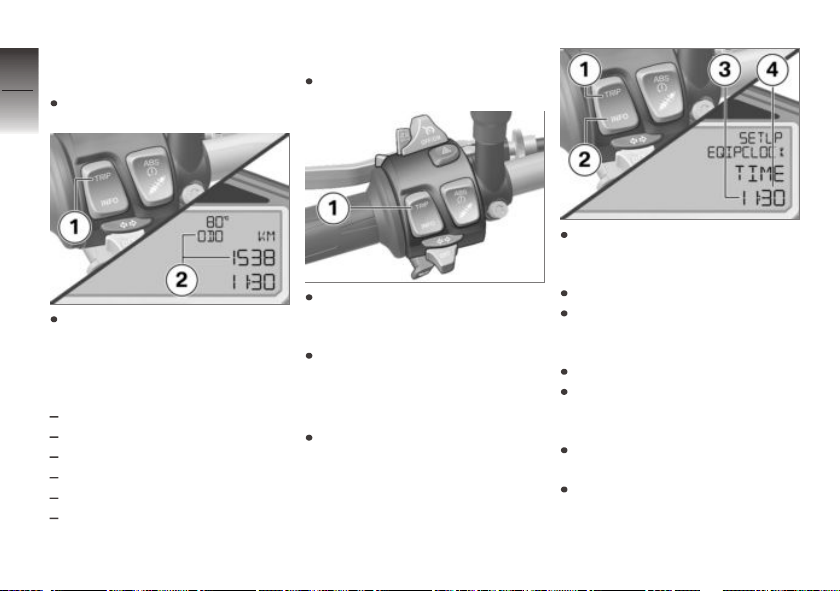

Multifunction display . . . . . . . . 42

Alarm system (DWA) . . . . . . . . 46

Headlight . . . . . . . . . . . . . . . . . . . . 48

Lights . . . . . . . . . . . . . . . . . . . . . . . 48

Turn indicators . . . . . . . . . . . . . . 49

Hazard warning flashers . . . . . 49

Emergency on/off switch (kill

switch) . . . . . . . . . . . . . . . . . . . . . . 50

BMW Motorrad Race

ABS . . . . . . . . . . . . . . . . . . . . . . . . . 50

BMW Motorrad ASC . . . . . . . 52

Dynamic Traction Control.

DTC . . . . . . . . . . . . . . . . . . . . . . . . . 53

Riding mode . . . . . . . . . . . . . . . . 54

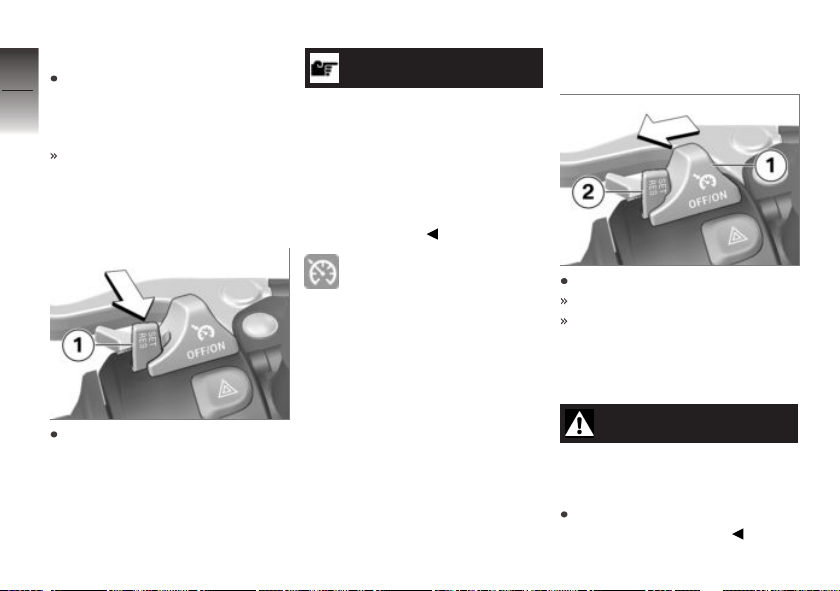

Cruise control . . . . . . . . . . . . . . . 56

Brakes . . . . . . . . . . . . . . . . . . . . . . 58

Tires . . . . . . . . . . . . . . . . . . . . . . . . 59

Heated handlebar grips . . . . . 60

Mirrors . . . . . . . . . . . . . . . . . . . . . . 60

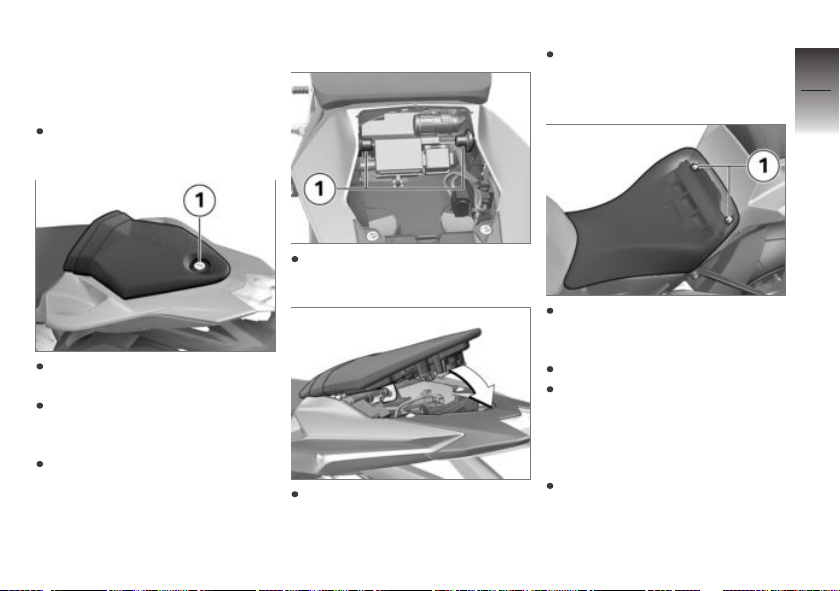

Rider and passenger

seats . . . . . . . . . . . . . . . . . . . . . . . . 61

Helmet holder . . . . . . . . . . . . . . . 62

Luggage straps . . . . . . . . . . . . . 63

5 On the racetrack . .. .. .. . 65

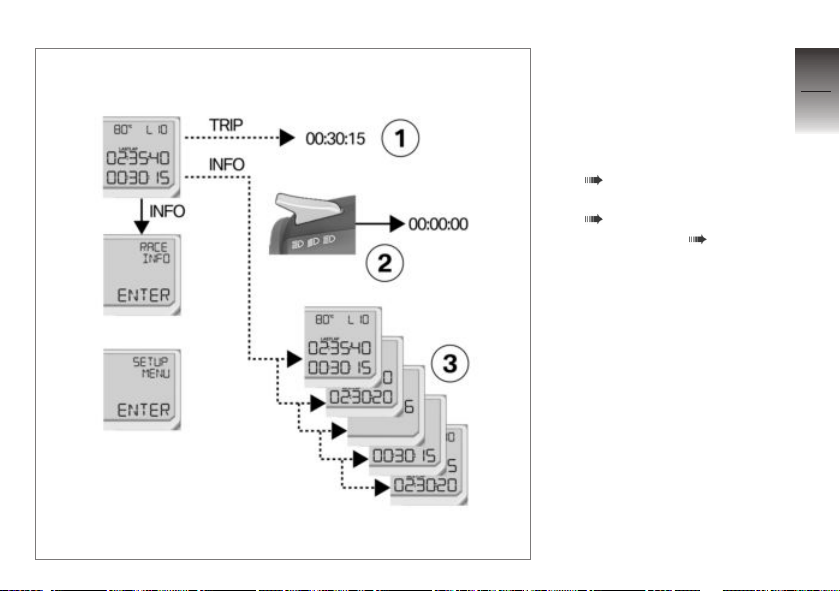

LAPTIMER . . . . . . . . . . . . . . . . . . 66

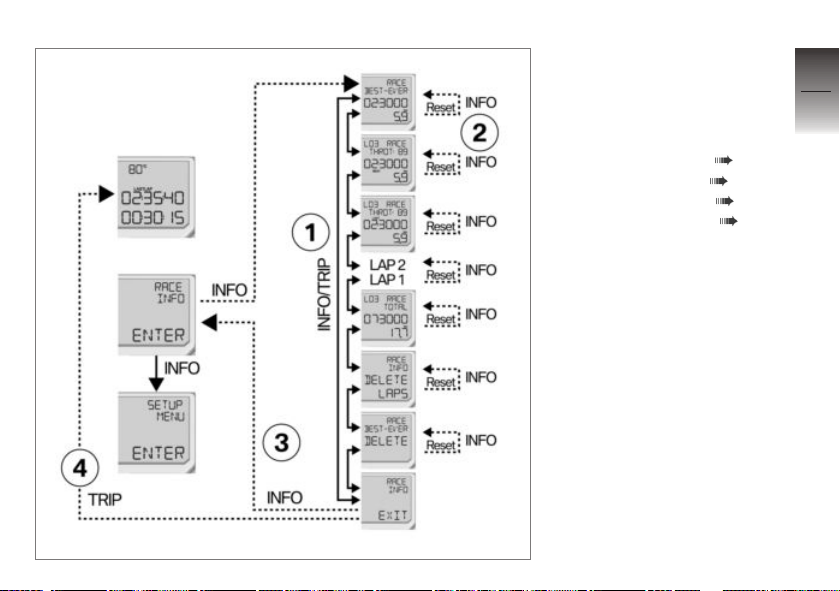

RACE INFO . . . . . . . . . . . . . . . . . 70

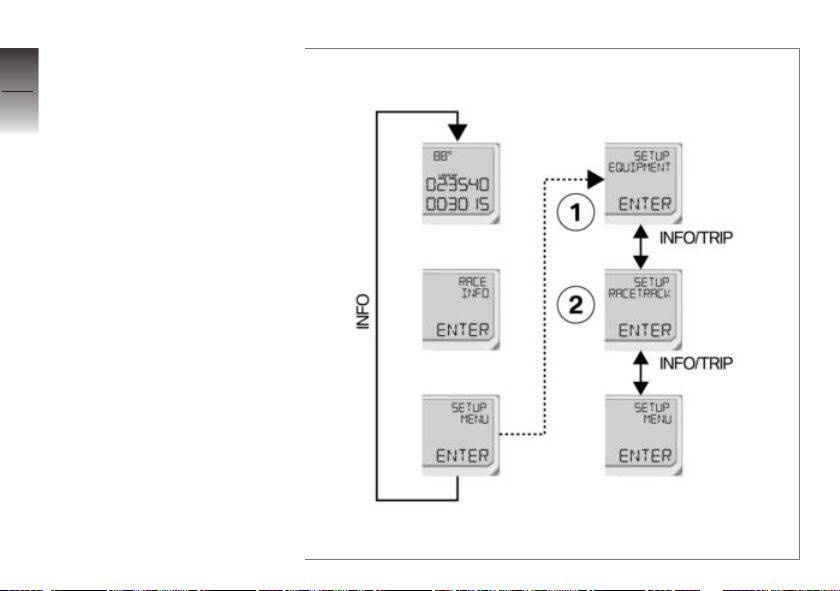

SETUP MENU . . . . . . . . . . . . . . 75

Spring preload . . . . . . . . . . . . . . 78

Damping . . . . . . . . . . . . . . . . . . . . 81

Mirror removal and installa-

tion . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Removing and installing

license-plate carrier . . . . . . . . . 86

Page 5

Removing and installing front

turn indicator . . . . . . . . . . . . . . . . 88

6 Riding .. .. .. .. .. . .. .. .. .. . 91

Safety instructions . . . . . . . . . . 92

Observe checklist . . . . . . . . . . . 94

Starting. . . . . . . . . . . . . . . . . . . . . . 94

Breaking in . . . . . . . . . . . . . . . . . . 98

Shifting gears . . . . . . . . . . . . . . . 99

Brakes . . . . . . . . . . . . . . . . . . . . 101

Parking your motorcy-

cle. . . . . . . . . . . . . . . . . . . . . . . . . 102

Refueling . . . . . . . . . . . . . . . . . . 103

Secure motorcycle for

transport . . . . . . . . . . . . . . . . . . 104

7 Technology in de-

tail . . .. .. .. .. . .. .. .. .. .. . 107

Riding mode . . . . . . . . . . . . . . 108

Switchover . . . . . . . . . . . . . . . . 109

Brake system with BMW Motorrad Race

ABS . . . . . . . . . . . . . . . . . . . . . . . 110

Engine management with

BMW Motorrad ASC . . . . . . 112

Engine Management with Dynamic Traction Con-

trol . . . . . . . . . . . . . . . . . . . . . . . . 114

Dynamic Damping Adjust-

ment . . . . . . . . . . . . . . . . . . . . . . 115

8 Accessories . .. .. .. . .. . 117

General instructions . . . . . . . 118

Luggage . . . . . . . . . . . . . . . . . . 118

9 Maintenance . . . .. .. .. . 121

General instructions . . . . . . . 122

Onboard tool kit .. . . . . . . . . . 122

Rear-wheel stand . . . . . . . . . 123

Front wheel stand . . . . . . . . . 124

Engine oil . . . . . . . . . . . . . . . . . 125

Brake system . . . . . . . . . . . . . 127

Coolant. . . . . . . . . . . . . . . . . . . . 131

Fairings and panels . . . . . . . 132

Clutch . . . . . . . . . . . . . . . . . . . . . 136

Chain . . . . . . . . . . . . . . . . . . . . . . 137

Wheels . . . . . . . . . . . . . . . . . . . . 139

Light sources . . . . . . . . . . . . . 147

Fuses . . . . . . . . . . . . . . . . . . . . . 154

Jump-starting . . . . . . . . . . . . . 155

Battery . . . . . . . . . . . . . . . . . . . . 156

10 Care . . .. .. .. .. .. .. . .. . 159

Care products . . . . . . . . . . . . . 160

Washing your motorcy-

cle. . . . . . . . . . . . . . . . . . . . . . . . . 160

Cleaning sensitive motorcy-

cle parts. . . . . . . . . . . . . . . . . . . 161

Paint care . . . . . . . . . . . . . . . . . 162

Store motorcycle . . . . . . . . . . 162

Protective wax coating . . . . 162

Return motorcycle to

use . . . . . . . . . . . . . . . . . . . . . . . . 163

11 Technical Data . . .. . . 165

Troubleshooting chart . . . . . 166

Threaded fasteners . . . . . . . 167

Engine . . . . . . . . . . . . . . . . . . . . 169

Fuel . . . . . . . . . . . . . . . . . . . . . . . 170

Engine oil . . . . . . . . . . . . . . . . . 170

Clutch . . . . . . . . . . . . . . . . . . . . . 171

Transmission . . . . . . . . . . . . . . 171

Rear-wheel drive . . . . . . . . . . 172

Suspension . . . . . . . . . . . . . . . 172

Brakes . . . . . . . . . . . . . . . . . . . . 173

Wheels and tires . . . . . . . . . . 173

Electrical system . . . . . . . . . . 174

Frame . . . . . . . . . . . . . . . . . . . . . 176

Page 6

Dimensions . . . . . . . . . . . . . . . 176

Weights . . . . . . . . . . . . . . . . . . . 177

Performance data .. . . . . . . . 177

12 Service . . .. .. . .. .. .. .. 179

Reporting safety

defects . . . . . . . . . . . . . . . . . . . . 180

BMW Motorrad Service . . . 181 BMW Motorrad Mobility

Services . . . . . . . . . . . . . . . . . . . 181

Maintenance proce-

dures . . . . . . . . . . . . . . . . . . . . . . 181

Maintenance schedule . . . . 185

Standard BMW Service . . . 186 Confirmation of mainte-

nance work. . . . . . . . . . . . . . . . 187

Confirmation of service . . . . 192

13 Appendix . .. .. .. .. . .. . 195

Certificate for Electronic

Immobilizer . . . . . . . . . . . . . . . . 196

14 Index . .. .. .. .. .. .. .. .. 198

Page 7

General instructions

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Abbreviations and symbols . . . . . . . . . . 6

Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Technical data . . . . . . . . . . . . . . . . . . . . . . . 7

Notice concerning current status . . . . 7

General instructions

Page 8

Overview

Chapter 2 of this Rider's Manual will provide you with an ini-

tial overview of your motorcycle. All maintenance and repair work carried out on your motorcycle will be documented in Chapter 12. Documentation confirming performance of scheduled maintenance is a precondition for generous handling of out-ofwarranty claims and goodwill warranty treatment. When the time comes to sell your BMW, please remember to hand over this Rider's Manual; it is an important part of the mo-

General instructions

torcycle.

Abbreviations and symbols

CAUTION Hazard with

low risk. Failure to avoid this hazard can result in minor or moderate injury.

WARNING Hazard with

moderate risk. Failure to avoid this hazard can result in death or serious injury.

DANGER Hazard with high

risk. Failure to avoid this hazard results in death or serious injury.

ATTENTION Special in-

structions and precautionary measures. Non-compliance can cause damage to the vehicle or accessories and warranty claims may be denied as a result.

NOTICE Special informa-

tion on operating and inspecting your motorcycle as well as maintenance and adjustment procedures.

Indicates the end of an item of information.

Instruction.

Result of an activity.

Reference to a page with more detailed information.

Indicates the end of accessory or equipmentdependent information.

Tightening torque.

Technical data.

ABS Anti-Lock Brake System.

ASC Automatic Stability Con-

trol.

DDC Dynamic Damping Con-

trol.

DTC Dynamic Traction Con-

trol.

Page 9

DWA

Anti-theft alarm.

Electronic immobilizer.

EWS

VDS Vertical Down Sensor

(fall sensor)

OE Optional extra.

BMW Motorrad optional extras are already completely installed during motorcycle production.

OA Optional accessory.

BMW Motorrad optional accessories can be purchased and installed at your authorized BMW Motorrad retailer.

Equipment

When you ordered your BMW motorcycle, you chose various items of custom equipment. This Rider's Manual describes optional

equipment (OE) offered by BMW and selected optional accessories (OA). This explains why the manual may also contain descriptions of equipment which you have not ordered. Please note, too, that your motorcycle might not be exactly as illustrated in this manual on account of country-specific differences. If your motorcycle comes with equipment not described here, you can find the descriptions in a separate manual.

Technical data

All dimensions, weights and outputs in the Rider's Manual relate to the German DIN standards and comply with their tolerance specifications. Versions for individual countries may differ.

Notice concerning current status

The high safety and quality standards of BMW motorcycles are maintained by constant development work on design, equipment and accessories. For this reason, aspects of your motorcycle may vary from the descriptions in this Rider's Manual. In addition, BMW Motorrad cannot guarantee the total absence of errors. We hope you will appreciate that no claims can be recognized based on the data, illustrations or descriptions in this manual.

General instructions

Page 10

General instructions

Page 11

Overviews

General view, left side. . . . . . . . . . . . . . . 11

General view of left side with

DDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

General view, right side . . . . . . . . . . . . . 15

Underneath seat . . . . . . . . . . . . . . . . . . . . 16

Multifunction switch, left . . . . . . . . . . . . 17

Multifunction switch, right . . . . . . . . . . . 18

Instrument cluster . . . . . . . . . . . . . . . . . . 19

Overviews

Page 12

Overviews

Page 13

General view, left side

1 Adjusting front compres-

sion damping (red scale value display) ( 82)

2 Adjuster for spring preload,

rear ( 78)

3 Seat lock ( 61) 4 Tire inflation pressure table

Payload table Chain adjustment values

5 Engine oil level indicator

( 125)

6 OA plug for navigation

Overviews

Page 14

Overviews

Page 15

General view of left side with DDC

with Dynamic Damping Control

(DDC)

1 Adjusting spring preload on

front wheel ( 80)

2 Seat lock ( 61) 3 Tire inflation pressure table

Payload table Chain adjustment values

4 Adjuster for spring preload,

rear ( 79)

5 Engine oil level indicator

( 125)

6 OA plug for navigation

Overviews

Page 16

Overviews

Page 17

General view, right side

1 Brake-fluid reservoir, rear

( 130)

2 Vehicle identification num-

ber (VIN) and type plate (on steering-head bearing)

3 Brake-fluid reservoir, front

( 129)

4 Adjustment of front

rebound-stage damping (yellow scale value display) ( 82)

5 Steering damper 6 Coolant level indicator

( 131)

7 OA plug 8 Oil fill location ( 126) 9 Adjustment of rear

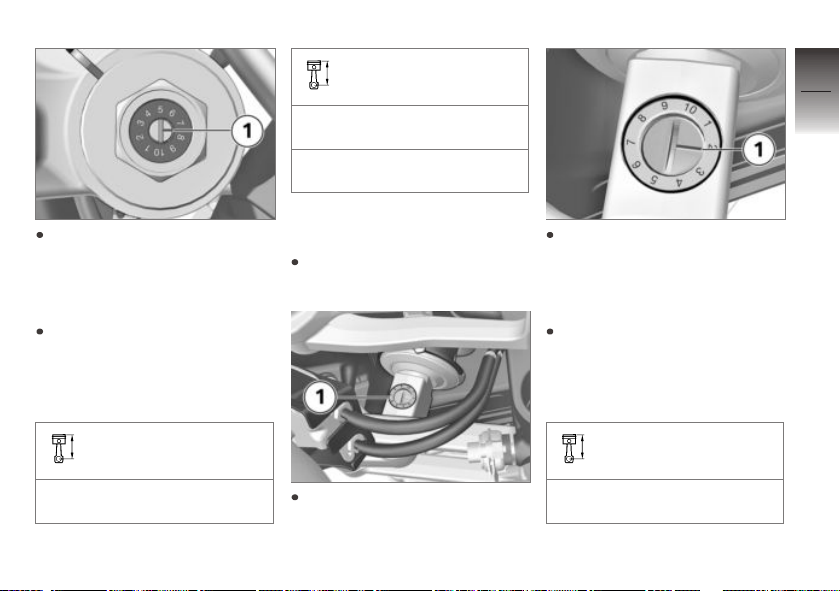

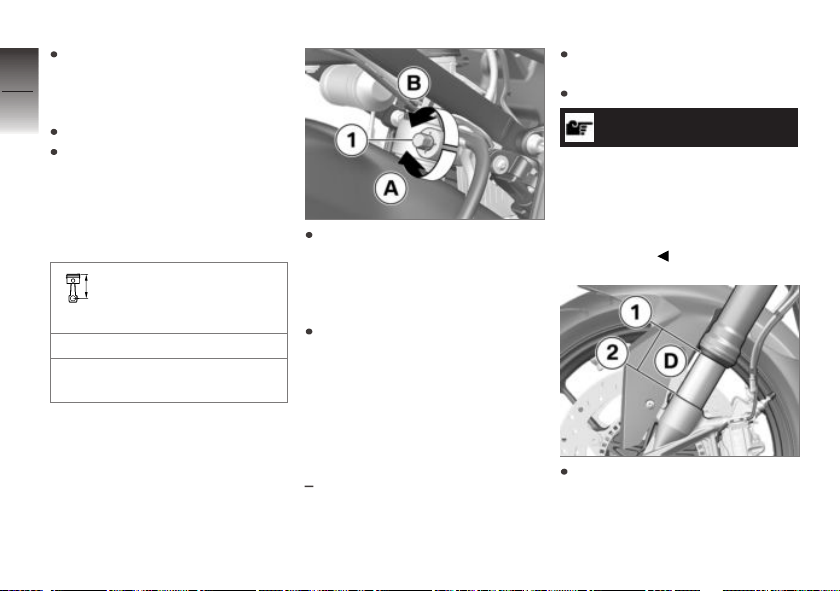

rebound-stage damping (at bottom on spring strut, yellow scale value display) ( 83)

Overviews

Page 18

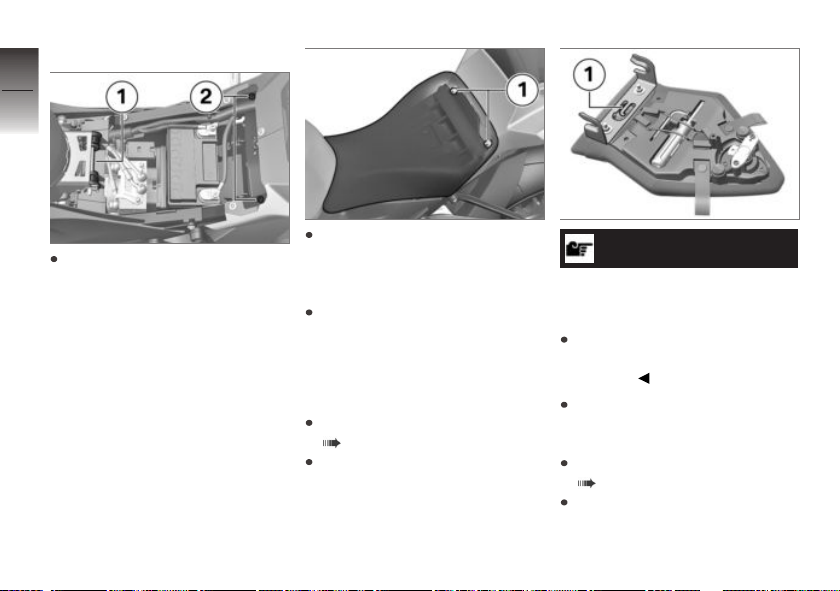

Underneath seat

1 Battery ( 156) 2 Helmet holder ( 62)

3 Luggage loops ( 63) 4 Onboard tool kit ( 122) 5 with anti-theft alarm sys-

tem (DWA) Anti-theft alarm system ( 46)

6 Fuse box ( 154) 7 Rider's Manual (US Model) 8 with Pro riding modes

Overviews

-Coding plug ( 55)

Page 19

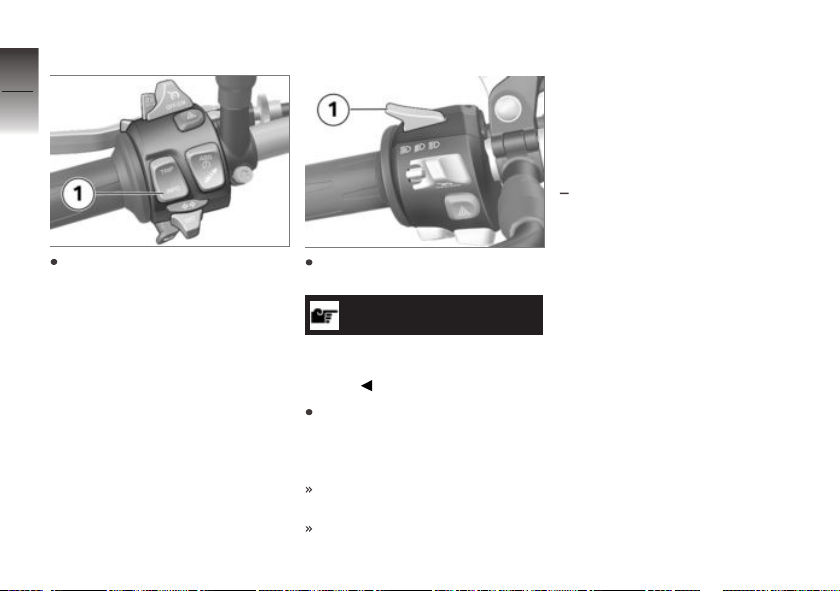

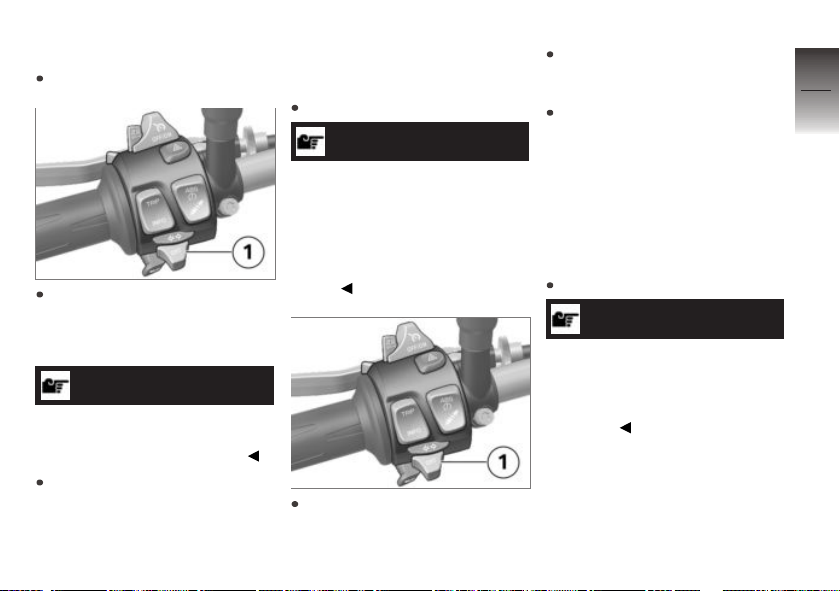

Multifunction switch, left

1 High-beam headlight and

headlight flasher ( 48) Lap timer ( 68)

2 with cruise control

Cruise control ( 56)

3 Hazard warning flashers

( 49)

4 BMW Motorrad Race ABS

( 50) ASC ( 52)

with Dynamic Traction Control (DTC)

DTC ( 53)

with Dynamic Damping Control (DDC)

DDC ( 84)

5 Turn indicators ( 49) 6 Horn 7 Display mode selection

( 42)

Overviews

Page 20

Multifunction switch,

right

1 with heated handlebar

2 Riding mode ( 54) 3 Emergency on/off switch

4 Starting the engine

Overviews

grips Heated handlebar grips ( 60)

(kill switch) ( 50)

( 94)

Page 21

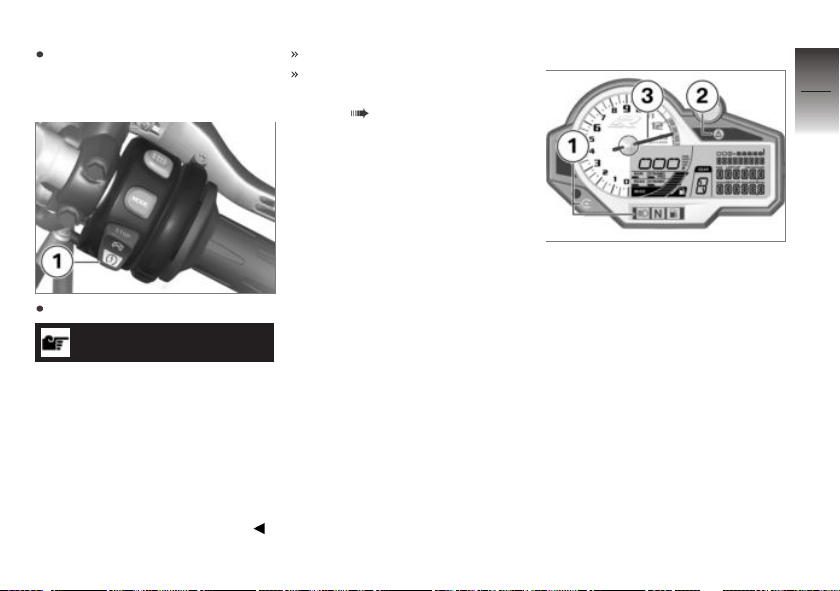

Instrument cluster

1 Indicator and warning

lamps ( 22)

2 Tachometer 3 Shiftpoint lamp ( 99) 4 Ambient light sensor (for

brightness adjustment of instrument lighting)

with anti-theft alarm sys-

tem (DWA) DWA indicator lamp ( 46)

5 Multifunction display

( 24)

Overviews

Page 22

Overviews

Page 23

Displays

Warning and indicator lights. . . . . . . . . 22

Multifunction display . . . . . . . . . . . . . . . . 24

Warning lights . . . . . . . . . . . . . . . . . . . . . . 25

Fuel down to reserve . . . . . . . . . . . . . . . 37

Cruising range . . . . . . . . . . . . . . . . . . . . . . 37

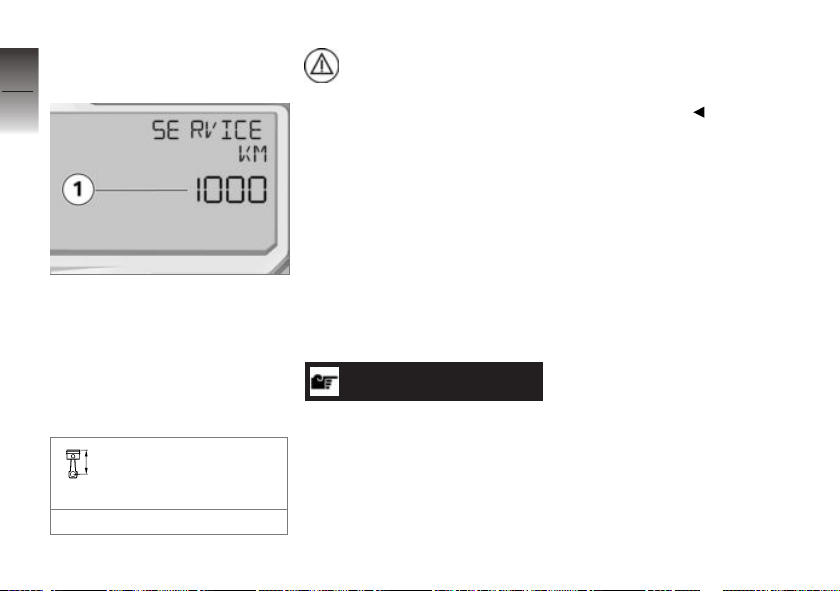

Service display . . . . . . . . . . . . . . . . . . . . . . 37

Displays

Page 24

Warning and indicator

lights

1 ASC indicator and warning

light ( 33)

with Dynamic Traction Control (DTC)

DTC warning light ( 34)

2 ABS indicator and warning

light ( 32)

3 Turn indicator, left 4 Universal warning lamp

Displays

(appears together with warnings in display panel) ( 25)

5 Turn indicator, right 6 Fuel reserve ( 37) 7 Idle 8 High-beam headlight 9 Engine-electronics warning

light ( 30)

10 Cruise control

with cruise control Switching on cruise control ( 56).

Page 25

11 Light for fastest lap

( 69)

Displays

Page 26

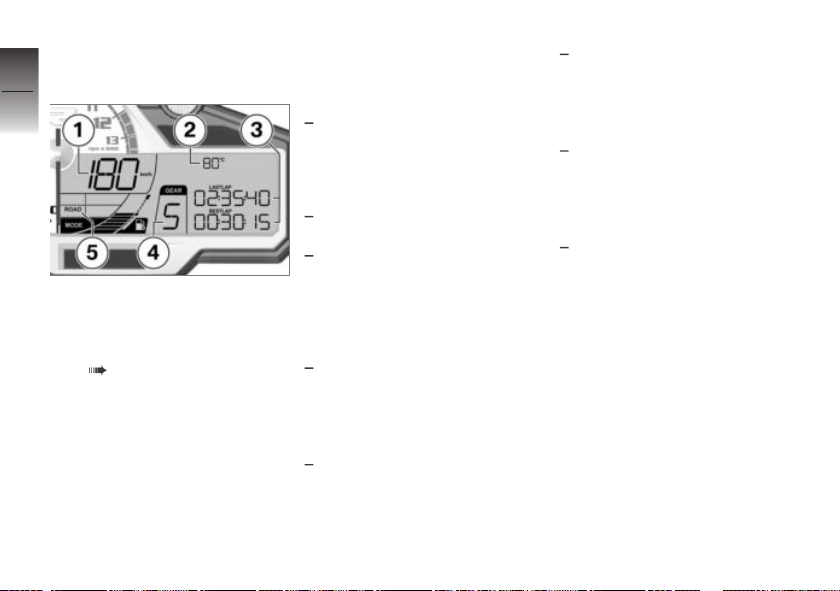

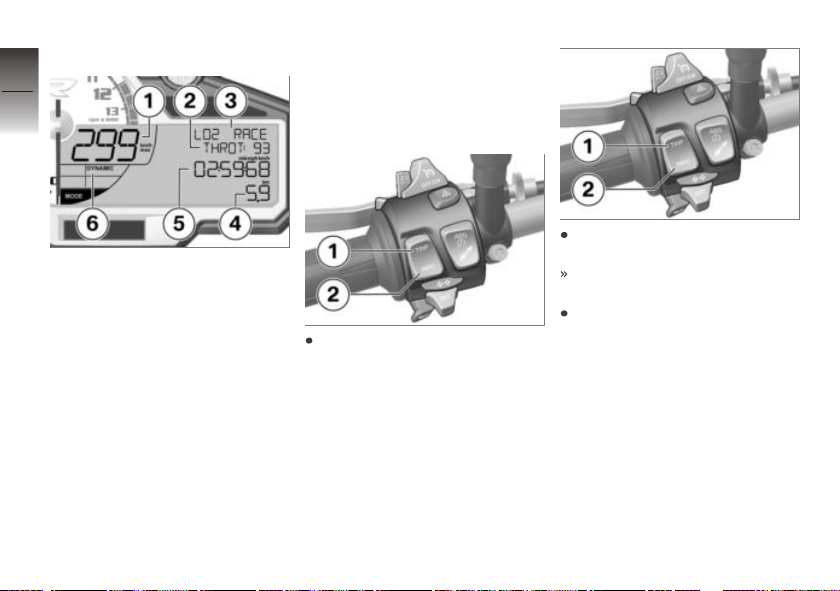

Multifunction display

1 Speedometer 2 Gear indicator, shows "N"

Displays

in neutral (idling)

3 with heated handlebar

4 Coolant temperature 5 General information

6 Clock ( 44) 7 Fuel level 8 Riding mode ( 54)

Refer to Chapter 5 for information regarding the display modes available for track use.

grips Operating heated grips ( 60)

( 44)

NOTICE

Page 27

Warning lights

Display

Warnings are displayed with the corresponding warning lamps.

Warnings for which no individual warning lamp is present are signaled by the universal warning lamp 1 which lights up in combination with the appearance of a warning notice such as 2 in the multifunction display. The universal warning lamp lights up in either yellow or red depending on the urgency of the warning.

If several warnings are active, all corresponding warning lamps and warning symbol are displayed; warnings appear alternately.

The possible warnings are listed on the following pages.

Displays

Page 28

Overview of warning indicators

Warning and indicator

lamps

lights up yellow

Warning symbols in the display panel

EWS! is indicated

Meaning

EWS active ( 30)

Displays

flashes red Coolant tempera-

lights up Engine in emergency-operation mode

lights up yellow

ture display flashes

LAMPR! is indi-

cated

LAMPF! is indi-

cated

LAMP! is indi-

cated

VDS! is shown in

the empty display

Coolant temperature too high ( 30)

( 30)

Taillight defective ( 31)

Lamps for front parking lights defective ( 31)

Front lamps defective ( 31)

Lamps for turn indicators defective ( 32)

Motorcycle has fallen over ( 32)

Page 29

Warning and indicator lamps

Warning symbols in the display panel

VDS! is indicated

Meaning

Fall sensor defective ( 32)

flashes ABS self-diagnosis not completed

lights up

flashes rapidly ASC intervention ( 33)

flashes slowly ASC self-diagnosis not completed

lights up

( 32)

ABS switched off ( 33)

ABS error ( 33)

( 33)

ASC switched off ( 34)

ASC error ( 34)

Displays

Page 30

Warning and indicator

lamps

flashes rapidly DTC intervention ( 34)

Warning symbols in the display panel

Meaning

Displays

flashes slowly DTC self-diagnosis not completed

lights up

lights up yellow

DDC! is indicated

DWALO! is indi-

cated

lights up yellow

lights up red NO CAN is indi-

DWA! is indicated

cated

( 34)

DTC switched off ( 35)

DTC error ( 35)

DDC error ( 35)

DWA battery charge level low ( 36)

DWA battery drained ( 36)

CAN open/short circuit ( 36)

Page 31

Warning and indicator lamps

lights up yellow NO CODING is

Warning symbols in the display panel

indicated

Meaning

Encoding missing ( 36)

Displays

Page 32

EWS active

General warning lamp shows yellow.

EWS! is indicated.

Possible cause: The key being used is not autho-

rized for starting, or communication between the key and engine electronics is disrupted.

Remove other ignition keys

Displays

located on the ignition key. Use the reserve key. Have the defective key replaced, preferably by an authorized BMW Motorrad retailer.

Coolant temperature too high

General warning lamp flashes red.

The coolant temperature display flashes.

ATTENTION

Riding with overheated engine.

Engine damage

Be sure to observe the measures listed below.

Possible cause: The coolant temperature is too

high.

If possible, continue driving in the part-load range to cool down the engine. Check the coolant level. Should the coolant temperature frequently be too high, have the fault rectified as quickly as possible by an authorized workshop, preferably an authorized BMW Motorrad retailer.

Engine in emergencyoperation mode

Engine electronics warning lamp lights up.

WARNING

Unusual handling when engine is no emergency operating mode.

Accident hazard

Adapt your style of riding accordingly. Avoid rapid acceleration and passing maneuvers.

Possible cause: The engine control unit has di-

agnosed a fault. In exceptional cases, the engine stops and can no longer be started. Otherwise, the engine runs in the emergency operating mode.

Continued driving is possible, however the accustomed en-

Page 33

gine output and speed range may not be available. Have the malfunction corrected as soon as possible at an authorized workshop, preferably an authorized BMW Motorrad retailer.

Taillight defective

General warning lamp shows yellow.

LAMPR! is indicated.

Possible cause: Taillight or brake light bulb defec-

tive.

The diode taillight must be replaced. Please contact a specialized workshop, preferably an authorized BMW Motorrad retailer.

Lamps for front parking lights defective

General warning lamp lights up yellow (only if both

lamps for the parking lights fail).

LAMPF! is indicated.

WARNING

Overlooking the motorcycle in traffic due to the light source on the motorcycle failing.

Safety risk

Replace defective bulbs as soon as possible; it is best always to carry a complete set of spare bulbs on the motorcycle.

Possible cause: Bulb for parking light defective.

Replacing bulb for left-hand parking light ( 149). Replacing right parking light bulb ( 151).

Front lamps defective

No fault is displayed when the low-beam or high-beam headlight fails.

WARNING

Overlooking the motorcycle in traffic due to the light source on the motorcycle failing.

Safety risk

Replace defective bulbs as soon as possible; it is best always to carry a complete set of spare bulbs on the motorcycle.

Possible cause: Front bulb defective.

Replacing bulbs for low-beam headlight ( 147). Replacing bulb for high-beam headlight ( 149).

Displays

Page 34

Lamps for turn indicators

defective

LAMP! is indicated.

WARNING

Overlooking the motorcycle in traffic due to the light source on the motorcycle failing.

Safety risk

Replace defective bulbs as

Displays

soon as possible; it is best always to carry a complete set of spare bulbs on the motorcycle.

Possible cause: Bulb for turn indicator defective.

Replacing bulb for front and rear turn indicator ( 152).

Possible cause: The license-plate carrier is re-

moved and the vehicle's electronic monitoring system detects the missing turn signals.

Install license-plate carrier ( 87).

NOTICE

If the license plate carrier is removed for racetrack use, the vehicle's electronic monitoring system will interpret this as a defective lamp or bulb and the corresponding warning message will appear in the display. This warning message is suppressed by activating the

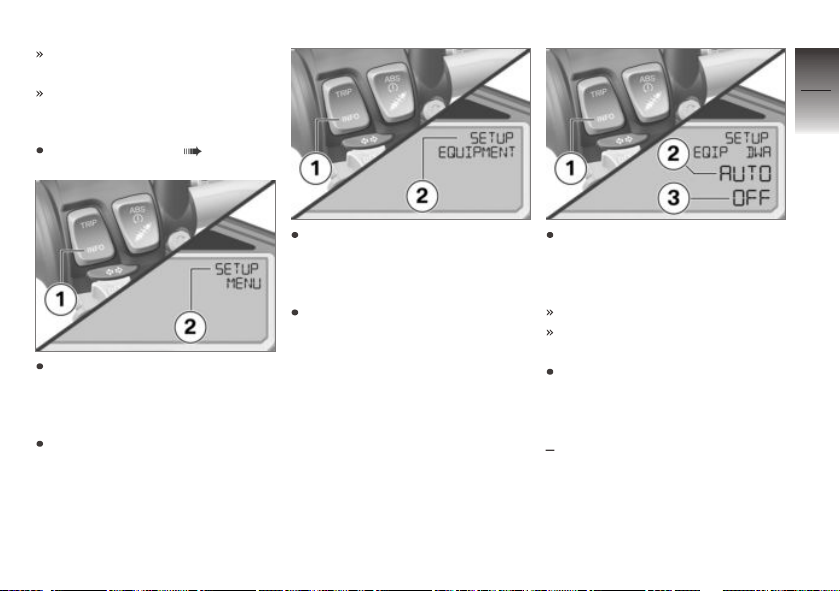

EQIP WARN LAMP function in

the SETUP MENU.

Motorcycle has fallen over

VDS! (Vertical Down Sensor) is

shown in the empty display. Possible cause:

The fall sensor has detected a fall and switched off the engine.

Position motorcycle upright Switch ignition off and then on again or switch emergency ON/

OFF switch on and then off again.

Fall sensor defective

VDS! (Vertical Down Sensor) is

shown. Possible cause:

A defect was determined in the fall sensor.

Contact an authorized service facility, preferably an authorized BMW Motorrad retailer.

ABS self-diagnosis not completed

ABS indicator light flashes.

Page 35

Possible cause:

ABS self-diagnosis not completed

The ABS function is not available, as the self-diagnosis function has not been completed. (To check the wheel sensors, the motorcycle must reach a minimum speed: min 3 mph (min 5 km/h))

Ride off slowly. It must be noted that the ABS function is not available until the selfdiagnosis has been completed.

ABS switched off

ABS indicator light lights up.

Possible cause: The ABS system has been deac-

tivated by the rider.

Switching the ABS function on ( 51).

ABS error

ABS indicator light lights up.

Possible cause: The ABS control unit has de-

tected an error. The ABS function is not available at all or is restricted.

It is possible to continue riding the motorcycle if you make allowance for the ABS failure. You should also take account of the additional information on situations that can lead to an ABS fault ( 111). Have the malfunction corrected as soon as possible at an authorized workshop, preferably an authorized BMW Motorrad retailer.

ASC intervention

ASC indicator and warning light flashes rapidly.

The ASC control unit has

detected instability at the rear wheel and has reduced the torque. The warning lamp flashes longer than the ASC intervention lasts. This feature continues to furnish the rider with visual feedback confirming that the system has initiated active closed-loop intervention even after the critical situation has passed.

ASC self-diagnosis not completed

ASC indicator and warning light flashes slowly.

Displays

Page 36

Possible cause:

Displays

ASC self-diagnosis rou-

tine not completed

The ASC function is not available, as the self-diagnosis function has not been completed. (To check wheel speed sensors, motorcycle must reach a minimum speed with engine running: min 3 mph (min 5 km/h))

Ride off slowly. It must be noted that the ASC function is not available until the selfdiagnosis has been completed.

ASC switched off

ASC indicator and warning light lights up.

Possible cause: The ASC system has been deac-

tivated by the rider.

Switching the ASC function on ( 52).

ASC error

ASC indicator and warning light lights up.

Possible cause: The ASC control unit has

detected an error. It must be noted that the ASC function is not available at all or is restricted.

It remains possible to continue riding. You should also take account of the additional information on situations that can lead to an ASC fault ( 113). Have the malfunction corrected as soon as possible at an authorized workshop, preferably an authorized BMW Motorrad retailer.

DTC intervention

with Dynamic Traction Control

(DTC)

DTC warning lamp flashes

rapidly. The DTC control unit has detected instability at the rear wheel and has reduced the torque. The warning lamp flashes longer than the DTC intervention lasts. This feature continues to furnish the rider with visual feedback confirming that the system has initiated active closed-loop intervention even after the critical situation has passed.

DTC self-diagnosis not completed

with Dynamic Traction Control

(DTC)

DTC warning lamp flashes

slowly.

Page 37

Possible cause:

DTC self-diagnosis not completed

The DTC function is not available, as the self-diagnosis function has not been completed. (To check wheel speed sensors, motorcycle must reach a minimum speed with engine running: min 3 mph (min 5 km/h))

Ride off slowly. It must be noted that the DTC function is not available until the selfdiagnosis has been completed.

DTC switched off

with Dynamic Traction Control

(DTC)

DTC warning lamp lights up.

Possible cause: The DTC system has been deac-

tivated by the rider.

Switching the DTC function on ( 53).

DTC error

with Dynamic Traction Control

(DTC)

DTC warning lamp lights up.

Possible cause: The DTC control unit has de-

tected an error. It must be noted that the DTC function is not available at all or is restricted.

It remains possible to continue riding. You should also take account of the additional information on situations that can lead to an DTC fault ( 113). Have the malfunction corrected as soon as possible at an authorized workshop, preferably

an authorized BMW Motorrad retailer.

DDC error

General warning lamp shows yellow.

DDC! is indicated.

Possible cause: The DDC control unit has de-

tected an error.

Have the malfunction corrected as soon as possible at an authorized workshop, preferably an authorized BMW Motorrad retailer. Motorcycle damping is in this condition very firm and riding is rather uncomfortable - in particular on rough roads.

Displays

Page 38

DWA battery charge level

low

with anti-theft alarm system

(DWA)

DWALO! is indicated.

NOTICE

This fault message is only shown for a short time immediately following the Pre-Ride-Check.

Displays

Possible cause: The DWA battery no longer has

its full charging capacity. The operation of the DWA with the vehicle battery disconnected is only guaranteed for a limited time.

Contact an authorized service facility, preferably an authorized BMW Motorrad retailer.

DWA battery drained

with anti-theft alarm system

(DWA)

General warning lamp shows yellow.

DWA! is indicated.

NOTICE

This fault message is only shown for a short time immediately following the Pre-Ride-Check.

Possible cause: The DWA battery no longer has

any charging capacity. Operation of the DWA is no longer guaranteed when the vehicle battery is disconnected.

Contact an authorized service facility, preferably an authorized BMW Motorrad retailer.

CAN open/short circuit

General warning lamp

shows red.

NO CAN (Controller Area Net-

work) is displayed. Possible cause:

A defect was determined in the Controller Area Network.

Contact an authorized service facility, preferably an authorized BMW Motorrad retailer.

Encoding missing

General warning lamp

shows yellow.

NO CODING is indicated.

Possible cause: An encoding error was discov-

ered.

The display goes out after 10 seconds. Contact an authorized service facility, preferably an authorized BMW Motorrad retailer.

Page 39

Fuel down to reserve

Fuel-reserve warning lamp lights up.

WARNING

Rough engine running or switching off of the engine due to a fuel shortage.

Accident hazard. Damage to the catalytic converter.

Do not drive to the extent that the fuel tank is completely empty.

Possible cause: At the most, the fuel tank still

contains the reserve fuel quantity.

Fuel reserve

Approx. 1.1 gal (Approx. 4 l)

Refueling procedure ( 103).

Cruising range

The cruising range 1 indicates the distance that can still be driven with the remaining fuel. This distance is calculated based on fuel level and average consumption. The odometer for the fuel reserve is reset when the fuel quantity after refueling is greater than the fuel reserve. If the motorcycle is standing on its side stand, the motorcycle's inclined position will prevent the fuel level from being registered accurately. For this reason travel

range is only calculated with the side stand retracted.

NOTICE

The determined range is an approximate reading. BMW Motorrad therefore recommends that you do not try to use the full range before refueling.

Service display

If the time remaining until the next service will elapse within one month, the service date 1 appears briefly following the Pre-

Displays

Page 40

Ride-Check. In this example the display means "October, 2013."

Displays

If the vehicle covers high annual mileages then shorter service intervals may be required. If the mileage for the brought-forward service is within the display range, the remaining mileage 1 then appears briefly following the Pre-Ride-Check.

Indication of remaining mileage until next

service:

621 miles (1000 km)

General warning lamp lights up yellow and

SERVICE! is continually

displayed. When a service date elapses without service, the general warning lamp lights up in yellow, appearing together with the date and mileage (kilometer) display. The "Service" message is displayed continuously.

Contact an authorized service facility, preferably an authorized BMW Motorrad retailer.

NOTICE

If the service display appears more than a month before the service date, the stored date must be adjusted in the instrument cluster. This situation can occur if the battery has been disconnected for a longer time.

Consult a certified workshop, preferably an authorized BMW Motorrad retailer, for setting of the date.

Page 41

Operation

Steering and ignition lock . . . . . . . . . . . 40

Ignition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

EWS Electronic immobilizer . . . . . . . . . 41

Multifunction display . . . . . . . . . . . . . . . . 42

Alarm system (DWA) . . . . . . . . . . . . . . . . 46

Headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Turn indicators. . . . . . . . . . . . . . . . . . . . . . 49

Hazard warning flashers. . . . . . . . . . . . . 49

Emergency on/off switch (kill

switch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

BMW Motorrad Race ABS . . . . . . . . . . 50

BMW Motorrad ASC . . . . . . . . . . . . . . . 52

Dynamic Traction Control. DTC . . . . 53

Riding mode . . . . . . . . . . . . . . . . . . . . . . . . 54

Cruise control . . . . . . . . . . . . . . . . . . . . . . . 56

Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Heated handlebar grips . . . . . . . . . . . . . 60

Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Rider and passenger seats . . . . . . . . . . 61

Helmet holder . . . . . . . . . . . . . . . . . . . . . . 62

Luggage straps .. . . . . . . . . . . . . . . . . . . . 63

Operation

Page 42

Steering and ignition

lock

Keys

You are provided with 2 ignition keys. Should you lose your keys, refer to the information regarding the electronic immobilizer (EWS) ( 41).

Single-key locking

Operation

Steering and ignition lock Fuel filler cap Seat lock Seat hump cover

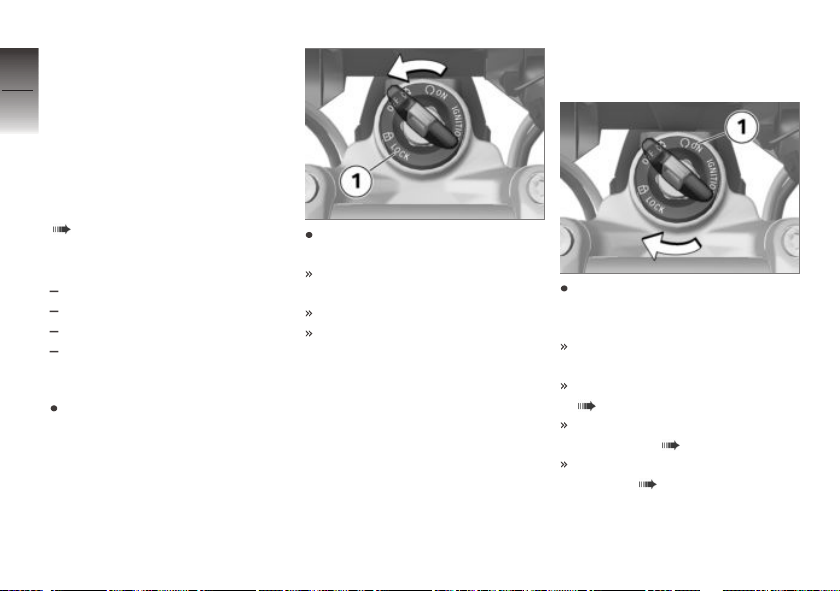

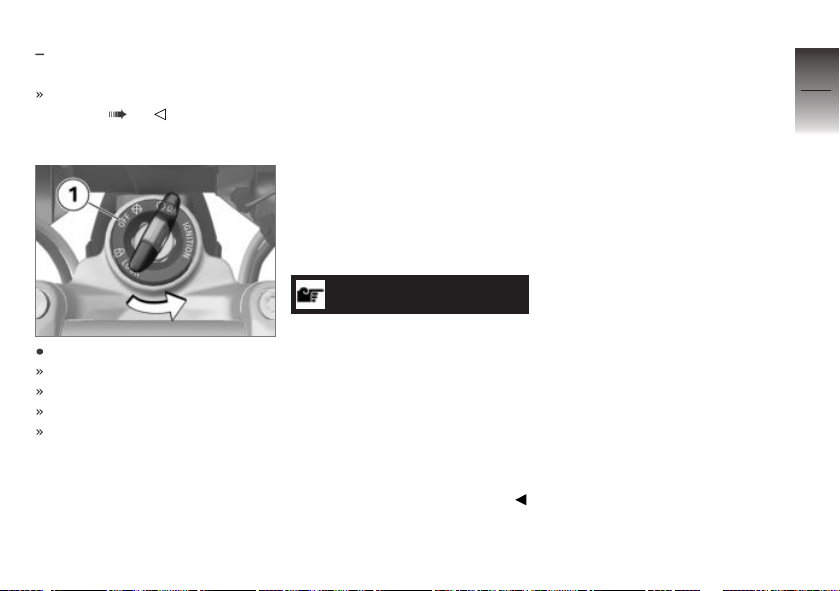

Locking handlebars

Turn handlebars to left.

Turn key to position 1 while moving handlebars slightly. Ignition, lights and all electrical circuits are switched off. Handlebars are locked. Key can now be removed.

Ignition

Switch on ignition

Insert key into the steering and ignition lock. Turn key to position 1. Parking lights and all function circuits are switched on. Pre-Ride-Check is carried out. ( 95) ABS self-diagnosis is performed. ( 96) ASC self-diagnosis is performed. ( 97)

Page 43

with Dynamic Traction Control

(DTC) DTC self-diagnosis is per-

formed ( 97)

Switch off ignition

Turn key to position 1. Light is switched off. Handlebars are not locked. Key can now be removed. License plate lamp goes out after 10 seconds.

EWS Electronic immobilizer

The motorcycle's electronic circuitry monitors the data stored in the ignition key through a ring antenna incorporated in the steering and ignition lock. The engine management system does not enable engine starting until this key is recognized as "authorized" for your motorcycle.

NOTICE

A further key attached to the same ring as the ignition key used to start the engine could "irritate" the electronics, in which case the enabling signal for starting is not issued. The

EWS warning is shown in the

multifunction display. Always store further vehicle keys separately from the ignition key.

If you lose a vehicle key, you can have it disabled by your authorized BMW Motorrad retailer. When having a key disabled you should also bring all of the motorcycle's remaining keys with you. The engine can no longer be started using a disabled key; however, a disabled key can be enabled again. Ignition keys are available only through an authorized BMW Motorrad retailer. The keys are part of an integrated security system, so the retailer is under an obligation to check the legitimacy of all applications for replacement/extra keys.

Operation

Page 44

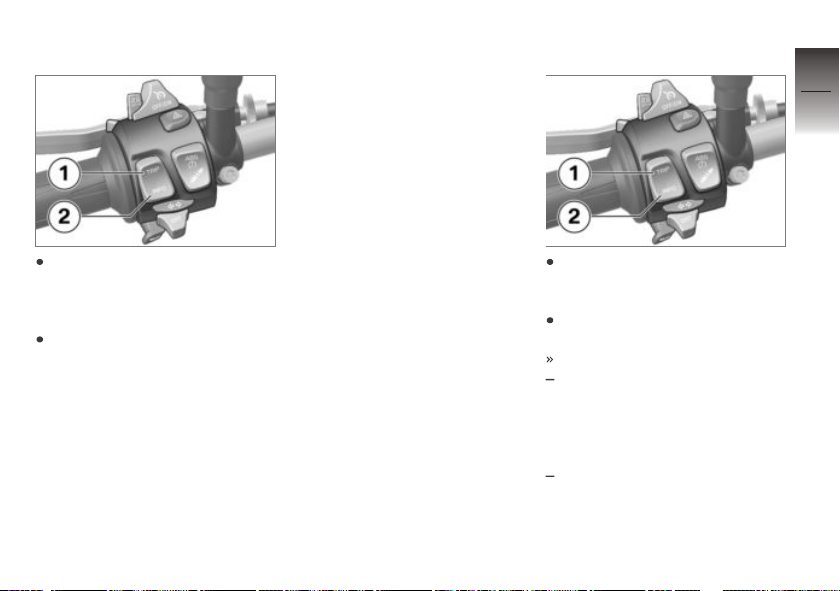

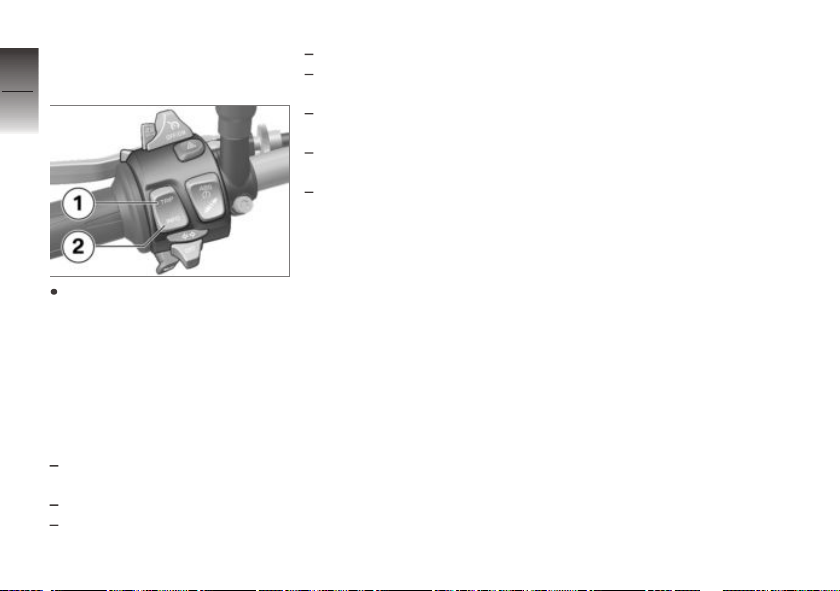

Multifunction display

Select display mode

Operation

Press button 1 to display

ROAD display mode.

Press button 2 to display addi-

tional display modes. The following display modes are available:

ROAD: All information required

for operation on public roads is

provided here.

LAPTIMER: The lap times

and additional data can be

stored here and displayed

again in the RACE INFO

display mode.

RACE INFO: The stored information from the LAPTI-

MER can be displayed here.

This display mode can only be activated with the motorcycle stopped. SETUP MENU: The behavior of the instrument cluster can be adjusted to the driver's preferences here. This display mode can only be activated with the motorcycle stopped.

If RACE INFO or

SETUP MENU is shown,

press and hold button 1 to activate mode.

Page 45

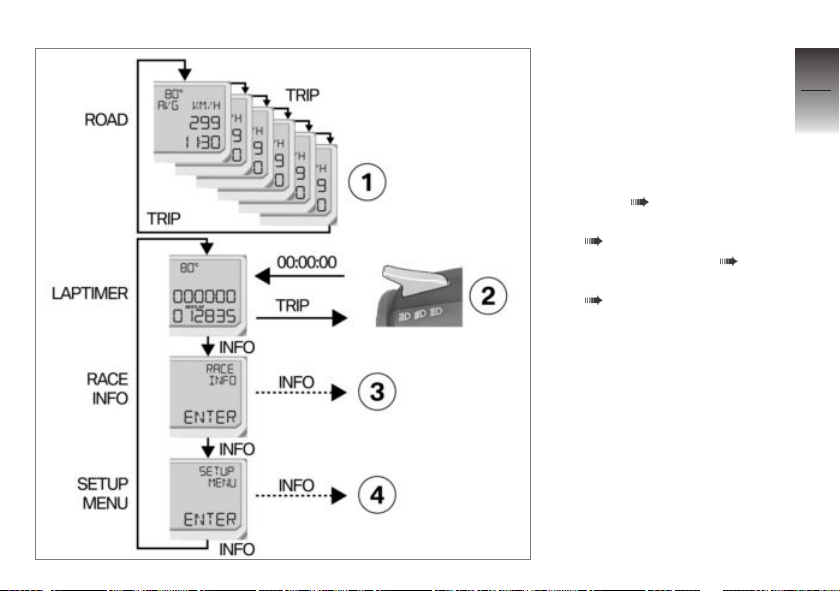

Overview of display modes

— Solid line: briefly press

button.

‑ ‑ Dotted line: press and hold

button.

1 Onboard computer dis-

plays ( 44)

2 Start time recording

( 68)

3 Start RACE INFO ( 70) 4 Start SETUP menu

( 75)

Operation

Page 46

Selecting displays in

ROAD mode

Switch on ignition.

Operation

Press button 1 repeatedly until

desired value is displayed in

area 2. The following data can be displayed:

Total distance covered

Cruising range

Trip odometer 1 Trip I

Trip odometer 2 Trip II

Average fuel consumption

Average speed

Reset average data

Switch on ignition.

Repeatedly press button 1 briefly until average value to be reset appears in display. Press and hold button 1 until selected value has been reset.

Setting the clock

Switch on ignition.

Press button 2 repeatedly until

SETUP MENU ENTER is

displayed. Press and hold button 2. Press button 2 repeatedly until

SETUP EQUIPMENT ENTER is displayed.

Press and hold button 2. Press button 2 repeatedly until

SETUP EQUIP:CLOCK TIME is displayed.

Press and hold button 2 until minutes 4 flash. Press button 1 to increase minutes.

Page 47

Press button 2 to decrease minutes. If minutes were displayed as desired, press and hold button 2 until hours 3 flash. Press button 1 to increase hours. Press button 2 to decrease hours. When hours have been set as desired, press button 2 until hours no longer flash. The clock is now set.

Operation

Page 48

Alarm system (DWA)

with anti-theft alarm system

(DWA)

Activation

Switch on ignition ( 40).

DWA Adjusting ( 47).

Switch off ignition.

If the DWA is activated, the

DWA is automatically activated

after the ignition is switched

off.

Operation

Activation takes approximately

30 seconds to complete.

Turn indicators are illuminated

twice.

Confirmation tone sounds

twice (if programmed).

DWA is armed.

Alarm

The alarm can be set off by:

Motion sensor An attempt to use an unauthorized key to switch on the ignition Disconnecting the DWA from the motorcycle battery (DWA battery takes over the power supply – alarm sound only, hazard warning lights do not flash).

If the DWA battery is discharged all functions remain operational; the only difference is that the alarm cannot be set off if the system is disconnected from the motorcycle battery.

An alarm lasts for approximately 26 seconds. During the alarm, an alarm tone sounds and the turn indicators flash. The alarm tone type can be adjusted by an authorized BMW Motorrad retailer.

If an alarm was triggered while the motorcycle was unattended, the rider is notified accordingly by an alarm tone sounding once when the ignition is switched on. The DWA (alarm system) LED then indicates the reason for the alarm signal for one minute. The meanings of the flash codes are as follows:

1 flash: Motion sensor 1 2 flashes: Motion sensor 2 3 flashes: ignition switched on with unauthorized key 4 flashes: DWA disconnected from motorcycle battery 5 flashes: Motion sensor 3

Deactivation

Emergency on/off switch (kill switch) in normal operating position. Switch on ignition. Turn indicators light up once.

Page 49

Confirmation tone sounds once (if programmed). DWA is now switched off.

DWA Adjusting

Switch on ignition ( 40).

Repeatedly press button 1 briefly, until 2

SETUP MENU ENTER is

shown in display line. Press and hold button 1 to start SETUP MENU.

Repeatedly press button 1 briefly, until 2

SETUP EQUIPMENT ENTER is shown in display line.

Press and hold button 1 to start SETUP EQUIPMENT.

Press button 1 briefly to respectively select the

SETUP EQIP DWA menu

item. Display line 2 shows AUTO. Set value ON/OFF appears in display line 3. Press and hold button 1 to

change set value. The following settings are available:

AUTO ON: DWA is activated

respectively is activated auto-

matically when the ignition is

switched off.

Operation

Page 50

AUTO OFF: DWA is deacti-

vated.

Headlight

Adjusting headlight for RHD/LHD traffic

This motorcycle's headlight features a symmetrical low beam. No special adjustments or procedures are required prior to operating the motorcycle in a country where traffic travels on the

Operation

side of the road opposite to that of your home country (left-hand drive to right-hand drive or vice versa).

Headlamp range and spring preload

The headlamp range generally remains constant due to the adjustment of the spring preload to the loading state.

NOTICE

If there are doubts as to the correct headlight range, have the adjustment checked by a specialized workshop, preferably by an authorized BMW Motorrad retailer.

Lights

Parking lamps

The parking lamps come on automatically when the ignition is switched on.

NOTICE

The parking lights are a strain on the battery. Do not leave the ignition switched on longer than absolutely necessary.

Low-beam headlight

The headlights automatically

come on in their low-beam mode

as soon as you start the engine.

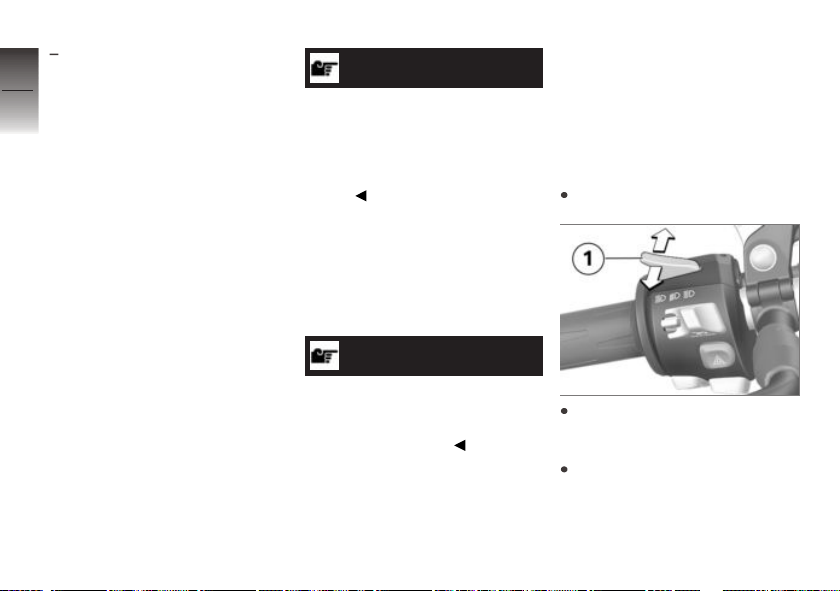

High-beam headlight and

headlight flasher

Start engine.

Press switch 1 upward to switch on the high-beam headlight. Press switch 1 downward to operate headlight flasher.

Page 51

Parking light

Switch off ignition.

Immediately after switching off the ignition push button 1 to the left and hold until the parking lights come on.

NOTICE

The parking lights can only be switched on within 10 seconds after switching off the ignition.

Switch ignition on and then off again to switch off parking light.

Turn indicators

Operating turn indicators

Switch on the ignition.

NOTICE

The turn indicators automatically switch off when the defined driving time and distance have been reached. The defined riding time and distance can be set by an authorized BMW Motorrad retailer.

Press button 1 to left to switch on left-side turn indicators.

Press button 1 to right to

switch on right-side turn

indicators.

Press button 1 into center po-

sition to switch off turn indica-

tors.

Hazard warning flashers

Switch on hazard warning flashers

Switch on ignition.

NOTICE

The hazard warning flashers place a strain on the battery. Do not use the hazard warning flashers for longer than absolutely necessary.

Operation

Page 52

Press button 1 to switch on hazard warning flashers. Ignition can be switched off.

Operation

Switch on ignition and press button 1 again to switch off hazard warning flashers.

Emergency on/off switch (kill switch)

1 Emergency on/off switch

(kill switch)

WARNING

Operation of the emergency ON/OFF switch when riding.

Danger of falling due to blocking of rear wheel.

Do not operate the emergency ON/OFF switch when riding.

The engine can be switched

off easily and quickly using the

emergency on/off switch.

a Engine switched off

b Operating position

BMW Motorrad Race

ABS

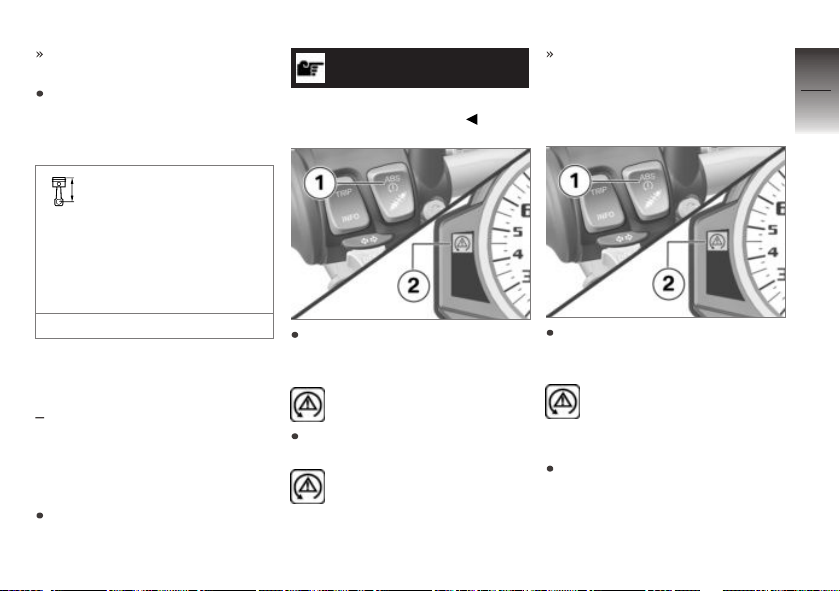

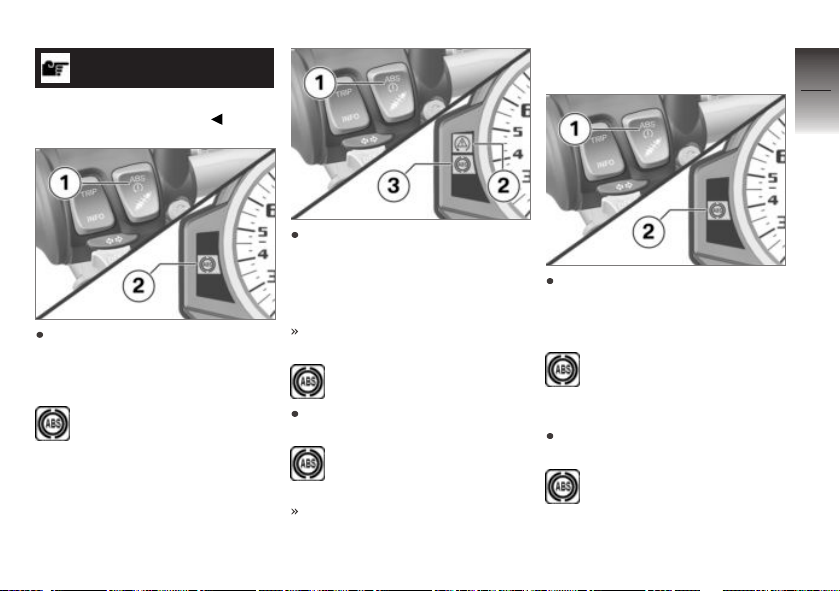

Switching the ABS

function off

Switch on the ignition.

Page 53

NOTICE

The ABS function can also be deactivated while driving.

Press and hold the 1 button until the ABS -indicator and warning light 2 changes its display behavior.

ABS indicator light lights up.

Press and hold the 1 button until first the DTC warning light 2 and then the ABS indicator light 3 changes its display behavior. The DTC setting remains unchanged.

ABS indicator light lights up.

Release button 1 within two seconds.

ABS indicator light continues to be lit up.

The ABS function is switched off.

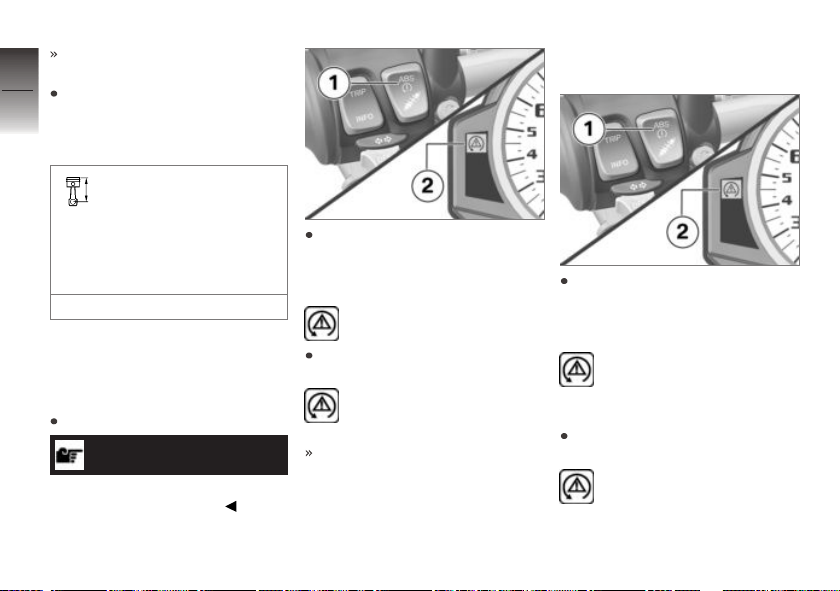

Switching the ABS function on

Press and hold the 1 button

until the ABS -indicator and

warning light 2 changes its

display behavior.

ABS indicator light goes

out, and starts to flash if self-diagnosis has not been completed.

Release button 1 within two seconds.

ABS indicator light remains

off or continues to flash.

Operation

Page 54

ABS indicator light switched on.

If the coding plug is not in-

stalled, the ignition can also be switched off and then on again as an alternative.

If the ABS indicator light

lights up after switching the ignition off and on and then continuing to ride at the following minimum speed, an ABS fault is present.

Operation

min 3 mph (min 5 km/h)

BMW Motorrad ASC

Switching the ASC function off

Start engine.

NOTICE

The ASC function can also be deactivated while driving.

Press and hold the 1 button until the ASC -indicator and warning light 2 changes its display behavior.

ASC indicator and warning light starts to light up.

Release button 1 within two seconds.

ASC indicator and warning light continues to be lit up.

The ASC function is switched off.

Switching the ASC function on

Press and hold the 1 button until the ASC -indicator and warning light 2 changes its display behavior.

ASC indicator and warning

light goes out, and starts to flash if self-diagnosis has not been completed.

Release button 1 within two seconds.

ASC indicator and warning

light remains off or continues to flash.

Page 55

The ASC function is switched on. If the coding plug is not installed, the ignition can also be switched off and then on again as an alternative.

If the ASC indicator and

warning light lights up after switching the ignition off and on and then continuing to ride at the following minimum speed, an ASC fault has occurred.

min 3 mph (min 5 km/h)

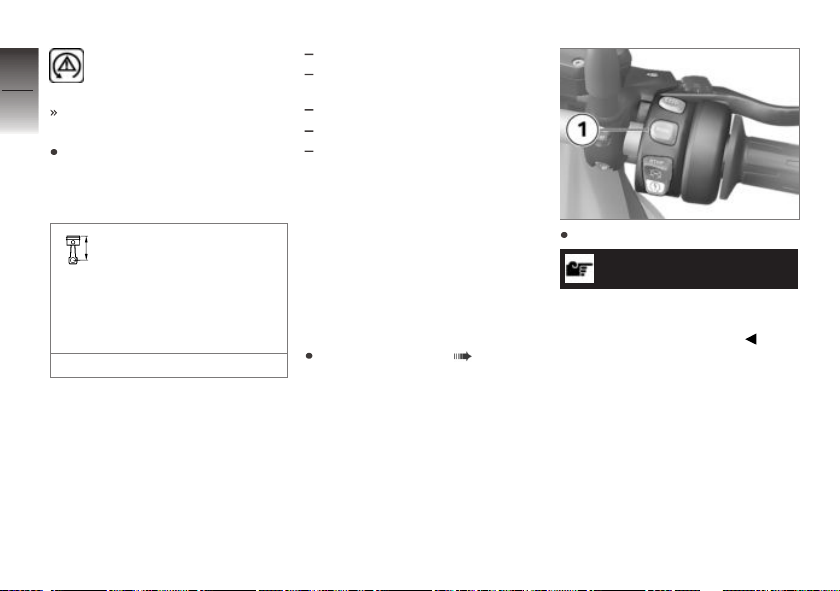

Dynamic Traction Control. DTC

with Dynamic Traction Control

(DTC)

Switching the DTC function off

Start engine.

NOTICE

The DTC function can also be deactivated while driving.

Press and hold button 1 until DTC warning light 2 changes its display behavior.

DTC warning lamp begins to light up.

Release button 1 within two seconds.

DTC warning lamp remains on.

The DTC function is switched off.

Switching the DTC function on

Press and hold button 1 until DTC warning lamp 2 changes its display behavior.

DTC warning lamp goes

out; if self-diagnosis has not been completed, it begins to flash.

Release button 1 within two seconds.

Operation

Page 56

DTC warning lamp remains

Operation

off or continues to flash.

The DTC function is switched on. If the coding plug is not installed, the ignition can also be switched off and then on again as an alternative.

If DTC warning light

lights up after switching ignition off and on and then continuing driving at following minimum speed, an DTC error has occurred.

min 3 mph (min 5 km/h)

Riding mode

Use of the riding modes

BMW Motorrad has developed 4 riding scenarios for your motorcycle from which you can select the one matching your situation:

Riding on wet roads. Riding on dry roads.

with Pro riding modes Brisk riding on dry roads. Sporty riding on dry roads.

For each of those 4 scenarios, the optimum balance between engine torque, throttle response, ABS control and ASC or DTC control for the situation concerned is provided. The optimum setting is preselected for DDC.

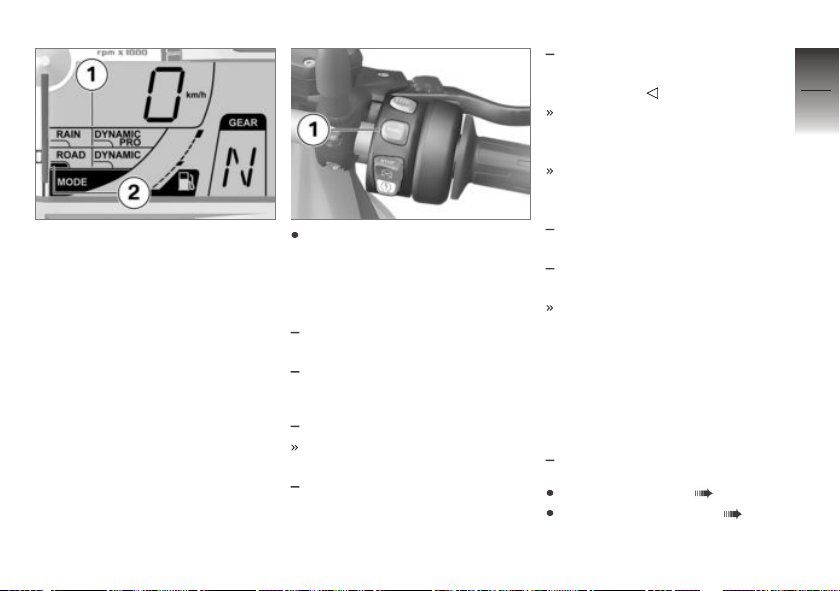

Setting riding mode

Switch on ignition ( 40).

Press button 1.

NOTICE

Details on the selectable driving modes are provided in the chapter "Technology in Detail".

Page 57

The selection menu 1 with four selectable riding modes is displayed. The marking 2 shows the driving mode currently selected.

Press button 1 repeatedly until desired driving mode with

marking appears. The following riding modes can be selected:

RAIN: When riding on wet

roads.

ROAD: When riding on dry

roads.

with Pro riding modes

The following driving modes

can also be selected:

DYNAMIC: for brisk riding on

dry roads.

DYNAMIC PRO: For sporty

riding (with coding plug installed only). When the vehicle is stationary, the selected riding mode is activated after approx. 2 seconds. The new riding mode is activated during operation under the following conditions: The throttle grip is in the neutral position. The brake lever is not being operated. The riding mode selected and its associated engine-characteristic, ABS DTC and DDC settings are retained even after the ignition has been switched off.

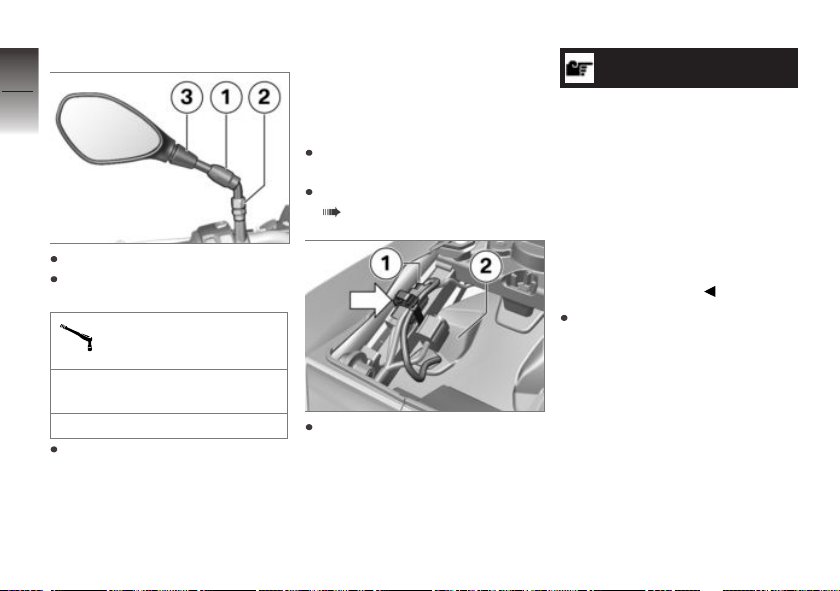

Install coding plug

with Pro riding modes

Switch off ignition ( 41). Removing rider`s seat ( 61).

Operation

Page 58

Switching on cruise control

ATTENTION

Operation

Penetration of dirt and moisture in the open connector.

Malfunctions

After removing the encoding plug, refit the cover cap.

Remove cover cap of the plug connection 1.

To do so, press in locking device 1 and pull off cap. Insert the coding plug. Switch on ignition. The selected riding mode remains active even after the ignition is switched off. Installing driver`s seat ( 62).

Cruise control

with cruise control

Push switch 1 to right. Button 2 is unlocked.

Setting road speed

Briefly press button 1 forward.

Page 59

Adjustment range for cruise control

19...112 mph (30...180 km/h) Indicator lamp for cruise-

control system lights up.

The motorcycle maintains your current cruising speed and the setting is saved.

Acceleration

Briefly press button 1 forward.

Increase speed

Speed is increased each time button is pressed.

1 mph (1 km/h)

Press button 1 forward and hold. The motorcycle accelerates steplessly. If the button 1 is no longer pressed, the speed achieved is maintained and saved.

Decreasing speed

Briefly press button 1 backward.

Decreasing the speed

Speed is decreased each time button is pressed.

1 mph (1 km/h)

Press button 1 back and hold. The motorcycle decelerates steplessly. If the button 1 is no longer pressed, the speed achieved is maintained and saved.

Operation

Page 60

Deactivate cruise control

Actuate brakes or clutch or throttle grip (take back throttle

beyond back position) to deactivate cruise-control system. Cruise control indicator lamp goes out.

Resuming former cruising speed

Operation

NOTICE

Opening the throttle does not deactivate the cruise-control system. If you release the throttle grip, the motorcycle will decelerate only to the cruising speed saved in memory, even though you might have intended slowing to a lower speed.

Indicator lamp for cruisecontrol system lights up.

Switching off cruise control

Push switch 1 to left. The system is deactivated. Button 2 is locked.

Brakes

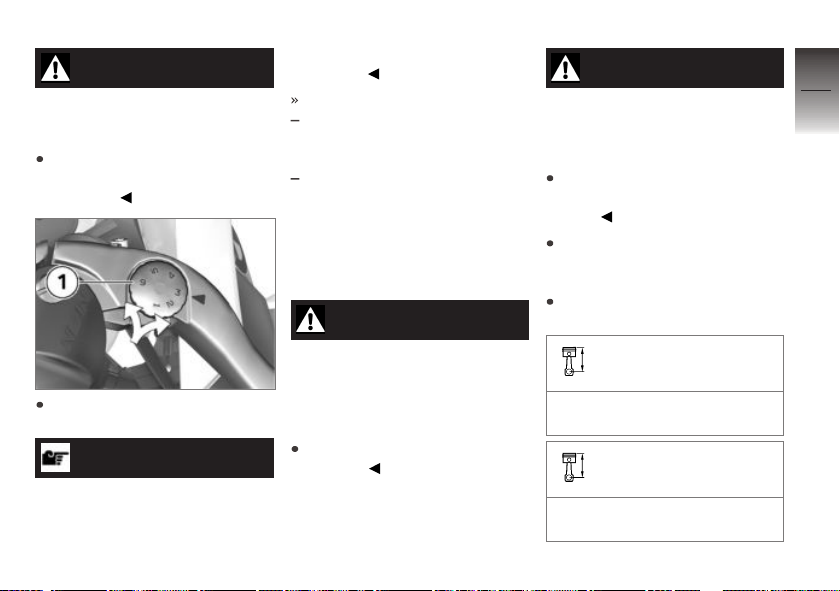

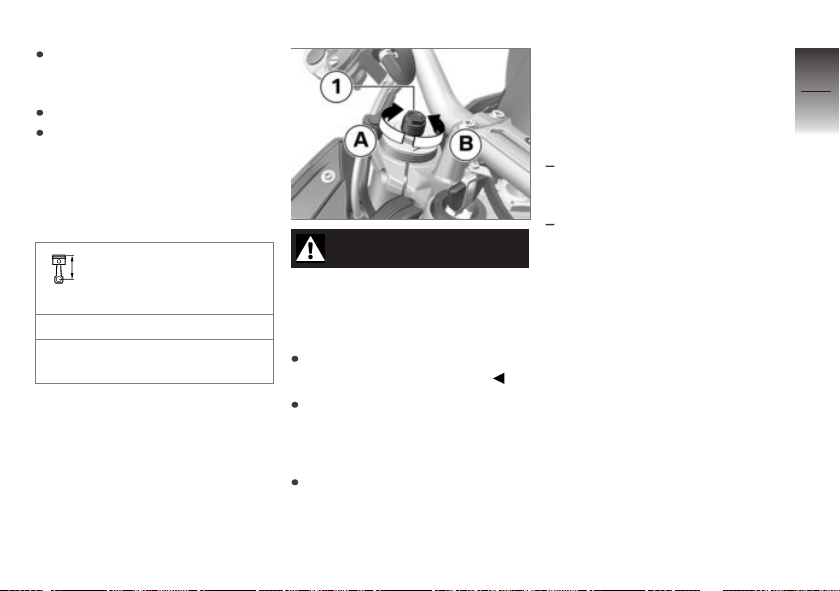

Adjusting brake lever

Briefly push button 1 back to return to the speed saved beforehand.

WARNING

Modified position of the brake-fluid reservoir.

Air in the brake system.

Do not twist the handlebar fitting or the handlebars.

Page 61

WARNING

Adjusting the brake lever while driving.

Accident hazard

Only adjust the brake lever when the motorcycle is stationary.

Turn adjusting wheel 1 into desired position.

NOTICE

The adjustment wheel can be turned more easily if you press

the clutch lever forward at the same time.

Adjustment options: Position 1: largest distance between handlebar grip and brake lever Position 6: smallest distance between handlebar grip and brake lever

Tires

Checking tire pressure

WARNING

Incorrect tire inflation pressure.

Poorer handling characteristic of the motorcycle. Reduced life of tires.

Ensure proper tire inflation pressure.

WARNING

Valve inserts open of their own accord at high speeds.

Sudden loss of tire inflation pressure.

Use valve caps with rubber sealing ring and screw on firmly.

Park motorcycle, ensuring that support surface is firm and level. Check tire pressures against data below.

Tire pressure, front

36.3 psi (2.5 bar) (With tire cold)

Tire pressure, rear

42.1 psi (2.9 bar) (With tire cold)

Operation

Page 62

If tire pressure is too low:

Correct tire pressure.

Heated handlebar grips

with heated handlebar grips

Operating heated grips

Start engine.

NOTICE

The heated grips option can only

Operation

be activated when the engine is running.

NOTICE

The increase in power consumption caused by the heated grips can drain the battery if you are riding at low engine speeds. If the battery is inadequately charged, the heated grips are switched off to ensure starting capability.

Press button 1 repeatedly until desired heating level is displayed in multifunction display.

The handlebar grips can be heated at two different levels. The second stage 1 is intended for rapid heating of the grips.

Once they are warm you should switch back to the first stage.

Second step: 100 % heating capacity

First step: 50 % heating capacity

If no further changes are made the selected heating level is adopted as the setting.

Mirrors

Adjusting mirrors

Move mirror to the desired position by turning it.

Page 63

Rider and passenger seats

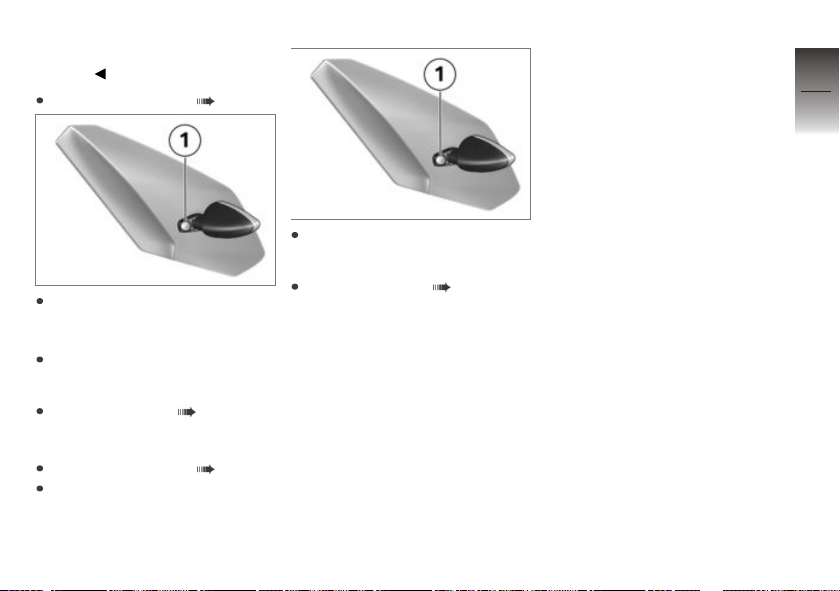

Removing passenger seat

Make sure ground is level and firm and park motorcycle.

Unlock seat lock 1 with the vehicle ignition key. Lift passenger seat at rear, then remove by pulling back and upward. Remove ignition key and lay passenger seat on a clean surface with the upholstered side on the bottom.

Install the passenger seat

Mount passenger seat in mounts 1 on left and right.

Press the rear seat forward slightly then fold it down.

Lock seat lock with ignition key.

Removing rider`s seat

Press cover of driver's seat above screws 1 forward somewhat and hold in place. Remove screws 1. Push the rider`s seat forward, lift it at the rear and remove it. When doing so, make sure that the fairing is not damaged by the screws. Lay the rider`s seat on a clean surface with the upholstered side down.

Operation

Page 64

Installing driver`s seat

Mount driver`s seat in mount 1, then position over

Operation

screw sockets 2. When doing so, make sure that the paneling is not damaged by the screws.

Press cover of driver's seat over screw sockets toward front somewhat and hold in place. Install screws 1.

Helmet holder

Secure helmet on motorcycle

Removing passenger seat ( 61). Turn over passenger seat.

ATTENTION

Incorrect positioning of the helmet lock.

Fairing scratched.

When hooking on the helmet, watch the position of the helmet lock.

Fasten helmet on helmet holder 1 using a steel cable (not part of motorcycle). Install the passenger seat ( 61). Set down helmet on driver's seat.

Page 65

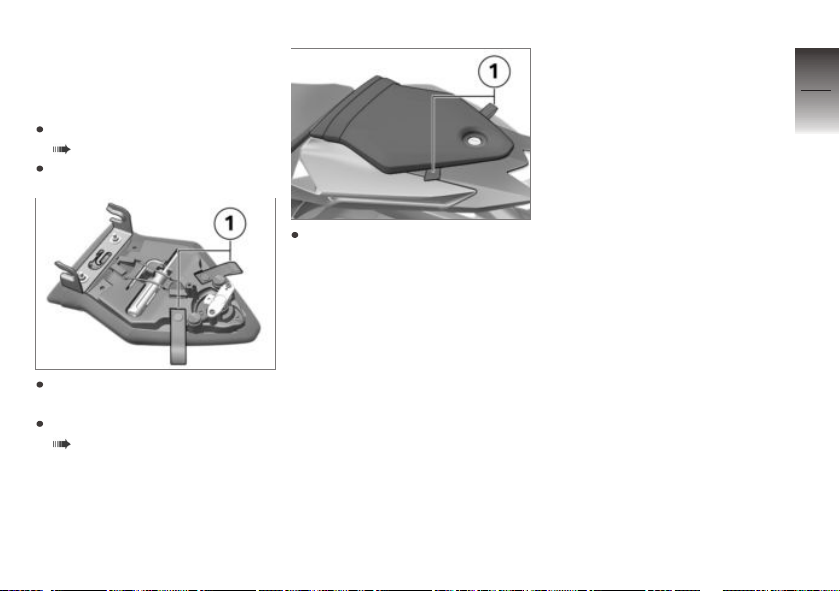

Luggage straps

Securing luggage on motorcycle

Removing passenger seat ( 61). Turn over passenger seat.

Take loops 1 out of holders and lay toward outside. Install the passenger seat ( 61).

Use loops 1 e.g. in conjunction with passenger footrests, to lash luggage onto passenger seat. When doing so, make sure that the rear trim is not damaged.

Operation

Page 66

Operation

Page 67

On the racetrack

LAPTIMER . . . . . . . . . . . . . . . . . . . . . . . . . 66

RACE INFO. . . . . . . . . . . . . . . . . . . . . . . . . 70

SETUP MENU . . . . . . . . . . . . . . . . . . . . . . 75

Spring preload . . . . . . . . . . . . . . . . . . . . . . 78

Damping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Mirror removal and installation . . . . . . 85

Removing and installing license-plate

carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Removing and installing front turn

indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

On the racetrack

Page 68

LAPTIMER

Display

1 Speedometer 2 Engine temperature 3 The display in these lines

On the racetrack

can be switched over. ( 66) LASTLAP: Time of previous lap. BESTLAP: Fastest of the currently saved laps.

4 Gear indicator 5 Set riding mode

Marking displayed value

The following times can be shown in the third line:

LASTLAP: Time of the previous lap.

The following times can be shown in the fourth line:

BESTLAP: Fastest of the saved laps. RUN: Running time of the current lap.

Additional display versions in combination from the third and fourth line:

RUN BEST: Running time of the current lap is shown in the third line and the best lap time of the stored values is shown in the fourth line. LAST RUN: Time required for the preceding lap is shown in the third line and the running time of the current lap is shown in the fourth line.

LAST BEST: Required time of the previous lap is shown in the third line and the best lap time of the stored values is shown in the fourth line. RUN TOTAL: Running time of the current lap is shown in the third line and the total of all stored lap times is shown in the fourth line. RUN BEStEV: Running time of the current lap is shown in the third line and the all-time best lap time is shown in the fourth line.

The stopped time of the preceding racing lap is shown briefly at the start of each new racing lap before the display switches over to the running time of the current racing lap.

Page 69

Display overview

— Solid line: briefly press

button.

‑ ‑ Dotted line: press and hold

button.

1 Interrupt time entry

( 69).

2 Start time recording

( 68).

3 Display times ( 68).

On the racetrack

Page 70

Displaying times

To display desired time, press button 1 repeatedly until display changes.

On the racetrack

Start time recording

Operate switch 1 to start recording.

NOTICE

For the headlight flasher signal to be detected, the engine must be running.

When driving over Start/Finish line, operate switch 1 again to start recording for next race lap. The data of the preceding race lap will be saved. If the display mode is exited during a recording, then the

recording continues to run. However, in the other display modes the recording of a new lap can only be started via an external signal.

Infrared receiver

with infrared receiver

The lap timer can be conveniently operated with an infrared signal. For this purpose, infrared receivers available as optional accessories must be connected to the IR receiver (on right-hand side behind side panel). In the

RACETRACK SETUP MENU

menu, a setting can be made to define whether operation is to be carried out with the headlight flasher button and TRIP/INFO button or only with one of the two (see SETUP MENU chapter). To avoid the premature detection of a completed lap due to interference signals, a minimum lap

Page 71

time can be specified. Signals received before this time expires are then ignored.

Interrupting time entry

mode does counting begin at lap 1 again.

Fastest lap expected

This function must be activated in the SETUP RACETRACK menu (see SETUP MENU chapter).

Mileage for the intermediate elapsed time

328.1 ft (100 m)

If the current intermediate elapsed time is better than that of the previous fastest lap then a new fastest lap can be anticipated. The lamp for the fastest lap 1 lights up.

To interrupt time entry, press and hold button 1. To continue time entry, press and hold button 1 again.

NOTICE

If additional laps are recorded at a later time, the numbering of the laps is continued. Only after the current recording has been deleted in RACE INFO

When a new lap is started the intermediate elapsed time is monitored after a defined distance is reached and then compared with the corresponding intermediate elapsed time for the fastest recorded lap.

On the racetrack

Page 72

RACE INFO

Select stored lap

Press button 1 or button 2 to display stored laps consecutively.

On the racetrack

Each time the button 1 is pressed, the saved laps are displaced in the following order. Each time the button 2 is pressed, they are displayed in the reverse order:

All-time best lap time BEST-

EVER

Best stored lap time BEST Last stored lap time LAST

All other stored laps The total sum of all stored lap times TOTAL Delete the stored data

DELETE LAPS.

Delete the stored best lap time

BEST-EVER DELETE.

End RACE INFO EXIT display mode.

Page 73

Display overview

— Solid line: briefly press

button.

‑ ‑ Dotted line: press and hold

button.

1 Select stored lap ( 70). 2 Delete lap times ( 73). 3 Exit INFO MENU ( 72). 4 Delete recordings ( 73).

On the racetrack

Page 74

Information on race lap

1 Alternately: Top speed

(max), Average speed (Ø) and lowest speed (min) of displayed race lap.

2 Alternately: average throt-

On the racetrack

tle position (THROT) in percent, driving percentage with brake actuation (BRAKE) in percent and number of shifts (GEAR) of indicated race lap.

3 Race lap to which dis-

played data refer.

4 Distance driven. 5 Time of displayed race lap.

6 Driving mode used most

for driving; is continually displayed.

Exiting INFO MENU

Press button 1 or button 2 repeatedly until

RACE INFO EXIT is

displayed.

Press and hold button 2 to exit RACE INFO display mode. The recorded values are stored. As an alternative: press and hold button 1.

Page 75

Deleting recordings

Press button 1 or button 2 repeatedly until RACE INFO DELETE LAPS is displayed. Press and hold button 2 to delete all recorded data.

All-time best lap

The all-time best lap (BEST-

EVER) is the fastest of all

recorded racing laps and is updated as soon as a faster lap

BESTLAP has been recorded.

The all-time best lap remains stored even if the recorded laps

are deleted. As a result, a new race can be recorded at other times and compared with the best lap from previous races. The all-time best lap can also be deleted. If the all-time best lap is from a stored recording, the corresponding lap number is also displayed. If the all-time best lap does not have a lap number, it is from a recording that has already been deleted.

Delete lap times

Press button 1 or button 2 repeatedly until the lap to be deleted is displayed. Press and hold button 2 to delete the lap. If the selected lap is the best stored lap BEST, the corresponding lap is deleted. The lap that previously had been the second best lap is taken over as the new best lap. the last stored lap LAST, the corresponding lap is deleted. The lap that previously had

On the racetrack

Page 76

been the second to last lap is taken over as the new last lap.

a random stored lap, it is

deleted. The numbering of the remaining laps is maintained. The deleted lap time is subtracted from the overall time. To delete all-time best lap

BEST-EVER, select BESTEVER DELETE and press

and hold button 2.

On the racetrack

Page 77

SETUP MENU

Select parameter

Select SETUP MENU and press and hold button 2. Press button 1 or button 2 repeatedly until desired submenu appears. Press and hold button 2 to

display desired submenu. When the button 1 is pressed the available parameters are displayed in the following order. Each time the button 2 is pressed, they are displayed in the opposite order.

SETUP EQUIPMENT

Adjusting DWA alarm

DWA AUTO ON/OFF.

Setting the time display

CLOCK TIME.

Set brightness

DISP BRIGHT.

Switch display for light fault on/ off WARN LAMP. Switch shiftpoint lamp on/off

GSL ON/OFF RPM.

Shiftpoint light brightness

GSL BRIGHT

Shiftpoint lamp frequency

GSL FREQ

Switching over units for the speedometer, range indicator, temperature display, average fuel consumption display, odometer reading and clock

UNITS

SETUP RACETRACK

Setting LAPTIMER display: Running time RUN, the time required for the previous lap

LAST, best lap time BEST,

the total of all stored lap times

TOTAL and the all-time best

lap time BEStEV Display duration for last stopped time HOLD Debounce time (waiting time until a new lap can be started) of the TRIP/INFO button for

LAPTIME operation DEBTM

Activate or deactivate BEST-

LAP BLIP ON/OFF.

Switching over the headlight flasher button and the TRIP/INFO button for the

LAPTIME operation. TRIG AUTO: Operation with

the headlight flasher button and the TRIP/INFO button;

TRITG MANUAL: Operation

only with the headlight flasher button; EXTERN: Operation only with the TRIP/INFO button.

On the racetrack

Page 78

Overview SETUP MENU

— Solid line: briefly press

On the racetrack

button.

‑ ‑ Dotted line: press and hold

button.

1 Display settings

2 Racetrack settings

Page 79

Set parameter

Exit settings

Press and hold button 2 until

displayed parameter begins to

flash.

Press button 1 or button 2 re-

peatedly until desired value is

displayed. If desired value is displayed:

Press and hold button 2 un-

til displayed value no longer

flashes.

The value has been saved.

To exit SETUP MENU, press and hold button 1. A value which is still flashing will not be saved. As an alternative, press button 1 or button 2 repeatedly until SETUP MENU EXIT is

displayed. When SETUP MENU EXIT is displayed:

Press and hold button 2 to exit

SETUP MENU.

On the racetrack

Page 80

Spring preload

Adjustment on front wheel

with Dynamic Damping Control

(DDC)

The spring preload on the front wheel must be adapted to the weight of the rider. Higher weight requires a higher spring preload, lower weight requires a lower spring preload.

Adjustment on rear wheel

It is essential to set the spring preload to suit the load carried by the motorcycle. Increase spring

On the racetrack

preload when the vehicle is heavily loaded and reduce spring preload accordingly when the vehicle is lightly loaded.

Adjust spring preload at rear wheel

Make sure ground is level and firm and park motorcycle.

Make sure there is no load on the motorcycle, removing any cargo or luggage.

Loosen screw 1 with tool from onboard tool kit.

Hold motorcycle in vertical position (not with side stand) and measure distance D between lower edge 1 of license-plate carrier and screw 2 of chain guard. Load motorcycle with driver. With the assistance of a helper, measure distance d between points 1 and 2 again and calculate difference (spring deflection) between the measured values.

Page 81

Adjustment of spring preload dependent on

Spring deflection of rear wheel

0.8...0.9 in (20...24 mm) (With rider 187 lbs (85 kg))

WARNING

Uncoordinated settings of spring preload and spring strut damping.

Poorer handling.

Adjust damping characteristic to changed spring preload.

To increase the spring deflec-

tion (reduce spring preload),

use the tool from the onboard

tool kit to turn the adjustment

ring 2 in direction B.

To decrease the spring deflec-

tion (increase spring preload),

use the tool from the onboard

tool kit to turn the adjustment

ring 2 in direction A.

Tighten screw 1 to specified

torque.

Clamp screw on upper spring plate

without Dynamic Damping Control (DDC)

2 lb/ft (3 Nm)

Adjust spring preload at rear wheel

with Dynamic Damping Control

(DDC)

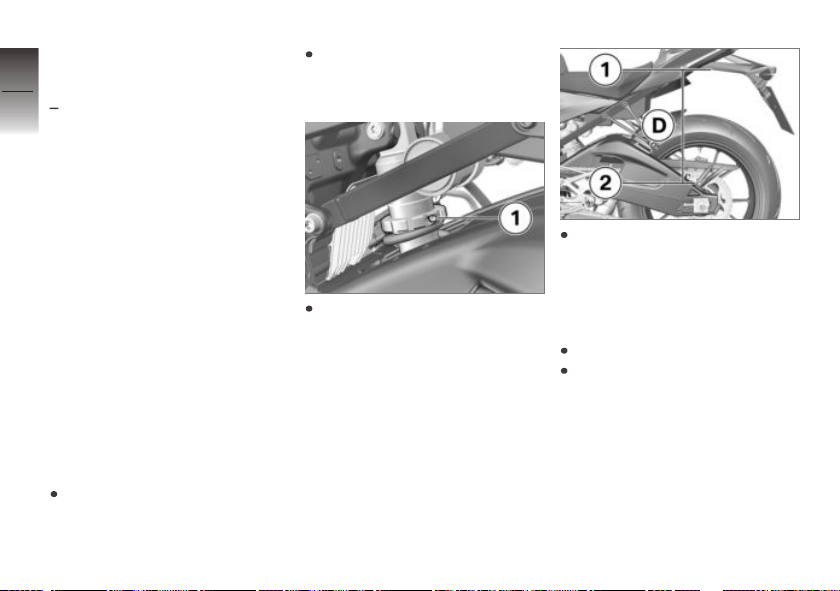

Make sure ground is level and firm and park motorcycle. Start engine.

NOTICE

Before setting the spring preload, completely unload the motorcycle and remove luggage items if necessary. Set damping (DDC) to SOFT for one-up riding.

Hold motorcycle in vertical position, preferably with the help of a second person (not the side stand).

On the racetrack

Page 82

Measure distance D between lower edge 1 of license-plate

carrier and screw 2 of chain

guard. Load motorcycle with driver. With the assistance of a helper, measure distance D between points 1 and 2 again and calculate difference (spring deflection) between the measured values.

Adjustment of spring preload dependent on

On the racetrack

Spring deflection of rear wheel

0.8...0.9 in (20...24 mm) (With rider 187 lbs (85 kg))

To decrease the spring deflection (increase spring preload), use the tool from the onboard tool kit to turn the adjustment ring 1 in direction A. To increase the spring deflection (reduce spring preload), use the tool from the onboard tool kit to turn the adjustment ring 1 in direction B.

Adjusting spring preload

on front wheel

with Dynamic Damping Control

(DDC)

Make sure ground is level and firm and park motorcycle. Start engine.

NOTICE

Before setting the spring preload, completely unload the motorcycle and remove luggage items if necessary. Set damping (DDC) to SOFT for one-up riding.

Hold motorcycle in vertical position, preferably with the help of a second person (not the side stand).

Page 83

Measure distance D between lower edge 1 of immersion tube and front axle 2. Load motorcycle with driver. With the assistance of a second person, measure distance D between points 1 and 2 again and calculate difference (spring deflection) between the measured values.

Adjustment of spring preload dependent on

Compressing front wheel

0.24...0.39 in (6...10 mm) (With rider 187 lbs (85 kg))

WARNING

Uncoordinated settings of spring preload and spring strut damping.

Poorer handling.

Adjust damping characteristic

to changed spring preload.

To decrease spring deflection

(increase spring preload), turn

adjusting screws 3 with tool of

onboard tool kit in direction A.

To increase spring deflection

(decrease spring preload), turn

adjusting screws 3 with tool of

onboard tool kit in direction B.

Damping

Correct damping setting

The damping must be adjusted to the road conditions and the spring preload.

A rough road surface requires softer damping than a smooth road surface. An increase in spring preload requires firmer damping, a reduction in spring preload requires softer damping.

On the racetrack

Page 84

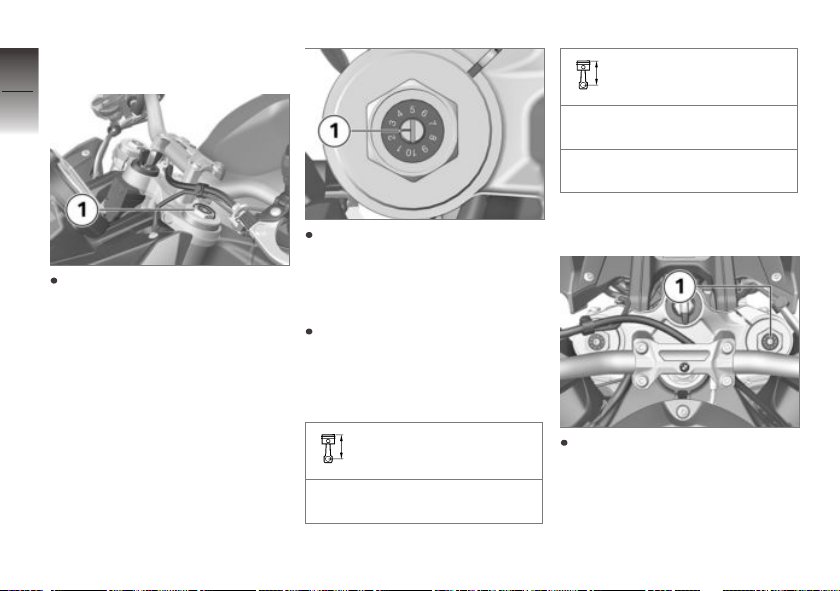

Adjusting compression

damping on front wheel

Compression stage, basic setting, front

Position 3 (standard setting with rider 187 lbs (85 kg))

Position 7 (sport-oriented setting with rider 187 lbs (85 kg))

Adjust compression-stage damping with adjusting screw 1 on left-hand fork leg.

On the racetrack

To increase damping: turn adjusting screw with tool from onboard tool kit so that marking 1 points to a higher scale figure. To decrease damping: turn adjusting screw with tool from onboard tool kit so that marking 1 points to a lower figure on the scale.

Compression stage, basic setting, front

Position 1 (comfortable setting with rider 187 lbs (85 kg))

Rebound-stage damping on front wheel

Adjust rebound-stage damping with adjusting screw 1 on right-hand fork leg.

Page 85

Rebound stage, basic setting, front

Position 3 (standard setting with rider 187 lbs (85 kg))

Position 7 (sport-oriented setting with rider 187 lbs (85 kg))

Rebound stage, basic setting, front

Position 1 (comfortable setting with rider 187 lbs (85 kg))

Adjusting rebound-stage damping at rear wheel

Make sure ground is level and

firm and park motorcycle.

Adjust rebound-stage damping

with adjusting screw 1.

Rebound stage, basic setting, rear

Position 1 (comfortable setting with rider 187 lbs (85 kg))

On the racetrack

Page 86

Rebound stage, basic setting, rear

Position 4 (standard setting with rider 187 lbs (85 kg))

Position 7 (sport-oriented setting with rider 187 lbs (85 kg))

Factory settings at front wheel

Use the following specification data to adjust to factory settings.

On the racetrack

Factory settings for jounce/rebound at front

Position 3

Factory settings at rear wheel

Use the following specification data to adjust to factory settings.

Factory settings for rebound at rear

Position 4

Displaying damping with

DDC

with Dynamic Damping Control

(DDC)

Switch on ignition ( 40).

Press button 1 briefly to display current adjustment.

Damping is displayed in the multifunction display in area 1, and loading is indicated in area 2.

The display is automatically hidden again after a short time.

Adjusting damping with DDC

with Dynamic Damping Control

(DDC)

Switch on ignition ( 40).

Page 87

Press button 1 briefly to display current adjustment.

To set the damping rate:

Repeat pressing button 1 briefly until desired setting is displayed.

NOTICE

The damping cannot be adjusted while the motorcycle is being ridden.

The following settings are available:

SOFT: Comfortable damping NORM: Normal damping

HARD: Sporty, performance-

oriented damping

To set motorcycle load:

Press and hold button 1 re-

peatedly until desired setting is

displayed.

NOTICE

The load setting cannot be adjusted while the motorcycle is underway.

The following settings are available:

One-up

Two-up

Mirror removal and installation

Removing mirror

Push cover cap 1 upward. Loosen nut 2 with tool from onboard tool kit.

NOTICE

When removing the right-hand mirror, make sure that the brakefluid reservoir is not detached.

Remove mirror 3. Retighten nut 2 with tool from onboard toolkit.

On the racetrack

Page 88

Install mirrors

Install mirror 4. Tighten nut 2 with tool from onboard toolkit.

On the racetrack

Locknut (mirror) on clamping piece

Joint compound: Multi-Wax Spray

15 lb/ft (20 Nm)

Slide on protective cap 1.

Removing and installing

license-plate carrier

Removing license-plate

carrier

Make sure ground is level and firm and park motorcycle. Removing passenger seat ( 61).

Remove cable tie arrow and separate connector 1 for license-plate carrier.

NOTICE

EQIP WARN LAMP function in

the SETUP MENU.

Thread out connector 1 with cable through lower rear section 2.

Page 89

with anti-theft alarm system

(DWA)

Unplug connector 1 for antitheft alarm system.

NOTICE

Before the connector for the antitheft alarm system is disconnected, it must be ensured that the DWA has been deactivated in the SETUP MENU.

Remove screw 4. Remove anti-theft alarm system 2 while unhooking at bracket 3.

Disconnect connector 1 for

license-plate carrier.

Remove body-bound rivet 2.

Remove bracket 3 for anti-theft

alarm system.

Remove screws 4 with wash-

ers 3.

Take off license-plate carrier 2 and thread out wiring harness 1. Install the passenger seat ( 61).

Installing license-plate carrier

Make sure ground is level and firm and park motorcycle. Removing passenger seat ( 61).

Position license-plate carrier 2 and thread in wiring harness 1.

On the racetrack

Page 90

Install screws 4 with washers 3.

On the racetrack

Number-plate carrier to rear frame

4 lb/ft (5 Nm)

with anti-theft alarm system

(DWA)

Install bracket 3 for anti-theft alarm system. Install body-bound rivet 2. Fasten connector 1 for licenseplate carrier.

Insert anti-theft alarm system 2 while hooking into bracket 3. Install screw 4. Connect connector 1 for antitheft alarm system.

Thread connector 1 with cable through lower rear section 2.

Connect connector 1, position and fasten cable tie arrow.

NOTICE

If the lamp defect warning message for racetrack use is suppressed in the display, this must be activated in the

SETUP MENU under the EQIP WARN LAMP function

before the motorcycle is put into operation in road traffic .

Install the passenger seat ( 61).

Removing and installing front turn indicator

Removing front turn signal

NOTICE

The working steps described here for the right fairing side

Page 91

panel also apply logically for the left side.

Remove right cover ( 134).

Remove screw 1 and take off turn indicator. Guide cable through fairing side panel. Protect connector on motorcycle against contamination.

Install right cover ( 135).

Installing front turn signal

Remove right cover ( 134). Guide cable through fairing side panel.

Position turn indicator and in-

stall screw 1.

Install right cover ( 135).

On the racetrack

Page 92

On the racetrack

Page 93

Riding

Safety instructions . . . . . . . . . . . . . . . . . . 92

Observe checklist . . . . . . . . . . . . . . . . . . . 94

Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Breaking in. . . . . . . . . . . . . . . . . . . . . . . . . . 98

Shifting gears . . . . . . . . . . . . . . . . . . . . . . . 99

Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Parking your motorcycle . . . . . . . . . . . 102

Refueling . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Secure motorcycle for trans-

port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Riding

Page 94

Safety instructions

Rider's Equipment

Do not ride without the correct clothing. Always wear:

Helmet Rider's suit Gloves Boots

This applies even to short

Riding

journeys, and to every season of the year. Your authorized BMW Motorrad retailer will be happy to advise you and has the correct clothing for every purpose.

Load

WARNING

Reduced riding stability caused by overloading and uneven loading.

Accident hazard

Do not exceed the gross weight limit and observe the loading information.

Adjust spring preload, suspension damping rate settings and tire inflation pressures for the current gross motorcycle weight. with tank backpack

Observe maximum payload of tank rucksack.

Payload of tank rucksack

≤11 lbs (≤5 kg)

with rear bag Observe the maximum load

capacity of the rear bag and the maximum speed at which the motorcycle may travel with a rear bag fitted.

Payload of rear bag

max 11 lbs (max 5 kg)

Speed limit for driving with rear bag

max 137 mph (max 220 km/h)

Speed

If you ride at high speed, always bear in mind that various boundary conditions can adversely affect the handling of your motorcycle:

Settings of spring-strut and shock absorber system Imbalanced load Loose clothing Insufficient tire inflation pressure Poor tire tread Etc.

Page 95

Risk of poisoning

Exhaust fumes contain carbon monoxide, which is colorless and odorless but highly toxic.

WARNING

Harmful exhaust gas.

Danger of suffocation

Do not inhale exhaust fumes. Do not run the engine in closed rooms.

Burn hazard

CAUTION

Engine and exhaust system become very hot when the motorcycle is in use.

Burn hazard

After parking the vehicle, make sure that no persons or objects come into contact with the engine and exhaust system.

Catalytic converter

If misfiring causes unburned fuel to enter the catalytic converter, there is a danger of overheating and damage. For this reason, observe the following points:

Do not run the fuel tank dry.

Do not run the engine with the

spark-plug cap removed.

Stop the engine immediately if

it misfires.

Use unleaded fuel only.

Comply with all specified main-

tenance intervals.

ATTENTION

Unburned fuel in the catalytic converter.

Damage to the catalytic converter.

Note the points listed for

protection of the catalytic

converter.

Danger of overheating

ATTENTION

Engine idling for a lengthy period while at a standstill.

Overheating caused by insufficient cooling. In extreme cases, the motorcycle could catch fire.

Do not allow the engine to idle unnecessarily. After starting, ride off immediately.

Modifications

ATTENTION

Modifications to the motorcycle (e.g. engine control unit, throttle valves, clutch).

Damage to the affected parts, failure of safety-relevant functions. Damage caused by modifications invalidates the warranty.

Do not make any modifications.

Riding

Page 96

Observe checklist

Use the following checklist to check your motorcycle at regu-

lar intervals.

Before every journey:

Function of the brake system Function of the lighting and signal system Check clutch function ( 136).

Riding

Checking tire tread depth ( 139). Firm seating of cases and luggage

At every third refuelling stop:

without Dynamic Damping Control (DDC)

Adjust spring preload at rear wheel ( 78). Adjusting compression damping on front wheel ( 82). Rebound-stage damping on front wheel ( 82).

Adjusting rebound-stage damping at rear wheel ( 83).

with Dynamic Damping Control

(DDC) Adjust spring preload at rear

wheel ( 79). Adjusting spring preload on front wheel ( 80). Adjust damping with DDC ( 84).

Check engine oil level ( 125). Checking front brake pad thickness ( 127). Check rear brake pad thickness ( 128). Check front brake fluid level ( 129). Checking rear brake fluid level ( 130). Check coolant level ( 131). Lubricate chain ( 137). Checking chain tension ( 137).

Starting

Starting the engine

Switch on ignition. Pre-Ride-Check is carried out. ( 95) ABS self-diagnosis is performed. ( 96) ASC self-diagnosis is performed. ( 97) with Dynamic Traction Control

(DTC) DTC self-diagnosis is per-

formed. ( 97) Engage neutral, or pull back clutch lever if a gear is engaged.

NOTICE

You cannot start the motorcycle with the side stand extended and a gear engaged. The engine will switch itself off if it is started with the transmission in neutral and then a gear is engaged before retracting the side stand.

Page 97

In the case of cold start or under cold temperatures: Pull back clutch lever.

Press starter button 1.

NOTICE

The starting attempt is automatically interrupted if battery voltage is too low. Recharge the battery before you attempt to start the engine again, or use jumper cables and a donor battery to start. More detailed information can be found in the "Maintenance" chapter under "Jump-starting".

Engine starts.

Consult the troubleshooting

chart if the engine refuses to

start. ( 166)

Pre-Ride-Check

In the "Pre-Ride-Check", the instrument-cluster module executes a test routine to check the status of the warning lamps and the tachometer. This test routine stops if the engine is started before it is completed.

Phase 1

The indicator and warning lamps 1 light up and the universal warning lamp 2 lights up in yellow. The tachometer needle 3 is run up to the maximum engine speed. All segments are shown in the display.

Phase 2

The general warning lamp changes from yellow to red.

Phase 3

The tachometer needle drops back to zero.

Riding

Page 98

The indicator and warning lamps go out.

The display reverts to the stan-

dard format.

Should one of the warning lamps fail to appear:

WARNING

Defective warning lights.

Riding

Lack of display of malfunctions.

Watch all warning and indicator lights on the display.

Have the malfunction corrected as soon as possible at an authorized workshop, preferably an authorized BMW Motorrad retailer.

ABS self-diagnosis

The self-diagnosis routine is determining whether BMW Motorrad Race ABS is ready for operation. The self-diagnosis routine runs

automatically when you switch on

the ignition.

Phase 1

Check on system components monitored by diagnostic system while vehicle is parked.

ABS indicator light flashes.

Phase 2

Checking system components capable of diagnosis while starting off.

ABS indicator light flashes.

ABS self-diagnosis

completed

The ABS symbol is no longer displayed.

Watch all warning and indicator lamps on the display.

ABS self-diagnosis not completed

The ABS function is not available, as the self-diagnosis function has not been completed. (To check the wheel sensors, the motorcycle must reach a minimum speed: min 3 mph (min 5 km/h))

If an ABS error is indicated following completion of the ABS self-diagnosis routine:

It remains possible to continue riding. It must be noted that the availability of the ABS function is restricted or it is not available at all. Have the malfunction corrected as soon as possible at an authorized workshop, preferably an authorized BMW Motorrad retailer.

Page 99

ASC self-diagnosis

The self-diagnosis routine is determining whether BMW Motorrad ASC is ready for operation. The self-diagnosis routine runs automatically when you switch on the ignition.

Phase 1

Check on system components monitored by diagnostic system while vehicle is parked.

ASC indicator and warning light flashes slowly.

Phase 2

Checking system components capable of diagnosis while starting off.

ASC indicator and warning light flashes slowly.

ASC self-diagnosis completed

The ASC symbol is no longer displayed.

Watch all warning and indicator

lamps on the display.

ASC self-diagnosis routine not completed

If an ASC error is indicated following completion of the ASC self-diagnosis routine:

It remains possible to con-

tinue riding. It must be noted

that the availability of the ASC

function is restricted or it is not

available at all.

Have the malfunction corrected

as soon as possible at an au-

thorized workshop, preferably

an authorized BMW Motorrad

retailer.

DTC self-diagnosis

with Dynamic Traction Control

(DTC)

The self-diagnosis routine is determining whether BMW Motorrad DTC is ready for operation. The self-diagnosis routine runs automatically when you switch on the ignition.

Phase 1

Check on system components monitored by diagnostic system while vehicle is parked.

DTC warning lamp flashes slowly.

Phase 2

Checking system components capable of diagnosis while starting off.

DTC warning lamp flashes slowly.

Riding

Page 100

DTC self-diagnosis completed

The DTC symbol is no longer

displayed.

Watch all warning and indicator lamps on the display.

DTC self-diagnosis not completed

Riding

If a DTC error is indicated after the DTC self-diagnosis is completed:

It remains possible to continue riding. It must be noted that the availability of the DTC function is restricted or it is not available at all.

Have the malfunction corrected as soon as possible at an authorized workshop, preferably an authorized BMW Motorrad retailer.

Breaking in

Engine

In the period preceding the running-in check (initial inspection), attempt to change rpm and engine load as frequently as possible, avoiding extended periods at constant rpm. Choose curvy, slightly hilly sections of road if possible. Observe the engine run-in speeds.

Engine run-in speed

<7000 min-1(Odometer reading 0...186 miles (0...300 km))

Engine run-in speed

<9000 min-1(Odometer reading 186...621 miles (300...1000 km))

no full throttle (Odometer reading 0...621 miles (0...1000 km))

Observe mileage, after which the running-in check should be performed.

NOTICE

The speed is limited by the engine management system up to the running-in check. This speed monitoring function is switched off during the runningin check by your authorized BMW Motorrad retailer.
