User Manual
www.bluetigerusa.com | 1-800-935-1165
Thank you for purchasing SoundPODS™ by Blue
Tiger®. Please review the manual before using
this product to ensure your best experience.
Product Features
SoundPODS™ are designed to allow you to listen
to music from your phone or Bluetooth® enabled
computer or MP3 player. When connected to
your phone using Bluetooth®, the SoundPOD will
also act as a speakerphone.
The SoundPOD delivers high-quality sound in a
small form factor. Our engineers made speaker
performance a top priority. You can hear and
the difference in quality!
feel
Getting Familiar with SoundPODS™
SoundPODS™ are designed for simple, hassle-free
operation. Below, you will find a diagram that will
help you get acquainted with SoundPODS™
design and operation.
Battery Care
Before using your SoundPOD the first time,
charge the POD for at least 3 hours.
At maximum volume using Mp3 mode, the
SoundPOD can play for up to 5 hours. At 30%
volume the battery could last for up to 10 hours.
However, some factors, including Bluetooth
mode, will decrease the total amount of usage
time available.
Bluetooth Pairing Instructions
1. Make certain your SoundPOD is in the “Off”
position.
2. Switch the OFF toggle all the way to the right
for Bluetooth. Upon activating Bluetooth, the
LED light will flash to blue for a few seconds
and then begin flashing blue and red.
3. Follow the operating instructions for your
phone to allow your device to search for a new
Bluetooth connection.
4. Select “soundPODS” on your Bluetooth device
list on your phone and when asked, select
“Yes” to confirm the connection.
5. If a PIN, Passkey, or Passcode is required,
enter “0000.”
MicroSD Card Playback
1. Save all .mp3 or .wav to the microSD root
directory. (i.e.- if the card is recognized as “F:”
then the files should read like this:
“F:/songfile.wav”
2.After inserting the microSD card, switch the
POD to Mp3 mode.
3. Press play. Songs will play in the order in which
they are stored on the card. You may skip
forward or rewind to the previous track using the
multi-function wheel.
Using the Auxiliary Cable
You can plug your SoundPOD into just about any
device that has a 3.5mm headphone jack. Just
plug it in and switch the POD to Mp3 mode. All
music functions will be controlled by the device,
not the POD.
Please note, you can adjust the volume from both
the POD and the device. For maximum volume,
you must turn the volume up all the way on both
devices.
Operation
Multi-Function Wheel:
+/>> Short press skips to the next song. Long
press increases volume. Does not work in Aux
mode.
-/<< Short press goes to previous song. Long
press decreases volume. Does not work in Aux
mode.
►║ Bluetooth Mode: and will answer and end
a phone call when using it as a speaker phone.
MP3/SD Mode: Short press plays or pauses
your music.
Understanding the LED Indicator
Green flash: Speaker is in SD/MP3 mode
Green solid: SD/MP3 pause or indicates that the
Aux cable is active.
Blue flash: Indicates Bluetooth mode
Red and blue alternating: Indicates pairing
mode
Red solid: indicates charging (turns off when
fully charged)
Red flash: Low battery indicator
1 Year Manufacturer Warranty
Your SoundPOD is covered by a 1 year
manufacturer warranty. See website for details.
Check out these other products from Blue
Tiger! Check with your retailer for availability

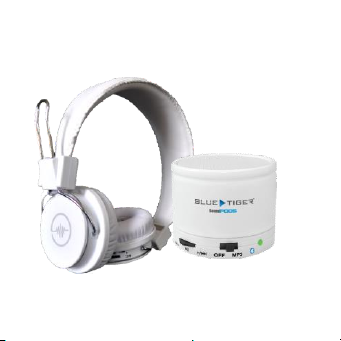

SoundTRAX Bluetooth SoundPODS
Stereo Headphones in White
or go to bluetigerusa.com.
