Please read this manual first!

Recycling

Dear Customer, We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips. A Warning against dangerous conditions for life and property. B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of

hazardous substances.

CONTENTS

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use .....................................4

For products with a water dispenser; .6

Child safety ........................................ 6

HCA Warning ....................................6

Things to be done for energy saving ..7

3 Installation 8

Points to be considered when re-

transporting your refrigerator .............8

Before operating your refrigerator ......8

Electric connection ............................8

Disposing of the packaging ...............9

Disposing of your old refrigerator .......9

Placing and Installation ......................9

Replacing the interior light bulb .......10

Reversing the doors ........................11

Reversing the doors ........................12

4 Preparation 13

5 Using your refrigerator 14

Thermostat setting button................14

Defrost ............................................14

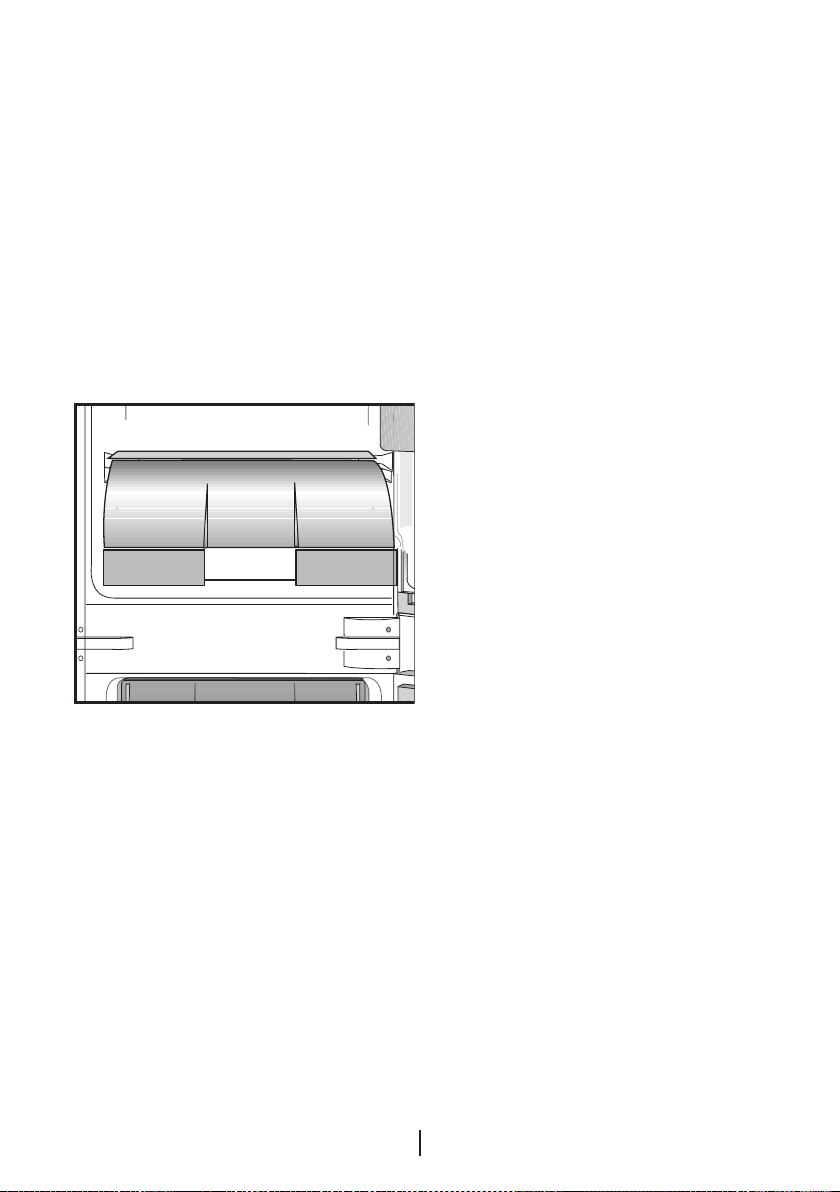

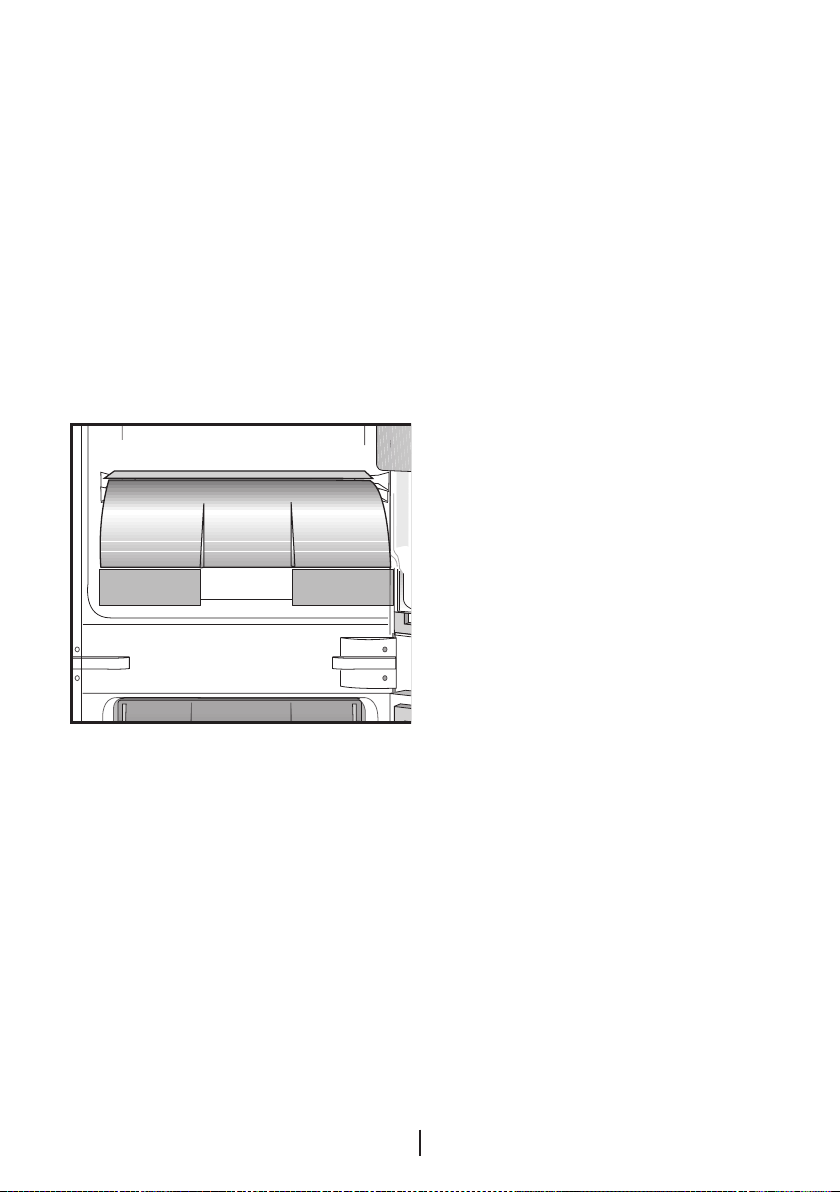

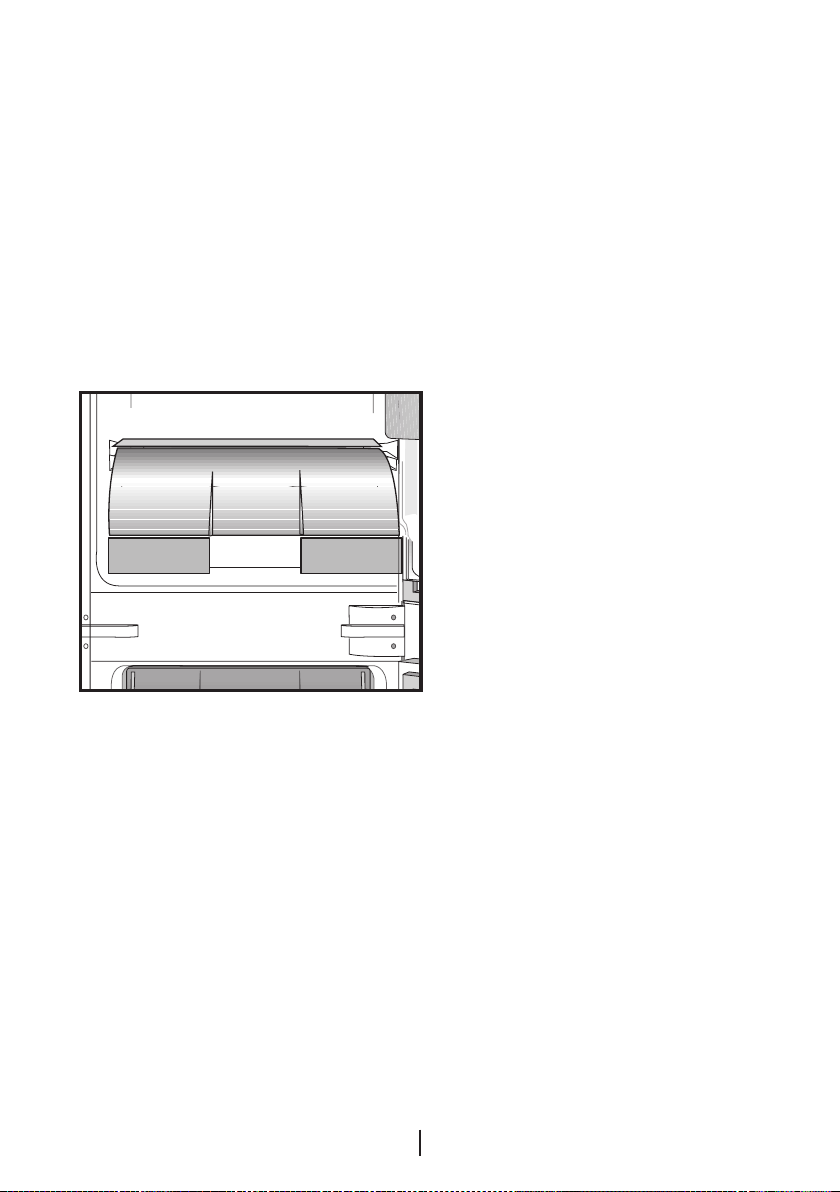

Zero temperature compartment .......15

6 Maintenance and cleaning 16

Protection of plastic surfaces ..........16

7 Recommended solutions for the problems 17

1 Your refrigerator

1. Interior light

2. Temperature setting knob

3. Adjustable shelves

4. Defrost water collection channel - Drain tube

5. Crisper cover

6. 0 °C Compartment

7. Ice bank

8. Freezer compartment

9. Air grille

10. Dairy compartment

11. Egg tray

12. Adjustable door shelves

13. Bottle shelf

14. Bottle holder

15. Bottle shelter wire

16. Fridge compartment

17. Freezer compartment

Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used – indoors and in closed areas such as

homes;

– in closed working environments such

as stores and offices;

– in closed accommodation areas such

as farm houses, hotels, pensions.

• This product should not be used

outdoors.

General safety

• When you want to dispose/scrap

the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

• Consult your authorized service for

all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

• For products with a freezer

compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

• For products with a freezer

compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

• Do not touch frozen food by hand;

they may stick to your hand.

• Unplug your refrigerator before

cleaning or defrosting.

• Vapor and vaporized cleaning

materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the parts on your

refrigerator such as the door as a means of support or step.

• Do not use electrical devices inside

the refrigerator.

• Do not damage the parts, where

the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

• Do not cover or block the ventilation

holes on your refrigerator with any material.

• Electrical devices must be repaired by only authorised persons. Repairs

performed by incompetent persons create a risk for the user.

• In case of any failure or during

a maintenance or repair work, disconnect your refrigerator’s mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling

off the plug.

• Place the beverage with higher proofs

tightly closed and vertically.

• Never store spray cans containing

flammable and explosive substances in the refrigerator.

• Do not use mechanical devices

or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• This product is not intended to be

used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

• Do not operate a damaged

refrigerator. Consult with the service agent if you have any concerns.

• Electrical safety of your refrigerator

shall be guaranteed only if the earth system in your house complies with standards.

• Exposing the product to rain, snow,

sun and wind is dangerous with respect to electrical safety.

• Contact authorized service when

there is a power cable damage to avoid danger.

• Never plug the refrigerator into

the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

• This refrigerator is intended for only

storing food items. It must not be used for any other purpose.

• Label of technical specifications is

located on the left wall inside the refrigerator.

• Never connect your refrigerator to

electricity-saving systems; they may damage the refrigerator.

• If there is a blue light on the

refrigerator, do not look at the blue light with optical tools.

• For manually controlled refrigerators,

wait for at least 5 minutes to start the refrigerator after power failure.

• This operation manual should be

handed in to the new owner of the product when it is given to others.

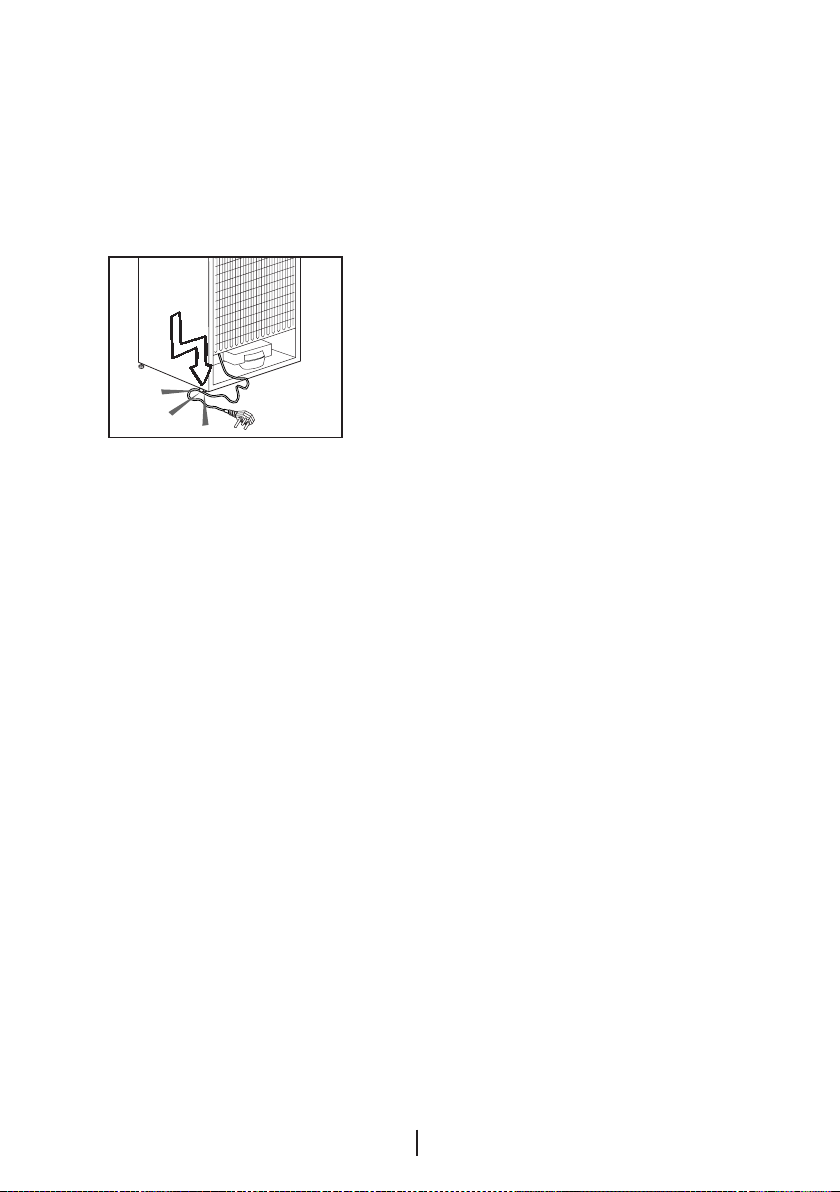

• Avoid causing damage on power

cable when transporting the

refrigerator. Bending cable may cause fire. Never place heavy objects on

power cable. Do not touch the plug with wet hands when plugging the product.

• Do not plug the refrigerator if the wall

outlet is loose.

• Water should not be sprayed directly

on inner or outer parts of the product for safety purposes.

• Do not spray substances containing

inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

• Never place containers filled with

water on top of the refrigerator, otherwise this may cause electric shock or fire.

• Do not overload your refrigerator

with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage

refrigerator when you open the door.

Never place objects on top of the

refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise

temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

• If not to be used for a long time,

refrigerator should be unplugged. A possible problem in power cable may cause fire.

• The plug's tip should be regularly

cleaned; otherwise, it may cause fire.

• The plug’s tip should be cleaned

regularly with a dry cloth; otherwise, it may cause fire.

• Refrigerator may move if adjustable

legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.

• When carrying the refrigerator, do not

hold it from door handle. Otherwise, it may be snapped.

• When you have to place your product

next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

Child safety

• If the door has a lock, the key should

be kept away from reach of children.

• Children must be supervised to

prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for

disposal.

For products with a water dispenser;

Pressure of water mains should be

minimum 1 bar. Pressure of water mains should be maximum 8 bars.

• Use only potable water.

Things to be done for energy saving

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

refrigerator.

• Do not overload your refrigerator so

that the air circulation inside of it is not prevented.

• Do not install your refrigerator

under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

• Pay attention to keep your food in

closed containers.

• For products with a freezer

compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

• Thawing frozen food in fridge

compartment will both provide energy saving and preserve the food quality.

3 Installation

BPlease remember that the

manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1.Your refrigerator must be emptied and cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

3.Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget… Every recycled material is an

indispensable source for the nature and for our national resources.

If you wish to contribute to recycling

the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator

check the following:

1.Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

2.Please install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

3.Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

4.Plug the refrigerator into the wall outlet. When the fridge door is open, the fridge compartment interior light will come on.

5.You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

6.Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

• The connection must be in compliance

with national regulations.

• The power cable plug must be easily

accessible after installation.

• The specified voltage must be equal to

your mains voltage.

• Extension cables and multiway plugs

must not be used for connection.

BA damaged power cable must be

replaced by a qualified electrician.

BProduct must not be operated before

it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

•You may consult your authorised dealer

or waste collection center of your municipality about the disposal of your refrigerator.

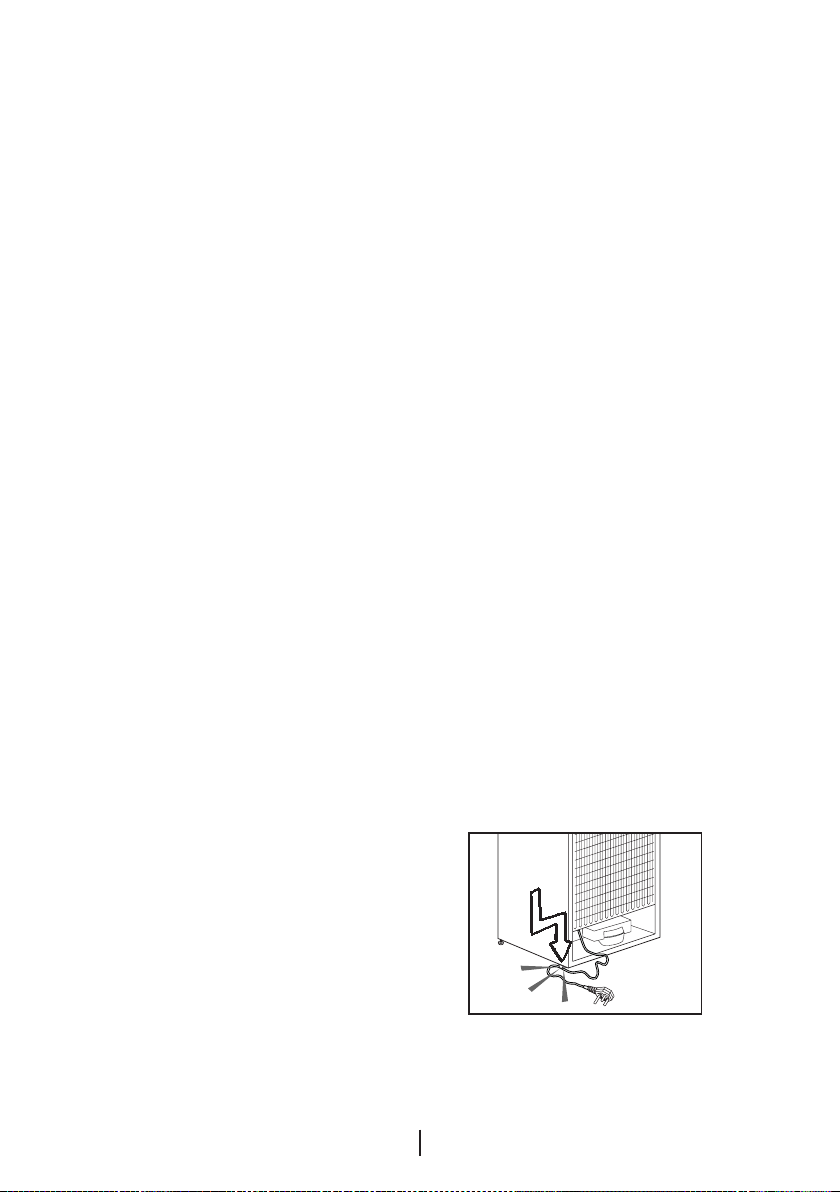

Before disposing of your refrigerator, cut

out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

A If the entrance door of the room

where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.

2. Keep your refrigerator away from heat

sources, humid places and direct sunlight.

3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

4. Place your refrigerator on an even floor surface to prevent jolts.

5. Do not keep your refrigerator in ambient temperatures under 10°C.

CThis appliance is designed to

operate at temperatures specified in the table below is equipped with Advanced Electronic Temperature Control System [AETCS] which ensures that at the advised setting [4

- four on the knob] the frozen food in the freezer will not defrost even if the ambient temperature falls as low as

-15 °C. When first installed the product

MUST NOT be placed in low ambient

temperatures because the freezer will not reduce to it’s standard operating temperature. Once it has reached its steady operating state it can be relocated. So you may then install your appliance in a garage or an unheated room without having to worry about frozen food in the freezer being spoilt. However at low ambient temperatures mentioned above, fridge contents are likely to freeze, so check and consume food in the fridge accordingly. When the ambient temperature returns to normal, you may change the knob setting to suit your needs.

CIf the ambient temperature is

below 0°C, the food in the fridge compartment will freeze.So, we recommend you don’t use the fridge compartment in such low ambient conditions. You can continue using the freezer compartment as usual.

Replacing the interior light bulb

Should the light fail to work, proceed as follows.

1- Switch off at the socket outlet and pull out the mains plug.

You may find it useful to remove shelves for easy access.

2- Use a flat tipped screwdriver to

remove the light diffuser cover. 3- First check that the bulb hasn’t

worked loose by ensuring it is screwed

securely in the holder. Replace the

plug and switch on. If the bulb works, replace the light

cover by inserting the rear lug and pushing up to locate the front two lugs.

4- If the light still fails to work, switch off at the socket outlet and pull out

the mains plug. Replace the bulb with

a new 15 watt (max) screw cap (SES) bulb.

5- Carefully dispose of the burnt-out light bulb immediately.

Replacement light bulb can easily be

obtained from a good local electrical or DIY store.

Reversing the doors

Proceed in numerical order

Reversing the doors

Proceed in numerical order

4 Preparation

C Your refrigerator should be installed at

least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

C The ambient temperature of

the room where you install your refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.

C Please make sure that the interior

of your refrigerator is cleaned thoroughly.

C If two refrigerators are to be installed

side by side, there should be at least 2 cm distance between them.

C When you operate your refrigerator

for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in

the “Recommended solutions for

the problems” section.

C Original packaging and foam

materials should be kept for future transportations or moving.

5 Using your refrigerator

Thermostat setting button

The interior temperature of your refrigerator changes for the following reasons;

• Seasonal temperatures,

• Frequent opening of the door and

leaving the door open for long periods,

• Food put into the refrigerator

without cooling down to the room temperature,

• The location of the refrigerator in the

room (e.g. exposing to sunlight).

• You may adjust the varying interior

temperature due to such reasons

by using the thermostat. Numbers

around the thermostat button indicates the cooling degrees.

• If the ambient temperature is higher

than 32 °C, turn the thermostat button to maximum position.

• If the ambient temperature is lower

than 25 °C, turn the thermostat button to minumum position.

Defrost

Fridge compartment

Fridge compartment performs fullautomatic defrosting. Water drops and a frosting up to 7-8 mm can occur on the inner rear wall of the fridge compartment while your refrigerator cools down. Such formation is normal as a result of the cooling system. The frost formation is defrosted by performing automatic defrosting with certain intervals thanks to the automatic defrosting system of the rear

wall. User is not required to scrape the

frost or remove the water drops. Water resulting from the defrosting

passes from the water collection groove and flows into the evaporator through the drain pipe and evaporates here by itself.

Check regularly to see if the drain pipe is clogged or not and clear it with the stick in the hole when necessary.

Deep freezer compartment does not perform automatıc defrosting in order to prevent decaying of the frozen food

The freezer compartment defrosts automatically.

Zero temperature compartment

This compartment has been designed to store frozen food which would be thawed slowly (meat, fish, chicken,etc.) as required.Zero temperature compartment is the coldest place of your refrigerator in which dairy products (cheese, butter), meat, fish or chicken may be kept at

ideal storage conditions.Vegetables and/or fruits must not be placed in

this compartment.

6 Maintenance and cleaning

A Never use gasoline, benzene or

similar substances for cleaning purposes.

B We recommend that you unplug the

appliance before cleaning.

B Never use any sharp abrasive

instrument, soap, household cleaner, detergent and wax polish for cleaning.

C Use lukewarm water to clean the

cabinet of your refrigerator and wipe it dry.

C Use a damp cloth wrung out in

a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

B Make sure that no water enters the

lamp housing and other electrical items.

B If your refrigerator is not going to be

used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

C Check door seals regularly to ensure

they are clean and free from food particles.

A To remove door racks, remove all the

contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

C Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.

• Is the fuse of the socket which your refrigerator is connected to or the main fuse

blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly

humid ambient conditions. Storage of food containing liquid in open containers.

Leaving the door ajar. Switching the thermostat to a colder degree.

• Decreasing the time the door left open or using it less frequently.

• Covering the food stored in open containers with a suitable material.

• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power

failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.

• The fridge is in defrost cycle. This is normal for a full-automatically defrosting

refrigerator. Defrosting cycle occurs periodically.

• Your refrigerator is not plugged into the socket. Make sure that the plug is

properly fit into the socket.

• Are the temperature adjustments correctly made?

• Power might be cut off.

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal.

Large refrigerators operate for a longer period of time.

• The ambient room temperature may be high. This is quite normal.

• The refrigerator might have been plugged in recently or might have been loaded

with food. Cooling down of the refrigerator completely may last for a couple of hours longer.

• Large amounts of hot food might have been put in the refrigerator recently. Hot

food causes longer running of the refrigerator until they reach the safe storage temperature.

• Doors might have been opened frequently or left ajar for a long time. The warm

air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.

• Freezer or fridge compartment door might have been left ajar. Check if the doors

are tightly closed.

• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator

temperature to a warmer degree and wait until the temperature is achieved.

• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly

seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator

to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low temperature. Adjust the freezer

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature might have been adjusted to a very high degree.

Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.

• Doors might have been opened frequently or left ajar for a long time; open them

less frequently.

• Door might have been left ajar; close the door completely.

• Large amount of hot food might have been put in the refrigerator recently. Wait

until the fridge or freezer reaches the desired temperature.

• The refrigerator might have been plugged in recently. Cooling down of the

refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

• The operating performance of the refrigerator may change due to the changes in

the ambient temperature. It is normal and not a fault.

Vibrations or noise.

• The floor is not even or it is weak. The refrigerator rocks when moved slowly.

Make sure that the floor is strong enough to carry the refrigerator, and level.

• The noise may be caused by the items put onto the refrigerator. Items on top of

the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

• Liquid and gas flows happen in accordance with the operating principles of your

refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

• Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

• Hot and humid weather increases icing and condensation. It is normal and not a

fault.

• Doors might have been left ajar; make sure that the doors are closed fully.

• Doors might have been opened frequently or left ajar for a long time; open them

less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

• There might be humidity in the air; this is quite normal in humid weather. When

the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with

a sponge, lukewarm water or carbonated water.

• Some containers or package materials might cause the smell. Use a different

container or different brand packaging material.

The door is not closing.

• Food packages may prevent the door's closing. Replace the packages that are

obstructing the door.

• The refrigerator is not completely upright on the floor and rocking when slightly

moved. Adjust the elevation screws.

• The floor is not level or strong. Make sure that the floor is level and capable to

carry the refrigerator.

Crispers are stuck.

• The food might be touching the ceiling of the drawer. Rearrange food in the

drawer.

Bitte lesen Sie zuerst diese Anleitung!

Sehr geehrte Kundin, sehr geehrter Kunde, Wir sind sicher, dass Ihnen dieses Produkt, das in modernsten Fertigungsstätten

hergestellt und den strengsten Qualitätsprüfungen unterzogen wurde, lange Zeit gute Dienste leisten wird.

Wir empfehlen Ihnen, vor Inbetriebnahme des Gerätes das gesamte Handbuch durchzulesen und es anschließend aufzubewahren.

Diese Anleitung...

... hilft Ihnen, Ihr Gerät schnell und sicher bedienen zu können.

• Lesen Sie die Anleitung, bevor Sie Ihr Produkt aufstellen und bedienen.

• Halten Sie sich an die Anweisungen, beachten Sie insbesondere die

Sicherheitshinweise.

• Bewahren Sie die Anleitung an einem leicht zugänglichen Ort auf, damit Sie

jederzeit darin nachschlagen können.

• Lesen Sie auch die weiteren Dokumente, die mit Ihrem Produkt geliefert

wurden.

Bitte beachten Sie, dass diese Anleitung eventuell auch für andere Geräte

eingesetzt werden kann.

Symbole und ihre Bedeutung

In dieser Anleitung finden Sie die folgenden Symbole:

C Wichtige Informationen oder nützliche Tipps. A Warnung vor Verletzungen oder Beschädigungen. B Warnung vor elektrischem Strom.

Recycling

Dieses Produkt ist mit dem selektiven Entsorgungssymbol für elektrische und elektronische Altgeräte (WEEE) gekennzeichnet. Das bedeutet, dass dieses Produkt gemäß der europäischen Direktive 2002/96/EC gehandhabt werden muss, um mit nur minimalen umweltspezifischen Auswirkungen recycelt oder zerlegt werden zu können. Weitere Informationen erhalten Sie von Ihren regionalen Behörden.

Elektronikprodukte, die nicht durch den selektiven Entsorgungsvorgang erfasst werden, stellen durch das Vorhandensein potenziell gefährlicher Substanzen umwelt- und gesundheitsrelevante Risiken dar.

Inhalt

1 Ihr Kühlschrank 3

4 Vorbereitung 14

2Wichtige Sicherheitshinweise 4

Bestimmungsgemäßer Gebrauch ......4

Allgemeine Hinweise zu Ihrer

Sicherheit ..........................................4

Kinder – Sicherheit ............................6

HCA-Warnung ...................................7

Dinge, die Sie zum Energiesparen

beachten sollten ................................7

3 Installation 8

Was Sie bei einem weiteren Transport Ihres Kühlschranks beachten müssen 8

Bevor Sie Ihren Kühlschrank

einschalten ........................................8

Verpackungsmaterialien entsorgen ....8

Altgeräte entsorgen ...........................8

Aufstellung und Installation ................9

Austausch der Innenbeleuchtung ...... 9

Türanschlag umkehren ..................... 11

Türanschlag umkehren ..................... 12

0 °C-Fach ........................................13

5 So bedienen Sie Ihren Kühlschrank 15

6 Wartung und Reinigung 16

Schutz der Kunststoffflächen ..........16

7 Empfehlungen zur Problemlösung 17

1 Ihr Kühlschrank

1. Innenbeleuchtung

2. Thermostatknopf

3. Bewegbare Regale

4. Verstellbare Ablagen

5. Tauwassersammelkanal -

Abflusskanal

6. 0 °C-Fach

7. Gemüselade

8. Kältespeicher

9. Gefrierfach

10. Dairy Fach

11. Eierhalter

12. Adjustierende Türfächer

13. Türregal

14. Flaschenhalter

15. Drahtrahmen

16. Kühlbereich

17. Gefrierfach

C Abbildungen und Angaben in dieser Anleitung sind schematisch und können

etwas von Ihrem Produkt abweichen. Wenn die Teile nicht im gekauften Produkt enthalten sind, gelten sie für andere Modelle.

2 Wichtige Sicherheitshinweise

Bitte lesen Sie die folgenden

Hinweise aufmerksam durch.

Bei Nichtbeachtung kann es zu

Verletzungen und/oder Sachschäden kommen. In diesem Fall erlöschen

auch sämtliche Garantie- und sonstigen Ansprüche.

Die reguläre Einsatzzeit des von Ihnen erworbenen Gerätes beträgt 10 Jahre. In diesem Zeitraum halten wir Ersatzteile für das Gerät bereit, damit es stets wie gewohnt arbeiten kann.

Bestimmungsgemäßer Gebrauch

• Dieses Gerät ist ausschließlich zum

Einsatz im Haushalt und bei ähnlichen

Anwendungen vorgesehen:

– Personalküchen in Geschäften, Büros

und an anderen Arbeitsplätzen;

– Nutzung auf Bauerhöfen, durch

Gäste von Hotels, Motels und

anderen Herbergen;

– Private Zimmervermietung;

– Catering und ähnliche

Anwendungsbereiche.

• Das Gerät sollte nicht im Freien

benutzt werden. Es ist nicht für die

Nutzung außerhalb des Hauses

geeignet, auch wenn die Stelle überdacht ist.

Allgemeine Hinweise zu Ihrer Sicherheit

• Wenn Sie das Gerät entsorgen

möchten, wenden Sie sich am besten an den autorisierten Kundendienst. Hier erhalten Sie notwendige Informationen und erfahren, welche Stellen für die Entsorgung zuständig sind.

• Bei Problemen und Fragen zum

Gerät wenden Sie sich grundsätzlich

an den autorisierten Kundendienst.

Ziehen Sie keine Dritten zu Rate,

versuchen Sie nichts in Eigenregie, ohne den autorisierten Kundendienst davon in Kenntnis zu setzen.

• Der Verzehr von Speiseeis und

Eiswürfeln unmittelbar nach der Entnahme aus dem Tiefkühlbereich ist nicht ratsam. (Dies kann zu Erfrierungen führen.)

• Bewahren Sie Getränke in Flaschen

und Dosen niemals im Tiefkühlbereich auf. Diese platzen.

• Berühren Sie gefrorene Lebensmittel nicht mit der Hand; sie können

festfrieren.

• Verwenden Sie niemals Dampfoder Sprühreiniger zum Reinigen und Abtauen Ihres Kühlschranks. Die Dämpfe oder Nebel können in

Kontakt mit stromführenden Teilen geraten und Kurzschlüsse oder Stromschläge auslösen.

• Missbrauchen Sie niemals Teile Ihres Kühlschranks (z. B. Tür) als Befestigungen oder Kletterhilfen.

• Nutzen Sie keine elektrischen Geräte

innerhalb des Kühlschranks.

• Achten Sie darauf, den Kühlkreislauf keinesfalls mit Bohr- oder

Schneidwerkzeugen zu beschädigen. Das Kühlmittel kann herausspritzen, wenn die Gaskanäle des Verdunsters,

Rohr- und Schlauchleitungen oder Oberflächenversiegelungen

beschädigt werden. Dies kann zu Hautreizungen und

Augenverletzungen führen.

• Decken Sie keinerlei Belüftungsöffnungen des

Kühlschranks ab.

• Reparaturen an Elektrogeräten dürfen

nur von qualifizierten Fachleuten

ausgeführt werden. Reparaturen

durch weniger kompetente Personen können erhebliche Gefährdungen des

Anwenders verursachen.

• Sollten Fehler oder Probleme

während der Wartung oder

Reparaturarbeiten auftreten, so

trennen Sie den Kühlschrank von der Stromversorgung, indem Sie die entsprechende Sicherung abschalten

oder den Netzstecker ziehen.

• Ziehen Sie niemals am Netzkabel –

ziehen Sie direkt am Stecker.

• Lagern Sie hochprozentige

alkoholische Getränke gut verschlossen und aufrecht.

• Lagern Sie keinerlei explosiven

Substanzen (dazu zählen auch Sprühdosen mit brennbarem Treibmittel) im Gerät.

• Verwenden Sie ausschließlich vom

Hersteller empfohlene Geräte oder

sonstige Mittel zum Beschleunigen des Abtaugvorgangs. Benutzen Sie

nichts anderes.

• Dieses Gerät darf nicht von

Personen (einschließlich Kindern)

mit eingeschränkten physischen,

sensorischen oder geistigen Fähigkeiten bedient werden. Dies

gilt auch für in Bezug auf das Gerät

unerfahrene Personen, sofern diese nicht beaufsichtigt oder von einer verantwortlichen Person gründlich

in die Bedienung des Gerätes

eingewiesen wurden.

• Nehmen Sie einen beschädigten Kühlschrank nicht in Betrieb. Bei

Zweifeln wenden Sie sich bitte an den Kundendienst.

• Die elektrische Sicherheit des Gerätes

ist nur dann gewährleistet, wenn

das hausinterne Erdungssystem den zutreffenden Normen entspricht.

• Setzen Sie das Gerät keinem Regen,

Schnee, direktem Sonnenlicht oder Wind aus, da dies die elektrische Sicherheit gefährden kann.

• Bei Beschädigungen von Netzkabeln

und ähnlichen Dingen wenden Sie sich an den autorisierten Kundendienst, damit es nicht zu Gefährdungen kommt.

• Stecken Sie während der Installation niemals den Netzstecker ein. Andernfalls kann es zu schweren bis

tödlichen Verletzungen kommen.

• Dieses Tiefkühlgerät dient nur zur Aufbewahrung von Lebensmitteln.

Für andere Zwecke sollte es nicht verwendet werden.

• Das Schild mit der Beschreibung

der technischen Daten des Produkts befindet sich innen links im Tiefkühler.

• Schließen Sie das Kühlgerät nicht an elektronische Energiesparsysteme

an, da sonst das Produkt beschädigt werden kann.

• Wenn der Tiefkühler ein blaues Licht

zeigt, sehen Sie nicht durch die blauen optischen Teile.

• Wenn die Stromversorgung bei

manuell gesteuerten Tiefkühlgeräten abgeschaltet ist, warten Sie bitte mindestens 5 Minuten, bevor Sie den Strom wieder einschalten.

• Diese Bedienungsanleitung sollte bei Besitzerwechsel dem nächsten Besitzer übergeben werden.

• Wenn Sie den Tiefkühler bewegen,

stellen Sie sicher, dass Sie das Stromkabel nicht beschädigen. Um Feuer zu vermeiden, verdrehen Sie

das Stromkabel nicht. Schwere

Objekte sollten nicht auf das

Stromkabel gestellt werden. Wenn der Tiefkühler angeschlossen ist, fassen Sie den Stecker nicht mit nassen Händen an.

• Schließen Sie den Tiefkühler nicht an,

wenn die Steckdose lose sitzt.

• Spritzen Sie aus Sicherheitsgründen

kein Wasser direkt auf oder in den Tiefkühler.

• Sprühen Sie keine entflammbaren

Stoffe, wie Propangas usw. in die

Nähe des Tiefkühlers. Es besteht Feuer- und Explosionsgefahr.

• Stellen Sie keine mit Wasser gefüllten Objekte auf den Tiefkühler. Ein

Kurzschluss oder Feuer könnte die Folge sein.

• Überladen Sie den Tiefkühler nicht.

Wenn der Tiefkühler zu voll ist,

können Lebensmittel herausfallen.

Sie könnten Verletzungen erleiden und der Tiefkühler könnte beschädigt

werden. Stellen Sie keine Objekte auf den Tiefkühler. Die Objekte könnten

beim Öffnen oder Schließen der Tür herunterfallen.

• Materialien, die bestimmte Temperaturen erfordern, wie z.B.

Impfstoffe, temperaturempfindliche Medikamente, wissenschaftliche Materialien usw. dürfen nicht im Tiefkühler aufbewahrt werden.

• Wenn der Tiefkühler eine längere Zeit

nicht benutzt wird, sollte er von der Stromversorgung getrennt werden. Ein Problem bei der Isolierung des Kabels könnte ein Feuer verursachen.

• Die Spitze des Steckers sollte

regelmäßig gereinigt werden, um ein Feuer zu vermeiden.

• Der Tiefkühler kann sich bewegen,

wenn die verstellbaren Füße nicht

fest auf dem Boden stehen. Mit

den verstellbaren Füßen können

Sie den Tiefkühler fest am Boden

positionieren.

• Sofern Ihr Kühlgerät mit Türgriffen

ausgestattet ist, missbrauchen Sie

diese Griffe niemals zum Bewegen des Gerätes; andernfalls können sich

die Griffe vom Gerät lösen.

• Falls das Gerät in unmittelbarer Nähe eines anderen Kühlgerätes

aufgestellt werden muss, achten Sie unbedingt darauf, dass zwischen den Geräten mindestens 8 cm

Abstand verbleiben. Andernfalls kann

es zu Feuchtigkeitsniederschlag an benachbarten Flächen kommen.

• Der Wasserdruck muss mindestens 1

bar betragen. Der Wasserdruck darf 8 bar nicht überschreiten.

• Nur Trinkwasser verwenden.

Kinder – Sicherheit

• Bei abschließbaren Türen bewahren

Sie den Schlüssel außerhalb der

Reichweite von Kindern auf.

• Kinder sollten grundsätzlich

beaufsichtigt werden, damit sie nicht mit dem Gerät spielen.

HCA-Warnung

Sofern Ihr Gerät mit dem Kühlmittel R600a arbeitet:

Dieses Gas ist leicht entflammbar.

Achten Sie also darauf, Kühlkreislauf und Leitungen während Betrieb und

Transport nicht zu beschädigen.

Bei Beschädigungen halten Sie das

Produkt von potenziellen Zündquellen

(z. B. offenen Flammen) fern und sorgen für eine gute Belüftung des Raumes, in dem das Gerät aufgestellt

wurde.

Diese Warnung gilt nicht für Sie, wenn Ihr Gerät mit dem Kühlmittel R134a arbeitet.

Das Typenschild links im Innenraum

informiert Sie über den in Ihrem Gerät

eingesetzten Kühlmitteltyp.

Entsorgen Sie das Gerät niemals durch Verbrennen.

Dinge, die Sie zum Energiesparen beachten sollten

• Halten Sie die Kühlschranktüren nur

möglichst kurz geöffnet.

• Lagern Sie keine warmen Speisen

oder Getränke im Kühlschrank ein.

• Überladen Sie den Kühlschrank nicht; die Luft muss frei zirkulieren können.

• Stellen Sie den Kühlschrank nicht

im direkten Sonnenlicht oder in der

Nähe von Wärmequellen wie Öfen,

Spülmaschinen oder Heizkörpern auf.

• Achten Sie darauf, Ihre Lebensmittel in verschlossenen Behältern

aufzubewahren.

• Sie können besonders viele Lebensmittel im Tiefkühlbereich

des Gerätes lagern, wenn Sie

zuvor die Ablage oder Schublade

im Tiefkühlbereich herausnehmen. Die Energieverbrauchswerte Ihres

Kühlschranks wurden bei maximaler Beladung bei herausgenommenen Ablagen oder Schubladen ermittelt. Ansonsten ist es Ihnen freigestellt, die Ablagen oder Schubladen zu

verwenden.

+ 282 hidden pages
