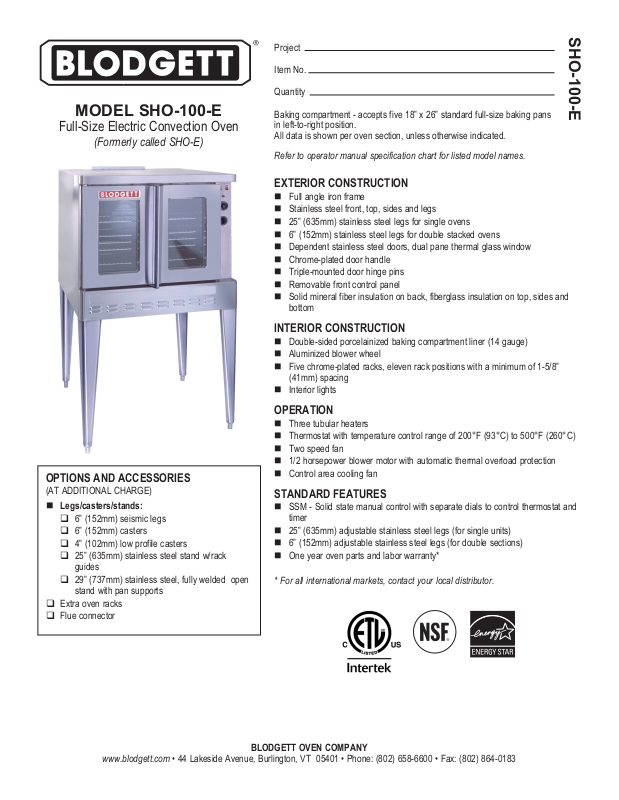

Blodgett SHO100EDBL Specifications
Project
Item No.
Quantity
SHO-100-E
MODEL SHO-100-E
Full-Size Electric Convection Oven
(Formerly called SHO-E)
Baking compartment - accepts five 18” x 26” standard full-size baking pans
in left-to-right position.
All data is shown per oven section, unless otherwise indicated.
Refer to operator manual specification chart for listed model names.
EXTERIOR CONSTRUCTION
Full angle iron frame
Stainless steel front, top, sides and legs
25” (635mm) stainless steel legs for single ovens
6” (152mm) stainless steel legs for double stacked ovens
Dependent stainless steel doors, dual pane thermal glass window
Chrome-plated door handle
Triple-mounted door hinge pins
Removable front control panel
Solid mineral fiber insulation on back, fiberglass insulation on top, sides and
bottom
INTERIOR CONSTRUCTION
Double-sided porcelainized baking compartment liner (14 gauge)
Aluminized blower wheel
Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8”
(41mm) spacing
Interior lights
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Legs/casters/stands:
6” (152mm) seismic legs
6” (152mm) casters
4” (102mm) low profile casters
25” (635mm) stainless steel stand w/rack
guides
29” (737mm) stainless steel, fully welded open
stand with pan supports
Extra oven racks
Flue connector
OPERATION
Three tubular heaters
Thermostat with temperature control range of 200°F (93°C) to 500°F (260°C)
Two speed fan
1/2 horsepower blower motor with automatic thermal overload protection
Control area cooling fan
STANDARD FEATURES
SSM - Solid state manual control with separate dials to control thermostat and
timer
25” (635mm) adjustable stainless steel legs (for single units)
6” (152mm) adjustable stainless steel legs (for double sections)
One year oven parts and labor warranty*
* For all international markets, contact your local distributor.
BLODGETT OVEN COMPANY
www.blodgett.com • 44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
SHO-100-E
SINGLE
57” (1448)
52-3/4” (1340)
35-1/2” (902)
25” (635)
0
28-3/4”
(730)
42” (1067)
DOUBLE
70-5/8” (1794)
38-9/16” (979)
33-1/4” (845)
17” (432)
6-1/2” (165)
0
10-1/4” (260)
3-5/8” (92)
49” (1246)
65-1/4” (1657)
17-3/8”
(441)
TOP VIEW
36-7/8”
(937)
38-1/4” (972)
3” (76)
3” (76)
APPROVAL/STAMP
SHORT FORM SPECIFICATIONS: Provide Blodgett full-size convection oven model SHO-100-E, (single/double) compartment. Each compartment shall have a fully welded angle iron
frame. Interior shall have fully coved porcelainized steel liner and shall accept five 18” x 26” standard full-size bake pans in left-to-right position. Door shall be stainless steel with dual
pane thermal glass. Left door shall have chrome plated handle and dependent operation. Unit shall be electrically heated with three tubular heaters. Air in baking chamber distributed
by dual inlet blower wheel powered by a two-speed, 1/2 HP motor with thermal overload protection. Each chamber shall be fitted with five chrome-plated removable racks and interior
lights. Control panel shall be recessed with Cook/Cool Down mode selector switch, electromechanical thermostat, 200 - 500°F (93-260°C), and 60-minute timer. Provide options and
accessories as indicated.
DIMENSIONS:
Floor space 38-1/4” (972mm) W x 36-7/8” (936mm) L
Product clearance 1/2” from combustible and non-combustible construction
Interior 29” (737mm) W x 20” (508mm) H x 24-1/4” (616mm) D
If oven is on casters:
Single Add 4-1/2” (114mm) to all height dimensions
Double Dimensions do not change
Double Low Profile Subtract 2-1/2” (64mm) from all height dimensions
POWER SUPPLY:
208 VAC 60 Hz. 1 phase 11kW 51/0/51 Amperes
208 VAC 60 Hz. 3 phase 11kW 31/29/29 Amperes
220/240 VAC 60 Hz. 1 phase 11kW 44/0/44 Amperes
220/240 VAC 60 Hz. 3 phase 11kW 26/24/24 Amperes
480VAC 60 Hz 3 phase 11kW 14/13/13 Amperes
* At an additional charge
Printed in U.S.A.
www.blodgett.com • 44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
BLODGETT OVEN COMPANY
NOTE: FOR COMMERCIAL USE ONLY
MAXIMUM INPUT:
Single 11KW
Double 22KW (11KW each section)
MINIMUM ENTRY CLEARANCE:
Uncrated 32-1/4” (819mm)
Crated 37-3/4” (959mm)
SHIPPING INFORMATION:
Approx. Crated Weight:
Single: 480 lbs. (218 kg)
Double: 960 lbs. (435 kg)
Crate sizes:
37-1/2” (952mm) x 43-1/2” (1105mm) x 51-3/4” (1315mm)
NOTE: The company reserves the right to make
substitutions of components without prior notice
P/N 37106 Rev S (6/15)
