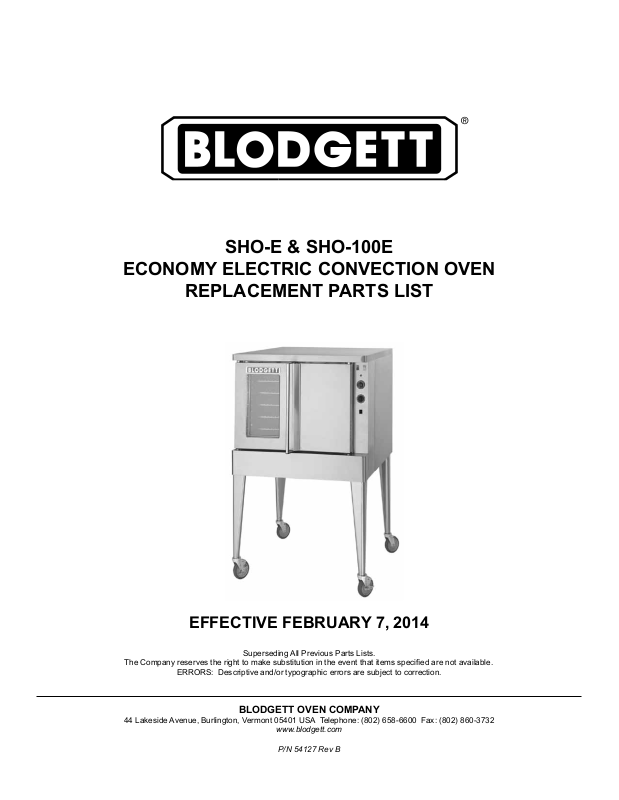

Page 1
SHO-E & SHO-100E
ECONOMY ELECTRIC CONVECTION OVEN
REPLACEMENT PARTS LIST
EFFECTIVE FEBRUARY 7, 2014
The Company reserves the right to make substitution in the event that items specied are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
Superseding All Previous Parts Lists.
BLODGETT OVEN COMPANY
www.blodgett.com
P/N 54127 Rev B
Page 2
SERIAL NUMBER LOCATION / KEY:
IMPORTANT: When ordering parts, please provide the model,
gas type and serial number of the oven. The identication plate
is located above the right hand door.
SERIAL NUMBER IDENTIFICATION CODE:
XF = SHO-E ELECTRIC CONVECTION OVEN
CS = SHO-100-E ELECTRIC CONVECTION OVEN
SERIAL NUMBER EXAMPLES
062002XC001 (NEW STYLE)
06/20/02 = DATE
XF = LETTER CODE FOR SHO-E
001 = FACTORY SEQUENCE
PLEASE NOTE THAT THE SERIAL NUMBERS
ON THE SHO SERIES ARE ONLY 12 DIGITS LONG!!!
TO OBTAIN LITERATURE:
Email: literature@blodgett.com
or visit
www.blodgett.com
FEBRUARY 7, 2014 2 SHO-E & SHO-100-E
Page 3
TABLE OF CONTENTS
Doors Are Not Returnable
ELECTRICAL COMPONENTS .................................................................................................... 4
INTERIOR COMPONENTS & EXTERIOR VIEW ........................................................................ 6
DOOR COMPONENTS ............................................................................................................... 7
LOWER DOOR SUPPORT COMPONENTS ............................................................................. 8
ACCESSORIES ........................................................................................................................... 9
FEBRUARY 7, 2014 3 SHO-E & SHO-100-E
Page 4
ELECTRICAL COMPONENTS - BEFORE 1-8-2006
8
8
9
9
3
1
2
6
5
Ref. Part
No. No. Description
1 16393 Dial Fahrenheit
16686 Knob, Control
2 16536 Thermostat, KX-234-36
19751 Bulb Clip, Thermostat
3 16037 Indicator Light
4 90588 Contactor, 3PH units only
11204 Terminal Block, 90 Amp, 3PH
30503 Terminal Block
35193 Microswitch
20444 Harness, Wiring for units built
before Aug 2004
38169 Harness, Wiring for units buit
after Aug 2004
20605 Harness, Element
20604 Cover, Element terminal
36638 Motor Conduit Assy
5 16605 Fuse
6 20442 Fuseholder
7
4
Ref. Part
No. No. Description
7 5147 Timer 60 Minute Mechanical w/Bell and knob
(Before Aug 2004)
34484 Knob, for Timer 5147
18226 Timer 60 Minute Electrical 240 V
(After Aug 2004.)
16686 Knob, for Timer 18226
8 7636 Rocker Switch, 3PDT, Black 2SP units only
8 6500 Rocker Switch, DPST, Blue 1SP units only
9 6502 Rocker Switch, DPDT, Red All units
90034 Grounding Lug Kit
17754 Transformer, Step Down 480>240V
17250 Cover, Transformer top
20606 Conduit Assy, Hi-Volt transformer
23034 Axial Fan, 230V 4"
22719 Cord Set Assy, Axial Fan
22718 Fan Guard Assy
20350 Buzzer Assy, 240 V
36755 Swtich, Thermal SPDT
FEBRUARY 7, 2014 4 SHO-E & SHO-100-E
Page 5
ELECTRICAL COMPONENTS - AFTER 1-8-2006
6
6
7
7
3
1
2
5
8
GAS SHUTOFF
ON
OFF
DISCONNECT THIS PRODUCT FROM THE
POWER SUPPLY BEFORE OPENING THE
CONTROL MODULE
Ref. Part
No. No. Description
1 16686 Knob, for Temp Control
2 33152 Temperature Controller w/Potentiometer
18588 Temperture Probe
3 16037 Indicator Light, 250V Red Round
4 90588 Contactor
35702 Microswitch, Door
5 18226 Timer 60 Minute, Electrical 240V
16686 Knob, for Timer 18226
6 7636 Rocker Switch, 3PDT, Black, 2SP
7 6502 Rocker Switch, DPDT, Red, Cool Dn
20350 Buzzer Assy 240V
4
Ref. Part
No. No. Description
36755 Switch, Thermal SPDT
22718 Guard Assy, Axial Fan
22719 Cord Set and Nuts, Axial Fan
37058 Relay, DPST 25A, 24V
8 36429 Circuit Breaker
23034 Cooling Fan
30662 Light Switch
36700 Light Transformer
57058 Halogen Light Assy.
D0128 Halogen Bulb 12V, 20W, Type G4, .16"
Between Pins
57075 Halogen Bulb, 12V, 20W Type G5.3, .21"
Between Pins
16820 Timer Decal
38987 Thermostat Decal
50991 Circuit Breaker Decal
FEBRUARY 7, 2014 5 SHO-E & SHO-100-E
Page 6
INTERIOR COMPONENTS & EXTERIOR VIEW
3
4
1
2
8
5
7
11
Liner not
replaceable
12
6
10
9
Ref. Part
No. No. Description
1 37006 Interior Bafe, Porcelain, Blower Wheel
Cover (Before 11/05/2005)
1 16813 Interior Bafe, Porcelain, Blower Wheel
Cover (After 11/05/2005)
2 5001 Blower Wheel
33147 Wheel Puller
3 37023 Motor, 3/4 HP (Before 11-22-2005)
36638 Conduit Assy, Motor (Before 11-22-2005)
3 32244 Motor 230V, 2 speed (After 11-22-2005)
21494 Conduit Assy, Motor (After 11-22-2005)
4 36657 Motor Support Assy
5 18768 Racks, Qty 5 per oven
6 36900 Rack Support Kit, Set of 2
7 36620 Stop, Rack Qty 2 per oven
8 33245 Element Assy, 208V
8 33244 Element Assy, 230/240V
8 20322 Element Assy, 440V
Ref. Part
No. No. Description
8 20319 Element Assy, 480V
9 36822 Cover, Bottom Front (Before 1-08-2006)
9 37202 Cover, Bottom Front (After 1-08-2006)
19751 Thermostat Bulb Clip
10 37097 Control Access Panel
10 50826 Control Panel w/o lights
55325 Control Panel w/lights
11 36797 Body Top (Before 11-05-2005)
11 38991 Body Top (After 11-05-2005)
12 36821 Bodyside, RH (Before 11-05-2005)
12 36407 Bodyside, RH (After 11-05-2005)
36839 Bodyside, LH (Before 11-05-2005)
37205 Bodyside, LH (After 11-05-2005)
NOTE: Compartment Liner Bottom is NOT REPLACE-
ABLE in this unit
FEBRUARY 7, 2014 6 SHO-E & SHO-100-E
Page 7
DOOR COMPONENTS
6
5
Right Hand Door,
9
Left Hand
1
Door Glass
4
7
3
attached to unit.
2
8
2
Right Hand
Door Solid
Ref. Part
No. No. Description
1 20804 Door Assy, Gls LH
2 20805 Door Assy, Sld RH
3 9036 Window Assy, Drop In (10 1/8" X 17 1/8")
9035 Window Tool, for installation and removal of window assy
4 21097 Door Handle, w/hardware
5 36793 Top Plate, for door handle mounting
6 90004 Bushings, Door Hinge Set of 2
16657 Sleeve, Upper Door
17557 Hinge Pin Kit, Upper Door Qty 2 per oven
7 36876 Door Gasket Kit
8 16448 Pressure Lock (for latching) (attaches to front of door)
8 36606 Pressure lock (attaches to side of door)
17311 Center Door Trim (cover gap between closed doors)
9 16470 Nameplate
10 35193 Microswitch
FEBRUARY 7, 2014 7 SHO-E & SHO-100-E
Page 8
LOWER DOOR SUPPORT COMPONENTS
3
4
2
1
Ref. Part
No. No. Description
1 37003 Lower Door Support Assy
NOTE: Lower Door Support Assy includes the hinge pins, arms, chain & turnbuckles, sprocket assy, and
2 37002 Arm Assy, LH
3 90076 Arm Assy, RH
4 35193 Microswitch
FEBRUARY 7, 2014 8 SHO-E & SHO-100-E
Page 9
ACCESSORIES
6
View from
front of oven
2
1
4
7
View from
front of oven
3
5
Ref. Part
No. No. Description
33196 Seismic Legs, 6" Set of 4
2 8600 Legs, 6" Set of 4
1 8598 Legs, 25" w/feet Set of 4
37721 Legs, 25" wcasters Set of 4
16002 Casters, for sgl oven
3 5779 Casters, Plate, for dbl oven Set of 4
NOTE: This set contain 2 casters w/brakes and 2
casters w/o brakes.
11416 Open Stand w/casters
6486 Open Stand w/feet
33199 Casters, Plate, for dbl oven Set of 4
Ref. Part
No. No. Description
19528 Casters, low prole (cradle style), for dbl oven
31013 Casters, Heavy Duty, low prole (cradle style),
for dbl oven
4 20443 Flue Box, for sgl oven
5 17486 Flue Assy, for dbl oven SHO on SHO
(includes upper & lower ue boxes, ue riser)
5 37221 Flue Assy, for dbl oven Xcel on SHO
(includes upper & lower ue boxes, ue riser)
6 7840 Draft Diverter, for canopy venting
7 8709 Drafthood, for direct venting
38080 Backsheet
54422 Side Heat Shield, Right or Left
NOTE: This set contains 4 casters w/brakes.
FEBRUARY 7, 2014 9 SHO-E & SHO-100-E
