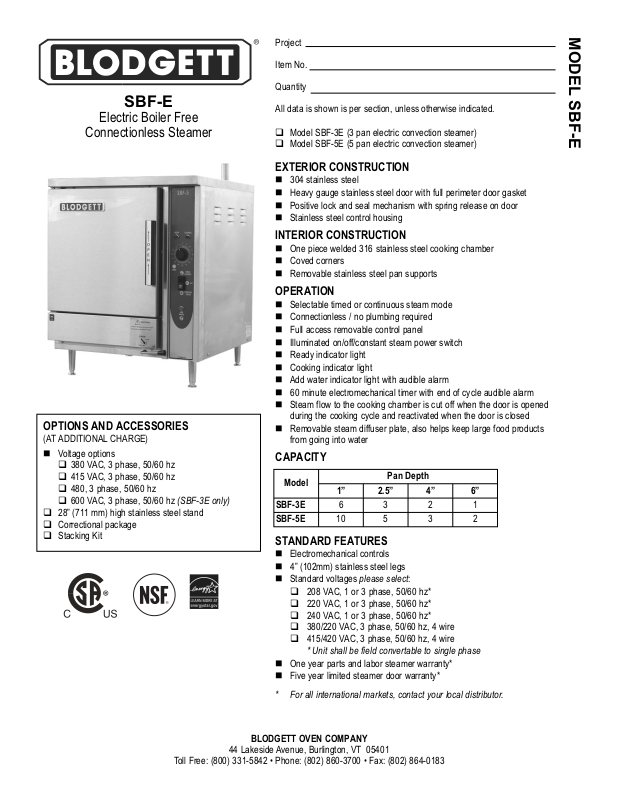

Blodgett SBF-3E, SBF-5E General Manual

BLODGETT OVEN COMPANY

44 Lakeside Avenue, Burlington, VT 05401

Toll Free: [phone] • Phone: [phone] • Fax: [phone]

SBF-E

Electric Boiler Free

Connectionless Steamer

MODEL SBF-E

Project

Item No.

Quantity

All data is shown is per section, unless otherwise indicated.

 Model SBF-3E (3 pan electric convection steamer)
 Model SBF-5E (5 pan electric convection steamer)

EXTERIOR CONSTRUCTION

 304 stainless steel
 Heavy gauge stainless steel door with full perimeter door gasket
 Positive lock and seal mechanism with spring release on door
 Stainless steel control housing

INTERIOR CONSTRUCTION

 One piece welded 316 stainless steel cooking chamber
 Coved corners
 Removable stainless steel pan supports

OPERATION

 Selectable timed or continuous steam mode
 Connectionless / no plumbing required
 Full access removable control panel
 Illuminated on/off/constant steam power switch
 Ready indicator light
 Cooking indicator light
 Add water indicator light with audible alarm
 60 minute electromechanical timer with end of cycle audible alarm
 Steam flow to the cooking chamber is cut off when the door is opened

during the cooking cycle and reactivated when the door is closed

 Removable steam diffuser plate, also helps keep large food products

from going into water

CAPACITY

Model

Pan Depth

1” 2.5” 4” 6”

SBF-3E 6 3 2 1
SBF-5E 10 5 3 2

STANDARD FEATURES

 Electromechanical controls
 4” (102mm) stainless steel legs
 Standard voltages please select:

 208 VAC, 1 or 3 phase, 50/60 hz*
 220 VAC, 1 or 3 phase, 50/60 hz*
 240 VAC, 1 or 3 phase, 50/60 hz*
 380/220 VAC, 3 phase, 50/60 hz, 4 wire
 415/420 VAC, 3 phase, 50/60 hz, 4 wire

* Unit shall be field convertable to single phase

 One year parts and labor steamer warranty*
 Five year limited steamer door warranty*

* For all international markets, contact your local distributor.

OPTIONS AND ACCESSORIES

(AT ADDITIONAL CHARGE)

 Voltage options

 380 VAC, 3 phase, 50/60 hz
 415 VAC, 3 phase, 50/60 hz
 480, 3 phase, 50/60 hz

 600 VAC, 3 phase, 50/60 hz (SBF-3E only)
 28” (711 mm) high stainless steel stand
 Correctional package
 Stacking Kit

BLODGETT OVEN COMPANY

44 Lakeside Avenue, Burlington, VT 05401 Toll Free: [phone] • Phone: [phone] • Fax: [phone]

MODEL SBF-E

Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY

4932-1

Keephandsandface away from steam.

Hotsteamwillescape when door is opened.

DIMENSIONS ARE IN INCHES (MM)

APPROVAL/STAMP

P/N S00105 Rev E (3/08)

SHORT FORM SPECIFICATIONS

Provide Blodgett model SBF-3E (3 pan) or SBF-5E (5 pan) countertop boiler free convection steamer. Unit shall be connectionless, no plumbing required. Unit shall be constructed of 304
stainless steel with a one piece welded 316 stainless steel cooking chamber with coved corners. The door shall have a removable inner liner of stainless steel with full perimeter gasket
seal, an outer liner of one-piece all welded stainless steel, and a positive lock and seal mechanism with spring release. The steamer shall have removable stainless steel pan supports.
The control housing shall be constructed of stainless steel with a full access removable panel. The controls shall include an illuminated off/timed cooking/constant steam switch, a ready
indicator light, cooking indicator light, a 60 minute electric timer with audible alarm that signals the end of the cook cycle, and a low water indicator light with audible alarm. A door inter­lock switch shall interrupt steam generation when the door is open and shall be reactivated when the door is closed. One year parts and labor steamer warranty, five year limited steam­er door warranty for US and Canada. Provide options and accessories as indicated.

DRAIN CONNECTIONS:

1/2” (13mm) NPT female

MAXIMUM INPUT:

SBF-3E 6.0 kW or 9.0 kW
SBF-5E 10.0 kW or 15.0 kW

MININUM REQUIRED CLEARANCES:

Left and right side 0” (0mm)
Rear 3” (76mm)

POWER CONNECTION:

1-1/8”” (29mm) hole for electrical connection

SHIPPING INFORMATION:

SBF-3E 161 lbs. (73 kg)
SBF-5E 183 lbs. (83 kg)

NOTE: The company reserves the right to make substitutions of components without prior notice.

AMPS PER LINE

kW Phase 208V 220V 240V 380V 415V 480V 600V

SBF-3E

6.0 kW

1 28.9 27.3 25.0 N/A

3 N/A

SBF-3E

9.0 kW

1 43.3 40.9 37.5 N/A

3 25.0 23.6 21.7 13.7 12.5 10.8 8.7

SBF-5E

10.0 kW

1 48.1 45.5 41.7 N/A
3 N/A

SBF-5E

15.0 kW

1 72.1 68.2 62.5 N/A

3 41.6 39.4 36.0 22.8 20.9 18.0 N/A

20 [508]

CAUTION

!

Hotsteamwillescape when door is opened.

Keephandsandface away from steam.

DRAIN

OPEN

16.88 [429]

O
P
E
N

2 [51]

4 [102]

8.5 [216]

4 [102]

CLOSE

4932-1

D

D

25 [635]

VENT

2 [51]

24 [610]

19.25 [489]

3 [76]

19.13 [486]

2 [51]

SBF-3E

25.5 [648] SBF-5E
