Blodgett BLCM101E, BLCM62E, BLCM61E User Manual
BCM & BLCM
COMBI OVENS
INSTALLATION - OPERATION - MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802)864-0183
PN 60740 Rev U (5/15)
© 2015 - G.S. Blodgett Corporation
Your Service Agency’s Address:
Model
Serial number
Oven installed by
Installation checked by
IMPORTANT
TABLE OF CONTENTS
WARNING: Improper installation, adjustment, alternation,
service or maintenance can
cause property damage, injury or death. Read the instllation, operation and maintenance instructions thoroughly
before installing or servicing
this equipment.
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE
USER SMELLS GAS MUST BE
POSTED IN A PROMINENT LOCATION. This information may
be obtained by contacting your
local gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or
other ammable vapors or liquids in the vicinity of this or any
other appliance.
The information contained in this
manual is important for the proper installation, use, and maintenance of this oven. Adherence
to these procedures and instructions will result in satisfactory
baking results and long, trouble free service. Please read
this manual carefully and retain
it for future reference.
INSTALLATION
Utility Connections - Standards and Codes ................................. 2
The Blodgett Combi-Oven/Steamer ........................................ 3
Description of the Combi-Oven/Steamer ................................... 4
Utility Specications ...................................................... 5

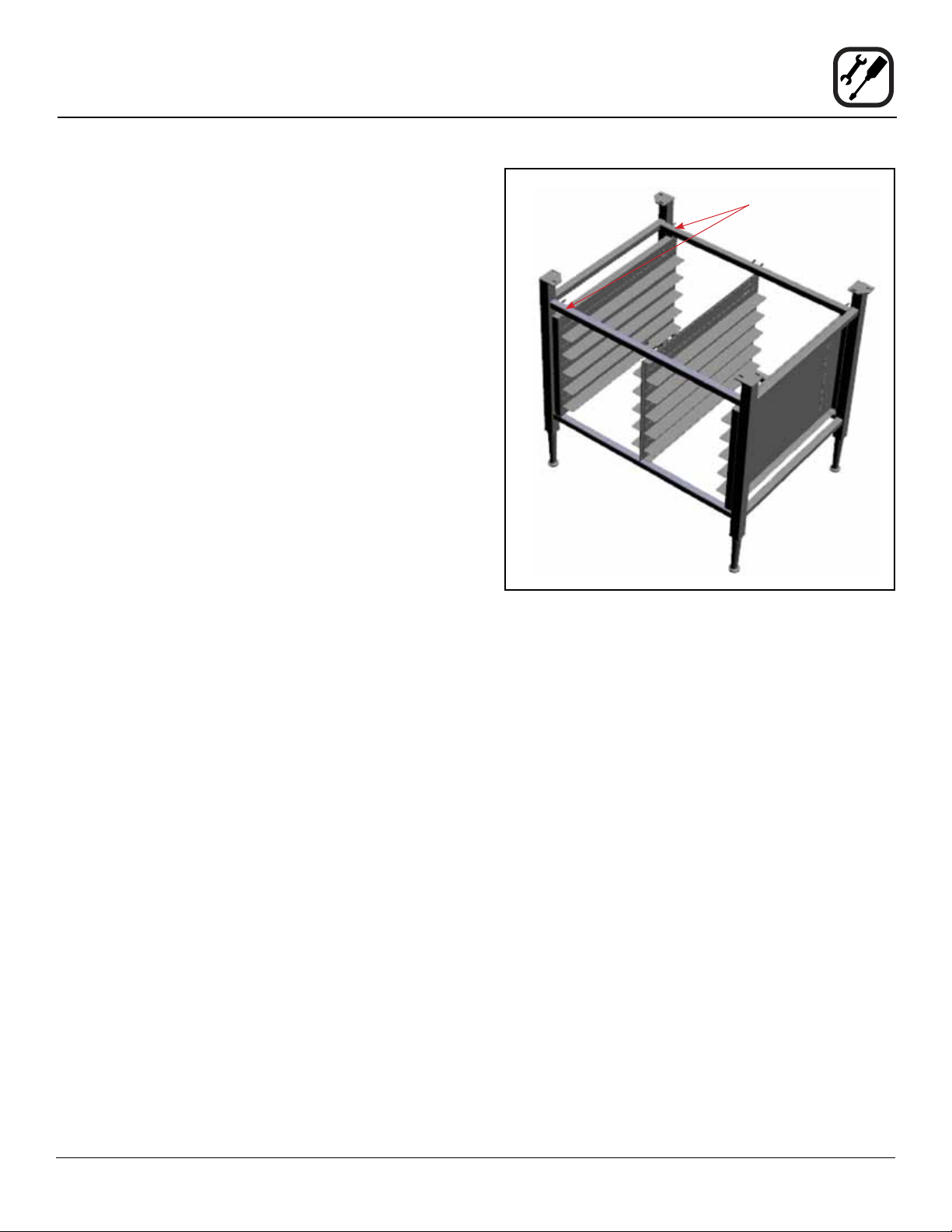

Oven Assembly to Stand .................................................. 7
Oven Location and Leveling ............................................... 8
Plumbing Connections .................................................... 9
Electrical Connection and Ventilation ...................................... 11
Gas Connection......................................................... 12
Gas Hose Restraint ..................................................... 14
Final Check Lists ........................................................ 15
OPERATION
Safety Information for Gas Ovens ........................................ 16
Manual Control Description .............................................. 17
Manual Cooking ........................................................ 18
Programmed Cooking ................................................... 19
Cooking Tips ........................................................... 20
MAINTENANCE
Cleaning & Preventative Maintenance..................................... 21
ERRORS: Descriptive, typographic or pictorial errors are
subject to correction. Specications are subject to change
without notice.
Installation
Utility Connections - Standards and Codes
THE INSTALLATION INSTRUCTIONS CONTAINED
HEREIN ARE FOR THE USE OF QUALIFIED INSTALLATION AND SERVICE PERSONNEL ONLY. INSTALLATION OR SERVICE BY OTHER THAN QUALIFIED
PERSONNEL MAY RESULT IN DAMAGE TO THE OVEN
AND/OR INJURY TO THE OPERATOR.
Qualied installation personnel are individuals, a rm,
a corporation, or a company which either in person or
through a representative are engaged in, and responsible
for:
• the installation or replacement of gas piping and the
connection, installation, repair or servicing of equip-
ment.
• the installation of electrical wiring from the electric
meter, main control box or service outlet to the electric appliance.
Qualied installation personnel must be experienced in
such work, familiar with all precautions required, and have
complied with all requirements of state or local authorities
having jurisdiction.
U.S. and Canadian installations
The installation must conform with local codes, or in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or the Natural Gas and Propane
Installation Code, CSA B149.1, as applicable.
Installation must conform with local codes, or in the absence of local codes, with the National Electrical Code,
ANSI/NFPA 70-Latest Edition and/or Canadian National
Electric Code C22.1 as applicable.
Appliance is to be installed with backow prevention in
accordance with applicable federal, province and local
codes.
Australia and general export installations
Instllation must conform with Local and National instal-
lation standards. Local installation codes and/or requirements may vary. If you have any questions regarding the
proper installation and/or operation of your Blodgett oven,
please contact your local distributor. If you do not have a
local distributor, please call the Blodgett Oven Company
at 0011-802-658-6600.
2
Installation
The Blodgett Combi-Oven/Steamer
The Blodgett Combi-Oven/Steamer offers a completely
new method of cooking. With the Oven/Steamer you have
the choice of two cooking processes: Steam and Hot Air,
either...
• Separately
• Combined, or
• In Sequence
And for easy operation you can choose from three modes:
In the Steam mode you can:
steam reheat reconstitute
stew thaw simmer
blanche preserve braise
poach
In the Hot Air mode you can:
roast bake grill
gratinate broil
In the Combination Steam and Hot Air mode you can:
defrost roast rethermalize
reheat bake forced steam
There are four additional specialized modes to help you
make the most of your time:
Retherm - for perfect reheating
Proong - Proof and bake all in the same oven
Preheat - in this mode the oven will preheat to 575ºF
(300ºC) for 15 minutes. The oven will then automatically
lower to 480ºF (249ºC) to protect the advanced electronic components.
Cool Down - allows the oven cavity to cool down rapidly
with the door opened
You can also use two or three functions in se-
quence during one cooking process. We call this:
• combi-steaming
• combi-roasting
• combi-baking
The combination of circulating hot air and steam in the
space saving, high performance Combi-Oven/Steamer
leads to improvements in the following areas:
• increased productivity in the kitchen
• a reduction in capital expenditures for multiple equip-
ment replacement
• a wider range of menu choices
• a simplied cleaning process
The work process is simplied since products are pre-
pared on or in steam table pans and trays. Food can be
cooked, stored, and transported with the same pans.
Small amounts of product can be processed efciently;
pre-cooked and convenience foods can be reheated within minutes. Many frozen foods can be processed with-
out pre-thawing. This exibility in preparation reduces the
need for kettles and steam tables since there is no need
for large amounts of food to be kept warm for long periods
of time.
Today the improvement of food quality is more important
than ever. Vegetables are cooked in the Blodgett CombiOven/Steamer without water at the optimal temperature
of just under 212ºF (100ºC), maintaining valuable vitamins, minerals, nutrients and trace elements. Cooking
meat in the Combi results in less shrinkage and a rmer,
juicier product. The Blodgett Combi-Oven/Steamer is being used more and more for baking. Steam and Hot Air
modes make it a general purpose baking appliance.
3
Installation
Description of the Combi-Oven/Steamer
ABOUT THE OVEN/STEAMER
Blodgett Combi-Oven/Steamers are quality produced using high-grade stainless steel with rst class workman-
ship.
The multiple speed fan, which is guarded against acci-
dental nger contact, is driven by a quiet and powerful
motor. The condenser draws out excess steam from the
appliance. Condensation and waste water, which result
during steaming and cleaning, are continuously drained.
The use of high quality insulation impedes excessive heat
radiation and saves energy.
The BCM/BLCM makes it possible to enjoy all of the ad-
vantages of a high quality steamer at the ick of a switch.
Fresh steam enters the oven cavity without pressure and
is circulated at high speed. This process enables quick
and gentle cooking and ensures high quality food while
providing convenient working methods. The steam generator is completely automatic and protected from running
dry.
OVEN/STEAMER OPERATION
The practical oven door, with a viewing window, has a
wide swing radius and handle which can be operated easily, even with wet or greasy hands.
Ease of operation is guaranteed through the simple to
use control. With graphical symbols and storage for 50
product recipes the BCM/BLCM is easy for even inexperienced kitchen staff to operate.
Cleaning is kept to a minimum thanks to the automatic
Combi Wash system.
4
PLUMBING SPECIFICATIONS
WATER
Water pressure 36.26 PSI (250 kPa, 2.5 bar) during Combi Wash
21.76 PSI (150 kPa, 1.5 bar) when Combi Wash is not active
40(min)-50(max) PSI supply pressure
Water connection 3/4” garden hose cold water
Water quality requirements TDS: 40-125 ppm
Hardness: 35-100 ppm
Chlorides: <25 ppm
Silica: <13 ppm
Chlorine: <0.2 ppm
Chloramine: <0.2 ppm
pH: 7.0-8.5
DRAINAGE
Drain type Atmospheric Vented Drain
Drain connection 2.00” (50.8mm) Copper
Maximum water drain temperature 140ºF (60ºC)
Installation
Utility Specications
RATINGS - GAS OVENS
Model Gas Type Input Voltage Phase Amps
BLCM-61G Natural 58,000 BTU 115 1 9
Propane 58,000 BTU 11 5 1 9
BLCM-101G Natural 87,000 BTU 115 1 9
Propane 87,000 BTU 11 5 1 9
BLCM-102G Natural 95,500 BTU 115 1 9
Propane 95,500 BTU 11 5 1 9
BLCM-62G Natural 81,800 BTU 115 1 9
Propane 81,800 BTU 11 5 1 9
BLCM-202G Natural 190,000 BTU 115 1 17
Propane 190,000 BTU 115 1 17
5
Installation
Utility Specications
Model Voltage kW Hz Phase Max Load (amps)
208/230/240
BLCM-23E
Mini Combi
BLCM-6E
Mini Combi
BLCM-10E
Mini Combi
BCM-61E
BLCM-61E
BCM-101E
BLCM-101E
BCM-102E
BLCM-102E
BCM-62E
BLCM-62E
BCM-202E
BLCM-202E
400/415
440/480 5.4/6.5 50/60 2AC 15
208 4.6 50/60 1 23
240 6.1 50/60 1 26
208 6.9 50/60 3 20
240 9.2 50/60 3 23
208/230/240
400/415
440/480 10.4/12.4 50/60 3AC 18
208 9 60 3 25
240 9 60 3 22
480 9 60 3 11
208 18 60 3 50
240 18 60 3 44
480 18 60 3 22
208 27 60 3 75
240 27 60 3 65
480 27 60 3 33
208 21 60 3 59
240 21 60 3 51
480 21 60 3 26
208 60 60 3 167
240 60 60 3 145
480 60 60 3 73
ELECTRICAL RATINGS
2.7/3.3/3.6 50/60 1NAC 15
2.7/3.3/3.6 50/60 2AC 15
5.4/6.6/7.2 50/60 3AC 30
6.6/7.2 50/60 2NAC 15
5.4/5.8 50/60 2AC 15
10.4/12.7/13.8 50/60 3AC 34
10.4/12.7/13.8 50/60 3NAC 34
12.7/13.8 50/60 3NAC 20
12.7/13.8 50/60 3AC 20
6
