BDO-G
CONVECTION OVEN
REPLACEMENT PARTS LIST
EFFECTIVE APRIL 16, 2014
The Company reserves the right to make substitution in the event that items specied are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
Superseding All Previous Parts Lists.
BLODGETT OVEN COMPANY
www.blodgett.com
P/N 55447 Rev C
SERIAL NUMBER LOCATION / KEY:
IMPORTANT: When ordering parts, please provide the model, gas
type and serial number of the oven. The rating plate is located
behind the control panel. The serial number can be found on the
top right hand corner of the oven.
SERIAL NUMBER IDENTIFICATION CODE:
DS, DM - BDOG GAS CONVECTION OVEN
WITH INSHOT POWER BURNER
SERIAL NUMBER EXAMPLES
062006DM001Z
06/20/06 = DATE
DS, DM = LETTER CODES FOR BDO-G
001 = FACTORY SEQUENCE
TO OBTAIN LITERATURE:
Email: literature@blodgett.com
or visit
www.blodgett.com
APRIL 16, 2014 2 BDO-G
TABLE OF CONTENTS
Doors Are Not Returnable
CONTROL COMPONENTS .................................................................. 4
BURNER COMPONENTS ................................................................... 5
ELECTRICAL PANEL COMPONENTS ........................................................ 6
INTERIOR HEAT SYSTEM COMPONENTS ................................................... 7
LOWER DOOR SUPPORT COMPONENTS ................................................... 8
EXTERIOR COMPONENTS & DOORS ....................................................... 9
INTERIOR COMPONENTS ................................................................. 10
ACCESSORIES ........................................................................... 12
APRIL 16, 2014 3 BDO-G
CONTROL COMPONENTS
6
5
6
8
7
14
12
9
13
2
4
15
18
5
15
8
7
16
17
4
3
NOTES:
1. BEEP
2.
ER HARNESS IS 2 WIRES CONNECTING ITEM 3 TO ITEM 9.
THE FRONT HARNESS IS THE MAIN WIRE HARNESS CONNECTING ALL OF THE COMPONENTS ON THIS ASSEMBLY.
Ref. Part
No. No. Description
2 54844 DECAL, INFINITE WITH DIGITAL TIMER,
BEFORE 1/1/2013
14 56303 DECAL, INFINITE TEMPERATURE,
AFTER 1/1/2013
3 52668 BEEPER, BEFORE 1/1/2013
4 36376 SWITCH, GAS, ON/OFF
5 6503 SWITCH, ROCKER 3PDT
6 6502 SWITCH, ROCKER, DPDT, RED
7 6497 SWITCH, ROCKER SPST, WHT
8 18265 INDICATOR LIGHT
9 54859 CONTROL, INFINITE W/DIGITAL TIMER,
BEFORE 1/1/2013
16 33152 CONTROL, INFINITE TEMPERATURE,
AFTER 1/1/2013
Ref. Part
No. No. Description
10 52843 HARNESS, BEEPER (NOT SHOWN),
BEFORE 1/1/2013
12 55385 KNOB, CONTROL, BEFORE 1/1/2013
13 55386 KNOB, TIMER, BEFORE 1/1/2013
15 R8743 KNOB, THERMOSTAT & TIMER,
AFTER 1/1/2013
17 18225 TIMER, 60 MINUTE, AFTER 1/1/2013
18 R10657 DECAL, GAS SWITCH, AFTER 1/1/2013
APRIL 16, 2014 4 BDO-G
BURNER COMPONENTS
FOR ALPHA CODE DM OR DS OVENS
5
2
1
7
3
7
4
6
Ref. Part
No. No. Description
1 54957 BURNER BASE
2 55030 BURNER, INSHOT
3 54177 MANIFOLD, GAS
4 36415 ORIFICE, BLANK
5 54911 ELECTRODE MOUNTING BRACKET
6 54913 BURNER AIR BAFFLE
7 54327 BURNER WIRING CONNECTOR
8 54328 FLAME SENSOR
9 54329 SPARK ELECTRODE
10 54914 BURNER FRONT
11 54935 FLEX HOSE
12 54909 BURNER COVER
13 54910 TURBULATOR
14 54912 BURNER MOUNTING FLANGE
15 54885 WIRE ASSY, 2.5" ORANGE 20 AWG
16 54885 WIRE ASSY, 2.5" ORANGE 20 AWG
17 53671 SCREW,8-32X3/8 SS PAN THD CUT
18 21876 SCREW, SELF DRILL, #10-16 X 1/2
19 15247 .625 SELF DRILLING SCREW
20 1799 #10 X 3/8 PH SCREW
21 M0471 HEX HEAD CAP SCREW, #10-24
57841 CONVERSION KIT, NAT TO LP GAS
APRIL 16, 2014 5 BDO-G
ELECTRICAL PANEL COMPONENTS
2
10
8
7
9 14
12 8
6
16
5
3
2
13
10
4
9
6
5
15
3
4
14
12
DM MODELS DS MODELS
Ref. Part
No. No. Description
2 36603 RELAY, DPST 25A 120V
3 37058 RELAY, DPST 25A 24V
4 54607 DC POWER SUPPLY, 12V 15W OUTPUT
5 36441 THERMOSTAT, HIGH LIMIT
6 35933 BRACKET, HI-LIMIT SWITCH
7 24356 TRANSFORMER, 120V TO 24V 80VA, BEFORE 1/1/2013
16 20355 TRANSFORMER, 115V TO 24V, AFTER 1/1/2013
8 36755 SWITCH, THERMAL, SPDT
9 37488 BRACKET, THERMAL DISC
10 54388 IGNITION CONTROL
56599 HARNESS, REAR (NOT SHOWN, AFTER 1/1/2013
12 19086 GROMMET, RUBBER 11/16
13 18268 SPACER, NYLON
14 50106 PUSH WING MOUNT
15 20349 BUZZER, 120V, AFTER 1/1/2013
APRIL 16, 2014 6 BDO-G
INTERIOR HEAT SYSTEM COMPONENTS
6
1
Ref. Part
No. No. Description
1 54897 COMBUSTION BLOWER, 12 VDC
2 54938 GAS VALVE ASSY, NATURAL
3 54939 GAS VALVE ASSY, LP
4 54802 PRESSURE SWITCH
M9705 PRESSURE SWITCH TUBING (BY THE INCH)
5 55070 GAS SUPPLY TUBE
6 53811 AIR DIVIDER
2
4
5
APRIL 16, 2014 7 BDO-G
LOWER DOOR SUPPORT COMPONENTS
3
4
2
1
Ref. Part
No. No. Description
1 37003 Lower Door Support Assy
NOTE: Lower Door Support Assy includes the hinge pins, arms, chain & turnbuckles, sprocket assy, and
cam assy.
2 37002 Arm Assy, LH
3 90076 Arm Assy, RH
4 35193 Microswitch
APRIL 16, 2014 8 BDO-G
EXTERIOR COMPONENTS & DOORS
1
6
3
8
5
7
11
9
10
12
Ref. Part
No. No. Description
1 53784 BODYSIDE, LH
2 53783 BODYSIDE, RH
3 20804 LEFT HAND GLASS DOOR
3 20806 LEFT HAND SOLID DOOR
4 20803 RIGHT HAND GLASS DOOR
4 20805 RIGHT HAND SOLID DOOR
5 53787 COMBUSTION COVER
6 36793 DOOR HANDLE TOP PLATE
7 53781 BODYTOP
8 21097 DOOR HANDLE WITH HARDWARE
9 36606 PRESSURE LOCK (ATTACHES TO SIDE OF DOOR)
10 17311 CENTER DOOR TRIM
11 16470 NAMEPLATE
12 9036 WINDOW ASSEMBLY, DROP IN (10-1/8 X 17-1/8)
9035 WINDOW TOOL FOR INSTALLATION AND REMOVAL OF GLASS
90004 BRONZE DOOR BEARINGS, SET OF 2
4
APRIL 16, 2014 9 BDO-G
INTERIOR COMPONENTS
4
3
2
1
5
7
14
8
9
6
13
16
11
10
Ref. Part
No. No. Description
1 38673 TEMPERATURE PROBE GUARD
2 54842 TEMPERATURE PROBE 1K OHM,
BEFORE 1/1/2013
18588 TEMPERATURE PROBE, AFTER 1/1/2013
3 57058 HALOGEN LIGHT ASSEMBLY, 12V,
BEFORE 1/1/2013
D0128 BULB, HALOGEN, 12V, TYPE G4 .16"
BETWEEN PINS, BEFORE 1/1/2013
57075 BULB, HALOGEN, TYPE G5.3 .21"
BETWEEN PINS, BEFORE 1/1/2013
55607 HALOGEN LIGHT ASSY, 120V,
AFTER 1/1/2013
4 8646 BAFFLE SUPPORT BRACKET (SET OF 4)
5 19081 RACK SUPPORT KIT (SET OF 2)
6 18768 OVEN RACKS QTY 5 PER OVEN
12
Ref. Part
No. No. Description
7 37022 MOTOR, 120V 2 SPEED
8 53771 MOTOR MOUNT PANEL
9 53817 BURNER BOX FRONT SECTION
10 55346 BLOWER WHEELE
11 51673 OVEN CAVITY BAFFLE
12 54899 BURNER BOX FRONT SECTION
13 54898 INSULATION RETAINER
14 33088 TEMPERATURE PROBE CLIP,
BEFORE 1/1/2013
19751 TEMPERATURE PROBE CLIP
AFTER 1/1/2013
15 55213 INSULATION RETAINER, LINER BOTTOM
DEFLECTOR
16 33147 WHEEL PULLER, USED TO REMOVE
BLOWER WHEEL
15
APRIL 16, 2014 10 BDO-G
INTERIOR COMPONENTS
10
9
8
1
2
Ref. Part
No. No. Description
1 39989 AIR TUBE, BY THE INCH
2 54896 AIR BOX ASSEMBLY
3 19086 GROMMET
4 19087 GROMMET
5 19087 GROMMET
6 22301 COOLING FAN
7 53812 FAN HOUSING
8 39108 7 POSITION TERMINAL BLOCK
9 38605 3 POSITION TERMINAL BLOCK W/GROUND
10 M0571 FAN GUARD
11 36230 FLEX TUBE
7
6
11
5
4
3
APRIL 16, 2014 11 BDO-G

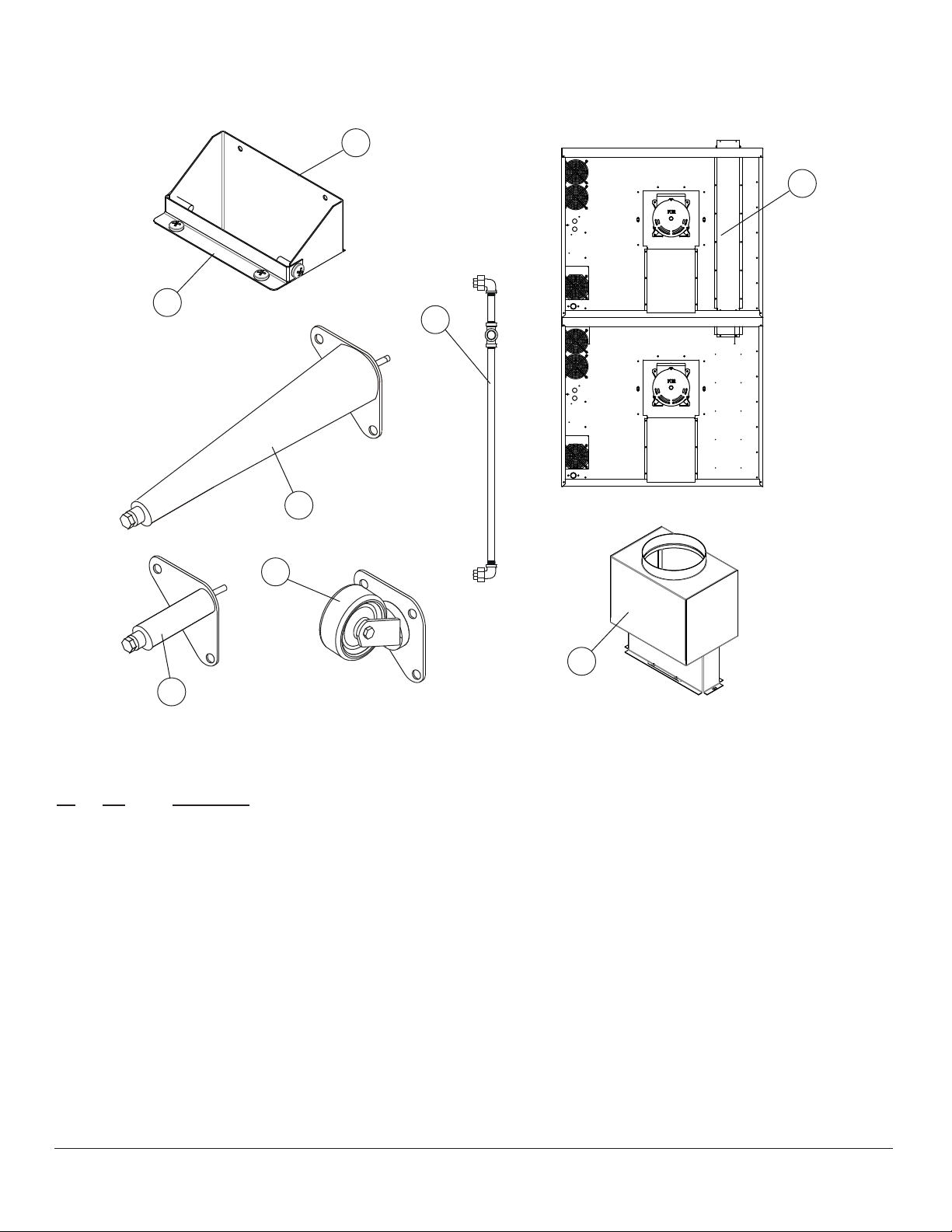

ACCESSORIES
6
8
7
4
1
3
5
2
Ref. Part
No. No. Description
33196 SEISMIC LEGS, 6" SET OF 4
1 8598 LEGS, 25" W/FEET SET OF 4
2 8600 LEGS, 6" SET OF 4
16002 CASTERS, FOR SGL OVEN
3 5779 CASTERS, PLATE, FOR DBL OVEN
19528 CASTERS, LOW PROFILE, FOR DBL OVEN
4 35048 BACKPIPE, DBL
6 54749 FLUE BOX
7 54750 FLUE BOX GUARD
8 55078 FLUE RISER
56341 DOUBLE STACK VENTING KIT (INCLUDED STACKING HARDWARE)
57123 SINGLE SECTION VENTING KIT
5 57355 DIRECT VENT BOX W/HDWE (DRAFT HOOD)
APRIL 16, 2014 12 BDO-G
