BCX-14 & BX-14
COMBINATION OVEN STEAMER
CNVX-14
CONVECTION OVEN
REPLACEMENT PARTS LIST
EFFECTIVE SEPTEMBER 14, 2010
BLODGETT OVEN COMP ANY, 44 Lakeside Avenue, Burlington, V ermont 05401 USA
T elephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732
www.blodgett.com
P/N 52978
Superseding All Previous Parts List s.
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
www.blodgett.com
SEPTEMBER 14, 2010 2 BCX/BX/CNVX
SERIAL NUMBER LOCATION / KEY:
IMPORT ANT : When ordering parts, please provide the model, gas
type and serial number of the oven. The identification plate is
located on the left side of the combustion compartment and, also,
above the control panel under the ledge.
SERIAL NUMBER IDENTIFICA TION CODE:
JU BCX-14G JY BX-14E
JX BX-14G JZ CNVX-14G
JW BCX-14E KB CNVX-14E
SERIAL NUMBER EXAMPLES
100709XX001T
10/07/09 = DATE
XX = LETTER CODE FOR MODEL NAME
001 = FACTOR Y SEQUENCE
T = TOP OVEN
OR
0685X1820101
10/09 = MONTH & YEAR
X = LETTER CODE FOR MODEL NAME
1820101 = FACTOR Y SEQUENCE
TO OBTAIN LITERATURE:
Phone: 800-331-5842
Fax: 802-864-0183
Email: literature@blodgett.com
or
www.blodgett.com
SEPTEMBER 14, 2010 3 BCX/BX/CNVX
TABLE OF CONTENTS
Doors Are Not Returnable
MANUAL CONTROLS..............................................................................................................4
MENUSELECT CONTROLS....................................................................................................5
ELECTRICAL SYSTEMS .........................................................................................................6
BOILERS .................................................................................................................................10
HOT AIR & HIGH VOL T ELECTRIC MODELS ..........................................................................12
HOT AIR & GAS VALVES ........................................................................................................13
EXTERIOR/INTERIOR COMPONENTS....................................................................................14
DOORS & RELA TED PARTS ..................................................................................................15
WA TER SYSTEM.....................................................................................................................16
DRAIN & RAPID VENT SYSTEM .............................................................................................17
VENTING & ST ACKING ...........................................................................................................18
MOTOR & LIGHTS ...................................................................................................................19
LEGS & ACCESSORIES.........................................................................................................20
SEPTEMBER 14, 2010 4 BCX/BX/CNVX
MANUAL CONTROLS
1
13
14
10
2
3
4
7
11
12
18
1
12
5
17
6
11
9
16
15
8
Ref. Part
No. No. Description
1 52927 PANEL & DECAL, BCX MODELS
52928 PANEL & DECAL, BX MODELS
52929 PANEL & DECAL, CNVX MODELS
2 39674 MODE SWITCH, BCX & BX MODELS
R5686 MODE SWITCH, CNVX MODELS
3 R8742 KNOB, THERMOSTA T
4 R8743 KNOB, STEAM ON DEMAND
(BCX & BX MODELS ONLY)
5 R8595 PUSHBUTTON SWITCH,
(BCX & BX MODELS ONLY)
6 39791 LIGHT AND VENT SWITCH
7 39675 FAN CONTROL SWITCH
8 R4413 HANDLE
9 39781 MEAT PROBE RECEPT ACLE
10 39797 MEAT PROBE, 6" BCX & BX MODELS
39783 MEAT PROBE, 4" CNVX MODELS
Ref. Part
No. No. Description
11 39688 CIRCUIT BREAKER, 20A
12 36376 HEAT CU TOFF SWITCH
11 R10338 “STEAM ON DEMAND” TIMER
12 39673 TEMPERATURE CONTROLLER
13 53136 INDICATOR LIGHT
(5 X BCX; 4 X BX; 2 X CNVX)
14 50927 LOGIC BOARD, BCX MODELS
50928 LOGIC BOARD, BX MODELS
15 20043 STRAIN RELIEF CABLE
16 39800 CAVITY PROBE, BCX & CNVX MODELS
50636 CAVITY PROBE, BX MODELS ONL Y
17 51109 RESISTOR, 30 OHM
ELECTRIC BX MODELS ONLY
51108 RESISTOR, 18 OHM
GAS BX MODELS ONLY
18 18234 POTENTIOMETER, THERMOSTA T
SEPTEMBER 14, 2010 5 BCX/BX/CNVX
MENUSELECT CONTROLS
1
10
1
2
3
11
12
4
6
Ref. Part
No. No. Description
1 52930 PANEL & DECAL, BCX MODELS
52931 PANEL & DECAL, BX MODELS
2 51372 KNOB
3 50986 KNOB DECAL
4 39797 MEAT PROBE 6"
5 39781 MEAT PROBE RECEPT ACLE
6 39688 CIRCUIT BREAKER
7 36376 HE A T CU TOFF SWITCH
8 R4413 HANDLE
9 20043 STRAIN RELIEF CABLE
10 39122 3 BUTTON CONTROLLER
11 53499 MENUSELECT CONTROL - BCX-14G
53500 MENUSELECT CONTROL - BCX-14E
53501 MENUSELECT CONTROL - BX-14G
53502 MENUSELECT CONTROL - BX-14E
12 50310 CAVITY PROBE
9
5
8
7
SEPTEMBER 14, 2010 6 BCX/BX/CNVX
ELECTRICAL SYSTEM
ELECTRIC OVENS WITH MANUAL CONTROLS
BCX & BX
MODELS ONLY
1
1
2
3
4
10
6
5
View A
8
Ref. Part
No. No. Description
1 52946 POWER SUPPLY, 24 VDC
M3166 FUSE, POWER SUPPL Y
2 39786 24 VO L T RELA Y
3 39784 MULTIFUNCTION TIMER, MOTOR REVERSING
4 39672 INTERFACE BOARD, BCX & BX MODELS ONL Y
39130 RELAY BOARD, CNVX MODELS ONL Y
5 52947 COOLING FAN, 24 VDC
6 39998 THERMISTOR, 5 OHM
7 R8015 THERMOSTA T, COOLING F AN
8 36441 CAVITY HIGH LIMIT THERMOST A T (OPENS A T 671 DEG-F)
9 R2630 BOILER HIGH LIMIT THERMOST A T , BCX MODELS ONL Y (OPENS A T 248 DEG-F)
10 50321 PUMP 24VDC, BCX MODELS ONLY
A
9
SEPTEMBER 14, 2010 7 BCX/BX/CNVX
ELECTRICAL SYSTEM
GAS OVENS WITH MANUAL CONTROLS
BCX MODELS
ONLY
BCX MODELS
ONLY
13
13
2
55
4
5
7
9
6
10
8
8
11
12
Ref. Part
No. No. Description
1 52946 POWER SUPPLY, 24 VDC
M3166 FUSE, POWER SUPPL Y
2 50816 INVERTER DRIVE, 120 VOL T MODELS
50817 INVERTER DRIVE, 208-240 VOL T MODELS
3 R8015 THERMOSTA T, COOLING F AN
4 39998 THERMISTOR, 5 OHM
5 38303 TRANSFORMER, 120-240 VOLT PRI. TO 24 VOL T SEC.
6 39784 MULTIFUNCTION TIMER, MOTOR REVERSING
7 39786 24 V OLT RELA Y , BCX & BX MODELS ONL Y
38604 24 VO L T RELA Y , CNVX MODELS ONL Y
8 20348 IGNITION CONTROL
9 39672 INTERFACE BOARD, BCX & BX MODELS ONL Y
50669 RELAY BOARD, CNVX MODELS ONL Y
10 36441 CAVITY HIGH LIMIT THERMOST A T (OPENS A T 671 DEG-F)
11 R2630 BOILER HIGH LIMIT THERMOST A T , BCX MODELS ONL Y (OPENS A T 248 DEG-F)
12 52947 COOLING FAN, 24 VDC
13 50321 PUMP , 24VDC BCX MODELS ONL Y
SEPTEMBER 14, 2010 8 BCX/BX/CNVX

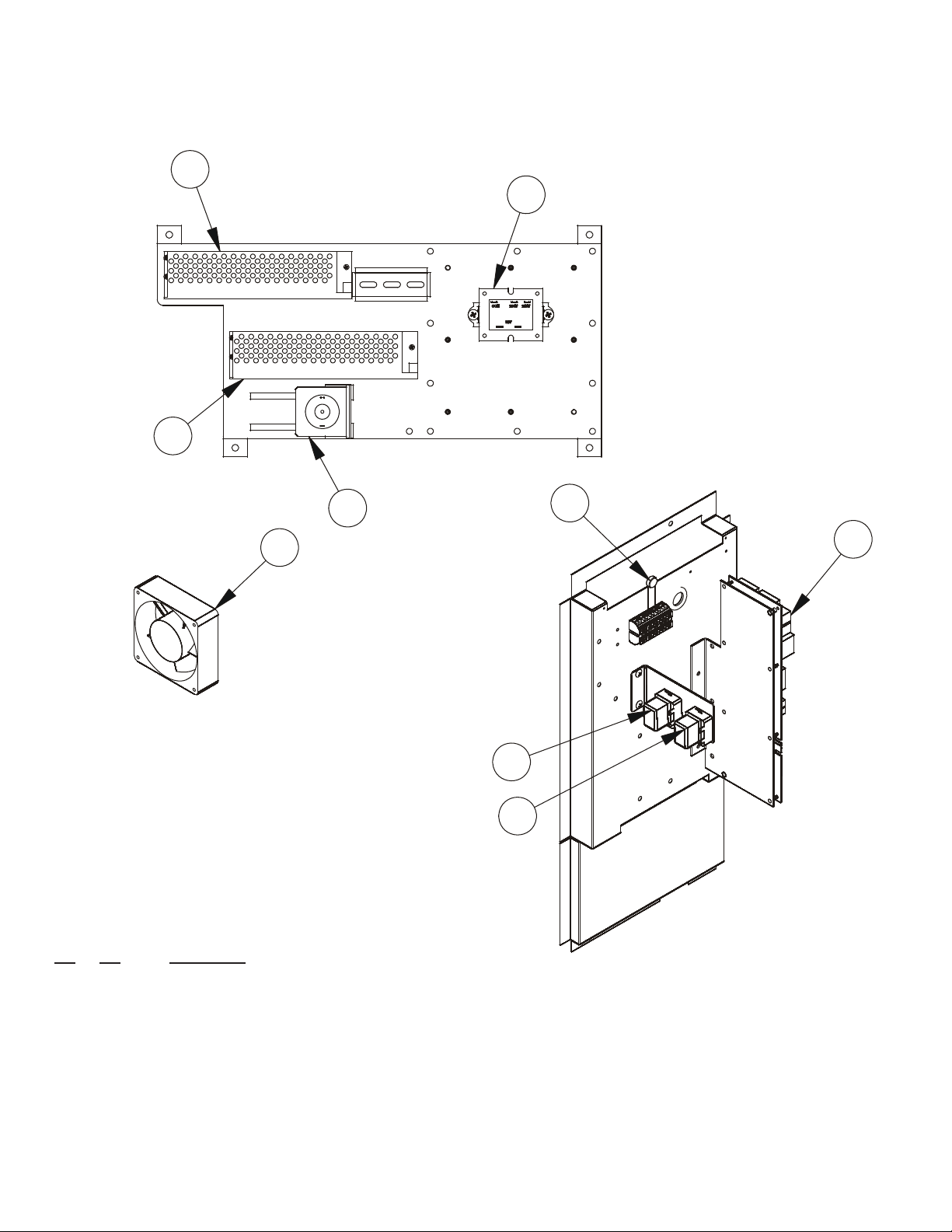

ELECTRICAL SYSTEM
ELECTRIC OVENS WITH MENUSELECT CONTROLS
1
2
1
Ref. Part
No. No. Description
8
3
4
7
5
6
1 52946 POWER SUPPLY, 24 VDC
M3166 FUSE, POWER SUPPL Y
2 52948 TRANSFORMER, 208-240 VOLT PRI. TO 24 VOL T SEC.
3 52947 COOLING FAN, 24 VDC
4 39998 THERMISTOR, 5 OHM
5 36441 CAVITY HIGH LIMIT THERMOST A T (OPENS A T 671 DEG-F)
6 R2630 BOILER HIGH LIMIT THERMOST A T , BCX MODELS ONL Y (OPENS A T 248 DEG-F)
7 51948 INTERFACE BOARD
8 50321 PUMP 24VDC, BCX MODELS ONLY
SEPTEMBER 14, 2010 9 BCX/BX/CNVX
ELECTRICAL SYSTEM
GAS OVENS WITH MENUSELECT CONTROLS
BCX MODELS
ONLY
4
4
5
BCX MODELS
ONLY
1
2
11
3
7
6
8
5
9
10
Ref. Part
No. No. Description
1 52946 POWER SUPPLY, 24 VDC
M3166 FUSE, POWER SUPPL Y
2 51502 INVERTER DRIVE, 120 VOL T MODELS
51503 INVERTER DRIVE, 208-240 VOL T MODELS
3 39998 THERMISTOR, 5 OHM
4 38303 TRANSFORMER, 120-240 VOLT PRI. TO 24 VOL T SEC.
5 20348 IGNITION CONTROL
6 51516 INVERTER PROBE
7 51948 INTERFACE BOARD
8 36441 CAVITY HIGH LIMIT THERMOST A T (OPENS A T 671 DEG-F)
9 R2630 BOILER HIGH LIMIT THERMOST A T , BCX MODELS ONL Y (OPENS A T 248 DEG-F)
10 52947 COOLING FAN, 24 VDC
11 50321 PUMP 24VDC BCX MODELS ONLY
SEPTEMBER 14, 2010 10 BCX/BX/CNVX
ELECTRIC BOILER
8
7
1
9
2
3
4
6
3 PLACES
Ref. Part
No. No. Description
1 39682 SWITCH, “STEAM READY” MANUAL CONTROL MODELS
39800 PROBE, “STEAM READY” MENUSELECT CONTROLS
2 R8071 PROBE HOLDER
R10627 PROBE HOLDER BUSHING
3 R8012 THERMOSTA T, MANUAL CONTROL MODELS ONL Y
4 50283 FLOAT SWITCH ASSEMBL Y
5 39793 SOLENOID, MENUSELECT CONTROL MODELS ONLY
6 R2768 STEAM ELEMENT, 208 VOL T
R2771 STEAM ELEMENT, 240 VOL T
R2770 STEAM ELEMENT, 480 VOL T
7 R10252 DRAIN GASKET
8 R7406 STEAM OUTLET HOSE, 3/4" ID (BY THE FOOT)
9 R2812 HOSE, 3/8" ID (BY THE FOOT)
50094 COMPLETE BOILER ASSY, (WITHOUT ELEMENTS) MANUAL CONTROL MODELS
52050 COMPLETE BOILER ASSY, (WITHOUT ELEMENTS) MENUSELECT CONTROL MODELS
53295 BOILER SHELL W/INSULA TION ONL Y
53312 WATER SENSOR - MANUAL CONTROL
53313 WATER SENSOR - MENUSELECT CONTROL
53550 ELEMENT DRIP P AN
5
SEPTEMBER 14, 2010 11 BCX/BX/CNVX
15
GAS BOILER
7
4
13
11 PLACES
6
12
1
10
5
2
3
16
8
14
11
11 PLA CES
9
Ref. Part
No. No. Description
1 39682 SWITCH, “STEAM READY” MANUAL CONTROL MODELS
39800 PROBE, “STEAM READY” MENUSELECT CONTROL MODELS
2 R8071 PROBE HOLDER
R10627 PROBE HOLDER BUSHING
3 R8012 THERMOSTA T, MANUAL CONTROL MODELS ONL Y
4 38660 ROPE GASKET , (BY THE FOOT)
5 50283 FLOAT SWITCH ASSEMBL Y
6 R4287 INSHOT BURNER
7 R8939 PILOT ASSEMBL Y , NATURAL GAS
R8830 PILOT ASSEMBL Y , PROPANE GAS
R10765 FLAME SENSOR
8 R11157 ORIFICE, #58 NA TURAL GAS
R8933 ORIFICE, #71 PROP ANE GAS
9 39793 SOLENOID, MENUSELECT CONTROL MODELS ONLY
10 52955 FLEX TUBE W/FITTINGS, 1/4 OD x 30" LONG
11 50256 GAS SUPPLY TUBE
12 R2812 HOSE, 3/8" ID (BY THE FOOT)
13 R7406 STEAM OUTLET HOSE, 3/4" ID (BY THE FOOT)
14 R10252 DRAIN GASKET
15 R10898 FLUE ASSEMBLY
R8928 BURNER ASSY, NA TURAL GAS (INCLUDES ITEMS 6, 7, & 8)
R8932 BURNER ASSY, PROP ANE GAS (INCLUDES ITEMS 6, 7, & 8)
ALL 39274 COMPLETE BOILER ASSY , NA TURAL GAS MANUAL CONTROLS
ALL 39810 COMPLETE BOILER ASSY , PROP ANE GAS MANUAL CONTROLS
ALL 52053 COMPLETE BOILER ASSY , NA TURAL GAS MENUSELECT CONTROLS
ALL 52054 COMPLETE BOILER ASSY , PROP ANE GAS MENUSELECT CONTROLS
53296 BOILER SHELL W/INSULA TION ONL Y
53310 WATER SENSOR - MANUAL CONTROL
53311 WATER SENSOR - MENUSELECT CONTROL
16 R8928 BOILER BURNER ASSY - NA TURAL
R8932 BOILER BURNER ASSY - LP
SEPTEMBER 14, 2010 12 BCX/BX/CNVX
HOT AIR & HI-VOL T ELECTRIC MODELS
6
5
BCX MODELS
3
1
2
4
Ref. Part
No. No. Description
1 39804 CIRCUIT BREAKER 60 AMP, 208-240 VOL T MODELS ONL Y
39113 CIRCUIT BREAKER 32 AMP, 480 VOL T MODELS ONL Y
2 50096 CONTACTOR
3 51543 ELEMENT ASSEMBL Y W/GASKET, 208 VOL T MODELS
51544 ELEMENT ASSEMBL Y W/GASKET , 240 OR 480 VOL T MODELS
4 39367 ELEMENT GASKET
5 51458 480 VOLT STEP DOWN TRANSFORMER
6 51455 FUSE, 7A
ONLY
1
BCX MODELS
ONLY
2
SEPTEMBER 14, 2010 13 BCX/BX/CNVX
HOT AIR & GAS V AL VES GAS MODELS
12
5
6
3
2
11
BCX MODELS
ONLY
10
7
7
4
9
1
8
Ref. Part
No. No. Description
1 R9214 PILOT ASSEMBL Y , HOT AIR NATURAL GAS
R9258 PILOT ASSEMBL Y , HOT AIR PROPANE GAS
2 R8973 ORIFICE, NATURAL GAS 1.35MM
R8974 ORIFICE, PROPANE GAS #67
3 R4287 INSHOT BURNER
4 R10516 HEAT EXCHANGER GASKET
5 52950 LH H EAT EXCHANGER W/HDWE & BRACKETS, BCX, AND CNVX MODELS WITH MANUAL CONTROLS
52953 LH H EAT EXCHANGER W/HDWE & BRACKETS, BX MODELS
52953 LH H E A T EXCHANGER W/HDWE & BRACKETS, BCX MODELS WITH MENUSELECT CONTROLS
6 52951 RH H EAT EXCHANGER W/HDWE & BRACKETS, BCX, AND CNVX MODELS WITH MANUAL CONTROLS
52954 RH H EAT EX CH ANGER W/HDWE & BRACKETS, BX MODELS
52954 RH H E A T EXCHANGER W/HDWE & BRACKETS, BCX MODELS WITH MENUSELECT CONTROLS
7 30005 VALVE, 24 VOLT NATURAL GAS
30006 VALVE, 24 VOLT PROPANE GAS
8 R6490 PILOT V ALVE, 25 VOL T
9 52952 FLEX TUBE & FITTINGS, 1/4" OD X 48" LONG
10 50257 GAS SUPPLY TUBE
11 R10982 HEAT EXCHANGER BRACKET
52949 HEAT EXCHANGER HARDW ARE, GASKET , AND BRACKET KIT (FOR 1 HEA T EXCHANGER)
R8856 GORETEX GASKET , HEA T EXCHANGER T OP (BY THE FOOT)
12 R9241 BURNER ASSY - NATURAL (INCLUDES ITEMS 1, 2 AND 3)
R9242 BURNER ASSY - LP (INCLUDES ITEMS 1, 2 AND 3)
9
SEPTEMBER 14, 2010 14 BCX/BX/CNVX
INTERIOR/EXTERIOR
6
7
8
1
2
9
11
Ref. Part
No. No. Description
1 50452 BAFFLE ASSEMBLY
2 50506 DRAIN COVER
3 39588 FAN HOUSING
4 M0571 FAN GUARD
5 52960 MOTOR VENT ASSEMBLY
6 39199 BODY TOP
7 39200 BODYSIDE, RH
8 51381 BODYSIDE, LH ELECTRIC MODELS
51325 BODYSIDE, LH GAS MODELS
9 50926 RECESSED PLUG
10 R3664 WIRE RACK
11 50093 RACK SUPPORT
5
4
3
10
SEPTEMBER 14, 2010 15 BCX/BX/CNVX
DOORS & RELA TED P ARTS
FRONT
1
4
REAR
7
12
2
5
6
10
11
Ref. Part
No. No. Description
1 D0022 BODY LA TCH
2 50194 UPPER DOOR HINGE
3 50195 LOWER DOOR HINGE
4 R6220 DOOR PIN
5 D0021 DOOR HANDLE
6 50887 DOOR ASSY , OUTER
7 50888 DOOR ASSY , INNER
8 50889 DRIP P AN
39579 DOOR GASKET
9 39893 DRIP P AN PLUG
10 39909 TEFLON WASHER
11 39337 DOOR SENSOR
12 16470 NAMEPLA TE, BLODGETT
A
8
3
9
4
DET AIL A
SEPTEMBER 14, 2010 16 BCX/BX/CNVX
R
W A TER SYSTEM
3
2
1
2
1
3
BCX MODELS WITH
MENUSELECT
CONNECTS TO BRASS “T”
A T BOILER INLET
4
6
CONNECTS TO BRASS “T”
AT BOILER INLET
6
BCX MODELS WITH
MANUAL CONTROL ONLY
BX MODELS WITH
MANUAL OR MENUSELECT
6
4
CONNECTS TO
8
5
WATER
INLET A T REA
OF OVEN
CONNECTS TO WATER
6
INLET A T REAR
OF OVEN
7
BCX MODELS WITH
MENUSELECT
Ref. Part
No. No. Description
1 50643 SOLENOID, 3 PORT
2 50656 NEEDLE VAL VE
3 18411 PRESSURE GAUGE
4 50657 PRESSURE REGULATOR, 0-100 PSI
51128 REGULAT OR ASSEMBL Y (INCLUDES ITEMS 3 & 4)
5 52955 FLEX TUBE W/FITTINGS, 1/4" OD x 30" LONG
6 52956 FLEX TUBE W/FITTINGS, 1/4" OD x 12" LONG
7 52957 WATER INJECTION TUBE W/FITTING
8 39796 DUAL SOLENOID, 24 VOL T
9 50261 HOSE FILTER
10 39462 HOSE REEL ASSEMBLY
R8179 GROMMET , HOSE REEL
10
9
SEPTEMBER 14, 2010 17 BCX/BX/CNVX
DRAIN & RAPID VENT SYSTEMS
4
10
12
11
1
9
BCX MODELS
WITH MANUAL
CONTROLS ONLY
5
3
2
9
7
BCX & BX
6
CONNECTS THESE
TWO LOCATIONS
8
CONNECTS TO WATER
INLET AT REAR OF OVEN
BCX MODELS
WITH MENUSELECT
CONTROLS ONLY
MODELS
Ref. Part
No. No. Description
1 R11464 DRAIN GASKET
2 50423 DRIP P AN TUBE
3 39806 QUENCH THERMOST A T , ALL MODELS W/MANUAL CONTROLS EXCEPT CNVX
39800 QUENCH PROBE W/FITTING , ALL MODELS W/MENUSELECT CONTROLS
4 39650 BOILER DRAIN VAL VE
5 51608 BOILER DRAIN VAL VE
6 52956 FLEX TUBE W/FITTINGS, 1/4" OD x 12" LONG ALL MODELS EXCEPT CNVX
7 39793 QUENCH SOLENOID
8 52952 FLEX TUBE W/FITTINGS, 1/4" OD x 48" LONG
9 39989 HOSE, 1 1/4 ID (BY THE INCH)
10 53008 ROTARY SOLENOID
11 50186 VENT GASKET
12 R7835 COUPLING
SEPTEMBER 14, 2010 18 BCX/BX/CNVX
VENTING & ST ACKING
7
1
4
8
2
5
9
6
3
Ref. Part
No. No. Description
1 R8806 EXHAUST FLUE, BOILER
2 R8808 EXHAUST FLUE EXTENSION, BOILER
3 R8805 EXHAUST FLUE, BOILER (BOTTOM OVENS ONL Y)
4 R9237 FLUE EXTENSION, RH (AS VIEWED FROM FRONT OF OVEN)
5 R9238 FLUE EXTENSION, LH (AS VIEWED FROM FRONT OF OVEN)
6 R8990 EXHAUST FLUE (BOTTOM OVENS ONL Y)
7 R8989 CAVITY VENT
8 R8989 EXHAUST FLUE (TOP OR SINGLE OVENS ONL Y)
9 53102 CAVITY VENT EXTENSION
52963 STACKING KIT , ANY ELECTRIC MODEL ON ANY OTHER ELECTRIC MODEL
52964 STACKING KIT , BCX GAS MODEL ON BCX GAS MODEL
52977 STACKING KIT , BCX, BX, OR CNVX GAS MODELS ON BX, OR CNVX GAS MODELS
SEPTEMBER 14, 2010 19 BCX/BX/CNVX
MOTOR & LIGHTS
2
1
3
6
5
12
7
Ref. Part
No. No. Description
1 39333 MOT O R & P ANEL ASSEMBL Y (INCLUDES ITEMS 2-5 & P ANEL)
2 39332 MOTOR, 220 VOLT 1/2 HP
3 R8423 GORETEX GASKET
4 R8955 SEAL RET AINER
5 R4244 SHAFT SEAL
6 52958 BLOWER WHEEL W/SHAFT KEY
7 10944 SHAFT KEY
8 D0125 LIGHT BEZEL
9 D0127 LIGHT GASKET
10 D0128 HALOGEN BULB
52959 BULB REPLACEMENT KIT (INCLUDES ITEMS 8-12)
11 50192 LIGHT LENS
12 53070 OUTER LIGHT FRAME
10
4
9
11
8
SEPTEMBER 14, 2010 20 BCX/BX/CNVX
LEGS & ACCESSORIES
2
3
1
76
Ref. Part
No. No. Description
1 R9611 HEAT SHIELD KIT
2 50428 WATER MANIFOLD W/O REGULA TOR
3 50425 WATER MANIFOLD W/REGULA TOR
4 52387 CHICKEN ROASTING RACK
5 R10955 SPRA Y BOTTLE
6 50429 PRESSURE REGULAT OR (QUENCH OR SPRAY HOSE)
7 50435 PRESSURE REGULATOR (BOILER)
8 D0246 FRENCH FRY RACK
53919 DELIME JUG KIT
21242 GAS HOSE, 48"
21826 GAS HOSE, 36"
39911 CORDSET , GAS MODELS
R3109 4" S/S LEGS W/FEET (SET OF 4)
8600 6" S/S LEGS W/FEET (SET OF 4)
33196 6" SEISMIC LEGS (SET OF 4)
R2899 25" S/S LEGS W/FEET (SET OF 4)
R5452 18" S/S FLOOR STAND (ORDER FEET OR CASTERS SEPERA TEL Y)
R5453 22" S/S FLOOR STAND (ORDER FEET OR CASTERS SEPERA TEL Y)
R5455 FLOOR STAND FEET (SET OF 4)
R5454 FLOOR STAND CASTERS (SET OF 4)
R5456 FLOOR STAND SEISMIC FEET (SET OF 4)
4
5
8
Loading...
