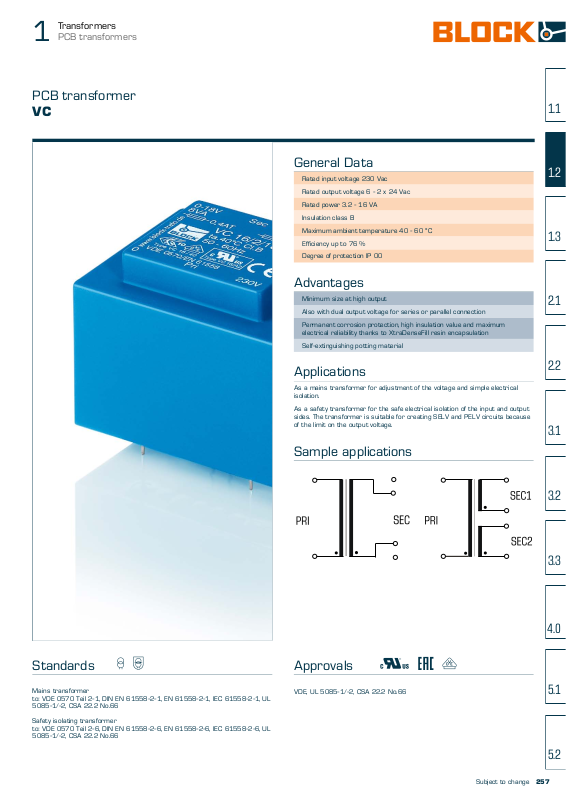

PCB transformers
1
PCB transformer
VC
General Data
Rated input voltage 230 Vac
Rated output voltage 6 - 2 x 24 Vac
Rated power 3.2 - 16 VA
Insulation class B
Maximum ambient temperature 40 - 60 °C
Efficiency up to 76 %
Degree of protection IP 00
Advantages
Minimum size at high output
Also with dual output voltage for series or parallel connection
Permanent corrosion protection, high insulation value and maximum
electrical reliability thanks to XtraDenseFill resin encapsulation
Self-extinguishing potting material
Applications
As a mains transformer for adjustment of the voltage and simple electrical
isolation.
As a safety transformer for the safe electrical isolation of the input and output
sides. The transformer is suitable for creating SELV and PELV circuits because
of the limit on the output voltage.
Standards / 2 Z
Mains transformer
to: VDE 0570 Teil 2-1, DIN EN 61558-2-1, EN 61558-2-1, IEC 61558-2-1, UL
5085-1/-2, CSA 22.2 No.66
Safety isolating transformer
to: VDE 0570 Teil 2-6, DIN EN 61558-2-6, EN 61558-2-6, IEC 61558-2-6, UL
5085-1/-2, CSA 22.2 No.66
Sample applications
Approvals W J w Z
VDE, UL 5085-1/-2, CSA 22.2 No.66
Subject to change
257
+
-
PCB transformer
VC
Typ VC 16/1/... VC 16/2/...
Input
Rated input voltage 230 Vac 230 Vac
Rated frequency 50 - 60 Hz 50 - 60 Hz
Output
Rated output voltage: Order no.
6 Vac: VC 16/1/6
8 Vac: VC 16/1/8
9 Vac: VC 16/1/9
12 Vac: VC 16/1/12
15 Vac: VC 16/1/15
18 Vac: VC 16/1/18
24 Vac: VC 16/1/24
2x6 Vac: VC 16/2/6
2x8 Vac: VC 16/2/8
2x9 Vac: VC 16/2/9
2x12 Vac: VC 16/2/12
2x15 Vac: VC 16/2/15
2x18 Vac: VC 16/2/18
2x24 Vac: VC 16/2/24*
Rated Power 16 VA 16 VA
No-load voltage (app. x factor) 1.24 1.24
No-load loss (typ.) 1.80 W 1.80 W
Efficiency 76.0 % 76.0 %
Standards
Classification
Safety isolating transformer Safety isolating transformer
*Mains transformer
(without VDE mark)
Approvals
Approvals cURus, VDE cURus, VDE
Environment
Ambient temperature max. 40 °C 40 °C
Safety and protection
Type
Encapsulated Encapsulated
Insulation class
VDE=B, UL=class 105 VDE=B, UL=class 105
Protection index
IP 00 IP 00
Safety class (prepared)
II II
Short circuit strength
non-short-circuit proof non-short-circuit proof
Order numbers
Order Number see rated output voltage see rated output voltage
+
-

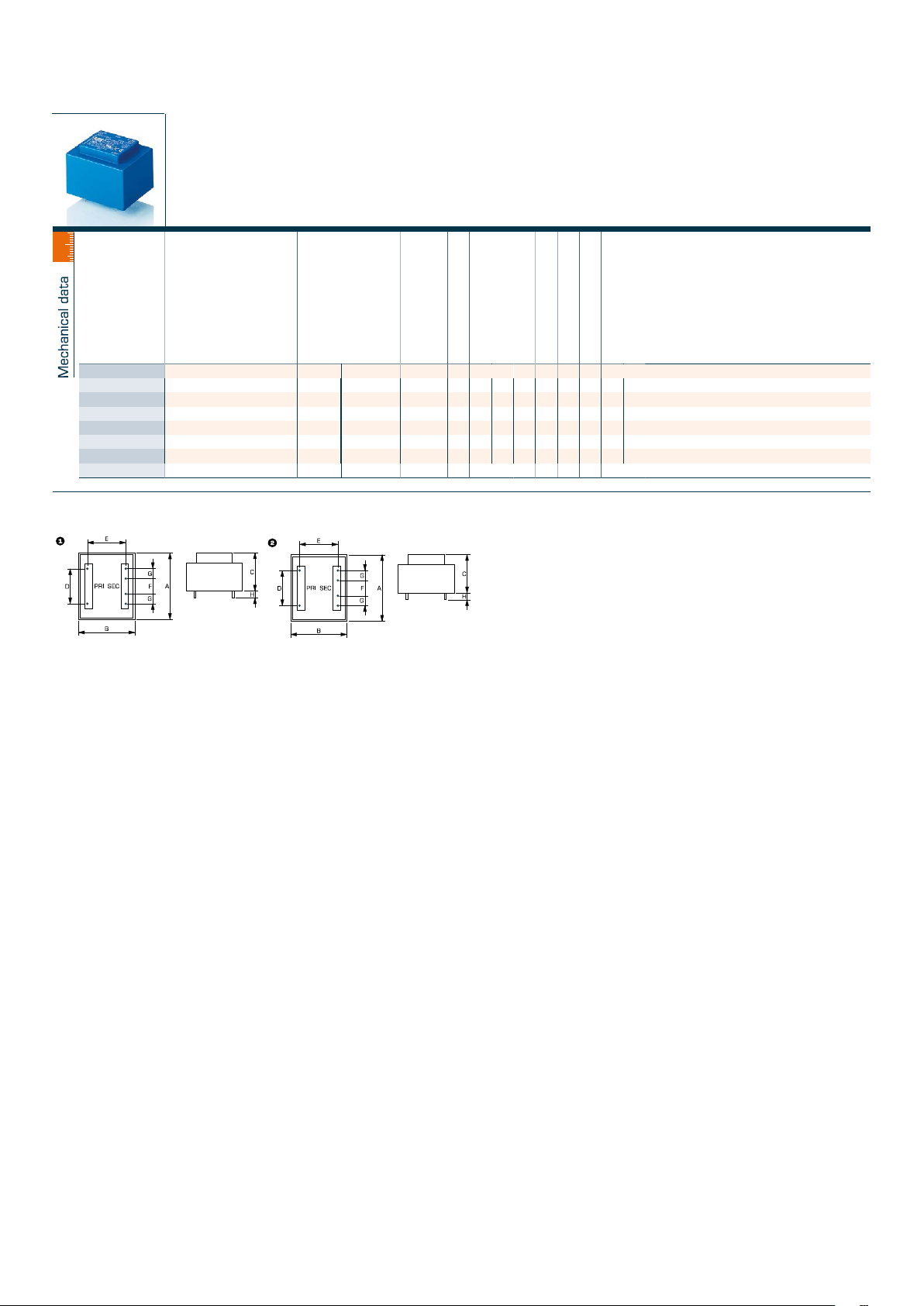

Transformers
PCB transformers
1
PCB transformer
VC
Typ VC 3,2/1/... VC 3,2/2/... VC 5,0/1/... VC 5,0/2/... VC 10/1/... VC 10/2/...
Input
Rated input voltage 230 Vac 230 Vac 230 Vac 230 Vac 230 Vac 230 Vac
Rated frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Rated output voltage: Order no.
Rated Power 3,2 VA 3,2 VA 5 VA 5 VA 10 VA 10 VA
No-load voltage (app. x factor) 1.50 1.50 1.25 1.25 1.25 1.25
No-load loss (typ.) 1.00 W 1.00 W 1.50 W 1.50 W 1.60 W 1.60 W
Efficiency 60.0 % 60.0 % 68.0 % 68.0 % 74.0 % 74.0 %
Standards
Classification
Approvals
Approvals cURus, VDE cURus, VDE cURus, VDE cURus, VDE cURus, VDE cURus, VDE
Environment
Ambient temperature max. 60 °C 60 °C 50 °C 50 °C 40 °C 40 °C
Safety and protection
Type
Insulation class
Protection index
Safety class (prepared)
Short circuit strength
Order numbers
Order Number see rated output voltage see rated output voltage see rated output voltage see rated output voltage see rated output voltage see rated output voltage
6 Vac: VC 3,2/1/6
8 Vac: VC 3,2/1/8
9 Vac: VC 3,2/1/9
12 Vac: VC 3,2/1/12
15 Vac: VC 3,2/1/15
18 Vac: VC 3,2/1/18
24 Vac: VC 3,2/1/24
Safety isolating transformer Safety isolating transformer
Encapsulated Encapsulated Encapsulated Encapsulated Encapsulated Encapsulated
VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105
IP 00 IP 00 IP 00 IP 00 IP 00 IP 00
II II II II II II
non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof
2x6 Vac: VC 3,2/2/6
2x8 Vac: VC 3,2/2/8
2x9 Vac: VC 3,2/2/9
2x12 Vac: VC 3,2/2/12
2x15 Vac: VC 3,2/2/15
2x18 Vac: VC 3,2/2/18*
2x24 Vac: VC 3,2/2/24*
*Mains transformer
(without VDE mark)
6 Vac: VC 5,0/1/6
8 Vac: VC 5,0/1/8
9 Vac: VC 5,0/1/9
12 Vac: VC 5,0/1/12
15 Vac: VC 5,0/1/15
18 Vac: VC 5,0/1/18
24 Vac: VC 5,0/1/24
Safety isolating transformer Safety isolating transformer
2x6 Vac: VC 5,0/2/6
2x8 Vac: VC 5,0/2/8
2x9 Vac: VC 5,0/2/9
2x12 Vac: VC 5,0/2/12
2x15 Vac: VC 5,0/2/15
2x18 Vac: VC 5,0/2/18
2x24 Vac: VC 5,0/2/24*
*Mains transformer
(without VDE mark)
6 Vac: VC 10/1/6
8 Vac: VC 10/1/8
9 Vac: VC 10/1/9
12 Vac: VC 10/1/12
15 Vac: VC 10/1/15
18 Vac: VC 10/1/18
24 Vac: VC 10/1/24
Safety isolating transformer Safety isolating transformer
2x6 Vac: VC 10/2/6
2x8 Vac: VC 10/2/8
2x9 Vac: VC 10/2/9
2x12 Vac: VC 10/2/12
2x15 Vac: VC 10/2/15
2x18 Vac: VC 10/2/18
2x24 Vac: VC 10/2/24*
*Mains transformer
(without VDE mark)
Subject to change
