Page 1
Universal control- and safety isolating- resp. isolating transformer
STU
Typ STU 63/24 STU 63/2x115 STU 100/24 STU 100/2x115 STU 130/24 STU 130/2x115
Input
Rated input voltage 210 Vac/230 Vac/250 Vac
Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Rated output voltage 24 Vac 2x115 Vac 24 Vac 2x115 Vac 24 Vac 2x115 Vac
Rated power VDE (DB cos phi=1) 63 VA 63 VA 100 VA 100 VA 130 VA 130 VA
Rated power VDE (KB cos phi=0.5) 110 VA 110 VA 225 VA 225 VA 300 VA 300 VA
No-load voltage (app. x factor) 1.10 1.10 1.10 1.10 1.10 1.10
Efficiency 84.0 % 84.0 % 86.0 % 86.0 % 86.0 % 86.0 %
Standards
Classification
Control- and safety isolating transformer
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
Approvals
Approvals cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE)
Environment
Ambient temperature max. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Type of cooling self-cooling self-cooling self-cooling self-cooling self-cooling self-cooling
Safety and protection
Type
Open type Open type Open type Open type Open type Open type
Insulation class
VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105
Protection index
IP 00 IP 00 IP 00 IP 00 IP 00 IP 00
Safety class (prepared)
I I I I I I
Short circuit strength
non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof
PRI Fusing recommendation by circuit breaker with tripping characteristic type 20 x Irated related to set)
Setting range 230 ±20 Vac 0.25 - 0.40 A 0.25 - 0.40 A 0.40 - 0.63 A 0.40 - 0.63 A 0.63 - 1.00 A 0.63 - 1.00 A
Setting value 230 ±20 Vac 0.30 A 0.30 A 0.53 A 0.53 A 0.66 A 0.66 A
Setting range 400 ±20 Vac 0.16 - 0.25 A 0.16 - 0.25 A 0.25 - 0.40 A 0.25 - 0.40 A 0.40 - 0.63 A 0.25 - 0.40 A
Setting value 400 ±20 Vac 0.20 A 0.20 A 0.31 A 0.31 A 0.38 A 0.38 A
Setting range 460 ±20 Vac 0.16 - 0.25 A 0.16 - 0.25 A 0.25 - 0.40 A 0.25 - 0.40 A 0.25 - 0.40 A 0.25 - 0.40 A
Setting value 460 ±20 Vac 0.17 A 0.17 A 0.27 A 0.27 A 0.33 A 0.33 A
Setting range 520 ±20 Vac 0.10 - 0.16 A 0.10 - 0.16 A 0.16 - 0.25 A 0.16 - 0.25 A 0.25 - 0.40 A 0.25 - 0.40 A
Setting value 520 ±20 Vac 0.15 A 0.15 A 0.24 A 0.24 A 0.30 A 0.30 A
Order numbers
Order Number STU 63/24 STU 63/2x115 STU 100/24 STU 100/2x115 STU 130/24 STU 130/2x115
+
-
Transformers
Control transformers
1

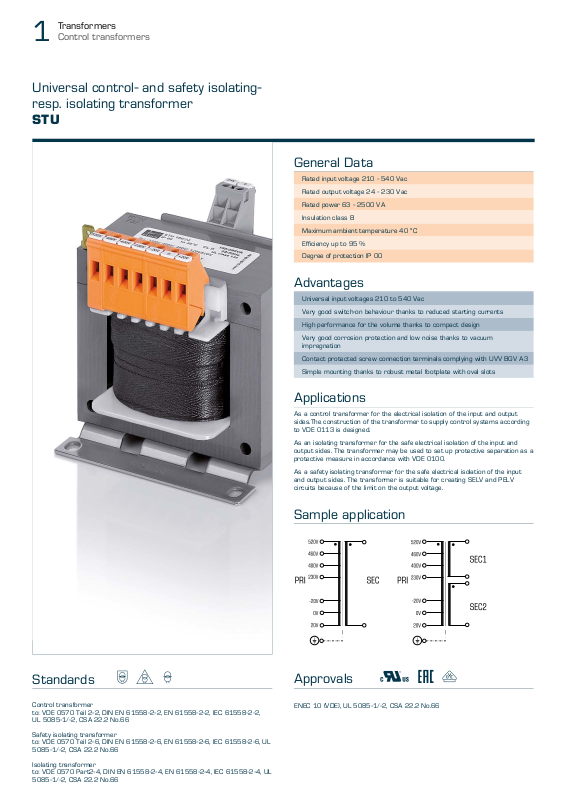

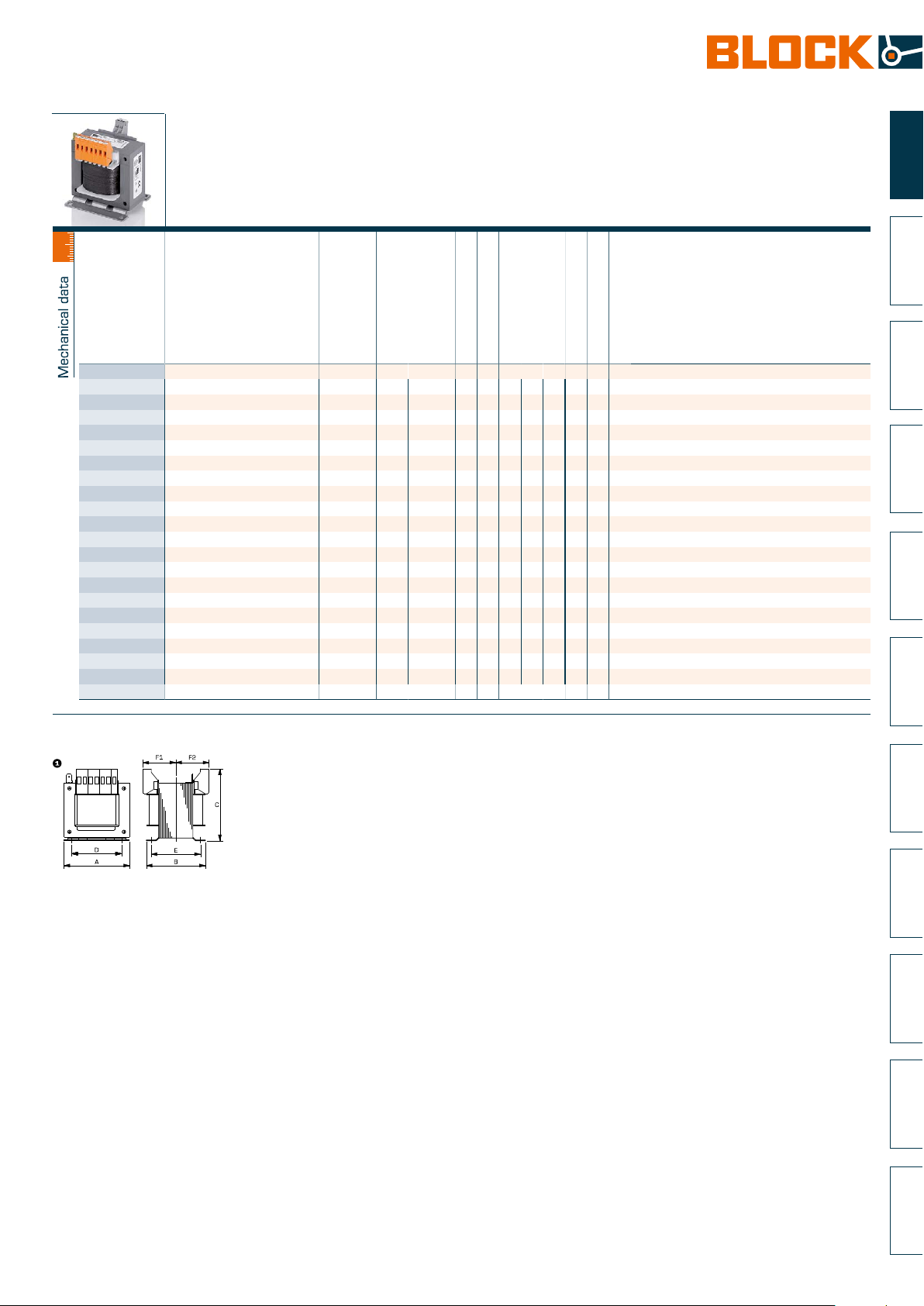

Universal control- and safety isolating­resp. isolating transformer
STU
General Data
Rated input voltage 210 - 540 Vac
Rated output voltage 24 - 230 Vac
Rated power 63 - 2500 VA
Insulation class B
Maximum ambient temperature 40 °C
Efficiency up to 95 %
Degree of protection IP 00
Advantages
Universal input voltages 210 to 540 Vac
Very good switch-on behaviour thanks to reduced starting currents
High performance for the volume thanks to compact design
Very good corrosion protection and low noise thanks to vacuum impregnation
Contact protected screw connection terminals complying with UVV BGV A3
Simple mounting thanks to robust metal footplate with oval slots
Applications
As a control transformer for the electrical isolation of the input and output sides.The construction of the transformer to supply control systems according to VDE 0113 is designed.
As an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100.
As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
Sample application
Standards 2 | " Z
Control transformer to: VDE 0570 Teil 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC 61558-2-2, UL 5085-1/-2, CSA 22.2 No.66
Safety isolating transformer to: VDE 0570 Teil 2-6, DIN EN 61558-2-6, EN 61558-2-6, IEC 61558-2-6, UL 5085-1/-2, CSA 22.2 No.66
Isolating transformer to: VDE 0570 Part2-4, DIN EN 61558-2-4, EN 61558-2-4, IEC 61558-2-4, UL 5085-1/-2, CSA 22.2 No.66
Approvals W J w Z
ENEC 10 (VDE), UL 5085-1/-2, CSA 22.2 No.66
Page 2
+
-
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Transformers
Control transformers
1
Universal control- and safety isolating­resp. isolating transformer
STU
Typ STU 63/24 STU 63/2x115 STU 100/24 STU 100/2x115 STU 130/24 STU 130/2x115
Input
Rated input voltage 210 Vac/230 Vac/250 Vac
Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Rated output voltage 24 Vac 2x115 Vac 24 Vac 2x115 Vac 24 Vac 2x115 Vac
Rated power VDE (DB cos phi=1) 63 VA 63 VA 100 VA 100 VA 130 VA 130 VA
Rated power VDE (KB cos phi=0.5) 110 VA 110 VA 225 VA 225 VA 300 VA 300 VA
No-load voltage (app. x factor) 1.10 1.10 1.10 1.10 1.10 1.10
Efficiency 84.0 % 84.0 % 86.0 % 86.0 % 86.0 % 86.0 %
Standards
Classification
Control- and safety isolating transformer
Approvals
Approvals cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE)
Environment
Ambient temperature max. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Type of cooling self-cooling self-cooling self-cooling self-cooling self-cooling self-cooling
Safety and protection
Type
Insulation class
Protection index
Safety class (prepared)
Short circuit strength
Open type Open type Open type Open type Open type Open type
VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105
IP 00 IP 00 IP 00 IP 00 IP 00 IP 00
I I I I I I
non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof
PRI Fusing recommendation by circuit breaker with tripping characteristic type 20 x Irated related to set)
Setting range 230 ±20 Vac 0.25 - 0.40 A 0.25 - 0.40 A 0.40 - 0.63 A 0.40 - 0.63 A 0.63 - 1.00 A 0.63 - 1.00 A
Setting value 230 ±20 Vac 0.30 A 0.30 A 0.53 A 0.53 A 0.66 A 0.66 A
Setting range 400 ±20 Vac 0.16 - 0.25 A 0.16 - 0.25 A 0.25 - 0.40 A 0.25 - 0.40 A 0.40 - 0.63 A 0.25 - 0.40 A
Setting value 400 ±20 Vac 0.20 A 0.20 A 0.31 A 0.31 A 0.38 A 0.38 A
Setting range 460 ±20 Vac 0.16 - 0.25 A 0.16 - 0.25 A 0.25 - 0.40 A 0.25 - 0.40 A 0.25 - 0.40 A 0.25 - 0.40 A
Setting value 460 ±20 Vac 0.17 A 0.17 A 0.27 A 0.27 A 0.33 A 0.33 A
Setting range 520 ±20 Vac 0.10 - 0.16 A 0.10 - 0.16 A 0.16 - 0.25 A 0.16 - 0.25 A 0.25 - 0.40 A 0.25 - 0.40 A
Setting value 520 ±20 Vac 0.15 A 0.15 A 0.24 A 0.24 A 0.30 A 0.30 A
Order numbers
Order Number STU 63/24 STU 63/2x115 STU 100/24 STU 100/2x115 STU 130/24 STU 130/2x115
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
1.1
Subject to change
59
Page 3
+
-
Universal control- and safety isolating- resp. isolating transformer
STU
Typ STU 500/24 STU 500/2x115 STU 630/24 STU 630/2x115 STU 800/24 STU 800/2x115
Input
Rated input voltage 210 Vac/230 Vac/250 Vac
Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Rated output voltage 24 Vac 2x115 Vac 24 Vac 2x115 Vac 24 Vac 2x115 Vac
Rated power VDE (DB cos phi=1) 500 VA 500 VA 630 VA 630 VA 800 VA 800 VA
Rated power VDE (KB cos phi=0.5) 1.370 VA 1.370 VA 1.540 VA 1.540 VA 2.000 VA 2.000 VA
No-load voltage (app. x factor) 1.05 1.05 1.05 1.05 1.04 1.04
Efficiency 91.0 % 91.0 % 92.0 % 92.0 % 92.0 % 92.0 %
Standards
Classification
Control- and safety isolating transformer
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
Approvals
Approvals cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE)
Environment
Ambient temperature max. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Type of cooling self-cooling self-cooling self-cooling self-cooling self-cooling self-cooling
Safety and protection
Type
Open type Open type Open type Open type Open type Open type
Insulation class
VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105
Protection index
IP 00 IP 00 IP 00 IP 00 IP 00 IP 00
Safety class (prepared)
I I I I I I
Short circuit strength
non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof
PRI Fusing recommendation by circuit breaker with tripping characteristic type 20 x Irated related to set)
Setting range 230 ±20 Vac 1.60 - 2.50 A 1.60 - 2.50 A 2.50 - 4.00 A 2.50 - 4.00 A 2.50 - 4.00 A 2.50 - 4.00 A
Setting value 230 ±20 Vac 2.30 A 2.30 A 3.00 A 3.00 A 3.70 A 3.70 A
Setting range 400 ±20 Vac 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A 1.60 - 2.50 A 1.60 - 2.50 A
Setting value 400 ±20 Vac 1.40 A 1.40 A 1.70 A 1.70 A 2.10 A 2.10 A
Setting range 460 ±20 Vac 1.00 - 1.60 A 1.00 - 1.60 A 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A
Setting value 460 ±20 Vac 1.20 A 1.20 A 1.50 A 1.50 A 1.70 A 1.70 A
Setting range 520 ±20 Vac 1.00 - 1.60 A 1.00 - 1.60 A 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A
Setting value 520 ±20 Vac 1.00 A 1.00 A 1.30 A 1.30 A 1.60 A 1.60 A
Order numbers
Order Number STU 500/24 STU 500/2x115 STU 630/24 STU 630/2x115 STU 800/24 STU 800/2x115
+
-
Transformers
Control transformers
1
Universal control- and safety isolating­resp. isolating transformer
STU
Typ STU 160/24 STU 160/2x115 STU 250/24 STU 250/2x115 STU 400/24 STU 400/2x115
Input
Rated input voltage 210 Vac/230 Vac/250 Vac
Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Rated output voltage 24 Vac 2x115 Vac 24 Vac 2x115 Vac 24 Vac 2x115 Vac
Rated power VDE (DB cos phi=1) 160 VA 160 VA 250 VA 250 VA 400 VA 400 VA
Rated power VDE (KB cos phi=0.5) 390 VA 390 VA 555 VA 555 VA 1.020 VA 1.020 VA
No-load voltage (app. x factor) 1.09 1.09 1.08 1.08 1.06 1.06
Efficiency 87.0 % 87.0 % 90.0 % 90.0 % 91.0 % 91.0 %
Standards
Classification
Approvals
Approvals cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE)
Environment
Ambient temperature max. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Type of cooling self-cooling self-cooling self-cooling self-cooling self-cooling self-cooling
Safety and protection
Type
Insulation class
Protection index
Safety class (prepared)
Short circuit strength
PRI Fusing recommendation by circuit breaker with tripping characteristic type 20 x Irated related to set)
Setting range 230 ±20 Vac 0.63 - 1.00 A 0.63 - 1.00 A 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A
Setting value 230 ±20 Vac 0.80 A 0.80 A 1.20 A 1.20 A 1.90 A 1.90 A
Setting range 400 ±20 Vac 0.40 - 0.63 A 0.40 - 0.63 A 0.63 - 1.00 A 0.63 - 1.00 A 1.00 - 1.60 A 1.00 - 1.60 A
Setting value 400 ±20 Vac 0.50 A 0.50 A 0.70 A 0.70 A 1.10 A 1.10 A
Setting range 460 ±20 Vac 0.40 - 0.63 A 0.40 - 0.63 A 0.40 - 0.63 A 0.40 - 0.63 A 1.00 - 1.60 A 1.00 - 1.60 A
Setting value 460 ±20 Vac 0.40 A 0.40 A 0.60 A 0.60 A 1.00 A 1.00 A
Setting range 520 ±20 Vac 0.25 - 0.40 A 0.25 - 0.40 A 0.40 - 0.63 A 0.40 - 0.63 A 0.63 - 1.00 A 0.63 - 1.00 A
Setting value 520 ±20 Vac 0.30 A 0.30 A 0.50 A 0.50 A 0.90 A 0.90 A
Order numbers
Order Number STU 160/24 STU 160/2x115 STU 250/24 STU 250/2x115 STU 400/24 STU 400/2x115
Control- and safety isolating transformer
Open type Open type Open type Open type Open type Open type
VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105
IP 00 IP 00 IP 00 IP 00 IP 00 IP 00
I I I I I I
non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
Subject to change
60
Page 4
+
-
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Transformers
Control transformers
1
Universal control- and safety isolating­resp. isolating transformer
STU
Typ STU 500/24 STU 500/2x115 STU 630/24 STU 630/2x115 STU 800/24 STU 800/2x115
Input
Rated input voltage 210 Vac/230 Vac/250 Vac
Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Rated output voltage 24 Vac 2x115 Vac 24 Vac 2x115 Vac 24 Vac 2x115 Vac
Rated power VDE (DB cos phi=1) 500 VA 500 VA 630 VA 630 VA 800 VA 800 VA
Rated power VDE (KB cos phi=0.5) 1.370 VA 1.370 VA 1.540 VA 1.540 VA 2.000 VA 2.000 VA
No-load voltage (app. x factor) 1.05 1.05 1.05 1.05 1.04 1.04
Efficiency 91.0 % 91.0 % 92.0 % 92.0 % 92.0 % 92.0 %
Standards
Classification
Control- and safety isolating transformer
Approvals
Approvals cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE)
Environment
Ambient temperature max. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Type of cooling self-cooling self-cooling self-cooling self-cooling self-cooling self-cooling
Safety and protection
Type
Insulation class
Protection index
Safety class (prepared)
Short circuit strength
Open type Open type Open type Open type Open type Open type
VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105
IP 00 IP 00 IP 00 IP 00 IP 00 IP 00
I I I I I I
non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof
PRI Fusing recommendation by circuit breaker with tripping characteristic type 20 x Irated related to set)
Setting range 230 ±20 Vac 1.60 - 2.50 A 1.60 - 2.50 A 2.50 - 4.00 A 2.50 - 4.00 A 2.50 - 4.00 A 2.50 - 4.00 A
Setting value 230 ±20 Vac 2.30 A 2.30 A 3.00 A 3.00 A 3.70 A 3.70 A
Setting range 400 ±20 Vac 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A 1.60 - 2.50 A 1.60 - 2.50 A
Setting value 400 ±20 Vac 1.40 A 1.40 A 1.70 A 1.70 A 2.10 A 2.10 A
Setting range 460 ±20 Vac 1.00 - 1.60 A 1.00 - 1.60 A 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A
Setting value 460 ±20 Vac 1.20 A 1.20 A 1.50 A 1.50 A 1.70 A 1.70 A
Setting range 520 ±20 Vac 1.00 - 1.60 A 1.00 - 1.60 A 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A
Setting value 520 ±20 Vac 1.00 A 1.00 A 1.30 A 1.30 A 1.60 A 1.60 A
Order numbers
Order Number STU 500/24 STU 500/2x115 STU 630/24 STU 630/2x115 STU 800/24 STU 800/2x115
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
Control- and safety isolating transformer
Control- and isolating transformer
1.1
Subject to change
61
Page 5
+
-
Universal control- and safety isolating- resp. isolating transformer
STU
Typ
Terminals
Fixing method
Fixing screws
Weight
Dimension picture (in mm)
A B C D E F1 F2
STU 63/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M4 1.5 kg
1
84 70 95 64 50 38 38
STU 63/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M4 1.5 kg
1
84 64 94 64 50 38 38
STU 100/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M4 2.0 kg
1
84 76 94 64 63.5 45 45
STU 100/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M4 2.0 kg
1
84 76 94 64 63.5 45 45
STU 130/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 2.3 kg
1
96 78 105 84 63.5 39 39
STU 130/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 2.3 kg
1
96 78 105 84 63.5 39 39
STU 160/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 2.8 kg
1
96 88 105 84 73 46 46
STU 160/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 2.8 kg
1
96 88 105 84 73 46 46
STU 250/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 4.1 kg
1
120 92 123 90 74 46 46
STU 250/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 4.1 kg
1
120 92 123 90 74 46 46
STU 400/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 5.4 kg
1
120 102 123 90 85 50 67
STU 400/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 5.4 kg
1
120 102 123 90 85 50 58
STU 500/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 7.0 kg
1
150 122 126 90 104 60 77
STU 500/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 7.0 kg
1
120 122 123 90 104 60 68
STU 630/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 7.9 kg
1
150 111 149 122 90 47 65
STU 630/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 7.9 kg
1
150 111 149 122 90 47 56
STU 800/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 10.3 kg
1
150 139 150 122 106 54 74
STU 800/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 10.3 kg
1
150 128 149 122 106 54 65
STU 1000/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 13.5 kg
1
150 154 149 122 130 68 77
STU 1600/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M8 17.8 kg
1
192 145 182 156 120 86 66
STU 2000/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M8 22.4 kg
1
192 180 182 156 150 82 83
STU 2500/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M8 25.3 kg
1
192 185 182 156 160 87 88
30
Dimension pictures
Transformers
Control transformers
1
Universal control- and safety isolating­resp. isolating transformer
STU
Typ STU 1000/2x115 STU 1600/2x115 STU 2000/2x115 STU 2500/2x115
Input
Rated input voltage 210 Vac/230 Vac/250 Vac
Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Rated output voltage 2x115 Vac 2x115 Vac 2x115 Vac 2x115 Vac
Rated power VDE (DB cos phi=1) 1.000 VA 1.600 VA 2.000 VA 2.500 VA
Rated power VDE (KB cos phi=0.5) 3.120 VA 3.800 VA 5.770 VA 6.200 VA
No-load voltage (app. x factor) 1.03 1.03 1.02 1.02
Efficiency 94.0 % 94.0 % 95.0 % 95.0 %
Standards
Classification
Approvals
Approvals cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE) cURus, ENEC 10 (VDE)
Environment
Ambient temperature max. 40 °C 40 °C 40 °C 40 °C
Type of cooling self-cooling self-cooling self-cooling self-cooling
Safety and protection
Type
Insulation class
Protection index
Safety class (prepared)
Short circuit strength
PRI Fusing recommendation
Control- and isolating transformer
Open type Open type Open type Open type
VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105 VDE=B, UL=class 105
IP 00 IP 00 IP 00 IP 00
I I I I
non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof
by circuit breaker with tripping characteristic type 20 x Irated related to set)
Setting range 230 ±20 Vac 4.00 - 6.30 A 6.30 - 10.00 A 8.00 - 12.00 A 10.00 - 16.00 A
Setting value 230 ±20 Vac 4.60 A 7.30 A 9.10 A 11.20 A
Setting range 400 ±20 Vac 2.50 - 4.00 A 4.00 - 6.30 A 4.00 - 6.30 A 6.30 - 10.00 A
Setting value 400 ±20 Vac 2.60 A 4.20 A 5.20 A 6.50 A
Setting range 460 ±20 Vac 1.60 - 2.50 A 2.50 - 4.00 A 4.00 - 6.30 A 4.00 - 6.30 A
Setting value 460 ±20 Vac 2.30 A 3.70 A 4.50 A 5.60 A
Setting range 520 ±20 Vac 1.60 - 2.50 A 2.50 - 4.00 A 4.00 - 6.30 A 4.00 - 6.30 A
Setting value 520 ±20 Vac 2.00 A 3.20 A 4.00 A 5.00 A
Order numbers
Order Number STU 1000/2x115 STU 1600/2x115 STU 2000/2x115 STU 2500/2x115
Control- and isolating transformer
Control- and isolating transformer
Control- and isolating transformer
62
Subject to change
Page 6
30
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Transformers
Control transformers
1
Universal control- and safety isolating­resp. isolating transformer
STU
Typ
STU 63/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M4 1.5 kg STU 63/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M4 1.5 kg STU 100/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M4 2.0 kg STU 100/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M4 2.0 kg STU 130/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 2.3 kg STU 130/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 2.3 kg STU 160/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 2.8 kg STU 160/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 2.8 kg STU 250/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 4.1 kg STU 250/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 4.1 kg STU 400/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 5.4 kg STU 400/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 5.4 kg STU 500/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 7.0 kg STU 500/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M5 7.0 kg STU 630/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 7.9 kg STU 630/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 7.9 kg STU 800/24 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 10.3 kg STU 800/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 10.3 kg STU 1000/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M6 13.5 kg STU 1600/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M8 17.8 kg STU 2000/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M8 22.4 kg STU 2500/2x115 Screw-type terminals, PE 6.3 x 0.8 Base plate M8 25.3 kg
Terminals
Fixing method
Fixing screws
Weight
Dimension picture (in mm)
A B C D E F1 F2
84 70 95 64 50 38 38
1
84 64 94 64 50 38 38
1
84 76 94 64 63.5 45 45
1
84 76 94 64 63.5 45 45
1
96 78 105 84 63.5 39 39
1
96 78 105 84 63.5 39 39
1
96 88 105 84 73 46 46
1
96 88 105 84 73 46 46
1
120 92 123 90 74 46 46
1
120 92 123 90 74 46 46
1
120 102 123 90 85 50 67
1
120 102 123 90 85 50 58
1
150 122 126 90 104 60 77
1
120 122 123 90 104 60 68
1
150 111 149 122 90 47 65
1
150 111 149 122 90 47 56
1
150 139 150 122 106 54 74
1
150 128 149 122 106 54 65
1
150 154 149 122 130 68 77
1
192 145 182 156 120 86 66
1
192 180 182 156 150 82 83
1
192 185 182 156 160 87 88
1
1.1
Dimension pictures
Subject to change
63
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
