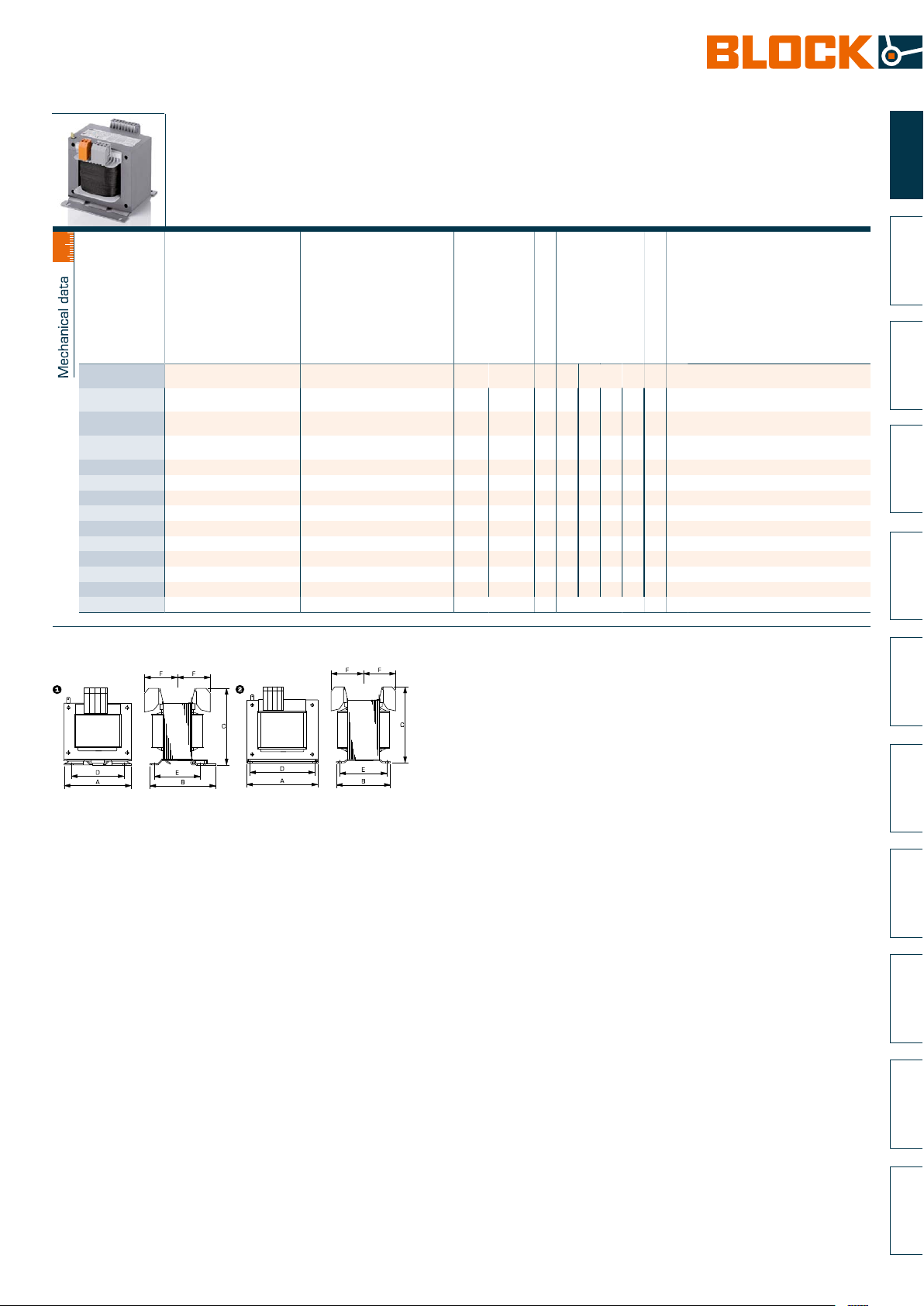

Universal control- and safety isolating- resp. isolating transformer

USTE

General Data

Rated input voltage 208 - 600 Vac

Rated output voltage 24 - 230 Vac

Rated power 100 - 3200 VA

Insulation class B

Maximum ambient temperature 40 °C

Efficiency up to 96 %

Degree of protection IP 00

Advantages

Universal input voltages 208 to 600 Vac

Very good switch-on behaviour thanks to reduced starting currents

High performance for the volume thanks to compact design

Very good corrosion protection and low noise thanks to vacuum impregnation

Quick to cable up thanks to the use of spring-clamp terminals

Contact protected screw connection terminals complying with UVV BGV A3

Simple mounting thanks to robust metal footplate with oval slots

Up to 250 VA with combination footplate for bolted and rail mounting

Applications

As a control transformer for the electrical isolation of the input and output sides. The construction of the transformer to supply control systems according to VDE 0113 is designed.

As an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100.

As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.

Sample application

Universal control- and safety isolating- resp. isolating transformer

USTE

General Data

Rated input voltage 208 - 600 Vac

Rated output voltage 24 - 230 Vac

Rated power 100 - 3200 VA

Insulation class B

Maximum ambient temperature 40 °C

Efficiency up to 96 %

Degree of protection IP 00

Advantages

Universal input voltages 208 to 600 Vac

Very good switch-on behaviour thanks to reduced starting currents

High performance for the volume thanks to compact design

Very good corrosion protection and low noise thanks to vacuum impregnation

Quick to cable up thanks to the use of spring-clamp terminals

Contact protected screw connection terminals complying with UVV BGV A3

Simple mounting thanks to robust metal footplate with oval slots

Up to 250 VA with combination footplate for bolted and rail mounting

Applications

As a control transformer for the electrical isolation of the input and output sides. The construction of the transformer to supply control systems according to VDE 0113 is designed.

Sample application

Standards 2 | " Z

Approvals W J Z

Universal control- and safety isolating- resp. isolating transformer

USTE

General Data

Rated input voltage 208 - 600 Vac

Rated output voltage 24 - 230 Vac

Rated power 100 - 3200 VA

Insulation class B

Maximum ambient temperature 40 °C

Efficiency up to 96 %

Degree of protection IP 00

Advantages

Universal input voltages 208 to 600 Vac

Very good switch-on behaviour thanks to reduced starting currents

High performance for the volume thanks to compact design

Very good corrosion protection and low noise thanks to vacuum impregnation

Quick to cable up thanks to the use of spring-clamp terminals

Contact protected screw connection terminals complying with UVV BGV A3

Simple mounting thanks to robust metal footplate with oval slots

Up to 250 VA with combination footplate for bolted and rail mounting

Applications

As a control transformer for the electrical isolation of the input and output sides. The construction of the transformer to supply control systems according to VDE 0113 is designed.

Sample application

Standards 2 | " Z

Approvals W J Z

Control transformer to: VDE 0570 Teil 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC 61558-2-2, UL 5085-1/-2, CSA 22.2 No.66

Safety isolating transformer

UL 5085-1/-2, CSA 22.2 No.66

Universal control- and safety isolating- resp. isolating transformer

USTE

General Data

Rated input voltage 208 - 600 Vac

Rated output voltage 24 - 230 Vac

Rated power 100 - 3200 VA

Insulation class B

Maximum ambient temperature 40 °C

Efficiency up to 96 %

Degree of protection IP 00

Advantages

Universal input voltages 208 to 600 Vac

Very good switch-on behaviour thanks to reduced starting currents

High performance for the volume thanks to compact design

Very good corrosion protection and low noise thanks to vacuum impregnation

Quick to cable up thanks to the use of spring-clamp terminals

Contact protected screw connection terminals complying with UVV BGV A3

Simple mounting thanks to robust metal footplate with oval slots

Up to 250 VA with combination footplate for bolted and rail mounting

Applications

As a control transformer for the electrical isolation of the input and output sides. The construction of the transformer to supply control systems according to VDE 0113 is designed.

Sample application

Standards 2 | " Z

Approvals W J Z

Control transformer to: VDE 0570 Teil 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC 61558-2-2, UL 5085-1/-2, CSA 22.2 No.66

Safety isolating transformer to: VDE 0570 Teil 2-6, DIN EN 61558-2-6, EN 61558-2-6, IEC 61558-2-6, UL 5085-1/-2, CSA 22.2 No.66

UL 5085-1/-2, CSA 22.2 No.66

1.2

5.1

1.3

2.1

2.2

3.1

3.2

3.3

5.2

4.0

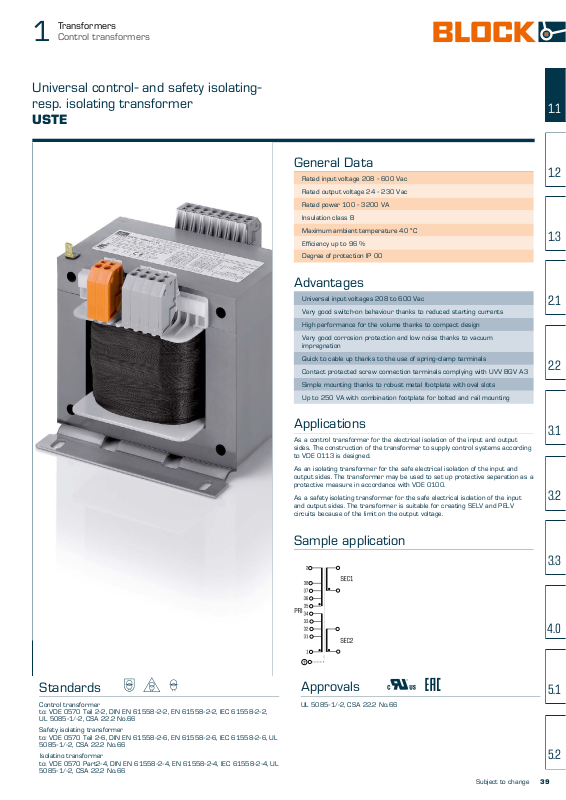

Transformers

Control transformers

Universal control- and safety isolatingresp. isolating transformer

USTE

General Data

Rated input voltage 208 - 600 Vac

Rated output voltage 24 - 230 Vac

Rated power 100 - 3200 VA

Insulation class B

Maximum ambient temperature 40 °C

Efficiency up to 96 %

Degree of protection IP 00

Advantages

Universal input voltages 208 to 600 Vac

Very good switch-on behaviour thanks to reduced starting currents

High performance for the volume thanks to compact design

Very good corrosion protection and low noise thanks to vacuum impregnation

Quick to cable up thanks to the use of spring-clamp terminals

Contact protected screw connection terminals complying with UVV BGV A3

Simple mounting thanks to robust metal footplate with oval slots

Up to 250 VA with combination footplate for bolted and rail mounting

Applications

As a control transformer for the electrical isolation of the input and output sides. The construction of the transformer to supply control systems according to VDE 0113 is designed.

Sample application

1.1

Standards 2 | " Z

Control transformer to: VDE 0570 Teil 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC 61558-2-2, UL 5085-1/-2, CSA 22.2 No.66

to: VDE 0570 Teil 2-6, DIN EN 61558-2-6, EN 61558-2-6, IEC 61558-2-6, UL 5085-1/-2, CSA 22.2 No.66

Isolating transformer

to: VDE 0570 Part2-4, DIN EN 61558-2-4, EN 61558-2-4, IEC 61558-2-4, UL 5085-1/-2, CSA 22.2 No.66

Approvals W J Z

UL 5085-1/-2, CSA 22.2 No.66

Subject to change

Universal control- and safety isolating- resp. isolating transformer

USTE

Typ USTE 630/2x12 USTE 630/2x115 USTE 800/2x115 USTE 1000/2x115 USTE 1200/2x115 USTE 1600/2x115

Input

Rated input voltage 208 Vac/230 Vac/380 Vac

400 Vac/415 Vac/440 Vac 460 Vac/480 Vac/500 Vac 525 Vac/550 Vac/575 Vac 600 Vac

208 Vac/230 Vac/380 Vac 400 Vac/415 Vac/440 Vac 460 Vac/480 Vac/500 Vac 525 Vac/550 Vac/575 Vac 600 Vac

Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz

Output

Rated output voltage 2x12 Vac 2x115 Vac 2x115 Vac 2x115 Vac 2x115 Vac 2x115 Vac

Rated power VDE (DB cos phi=1) 630 VA 630 VA 800 VA 1.000 VA 1.200 VA 1.600 VA

Rated power VDE (KB cos phi=0.5) 2.350 VA 2.350 VA 3.400 VA 5.000 VA 5.000 VA 7.800 VA

No-load voltage (app. x factor) 1.03 1.03 1.03 1.02 1.02 1.02

Efficiency 93.0 % 93.0 % 93.0 % 94.0 % 94.0 % 94.0 %

Standards

Classification

Control- and safety isolating transformer

Control- and isolating transformer

Approvals

Approvals cURus cURus cURus cURus cURus cURus

Environment

Ambient temperature max. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C

Type of cooling self-cooling self-cooling self-cooling self-cooling self-cooling self-cooling

Safety and protection

Type

Open type Open type Open type Open type Open type Open type

Insulation class

VDE=B, UL=class 130 VDE=B, UL=class 130 VDE=B, UL=class 130 VDE=B, UL=class 130 VDE=B, UL=class 130 VDE=B, UL=class 130

Protection index

IP 00 IP 00 IP 00 IP 00 IP 00 IP 00

Safety class (prepared)

I I I I I I

Short circuit strength

non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof

PRI Fusing recommendation by circuit breaker with tripping characteristic type 20 x Irated related to set)

Setting range 208 - 230 Vac 2.50 - 4.00 A 2.50 - 4.00 A 2.50 - 4.00 A 4.00 - 6.30 A 4.00 - 6.30 A 6.30 - 10.00 A

Setting value 208 - 230 Vac 3.20 A 3.20 A 3.90 A 5.00 A 5.00 A 7.50 A

Setting range 380 - 415 Vac 1.60 - 2.50 A 1.60 - 2.50 A 1.60 - 2.50 A 2.50 - 4.00 A 2.50 - 4.00 A 4.00 - 6.30 A

Setting value 380 - 415 Vac 1.70 A 1.70 A 2.20 A 2.70 A 2.70 A 4.10 A

Setting range 440 +20 Vac 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A 1.60 - 2.50 A 2.50 - 4.00 A

Setting value 440 +20 Vac 1.50 A 1.50 A 1.90 A 2.40 A 2.40 A 3.70 A

Setting range 500 -20/+25 Vac 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A 1.60 - 2.50 A 2.50 - 4.00 A

Setting value 500 -20/+25 Vac 1.30 A 1.30 A 1.70 A 2.20 A 2.20 A 3.30 A

Setting range 575 ±25 Vac 1.00 - 1.60 A 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A 2.50 - 4.00 A

Setting value 575 ±25 Vac 1.20 A 1.20 A 1.50 A 1.90 A 1.90 A 2.90 A

Order numbers

Order Number USTE 630/2x12 USTE 630/2x115 USTE 800/2x115 USTE 1000/2x115 USTE 1200/2x115 USTE 1600/2x115

Transformers

Control transformers

Universal control- and safety isolatingresp. isolating transformer

USTE

Typ USTE 100/2x12 USTE 100/2x115 USTE 250/2x12 USTE 250/2x115 USTE 400/2x12 USTE 400/2x115

Input

Rated input voltage 208 Vac/230 Vac/380 Vac

Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz

Output

Rated output voltage 2x12 Vac 2x115 Vac 2x12 Vac 2x115 Vac 2x12 Vac 2x115 Vac

Rated power VDE (DB cos phi=1) 100 VA 100 VA 250 VA 250 VA 400 VA 400 VA

Rated power VDE (KB cos phi=0.5) 310 VA 310 VA 850 VA 850 VA 1.440 VA 1.440 VA

No-load voltage (app. x factor) 1.07 1.07 1.07 1.07 1.05 1.05

Efficiency 87.0 % 87.0 % 90.0 % 90.0 % 92.0 % 92.0 %

Standards

Classification

Approvals

Approvals cURus cURus cURus cURus cURus cURus

Environment

Ambient temperature max. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C

Type of cooling self-cooling self-cooling self-cooling self-cooling self-cooling self-cooling

Safety and protection

Type

Insulation class

Protection index

Safety class (prepared)

Short circuit strength

PRI Fusing recommendation by circuit breaker with tripping characteristic type 20 x Irated related to set)

Setting range 208 - 230 Vac 0.63 - 1.00 A 0.63 - 1.00 A 1.00 - 1.60 A 1.00 - 1.60 A 1.60 - 2.50 A 1.60 - 2.50 A

Setting value 208 - 230 Vac 0.63 A 0.63 A 1.30 A 1.30 A 2.10 A 2.10 A

Setting range 380 - 415 Vac 0.25 - 0.40 A 0.25 - 0.40 A 0.63 - 1.00 A 0.63 - 1.00 A 1.00 - 1.60 A 1.00 - 1.60 A

Setting value 380 - 415 Vac 0.34 A 0.34 A 0.71 A 0.71 A 1.10 A 1.10 A

Setting range 440 +20 Vac 0.25 - 0.40 A 0.25 - 0.40 A 0.63 - 1.00 A 0.63 - 1.00 A 1.00 - 1.60 A 1.00 - 1.60 A

Setting value 440 +20 Vac 0.31 A 0.31 A 0.64 A 0.64 A 1.00 A 1.00 A

Setting range 500 -20/+25 Vac 0.25 - 0.40 A 0.25 - 0.40 A 0.40 - 0.63 A 0.40 - 0.63 A 0.63 - 1.00 A 0.63 - 1.00 A

Setting value 500 -20/+25 Vac 0.27 A 0.27 A 0.57 A 0.57 A 0.90 A 0.90 A

Setting range 575 ±25 Vac 0.16 - 0.25 A 0.16 - 0.25 A 0.40 - 0.63 A 0.40 - 0.63 A 0.63 - 1.00 A 0.63 - 1.00 A

Setting value 575 ±25 Vac 0.24 A 0.24 A 0.50 A 0.81 A 0.81 A 0.81 A

Order numbers

Order Number USTE 100/2x12 USTE 100/2x115 USTE 250/2x12 USTE 250/2x115 USTE 400/2x12 USTE 400/2x115

400 Vac/415 Vac/440 Vac 460 Vac/480 Vac/500 Vac 525 Vac/550 Vac/575 Vac 600 Vac

Control- and safety isolating transformer

Open type Open type Open type Open type Open type Open type

VDE=B, UL=class 130 VDE=B, UL=class 130 VDE=B, UL=class 130 VDE=B, UL=class 130 VDE=B, UL=class 130 VDE=B, UL=class 130

IP 00 IP 00 IP 00 IP 00 IP 00 IP 00

I I I I I I

non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof non-short-circuit proof

208 Vac/230 Vac/380 Vac 400 Vac/415 Vac/440 Vac 460 Vac/480 Vac/500 Vac 525 Vac/550 Vac/575 Vac 600 Vac

Control- and isolating transformer

208 Vac/230 Vac/380 Vac 400 Vac/415 Vac/440 Vac 460 Vac/480 Vac/500 Vac 525 Vac/550 Vac/575 Vac 600 Vac

Control- and safety isolating transformer

208 Vac/230 Vac/380 Vac 400 Vac/415 Vac/440 Vac 460 Vac/480 Vac/500 Vac 525 Vac/550 Vac/575 Vac 600 Vac

Control- and isolating transformer

208 Vac/230 Vac/380 Vac 400 Vac/415 Vac/440 Vac 460 Vac/480 Vac/500 Vac 525 Vac/550 Vac/575 Vac 600 Vac

Control- and safety isolating transformer

208 Vac/230 Vac/380 Vac 400 Vac/415 Vac/440 Vac 460 Vac/480 Vac/500 Vac 525 Vac/550 Vac/575 Vac 600 Vac

Control- and isolating transformer

Subject to change
