Radio interference suppression filter, single-phase, low leakage current
HFE 200
Typ HFE 200-230/1 HFE 200-230/3 HFE 200-230/6 HFE 200-230/10 HFE 200-230/12 HFE 200-230/16
Operating data
Rated voltage 250 Vac 250 Vac 250 Vac 250 Vac 250 Vac 250 Vac
Voltage range 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac
Rated current 1 A 3 A 6 A 10 A 12 A 16 A
Leakage current (50 Hz) 0.4 mA 0.4 mA 0.4 mA 0.4 mA 0.4 mA 0.4 mA
Rated frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Overrating Capacity 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly
Environment
Climatic category 25/085/21
[in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
Ambient temperature max. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
Safety and protection
Type
Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure
Protection index
IP 20 IP 20 IP 20 IP 20 IP 20 IP 20
Safety class (prepared)
I I I I I I
Test voltage 1700 Vdc Phase/N,
2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Order numbers
+
-
Order Number HFE 200-230/1 HFE 200-230/3 HFE 200-230/6 HFE 200-230/10 HFE 200-230/12 HFE 200-230/16
Terminal and mounting
Terminals phase
Screw clamp, 4 mm² Screw clamp, 4 mm² Screw clamp, 4 mm² Screw clamp, 4 mm² Screw clamp, 4 mm² Screw clamp, 4 mm²
Terminals PE
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Fixing method Mounting lugs Mounting lugs Mounting lugs Mounting lugs Mounting lugs Mounting lugs
Measures and weights
Weight 0.14 kg 0.19 kg 0.37 kg 0.53 kg 0.53 kg 0.58 kg
Dimension picture (in mm)
1 1 1 1 1 1
A 85 85 114 156 156 119
B 54 54 57 58 58 86
C 35 47 55 67 67 69
D 75 75 103 143 143 109
E 34 46 54 66 66 68
F 5.5 5.5 5.5 5.5 5.5 5.5
30
Dimension pictures
Reactors / EMI filters
Single-phase radio interference suppression filters
3

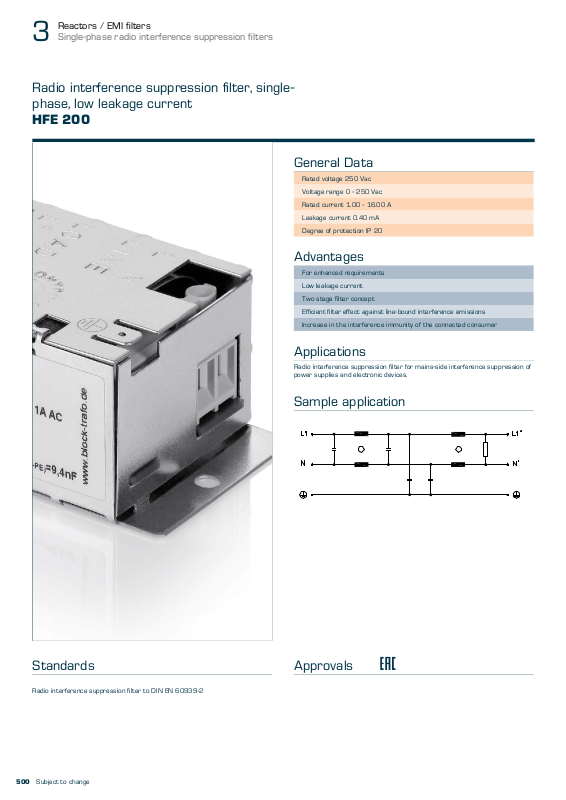

Radio interference suppression filter, single­phase, low leakage current
HFE 200
General Data
Rated voltage 250 Vac
Rated current 1.00 - 16.00 A
Leakage current 0.40 mA
Degree of protection IP 20
Advantages
For enhanced requirements
Low leakage current
Two stage filter concept
Efficient filter effect against line-bound interference emissions
Increase in the interference immunity of the connected consumer
Applications
Radio interference suppression filter for mains-side interference suppression of power supplies and electronic devices.
Sample application
StandardsZ
Radio interference suppression filter to DIN EN 60939-2
Subject to change
500
Approvals J Z
+
-
30
Reactors / EMI filters
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Single-phase radio interference suppression filters
3
Radio interference suppression filter, single-phase, low leakage current
HFE 200
Typ HFE 200-230/1 HFE 200-230/3 HFE 200-230/6 HFE 200-230/10 HFE 200-230/12 HFE 200-230/16
Operating data
Rated voltage 250 Vac 250 Vac 250 Vac 250 Vac 250 Vac 250 Vac
Voltage range 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac
Rated current 1 A 3 A 6 A 10 A 12 A 16 A
Leakage current (50 Hz) 0.4 mA 0.4 mA 0.4 mA 0.4 mA 0.4 mA 0.4 mA
Rated frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Overrating Capacity 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly
Environment
Climatic category 25/085/21
Ambient temperature max. 40 °C 40 °C 40 °C 40 °C 40 °C 40 °C
[in accordance with EN 60068-1]
Safety and protection
Type
Protection index
Safety class (prepared)
Test voltage 1700 Vdc Phase/N,
Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure
IP 20 IP 20 IP 20 IP 20 IP 20 IP 20
I I I I I I
2700 Vdc Phase/PE
Order numbers
Order Number HFE 200-230/1 HFE 200-230/3 HFE 200-230/6 HFE 200-230/10 HFE 200-230/12 HFE 200-230/16
Terminal and mounting
Terminals phase
Terminals PE
Fixing method Mounting lugs Mounting lugs Mounting lugs Mounting lugs Mounting lugs Mounting lugs
Screw clamp, 4 mm² Screw clamp, 4 mm² Screw clamp, 4 mm² Screw clamp, 4 mm² Screw clamp, 4 mm² Screw clamp, 4 mm²
Tab connector,
6.3 x 0.8 mm
Measures and weights
Weight 0.14 kg 0.19 kg 0.37 kg 0.53 kg 0.53 kg 0.58 kg
Dimension picture (in mm)
A 85 85 114 156 156 119
B 54 54 57 58 58 86
C 35 47 55 67 67 69
D 75 75 103 143 143 109
E 34 46 54 66 66 68
F 5.5 5.5 5.5 5.5 5.5 5.5
1 1 1 1 1 1
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
Dimension pictures
Subject to change
501
